Standards Content (Sample)

INTERNATIONAL
IEC
STANDARD 60870-5-6
First edition
2006-03
Telecontrol equipment and systems –
Part 5-6:
Guidelines for conformance testing for
the IEC 60870-5 companion standards
Reference number
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
x IEC Web Site (www.iec.ch)
x Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
x IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
x Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: [e-mail]
Tel: [phone]
Fax: [phone]
INTERNATIONAL
IEC
STANDARD 60870-5-6
First edition
2006-03
Telecontrol equipment and systems –
Part 5-6:
Guidelines for conformance testing for
the IEC 60870-5 companion standards
© IEC 2006 ⎯ Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale S
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
For price, see current catalogue

– 2 – 60870-5-6 © IEC:2006(E)

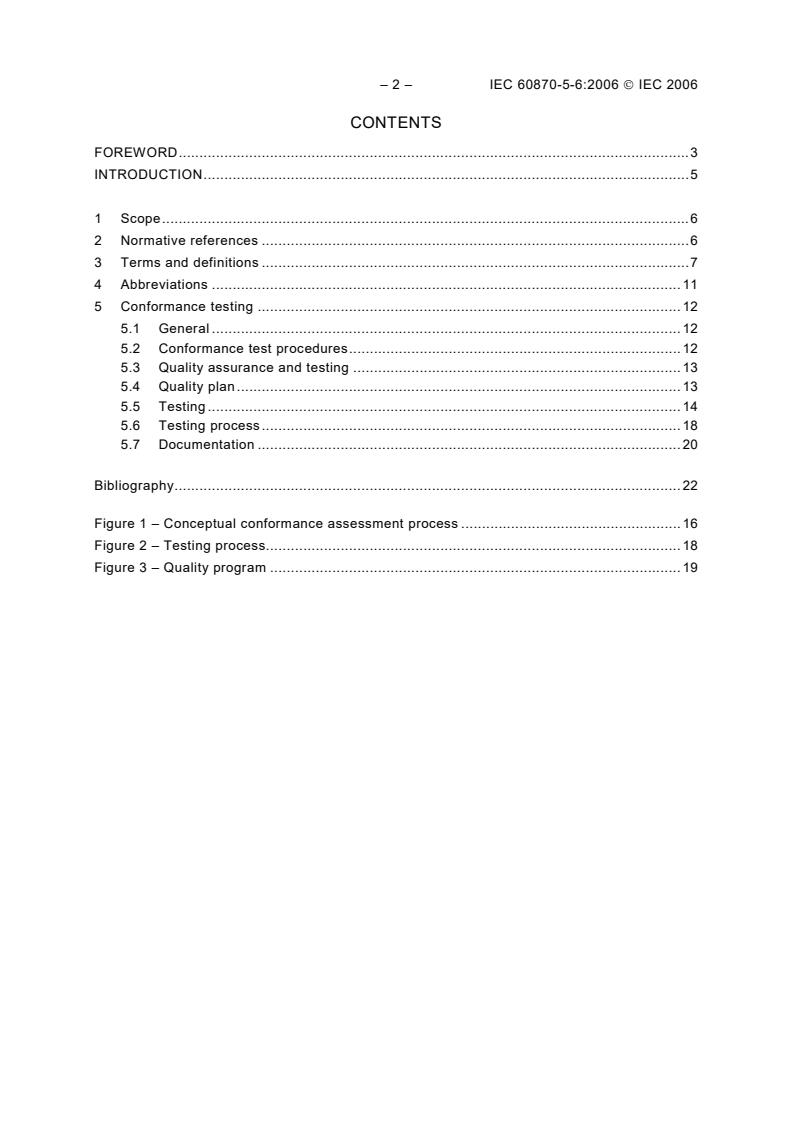

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Terms and definitions .7
4 Abbreviations .11
5 Conformance testing .12
5.1 General .12
5.2 Conformance test procedures.12
5.3 Quality assurance and testing .13
5.4 Quality plan.13
5.5 Testing .14
5.6 Testing process.18
5.7 Documentation .20
Bibliography.22
Figure 1 – Conceptual conformance assessment process .16
Figure 2 – Testing process.18
Figure 3 – Quality program .19

60870-5-6 © IEC:2006(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TELECONTROL EQUIPMENT AND SYSTEMS –
Part 5-6: Guidelines for conformance testing for
the IEC 60870-5 companion standards
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60870-5-6 has been prepared by IEC technical committee 57:
Power systems management and associated information exchange.
The text of this part of IEC 60870-5 is based on the following documents:
FDIS Report on voting
57/792/FDIS 57/807/RVD
Full information on the voting for the approval of this part of IEC 60870-5 can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 60870-5-6 © IEC:2006(E)
IEC 60870-5 consists of the following parts, under the general title Telecontrol equipment and
systems – Part 5: Transmission protocols:
Part 5-1: Transmission frame formats
Part 5-2: Link transmission procedures
Part 5-3: General structure of application data
Part 5-4: Definition and coding of application information elements
Part 5-5: Basic application functions
Part 5-6: Guidelines for conformance testing for the IEC 60870-5 companion standards
Part 5-101: Companion standard for basic telecontrol tasks
Part 5-102 Companion standard for the transmission of integrated totals in electric power
systems
Part 5-103: Companion standard for the informative interface of protection equipment
Part 5-104: Network access for IEC 60870-5-101 using standard transport profiles
Part 5-601: Conformance test cases for the IEC 60870-5-101 companion standard
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

60870-5-6 © IEC:2006(E) – 5 –
INTRODUCTION
This part of IEC 60870-5 specifies methods and procedures for conformance testing of
Telecontrol equipment or systems using IEC 60870-5 standard(s).
This part of IEC 60870-5 contains general subjects and guidelines for the test environment.
Detailed test cases, mandatory and optional mandatory test cases for the companion
standards will become available as technical specifications (IEC 60870-5-60x).
Tests according to EMC requirements or related to environmental and organisational
conditions are beyond the scope of this part of IEC 60870-5. This part of IEC 60870-5 only
focuses on the protocol implementation and the related system functionality necessary to
validate the protocol implementation.

– 6 – 60870-5-6 © IEC:2006(E)
TELECONTROL EQUIPMENT AND SYSTEMS –
Part 5-6: Guidelines for conformance testing for
the IEC 60870-5 companion standards
1 Scope
This part of the IEC 60870-5 series specifies methods for conformance testing of telecontrol
equipment, amongst Substation Automation Systems (SAS) and telecontrol systems, including
front-end functions of SCADA.
The use of this part of IEC 60870-5 facilitates interoperability by providing a standard method
of testing protocol implementations, but it does not guarantee interoperability of devices. It is
expected that using this part of IEC 60870-5 during testing will minimize the risk of non-
interoperability.
The goal of this part of IEC 60870-5 is to enable unambiguous and standardised evaluation of
IEC 60870-5 companion standard protocol implementations. The guidelines and conditions for
the testing environment are described in this part of IEC 60870-5. The detailed test cases per
companion standard, containing among others mandatory and optional mandatory test cases
per Basic Application Function, ASDU and transmission procedure, will become available as
technical specifications (IEC 60870-5-60x). Other functionalities may need test cases, but this
is beyond the scope of this part of IEC 60870-5.
This part of IEC 60870-5 deals mainly with communication conformance testing; therefore
other requirements, such as safety or EMC are not covered. These requirements are covered
by other standards (if applicable) and the proof of compliance for these topics should be done
according to those standards.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60870-5-1, Telecontrol equipment and systems – Part 5: Transmission protocols –
Section One: Transmission frame formats
IEC 60870-5-2, Telecontrol equipment and systems – Part 5: Transmission protocols –
Section 2: Link transmission procedures
IEC 60870-5-3, Telecontrol equipment and systems – Part 5: Transmission protocols –
Section 3: General structure of application data
IEC 60870-5-4, Telecontrol equipment and systems – Part 5: Transmission protocols –
Section 4: Definition and coding of application information elements
IEC 60870-5-5, Telecontrol equipment and systems – Part 5: Transmission protocols –
Section 5: Basic application functions
ISO/IEC 9646 (all parts), Information technology – Open Systems Interconnection –
Conformance testing methodology and framework

60870-5-6 © IEC:2006(E) – 7 –
3 Terms and definitions
For the purposes of this part of IEC 60870-5, the following terms and definitions apply.
3.1
configuration (of a system or device)
step in system design: selecting functional units, assigning their locations and defining their
interconnections
3.2
configuration list
supplies an overview of all compatible hardware and software versions of components of
controlled/controlling stations including the software versions of relevant supporting tools
3.3
address config
address config is the configuration file containing the ASDU-addressing including the
information object addresses necessary to test all the functionality defined as in the PID
...

IEC 60870-5-6 ®
Edition 1.0 2006-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Telecontrol equipment and systems –
Part 5-6: Guidelines for conformance testing for the IEC 60870-5 companion
standards
Matériels et systèmes de téléconduite –
Partie 5-6: Lignes directrices pour les essais de conformité des normes
d’accompagnement IEC 60870-5
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60870-5-6 ®
Edition 1.0 2006-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Telecontrol equipment and systems –

Part 5-6: Guidelines for conformance testing for the IEC 60870-5 companion

standards
Matériels et systèmes de téléconduite –

Partie 5-6: Lignes directrices pour les essais de conformité des normes

d’accompagnement IEC 60870-5
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.200 ISBN 978-2-8322-4452-4

– 2 – IEC 60870-5-6:2006  IEC 2006
CONTENTS
FOREWORD . 3
INTRODUCTION . 5

1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Abbreviations . 11
5 Conformance testing . 12
5.1 General . 12
5.2 Conformance test procedures . 12
5.3 Quality assurance and testing . 13
5.4 Quality plan . 13
5.5 Testing . 14
5.6 Testing process . 18
5.7 Documentation . 20

Bibliography . 22

Figure 1 – Conceptual conformance assessment process . 16
Figure 2 – Testing process. 18
Figure 3 – Quality program . 19

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TELECONTROL EQUIPMENT AND SYSTEMS –

Part 5-6: Guidelines for conformance testing for
the IEC 60870-5 companion standards

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60870-5-6 has been prepared by IEC technical committee 57:
Power systems management and associated information exchange.
This bilingual version (2017-06) corresponds to the English version, published in 2006-03.
The text of this standard is based on the following documents:
FDIS Report on voting
57/792/FDIS 57/807/RVD
Full information on the voting for the approval of this part of IEC 60870-5 can be found in the
report on voting indicated in the above table.
The French version of this standard has not been voted upon.

– 4 – IEC 60870-5-6:2006  IEC 2006
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 60870-5 consists of the following parts, under the general title Telecontrol equipment and
systems – Part 5: Transmission protocols:
Part 5-1: Transmission frame formats
Part 5-2: Link transmission procedures
Part 5-3: General structure of application data
Part 5-4: Definition and coding of application information elements
Part 5-5: Basic application functions
Part 5-6: Guidelines for conformance testing for the IEC 60870-5 companion standards
Part 5-101: Companion standard for basic telecontrol tasks
Part 5-102 Companion standard for the transmission of integrated totals in electric power
systems
Part 5-103: Companion standard for the informative interface of protection equipment
Part 5-104: Network access for IEC 60870-5-101 using standard transport profiles
Part 5-601: Conformance test cases for the IEC 60870-5-101 companion standard
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
...
