IEC 62148-17:2013

Fibre optic active components and devices - Package and interface standards - Part 17: Transmitter and receiver components with dual coaxial RF connectors

IEC 62148-17:2013 covers physical interface specification of transmitter and receiver components with dual coaxial RF connectors. Keywords: interface specification, transmitter and receiver components, dual coaxial RF connectors.
This publication is to be read in conjunction with IEC 62148-1:2002.

Composants et dispositifs actifs à fibres optiques - Normes de boîtiers et d'interface - Partie 17: Composants émetteurs et récepteurs munis de connecteurs coaxiaux RF doubles

La CEI 62148-17:2013 concerne la spécification de l'interface physique des composants émetteurs et récepteurs munis de connecteurs coaxiaux RF doubles. Mots clés: spécification de l'interface, composants émetteurs et récepteurs, connecteurs coaxiaux RF doubles.
Cette publication doit être lue conjointement avec la CEI 62148-1:2002.

General Information

• Status: Published
• Publication Date: 24-Sep-2013
• ICS: 33.180.99 - Other fibre optic equipment
• Technical Committee: SC 86C - Fibre optic systems, sensing and active devices
• Current Stage: DELPUB - Deleted Publication
• Start Date: 20-Sep-2023
• Completion Date: 12-Aug-2022

Relations

• Revised: IEC 62148-17:2023 - Fibre optic active components and devices - Package and interface standards - Part 17: Transmitter and receiver components with dual coaxial RF connectors
• Effective Date: 05-Sep-2023

Overview

IEC 62148-17:2013 is an international standard published by the International Electrotechnical Commission (IEC) focusing on fibre optic active components and devices. This part of the IEC 62148 series specifically addresses package and interface standards for transmitter and receiver components with dual coaxial RF connectors. It provides a comprehensive physical interface specification that ensures mechanical interchangeability and consistent performance of these components across different manufacturers.

Designed to be used alongside IEC 62148-1:2002, this standard details the electrical and optical interface requirements, including pin configurations, connector types, pigtail interface options, and recommended package footprints for printed circuit board (PCB) and panel integrations.

Key keywords: interface specification, transmitter components, receiver components, dual coaxial RF connectors, fibre optic active components, package standards.

Key Topics

• Scope and Application
  IEC 62148-17:2013 covers the physical interface specifications relevant to fibre optic transmitter and receiver components incorporating dual coaxial RF connectors. It complements general guidelines from IEC 62148-1, emphasizing mechanical and electrical standardization for enhanced compatibility.

• Electrical Interface and Terminal Assignments
  The standard defines key electrical terminal functions and numbering for transmitter and receiver modules. Dual coaxial RF connectors are specified to support high-frequency electrical signals, typically using the SMPM (Sub-Miniature Push-On Miniature) connector interface. Pin assignments include laser diode anodes, photodiode inputs, modulator bias, and modulation voltage inputs, ensuring consistent signal routing.

• Mechanical Package and Footprint
  Detailed mechanical drawings specify package outlines and recommend footprint layouts for PCBs. This facilitates accurate mounting and soldering, ensuring interchangeability and simplifying integration into various system designs.

• Pigtail and Optical Connector Compatibility
  All optical fibres compliant with IEC 60793-2-50 and optical connectors defined in IEC 60874-1 are applicable, allowing flexible optical interconnect configurations for diverse applications.

• Electromagnetic Compatibility (EMC)
  The components must meet suitable EMC requirements, including emissions and immunity, under different operational environments. IEC Guide 107 offers guidance on drafting EMC requirements; however, electrostatic discharge (ESD) standards for these devices are still under development.

• Classification and Compliance
  These components are classified as type 5 per IEC 62148-1 definitions, covering transmitter and receiver devices with dual coaxial RF connectors designed for optical fibre applications.

Applications

IEC 62148-17:2013 standardizes the interface of transmitter and receiver devices used in fibre optic communication systems, which are critical in:

• High-speed optical networking
  where consistent and reliable high-frequency electrical and optical connections are essential.

• Telecommunications infrastructure
  ensuring modular and interchangeable components in transceivers and active optoelectronic devices.

• Data centers and enterprise networks
  allowing standardized form factors for optical components to optimize space and maintenance.

• Industrial and scientific fibre optic instrumentation
  providing reliability and interchangeability across specialized applications requiring dual coaxial RF connectors for signal interfacing.

By adhering to this standard, manufacturers and system integrators benefit from uniform interface designs, reduced design complexity, and improved interoperability.

Related Standards

• IEC 62148-1:2002 – General and guidance for fibre optic active components and devices package and interface standards, providing foundational principles applicable to part 17.

• IEC 60793-2-50 – Specifications for class B single-mode optical fibres, relevant for pigtail interfaces.

• IEC 60874-1 – Generic specification for fibre optic connectors and interconnecting devices, applicable when optical connectors terminate pigtails.

• IEC Guide 107 – Guide to drafting electromagnetic compatibility (EMC) publications, providing EMC requirement frameworks referenced in IEC 62148-17.

These related standards ensure comprehensive coverage of fibre optic component specifications, supporting both optical and electrical interfaces and guaranteeing compatibility across product lines and manufacturers.

---

By following IEC 62148-17:2013, engineers and manufacturers can achieve seamless integration of fibre optic transmitter and receiver components with dual coaxial RF connectors, fostering innovation and ensuring high-performance optical communication systems worldwide.

Standards Content (Sample)

IEC 62148-17 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –
Part 17: Transmitter and receiver components with dual coaxial RF connectors

Composants et dispositifs actifs à fibres optiques – Normes de boitiers et
d’interface –
Partie 17: Composants émetteurs et récepteurs munis de connecteurs coaxiaux
RF doubles
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 62148-17 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –

Part 17: Transmitter and receiver components with dual coaxial RF connectors

Composants et dispositifs actifs à fibres optiques – Normes de boitiers et

d’interface –
Partie 17: Composants émetteurs et récepteurs munis de connecteurs coaxiaux

RF doubles
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 33.180.99 ISBN 978-2-8322-1108-3

– 2 – 62148-17 © IEC:2013

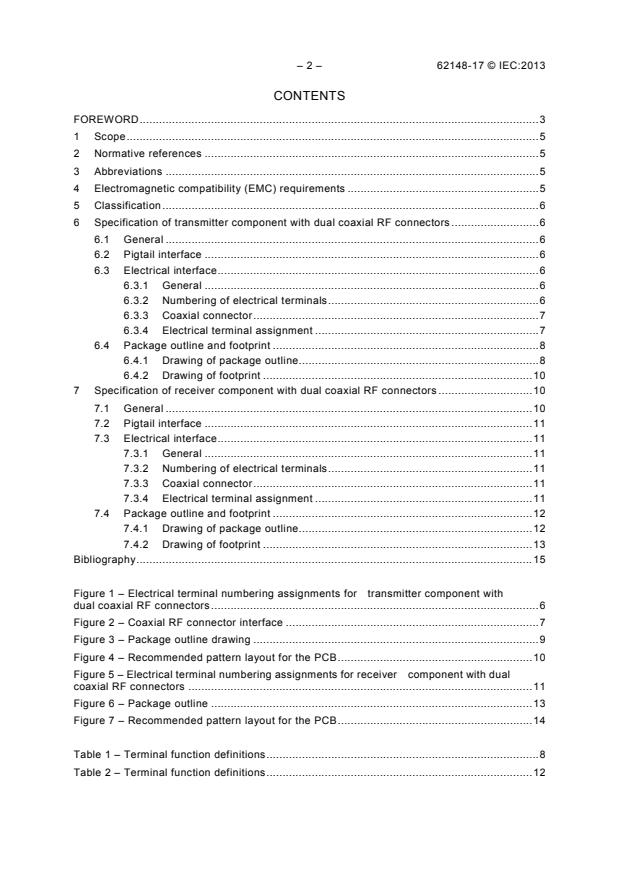

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Abbreviations . 5
4 Electromagnetic compatibility (EMC) requirements . 5
5 Classification . 6
6 Specification of transmitter component with dual coaxial RF connectors . 6
6.1 General . 6
6.2 Pigtail interface . 6
6.3 Electrical interface . 6
6.3.1 General . 6
6.3.2 Numbering of electrical terminals . 6
6.3.3 Coaxial connector . 7
6.3.4 Electrical terminal assignment . 7
6.4 Package outline and footprint . 8
6.4.1 Drawing of package outline . 8
6.4.2 Drawing of footprint . 10
7 Specification of receiver component with dual coaxial RF connectors . 10
7.1 General . 10
7.2 Pigtail interface . 11
7.3 Electrical interface . 11
7.3.1 General . 11
7.3.2 Numbering of electrical terminals . 11
7.3.3 Coaxial connector . 11
7.3.4 Electrical terminal assignment . 11
7.4 Package outline and footprint . 12
7.4.1 Drawing of package outline . 12
7.4.2 Drawing of footprint . 13
Bibliography . 15

Figure 1 – Electrical terminal numbering assignments for transmitter component with
dual coaxial RF connectors . 6
Figure 2 – Coaxial RF connector interface . 7
Figure 3 – Package outline drawing . 9
Figure 4 – Recommended pattern layout for the PCB . 10
Figure 5 – Electrical terminal numbering assignments for receiver component with dual
coaxial RF connectors . 11
Figure 6 – Package outline . 13
Figure 7 – Recommended pattern layout for the PCB . 14

Table 1 – Terminal function definitions . 8
Table 2 – Terminal function definitions . 12

62148-17 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 17: Transmitter and receiver components
with dual coaxial RF connectors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62148-17 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This standard is to be read in conjunction with IEC 62148-1.
The text of this standard is based on the following documents:
FDIS Report on voting
86C/1165/FDIS 86C/1186/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC website.

– 4 – 62148-17 © IEC:2013
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62148-17 © IEC:2013 – 5 –
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 17: Transmitter and receiver components
with dual coaxial RF connectors

1 Scope
This part of IEC 62148 covers physical interface specification of transmitter and receiver
components with dual coaxial RF connectors.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 60874-1, Fibre optic interconnecting devices and passive components – Connectors for
optical fibres and cables – Part 1: Generic specification
IEC 62148-1, Fibre optic active components and devices – Package and interface standards –
Part 1: General and guidance
IEC Guide 107, Electromagnetic compatibility – Guide to the drafting of electromagnetic
compatibility publications
3 Abbreviations
For the purposes of this document, the following abbreviations apply.
EMwL External modulator with laser diode
LD Laser diode
PD Photo diode
PCB Printed circuit board
PIN PD Photo diode with PIN structure
SMPM Sub-miniature push-on miniature
TEC Thermo-electric cooler
TIA Trans-impedance amplifier
4 Electromagnetic compatibility (EMC) requirements
The components specified in this part of IEC 62148 shall comply with suitable requirements for
electromagnetic compatibility (in terms of both emission and immunity), depending on particular
usage/environment in which they are intended to be installed or integrated.

– 6 – 62148-17 © IEC:2013
Guidance to the drafting of such EMC requirements is provided in IEC Guide 107. Guidance for
electrostatic discharge (ESD) is still under study.
5 Classification
The transmitter and receiver components with dual coaxial RF connectors described in this
standard are classified as type 5 according to the definitions of IEC 62148-1.
6 Specification of transmitter component with dual coaxial RF connectors
6.1 General
The intention of this clause is to specify adequately the physical requirements of an optical
transmitter component with an EMwL, a modulator driver IC, a TEC and dual coaxial RF input
connectors. It will enable mechanical interchangeability of components complying with this
specification both for the PCB and for any panel mounting requirement.
6.2 Pigtail interface
All optical fibres defined in IEC 60793-2-50 are applicable.
All optical connectors defined in IEC 60874-1 are applicable if a pigtail is to be terminated with
an optical connector.
6.3 Electrical interface
6.3.1 General
The electrical interface in this specification defines only the basic functionality of each pin.
6.3.2 Numbering of electrical terminals
Terminal numbering assignments are shown in Figure 1.

Pin 7 Pin 1
RF1
Optical fibre
RF2
Pin 14
Pin 8
IEC  2397/13
Figure 1 – Electrical terminal numbering assignments for
transmitter component with dual coaxial RF connectors

62148-17 © IEC:2013 – 7 –
6.3.3 Coaxial connector
The transmitter component has male type coaxial connectors as RF1 and RF2 terminals. The
connector can handle RF electrical signals and is compatible with the SMPM connector, which is
defined in Figure 2.
NOTE If the SMPM connector is standardized in IEC, the reference will be added in a future edition.

Radius or chamfer
30° REF.
30° REF.
J
H
E
G
F
IEC  2398/13
Dimensions
mm
Reference
Minimum Maximum
AΦ 2,11 2,16
BΦ 2,82 2,92
0,28 0,33
CΦ
2,18 2,24
DΦ
E 0,76 1,14
F 2,08 2,13
G 1,57 1,83
H 0,53 0,58
J 0,00 –
Figure 2 – Coaxial RF connector interface
6.3.4 Electrical terminal assignment
The basic functionalities of each electrical terminal for transmitter components are defined in
Table 1.
∅B
∅A
∅C
∅D
– 8 – 62148-17 © IEC:2013
Table 1 – Terminal function definitions
Terminal number Symbol Function
1 LDA LD anode
2 PDA PD anode
3 V Modulator bias
b
4 V Modulator modulation
m
5 V Driver IC supply voltage
ss
6 V Cross point control voltage
x
7 – Vendor option
8 – Vendor option
9 – Vendor option
10 GND Case ground
11 – Vendor option (reserved for thermistor)
12 RTH Thermistor
13 TEC cathode
TEC (−)
14 TEC anode
TEC (+)
RF1 IN or INB RF input
RF2 INB or IN RF input
NOTE TEC acts as an EMwL chip-cooler in the bias direction described here. When
it is biased reversely, its function is changed into heating.
Polarity of RF outputs shall be defined by each vendor.

6.4 Package outline and footprint
6.4.1 Drawing of package outline
A drawing of the package outline as well as the dimensions is given in Figure 3.

62148-17 © IEC:2013 – 9 –
A
M B
P
Q D
E
T
F
H
N
G
IEC  2399/13
Dimensions
mm
Reference Notes
Minimum Maximum
A 1,27 Basic dimension
B – 0,45
C 10,0 –
D 3,75 4,25
E 2,6 Diameter, basic dimension
F – 1,0
G 17,75 18,25
H 13,9 14,1
J 11,75 12,25
K 17,9 18,1
L 21,75 22,25
M – 8,9
N 4,6 5,0
P 4,45 Basic dimension
Q 4,65 5,15 (Typical 4,9 mm)
R 5,08 Basic dimension
S – 7,0 Diameter
T – 30
U 4,45 Basic dimension
Figure 3 – Package outline drawing

R
L
K
J
C
U S
– 10 – 62148-17 © IEC:2013
6.4.2 Drawing of footprint
A drawing of the case footprint as well as the dimensions is given in Figure 4.

a
q b
Soldering pads
e
Reserved area for pigtail fibre treatment
t
Reserved area for heat sink
h
g
IEC  2400/13
Dimensions
mm
Reference Notes
Minimum Maximum
a 1,27 Basic dimension
b 0,45 –
c – – Specified by each vendor
e 2,6 Hole diameter, basic dimension
g 18,25 –
h 14 Basic dimension
j 12,25 –
k 18 Basic dimension
–
l 22,25
–
q 5,15
–
s 7,0
–
t 30
Figure 4 – Recommended pattern layout for the PCB
7 Specification of receiver component with dual coaxial RF connectors
7.1 General
The intention of this clause is to specify adequately the physical requirements of an optical
receiver component with a PIN PD, TIA IC and dual coaxial RF output connectors. It will enable
mechanical interchangeability of components complying with this specification both for the PCB
and for any panel mounting requirement.
l
k
j
c
s
62148-17 © IEC:2013 – 11 –
7.2 Pigtail interface
All optical fibres defined in IEC 60793-2-50 are applicable.
All optical connectors defined in IEC 60874-1 are applicable if a pigtail is to be terminated with
an optical connector.
7.3 Electrical interface
7.3.1 General
The electrical interface in this specification defines only the basic functionality of each pin.
7.3.2 Numbering of electrical terminals
Terminal numbering assignments are shown in Figure 5.

Pin 4 Pin 1
RF1
Optical fibre
RF2
Pin 8
Pin 5
IEC  2401/13
Figure 5 – Electrical terminal numbering assignments for receiver
component with dual coaxial RF connectors
7.3.3 Coaxial connector
The receiver component has male type coaxial connectors as RF1 and RF2 terminals. The
connectors can handle RF electrical signals and is compatible with the SMPM connector which
is defined in Figure 2.
7.3.4 Electrical terminal assignment
The basic functionalities of each electrical terminal for receiver components are defined in
Table 2. The polarity of RF outputs shall be defined by each vendor.

– 12 – 62148-17 © IEC:2013
Table 2 – Terminal function definitions
Terminal number Symbol Function
1 V PD cathode
pd
2 GND Case ground
3 – Vendor option
4 – Vendor option
5 – Vendor option
6 Vcc TIA power supply voltage
7 GND Case ground
8 (Rth) Reserved for thermistor
RF1 OUT or OUTB RF output
RF2 OUTB or OUT RF output
7.4 Package outline and footprint
7.4.1 Drawing of package outline
A drawing of the package outline as well as the dimensions is given in Figure 6.
A
M
B
Q
P
D
E
T
F
H
N
G
IEC  2402/13
Dimensions
mm
Reference Notes
Minimum Maximum
A 1,27 Basic dimension
B – 0,45
C 10,0 –
D 3,75 4,25
E 2,6 Diameter, basic dimension
F – 1,0
R
L
K
J
C
U S
62148-17 © IEC:2013 – 13 –
Dimensions
mm
Reference Notes
Minimum Maximum
G 14,75 15,25
H 10,9 11,1
J 11,75 12,25
K 17,9 18,1
L 21,75 22,25
M – 8,9
N 4,6 5,0
P 4,45 Basic dimension
Q 4,65 5,15 (Typical 4,9 mm)
R 5,08 Basic dimension
S – 7,0 Diameter
T – 30
U 4,45 Basic dimension
Figure 6 – Package outline
7.4.2 Drawing of footprint
A drawing of the case footprint as well as the dimensions is given in Figure 7.
a
q
b
Soldering pads
e
Reserved area for pigtail fibre treatment
t
Reserved area for heat sink
h
g
IEC  2403/13
Dimensions
mm
Reference Notes
Minimum Maximum
a 1,27 Basic dimension
–
b 0,45
–
c – Specified by each vendor
e 2,6 Hole diameter, basic dimension
l
c
k
j
s
...
