IEC 62148-17:2023

Fibre optic active components and devices - Package and interface standards - Part 17: Transmitter and receiver components with dual coaxial RF connectors

IEC 62148-17: 2023 defines physical interface specifications for transmitter and receiver components with dual coaxial RF connectors. This second edition cancels and replaces the first edition published in 2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) IEC 61169-60 was added as a normative reference for SMPM connectors;
b) normative reference IEC 60874-1 (withdrawn) was replaced by IEC 61754 (all parts);
c) a reference to the terms and definitions of IEC 62007-1 was added in Clause 3;
d) a new column “Typical” was added to the tables in Figure 2 and Figure 3 to clarify the meaning of all listed values.

Composants et dispositifs actifs fibroniques - Normes de boîtiers et d’interface - Partie 17: Composants émetteurs et récepteurs avec deux connecteurs RF coaxiaux

IEC 62148-17: 2023 définit les spécifications de l’interface physique des composants émetteurs et récepteurs avec deux connecteurs RF coaxiaux. Cette deuxième édition annule et remplace la première édition parue en 2013. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) l’IEC 61169-60 a été ajoutée comme référence normative pour les connecteurs SMPM;
b) la référence normative IEC 60874-1 (annulée) a été remplacée par l’IEC 61754 (toutes les parties);
c) une référence aux termes et définitions de l’IEC 62007-1 a été ajoutée à l’Article 3;
d) une nouvelle colonne "Type" a été ajoutée dans les tableaux à la Figure 2 et à la Figure 3 pour clarifier la signification de toutes les valeurs énumérées.

General Information

• Status: Published
• Publication Date: 19-Sep-2023
• ICS: 33.180.99 - Other fibre optic equipment
• Technical Committee: SC 86C - Fibre optic systems, sensing and active devices
• Current Stage: PPUB - Publication issued
• Start Date: 20-Sep-2023
• Completion Date: 13-Oct-2023

Relations

• Revises: IEC 62148-17:2013 - Fibre optic active components and devices - Package and interface standards - Part 17: Transmitter and receiver components with dual coaxial RF connectors
• Effective Date: 05-Sep-2023

Overview

IEC 62148-17:2023 is an international standard published by the International Electrotechnical Commission (IEC), focusing on the physical interface specifications for fibre optic transmitter and receiver components equipped with dual coaxial RF connectors. This latest 2023 edition replaces the original 2013 edition, providing a technical revision that aligns with evolving industry practices and connector technologies. The standard defines consistent package designs, electrical interfaces, and electromagnetic compatibility (EMC) requirements for enhanced interoperability and reliability in fibre optic communication systems.

Key Topics

• Dual Coaxial RF Connectors: Specifies the use of dual coaxial connectors for both transmitter and receiver components, including detailed assignments for electrical terminals.
• Physical Packaging: Defines the package outline and recommended printed circuit board (PCB) footprint layouts to ensure uniform assembly and integration.
• Electrical Interface: Details electrical terminal numbering, function definitions, and the application of SMPM (sub-miniature push-on miniature) connectors as per IEC 61169-60.
• Electromagnetic Compatibility: Mandates EMC compliance in alignment with IEC 61000 series to ensure components meet emission and immunity standards.
• Normative References: Incorporates references to related IEC standards such as IEC 61754 for fibre optic connector interfaces, IEC 62007-1 for optoelectronic device terminology, and replaces the withdrawn IEC 60874-1.
• Classification: Categorizes the components as type 7 following IEC 62148-1 specifications for active fibre optic devices.

Applications

IEC 62148-17:2023 is critical for manufacturers, designers, and integrators of fibre optic active components ensuring:

• Standardized Package and Interfaces
  Facilitates the design of transmitter and receiver modules with uniform footprints and connector compatibility, promoting interoperability across suppliers and optical systems.

• High-Frequency RF Signal Transmission
  Supports high-performance optical transmitters and receivers in telecommunications, data centers, and high-speed networking where dual coaxial RF connectors provide robust signal integrity.

• Electromagnetic Interference Mitigation
  Helps develop components that comply with stringent EMC requirements, assuring stable operation in environments susceptible to electromagnetic disturbances.

• Component Interchangeability
  Enables system engineers to select components from different manufacturers without redesigning interfaces or PCBs, reducing development time and costs.

• Advanced Optical Systems
  Particularly relevant for systems employing external modulators with laser diodes (EMwL) and photodiode (PD) receivers, facilitating precise electrical and optical interfacing.

Related Standards

To complement IEC 62148-17:2023, the following IEC standards are essential for comprehensive understanding and implementation of fibre optic active components:

• IEC 62148-1 – Fibre optic active components and devices – Package and interface standards – Part 1: General and guidance. Provides overarching principles and definitions used in Part 17.
• IEC 61169-60 – Radio-frequency connectors – Sectional specification for SMPM connectors used in the coaxial interfaces specified.
• IEC 61754 (all parts) – Fibre optic interconnecting devices and passive components – Defines standard fibre optic connector interfaces.
• IEC 62007-1 – Semiconductor optoelectronic devices – Offers terminology, essential ratings, and characteristics crucial for understanding transmitter and receiver component parameters.
• IEC 61000 Series – Standards governing electromagnetic compatibility requirements relevant to emission and immunity for components described.

---

Adhering to IEC 62148-17:2023 ensures enhanced compatibility, reliability, and performance in the design and manufacture of fibre optic transmitter and receiver components with dual coaxial RF connectors. It offers a robust foundation for developing cutting-edge fibre optic systems that meet global interoperability and quality benchmarks.

Standards Content (Sample)

IEC 62148-17 ®
Edition 2.0 2023-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –
Part 17: Transmitter and receiver components with dual coaxial RF connectors

Composants et dispositifs actifs fibroniques – Normes de boîtiers et d’interface –
Partie 17: Composants émetteurs et récepteurs avec deux connecteurs RF
coaxiaux
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 62148-17 ®
Edition 2.0 2023-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –

Part 17: Transmitter and receiver components with dual coaxial RF connectors

Composants et dispositifs actifs fibroniques – Normes de boîtiers et d’interface –

Partie 17: Composants émetteurs et récepteurs avec deux connecteurs RF

coaxiaux
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.99  ISBN 978-2-8322-7504-7

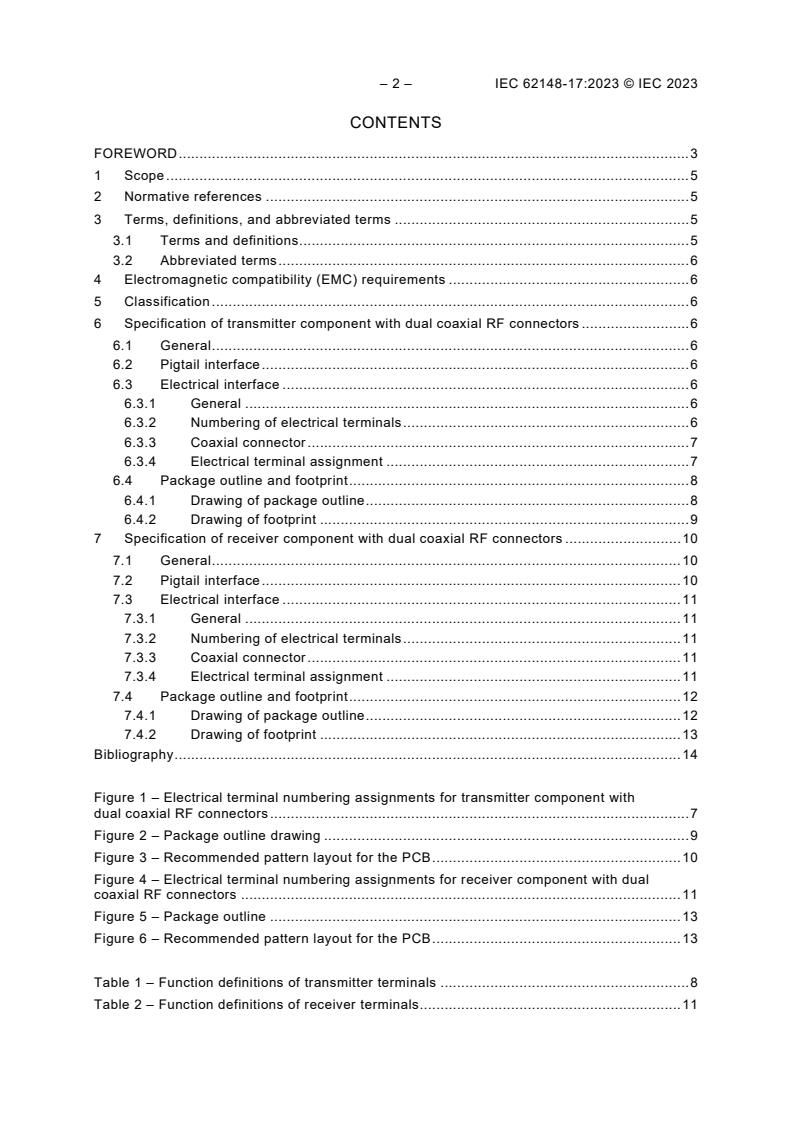

– 2 – IEC 62148-17:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions, and abbreviated terms . 5
3.1 Terms and definitions . 5
3.2 Abbreviated terms . 6
4 Electromagnetic compatibility (EMC) requirements . 6
5 Classification . 6
6 Specification of transmitter component with dual coaxial RF connectors . 6
6.1 General . 6
6.2 Pigtail interface . 6
6.3 Electrical interface . 6
6.3.1 General . 6
6.3.2 Numbering of electrical terminals . 6
6.3.3 Coaxial connector . 7
6.3.4 Electrical terminal assignment . 7
6.4 Package outline and footprint . 8
6.4.1 Drawing of package outline . 8
6.4.2 Drawing of footprint . 9
7 Specification of receiver component with dual coaxial RF connectors . 10
7.1 General . 10
7.2 Pigtail interface . 10
7.3 Electrical interface . 11
7.3.1 General . 11
7.3.2 Numbering of electrical terminals . 11
7.3.3 Coaxial connector . 11
7.3.4 Electrical terminal assignment . 11
7.4 Package outline and footprint . 12
7.4.1 Drawing of package outline . 12
7.4.2 Drawing of footprint . 13
Bibliography . 14

Figure 1 – Electrical terminal numbering assignments for transmitter component with
dual coaxial RF connectors . 7
Figure 2 – Package outline drawing . 9
Figure 3 – Recommended pattern layout for the PCB . 10
Figure 4 – Electrical terminal numbering assignments for receiver component with dual
coaxial RF connectors . 11
Figure 5 – Package outline . 13
Figure 6 – Recommended pattern layout for the PCB . 13

Table 1 – Function definitions of transmitter terminals . 8
Table 2 – Function definitions of receiver terminals . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 17: Transmitter and receiver components
with dual coaxial RF connectors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62148-17 has been prepared by subcommittee 86C: Fibre optic systems and active
devices, of IEC technical committee 86: Fibre optics. It is an International Standard.
This second edition cancels and replaces the first edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) IEC 61169-60 was added as a normative reference for SMPM connectors;
b) normative reference IEC 60874-1 (withdrawn) was replaced by IEC 61754 (all parts);
c) a reference to the terms and definitions of IEC 62007-1 was added in Clause 3;
d) a new column “Typical” was added to the tables in Figure 2 and Figure 3 to clarify the
meaning of all listed values.
This standard is to be read in conjunction with IEC 62148-1.

– 4 – IEC 62148-17:2023 © IEC 2023
The text of this International Standard is based on the following documents:
Draft Report on voting
86C/1880/FDIS 86C/1886/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 17: Transmitter and receiver components
with dual coaxial RF connectors

1 Scope
This part of IEC 62148 defines physical interface specifications for transmitter and receiver
components with dual coaxial RF connectors.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61169-60, Radio-frequency connectors – Part 60: Sectional specification for RF coaxial
connectors with push on mating – Characteristic impedance 50 Ohm (type SMPM)
IEC 61754 (all parts), Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces
IEC 62007-1, Semiconductor optoelectronic devices for fibre optic system applications – Part 1:
Specification template for essential ratings and characteristics
IEC 62148-1, Fibre optic active components and devices – Package and interface standards –
Part 1: General and guidance
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62007-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

– 6 – IEC 62148-17:2023 © IEC 2023
3.2 Abbreviated terms
EMC electromagnetic compatibility
EMwL external modulator with laser diode
IC integrated circuit
LD laser diode
PCB printed circuit board
PD photo diode
PIN positive intrinsic negative
RF radio frequency
SMPM sub-miniature push-on miniature
TEC thermo-electric cooler
TIA trans-impedance amplifier
4 Electromagnetic compatibility (EMC) requirements
The components specified in this document shall comply with suitable requirements for
electromagnetic compatibility (in terms of both emission and immunity), depending on the
particular usage and environment in which they are intended to be installed or integrated.
Guidance to the drafting of such EMC requirements is provided in the IEC 61000 series.
5 Classification
The transmitter and receiver components with dual coaxial RF connectors described in this
standard are classified as type 7 according to the definitions of IEC 62148-1.
6 Specification of transmitter component with dual coaxial RF connectors
6.1 General
The intention of this clause is to specify adequately the physical requirements of an optical
transmitter component with an EMwL, a modulator driver IC, a TEC and dual coaxial RF input
connectors. It will enable mechanical interchangeability of components complying with this
specification both for the PCB and for any panel mounting requirement.
6.2 Pigtail interface
The optical fibre used in the pigtail shall be one of the fibre types specified in IEC 60793-2-50.
If a pigtail is to be terminated with an optical connector, the connector shall be one of the optical
connectors specified in the IEC 61754 series.
6.3 Electrical interface
6.3.1 General
The electrical interface in this specification defines only the basic functionality of each pin.
6.3.2 Numbering of electrical terminals
Terminal numbering assignments are shown in Figure 1.

Figure 1 – Electrical terminal numbering assignments for
transmitter component with dual coaxial RF connectors
6.3.3 Coaxial connector
The transmitter component has male type coaxial connectors as RF1 and RF2 terminals. These
connectors handle RF electrical signals and shall be compatible with the SMPM connector
defined in IEC 61169-60 having pin-centre contact full detent.
6.3.4 Electrical terminal assignment
The basic functionalities of each electrical terminal for transmitter components are defined in
Table 1.
– 8 – IEC 62148-17:2023 © IEC 2023
Table 1 – Function definitions of transmitter terminals
Terminal number Symbol Function
1 LDA LD anode
2 PDA PD anode
3 V Modulator bias
b
V
4 Modulator modulation
m
5 V Driver IC supply voltage
ss
6 V Cross point control voltage
x
7 – Vendor option
8 – Vendor option
9 – Vendor option
10 GND Case ground
11 – Vendor option (reserved for thermistor)
12 R Thermistor
TH
a
TEC (−) TEC cathode
a
14 TEC (+)
TEC anode
b
RF1 IN or INB
RF input
b
RF2 INB or IN
RF input
a
TEC acts as an EMwL chip-cooler in the bias direction described here. When it is
biased reversely, its function is changed into heating.
b
Polarity of RF inputs shall be defined by each vendor.

6.4 Package outline and footprint
6.4.1 Drawing of package outline
A drawing of the package outline as well as the dimensions is given in Figure 2.

Dimensions
mm
Reference Notes
Minimum Typical Maximum
A – 1,27 – Basic dimension
B
– – 0,45
C 10,0 – –
D 3,75 – 4,25
E
– 2,6 – Diameter, basic dimension
F – – 1,0
G 17,75 – 18,25
H 13,9 – 14,1
J 11,75 – 12,25
K 17,9 – 18,1
L 21,75 – 22,25
M
– – 8,9
N 4,6 – 5,0
P – 4,45 – Basic dimension
Q 4,65 4,90 5,15
R – 5,08 – Basic dimension
S – – 7,0 Diameter
T – – 30
U – 4,45 – Basic dimension
Figure 2 – Package outline drawing
6.4.2 Drawing of footprint
A drawing of the case footprint as well as the dimensions is given in Figure 3.

– 10 – IEC 62148-17:2023 © IEC 2023

Dimensions
mm
Reference Notes
Minimum Typical Maximum
a – 1,27 – Basic dimension
b 0,45 – –
c – – – Specified by each vendor
e – 2,6 – Hole diameter, basic dimension
g 18,25 – –
h – 14 – Basic dimension
j 12,25 – –
k – 18 – Basic dimension
l 22,25 – –
q 5,15 – –
s 7,0 – –
t 30 – –
Figure 3 – Recommended pattern layout for the PCB
7 Specification of receiver component with dual coaxial RF connectors
7.1 General
The intention of this clause is to specify adequately the physical requirements of an optical
receiver component with a PIN PD, TIA IC and dual coaxial RF output connectors. It will enable
mechanical interchangeability of components complying with this specification both for the PCB
and for any panel mounting requirement.
7.2 Pigtail interface
The optical fibre used in the pigtail shall be one of the fibre types specified in IEC 60793-2-50.
If a pigtail is to be terminated with an optical connector, the connector shall be one of the optical
connectors specified in the IEC 61754 series.

7.3 Electrical interface
7.3.1 General
The electrical interface in this specification defines only the basic functionality of each pin.
7.3.2 Numbering of electrical terminals
Terminal numbering assignments are shown in Figure 4.

Figure 4 – Electrical terminal numbering assignments for receiver
component with dual coaxial RF connectors
7.3.3 Coaxial connector
The receiver component has male type coaxial connectors as RF1 and RF2 terminals. The
connectors handle RF electrical signals and shall be compatible with the SMPM connector
defined in IEC 61169-60 having pin-centre contact full detent.
7.3.4 Electrical terminal assignment
The basic functionalities of each electrical terminal for receiver components are defined in
Table 2. The polarity of RF outputs shall be defined by each vendor.
Table 2 – Function definitions of receiver terminals
Terminal number Symbol Function
1 V PD cathode
pd
2 GND Case ground
3 – Vendor option
4 – Vendor option
5 – Vendor option
6 V TIA power supply voltage
cc
7 GND Case ground
8 R Reserved for thermistor
TH
RF1 OUT or OUTB RF output
RF2 OUTB or OUT RF output
– 12 – IEC 62148-17:2023 © IEC 2023
7.4 Package outline and footprint
7.4.1 Drawing of package outline
A drawing of the package outline as well as the dimensions is given in Figure 5.

Dimensions
mm
Reference Notes
Minimum Typical Maximum
A – 1,27 – Basic dimension
B
– – 0,45
C 10,0 – –
D 3,75 – 4,25
E
– 2,6 – Diameter, basic dimension
F – – 1,0
G 14,75 – 15,25
H 10,9 – 11,1
J 11,75 – 12,25
K 17,9 – 18,1
L 21,75 – 22,25
M
– – 8,9
N 4,6 – 5,0
P – 4,45 – Basic dimension
Q 4,65 4,90 5,15
R – 5,08 – Basic dimension
S – – 7,0 Diameter
T – – 30
U
– 4,45 – Basic dimension
Figure 5
...
