Amendment 2 - Self-ballasted LED lamps for general lighting services with supply voltages > 50 V - Performance requirements

Amendement 2 - Lampes à LED autoballastées pour l'éclairage général avec des tensions d'alimentation > 50 V - Exigences de performances

General Information

Status
Published
Publication Date
09-Aug-2018
Current Stage
PPUB - Publication issued
Completion Date
10-Aug-2018
Ref Project

Buy Standard

Standard
IEC 62612:2013/AMD2:2018 - Amendment 2 - Self-ballasted LED lamps for general lighting services with supply voltages > 50 V - Performance requirements
English and French language
12 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

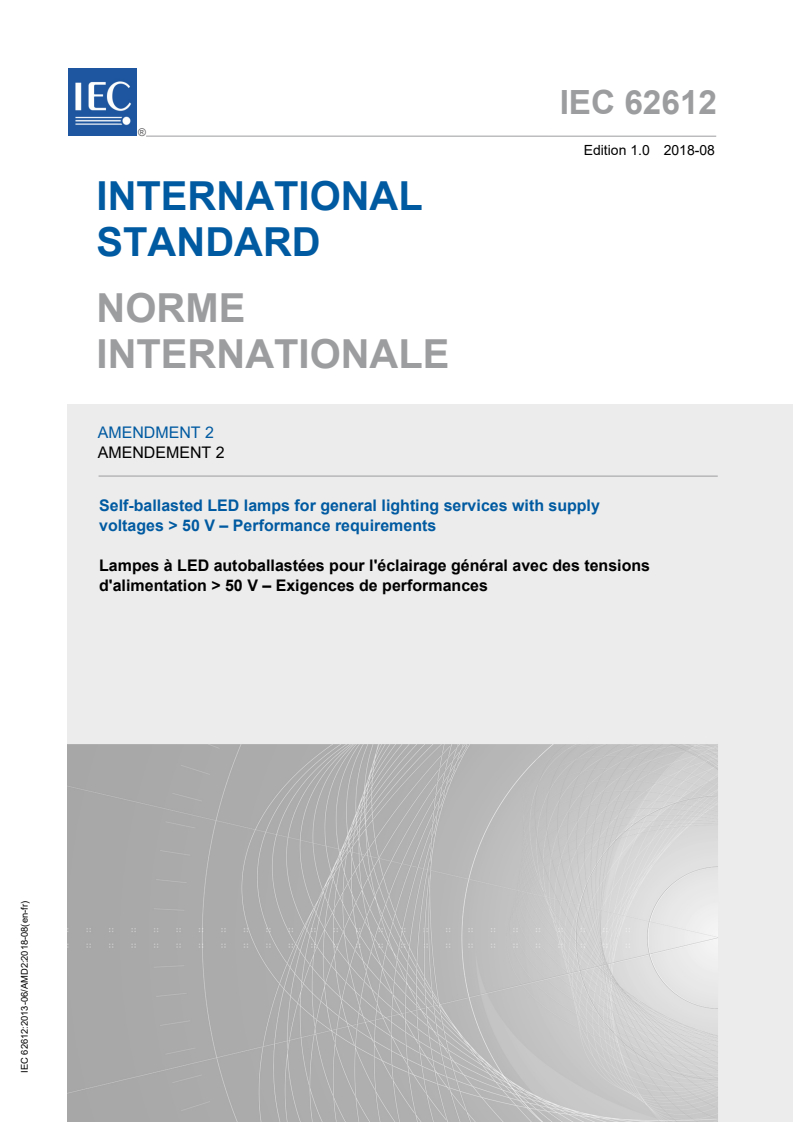

IEC 62612
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 2
AM ENDEMENT 2
Self-ballasted LED lamps for general lighting services with supply
voltages > 50 V – Performance requirements
Lampes à LED autoballastées pour l'éclairage général avec des tensions
d'alimentation > 50 V – Exigences de performances
IEC 62612:2013-06/AMD2:2018-08(en-fr)
---------------------- Page: 1 ----------------------

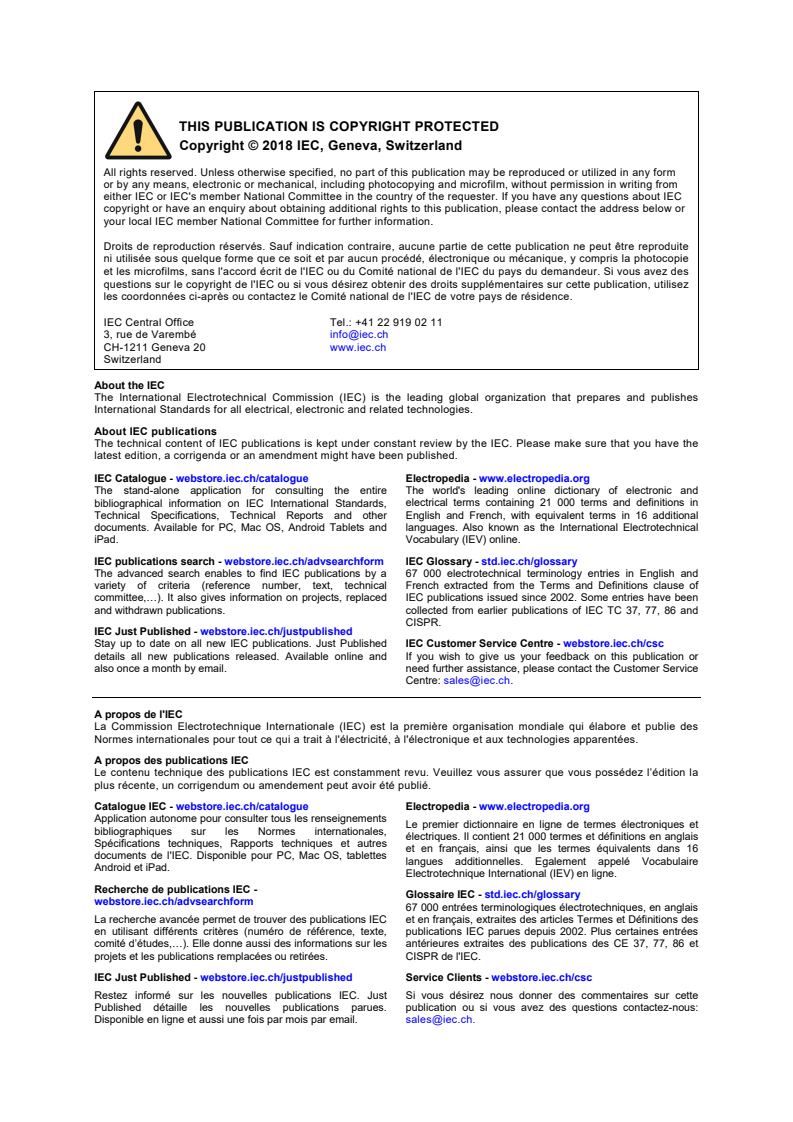

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

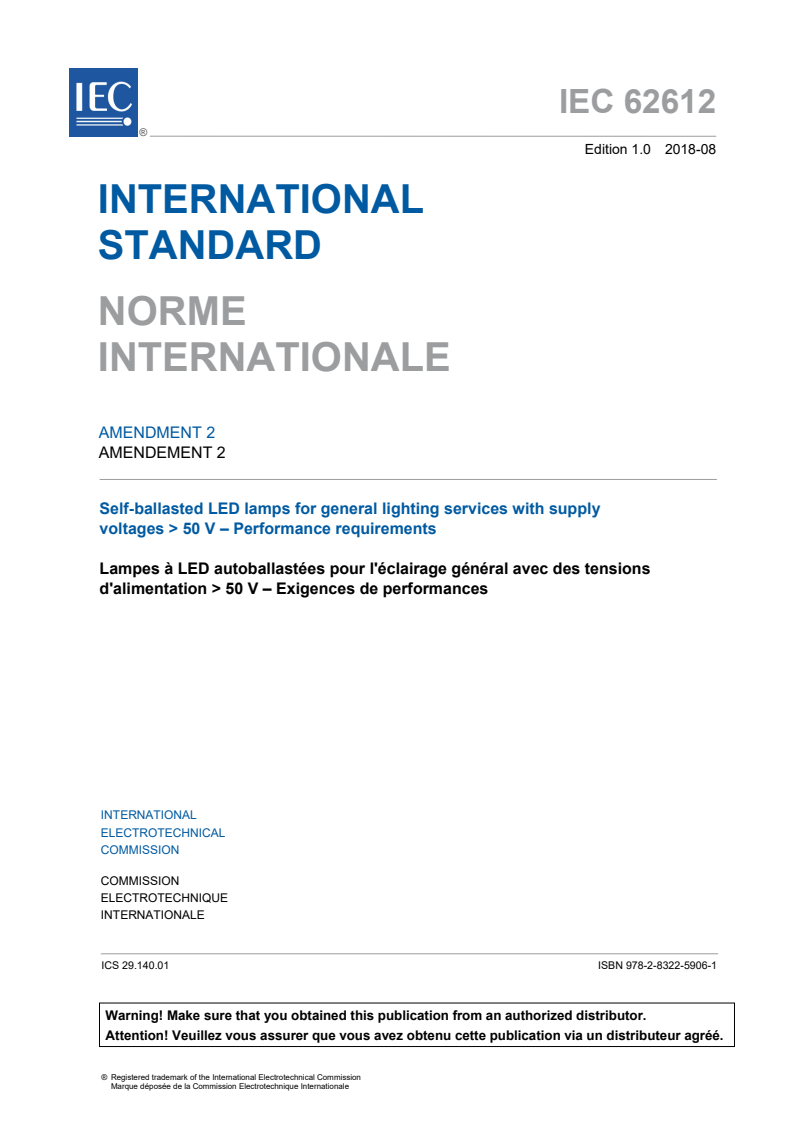

IEC 62612
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 2
AM ENDEMENT 2
Self-ballasted LED lamps for general lighting services with supply
voltages > 50 V – Performance requirements
Lampes à LED autoballastées pour l'éclairage général avec des tensions
d'alimentation > 50 V – Exigences de performances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.01 ISBN 978-2-8322-5906-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

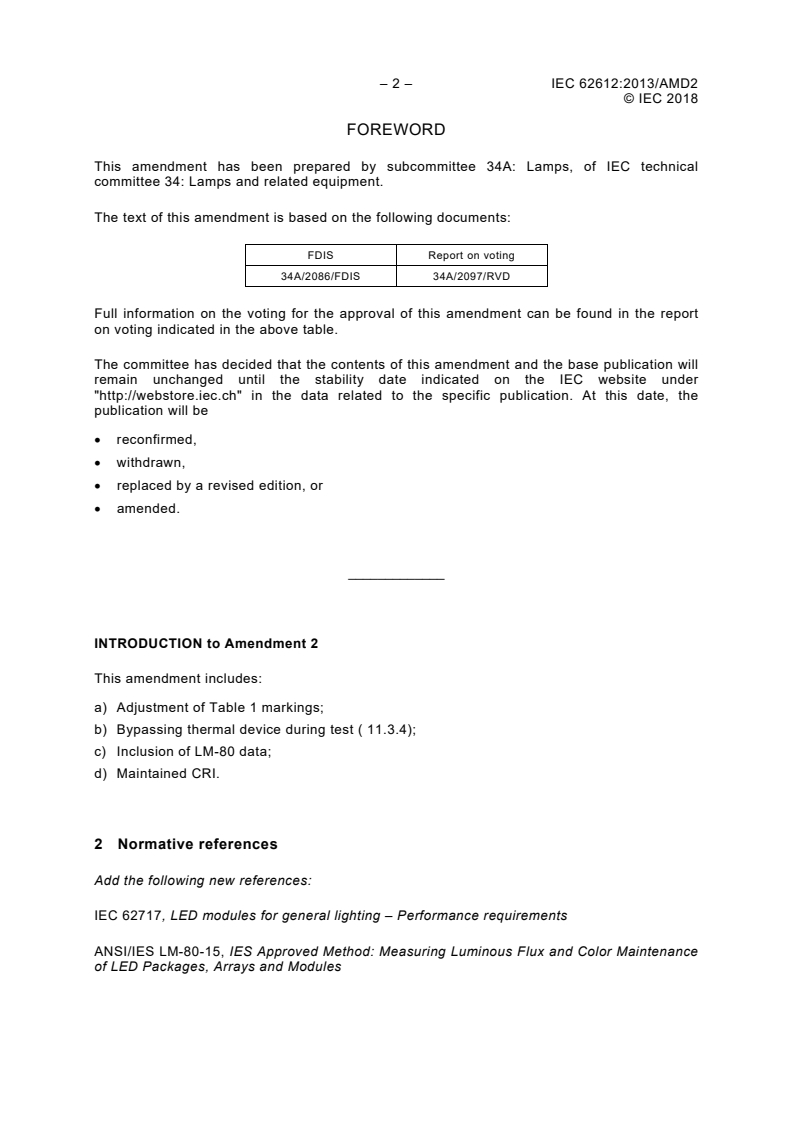

– 2 – IEC 62612:2013/AMD2
© IEC 2018
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/2086/FDIS 34A/2097/RVD

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION to Amendment 2
This amendment includes:
a) Adjustment of Table 1 markings;
b) Bypassing thermal device during test ( 11.3.4);
c) Inclusion of LM-80 data;
d) Maintained CRI.
2 Normative references
Add the following new references:
IEC 62717, LED modules for general lighting – Performance requirements

ANSI/IES LM-80-15, IES Approved Method: Measuring Luminous Flux and Color Maintenance

of LED Packages, Arrays and Modules
---------------------- Page: 4 ----------------------
IEC 62612:2013/AMD2 – 3 –
© IEC 2018
5.2 Places of marking
Table 1
In the first column, replace item a) with the following new item a):

a) Rated luminous flux (lm), rated colour (see Table 3) and, for directional lamps only, beam

angle
In the first column, replace item b) with the following new item b):

b) Lamp photometric code (see Annex B) including initial and maintained colour variation

category (see Table 4)
Delete the entire row e)
In the first column, replace item f) with the following new item f):
f) For directional lamps only, peak intensity (cd)
Delete NOTE 1 and renumber the NOTES that follow as NOTE 1 and NOTE 2.
7.1 General test conditions
Add, after the second paragraph, the following new text:

For LED lamps using LED modules where compliance with IEC 62717 has been demonstrated,

the test duration of 25 % of rated life time up to a maximum of 6 000 h may be avoided,

provided that the LED module operates in its temperature and current limits as tested

according to IEC 62717. The data for chromaticity and the lumen maintenance at 25 % of

rated life, maximum 6 000 h from the IEC 62717 test report, shall be taken and used to fulfil

the maintained value requirements of 10.1 and 11.2, respectively.

Alternatively, test data from ANSI/IES LM-80-15 shall be used for the derivation of maintained

values at 25 % of rated life, maximum 6 000 h, together with related compliance criteria, as

specified in Annex G.
10.2 Colour rendering index (CRI)
Delete the second sentence of the first paragraph.

Replace the second and third paragraphs including the list items, with the following new text:

See A.3.7 for more details.
Compliance:

For all tested units in a sample the measured CRI values shall not be lower than 3 points from

the rated CRI (see Table 1).
---------------------- Page: 5 ----------------------
– 4 – IEC 62612:2013/AMD2
© IEC 2018
11.3.4 Accelerated operational life test
Replace the title of 11.3.4 with the following new title:
Operational high temperature stress test
Replace the last sentence of the first paragraph with the following new text:

Any thermal protecting devices, solely applied for their function of switching at a certain

temperature, that would switch off the LED lamp or reduce the light output shall be bypassed.

Replace, in the compliance statement, the sentence starting with "At the end of this test" with

the following new text:

At the end of this test, and after cooling down to room temperature and being stabilised, all

the lamps shall have at least a luminous flux of 70 % compared to the initial value for at least

15 min.
Add, after Annex F, the following new Annex G:
---------------------- Page: 6 ----------------------
IEC 62612:2013/AMD2 – 5 –
© IEC 2018
Annex G
(normative)
Use of ANSI/IES LM-80-15 for
...
