Passive RF and microwave devices, intermodulation level measurement - Part 3: Measurement of passive intermodulation in coaxial connectors

IEC 62037-3:2012 is part of the IEC 62037 series, and defines the impact test on coaxial connectors to evaluate their robustness against weak connections and particles inside the connector as independently as possible from the effects of cable PIM (passive intermodulation).

Dispositifs RF et à micro-ondes passifs, mesure du niveau d'intermodulation - Partie 3: Mesure de l'intermodulation passive dans les connecteurs coaxiaux

La CEI 62037-3:2012 définit l'essai de choc sur des connecteurs coaxiaux pour évaluer leur robustesse dans le cas de connexions faibles et contre des particules à l'intérieur des connecteurs, aussi indépendamment que possible des effets de l'intermodulation passive des câbles. Pour les autres connecteurs (par exemple les connecteurs montés sur panneaux), le câble peut être remplacé par une ligne de transmission adéquate (par exemple guide d'ondes, ligne à ruban). Afin d'évaluer les effets des contraintes mécaniques sur les connecteurs, une série de chocs est appliquée aux connecteurs, tout en mesurant l'intermodulation passive.

General Information

Status
Published
Publication Date
23-Jul-2012
Current Stage
DELPUB - Deleted Publication
Completion Date
19-Nov-2021
Ref Project

Buy Standard

Standard
IEC 62037-3:2012 - Passive RF and microwave devices, intermodulation level measurement - Part 3: Measurement of passive intermodulation in coaxial connectors
English and French language
16 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

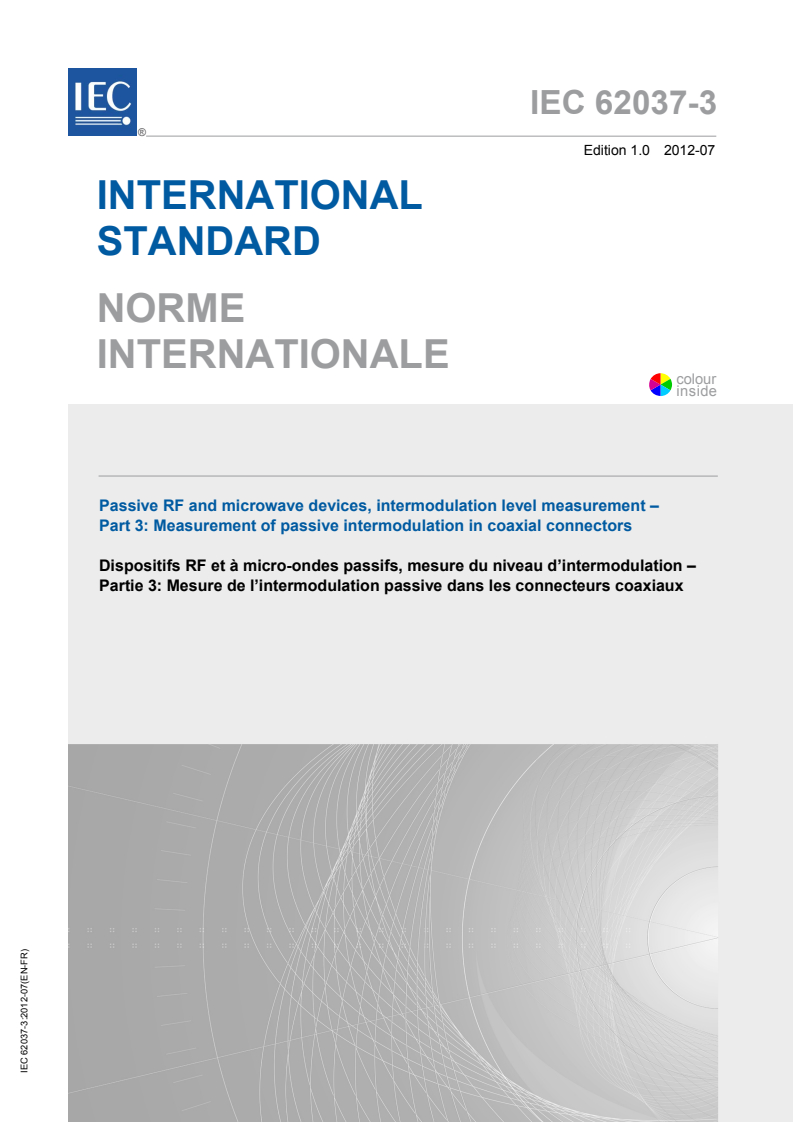

IEC 62037-3
Edition 1.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Passive RF and microwave devices, intermodulation level measurement –
Part 3: Measurement of passive intermodulation in coaxial connectors
Dispositifs RF et à micro-ondes passifs, mesure du niveau d’intermodulation –
Partie 3: Mesure de l’intermodulation passive dans les connecteurs coaxiaux
IEC 62037-3:2012-07(EN-FR)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary

La recherche avancée permet de trouver des publications IEC Plus de 55 000 entrées terminologiques électrotechniques, en

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

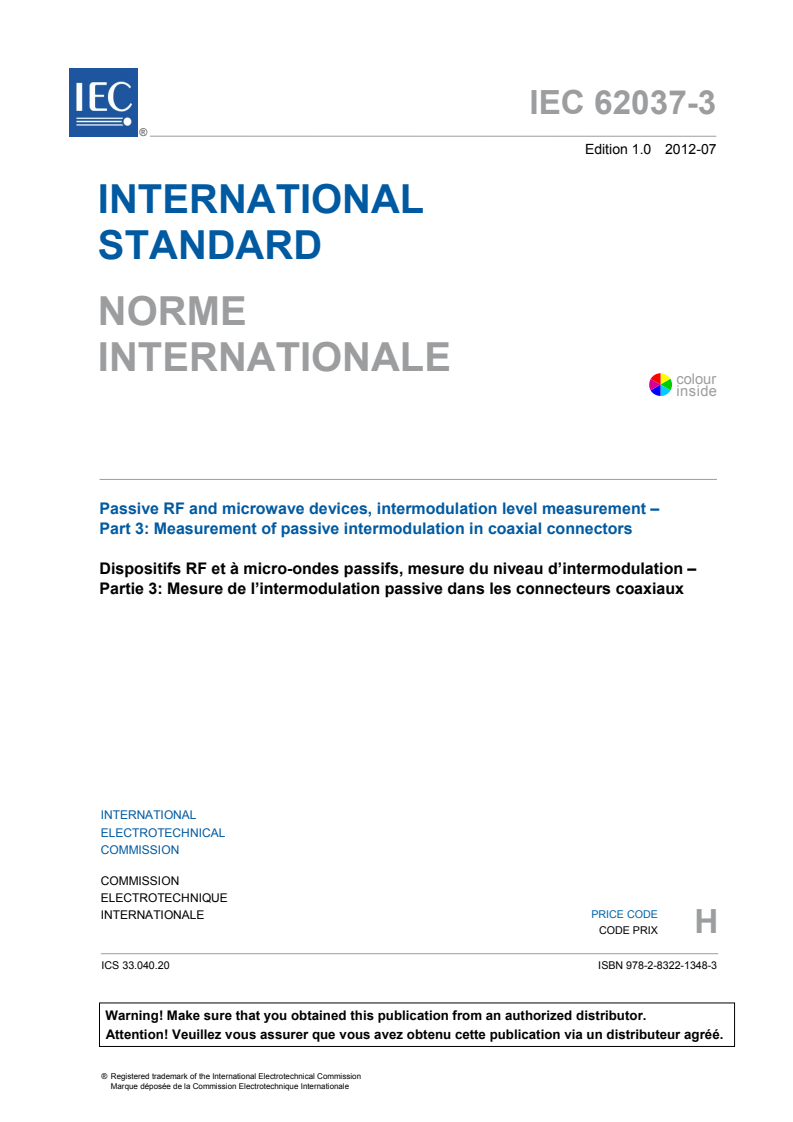

IEC 62037-3
Edition 1.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Passive RF and microwave devices, intermodulation level measurement –
Part 3: Measurement of passive intermodulation in coaxial connectors
Dispositifs RF et à micro-ondes passifs, mesure du niveau d’intermodulation –
Partie 3: Mesure de l’intermodulation passive dans les connecteurs coaxiaux
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX H
ICS 33.040.20 ISBN 978-2-8322-1348-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

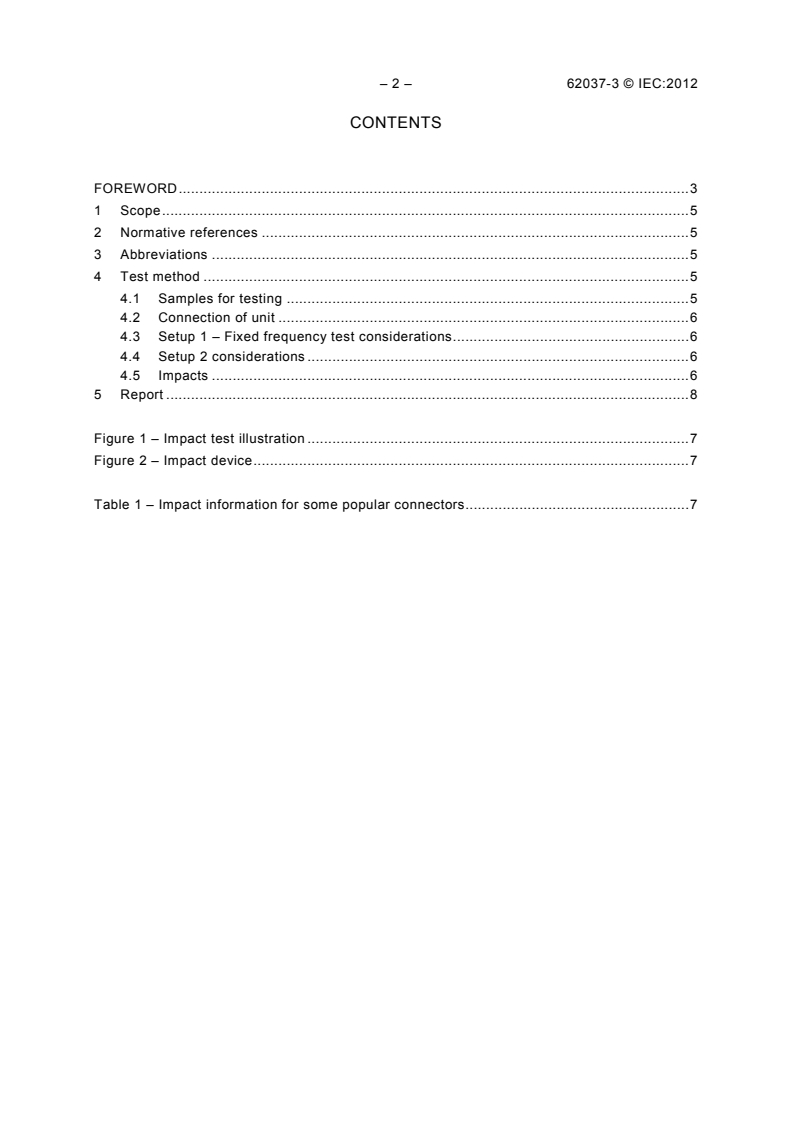

– 2 – 62037-3 © IEC:2012
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope ............................................................................................................................... 5

2 Normative references ....................................................................................................... 5

3 Abbreviations ................................................................................................................... 5

4 Test method ..................................................................................................................... 5

4.1 Samples for testing ................................................................................................. 5

4.2 Connection of unit ................................................................................................... 6

4.3 Setup 1 – Fixed frequency test considerations ......................................................... 6

4.4 Setup 2 considerations ............................................................................................ 6

4.5 Impacts ................................................................................................................... 6

5 Report .............................................................................................................................. 8

Figure 1 – Impact test illustration ............................................................................................ 7

Figure 2 – Impact device ......................................................................................................... 7

Table 1 – Impact information for some popular connectors...................................................... 7

---------------------- Page: 4 ----------------------
62037-3 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PASSIVE RF AND MICROWAVE DEVICES,
INTERMODULATION LEVEL MEASUREMENT –
Part 3: Measurement of passive intermodulation in coaxial connectors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62037-3 has been prepared by technical committee 46: Cables,

wires, waveguides, R.F. connectors, R.F. and microwave passive components and
accessories.

This bilingual version (2014-01) corresponds to the monolingual English version, published in

2012-07.
The text of this standard is based on the following documents:
FDIS Report on voting
46/417/FDIS 46/433/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
---------------------- Page: 5 ----------------------
– 4 – 62037-3 © IEC:2012
The French version of this standard has not been voted upon.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62037 series, published under the general title Passive r.f. and

microwave devices, intermodulation level measurement can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
62037-3 © IEC:2012 – 5 –
PASSIVE RF AND MICROWAVE DEVICES,
INTERMODULATION LEVEL MEASUREMENT –
Part 3: Measurement of passive intermodulation in coaxial connectors
1 Scope

This part of IEC 62037 defines the impact test on coaxial connectors to evaluate their

robustness against weak connections and particles inside the connector as independently as

possible from the effects of cable PIM (passive intermodulation).

For other connectors (e.g. panel mounted connectors), the cable can be replaced by an

adequate transmission-line (e.g. airline, stripline). In order to evaluate the effects of

mechanical stresses on the connectors, a series of impacts is applied to the connectors while

measuring the PIM.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 62037-1, Passive r.f. and microwave devices, intermodulation level measurement –

Part 1: General requirements and measuring methods

IEC 62037-4, Passive r.f. and microwave devices, intermodulation level measurement –

Part 4: Measurement of passive intermodulation in coaxial cables
3 Abbreviations
DUT Device under test
IM Intermodulation
PIM Passive intermodulation
4 Test method
4.1 Samples for testing
One of two setups may be used.

NOTE Correct assembly methods and techniques are critical to the proper operation of the connector on the

cable.
___________
To be published.
To be published.
---------------------- Page: 7 ----------------------
– 6 – 62037-3 © IEC:2012
a) Setup 1 – Multi-port DUT

In order to minimize the effect of the transmission line, a short assembly should be tested.

Identical connectors should be assembled to each end. An assembly, as short as physically

practical, should be constructed.
b) Setup 2 – One port DUT

A single connector can be assembled on a length of transmission line for which it is designed,

loss or low loss, that exhibits at least 10 dB of attenuation in one direction at the lowest

frequency in the receive band.
4.2 Connection of unit
The unit should be connected as described in the IEC 62307-1 base document.
4.3 Setup 1 – Fixed frequency test considerations

Due to the phase interaction of the connectors and the length of the transmission line

(configuration A) when measured in the reverse (reflected) mode, the frequency at which

maximum PIM occurs within the band can vary and shall be determined.

An accepted method of sweeping is to fix F1 at the low end of the transmit band and step F2

down, starting at the top of the band for all combination of frequencies that result in IM in the

receive band. If desired, this procedure can be reversed by fixing F1 at the highest frequency

in the transmit band and then stepping F2 up, starting at the bottom of the band.

If fixed frequenc
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
