IEC 60810:2017/AMD2:2022 - Amendment 2 - Lamps, light sources and LED packages for road vehicles - Performance requirements
English and French language
12 pages
sale 15% off
sale 15% off

Standards Content (sample)

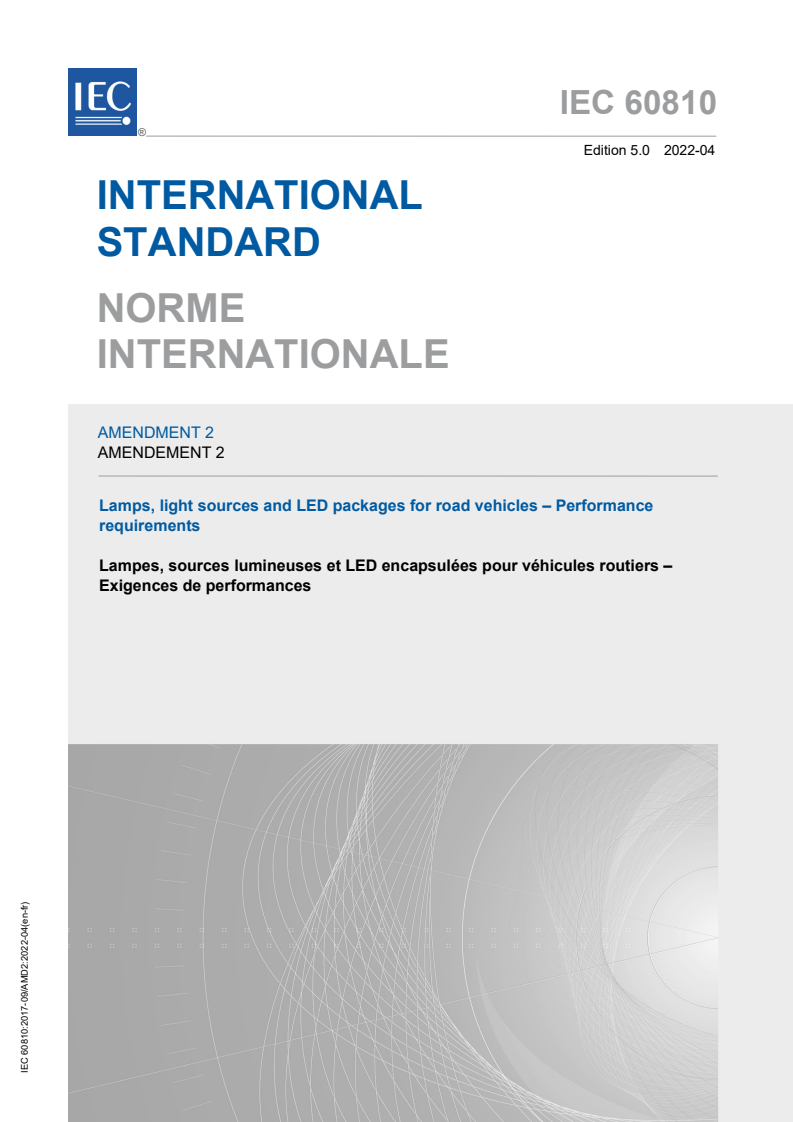

IEC 60810
Edition 5.0 2022-04
Lamps, light sources and LED packages for road vehicles – Performance
Lampes, sources lumineuses et LED encapsulées pour véhicules routiers –
Exigences de performances
IEC 60810:2017-09/AMD2:2022-04(en-fr)

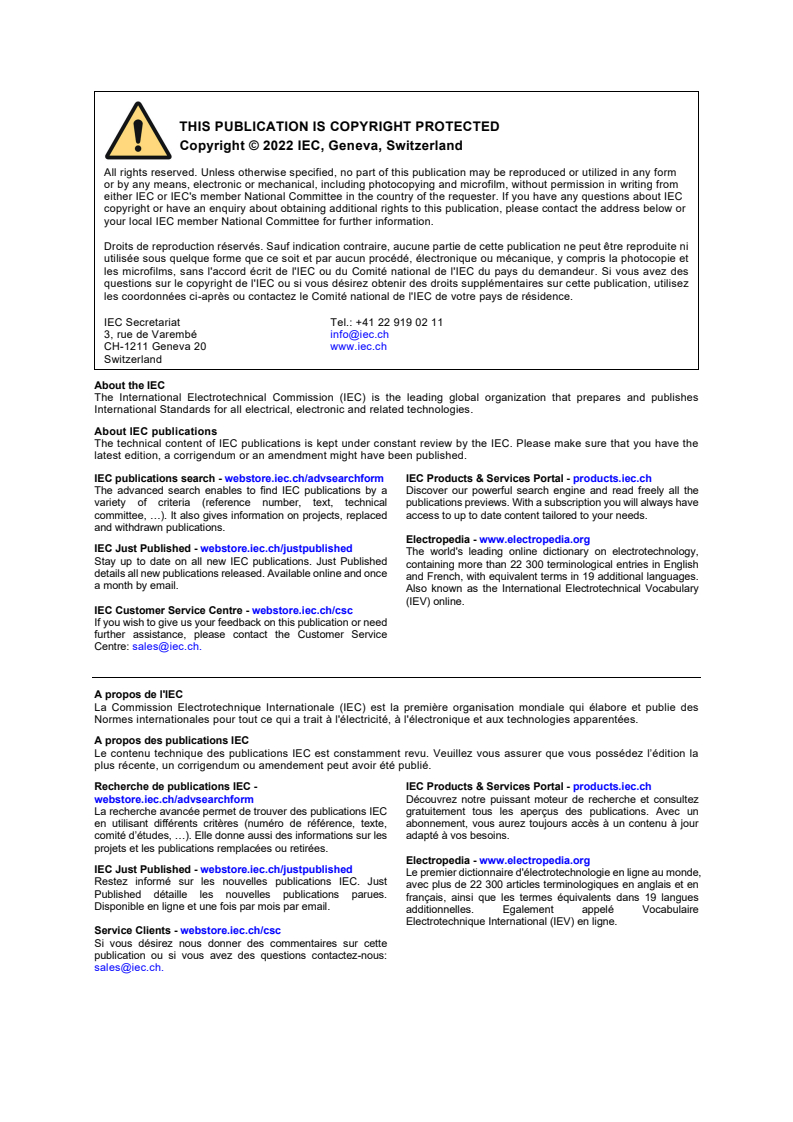

---------------------- Page: 1 ----------------------
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé
CH-1211 Geneva 20
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal -

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia -
IEC Just Published -
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre -
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.

projets et les publications remplacées ou retirées.
Electropedia -
IEC Just Published -
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients -
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
---------------------- Page: 2 ----------------------

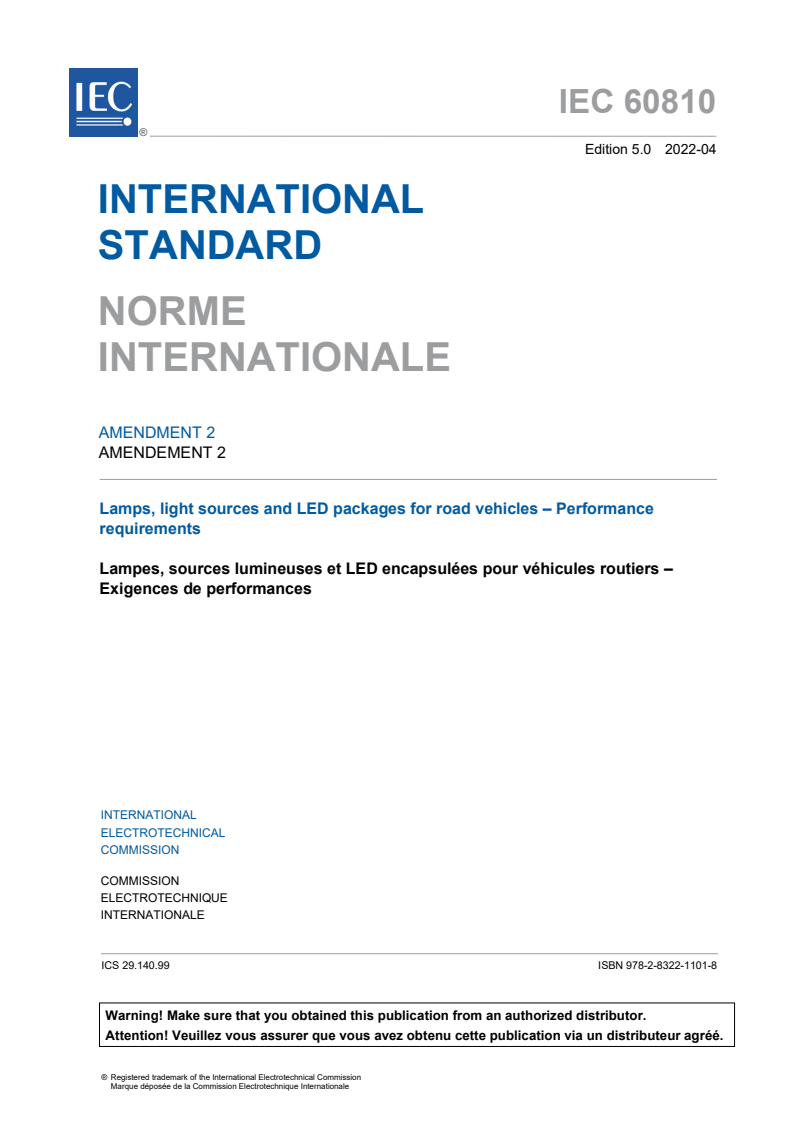

IEC 60810
Edition 5.0 2022-04
Lamps, light sources and LED packages for road vehicles – Performance
Lampes, sources lumineuses et LED encapsulées pour véhicules routiers –
Exigences de performances
ICS 29.140.99 ISBN 978-2-8322-1101-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

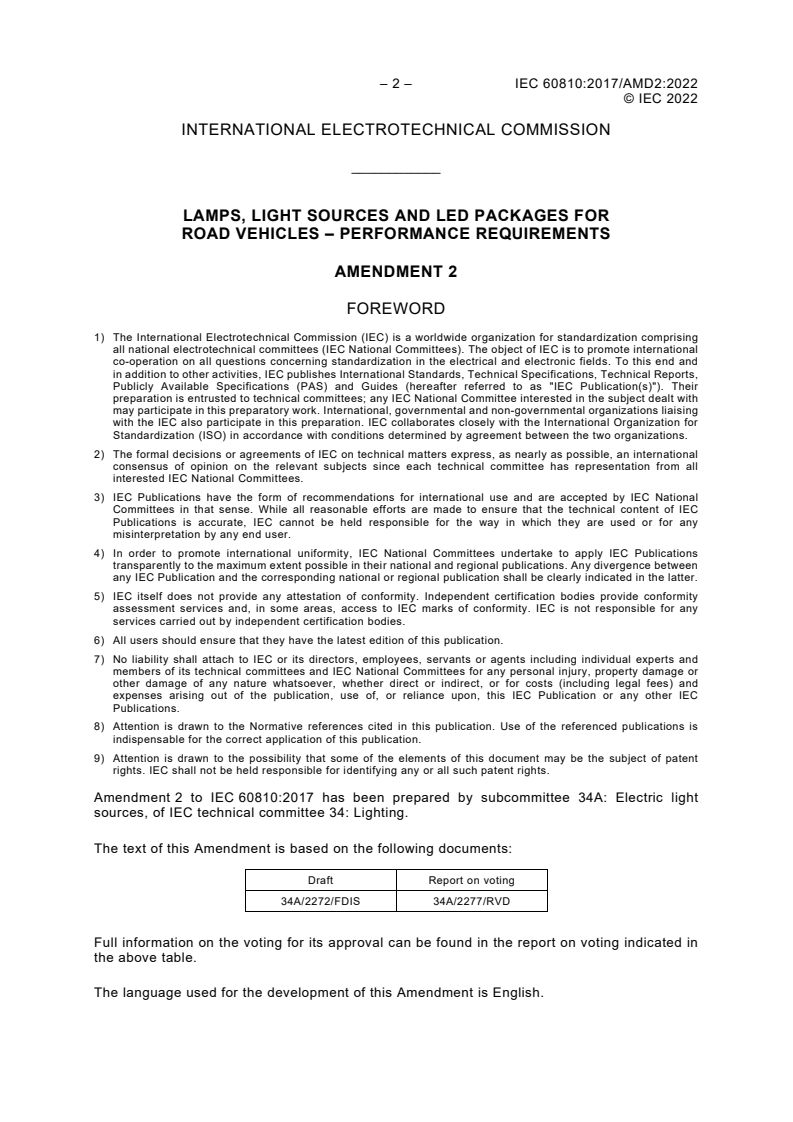

– 2 – IEC 60810:2017/AMD2:2022
© IEC 2022

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC


8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

Amendment 2 to IEC 60810:2017 has been prepared by subcommittee 34A: Electric light

sources, of IEC technical committee 34: Lighting.
The text of this Amendment is based on the following documents:
Draft Report on voting
34A/2272/FDIS 34A/2277/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Amendment is English.
---------------------- Page: 4 ----------------------
IEC 60810:2017/AMD2:2022 – 3 –
© IEC 2022

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at The main document types developed by IEC are

described in greater detail at

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
2 Normative references

Replace the existing reference to IEC 60809:2014 with the following new reference:

IEC 60809:2021, Lamps and light sources for road vehicles – Dimensional, electrical and

luminous requirements
3 Terms and definitions
initial luminous flux
Replace, in the note to entry, "IEC 60809:2014" with "IEC 60809:2021".
6 Requirements and test conditions for discharge lamps
Add, at the end of Subclause 6.8, the following new Subclause 6.9:
6.9 White colour groups

The discharge lamp shall be marked with the applicable colour group name or its abbreviation

or its nominal CCT value as defined in Table 17. No marking is required for discharge lamps of

the white colour group "Neutral white".

NOTE "Neutral white" is considered as the default white colour group for discharge lamps (e.g. in UN Resolution


These three white colour groups are defined with a nominal correlated colour temperature (CCT).

The white colour space, which is subdivided into these colour groups, is defined in UN

Regulation No. 48 and in IEC 60809:2021, 4.4.
---------------------- Page: 5 ----------------------
– 4 – IEC 60810:2017/AMD2:2022
© IEC 2022

The three colour groups are separated by their x-coordinate value from the CIE x,y chromaticity

coordinates according to CIE 015, as shown in Table 17 and Figure 14:
Table 17 – Three white colour groups, their abbreviation, nominal CCT
and CIE x-coordinate boundary value for discharge lamps
White colour
Abbreviation Nominal CCT CIE x-coordinate boundary value
Cool white CW 5 700 K x ≤ 0,345
Neutral white NW 4 500 K 0,345 < x < 0,405
Warm white WW 3 500 K x ≥ 0,405
Figure 14 – Three white colour groups for discharge lamps

For the purpose of measuring the colour group of a discharge lamp, the CIE colour coordinates

(x,y) shall be tested under the following conditions:

• Prior to the test, the discharge lamp shall be aged for 10 on/off switching cycles as specified
