Standards Content (sample)

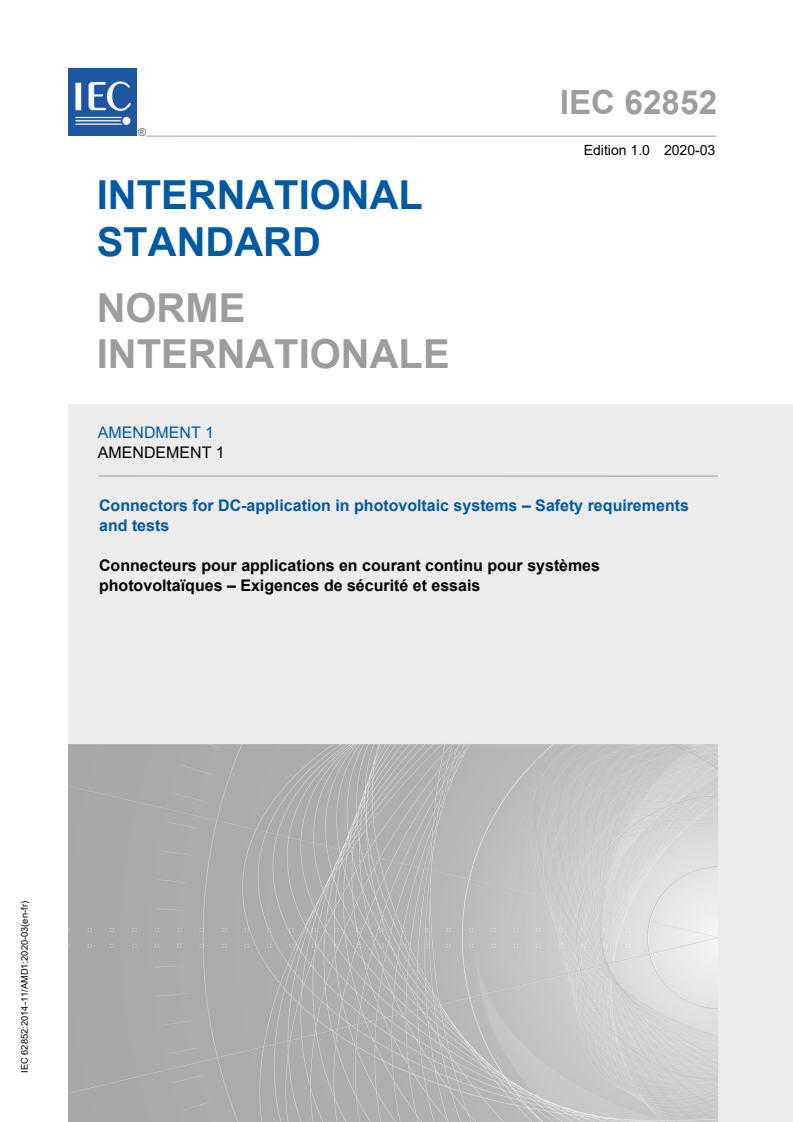

IEC 62852
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Connectors for DC-application in photovoltaic systems – Safety requirements
and tests
Connecteurs pour applications en courant continu pour systèmes
photovoltaïques – Exigences de sécurité et essais
IEC 62852:2014-11/AMD1:2020-03(en-fr)
---------------------- Page: 1 ----------------------

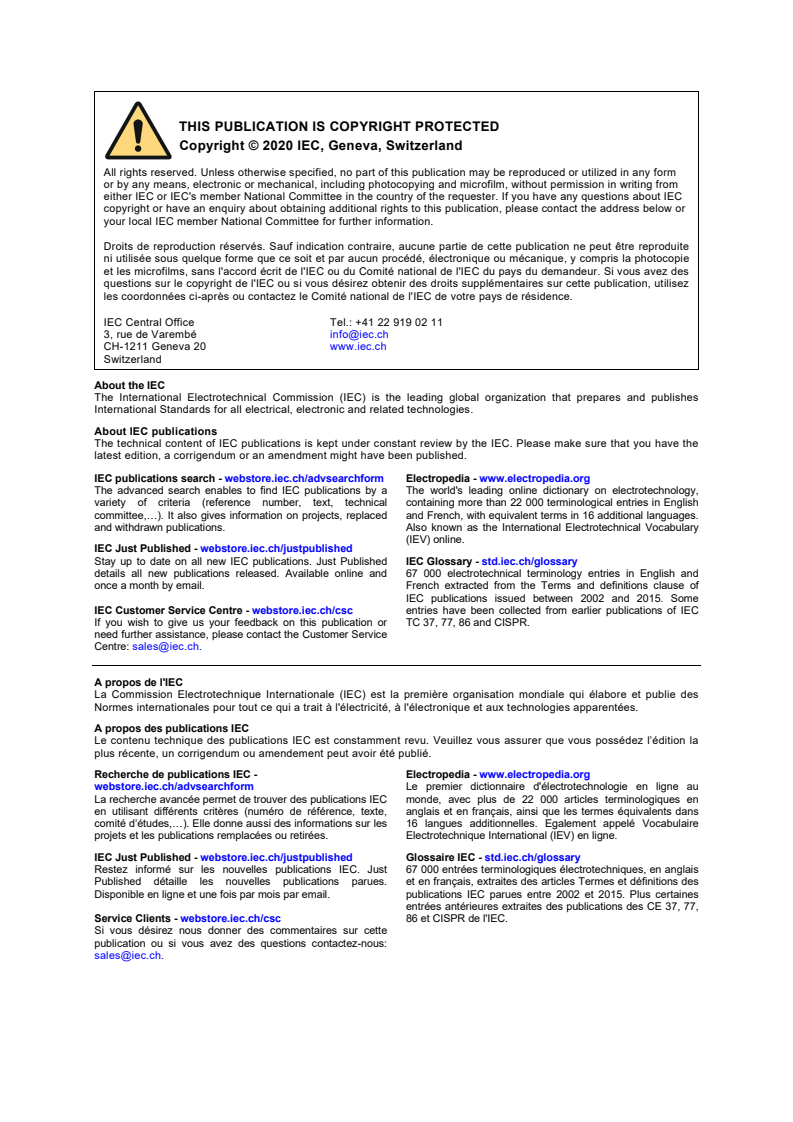

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and definitions clause of

IEC publications issued between 2002 and 2015. Some

IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC

If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines

entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

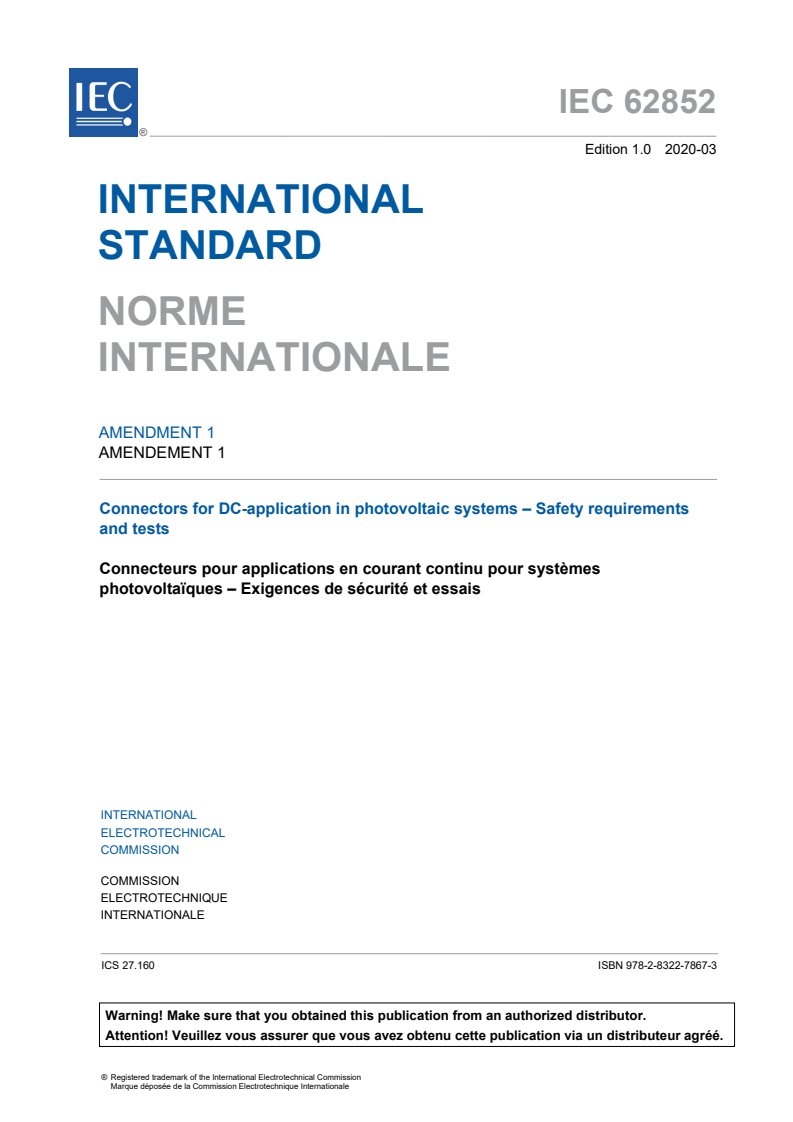

IEC 62852
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Connectors for DC-application in photovoltaic systems – Safety requirements
and tests
Connecteurs pour applications en courant continu pour systèmes
photovoltaïques – Exigences de sécurité et essais
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.160 ISBN 978-2-8322-7867-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

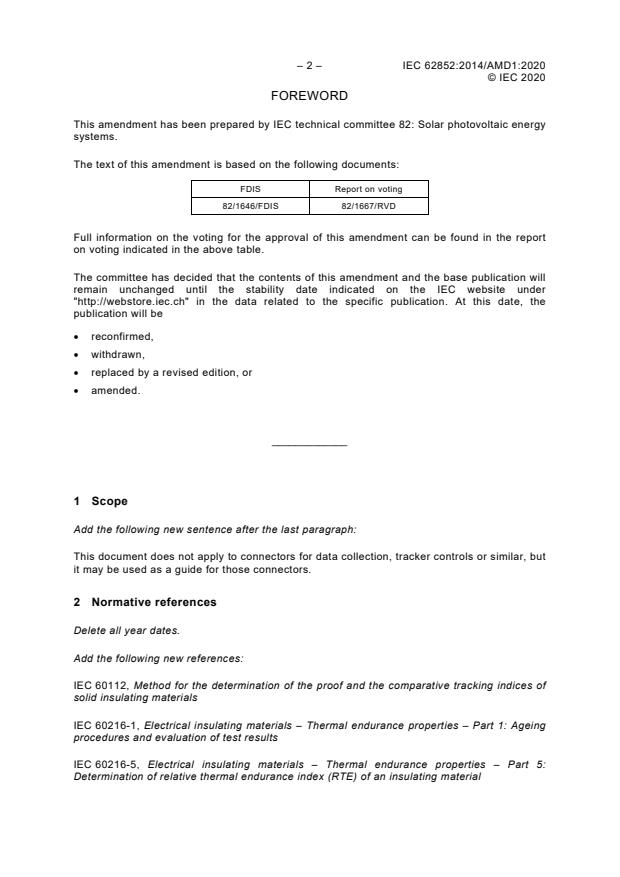

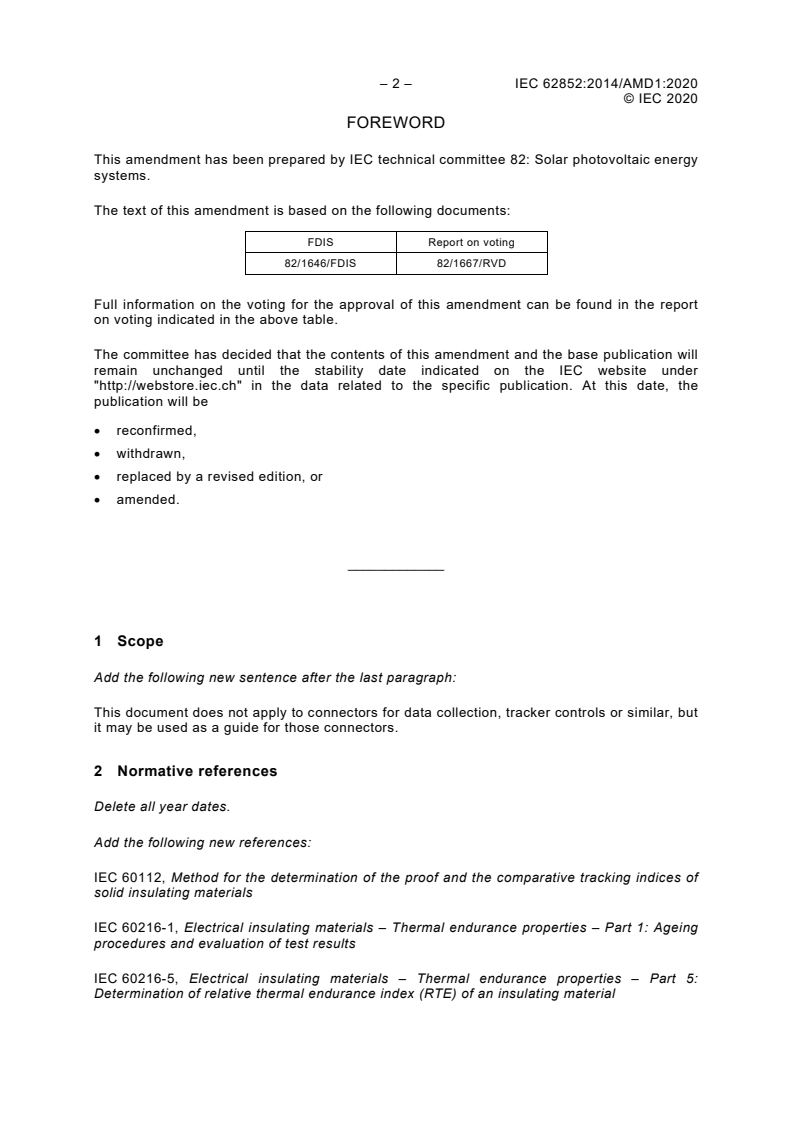

– 2 – IEC 62852:2014/AMD1:2020
© IEC 2020
FOREWORD

This amendment has been prepared by IEC technical committee 82: Solar photovoltaic energy

systems.
The text of this amendment is based on the following documents:
FDIS Report on voting
82/1646/FDIS 82/1667/RVD

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1 Scope
Add the following new sentence after the last paragraph:

This document does not apply to connectors for data collection, tracker controls or similar, but

it may be used as a guide for those connectors.
2 Normative references
Delete all year dates.
Add the following new references:

IEC 60112, Method for the determination of the proof and the comparative tracking indices of

solid insulating materials

IEC 60216-1, Electrical insulating materials – Thermal endurance properties – Part 1: Ageing

procedures and evaluation of test results

IEC 60216-5, Electrical insulating materials – Thermal endurance properties – Part 5:

Determination of relative thermal endurance index (RTE) of an insulating material

---------------------- Page: 4 ----------------------
IEC 62852:2014/AMD1:2020 – 3 –
© IEC 2020

IEC TR 60664-2-1, Insulation coordination for equipment within low-voltage systems –

Part 2-1: Application guide – Explanation of the application of the IEC 60664 series,

dimensioning examples and dielectric testing

IEC 62930, Electric cables for photovoltaic systems with a voltage rating of 1,5 kV DC

ISO 868, Plastics and ebonite – Determination of indentation hardness by means of a

durometer (Shore hardness)
Replace:

IEC 61215:2005, Crystalline silicon terrestrial photovoltaic (PV) modules – Design

qualification and type approval
by:

IEC 61215-2, Terrestrial photovoltaic (PV) modules – Design qualification and type approval –

Part 2: Test procedures
Replace:
IEC TS 62548, Photovoltaic (PV) arrays – Design requirements
by:
IEC 62548, Photovoltaic (PV) arrays – Design requirements
3 Terms and definitions
Replace:
3.13
ambient temperature
by:
3.13
maximum ambient temperature
5 Constructional requirements and performance
5.1 General
Replace the existing third paragraph by the following:

Multi-way connectors shall be designed so that these requirements for earth-faulted and

short-circuit-proofed installation complies with IEC 62548 or IEC 60364-7-712.
5.2 Marking and identification
5.2.1 Identification
Replace the existing item h) by the following:

h) specified temperatures: ULT, LLT, maximum ambient temperature (minimum +85 °C);

---------------------- Page: 5 ----------------------
– 4 – IEC 62852:2014/AMD1:2020
© IEC 2020
Add the following new item n):

n) RTE/RTI or TI (mechanical and electrical) of all polymeric insulating materials used in the

connector.
5.7 General design
Replace the existing subclause 5.7.2 by the following:

5.7.2 Connectors shall be so designed that connection of conductors of the type and cross-

sectional areas as described in 5.7.3 and as specified by the manufacturer is possible.

Besides the termination of the conductor, care shall be taken that no damage of the insulation

is possible, e.g. by avoiding sharp edges.
Replace the existing subclause 5.7.3 by the following:

5.7.3 Cables connected to the connector shall be suitable for use in photovoltaic systems

and shall comply with the requirements of IEC 62930. The values of the rated current and the

rated voltage shall have at least the rated values of the connector.

The class of the conductor shall be Class 5 in accordance with IEC 60228, Class 2

conductors are allowed for cables intended for fixed installation.
5.13 Temperature rise

Add, at the end of the first sentence, the following after the word “temperature”:

(ULT)
5.14 Cable anchorage
Replace the existing subclause 5.14 by the following:
5.14.1 Connectors intended to be used with cables specified by the manufacturer

For connectors intended to be used with cables specified by the manufacturer, the tests shall

be performed with cables as stated by the manufacturer.

The unloaded cable shall be marked so that any displacement relative to the gland can be

easily detected.

The cable is pulled for a duration of 1 s, 50 times, without jerks in the direction of the axis with

the relevant force as specified in Table 13.

At the end of this period, the displacement shall not exceed 2 mm. This measurement shall be

carried out after unloading the force from the cable.

Afterwards the specimen shall be mounted in the test apparatus for torque test. The unloaded

cable shall be marked so that any torsion relative to the gland can be easily detected, and

then a torque as specified in Table 14 shall be applied for 1 min.
During test, the torsion shall not exceed 45°.
---------------------- Page: 6 ----------------------
IEC 62852:2014/AMD1:2020 – 5 –
© IEC 2020
5.14.2 Connectors intended to be used with generic cables

A test mandrel equivalent to the minimum value of the anchorage range of the cable gland as

specified by the manufacturer or supplier, with a sheath thickness as specified in Table 13

shall be fixed to the sample.

The unloaded test mandrel shall be marked so that any displacement relative to the gland can

be easily detected.

The test mandrel shall be pulled for a duration of 1 s, 50 times, without jerks in the direction

of the axis with the relevant force as specified in Table 13.

At the end of this period, the displacement shall not exceed 2 mm. This measurement is to be

carried out after unloading the force from the test mandrel.

Unless otherwise specified, test mandrels shall consist of a metallic rod with an elastomeric

sheath having a hardness of 70 Shore D ± 10 points in accordance with ISO 868 and a sheath

thickness as specified in Table 13 or Table 14. The complete test mandrel shall have a

tolerance of ± 0,2 mm for mandrels up to and including 16 mm diameter and ± 0,3 mm for

mandrels larger than 16 mm diameter. The shape shall be circular or a profile simulating the

outer dimension of the cable as specified by the manufacturer or supplier.
Table 13 – Pull forces for cord anchorage
Cable diameter Pull force Minimum sheath thickness of test mandrel
mm N mm
Up to 4 - 1
>4 to 8 30 1
>8 to 11 42 2
>11 to 16 55 2
>16 to 23 70 2
>23 to 31 80 2
>31 to 43 90 2
>43 to 55 100 2
>55 115 2
For cable diameters up to 4 mm, a suitable non-metallic mandrel may be used.
Afterwards the specimen shall be mounted in the test apparatus for torque test.

The unloaded mandrel shall be marked so that any torsion relative to the gland can be easily

detected, and then a torque specified in Table 14 is applied for 1 min.
During test, the torsion shall not exceed 45°.

The torsion test shall be performed by using a test mandrel equivalent to the maximum value

of the anchorage range of the cable gland as specified by the manufacturer or supplier, with a

torque for the appropriate maximum cable diameter as specified in Table 14.
---------------------- Page: 7 ----------------------
– 6 – IEC 62852:2014/AMD1:2020
© IEC 2020
Table 14 – Values for torsion test
Cable diameter Torque Minimum sheath thickness of test mandrel
mm Nm mm
>4 to 8 0,10 1
>8 to 11 0,15 2
>11 to 16 0,35 2
>16 to 23 0,60 2
>23 to 31 0,80 2
>31 to 43 0,90 2
>43 to 55 1,00 2
>55 1,20 2

For metric cable glands meeting the requirements of IEC 62444 the tests described in this

subclause are not required.
5.19 Insulation parts
5.19.2 Outer accessible parts
Add the following new new item d):

d) approval of relative thermal endurance, relative thermal index or temperature index

(RTE/RTI or TI) in accordance with IEC 60216-5 or IEC 60216-1. Values shall be listed in

technical information.

NOTE Relevant RTI values evaluated in accordance to UL 746B are accepted as an alternative to RTE.

5.19.3 Inner parts
Add the following new item d):

d) approval of relative thermal endurance, relative thermal index or temperature index

(RTE/RTI or TI) in accordance with IEC 60216-5 or IEC 60216-1. Values shall be listed in

technical information.

NOTE Relevant RTI values evaluated in accordance to UL 746B are accepted as an alternative to RTE.

6.3.5 Mechanical operation
Replace the first sentence of the first dashed item by:

– the specimens shall be engaged and disengaged by means of a device simulating normal

operating conditions for a number of cycles specified by the manufacturer.
6.3.12 Damp heat test
Replace the second sentence by:
Severity according to IEC 61215-2:2016, 4.13:
---------------------- Page: 8 ----------------------
IEC 62852:2014/AMD1:2020 – 7 –
© IEC 2020
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
