Plugs, socket-outlets and ship couplers for high-voltage shore connection (HVSC) systems - Part 1: General requirements

IEC 62613-1:2019 applies to accessories with
- three phases and earth with pilot contacts,
- one pole for neutral.
These accessories have rated currents not exceeding 500 A and rated operating voltages not exceeding 12 kV 50/60 Hz.
This second edition cancels and replaces the first edition published in 2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) extension of the scope to an unlimited number of pilot contacts (previously limited to 3);
b) update of the Figures and deletion of their embedded texts;
c) insertion of tables of keys whenever required by the Figures.

Prises de courant et connecteurs de navire pour les systèmes haute tension de raccordement des navires à quai - Partie 1: Exigences générales

L'IEC 62613-1:2019 s'applique aux accessoires
- triphasés avec terre de protection et contacts pilotes,
- unipolaires pour le neutre.
Ces accessoires ont un courant assigné ne dépassant pas 500 A et une tension d'emploi assignée ne dépassant pas 12 kV 50/60 Hz.
Cette deuxième édition annule et remplace la première édition parue en 2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) extension du domaine d'application à un nombre illimité de contacts pilotes (précédemment limités à 3);
b) mise à jour des figures et suppression de leurs textes intégrés;
c) insertion de tableaux de légendes partout où l'exigent les figures.
La présente version bilingue (2019-08) correspond à la version anglaise monolingue publiée en 2019-05.
La version française de cette norme n'a pas été soumise au vote.

General Information

Status
Published
Publication Date
23-May-2019
Current Stage
PPUB - Publication issued
Completion Date
24-May-2019
Ref Project

Buy Standard

Standard
IEC 62613-1:2019 - Plugs, socket-outlets and ship couplers for high-voltage shore connection (HVSC) systems - Part 1: General requirements
English and French language
106 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

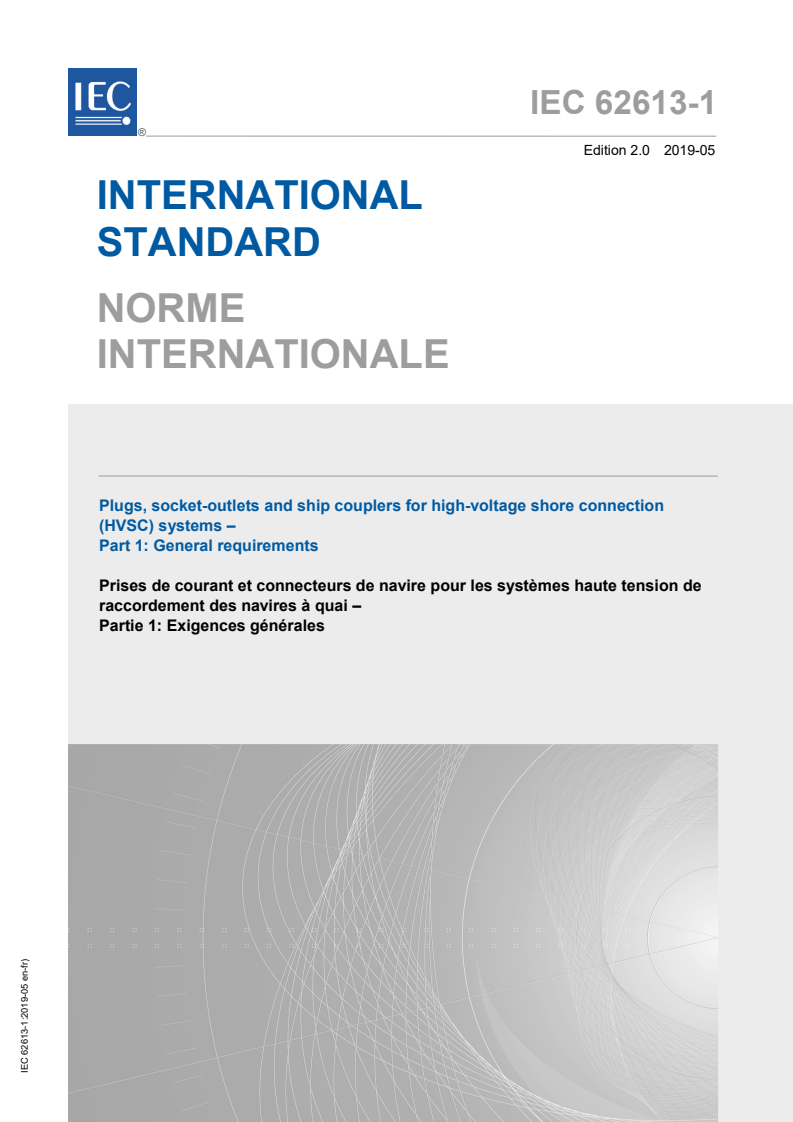

IEC 62613-1
Edition 2.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets and ship couplers for high-voltage shore connection
(HVSC) systems –
Part 1: General requirements
Prises de courant et connecteurs de navire pour les systèmes haute tension de
raccordement des navires à quai –
Partie 1: Exigences générales
IEC 62613-1:2019-05 en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

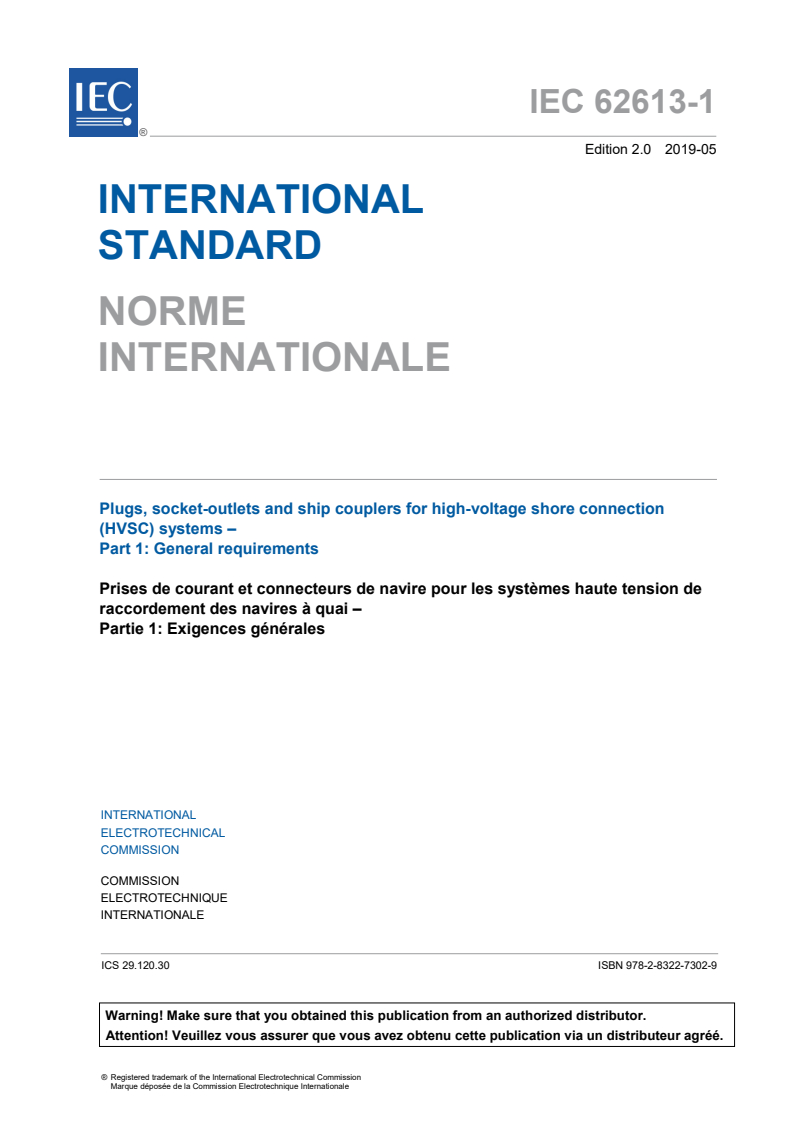

IEC 62613-1
Edition 2.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets and ship couplers for high-voltage shore connection
(HVSC) systems –
Part 1: General requirements
Prises de courant et connecteurs de navire pour les systèmes haute tension de
raccordement des navires à quai –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.30 ISBN 978-2-8322-7302-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62613-1:2019  IEC 2019

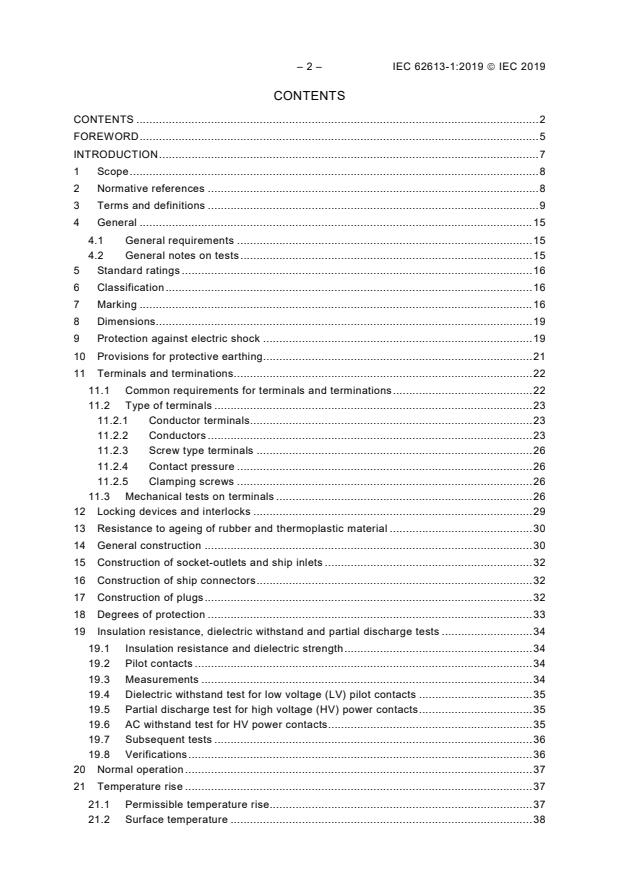

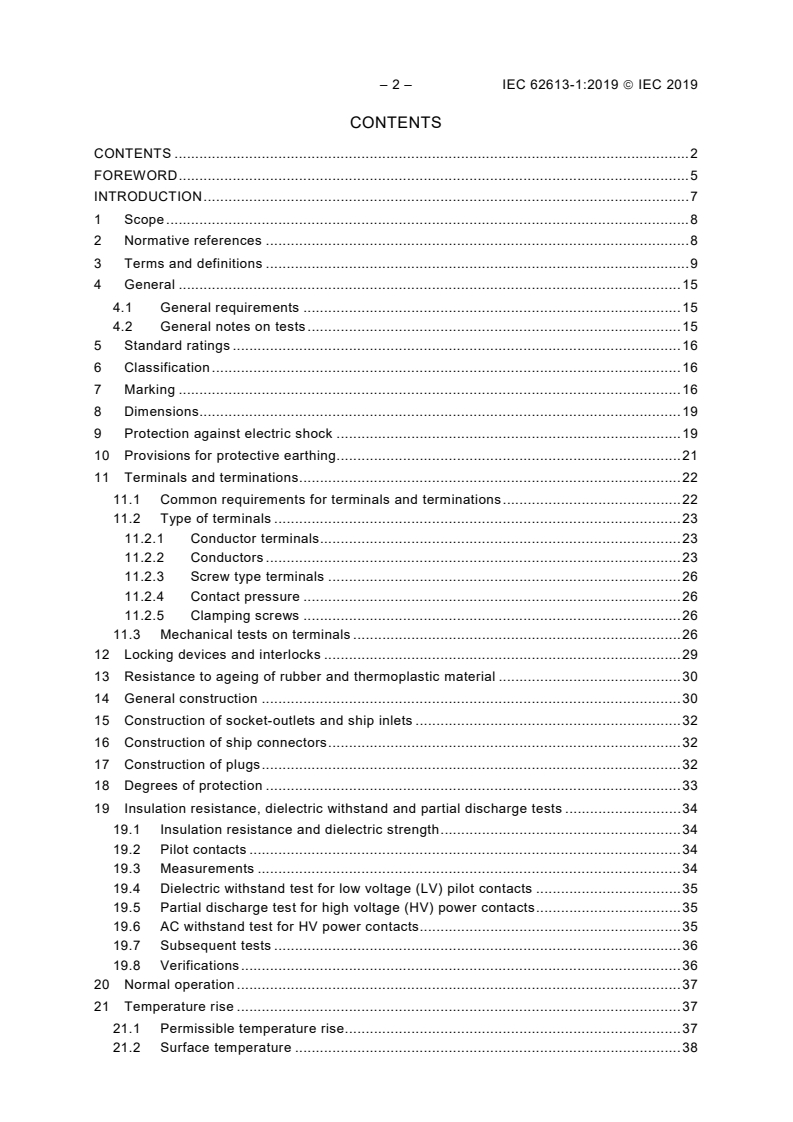

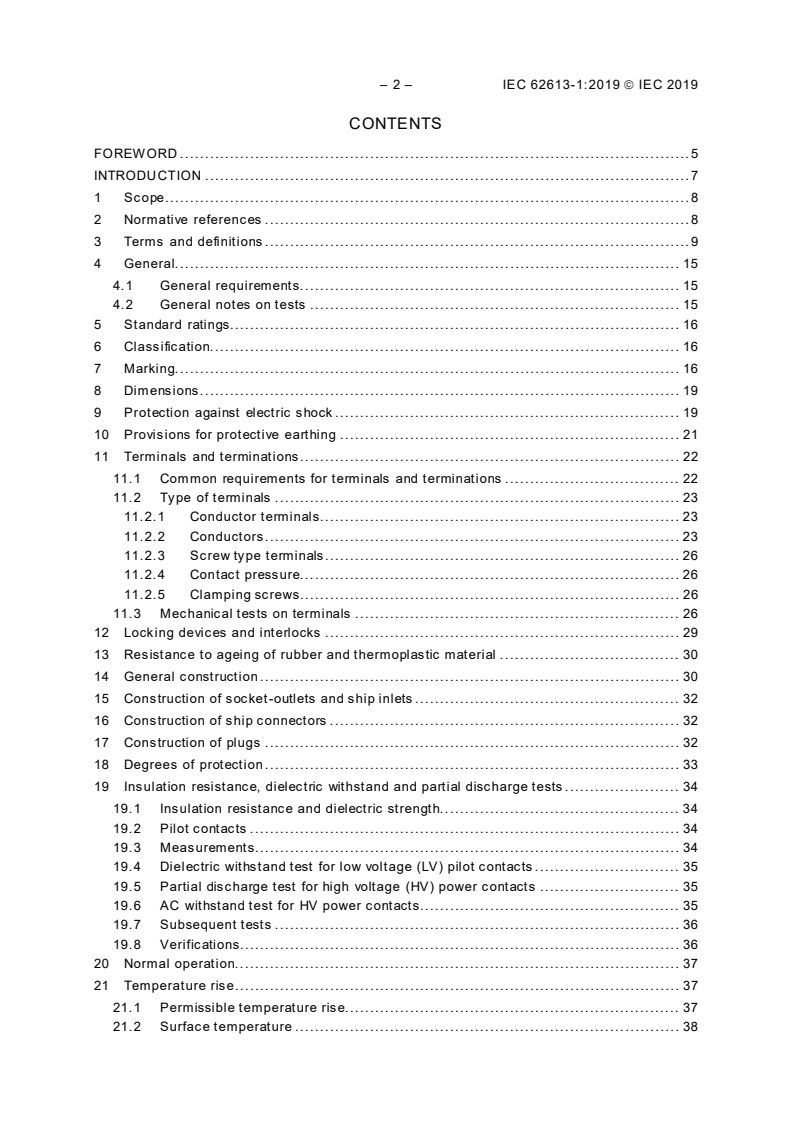

CONTENTS

CONTENTS ............................................................................................................................ 2

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 9

4 General ......................................................................................................................... 15

4.1 General requirements ........................................................................................... 15

4.2 General notes on tests .......................................................................................... 15

5 Standard ratings ............................................................................................................ 16

6 Classification ................................................................................................................. 16

7 Marking ......................................................................................................................... 16

8 Dimensions.................................................................................................................... 19

9 Protection against electric shock ................................................................................... 19

10 Provisions for protective earthing................................................................................... 21

11 Terminals and terminations ............................................................................................ 22

11.1 Common requirements for terminals and terminations ........................................... 22

11.2 Type of terminals .................................................................................................. 23

11.2.1 Conductor terminals....................................................................................... 23

11.2.2 Conductors .................................................................................................... 23

11.2.3 Screw type terminals ..................................................................................... 26

11.2.4 Contact pressure ........................................................................................... 26

11.2.5 Clamping screws ........................................................................................... 26

11.3 Mechanical tests on terminals ............................................................................... 26

12 Locking devices and interlocks ...................................................................................... 29

13 Resistance to ageing of rubber and thermoplastic material ............................................ 30

14 General construction ..................................................................................................... 30

15 Construction of socket-outlets and ship inlets ................................................................ 32

16 Construction of ship connectors ..................................................................................... 32

17 Construction of plugs ..................................................................................................... 32

18 Degrees of protection .................................................................................................... 33

19 Insulation resistance, dielectric withstand and partial discharge tests ............................ 34

19.1 Insulation resistance and dielectric strength .......................................................... 34

19.2 Pilot contacts ........................................................................................................ 34

19.3 Measurements ...................................................................................................... 34

19.4 Dielectric withstand test for low voltage (LV) pilot contacts ................................... 35

19.5 Partial discharge test for high voltage (HV) power contacts ................................... 35

19.6 AC withstand test for HV power contacts ............................................................... 35

19.7 Subsequent tests .................................................................................................. 36

19.8 Verifications .......................................................................................................... 36

20 Normal operation ........................................................................................................... 37

21 Temperature rise ........................................................................................................... 37

21.1 Permissible temperature rise................................................................................. 37

21.2 Surface temperature ............................................................................................. 38

---------------------- Page: 4 ----------------------
IEC 62613-1:2019  IEC 2019 – 3 –

22 Flexible cables and their connection .............................................................................. 39

22.1 Means for cable clamping ..................................................................................... 39

22.2 Requirements for plugs and ship connectors ......................................................... 39

23 Mechanical strength ...................................................................................................... 42

23.1 Impact resistance .................................................................................................. 42

23.2 Drop test ............................................................................................................... 42

24 Screws, current-carrying parts and connections ............................................................. 43

25 Resistance to heat, to fire and to tracking ...................................................................... 46

26 Corrosion and resistance to rusting ............................................................................... 47

27 Conditional short-circuit current withstand test ............................................................... 48

27.1 General ................................................................................................................. 48

27.2 Ratings and test conditions ................................................................................... 48

27.3 Test circuit ............................................................................................................ 48

27.4 Calibration ............................................................................................................ 49

27.5 Test procedure ...................................................................................................... 49

27.6 Behaviour of the accessory under test .................................................................. 49

27.7 Acceptance conditions .......................................................................................... 49

28 Electromagnetic compatibility ........................................................................................ 51

28.1 Immunity ............................................................................................................... 51

28.2 Emission ............................................................................................................... 51

Bibliography .......................................................................................................................... 52

Figure 1 – Diagram showing the use of the accessories ........................................................ 10

Figure 2 – Pillar terminals ..................................................................................................... 12

Figure 3 – Screw terminals ................................................................................................... 12

Figure 4 – Stud terminals ...................................................................................................... 12

Figure 5 – Saddle terminals .................................................................................................. 13

Figure 6 – Lug terminals ....................................................................................................... 13

Figure 7 – Mantle terminals................................................................................................... 14

Figure 8 – Standard test finger .............................................................................................. 21

Figure 9 – Gauges for testing insertability of round unprepared conductors having the

maximum specified cross-section .......................................................................................... 25

Figure 10 – Test apparatus for checking damage to conductors ............................................ 27

Figure 11 – Apparatus for testing the cable anchorage ......................................................... 40

Figure 12 – Arrangement for mechanical strength test for plugs and ship connectors ........... 43

Figure 13 – Diagram of the test circuit for the verification of short-circuit current

withstand of a three-phase accessory ................................................................................... 50

Figure 14 – Diagram of the test circuit for the verification of short-circuit current

withstand of a three-phase and separate neutral accessory .................................................. 51

Table 1 – Size for connectable conductors ............................................................................ 24

Table 2 – Test values for flexing tests for copper conductors ................................................ 28

Table 3 – Test values for pull-out tests for copper conductors ............................................... 29

Table 4 – Test voltage for dielectric strength test of pilot contacts ........................................ 35

Table 5 – Dielectric withstand test voltage ............................................................................ 36

---------------------- Page: 5 ----------------------
– 4 – IEC 62613-1:2019  IEC 2019

Table 6 – Test current and conductor cross-section for temperature rise ............................... 38

Table 7 – Maximum surface temperatures ............................................................................. 38

Table 8 – Flexible cable types and dimensions, including conductor sizes and wire type....... 41

Table 9 – Cable secureness test values ................................................................................ 41

Table 10 – Screw sizes and torque test values ..................................................................... 44

---------------------- Page: 6 ----------------------
IEC 62613-1:2019  IEC 2019 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PLUGS, SOCKET-OUTLETS AND SHIP COUPLERS FOR
HIGH-VOLTAGE SHORE CONNECTION (HVSC) SYSTEMS –
Part 1: General requirements
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62613-1 has been prepared by subcommittee 23H: Plugs, socket-

outlets and couplers for industrial and similar applications, and for electric vehicles, of IEC

technical committee 23: Electrical accessories.

This bilingual version (2019-08) corresponds to the monolingual English version, published in

2019-05.

This second edition cancels and replaces the first edition published in 2011. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) extension of the scope to an unlimited number of pilot contacts (previously limited to 3);

b) update of the Figures and deletion of their embedded texts;
---------------------- Page: 7 ----------------------
– 6 – IEC 62613-1:2019  IEC 2019
c) insertion of tables of keys whenever required by the Figures.
The text of this International Standard is based on the following documents:
CDV Report on voting
23H/411/CDV 23H/442A/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
The French version of this standard has not been voted upon.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

In this standard, the following print types are used:
• requirements proper: in roman type;
• test specifications: in italic type;
• notes: in smaller roman type.

A list of all the parts in the IEC 62613 series, under the general title Plugs, socket-outlets and

ship couplers for high-voltage shore connection (HVSC) systems, can be found on the IEC

website.

Future standards in this series will carry the new general title as cited above. Titles of existing

standards in this series will be updated at the time of the next edition.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
IEC 62613-1:2019  IEC 2019 – 7 –
INTRODUCTION

This part of IEC 62613 has been primarily written to address the needs of IEC/IEEE 80005-1

in terms of plugs, socket-outlets, ship connectors and ship inlets (hereafter referred to as

"accessories"), to deliver electrical power to ships in ports. The purpose of IEC/IEEE 80005-1

is to define requirements that allow compliant ships to connect to compliant high-voltage

shore power supplies through a compatible shore-to-ship connection.
These ships are described in IEC/IEEE 80005-1.

Ships that do not require connecting with standardized high-voltage shore power supplies as

above may use accessories that are not covered by the standard sheets of IEC 62613-2, but

they may find it impossible to connect to these shore supplies.

Low-voltage plugs, socket-outlets, ship connectors and ship inlets used for the connection of

certain ship types to low-voltage shore power supplies can be found in IEC 60309 (all parts).

---------------------- Page: 9 ----------------------
– 8 – IEC 62613-1:2019  IEC 2019
PLUGS, SOCKET-OUTLETS AND SHIP COUPLERS FOR
HIGH-VOLTAGE SHORE CONNECTION (HVSC) SYSTEMS –
Part 1: General requirements
1 Scope
This part of IEC 62613 applies to accessories with
• three phases and earth with pilot contacts,
• one pole for neutral.

These accessories have rated currents not exceeding 500 A and rated operating voltages not

exceeding 12 kV 50/60 Hz.
NOTE 1 In some countries, the term "ground" is used instead of "earth".

These accessories are primarily intended for use outdoors, in a seawater environment, for the

shore supply of ships (ship-to-shore connection), in an ambient temperature within the range

of −25 °C to +45 °C.
NOTE 2 In some countries, other ambient temperatures prevail and are considered.

These accessories are not intended for use in hazardous areas. In such locations where

special conditions prevail, additional requirements can be necessary.

These accessories are intended to be connected to cables of copper or copper alloy only.

Socket-outlets or ship inlets incorporated in or fixed to electrical equipment are within the

scope of this document.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60068-2-75, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC 60092 (all parts), Electrical installations in ships

IEC 60092-354, Electrical installations in ships – Part 354: Single- and three-core power

cables with extruded solid insulation for rated voltages 6 kV (U = 7,2 kV) up to 30 kV

(U = 36 kV)

IEC 60112, Method for the determination of the proof and the comparative tracking indices of

solid insulating materials
IEC 60228, Conductors of insulated cables
IEC 60269-1, Low-voltage fuses – Part 1: General requirements
---------------------- Page: 10 ----------------------
IEC 62613-1:2019  IEC 2019 – 9 –

IEC 60269-2, Low-voltage fuses – Part 2: Supplementary requirements for fuses for use by

authorized persons (fuses mainly for industrial application) – Examples of standardized

systems of fuses A to K

IEC 60502-4:2010, Power cables with extruded insulation and their accessories for rated

voltages from 1 kV (U = 1,2 kV) up to 30 kV (U = 36 kV) – Part 4: Test requirements on

m m
= 7,2 kV) up to 30 kV (U = 36 kV)
accessories for cables with rated voltages from 6 kV (U
m m
IEC 60529, Degrees of protection provided by enclosures (IP Code)

IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:

Principles, requirements and tests

IEC 60695-2-11, Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods –

Glow-wire flammability test method for end-products (GWEPT)

IEC 60695-10-2, Fire hazard testing – Part 10-2: Abnormal heat – Ball pressure test method

IEC 62262, Degrees of protection provided by enclosures for electrical equipment against

external mechanical impacts (IK code)

IEC 62271-1, High-voltage switchgear and controlgear – Part 1: Common specifications for

alternating current switchgear and controlgear
ASTM B117-1985, Standard practice for operating salt spray (fog) apparatus

IEEE 1580, IEEE Recommended Practice for Marine Cable for Use on Shipboard and Fixed or

Floating Facilities
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

NOTE Where the terms "voltage" and "current" are used, they imply the alternating current (AC) root mean square

(RMS) values.
3.1
accessory
plugs, socket-outlets, ship connectors and ship inlets
Note 1 to entry: The application of accessories is shown in Figure 1.
3.1.1
socket-outlet
part intended to be installed with the fixed wiring or incorporated in equipment

Note 1 to entry: A socket-outlet may also be incorporated in the output circuit of an isolating transformer.

3.1.2
plug
part intended to be attached directly to one flexible cable
---------------------- Page: 11 ----------------------
– 10 – IEC 62613-1:2019  IEC 2019
3.2
ship coupler

means enabling the connection at will of a flexible cable to the ship, and consisting of a ship

connector and ship inlet
3.2.1
ship connector
part intended to be attached to one flexible cable connected to the supply
3.2.2
ship inlet
part incorporated in, or fixed to, the ship
Key
A Plug and socket-outlet
B Socket-outlet
C Plug
D Ship coupler
E Ship connector
F Ship inlet
Figure 1 – Diagram showing the use of the accessories
3.3
interlock

device, either electrical and/or mechanical, which prevents the contacts of a plug from

becoming live before it is in proper engagement with a socket-outlet, and which either

prevents the plug or the ship connector from being withdrawn while its contacts are live or

makes the contacts dead and earthed before separation
---------------------- Page: 12 ----------------------
IEC 62613-1:2019  IEC 2019 – 11 –
3.4
retaining dev
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
