IEC 60317-18:2020

Specifications for particular types of winding wires - Part 18: Polyvinyl acetal enamelled rectangular copper wire, class 120

IEC 60317-18:2020 is available as IEC 60317-18:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60317-18:2020 specifies the requirements of enamelled rectangular copper winding wires of class 120 with a sole coating based on polyvinyl acetal or polyvinyl formal resin, which can be modified provided it retains the chemical identity of the original resin and meets all specified wire requirements
NOTE 1 A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics.
NOTE 2 Polyvinyl acetate is a general name for a family of thermoplastic vinyl resins produced by the condensation of polyvinyl alcohol with an aldehyde. Examples are polyvinyl acetal, polyvinyl formal and polyvinyl butyral.
The range of nominal conductor dimensions covered by this document is:
- width: min. 2,0 mm max. 31,5 mm;
- thickness: min. 0,80 mm max. 10,0 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specified ratio width/thickness are given in IEC 60317-0-2. This fourth edition cancels and replaces the third edition published in 2004 and Amendment 1:2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- modification of the Scope (Clause 1);
- revision to thermal class designation from 105 to 120 in 3.2.2;
- renaming of stretching test to adherence test, and modification to the requirements in 8.2;
- revision to the cut-through requirement in Clause 10.

Spécifications pour types particuliers de fils de bobinage - Partie 18: Fil de section rectangulaire en cuivre émaillé avec acétal de polyvinyle, classe 120

IEC 60317-18:2020 est disponible sous forme de IEC 60317-18:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
IEC 60317-18: 2020 spécifie les exigences relatives aux fils de bobinage de section rectangulaire en cuivre émaillés de classe 120 avec un revêtement simple à base de résine acétal de polyvinyle ou formal de polyvinyle qui peut être modifiée sous réserve qu'elle conserve l'identité chimique de la résine initiale et respecte l'ensemble des exigences spécifiées du fil.
NOTE 1 Une résine modifiée est une résine dont les propriétés chimiques ont été modifiées ou qui contient un ou plusieurs additifs visant à améliorer certaines performances ou caractéristiques d'application.
NOTE 2 L'acétate de polyvinyle est le nom générique désignant une famille de résines thermoplastiques vinyliques produites par la condensation de l'alcool polyvinylique avec un aldéhyde. Des exemples sont l'acétal de polyvinyle, le formal de polyvinyle et le butyral de polyvinyle.
La gamme des dimensions nominales des conducteurs couvertes par le présent document est:
largeur: min. 2,0 mm max. 31,5 mm;
épaisseur: min. 0,80 mm max. 10,0 mm.  Les fils de grades 1 et 2 sont couverts par la présente spécification et s'appliquent à toute la gamme de conducteurs. Les combinaisons largeur-épaisseur spécifiées ainsi que le rapport largeur/épaisseur spécifié sont indiqués dans l'IEC 60317-0-2. Cette quatrième édition annule et remplace la troisième édition parue en 2004, et l'Amendement 1: 2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
modification du domaine d’application (Article 1);
révision de la désignation de classe thermique de 105 à 120 en 3.2.2;
"essai d’étirement" renommé "essai d’adhérence", et modification des exigences en 8.2;
révision de l’exigence relative à la thermoplasticité à l’Article 10.

General Information

• Status: Published
• Publication Date: 04-Jun-2020
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 29.060.10 - Wires
• Technical Committee: TC 55 - Winding wires
• Drafting Committee: WG 1 - TC 55/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 19-Jun-2020
• Completion Date: 05-Jun-2020

Relations

• Revises: IEC 60317-18:2004/AMD1:2009 - Amendment 1 - Specifications for particular types of winding wires - Part 18: Polyvinyl acetal enamelled rectangular copper wire, class 120
• Effective Date: 05-Sep-2023
• Revises: IEC 60317-18:2004 - Specifications for particular types of winding wires - Part 18: Polyvinyl acetal enamelled rectangular copper wire, class 120
• Effective Date: 05-Sep-2023

Standards Content (Sample)

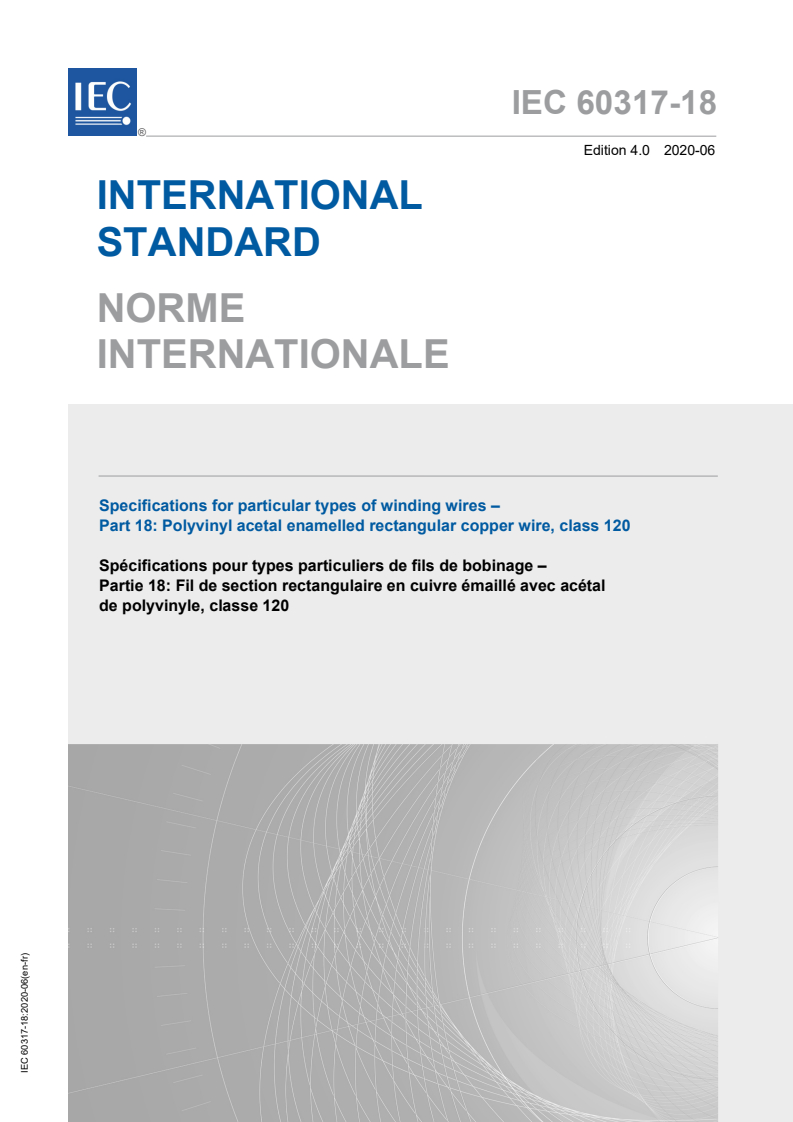

IEC 60317-18 ®
Edition 4.0 2020-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 18: Polyvinyl acetal enamelled rectangular copper wire, class 120

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
IEC 60317-18 ®
Edition 4.0 2020-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –

Part 18: Polyvinyl acetal enamelled rectangular copper wire, class 120

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.10 ISBN 978-2-8322-8491-9

– 2 – IEC 60317-18:2020 RLV © IEC 2020

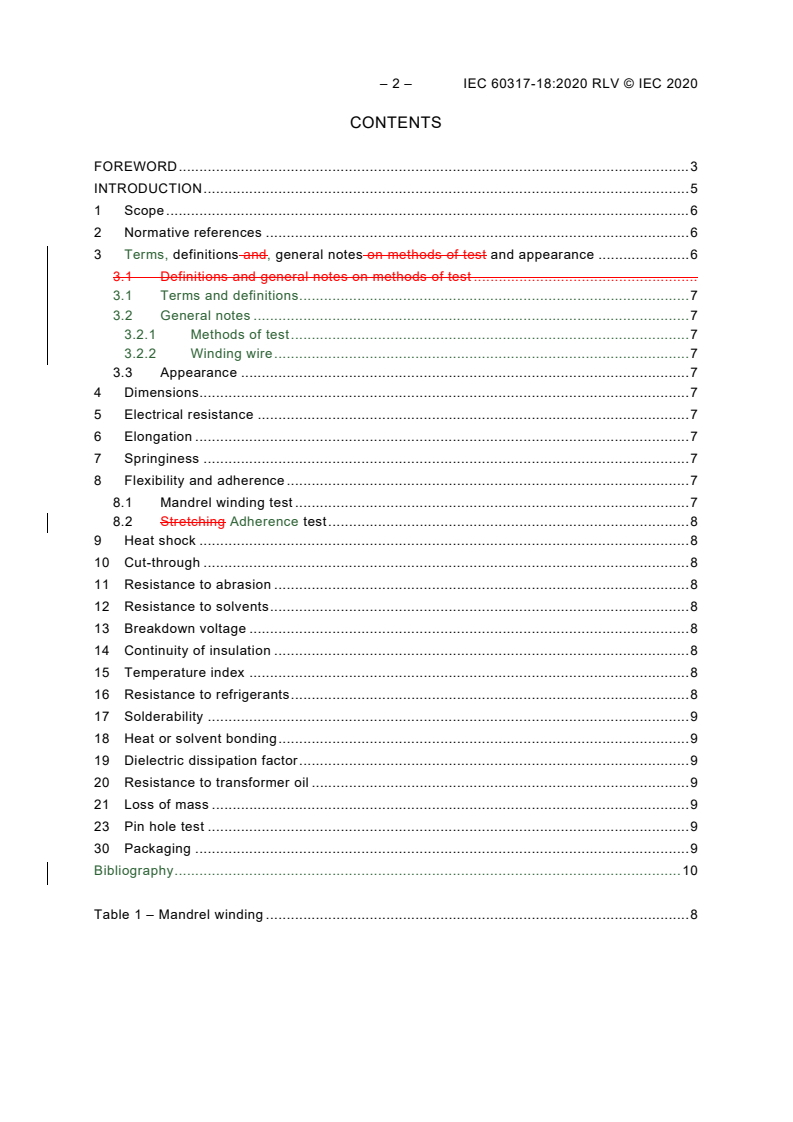

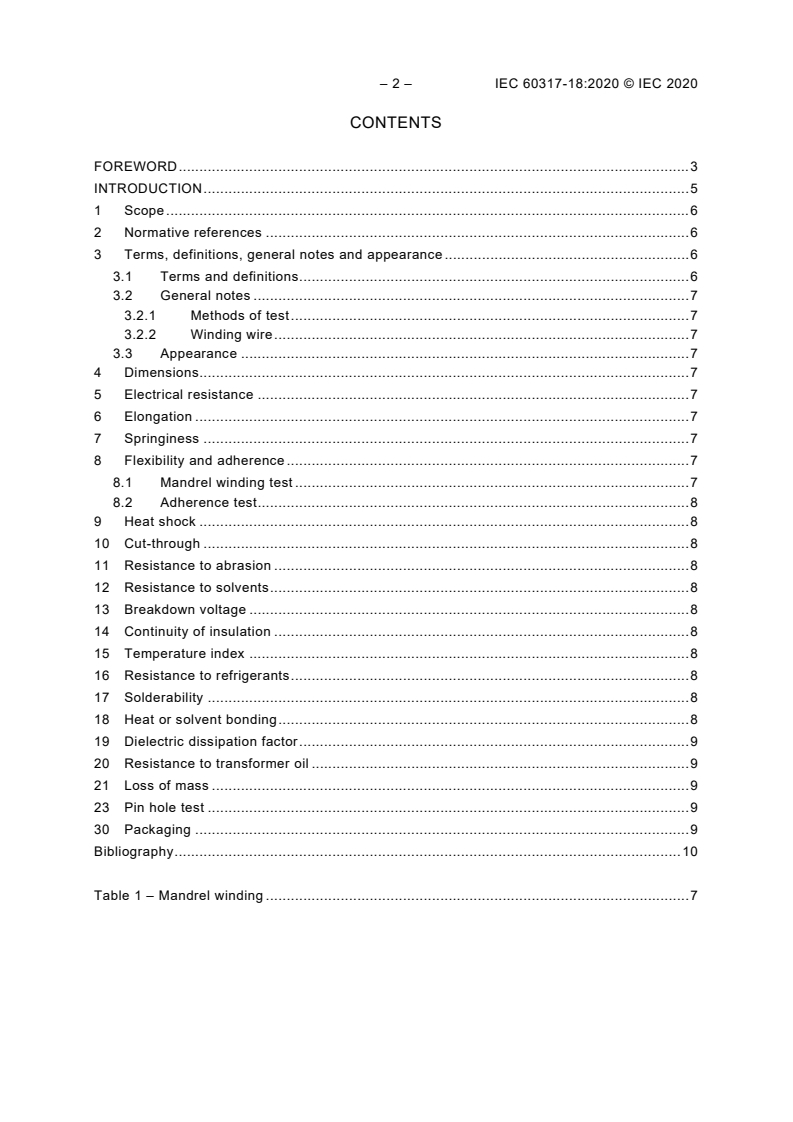

CONTENTS
