IEC 61970-501:2006

Energy management system application program interface (EMS-API) - Part 501: Common Information Model Resource Description Framework (CIM RDF) schema

Specifies the format and rules for producing a machine readable form of the Common Information Model (CIM) as specified in the IEC 61970-301 standard. Describes a CIM vocabulary to support the data access facility and associated CIM semantics.
This publication is of core relevance for Smart Grid.

General Information

• Status: Published
• Publication Date: 07-Mar-2006
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 33.200 - Telecontrol. Telemetering
• Technical Committee: TC 57 - Power systems management and associated information exchange
• Drafting Committee: WG 13 - TC 57/WG 13
• Current Stage: PPUB - Publication issued
• Start Date: 30-Apr-2006
• Completion Date: 08-Mar-2006

Standards Content (Sample)

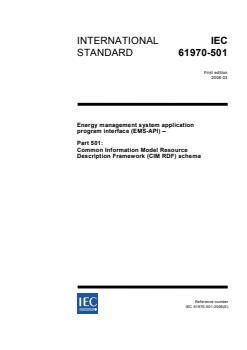

INTERNATIONAL IEC
STANDARD 61970-501
First edition
2006-03
Energy management system application
program interface (EMS-API) –
Part 501:
Common Information Model Resource
Description Framework (CIM RDF) schema

Reference number
Publication numbering

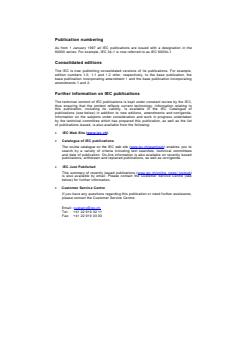

As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]

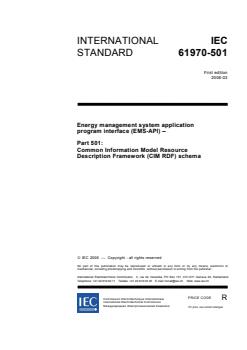

INTERNATIONAL IEC
STANDARD 61970-501
First edition
2006-03
Energy management system application
program interface (EMS-API) –
Part 501:
Common Information Model Resource
Description Framework (CIM RDF) schema

 IEC 2006  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale R
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 61970-501  IEC:2006(E)

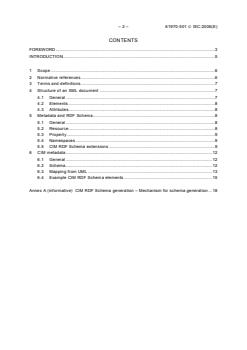

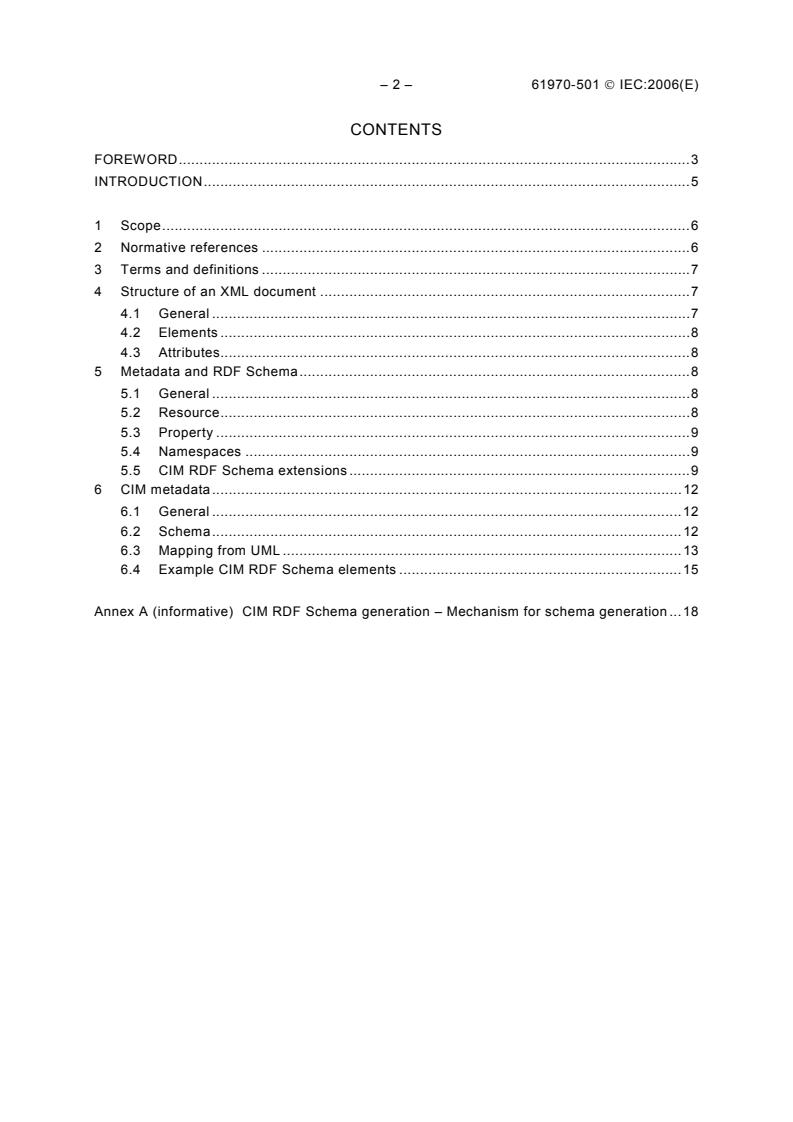

CONTENTS
FOREWORD.3
INTRODUCTION.5

1 Scope.6
2 Normative references .6
3 Terms and definitions .7
4 Structure of an XML document .7
4.1 General .7
4.2 Elements .8
4.3 Attributes.8
5 Metadata and RDF Schema.8
5.1 General .8
5.2 Resource.8
5.3 Property .9
5.4 Namespaces .9
5.5 CIM RDF Schema extensions .9
6 CIM metadata.12
6.1 General .12
6.2 Schema.12
6.3 Mapping from UML .13
6.4 Example CIM RDF Schema elements .15

Annex A (informative) CIM RDF Schema generation – Mechanism for schema generation .18

61970-501  IEC:2006(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
ENERGY MANAGEMENT SYSTEM APPLICATION
PROGRAM INTERFACE (EMS-API) –
Part 501: Common Information Model Resource
Description Framework (CIM RDF) schema

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61970-501 has been prepared by IEC technical committee 57:
Power systems management and associated information exchange.
The text of this standard is based on the following documents:
FDIS Report on voting
57/801/FDIS 57/813/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 61970-501  IEC:2006(E)
IEC 61970 consists of the following parts, under the general title Energy Management System
Application Program Interface (EMS-API):
Part 1: Guidelines and general requirements
Part 2: Glossary
Part 301: Common Information Model (CIM) base
Part 302: Common information model (CIM) financial, energy scheduling and reservations
Part 401: Component interface specification (CIS) framework
Part 402: Component interface specification (CIS) – Common services
Part 403: Component Interface Specification (CIS) – Generic data access
Part 404: Component Interface Specification (CIS) – High speed data access
Part 405: Component Interface Specification (CIS) – Generic eventing and subscription
Part 407: Component Interface Specification (CIS) – Time series data access
Part 453: Exchange of Graphics Schematics Definitions (Common Graphics Exchange)
Part 501: Common Information Model Resource Description Framework (CIM RDF) schema
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual edition of this standard may be issued at a later date.

—————————
Under consideration.
61970-501  IEC:2006(E) – 5 –
INTRODUCTION
This standard is part of the IEC 61970 series that define an Application Program Interface
(API) for an Energy Management System (EMS). This standard is based upon the work of the
EPRI Control Center API (CCAPI) research project (RP-3654-1).
This part specifies the mapping between the conceptual model specified as Unified Modeling
Language (UML) defined in IEC 61970-3XX series: Common Information Model and the
machine readable Extensible Markup Language (XML) representation of that schema using
the Resource Description Framework (RDF) Schema specification language.

– 6 – 61970-501  IEC:2006(E)
ENERGY MANAGEMENT SYSTEM APPLICATION
PROGRAM INTERFACE (EMS-API) –
Part 501: Common Information Model Resource
Description Framework (CIM RDF) schema

1 Scope
This International Standard specifies a Component Interface Specification (CIS) for energy
management systems application program interfaces. This part of IEC 61970 specifies the
format and rules for producing a machine readable form of the Common Information Model
(CIM) as specified in the IEC 61970-301 standard. It describes a CIM vocabulary to support
the data access facility and associated CIM semantics.
This part of IEC 61970 supports a mechanism for applications from independent suppliers to
access CIM metadata in a common format and with standard services for the purpose of
subsequent CIM data access. Secondary objectives are to provide CIM versioning capabilities
and a mechanism that is easily extensible to support site-specific needs. The proposed
solution:
• is both machine readable and human readable, although primarily intended for
programmatic access;
• can be accessed using any tool that supports the Document Object Model (DOM)
application program interface;
• is self-describing;
• takes advantage of current web standards.
This document is the Level 2 Component Interface Specification document that describes in
narrative terms (with text and examples based on the CIM), the detailed definition of the CIM
metadata interface to be standardized.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61970-1, Energy management system application program interface (EMS-API) – Part 1:
Guidelines and general requirements
IEC 61970-2, Energy management system application program interface (EMS-API) – Part 2:
Glossary
IEC 61970-301, Energy management system application program interface (EMS-API) –
Part 301: Common Information Model (CIM) base
IEC 60050 series: International Electrotechnical Vocabulary

61970-501  IEC:2006(E) – 7 –
3 Terms and definitions
For the purposes of this part of IEC 61970, the terms and definitions given in IEC 61970-2, as
well as the following, apply.
3.1
Common Information Model
CIM
abstract model that represents all the major objects in an electric utility enterprise typically
contained in an EMS information model
NOTE By providing a standard way of representing power system resources as object classes and attributes,
along with their relationships, the CIM facilitates the integration of EMS applications developed independently by
different vendors, between entire EMS systems developed independently, or between an EMS system and other
systems concerned with differ
...
