IEC TS 62916:2017

Photovoltaic modules - Bypass diode electrostatic discharge susceptibility testing

IEC TS 62916:2017(E) describes a discrete component bypass diode electrostatic discharge (ESD) immunity test and data analysis method. The test method described subjects a bypass diode to a progressive ESD stress test and the analysis method provides a means for analyzing and extrapolating the resulting failures using the two-parameter Weibull distribution function. It is the object of this document to establish a common and reproducible test method for determining diode surge voltage tolerance consistent with an ESD event during the manufacturing, packaging, transportation or installation processes of PV modules.

General Information

• Status: Published
• Publication Date: 09-Apr-2017
• ICS: 27.160 - Solar energy engineering
• Technical Committee: TC 82 - Solar photovoltaic energy systems
• Drafting Committee: WG 2 - TC 82/WG 2
• Current Stage: PPUB - Publication issued
• Start Date: 10-Apr-2017
• Completion Date: 20-Apr-2017

Overview

IEC TS 62916:2017 specifies a reproducible test and analysis method for assessing the electrostatic discharge (ESD) susceptibility of discrete bypass diodes used in photovoltaic (PV) modules. The Technical Specification defines a progressive contact-discharge test (following the IEC 61000-4-2 model) and a statistical data‑analysis procedure based on the two‑parameter Weibull distribution to characterize diode surge‑voltage tolerance. It is intended to support qualification, incoming quality control and identification of ESD control needs during manufacturing, packaging, transportation and installation of PV modules.

Key Topics and Requirements

• Scope & limitations
  • Tests discrete bypass diodes outside the module/junction box.
  • Does not set pass/fail ESD levels or address large energy events (e.g., lightning).
• Sampling
  • Ten unconditioned, identical diodes per test (same type, date code and factory recommended).
  • Lead trimming/forming should be done prior to testing.
• Test equipment & setup
  • Uses IEC 61000-4-2 contact discharge method (ESD gun with internal impedance 330 Ω, 150 pF).
  • Grounding block to hold DUTs; anode grounded, cathode exposed.
  • Positive polarity single‑surge mode; incremental voltage steps of 5 kV from 5 kV to a recommended capability of 30 kV (or higher).
• Test method
  • Verify diode operation (multimeter diode-check) before testing.
  • Apply progressive contact discharges to each diode; record environmental conditions (e.g., 20 °C ±5 °C, 50 % ±10 % RH recommended).
  • Allow surge relaxation time for thermal stabilization if needed.
• Data analysis
  • Analyze voltage-to-failure using the two‑parameter Weibull distribution.
  • Use recommended median‑rank estimation and least‑squares linear regression form for extrapolation and reporting.

Applications

• Qualification of new bypass diode designs for PV modules.
• Incoming material quality control for diode suppliers.
• Root-cause analysis of production line quality excursions attributed to ESD-induced diode failures.
• Determining whether additional ESD handling controls are required in manufacturing, storage or installation workflows.

Who Should Use This Standard

• PV module manufacturers and assembly engineers
• Semiconductor and diode suppliers for PV applications
• Test labs performing ESD immunity characterization
• Quality, reliability and production engineers in the solar industry

Related Standards

• IEC 61000-4-2 - Electromagnetic compatibility (EMC) - ESD immunity test (referenced for test generator and contact‑discharge method)
• IEC TS 62916 references IEC TS 61836 for terms/definitions used in PV standards

Keywords: IEC TS 62916, bypass diode, electrostatic discharge, ESD susceptibility testing, photovoltaic modules, Weibull distribution, surge voltage tolerance, IEC 61000-4-2, PV quality control.

Standards Content (Sample)

IEC TS 62916 ®
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Photovoltaic modules – Bypass diode electrostatic discharge susceptibility
testing
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].

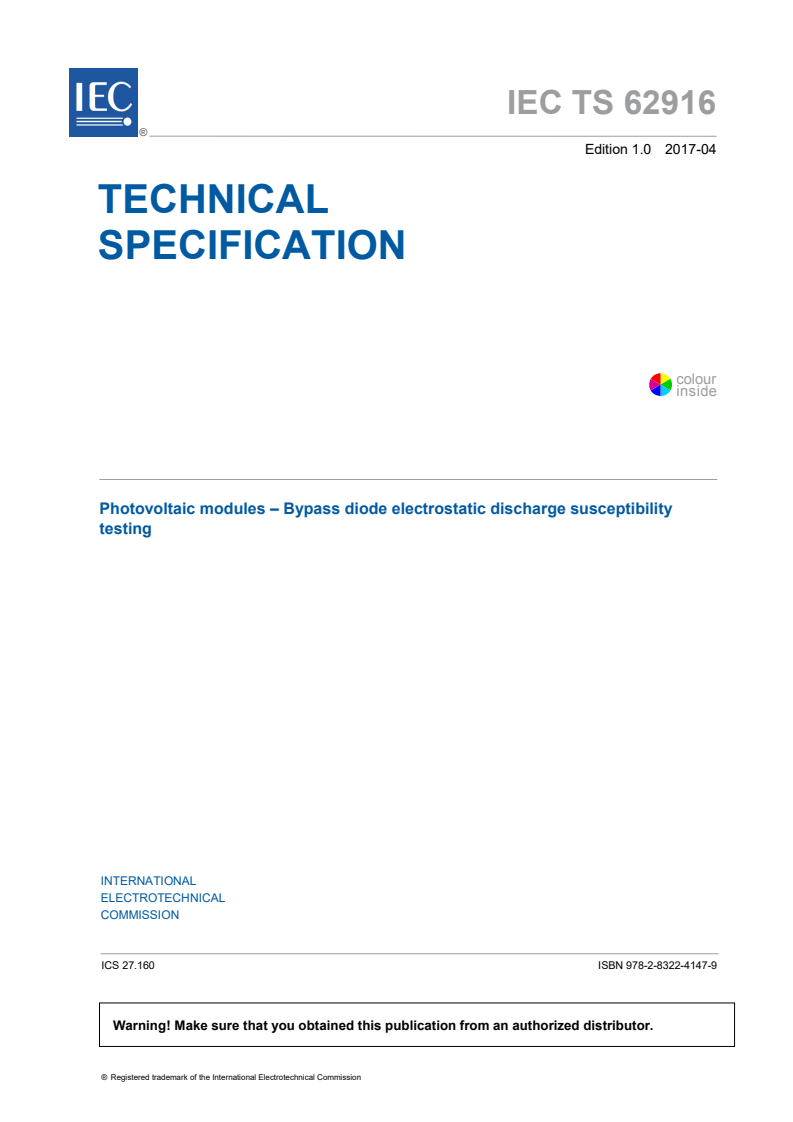

IEC TS 62916 ®
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Photovoltaic modules – Bypass diode electrostatic discharge susceptibility

testing
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-4147-9

– 2 – IEC TS 62916:2017 © IEC 2017

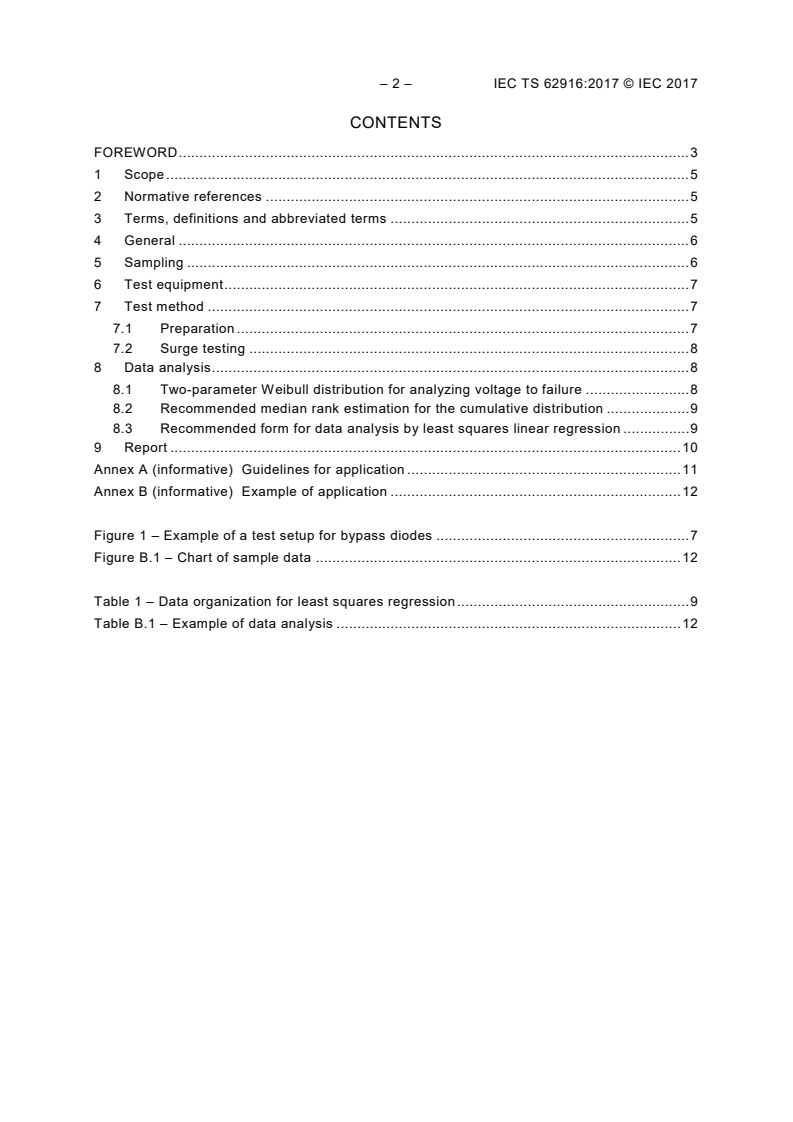

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviated terms . 5
4 General . 6
5 Sampling . 6
6 Test equipment . 7
7 Test method . 7
7.1 Preparation . 7
7.2 Surge testing . 8
8 Data analysis . 8
8.1 Two-parameter Weibull distribution for analyzing voltage to failure . 8
8.2 Recommended median rank estimation for the cumulative distribution . 9
8.3 Recommended form for data analysis by least squares linear regression . 9
9 Report . 10
Annex A (informative) Guidelines for application . 11
Annex B (informative) Example of application . 12

Figure 1 – Example of a test setup for bypass diodes . 7
Figure B.1 – Chart of sample data . 12

Table 1 – Data organization for least squares regression . 9
Table B.1 – Example of data analysis . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC MODULES – BYPASS DIODE
ELECTROSTATIC DISCHARGE SUSCEPTIBILITY TESTING

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC TS 62916, which is a technical specification, has been prepared by IEC technical
committee 82: Solar photovoltaic systems.

– 4 – IEC TS 62916:2017 © IEC 2017
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
82/1059/DTS 82/1259/RVDTS
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
PHOTOVOLTAIC MODULES – BYPASS DIODE
ELECTROSTATIC DISCHARGE SUSCEPTIBILITY TESTING

1 Scope
This document describes a discrete component bypass diode electrostatic discharge (ESD)
immunity test and data analysis method. The test method described subjects a bypass diode
to a progressive ESD stress test and the analysis method provides a means for analyzing and
extrapolating the resulting failures using the two-parameter Weibull distribution function.
It is the object of this document to establish a common and reproducible test method for
determining diode surge voltage tolerance consistent with an ESD event during the
manufacturing, packaging, transportation or installation processes of PV modules.
This document does not purport to address causes of electrostatic discharge or to establish
pass or fail levels for bypass diode devices. It is the responsibility of the user to assess the
ESD exposure level for their particular circumstances. The data generated by this procedure
may support qualification of new design types, quality control for incoming material, and/or
identify the need for additional ESD controls in the manufacturing process.
Finally, this document does not apply to large energy surge events such as direct or indirect
lightning exposure, utility capacitor bank switching events, or the like.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61000-4-2:2008, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms and definitions of IEC TS 61836 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
DUT
device under test
3.2
contact discharge method
method of testing in which the electrode of the test generator is kept in contact with the DUT
and the discharge is actuated by the discharge within the generator
...
