IEC 60079-31:2013

Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"

IEC 60079-31:2013 is applicable to electrical equipment protected by enclosure and surface temperature limitation for use in explosive dust atmospheres. It specifies requirements for design, construction and testing of electrical equipment and Ex Components. This standard supplements and modifies the general requirements of IEC 60079-0. Where a requirement of this standard conflicts with a requirement of IEC 60079-0, the requirement of this standard takes precedence. This standard does not apply to dusts of explosives, which do not require atmospheric oxygen for combustion, or to pyrophoric substances. This standard does not apply to electrical equipment or Ex Components intended for use in underground parts of mines as well as those parts of surface installations of such mines endangered by firedamp and/or combustible dust. This standard does not take account of any risk due to an emission of flammable or toxic gas from the dust. Consideration of additional protective measures is required where the application of electrical equipment is in atmospheres, which can contain combustible dust as well as explosive gas, whether simultaneously or separately. Where the electrical equipment has to meet other environmental conditions, for example, protection against ingress of water and resistance to corrosion, additional measures can be necessary. The measures used should not adversely affect the integrity of the enclosure. This second edition cancels and replaces the first edition published in 2008. This edition constitutes a technical revision. The major technical changes include:
- The marked maximum surface temperature shall be measured on the external surfaces of the enclosure and the surfaces of the internal components for equipment with types of protection "ta";
- Additional protection for arcing and sparking parts for "ta";
- Test for internal enclosure for level "ta" added. Keywords: explosive dust atmospheres
The contents of the Interpretation Sheet 1 of February 2022 have been included in this copy.
This publication is to be read in conjunction with IEC 60079-0:2011.

Atmosphères explosives - Partie 31: Protection du matériel contre l'inflammation de poussières par enveloppe "t" relative au matériel

L'IEC 60079-31:2013 est applicable au matériel électrique protégé par enveloppe et limitation de la température de surface, pour une utilisation en atmosphère de poussière explosive. Elle spécifie les exigences de conception, de construction et d'essai pour le matériel électrique et les composants Ex. La présente norme complète et modifie les exigences générales de l'IEC 60079-0. Lorsqu'une exigence de la présente norme est en conflit avec une exigence de l'IEC 60079-0, l'exigence de la présente norme prévaut. La présente norme ne s'applique pas aux poussières d'explosifs qui ne nécessitent pas l'oxygène de l'air pour leur combustion, ni aux substances pyrotechniques. La présente norme ne s'applique ni au matériel électrique ni aux composants Ex destinés à une utilisation dans les parties souterraines des mines, ni aux parties des installations de surface des mines où il existe des risques de grisou et/ou de poussières combustibles. La présente norme ne prend en compte aucun risque résultant d'une émission de gaz inflammable ou toxique provenant de la poussière. La considération des mesures de protection complémentaires est exigée en cas d'utilisation d'un matériel électrique dans des atmosphères, pouvant contenir de la poussière combustible ainsi que du gaz explosif, que ce soit simultanément ou séparément. Lorsque le matériel électrique doit satisfaire à d'autres conditions environnementales, par exemple, la protection contre la pénétration de l'eau ou la résistance à la corrosion, des mesures supplémentaires peuvent être nécessaires. Il convient que les mesures utilisées ne dégradent pas l'intégrité de l'enveloppe. Cette deuxième édition annule et remplace la première édition parue en 2008. Cette édition constitue une révision technique. Les modifications techniques majeures suivantes:
- La température maximale de surface marquée doit être mesurée sur les surfaces externes de l'enveloppe et les surfaces des composants internes pour les matériels avec des modes de protection "ta";
- Protection supplémentaire pour les parties produisant des arcs et des étincelles pour "ta";
- Protection supplémentaire pour les parties produisant des arcs et des étincelles pour "ta". Mots clés : atmosphère de poussière explosive
Cette publication doit être lue conjointement avec la CEI 60079-0:2011.

General Information

• Status: Published
• Publication Date: 26-Nov-2013
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 29.260.20 - Electrical apparatus for explosive atmospheres
• Technical Committee: TC 31 - Equipment for explosive atmospheres
• Drafting Committee: MT 60079-31 - TC 31/MT 60079-31
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 17-Jan-2022

Relations

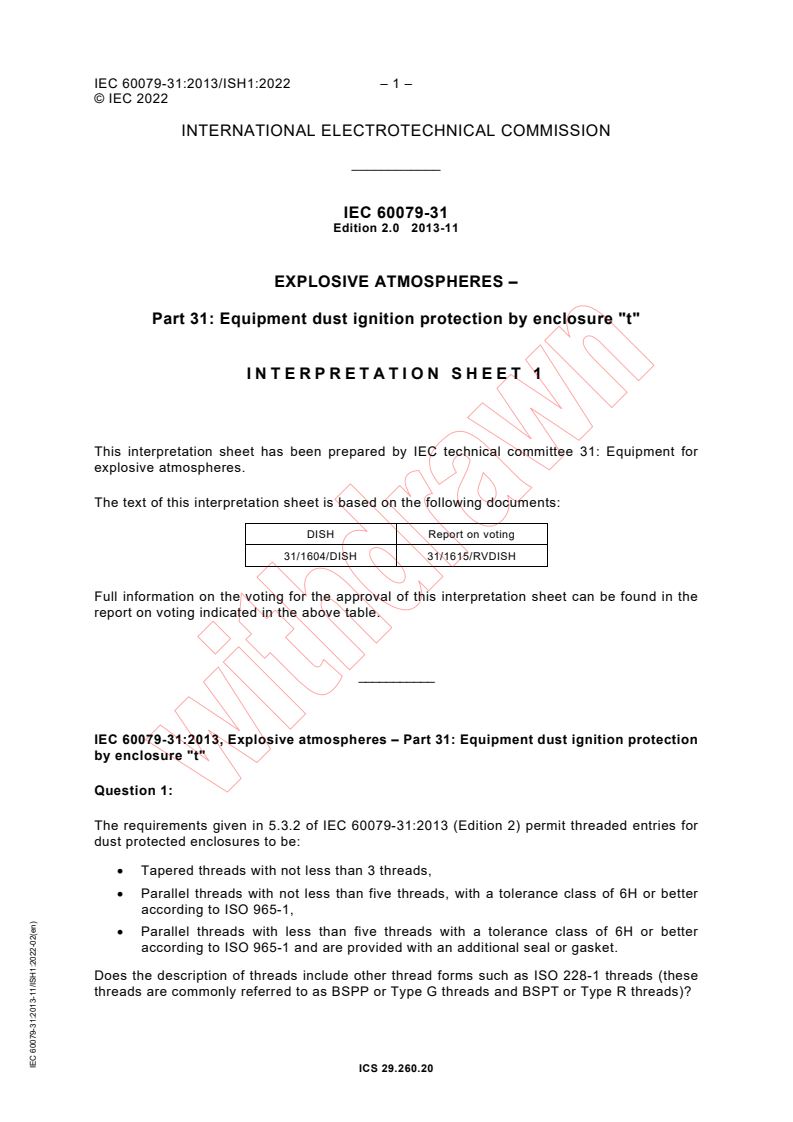

• Revised: IEC 60079-31:2013/ISH1:2022 - Interpretation Sheet 1 - Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
• Effective Date: 05-Sep-2023
• Revises: IEC 60079-31:2008/COR1:2009 - Corrigendum 1 - Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
• Effective Date: 05-Sep-2023
• Revises: IEC 60079-31:2008/ISH1:2022 - Interpretation Sheet 1 - Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
• Effective Date: 05-Sep-2023
• Revised: IEC 60079-31:2022 - Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
• Effective Date: 05-Sep-2023
• Revises: IEC 60079-31:2008 - Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
• Effective Date: 05-Sep-2023

Standards Content (Sample)

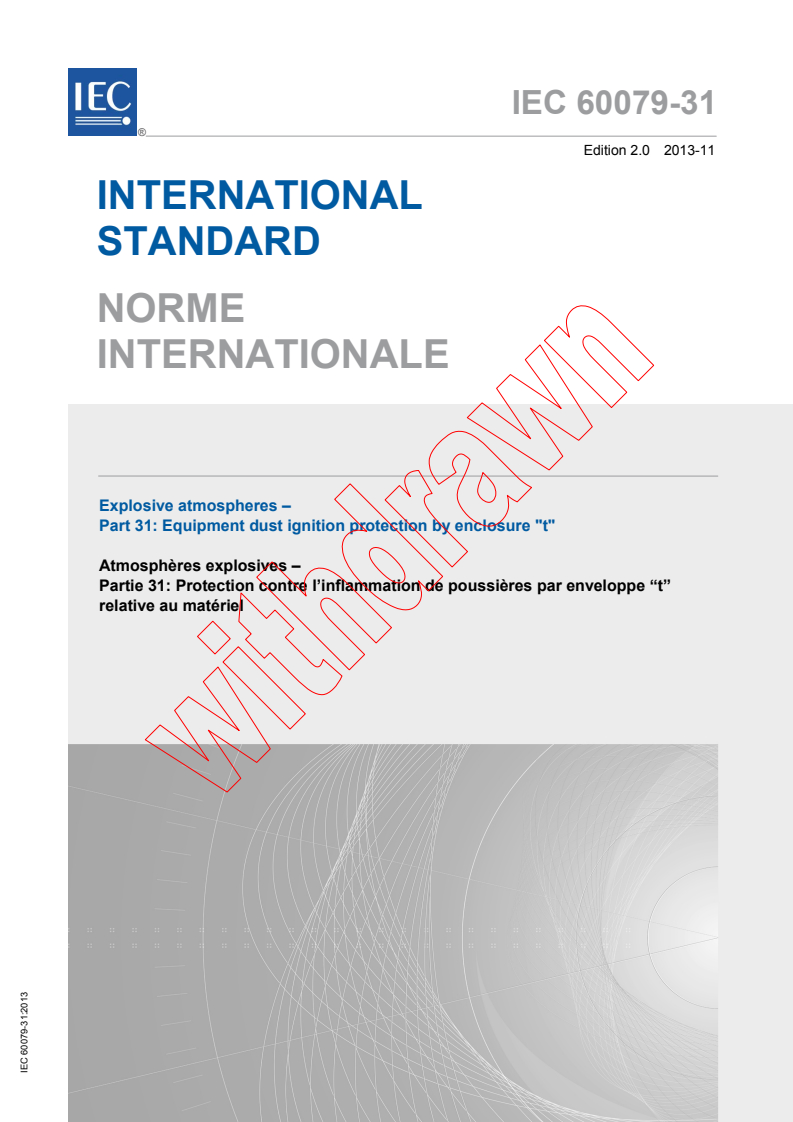

IEC 60079-31 ®
Edition 2.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Explosive atmospheres –
Part 31: Equipment dust ignition protection by enclosure "t"

Atmosphères explosives –
Partie 31: Protection contre l’inflammation de poussières par enveloppe “t”
relative au matériel
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].

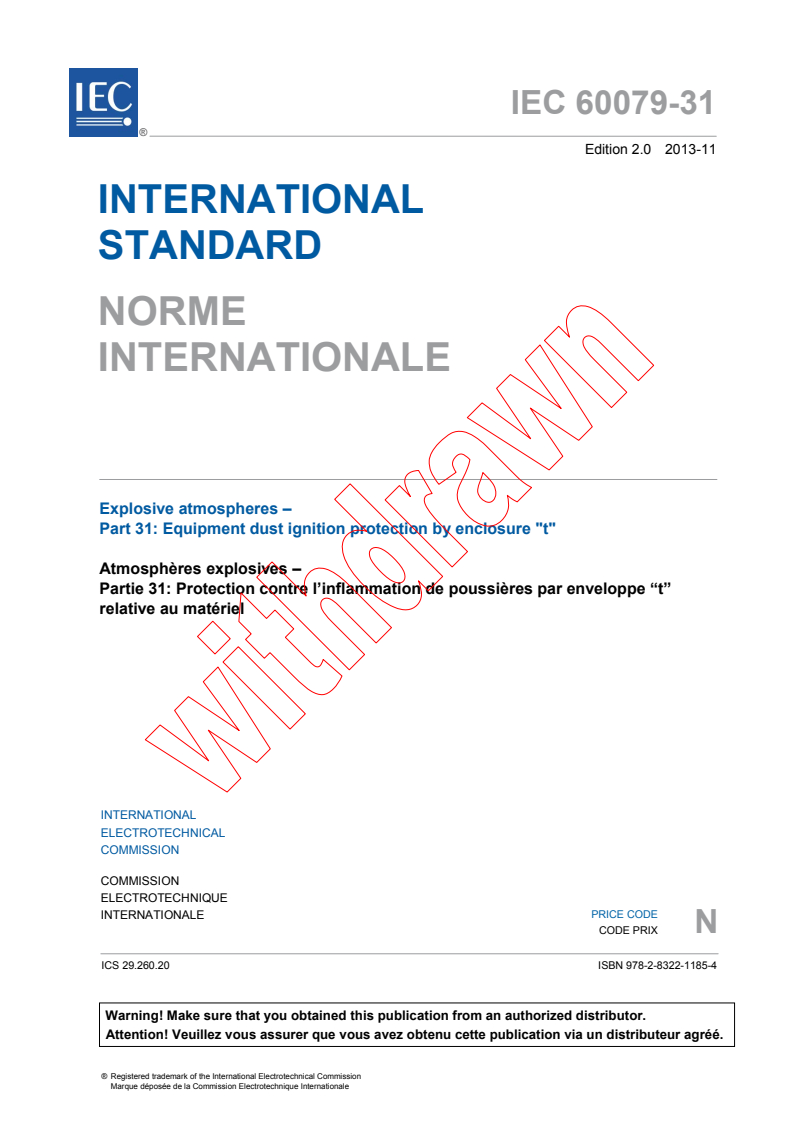

IEC 60079-31 ®
Edition 2.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Explosive atmospheres –
Part 31: Equipment dust ignition protection by enclosure "t"

Atmosphères explosives –
Partie 31: Protection contre l’inflammation de poussières par enveloppe “t”

relative au matériel
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 29.260.20 ISBN 978-2-8322-1185-4

– 2 – 60079-31 © IEC:2013
CONTENTS
FOREWORD . 3
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General . 7
4.1 Levels of protection . 7
4.2 Equipment groups and ingress protection. 7
4.3 Requirements for electrical equipment with level of protection “ta” . 8
4.3.1 Fault current . 8
4.3.2 Maximum surface temperature . 8
4.3.3 Overpressure . 8
4.3.4 Dust exclusion . 8
4.3.5 Protective devices . 8
4.3.6 Protection for arcing and sparking parts . 9
4.4 Requirements for electrical equipment with Level of Protection “tb” and
“tc” . 9
4.4.1 Maximum surface temperature . 9
4.4.2 Over pressure . 9
4.4.3 Dust exclusion . 9
5 Construction . 9
5.1 Joints . 9
5.1.1 General . 9
5.1.2 Threaded joints . 10
5.1.3 Gaskets and seals . 10
5.1.4 Cemented joints . 10
5.1.5 Operating rods, spindles and shafts . 10
5.1.6 Windows . 10
5.2 Cable glands . 11
5.3 Entries . 11
5.3.1 Plain entries . 11
5.3.2 Threaded entries . 11
6 Verification and tests . 11
6.1 Type tests . 11
6.1.1 Type tests for dust exclusion by enclosures . 11
6.1.2 Thermal tests . 12
6.2 Routine tests . 12
7 Marking . 12
Bibliography . 14

Table 1 – Level of Protection, equipment group and ingress protection (IP) relationship . 7

60079-31 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EXPLOSIVE ATMOSPHERES –
Part 31: Equipment dust ignition protection by enclosure "t"

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60079-31 has been prepared by IEC technical committee 31:
Equipment for explosive atmospheres.
This second edition cancels and replaces the first edition published in 2008. This edition
constitutes a technical revision.

– 4 – 60079-31 © IEC:2013
The significance of changes between IEC 60079-31, Edition 2.0 (2012) and IEC 60079-31,
Edition 1.0 (2008) (including Corrigendum) is as listed below:
Type
Changes Clause Minor and Extension Major technical
changes
editorial
changes
Document has been restructured from the first edition Numerous X
The marked maximum surface temperature shall be 4.3.2  C1
measured on the external surfaces of the enclosure and
the surfaces of the internal components for equipment
with types of protection “ta”
Additional protection for arcing and sparking parts for “ta” 4.3.6  C2
Limiting the internal pressure test to enclosures where 4.4.2 X
the seal is not physically constrained from moving.
Requirements for tapered threaded joints without an 5.1.2 X
additional seal or gasket added.

Requirements for cable gland aligned for all levels and 5.2 X
Groups the only difference is now the required IP
protection
Requirements for plain entries added 5.3.1 X
5 threads for parallel threads only required when no 5.3
...
