IEC 61753-086-2:2009

Fibre optic interconnecting devices and passive components performance standard - Part 086-2: Non-connectorized single-mode bidirectional 1490 / 1550 nm downstream 1310 nm upstream WWDM devices for category C - Controlled environment

IEC 61753-086-2:2009 contains the minimum initial performance, test and measurement requirements and severities which a fibre optic pigtailed 1 490 / 1 550 nm downstream and 1 310 nm upstream wide wavelength division multiplexing (WWDM) passive optical network (PON) device must satisfy in order to be categorized as meeting the requirements of category C (controlled environments), as defined in Annex A of IEC 61753-1. Annex B of this standard provides information concerning the function of the 1 490 / 1 550 nm downstream and 1 310 nm upstream WWDM. Keywords: category C (controlled environments), WWDM, PON

Norme de qualité de fonctionnement des dispositifs d'interconnexion et composants passifs à fibres optiques - Partie 086-2: Dispositifs WWDM unimodaux non connectorisés bidirectionnels 1490 / 1550 nm en voie descendante et 1310 nm en voie montante pour la catégorie C - Environnement contrôlé

L'IEC 61753-086-2:2009 contient les sévérités et les exigences minimales initiales de performances, d'essais et de mesure auxquelles un dispositif de réseau optique passif (PON: Passive Optical Network) à répartition en longueur d'onde large (WWDM: Wide Wavelength Division Multiplexing) 1 490 / 1 550 nm en voie descendante et 1 310 nm en voie montante muni de fibres amorces doit répondre afin d'être classé comme conforme aux exigences de la catégorie C (environnements contrôlés), comme défini dans l'Annexe A de la CEI 61753-1. L'Annexe B de la présente norme fournit des informations concernant le fonctionnement des voies descendantes à 1 490 / 1 550 nm et des voies montantes à 1 310 nm. Mots clés: catégorie C (environnements contrôlés), WWDM, PON

General Information

• Status: Published
• Publication Date: 29-Sep-2009
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Drafting Committee: WG 7 - TC 86/SC 86B/WG 7
• Current Stage: DELPUB - Deleted Publication
• Start Date: 06-Mar-2025
• Completion Date: 29-Dec-2023

Relations

• Replaced By: IEC 61753-086-02:2025 - Fibre optic interconnecting devices and passive components - Performance standard - Part 086-02: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm downstream and 1 310 nm upstream WWDM devices for category C - Indoor controlled environment
• Effective Date: 08-Dec-2023

Overview

IEC 61753-086-2:2009 is an International Electrotechnical Commission (IEC) performance standard for non-connectorized single‑mode, bidirectional WWDM devices used in passive optical networks (PON). It specifies the minimum initial performance, test and measurement requirements and severities that a fibre‑optic pigtailed device carrying 1 490 / 1 550 nm downstream and 1 310 nm upstream signals must satisfy to be classified as category C (controlled environments) under IEC 61753-1. Annex B provides functional information on these WWDM PON devices and Annex A defines sample sizes for testing.

Key topics and technical requirements

The standard concentrates on testable performance parameters and environmental conditions for WWDM PON components:

• Device type: non-connectorized, pigtailed, single‑mode, bidirectional WWDM for PON (1490/1550 nm downstream, 1310 nm upstream).
• Environmental category: Category C (controlled environments) - requirements apply where the device is used in controlled indoor settings.
• Test methods: referenced to the IEC 61300 series; fibres per IEC 60793‑2‑50.
• Measured parameters and example requirements:
  • Attenuation: ≤ 0.8 dB (measurement uncertainty ±0.1 dB).
  • Total channel isolation: ≥ 18 dB (between 1 480–1 500 nm and 1 550–1 560 nm); ≥ 30 dB (between 1 260–1 360 nm and 1 550–1 560 nm).
  • Directivity: ≥ 50 dB (Grade U).
  • Return loss: ≥ 50 dB (Grade U).
  • Polarization dependent loss (PDL): ≤ 0.2 dB (measurement uncertainty ±0.05 dB).
  • Optical power handling / damage threshold: specified test up to 300 mW total across wavelength bands, with staged increments and verification of attenuation/isolation/return-loss limits after exposure.
• Environmental tests include cold, dry heat, damp heat, change of temperature and mechanical tests per IEC 61300 parts. Test reports and supporting evidence are required.

Applications

IEC 61753-086-2:2009 is directly applicable to:

• Manufacturers and designers of WWDM PON passive components (splitters, filters, mux/demux elements) that are pigtailed and non‑connectorized.
• Test laboratories performing qualification, acceptance and factory tests for WWDM devices intended for controlled indoor installations.
• Telecommunication equipment vendors and PON system integrators specifying component performance for FTTH/FTTP networks that use bidirectional WWDM signaling (1490/1550 nm downstream, 1310 nm upstream).

Who should use this standard

• Component manufacturers for product design and quality control.
• R&D and compliance engineers validating PON WWDM modules.
• Procurement and specification writers in telecom operators and system integrators demanding category C performance.
• Test houses and certification bodies reporting compliance.

Related standards

• IEC 61753-1 (general guidance and category definitions)
• IEC 61300 series (basic test and measurement procedures)
• IEC 60793-2-50 (single‑mode fibre specifications)

Keywords: IEC 61753-086-2:2009, category C (controlled environments), WWDM, PON, 1490/1550 nm downstream, 1310 nm upstream, pigtailed WWDM devices.

Standards Content (Sample)

IEC 61753-086-2 ®
Edition 1.0 2009-09
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components performance
standard –
Part 086-2: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm
downstream and 1 310 nm upstream WWDM devices for category C – Controlled
environment
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 61753-086-2 ®
Edition 1.0 2009-09
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components performance
standard –
Part 086-2: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm
downstream and 1 310 nm upstream WWDM devices for category C – Controlled
environment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
N
ICS 33.180.10 ISBN 978-2-88910-558-8

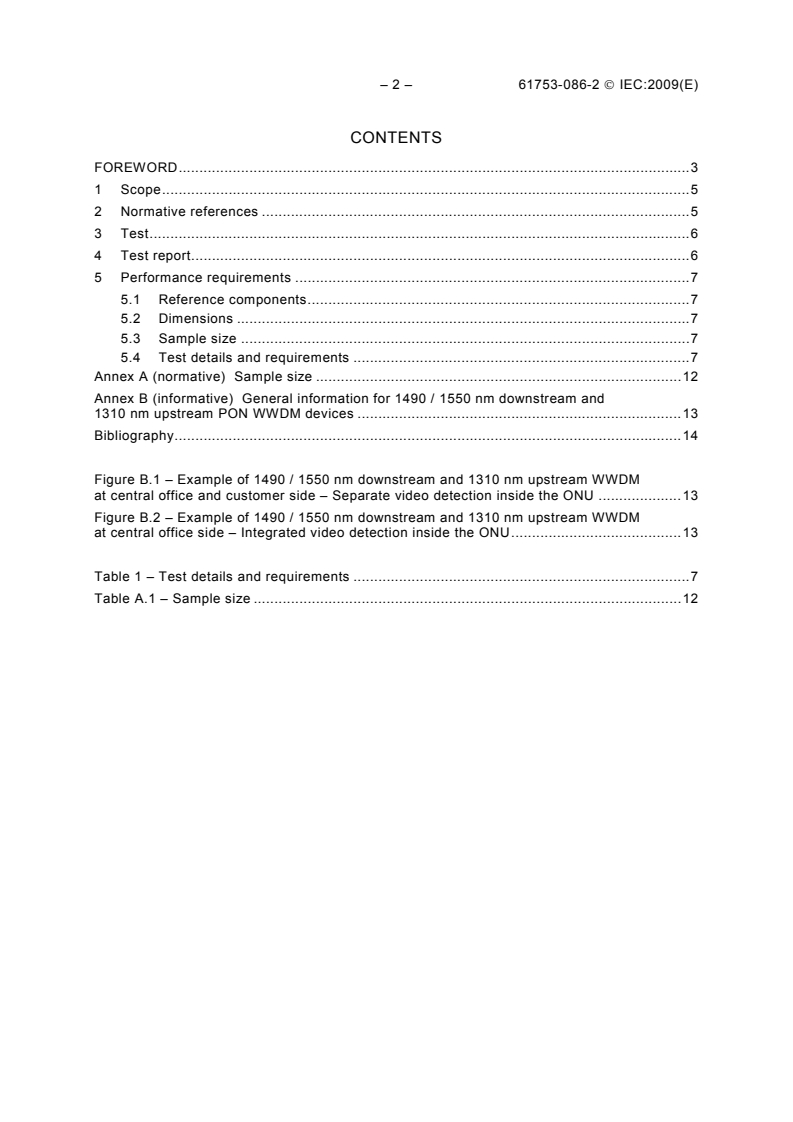

– 2 – 61753-086-2 © IEC:2009(E)
