IEC 60554-1:1977
(Main)Specification for cellulosic papers for electrical purposes. Part 1: Definitions and general requirements
Specification for cellulosic papers for electrical purposes. Part 1: Definitions and general requirements

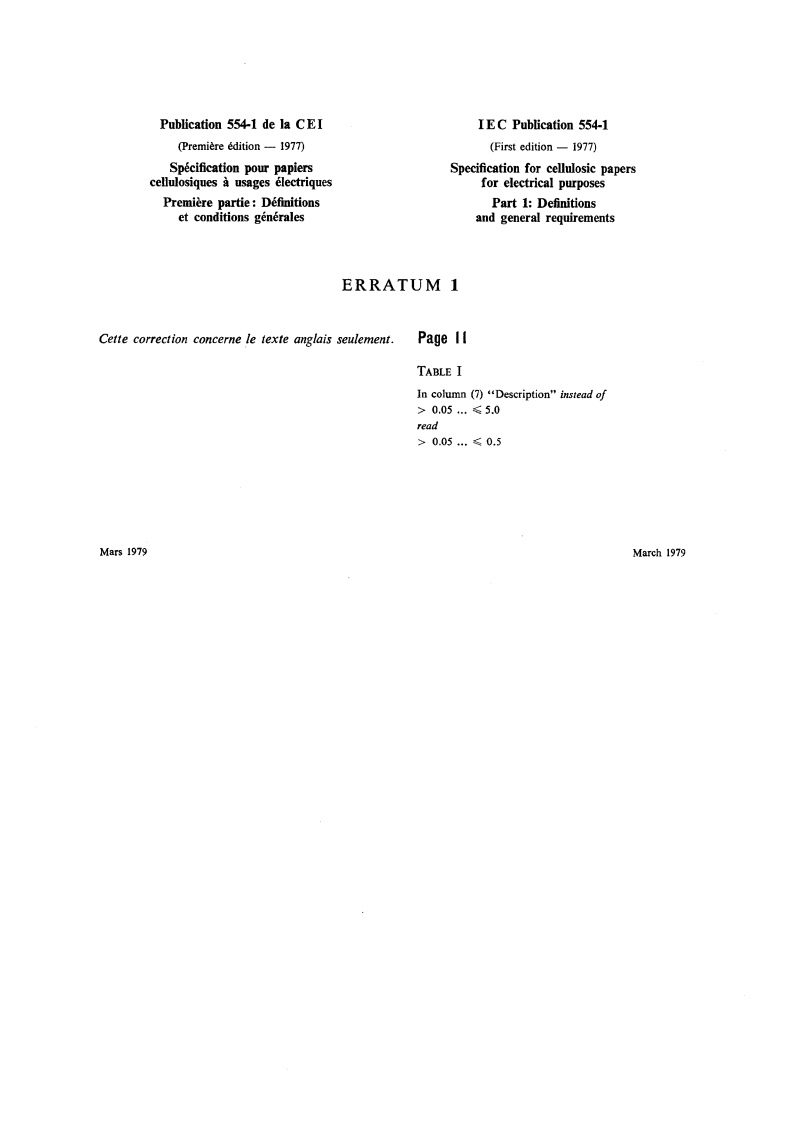

Gives definitions and general requirements, including a designation system and lists of thicknesses. The contents of the corrigendum of March 1979 have been included in this copy.
Spécification pour papiers cellulosiques à usages électriques. Première partie: Définitions et conditions générales
Donne les définitions générales, dont un système de désignation et des listes d'épaisseurs. Le contenu du corrigendum de mars 1979 a été pris en considération dans cet exemplaire.
General Information
Standards Content (Sample)
Publication 554-1 de la C E I I E C Publication 554-1
(Première édition — 1977) (First edition — 1977)
Spécification pour papiers Specification for cellulosic papers
cellulosiques à usages électriques
for electrical purposes
Première partie : Définitions Part 1: Definitions
et
...
