IEC 61169-47:2015

Radio-frequency connectors - Part 47: Sectional specification for radio-frequency coaxial connectors with clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)

IEC 61169-47:2015, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with clamp coupling, typically for use in 75 Ω cable networks (type F-Quick). It describes the interface dimensions with gauging information, electrical and mechanical performance including the mandatory tests selected from IEC 61169-1:2013, applicable to all DS relating to type F-Quick connectors. This specification indicates the recommended performance characteristics to be considered when writing a DS and covers test schedules and inspection requirements. This second edition cancels and replaces the first edition published in 2012. It constitutes a technical revision. The main changes are listed below:
- Subclause 3.2 has been updated to better define gauging.
- Table 2 has been updated for insertion and removal forces.
- Clause 4 has been updated to refer to the new edition of IEC 61169-1.

Connecteurs pour fréquences radioélectriques - Partie 47: Spécification intermédiaire relative aux connecteurs coaxiaux pour fréquences radioélectriques avec couplage par bride, spécifiquement utilisés dans les réseaux câblés 75 Ω (type F-Quick)

L'IEC 61169-47:2015, qui est une spécification intermédiaire (SI), fournit des informations et des règles en vue de l'établissement de spécifications particulières (SP) relatives aux connecteurs coaxiaux pour fréquences radioélectriques avec couplage par bride, typiquement utilisés dans des réseaux câblés 75 Ω (type F-Quick).
Elle décrit les dimensions d'interface ainsi que les informations relatives au calibrage, les performances électriques et mécaniques, y compris les essais obligatoires issus de l'IEC 61169-1:2013, applicables à toutes les spécifications particulières ayant trait aux connecteurs de type F-Quick.
La présente spécification indique les caractéristiques de performance recommandées à prendre en compte pour la rédaction d’une spécification particulière et elle couvre les programmes d'essais et les exigences de contrôle.
Cette deuxième édition annule et remplace la première édition parue en 2012. Cette édition constitue une révision technique.
Les modifications majeures sont présentées ci-après:
- Le paragraphe 3.2 a été mis à jour pour mieux définir le calibrage.
- Le Tableau 2 a été mis à jour avec des forces d'insertion et d'extraction.
- L'Article 4 a été mis à jour pour faire référence à la nouvelle édition de l'IEC 61169-1.

General Information

• Status: Published
• Publication Date: 29-Mar-2015
• ICS: 33.120.30 - RF connectors
• Technical Committee: SC 46F - RF and microwave passive components
• Current Stage: PPUB - Publication issued
• Start Date: 30-Mar-2015
• Completion Date: 30-Jun-2015

Relations

• Revises: IEC 61169-47:2012 - Radio-frequency connectors - Part 47: Sectional specification for radio-frequency coaxial connectors with clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)
• Effective Date: 05-Sep-2023

Overview

IEC 61169-47:2015 is a sectional specification for radio-frequency (RF) coaxial connectors with clamp (push‑on) coupling, typically the F‑Quick variant used in 75 Ω cable networks. This second edition (2015) replaces the 2012 edition and provides rules for preparing detail specifications (DS) for type F‑Quick connectors - covering interface dimensions, gauging, electrical and mechanical performance, mandatory tests (as selected from IEC 61169‑1), test schedules and inspection requirements.

Key topics and technical requirements

• Interface dimensions and examples: common and specific dimensional data for F‑Quick male plugs, including variants with resilient outer conductor sleeves, slotted outer conductors and snap rings.
  • Example key dimensions (Table 1): inner conductor length A = 6.35–8.63 mm, inner conductor diameter D = 0.64–1.13 mm, reference plane opening F = 6.84 mm, reference plane outer diameter G = 7.11 mm, maximum envelope C ≈ 16.61 mm.
• Mechanical gauging: defined gauges and tolerances to ensure interchangeability and correct fit with port threads and bulkhead dimensions.
• Insertion and withdrawal forces: specific requirements for outer conductor gauge use - insertion force ≤ 35 N, withdrawal force ≥ 15 N (see Table 2 / Figure 5).
• Electrical and mechanical performance: recommended characteristics and mandatory performance selection drawn from IEC 61169‑1 (general measuring methods and tests).
• Quality assessment & test schedules: acceptance and periodic tests, environmental characteristics (including outdoor socket considerations), inspection and quality conformance procedures.
• Preparation of detail specifications (DS): guidance and a blank DS pro‑forma to help manufacturers and standards authors produce consistent product specifications.

Practical applications and users

• Typical use: indoor F‑type coaxial receiver leads, patch cables and push‑on connections in cable TV, satellite and broadband distribution.
• Who uses this standard:
  • Connector and cable design engineers and manufacturers
  • Test laboratories and quality assurance teams performing conformance testing
  • Procurement, compliance and certification bodies specifying DS for supply contracts
  • System integrators and installers wanting interoperability and reliable mechanical/electrical performance
• Practical benefits: ensures interchangeability, repeatable mechanical fit and predictable electrical behavior across suppliers; reduces field failures and simplifies test/inspection plans.

Related standards

• IEC 61169‑1:2013 - Generic specification; general requirements and measuring methods (mandatory test selection).
• IEC 61169‑24:2009 - Sectional specification for screw‑coupled F connectors (recommended where fixed/screwed coupling is preferred).
• IEC 62037 (and IEC 62037‑3) - Passive RF and microwave devices, intermodulation measurement methods.

IEC 61169‑47 is essential for anyone specifying, designing or testing F‑Quick RF coaxial connectors in 75 Ω cable networks to ensure mechanical compatibility and defined performance.

Standards Content (Sample)

IEC 61169-47 ®
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
colour
inside
Radio-frequency connectors –
Part 47: Sectional specification for radio-frequency coaxial connectors with
clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61169-47 ®
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
colour
inside
Radio-frequency connectors –
Part 47: Sectional specification for radio-frequency coaxial connectors with

clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.30 ISBN 978-2-8322-2581-3

– 2 – IEC 61169-47:2015 © IEC 2015

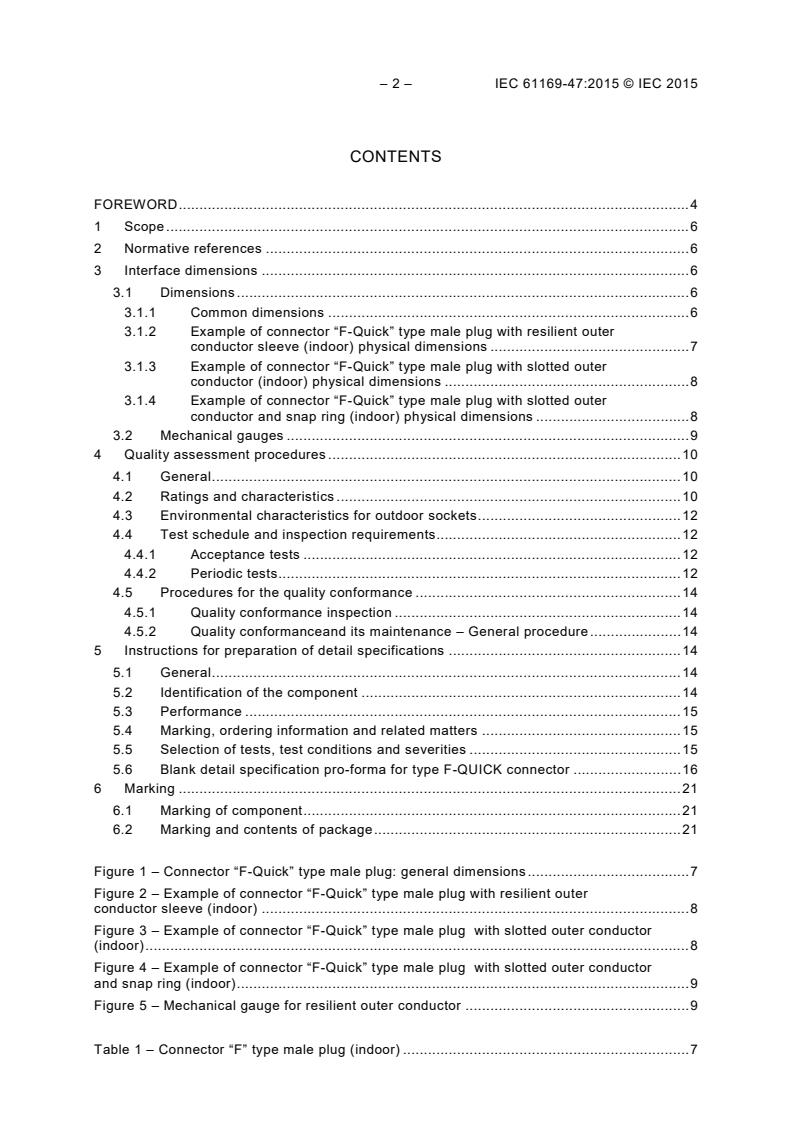

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references. 6
3 Interface dimensions . 6
3.1 Dimensions . 6
3.1.1 Common dimensions . 6
3.1.2 Example of connector “F-Quick” type male plug with resilient outer
conductor sleeve (indoor) physical dimensions . 7
3.1.3 Example of connector “F-Quick” type male plug with slotted outer
conductor (indoor) physical dimensions . 8
3.1.4 Example of connector “F-Quick” type male plug with slotted outer
conductor and snap ring (indoor) physical dimensions. 8
3.2 Mechanical gauges . 9
4 Quality assessment procedures . 10
4.1 General . 10
4.2 Ratings and characteristics . 10
4.3 Environmental characteristics for outdoor sockets . 12
4.4 Test schedule and inspection requirements. 12
4.4.1 Acceptance tests . 12
4.4.2 Periodic tests . 12
4.5 Procedures for the quality conformance . 14
4.5.1 Quality conformance inspection . 14
4.5.2 Quality conformanceand its maintenance – General procedure. 14
5 Instructions for preparation of detail specifications . 14
5.1 General . 14
5.2 Identification of the component . 14
5.3 Performance . 15
5.4 Marking, ordering information and related matters . 15
5.5 Selection of tests, test conditions and severities . 15
5.6 Blank detail specification pro-forma for type F-QUICK connector . 16
6 Marking . 20
6.1 Marking of component . 20
6.2 Marking and contents of package . 20

Figure 1 – Connector “F-Quick” type male plug: general dimensions . 7
Figure 2 – Example of connector “F-Quick” type male plug with resilient outer
conductor sleeve (indoor) . 8
Figure 3 – Example of connector “F-Quick” type male plug with slotted outer conductor
(indoor) . 8
Figure 4 – Example of connector “F-Quick” type male plug with slotted outer conductor
and snap ring (indoor) . 9
Figure 5 – Mechanical gauge for resilient outer conductor . 9

Table 1 – Connector “F” type male plug (indoor) . 7
Table 2 – Ratings and characteristics . 10
Table 3 – Acceptance tests . 12
Table 4 – Periodic tests . 13

– 4 – IEC 61169-47:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 47: Sectional specification for radio-frequency coaxial
connectors with clamp coupling, typically for use in
75 Ω cable networks (type F-Quick)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61169-47 has been prepared by subcommittee 46F: R.F. and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
R.F. connectors, R.F. and microwave passive components and accessories.
This second edition cancels and replaces the first edition published in 2012. It constitutes a
technical revision.
The main changes are listed below:
– Subclause 3.2 has been updated to better define gauging.
– Table 2 has been updated for insertion and removal forces.
– Clause 4 has been updated to refer to the new edition of IEC 61169-1.

The text of this standard is based on the following documents:
CDV Report on voting
46F/272/CDV 46F/306/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 61169-47:2015 © IEC 2015
RADIO-FREQUENCY CONNECTORS –
Part 47: Sectional specification for radio-frequency coaxial
connectors with clamp coupling, typically for use in
75 Ω cable networks (type F-Quick)

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for RF coaxial connectors with clamp coupling,
typically for use in 75 Ω cable networks (type F-Quick).
It describes the interface dimensions with gauging information, electrical and mechanical
performance including the mandatory tests selected from IEC 61169-1:2013, applicable to all
DS relating to type F-Quick connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a DS and covers test schedules and inspection requirements.
NOTE This interface is typically used for indoor connections, which are easily disconnected and reconnected. The
typical application is for F-type coaxial receiver leads or F-type coaxial patch cables. The interface may also be
known as a Push-on connector. It is preferred to use the fixed (screwed) connectors type F according to
IEC 61169-24:2009.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 61169-24:2009, Radio-frequency connectors – Part 24: Sectional specification – Radio
frequency coaxial connectors with screw coupling, typically for use in 75 Ω cable networks
(type F)
IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement
IEC 62037-3, Passive RF and microwave devices, intermodulation level measurement –
Part 3: Measurement of passive intermodulation in coaxial connectors
3 Interface dimensions
3.1 Dimensions
3.1.1 Common dimensions
Millimetres are original dimensions.
All un-dimensioned pictorial configurations are for reference purposes only.
Figure 1 and Table 1 depict the dimensions that are common to any F connector and thus
indispensable for compatibility. Examples of specific design with their dimensions are given in
3.1.2 to 3.1.4.
Note
B
A
0,100
A
Reference
plane
IEC
Figure 1 – Connector “F-Quick” type male plug: general dimensions
Table 1 – Connector “F” type male plug (indoor)
Description Ref. mm inches Additional
notes
Min. Max. Min. Max.
Inner conductor length A 6,35 8,63 0,250 0,340
Length of nut B 4,00 7,29 0,167 0,287
Maximum envelope dimension C 16,61 0,654
Inner conductor diameter D 0,64 1,13 0,025 0,044
Reference plane opening inner diameter F 6,84 0,230 (1)
Reference plane outer diameter G 7,11 0,280
(1) No protrusion of the dielectric beyond the reference plane is permitted.

3.1.2 Example of connector “F-Quick” type male plug with resilient outer conductor
sleeve (indoor) physical dimensions
The connector is shown in Figure 2. Common dimensions are given in 3.1.1.
ØG
ØF
ØD
ØC
– 8 – IEC 61169-47:2015 © IEC 2015
Dimensions in millimetres
Cone or radius
Resilient sleeve
≥7,5
IEC
Figure 2 – Example of connector “F-Quick” type
male plug with resilient outer conductor sleeve (indoor)
3.1.3 Example of connector “F-Quick” type male plug with slotted outer conductor
(indoor) physical dimensions
The connector is shown in Figure 3. Common dimensions are given in 3.1.1.
Dimensions in millimetres
Minimum 6 × slotted
IEC
Figure 3 – Example of connector “F-Quick” type male plug
with slotted outer conductor (indoor)
3.1.4 Example of connector “F-Quick” type male plug with slotted outer conductor
and snap ring (indoor) physical dimensions
The connector is shown in Figure 4. Common dimensions are given in 3.1.1.
Ø1
Ø8,55
+0,1
Ø9,55
Dimensions in millimetres
Snap ring
Cone or radius
≥7,5
IEC
Figure 4 – Example of connector “F-Quick” type male plug
with slotted outer conductor and snap ring (indoor)
3.2 Mechanical gauges
Dimensions in millimetres
1±0,1 × 45°
C
E
D
IEC
Material: stainless steel, polish, Ra 0,4-0,1
Description Dimension mm inches
a
Outside diameter over thread A 9,35 0,368
Reference plane outer diameter B 7,35 0,289
Port thread length C 7,5 0,295
Port length D 12,69 0,5
Bore depth [min] E 10,54 0,415
Bulkhead diameter F 16,6 0,654
Bore diameter [min] G 3,5 0,14
a
Outside diameter of thread (3/8-32 UNEF 2A).
Figure 5 – Mechanical gauge for resilient outer conductor
Requirement (see Table 2):
The insertion force required to insert the outer conductor gauge as defined in Figure 5 into the
plug shall not exceed 35 N.
The withdrawal force required to withdraw the completely inserted outer conductor gau
...

IEC 61169-47 ®
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 47: Sectional specification for radio-frequency coaxial connectors with
clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)

Connecteurs pour fréquences radioélectriques –
Partie 47: Spécification intermédiaire relative aux connecteurs coaxiaux pour
fréquences radioélectriques avec couplage par bride, spécifiquement utilisés
dans les réseaux câblés 75 Ω (type F-Quick)
IEC 60000:2015-03(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61169-47 ®
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 47: Sectional specification for radio-frequency coaxial connectors with

clamp coupling, typically for use in 75 Ω cable networks (type F-Quick)

Connecteurs pour fréquences radioélectriques –

Partie 47: Spécification intermédiaire relative aux connecteurs coaxiaux pour

fréquences radioélectriques avec couplage par bride, spécifiquement utilisés

dans les réseaux câblés 75 Ω (type F-Quick)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-5052-5

– 2 – IEC 61169-47:2015 © IEC 2015

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Interface dimensions . 6
3.1 Dimensions . 6
3.1.1 Common dimensions . 6
3.1.2 Example of connector “F-Quick” type male plug with resilient outer
conductor sleeve (indoor) physical dimensions . 7
3.1.3 Example of connector “F-Quick” type male plug with slotted outer
conductor (indoor) physical dimensions . 8
3.1.4 Example of connector “F-Quick” type male plug with slotted outer
conductor and snap ring (indoor) physical dimensions . 8
3.2 Mechanical gauges . 9
4 Quality assessment procedures . 10
4.1 General . 10
4.2 Ratings and characteristics . 10
4.3 Environmental characteristics for outdoor sockets . 12
4.4 Test schedule and inspection requirements. 12
4.4.1 Acceptance tests . 12
4.4.2 Periodic tests . 12
4.5 Procedures for the quality conformance . 14
4.5.1 Quality conformance inspection . 14
4.5.2 Quality conformanceand its maintenance – General procedure . 14
5 Instructions for preparation of detail specifications . 14
5.1 General . 14
5.2 Identification of the component . 14
5.3 Performance . 15
5.4 Marking, ordering information and related matters . 15
5.5 Selection of tests, test conditions and severities . 15
5.6 Blank detail specification pro-forma for type F-QUICK connector . 16
6 Marking . 21
6.1 Marking of component . 21
6.2 Marking and contents of package . 21

Figure 1 – Connector “F-Quick” type male plug: general dimensions . 7
Figure 2 – Example of connector “F-Quick” type male plug with resilient outer
conductor sleeve (indoor) . 8
Figure 3 – Example of connector “F-Quick” type male plug with slotted outer conductor
(indoor) . 8
Figure 4 – Example of connector “F-Quick” type male plug with slotted outer conductor
and snap ring (indoor) . 9
Figure 5 – Mechanical gauge for resilient outer conductor . 9

Table 1 – Connector “F” type male plug (indoor) . 7

Table 2 – Ratings and characteristics . 10
Table 3 – Acceptance tests . 12
Table 4 – Periodic tests . 13

– 4 – IEC 61169-47:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 47: Sectional specification for radio-frequency coaxial
connectors with clamp coupling, typically for use in
75 Ω cable networks (type F-Quick)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61169-47 has been prepared by subcommittee 46F: R.F. and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
R.F. connectors, R.F. and microwave passive components and accessories.
This bilingual version (2017-11) corresponds to the monolingual English version, published in
2015-03.
This second edition cancels and replaces the first edition published in 2012. It constitutes a
technical revision.
The main changes are listed below:
– Subclause 3.2 has been updated to better define gauging.
– Table 2 has been updated for insertion and removal forces.
– Clause 4 has been updated to refer to the new edition of IEC 61169-1.

The text of this standard is based on the following documents:
CDV Report on voting
46F/272/CDV 46F/306/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61169 series, under the general title Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 61169-47:2015 © IEC 2015
RADIO-FREQUENCY CONNECTORS –
Part 47: Sectional specification for radio-frequency coaxial
connectors with clamp coupling, typically for use in
75 Ω cable networks (type F-Quick)

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for RF coaxial connectors with clamp coupling,
typically for use in 75 Ω cable networks (type F-Quick).
It describes the interface dimensions with gauging information, electrical and mechanical
performance including the mandatory tests selected from IEC 61169-1:2013, applicable to all
DS relating to type F-Quick connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a DS and covers test schedules and inspection requirements.
NOTE This interface is typically used for indoor connections, which are easily disconnected and reconnected. The
typical application is for F-type coaxial receiver leads or F-type coaxial patch cables. The interface may also be
known as a Push-on connector. It is preferred to use the fixed (screwed) connectors type F according to
IEC 61169-24:2009.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 61169-24:2009, Radio-frequency connectors – Part 24: Sectional specification – Radio
frequency coaxial connectors with screw coupling, typically for use in 75 Ω cable networks
(type F)
IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement
IEC 62037-3, Passive RF and microwave devices, intermodulation level measurement –
Part 3: Measurement of passive intermodulation in coaxial connectors
3 Interface dimensions
3.1 Dimensions
3.1.1 Common dimensions
Millimetres are original dimensions.
All un-dimensioned pictorial configurations are for reference purposes only.
Figure 1 and Table 1 depict the dimensions that are common to any F connector and thus
indispensable for compatibility. Examples of specific design with their dimensions are given in
3.1.2 to 3.1.4.
Note
B
A
0,100
A
Reference
plane
IEC
Figure 1 – Connector “F-Quick” type male plug: general dimensions
Table 1 – Connector “F” type male plug (indoor)
Description Ref. mm inches Additional
notes
Min. Max. Min. Max.
Inner conductor length A 6,35 8,63 0,250 0,340
Length of nut B 4,00 7,29 0,167 0,287
Maximum envelope dimension C 16,61 0,654
Inner conductor diameter D 0,64 1,13 0,025 0,044
Reference plane opening inner diameter F 6,84 0,230 (1)
Reference plane outer diameter G 7,11 0,280
(1) No protrusion of the dielectric beyond the reference plane is permitted.

3.1.2 Example of connector “F-Quick” type male plug with resilient outer conductor
sleeve (indoor) physical dimensions
The connector is shown in Figure 2. Common dimensions are given in 3.1.1.
ØG
ØF
ØD
ØC
– 8 – IEC 61169-47:2015 © IEC 2015
Dimensions in millimetres
Cone or radius
Resilient sleeve
≥7,5
IEC
Figure 2 – Example of connector “F-Quick” type male plug with
resilient outer conductor sleeve (indoor)
3.1.3 Example of connector “F-Quick” type male plug with slotted outer conductor
(indoor) physical dimensions
The connector is shown in Figure 3. Common dimensions are given in 3.1.1.
Dimensions in millimetres
Minimum 6 × slotted
IEC
Figure 3 – Example of connector “F-Quick” type male plug
with slotted outer conductor (indoor)
3.1.4 Example of connector “F-Quick” type male plug with slotted outer conductor
and snap ring (indoor) physical dimensions
The connector is shown in Figure 4. Common dimensions are given in 3.1.1.
Ø1
Ø8,55
+0,1
Ø9,55
Dimensions in millimetres
Snap ring
Cone or radius
≥7,5
IEC
Figure 4 – Example of connector “F-Quick” type male plug
with slotted outer conductor and snap ring (indoor)
3.2 Mechanical gauges
Dimensions in millimetres
1±0,1 × 45°
C
E
D
IEC
Material: stainless steel, polish, Ra 0,4-0,1
Description Dimension mm inches
a
Outside diameter over thread A 9,35 0,368
Reference plane outer diameter B 7,35 0,289
Port thread length C 7,5 0,295
Port length D 12,69 0,5
Bore depth [min] E 10,54 0,415
Bulkhead diameter F 16,6 0,654
Bore diameter [min] G 3,5 0,14
a
Outside diameter of thread (3/8-32 UNEF 2A).

Figure 5 – Mechanical gauge for resilient outer conductor
Requirement (see Table 2):
The insertion force required to insert the outer conductor gauge as defined in
Figure 5 into the plug shall not exceed 35 N.
The withdrawal force required to withdraw the completely inserted outer conductor gauge from
the plug shall be a minimum of 15 N.
ØF
Ø1
ØG
Ø9,1
ØB
−0,1
ØA
– 10 – IEC 61169-47:2015 © IEC 2015
4 Quality assessment procedures
4.1 General
Subclauses 4.2 to 4.4 provide recommended ratings, performance and test conditions to be
considered when writing a detail specification (DS). They also provide an appropriate
schedule of tests with minimum levels of conformance inspection.
4.2 Ratings and characteristics
The r.f. connectors defined in this standard are designed for use with a variety of flexible and
semi-rigid coaxial cables and in microwave integrated circuits and similar uncabled
applications.
Table 2 – Ratings and characteristics
Rating and characteristics IEC 61169-1: Values Remarks, deviations from
2013 Subclause standard test method
Electrical
Nominal impedance Shall meet the requirements
Z = 75 Ω
c
of 9.2.1.1 of IEC 61169-
1:2013 when terminating a Z
c
= 75 Ω cable
Frequency range  See DS
For most applications
5 MHz to 1 GHz
For some satellite
5 MHz to 2 GHz
applications
5 MHz to 3 GHz
For some head end
applications
a
9.2.1
Return loss
– straight styles
> 30 dB up to 1 GHz
> 25 dB up to 2 GHz
> 20 dB up to 3 GHz
h
– right-angle styles
See DS
– component mounting styles –
Under consideration
– solder bucket and PCB
Under consideration
mounting styles
– insertion loss
0,1 dB max. up to (for information only)
1 GHz
0,2 dB max. at 2 GHz
0,3 dB max. at 3 GHz
b
Centre contact resistance 9.2.3
– initial
≤ 5 mΩ
– after conditioning
≤ 10 mΩ
b
Outer conductor continuity 9.2.3
– initial
≤ 2,5 mΩ
– after conditioning
≤ 5 mΩ
b
Insulation resistance 9.2.5
– initial
≥ 1 GΩ
– after conditioning
≥ 1 MΩ
c,d
Proof voltage at sea level 9.2.6 86 kPa to 106 kPa
– uncabled styles
750 V
Rating and characteristics IEC 61169-1: Values Remarks, deviations from
2013 Subclause standard test method
c,d
Proof voltage at 4,4 kPa 9.2.6 4,4 kPa approximately
– uncabled styles
Equivalent to 20 km
Environmental test voltage at sea 9.2.6 86 kPa to 106 kPa
c,d
level
– uncabled styles
750 V
Environmental test voltage at 9.2.6 4,4 kPa approximately
c,d
4,4 kPa equivalent to 20 km
– uncabled styles
V
Screening effectiveness (straight 9.2.7 ≥ a ≥ 90 dB at 1 GHz Z < 3,2 mΩ (mated interface)

s t
g
cables only)
f
Intermodulation level IEC 62037-3 na
f
Discharge test (corona effect) 9.2.8 na Extinction voltage
Centre contact captivation 9.3.5
– axial force
≥ 20 N
– torque
See DS
Engagement and separation 9.3.6
– Engagement force
35 Nm
–   Separation force
> 15 Nm
Coupling moment 9.3.6
f
– normally moment
na
f
– moment resistance
na
Gauge retention force (resilient 9.3.4
contacts)
– centre
10 N to 20 N
f
– outer
na
Technical tests on cable fixing
– cable rotation (nutation)
9.3.7 See DS
– cable pulling
9.3.8 120 N
– cable bending
9.3.9 See DS
– cable torsion
9.3.10 0,1 Nm
Tensile strength of coupling 9.3.11 ≥ 300 N
mechanism
Safety wire hole pull-out bending 9.3.12
> 2 Nm
moment (and shearing force)
Vibration 9.3.3 10 g acceleration
n
98 m/s
10 Hz to 500 Hz
Climatic category A:40/70/21
f
Sealing non-hermetic 9.4.7 na 100 kPa to 110 kPa
pressure differential
f
Hermetic 9.4.8 na 100 kPa to 110 kPa
pressure differential
Salt mist 9.4.10 48 h Duration of spraying
Endurance
Mechanical 9.3.15 See DS for the
number of cycles
– 12 – IEC 61169-47:2015 © IEC 2015
Rating and characteristics IEC 61169-1: Values Remarks, deviations from
2013 Subclause standard test method
e
High temperature 9.4.5 1 000 h at 70 °C
a
These values apply to basic connectors. In practice, these may be influenced by the cable used and
reference should always be made to the actual values given in the detail specification.
b
Values for a single pair of connectors.
c
Voltages are r.m.s values of a.c., at 40 Hz to 65 Hz, unless otherwise specified.
d
Some cables usable with these connectors have ratings lower than the values given here.
e
For certain connectors, the upper temperature limit is restricted by the cable characteristics. Reference
should be made to the relevant cable specification. When semi-rigid cables are used, the upper temperature
is limited to 115 °C maximum.
f
na – not applicable.
g
When interfaces are fully mated.
h
The test item of this type of connectors is not recommendable.

4.3 Environmental characteristics for outdoor sockets
See IEC 61169-24:2009.
4.4 Test schedule and inspection requirements
4.4.1 Acceptance tests
There are no group C tests for levels H and M.
Table 3 describes the acceptance tests to be performed.
Table 3 – Acceptance tests
Assessment level M (higher) Assessment level H (lower)
IEC 61169-
1:2013
–
Test IL AQL Period Test IL AQL Period
required required
Subclause
% %
Group A1
Visual inspection 9.1.1 a II 1 a S3 1,5
Group B1
Outline dimension 9.1.2 a S4 0,4 a S3 4,0
Mechanical 9.1.2.2 a II 1 a S3 1,5
compatibility
Engagement and 9.3.6 a S4 0,4 a S3 1,5
separation
Gauge retention 9.3.4 ia II 1 ia S3 1,5
(resilient contacts)
Sealing
non hermetic 9.4.7 ia II 0,65 ia S3 1
hermetic 9.4.8 ia II 0,015 ia S3 0,025
Voltage proof 9.2.6 a II 0,4 a II 4,0
Solderability (d) 9.3.2.2 ia S4 0,4 ia S3 4,0
Insulation 9.2.5 a S4 0,4 a S3 4,0
resistance
For the symbols, abbreviations and procedures, see the end of Table 4.

4.4.2 Periodic tests
Table 4 describes the periodic tests to be performed.
Lot by lot
Lot by lot
Table 4 – Periodic tests
IEC 61169-1:2013   Assessment level M (higher) Assessment level H
Subclause (lower)
Group D1 (d)  6 1 3 years 3 1 3 years
Solderability – connector
9.3.2.2 ia  ia
assemblies
Resistance to soldering heat 9.3.2.3 ia  ia
Mechanical tests on cable
fixing
cable rotation (nutation) 9.3.7 na  na
cable pulling 9.3.8 ia  ia
cable bending 9.3.9 ia  ia
cable torsion 9.3.10 ia  ia
Group D2 (d)  6 1 3 years 3 1 3 years
Contact resistance, outer
conductor and screen
9.2.3 a  a
continuity, centre conductor
continuity
Vibration 9.3.3 a
Damp heat, steady state 9.4.3 a  a
Group D3 (d)  1 1 3 years 1* 1 3 years
Dimensions piece-parts and
9.1.2 a  a
materials
Group D4 (d)  6 1 3 years 3 1 3 years
Mechanical endurance 9.3.15 a  a
High temperature endurance 9.4.5 a  a
Discharge test 9.2.8
Climatic conditioning 9.4 na  na
Group D5 (d)  6 1 3 years 3 1 3 years
Return loss 9.2.1 a  a
Screening effectiveness 9.2.7 a  a
Water immersion 9.4.9 ia  ia
Group D6 (d)  6 1 3 years 3 1 3 years
Contact captivation 9.3.5 a  a
Rapid change of
9.4.4 na  na
temperature
Climatic sequence 9.4.2 a  a
Group D7 (d)  1§ 3 years 1§ 3 years
Salt mist 9.4.10 a
a suggested as applicable
ia test suggested (if technically applicable)
na not applicable
IL inspection level
AQL acceptable quality level
* one set of piece-parts each style and variant, unless using common piece parts
# for quality conformance , a total of two failures only permitted for level H and 1 failure only for level M
from groups D1 to D7
§ Group D7 – number of pairs for each solvent
(d) destructive tests – specimens shall not be returned to stock

– 14 – IEC 61169-47:2015 © IEC 2015
4.5 Procedures for the quality conformance
4.5.1 Quality conformance inspection
This shall consist of test group A1 and B1 on a lot-by-lot basis and test group D1 to D7 on a
periodic basis.
4.5.2 Quality conformanceand its maintenance – General procedure
This shall consist of three consecutive lots passing test groups A1 and B1 followed by
selection of specimens from the lots as appropriate. These specimens shall successfully pass
the specified periodic D tests.
5 Instructions for preparation of detail specifications
5.1 General
Detail specifications (DS) shall use the appropriate blank detail specification (BDS). The
following pages comprise the pro-forma BDS dedicated for use with type F-QUICK
connectors. As such, it will already have entered on it information relating to:
a) the basic specification number applicable to all the detail specifications covering
connector styles of the type covered by the sectional specification;
b) the connector series designation.
The specification writer should enter the details relating to the connector style/variant(s) to be
covered as indicated. The numbers in brackets on the BDS correspond to the following
indications which shall be given.
5.2 Identification of the component
(1) Enter the following details:
– Style: The style designation of the connector including type of fixing and sealing, if
applicable;
– Attachment: By deletion of the inapplicable options of cable/wire given for centre and
outer conductors;
– Special features and markings: As applicable.
(2) Enter details of assessment level and the climatic category.
(3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It
shall provide the maximum envelope dimensions, also the position of the reference plane
and, in the case of a fixed connector, the position of the mounting plane both relative to
the front face of the connector.
(4) Any maximum panel thickness limitations for fixed connectors shall be stated.
(5) Particulars of all variants covered by the DS. As appropriate, the information shall
include:
– cable types (or sizes) applicable to each variant;
– alternative plated or protective finishes;
– details of alternative mounting flanges having either tapped or plain mounting holes;
– details of alternative solder spills or solder buckets including, when applicable, those
for use with microwave integrated circuit (MIC) components.

5.3 Performance
(6) Performance data listing the most important characteristics of the connector in
accordance with the requirements of the relevant sectional specification. Deviations from
the minimum requirements shall be clearly indicated. Non-applicable parameters shall be
marked “na”.
5.4 Marking, ordering information and related matters
(7) Insert marking and ordering information as appropriate, together with details of related
documents and any invoked structural similarity.
5.5 Selection of tests, test conditions and severities
(8) “na” shall be used to indicate non-applicable tests. All tests marked “a” by the detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter “a” – for applicable – shall
be entered in the “test required” column against each of the tests indicated as being
mandatory in the test schedule of the relevant sectional specification. Any additional test
required at the discretion of the specification writer shall also be indicated by an “a”.
The specification writer shall also indicate, when necessary, details of deviations from the
standard test methods and conditions including any relevant deviations given in the test
schedule of the sectional specification.

– 16 – IEC 61169-47:2015 © IEC 2015
5.6 Blank detail specification pro-forma for type F-QUICK connector
The following pages contain the complete BDS pro-forma.
(1) Page 1 of
(2)
ELECTRONIC COMPONENT OF ASSESSED (3)    .
QUALITY IN ACCORDANCE WITH GENERIC
(4)    .
SPECIFICATION IEC 61169-1 NATIONAL
REFERENCE
(5) Detail specification for radio frequency coaxial connector Type
of assessed quality
Style    Special features and markings
Method of cable/wire+ attachment centre conductor – solder/crimp+
outer conductor – solder/clamp/crimp +
+ delete as appropriate
(6) Assessment level.   Characteristic impedance Climatic category.55/125./21./
75 Ω
(7) Outline and maximum dimensions Panel piercing and mounting details
(8) Variants
Variant No. Description of 61196 IEC
variant
.    .    .    .    .    .

.    .    .    .    .    .
Information about manufacturers who have components qualified under the IECQ Conformity Assessment
System is available through the IECQ on-line certificate system.

(9) Performance (including limiting conditions of use)
Ratings and Variant No. IEC 61169-1:2013 Value Remarks,
characteristics Designation Subclause including any
deviations from
standard test
methods
Electrical
Nominal impedance
75Ω
Frequency range    9.2.1 0 GHz to 3 GHz Measurement
frequency range
Reflection factor
GHz
GHz
GHz
Centre contact 9.2.3 Initial
≤    mΩ
resistance
After conditioning
≤    mΩ
Centre conductor    9.2.3 ≤    mΩ Resistance change
continuity due to conditioning

≤    mΩ
≤    mΩ
≤    mΩ
Outer contact 9.2.3 Initial
≤    mΩ
continuity
≤    mΩ After conditioning
Insulation resistance 9.2.5 Initial
≥    GΩ
After conditioning
≥    GΩ
+ Proof voltage at 9.2.6    kV 86 kPa to106 kPa
sea level
kV
kV
kV
9.2.6    kV    kPa (if not
+ Proof voltage at
4,4 kPa 4,4 kPa)
kV
kV
kV
Screening    9.2.7    dB at
Z ≤.   mΩ
t
effectiveness    GHz
Discharge test    9.2.8 Extinction voltage
≥    V
(corona) at sea level
≥    V
≥    V
≥    V
ADDITIONAL
ELECTRICAL
CHARACTERISTICS
Intermodulation level    IEC 62037    dB at    Under 2 carries of
GHz
+43 dBm
+  Voltage values are r.m.s. values at 50 Hz to 60 Hz, unless otherwise specified.

– 18 – IEC 61169-47:2015 © IEC 2015
Ratings and characteristics IEC 61169-1:2013 Value Remarks, including
Subclause any deviations from
standard test
methods
Mechanical
Soldering 9.3.2
– bit size
Gauge retention 9.3.4
resilient contacts
– inner contact
N
See Figure 7 and
Table 3
– outer contact
N
See Figure 8 and
Table 4
Centre contact 9.3.5
captivation
– axial force
N
– permitted
mm
displacement in
each direction
– torque
Nm
Engagement and 9.3.6 Achievable by hand
separation
– axial force
Strength of coupling 9.3.11    N
mechanism
Effectiveness of  Rotations
cable fixing against
– cable rotation
9.3.7
– cable pulling
9.3.8 Point of application
and duration
N    mm    s
N    mm    s
N    mm    s
N    mm    s
– cable bending
9.3.9 Length of cable and
mass
cycles    mm
cycles    mm
cycles    mm
cycles    mm
– cable torsion
9.3.10 Duration of applied
torque
Nm    s
Nm    s
Nm    s
Nm    s
Bending moment 9.3.12    Nm Relative to reference
plane
Bumps total 9.3.13 (   g
m/s
n
to    Hz
acceleration)
Vibration 9.3.3 (   g
m/s
n
to    Hz
acceleration)
Shock 9.3.14 (   g
m/s
n
Shape
acceleration)
ms
Ratings and characteristics IEC 61169-1:2013 Value Remarks, including
Subclause any deviations from
standard test
methods
ADDITIONAL
MECHANICAL
CHARACTERISTICS
Environmental
Climatic category
Sealing non- 100 kPa to 110 kPa
hermetically sealed 9.4.7 pressure differential
cm /h
connectors
Sealing hermetically 100 kPa to 110 kPa
9.4.8 10–5 bar/cm /h
sealed connectors pressure differential
Water immersion 9.4.9
Salt mist 9.4.10    h Duration of spraying
Additional Environmental characteristics
ENDURANCE
Mechanical 9.3.15    operations
High temperature    h
9.4.5
at   °C
ADDITIONAL
ENDURANCE
CHARACTERISTICS
CHEMICAL CONTAMINATION
Resistance to
solvents and
contaminating fluids
9.4.11
to be used.
Applicable fluids
Sulphur dioxide 9.4.12    days

– 20 – IEC 61169-47:2015 © IEC 2015
(10) Supplementary information
– Marking of the component: in accordance with 11.1 of IEC 61169-1:2013 in the following order of
procedure
1) Identity of manufacture
2) Manufacturing date code    year /week
Component identification variant No./designation Identification

‒ Marking and contents of package: in accordance with 11.2 of IEC 61169-1:2013
1) Information prescribed in 11.1 of IEC 61169-1:2013 detailed above
2) Nominal characteristic impedance    Ω
3) Assessment level code letter
4) Any additional marking required
‒ Ordering information:
1) Number of the detail specification/variant code
2) Assessment level code letter
3) Body finish (if more than one listed)
4) Any additional information or special requirements
– Related documents (if not included in IEC 61169-1:2013 or sectional specification):
.
.
‒ Structural similarity in accordance with 10.2.2 of IEC 61169-1:2013

Relevant information on a basic style should be entered as variant 01.

6 Marking
6.1 Marking of component
Each component shall be legibly and durably marked, where space permits and in the
following order of precedence, with:
a) identity code of the manufacturer;
b) manufacturer’s connector identification code or IEC connector designation.
6.2 Marking and contents of package
The package shall be marked with the information prescribed in 6.1 and, in addition, the
following information shall be given:
a) nominal characteristic impedance;
b) manufacturing date code;
c) any additional marking required by the relevant specification.
When required by the relevant specification, the package shall also include instructions for
assembling the connector(s) and instructions for the use of any special tools or materials, as
necessary.
_____________
