Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 13: MPEG-H 3D Audio

IEC 61937-13:2018(E) specifies the method to convey non-linear PCM bitstreams encoded according to the MPEG‑H 3D Audio format.

General Information

Status
Published
Publication Date
09-Apr-2018
Current Stage
PPUB - Publication issued
Start Date
10-Apr-2018
Completion Date
10-Apr-2018
Ref Project

Buy Standard

Standard
IEC 61937-13:2018 - Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 13: MPEG-H 3D Audio
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61937-13
Edition 1.0 2018-04
INTERNATIONAL
STANDARD
Digital audio – Interface for non-linear pcm encoded audio bitstreams applying
IEC 60958 –
Part 13: MPEG-H 3D Audio
IEC 61937-13:2018-04(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61937-13
Edition 1.0 2018-04
INTERNATIONAL
STANDARD
Digital audio – Interface for non-linear pcm encoded audio bitstreams applying
IEC 60958 –
Part 13: MPEG-H 3D Audio
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.040.40 ISBN 978-2-8322-5534-6

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 61937-13:2018 © IEC 2018

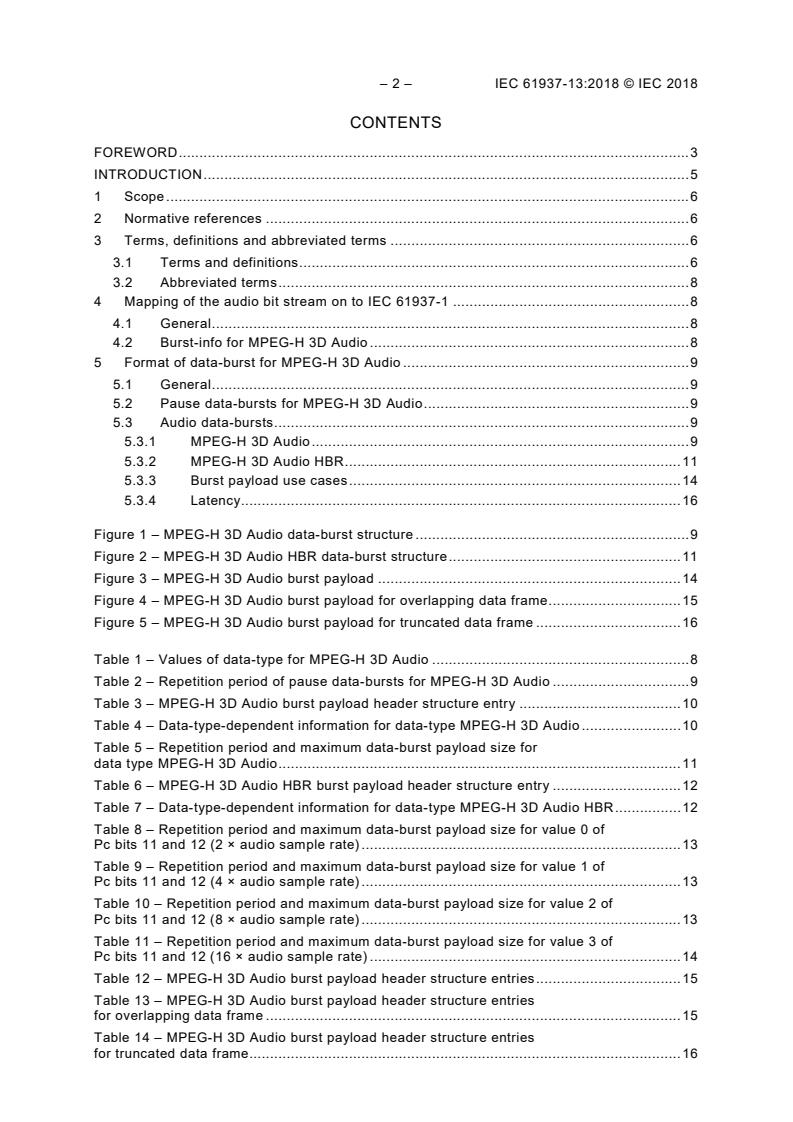

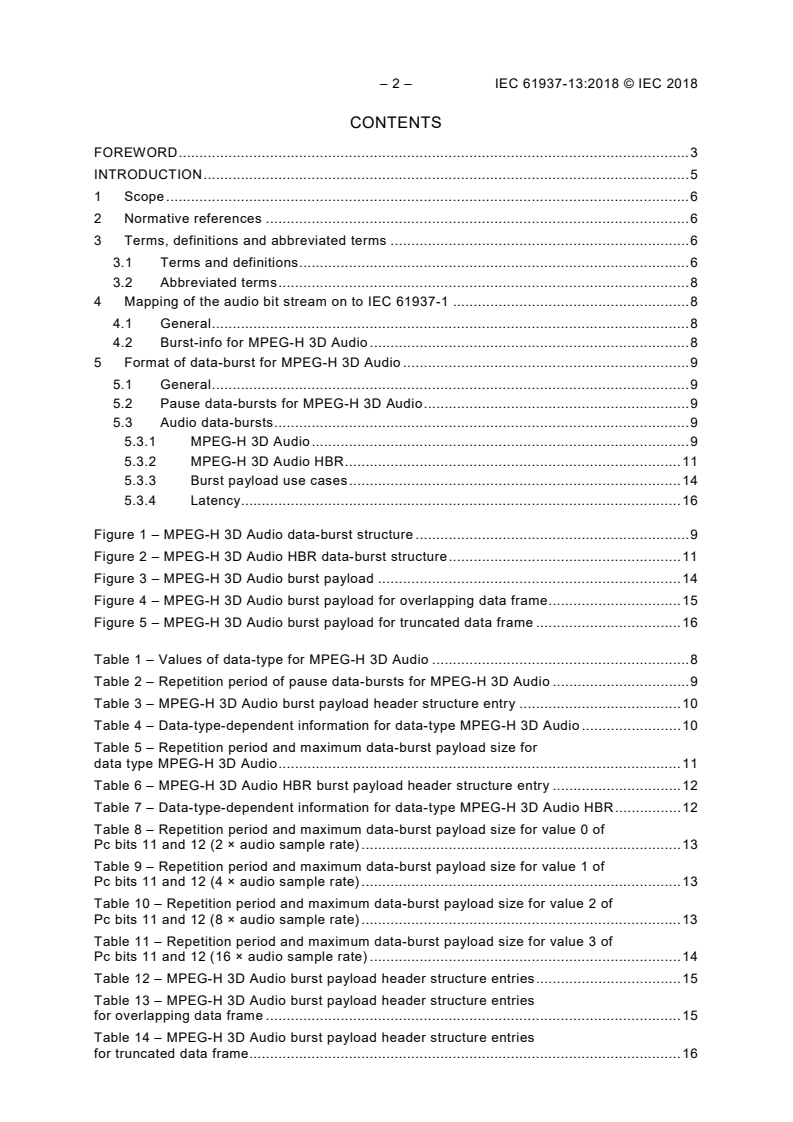

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviated terms ................................................................................................... 8

4 Mapping of the audio bit stream on to IEC 61937-1 ......................................................... 8

4.1 General ................................................................................................................... 8

4.2 Burst-info for MPEG-H 3D Audio ............................................................................. 8

5 Format of data-burst for MPEG-H 3D Audio ..................................................................... 9

5.1 General ................................................................................................................... 9

5.2 Pause data-bursts for MPEG-H 3D Audio ................................................................ 9

5.3 Audio data-bursts .................................................................................................... 9

5.3.1 MPEG-H 3D Audio ........................................................................................... 9

5.3.2 MPEG-H 3D Audio HBR ................................................................................. 11

5.3.3 Burst payload use cases ................................................................................ 14

5.3.4 Latency.......................................................................................................... 16

Figure 1 – MPEG-H 3D Audio data-burst structure .................................................................. 9

Figure 2 – MPEG-H 3D Audio HBR data-burst structure ........................................................ 11

Figure 3 – MPEG-H 3D Audio burst payload ......................................................................... 14

Figure 4 – MPEG-H 3D Audio burst payload for overlapping data frame ................................ 15

Figure 5 – MPEG-H 3D Audio burst payload for truncated data frame ................................... 16

Table 1 – Values of data-type for MPEG-H 3D Audio .............................................................. 8

Table 2 – Repetition period of pause data-bursts for MPEG-H 3D Audio ................................. 9

Table 3 – MPEG-H 3D Audio burst payload header structure entry ....................................... 10

Table 4 – Data-type-dependent information for data-type MPEG-H 3D Audio ........................ 10

Table 5 – Repetition period and maximum data-burst payload size for

data type MPEG-H 3D Audio ................................................................................................. 11

Table 6 – MPEG-H 3D Audio HBR burst payload header structure entry ............................... 12

Table 7 – Data-type-dependent information for data-type MPEG-H 3D Audio HBR ................ 12

Table 8 – Repetition period and maximum data-burst payload size for value 0 of

Pc bits 11 and 12 (2 × audio sample rate) ............................................................................. 13

Table 9 – Repetition period and maximum data-burst payload size for value 1 of

Pc bits 11 and 12 (4 × audio sample rate) ............................................................................. 13

Table 10 – Repetition period and maximum data-burst payload size for value 2 of

Pc bits 11 and 12 (8 × audio sample rate) ............................................................................. 13

Table 11 – Repetition period and maximum data-burst payload size for value 3 of

Pc bits 11 and 12 (16 × audio sample rate) ........................................................................... 14

Table 12 – MPEG-H 3D Audio burst payload header structure entries ................................... 15

Table 13 – MPEG-H 3D Audio burst payload header structure entries

for overlapping data frame .................................................................................................... 15

Table 14 – MPEG-H 3D Audio burst payload header structure entries

for truncated data frame ........................................................................................................ 16

---------------------- Page: 4 ----------------------
IEC 61937-13:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL AUDIO –
INTERFACE FOR NON-LINEAR PCM ENCODED
AUDIO BITSTREAMS APPLYING IEC 60958 –
Part 13: MPEG-H 3D Audio
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61937-13 has been prepared by technical area 4: Digital system

interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia

systems and equipment.
The text of this International Standard is based on the following documents:
CDV Report on voting
100/2943/CDV 100/3068/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 61937-13:2018 © IEC 2018

A list of all parts in the IEC 61937 series, published under the general title Digital audio –

Interface for non-linear PCM encoded audio bitstreams applying IEC 60958, can be found on

the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 6 ----------------------
IEC 61937-13:2018 © IEC 2018 – 5 –
INTRODUCTION

Modern digital video standards, such as ATSC and DVB, are preparing for next-generation

TV broadcast systems. The latest evolutions in audio introduce fundamental changes to the

way audio is produced, and may well revolutionize the user experience. The new MPEG-H

audio standard offers not only immersive 3D Audio, but it also introduces the concept of audio

objects that can be used to personalize the user experience.

The MPEG-H 3D Audio standard is the next generation MPEG audio codec, and it requires a

framing format that supports more flexible signalling and delivery mechanisms than were

needed for earlier systems. Therefore, the MPEG-H 3D Audio Transport Stream (MHAS)

framing format was specified for use with the MPEG-H 3D Audio codec.

In order to be able to pass the MPEG-H 3D Audio bit stream from a set-top box to an

A/V receiver connected via the IEC 60958 interface, this part of IEC 61937 employs the

MHAS framing format.
---------------------- Page: 7 ----------------------
– 6 – IEC 61937-13:2018 © IEC 2018
DIGITAL AUDIO –
INTERFACE FOR NON-LINEAR PCM ENCODED
AUDIO BITSTREAMS APPLYING IEC 60958 –
Part 13: MPEG-H 3D Audio
1 Scope

This part of IEC 61937 specifies the method to convey non-linear PCM bitstreams encoded

according to the MPEG-H 3D Audio format.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60958 (all parts), Digital audio interface

IEC 61937-1, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying

IEC 60958 – Part 1: General

IEC 61937-2, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying

IEC 60958 – Part 2: Burst-info

ISO/IEC 23008-3:2015, Information technology – High efficiency coding and media delivery in

heterogeneous environments – Part 3: 3D audio
3 Terms, definitions and abbreviated terms

For the purposes of this document, the terms and definitions given in IEC 61937-1,

IEC 61937-2 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Terms and definitions
3.1.1
audio sample rate

sampling frequency of the linear PCM audio samples before encoding and after decoding

3.1.2
frame length
number of linear PCM audio samples per MPEG-H 3D Audio data frame

Note 1 to entry: MPEG-H 3D Audio can operate in several modes using any of 1 024, 2 048, 4 096, 768, 1 536 or

3 072 linear PCM audio samples per MPEG-H 3D Audio data frame.
---------------------- Page: 8 ----------------------
IEC 61937-13:2018 © IEC 2018 – 7 –
3.1.3
latency

delay time of an external audio decoder to decode an MPEG-H 3D Audio data-burst defined

as the sum of two values – the receiving delay time and the decoding delay time
3.1.4
MHASPacketLabel

field in an MPEG-H 3D Audio stream packet that provides an indication on which packets

belong together
3.1.5
MHASPacketLength
field in an MPEG-H 3D Audio stream packet that indicates the length of the
MHASPacketPayload in bytes
3.1.6
MHASPacketPayload
payload of the MHASPacket
3.1.7
MHASPacketType

field in an MPEG-H 3D Audio stream packet that specifies the payload type in the packet

given in ISO/IEC 23008-3:2015, 14.3.1
3.1.8
MPEG-H 3D Audio data frame

sequence of one or more MPEG-H 3D Audio stream packets (MHAS packets), as defined in

ISO/IEC 23008-3:2015, Clause 14 that represents frame length (or fewer) linear PCM audio

samples
3.1.9
MPEG-H 3D Audio stream packet

building blocks of an MPEG-H 3D audio stream that comprises an MHASPacketType field, an

MHASPacketLabel field, an MHASPacketLength field, and an MHASPacketPayload
3.1.10
MPEG-H 3D Audio Stream

self-contained stream format to transport ISO/IEC 23008-3 (MPEG-H 3D Audio) data as

defined in ISO/IEC 23008-3:2015, Clause 14
3.1.11
PACTYP_MPEGH3DACFG
MHASPacketType registration for an MHAS Packet that embeds an MPEG-H 3D audio

configuration structure in the MHASPacketPayload as defined in ISO/IEC 23008-3:2015, 14.4

3.1.12
PACTYP_MPEGH3DAFRAME

MHASPacketType registration for an MHAS Packet that embeds a frame of MPEG-H 3D audio in

the MHASPacketPayload as defined in ISO/IEC 23008-3:2015, 14.4
3.1.13
PACTYP_AUDIOSCENEINFO

MHASPacketType registration for an MHAS Packet that embeds an MPEG-H 3D audio scene

information structure in the MHASPacketPayload as defined in ISO/IEC 23008-3:2015, 14.4

---------------------- Page: 9 ----------------------
– 8 – IEC 61937-13:2018 © IEC 2018
3.1.14
PACTYP_AUDIOTRUNCATION

MHASPacketType registration for an MHAS Packet that indicates a potential truncation as

defined in ISO/IEC 23008-3:2015, 14.4

Note 1 to entry: Truncation in this context means the removal of audio samples from the decoded PCM samples.

Audio samples are removed either before or after a truncation point as signaled in the truncation packet.

3.1.15
truncated MPEG-H 3D Audio data frame

MPEG-H 3D Audio data frame that represents fewer than frame length linear PCM audio

samples

Note 1 to entry: A truncated MPEG-H 3D Audio data frame contains at least one MHAS packet with

MHASPacketType PACTYP_AUDIOTRUNCATION.

Note 2 to entry: Truncation in this context means the removal of audio samples from the decoded PCM samples.

3.2 Abbreviated terms
HBR high bit rate
MHAS MPEG-H 3D Audio stream
4 Mapping of the audio bit stream on to IEC 61937-1
4.1 General

Coding of the bit stream and data-burst is in accordance with IEC 61937-1 and IEC 61937-2.

4.2 Burst-info for MPEG-H 3D Audio

The 16-bit burst-info contains information about the data that will be found in the data-burst.

See Table 1.
Table 1 – Values of data-type for MPEG-H 3D Audio
Data-type Data-type Contents Reference point R Repetition period
bits 0-4 bits 5-6 of data-burst
according to measured in
Value of
IEC 61937-2 IEC 60958 frames
Pc bits 5-6
Value of
Pc bits 0-4
0-24 0-3 In accordance with
IEC 61937-2
25 0 MPEG-H 3D Audio Bit 0 of Pa See Table 5
1 MPEG-H 3D Audio HBR Bit 0 of Pa See Table 8,
Table 9, Table 10
and Table 11
2, 3 According to IEC 61937-2
26-31 0-3 In accordance with
IEC 61937-2

Bits 0 to 4 of the burst-info (Pc) signal the data-type used for transmission. For MPEG-H 3D

Audio, the signalled data-type is 25.

The Pc bits 5 to 6 indicate the MPEG-H 3D Audio mode. The repetition periods of data-bursts

in IEC 60958 frames shall be determined from the data-type-dependent information specified

in Table 4 and Table 7.
---------------------- Page: 10 ----------------------
IEC 61937-13:2018 © IEC 2018 – 9 –
5 Format of data-burst for MPEG-H 3D Audio
