ISO 19711-1:2018 - Building construction machinery and equipment - Truck mixers - Part 1: Terminology and commercial specifications provides standardized terminology and commercial specification requirements for truck mixers used to produce and deliver concrete or mortar. It applies to truck-mounted and semi-trailer mounted drum-type mixers and clarifies which machine types are excluded (for example, fixed/stationary mixers, turbo mixers, concrete mixing plants, small portable mixers, purpose-built underground truck mixers and volumetric mixers).

Key topics and technical requirements

This standard focuses on clear definitions and a consistent commercial data set to describe truck mixers. Key technical topics include:

• Terms and definitions for components and functions: truck mixer, mixer device, drum, drum fin, manhole, roller pedestal, drive pedestal, basic frame, working platform, charge/discharge devices, water system, control device, etc.
• Discharge and chute systems: definitions for swivel chute, flip-over chute, extension chutes and chute lock; Annex B gives a swivel chute example.
• Capacity and performance metrics:
  • Rated drum capacity, rated agitating capacity, and rated mixing capacity (with illustrative figures).
  • Maximum drum speed.
• Commercial specification fields to be presented by manufacturers or sellers:
  • Mixer type, rated drum capacity.
  • Overall vehicle dimensions: length, width, height, wheelbase.
  • Specific heights and clearances: charge device height, chute end ground clearance, chute max height from ground.
  • Complete vehicle kerb mass (per ISO 1176).
• Mixer device specifications:
  • Mixer device dimensions, drum type, drum length and diameter, drum drive type (hydraulic, electric or alternative), water tank capacity, mixer device mass.
• Illustrative annexes: Annex A shows example mixer structures and dimensional drawings to support specification and procurement.

Applications and who uses this standard

ISO 19711-1 is valuable for:

• Manufacturers and OEMs specifying and marketing truck mixers (standardized datasheets and product descriptions).
• Fleet purchasers and rental companies comparing models on consistent criteria (capacity, dimensions, mass).
• Construction and concrete contractors specifying delivery equipment and site requirements (clearances, discharge types).
• Design, safety and maintenance engineers referencing component definitions (manhole, drive pedestal, water system).
• Regulators and standards committees aligning procurement and conformity assessment practices.

Using ISO 19711-1 improves interoperability, procurement clarity, and technical communication within the concrete delivery and construction equipment ecosystem.

Related standards

• ISO 18650-1 - Concrete mixers (vocabulary and general specifications)
• ISO 19720-1 - Plants for preparation of concrete and mortar (terminology and commercial specifications)
• ISO 1176 - Road vehicles - Masses - Vocabulary and codes

Standards Content (Sample)

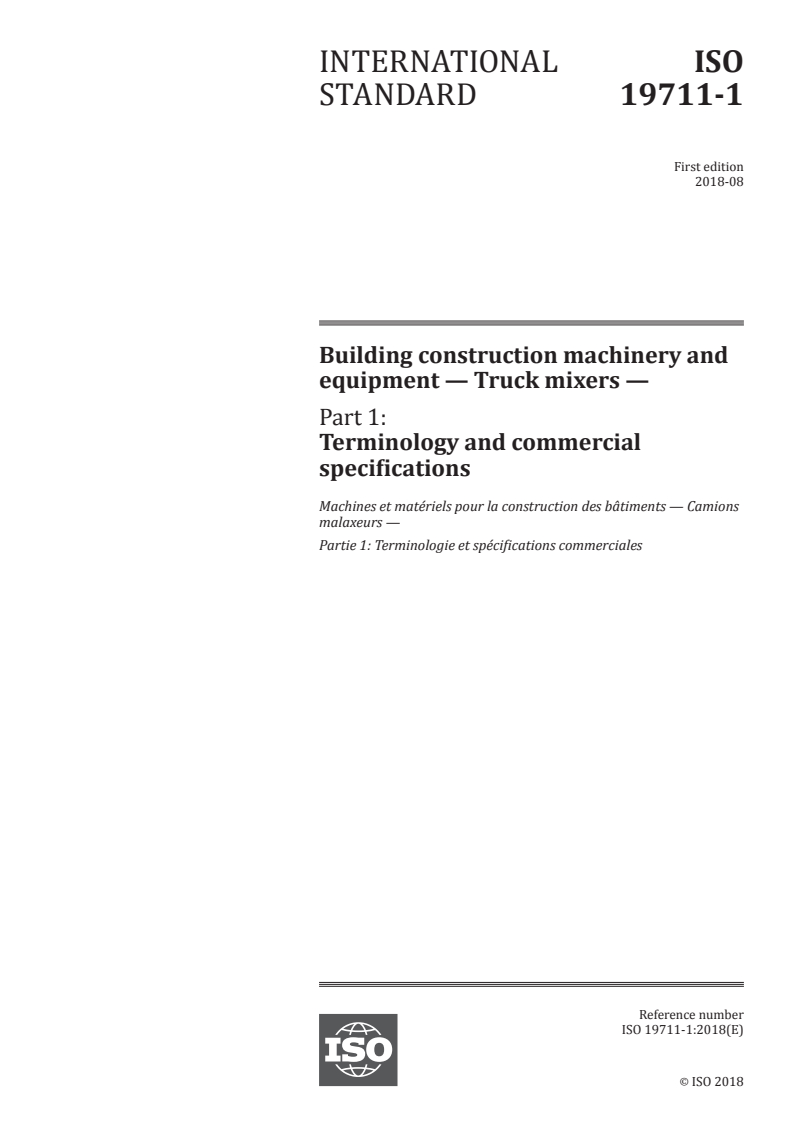

INTERNATIONAL ISO
STANDARD 19711-1
First edition
2018-08
Building construction machinery and
equipment — Truck mixers —
Part 1:
Terminology and commercial
specifications
Machines et matériels pour la construction des bâtiments — Camions
malaxeurs —
Partie 1: Terminologie et spécifications commerciales
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

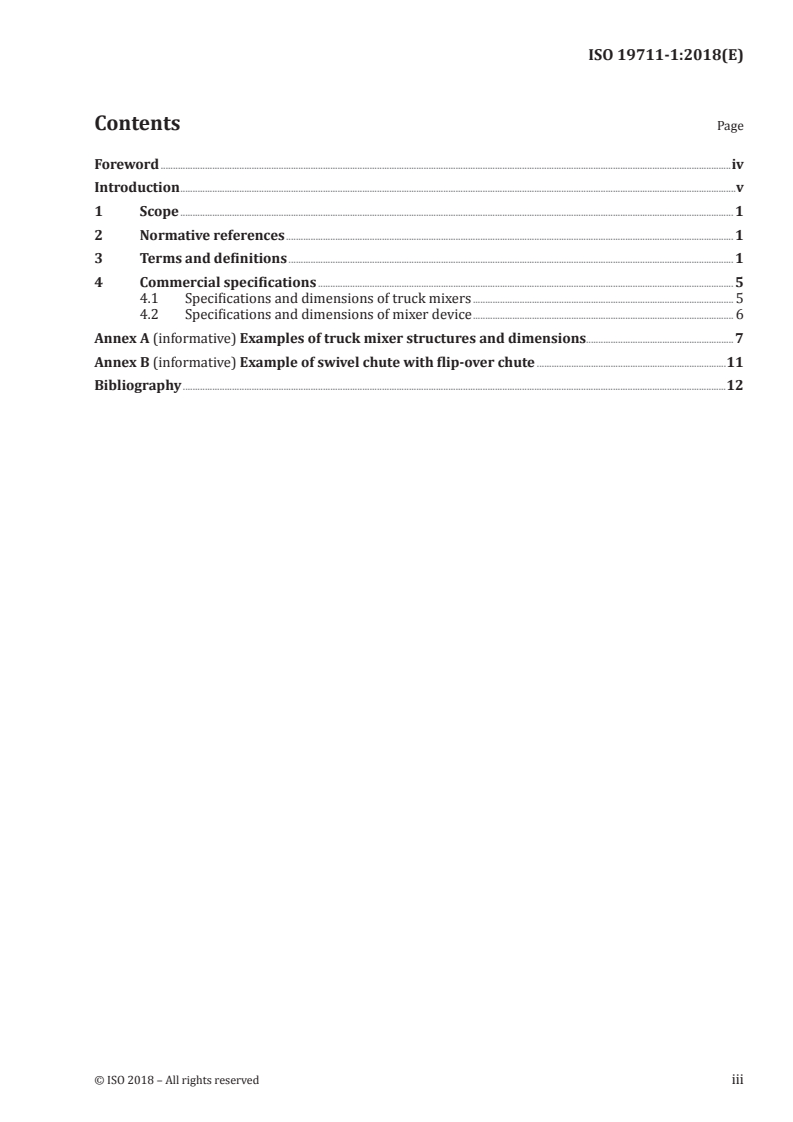

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Commercial specifications . 5
4.1 Specifications and dimensions of truck mixers . 5
4.2 Specifications and dimensions of mixer device . 6
Annex A (informative) Examples of truck mixer structures and dimensions.7
Annex B (informative) Example of swivel chute with flip-over chute .11
Bibliography .12

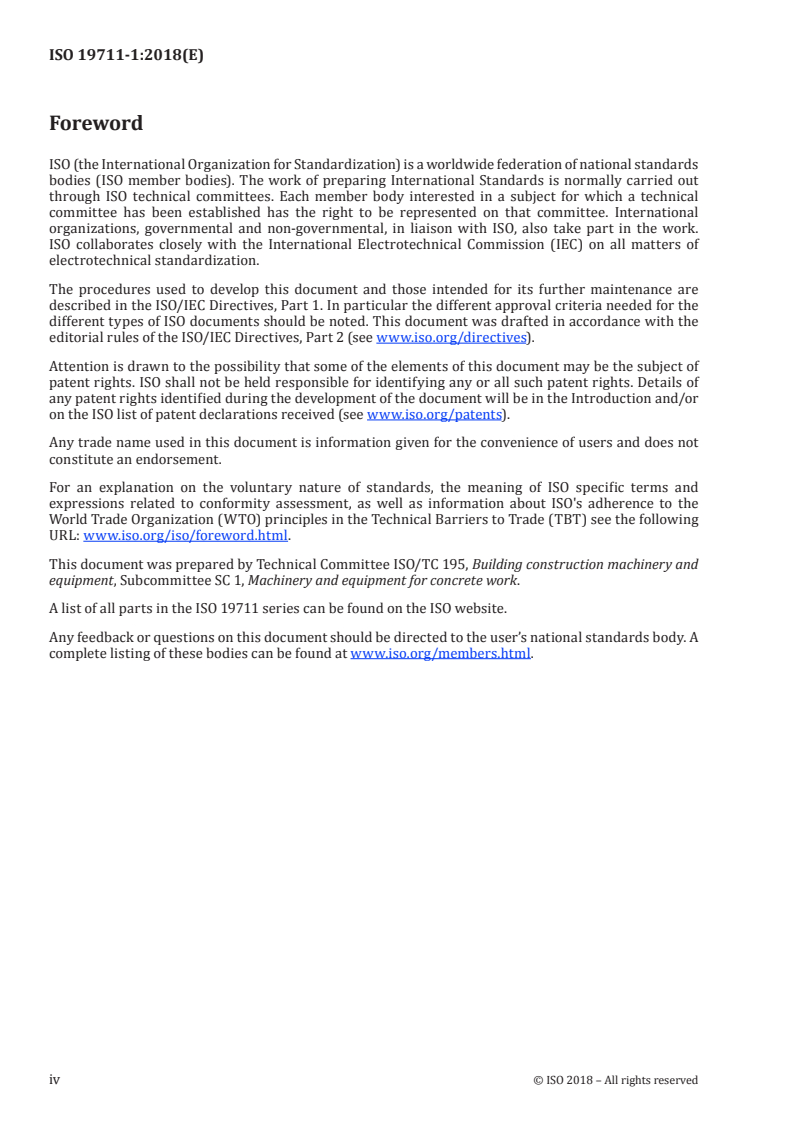

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 195, Building construction machinery and
equipment, Subcommittee SC 1, Machinery and equipment for concrete work.
A list of all parts in the ISO 19711 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved

Introduction
Truck mixers are used for producing concrete or mortar and for delivering concrete, mortar or the
materials of the mixture to worksites.
Examples of truck mixer structures covered by this document can be found in Annex A.
INTERNATIONAL STANDARD ISO 19711-1:2018(E)
Building construction machinery and equipment — Truck
mixers —
Part 1:
Terminology and commercial specifications
1 Scope
This document defines terms and commercial specifications for truck mixers used for producing
concrete or mortar and for delivering concrete, mortar or the materials of the mixture to worksites.
This document is applicable to truck mixers that are either
a) truck mounted, or
b) semi-trailer mounted.
This document does not apply to
— fixed (stationary) mixers (see ISO 18650-1);
— turbo mixers (see ISO 18650-1);
— concrete or mortar mixing plants (see ISO 19720-1);
— small portable mixers (see ISO 18650-1);
— purpose-built underground truck mixers;
— volumetric mixers (mobile concrete or mortar mixing plants).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1176:1990, Road vehicles — Masses — Vocabulary and codes
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1176 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
truck mixer
drum-shaped mixer device (3.2) mounted on a chassis capable of producing the mixture (3.20) and
delivering the mixture (3.20) or the materials of the mixture (3.20) to worksites
Note 1 to entry: The materials of the mixture (3.20) that can be delivered by a truck mixer include cement,
aggregate (sand, gravel, stone) and rock before processing.
3.1.1
rear discharge type truck mixer
truck mixer (3.1) where the discharge device (3.11) unloads the mixture (3.20) at the rear of the truck
Note 1 to entry: See Annex A, Figures A.1 and A.2.
3.1.2
front discharge type truck mixer
truck mixer (3.1) where the discharge device (3.11) unloads the mixture (3.20) at the front of the truck
Note 1 to entry: See Annex A, Figure A.3.
3.1.3
semi-trailer mounted mixer
drum-shaped truck mixer (3.1) where the mixer device (3.2) is mounted on a semi-trailer chassis
Note 1 to entry: See Annex A, Figure A.4.
3.2
mixer device
upper portion of truck mixer (3.1) (excluding the chassis) which is typically composed of a drum (3.3),
basic frame (3.8), drum drive (3.12), roller pedestal (3.6), drive pedestal (3.7), charge device (3.10),
discharge device (3.11) and control device (3.13)
3.3
drum
vessel for mixing (3.19), agitating (3.17) and discharging concrete or mortar
3.4
drum fin
spiral-shaped projection fitted inside the drum (3.3) that mixes, agitates and directs the mixture (3.20)
out of the drum (3.3) for discharge
3.5
manhole
hatch
access opening at the surface of the drum (3.3) which is fitted with a cover to allow the passage of
authorized personnel for inspection and maintenance purposes
3.6
roller pedestal
support structure for the drum (3.3) at its open side where a charge device (3.10) and a discharge device
(3.11) are fitted
3.7
drive pedestal
support structure for the drum (3.3) at its closed side where the drum drive (3.12) is fitted
...
