ISO 13583-2:2023

Centrifugally cast steel and alloy products - Part 2: Heat-resistant materials

This document specifies cast steel and nickel alloy grades for elevated temperature service products manufactured by centrifugal casting.

Produits en acier et alliages moulés par centrifugation — Partie 2: Aciers moulés réfractaires

General Information

• Status: Published
• Publication Date: 02-Feb-2023
• ICS: 77.140.80 - Iron and steel castings
• Technical Committee: ISO/TC 17/SC 11 - Steel castings
• Drafting Committee: ISO/TC 17/SC 11 - Steel castings
• Current Stage: 6060 - International Standard published
• Start Date: 03-Feb-2023
• Due Date: 12-Jul-2023
• Completion Date: 03-Feb-2023

Relations

• Revises: ISO 13583-2:2015 - Centrifugally cast steel and alloy products - Part 2: Heat-resistant materials
• Effective Date: 06-Jun-2022

Overview

ISO 13583-2:2023 - "Centrifugally cast steel and alloy products - Part 2: Heat‑resistant materials" specifies cast steel and nickel‑alloy grades intended for elevated‑temperature service produced by centrifugal casting. The third edition (2023) is a minor editorial revision and forms part of the ISO 13583 series. Its scope covers the chemical compositions, mechanical properties and short‑time rupture/creep data needed to select and supply heat‑resistant centrifugally cast components.

Key topics and requirements

• Scope and conformity: Grades in this document must conform to the general delivery requirements of ISO 4990 and the testing/tolerance rules in ISO 13583‑1.
• Chemical composition: Table 1 lists mass‑fraction limits for carbon, silicon, manganese, chromium, nickel, molybdenum, niobium, tungsten, cobalt and other micro‑alloying elements for each ISO grade (e.g., GX25CrNiSi18‑9, GX40NiCrSi38‑19, G‑NiCr28W).
• Mechanical properties: Room‑temperature requirements (yield, tensile strength, elongation) are provided in Table 2; short‑time rupture (minimum rupture time at specified stress and temperature) is in Table 3.
• Creep and long‑term data: Annex A gives mean values for 1% elongation and creep rupture strengths for 10 000 h and 100 000 h at various temperatures - critical for high‑temperature design.
• Physical properties: Annex B provides density, specific heat, thermal conductivity and thermal expansion values to support thermal analyses.
• UNS equivalents: Annex C maps ISO cast grades to similar UNS cast grade numbers for cross‑referencing.
• Heat treatment & testing: Heat treatment is not required by default; if needed it must be agreed in the purchase contract. Mechanical testing at room and elevated temperatures is carried out when agreed between manufacturer and purchaser.
• Supplementary requirements: Optional clauses from ISO 4990 and ISO 13583‑1 can be applied by agreement.

Applications and who uses it

ISO 13583‑2 is used by:

• Foundries and centrifugal casting manufacturers specifying heat‑resistant castings
• Materials and design engineers selecting high‑temperature alloys for components
• Procurement and quality teams creating purchase orders and inspection plans
• OEMs and maintenance teams in industries requiring elevated‑temperature components (power generation, petrochemical, metallurgy and process industries) Typical uses include any centrifugally cast component intended for prolonged high‑temperature service where creep, rupture and thermal properties are critical.

Related standards

• ISO 4990 - Steel castings: general delivery requirements
• ISO 13583‑1 - Centrifugally cast steel and alloy products: general testing and tolerances
• EN 10027 series - steel designation rules (referenced for naming/numbering)

Keywords: ISO 13583‑2:2023, centrifugally cast, heat‑resistant materials, cast steel, nickel alloys, elevated temperature service, creep rupture, mechanical properties.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13583-2
Third edition
2023-02
Centrifugally cast steel and alloy
products —
Part 2:
Heat-resistant materials
Produits en acier et alliages moulés par centrifugation —
Partie 2: Aciers moulés réfractaires
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General technical delivery conditions . 1
5 Heat treatment .1
6 Chemical composition .1
7 Mechanical properties .1
8 Supplementary requirements . 2
9 Additional information . 2
Annex A (informative) Mean values for 1 % elongation and creep rupture .5
Annex B (informative) Table of physical properties . 7
Annex C (informative) UNS cast grades similar to ISO cast grades . 8
Bibliography . 9
iii

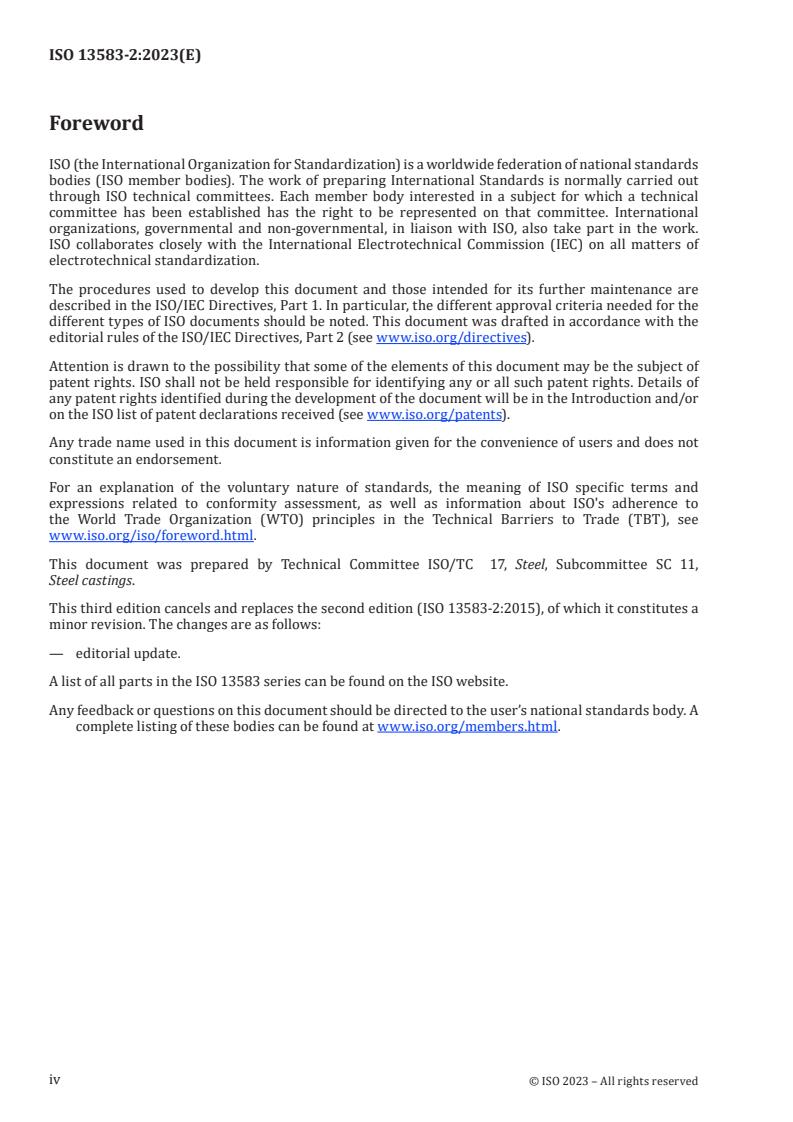

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 11,
Steel castings.
This third edition cancels and replaces the second edition (ISO 13583-2:2015), of which it constitutes a
minor revision. The changes are as follows:
— editorial update.
A list of all parts in the ISO 13583 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 13583-2:2023(E)
Centrifugally cast steel and alloy products —
Part 2:
Heat-resistant materials
1 Scope
This document specifies cast steel and nickel alloy grades for elevated temperature service products
manufactured by centrifugal casting.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 4990, Steel castings — General technical delivery requirements
ISO 13583-1, Centrifugally cast steel and alloy products — Part 1: General testing and tolerances
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 General technical delivery conditions
Cast steel and alloy grades specified by this document shall conform to the applicable requirements of
ISO 4990 and ISO 13583-1, including the supplementary requirements that are indicated in the enquiry
and purchase order.
5 Heat treatment
The cast steel and alloy grades specified by this document do not require heat treatment. If heat
treatment is required, the treatment shall be established by agreement between the manufacturer and
the purchaser, and shall be specified in the purchase contract.
6 Chemical composition
The cast steel and nickel alloy grades shall conform to the chemical composition listed in Table 1.
7 Mechanical properties
The cast steel and nickel alloy grades shall conform to the requirements given in Tables 2 and 3.
Mechanical tests at room temperature and elevated temperature shall be performed if agreed upon
between the manufacturer and purchaser at the time of enquiry and order.
8 Supplementary requirements
A list of supplementary requirements for use at the option of the purchaser is included in ISO 4990 and
ISO 13583-1. These supplementary requirements may be used with this specification upon agreement
between the manufacturer and purchaser. These shall be agreed at the time of the order and listed in
the order.
9 Additional information
Additional information on the cast steels and nickel alloy grades in this document is included in
Tables A.1, A.2, A.3, B.1 and C.1.
Annex C gives information on ISO grade designation and available UNS
...
