ISO 19991:2026 is an ISO standard for the supersonic molecular beam injection (SMBI) fuelling technique used in experimental magnetic confinement fusion facilities. It specifies the SMBI system, beam properties, and inspection methods so engineers can form, control, and verify plasma fuel injection for fusion devices such as ITER and DEMO-type installations.
What does ISO 19991:2026 specify?
ISO 19991:2026 specifies the methods and requirements for SMBI fuelling in experimental magnetic confinement fusion facilities. It covers how the beam is formed, what system parts are involved, which beam properties are specified, and how those properties are checked before installation.
The document is organized into clauses on scope, references, terms, method and principle, system components, beam properties, and inspection. The inspection clause is especially important in practice because it tells users how to confirm that the beam structure, beam velocity, and injection rate meet the document’s requirements before the system enters service.
What are the key requirements of ISO 19991:2026?
ISO 19991:2026 focuses on producing a supersonic molecular beam through a Laval or Laval-like nozzle, with enough pressure difference across the nozzle to create directed flow faster than the local speed of sound. In practice, this means the gas circuit, nozzle, and chamber conditions must be arranged so the beam is both strong enough for fuelling and stable enough to repeat.
System arrangement and pressure control
Clause 5 describes the gas source supply, valve, injector, control unit, and supporting equipment. The document allows the valve and injector to be integrated for smaller devices or separated for reactor-level systems, which matters because maintenance access and vacuum placement change with scale.
The gas source pressure must be high enough relative to the background pressure to support beam formation. The document also requires the maximum permissible working pressure of the gas circuit to be limited by the lowest pressure rating of the valve and pressure-containing components. In practice, users must size the whole gas circuit, not just the injector.
Materials and safety
Clause 5 also gives material and safety expectations. The valve sealing materials should avoid halogenated materials, sulphur, phosphorus, and hydrogen-containing polymers, and all-metal materials are preferred where possible.
For tritium-related applications, the document points to ISO 16646 for containment, ventilation, and radioactive risk control. It also addresses leakage, fire, explosion, and anoxia risks, so the system is not treated as a pure beam device but as part of a hazardous gas installation.
Injector and beam formation
Clause 5 requires the injector throat diameter to be large compared with the mean free path of the gas molecules, and it links throat size to the maximum required injection rate. This matters because the nozzle geometry must support rapid, low-collision flow and still deliver the required fuel amount.
Beam properties
Clause 6 specifies the beam properties that matter most: beam structure, beam velocity, and injection rate. The beam should show the characteristic Mach disk structure, the beam velocity at the chamber wall boundary shall be greater than the standard sound speed, and the injection rate is calibrated to the needs of the target device. In practice, users need to verify both the beam shape and the delivery performance, not only the gas pressure.
Inspection before installation
Clause 7 requires inspection before the SMBI system is installed in the fusion device. Beam structure is checked with schlieren visualization in a still-air setup, beam velocity is measured by the time-of-flight (TOF) method, and injection rate is confirmed in a sealed container by measuring pressure rise and pulse duration. That means qualification testing is part of the document, not an optional add-on.
What terms does ISO 19991:2026 define?
- Supersonic molecular beam injection (SMBI) - A fuelling method that creates a supersonic molecular beam by adiabatic gas expansion through a nozzle into vacuum.
- Beam structure - The shape of the injected beam, including the quiet zone and Mach disk.
- Divergence angle - The angle that describes how widely the beam spreads after leaving the injector.
- Effective distance - The length of the quiet zone from the injector outlet to the Mach disk.
- Working distance - The distance from the injector outlet to the inner wall of the working chamber.
- Time-of-flight (TOF) - The travel time of beam particles from the injector outlet to the measurement location.
- Injection rate - The number of gas particles flowing through the injector outlet per second.
- Safety gas pressure ratio - The ratio between maximum permissible working pressure and normal operating gas source pressure.
Who uses ISO 19991:2026?
ISO 19991:2026 is used by fusion system designers, experimental device engineers, test and inspection laboratories, and quality managers working on magnetic confinement fusion equipment. It is also relevant to buyers and integrators selecting valves, injectors, gas supply parts, and control units for tritium, hydrogen, deuterium, helium, neon, or argon fuelling systems.
In practice, these users apply the standard when designing the nozzle and gas circuit, selecting pressure-rated components, visualizing the beam, measuring TOF velocity, and verifying injection performance before installation.
Which standards are used with ISO 19991:2026?
ISO 19991:2026 normatively references ISO 16646, which supports confinement, ventilation, and tritium-facility safety requirements for related applications.
It also cites supporting standards and references that inform implementation and test methods:
- ISO 9809-4 and ISO 4706 for gas cylinders used in the supply circuit
- ISO 20485 for tracer-gas leak testing
- ISO 3529-1 for vacuum technology vocabulary
What does the ISO 19991:2026 document contain?
ISO 19991:2026 contains the method and principle of SMBI, descriptions of the system components, beam-property specifications, and pre-installation inspection procedures. It includes schematics of the SMBI system, the beam structure, and a typical Laval-like injector, plus a schlieren measurement setup for beam visualization.
The document also provides an empirical relationship for beam structure, a sound-speed reference table for common fusion gases, and calculation methods used to derive injection rate from pressure change in a sealed container. These elements support design, testing, and qualification of SMBI systems before they are put into fusion devices.
Get Certified
Connect with accredited certification bodies for this standard

DNV
DNV is an independent assurance and risk management provider.

Lloyd's Register
Lloyd's Register is a global professional services organisation specialising in engineering and technology.

DNV Energy Systems
Energy and renewable energy certification.
Sponsored listings
Frequently Asked Questions
ISO 19991:2026 is a standard published by the International Organization for Standardization (ISO). Its full title is "Fusion technology — Experimental magnetic confinement fusion facilities — Supersonic molecular beam injection fuelling technique for fusion devices". This standard covers: This document specifies the methods and the requirements for the supersonic molecular beam injection (SMBI) fuelling technique used in experimental magnetic confinement fusion facilities. It outlines the SMBI system components, specific requirements, and inspection procedures to ensure the effective and controlled injection of plasma fuel into fusion devices such as international thermonuclear experimental reactor and demonstration power plant. This document applies to the formation of supersonic molecular beam (SMB) and usage of the SMBI technique on the fusion devices, including the specification of gas pressure adjustment, beam characteristics and injection rate requirements, as well as the procedures for verifying these parameters.
This document specifies the methods and the requirements for the supersonic molecular beam injection (SMBI) fuelling technique used in experimental magnetic confinement fusion facilities. It outlines the SMBI system components, specific requirements, and inspection procedures to ensure the effective and controlled injection of plasma fuel into fusion devices such as international thermonuclear experimental reactor and demonstration power plant. This document applies to the formation of supersonic molecular beam (SMB) and usage of the SMBI technique on the fusion devices, including the specification of gas pressure adjustment, beam characteristics and injection rate requirements, as well as the procedures for verifying these parameters.
ISO 19991:2026 is classified under the following ICS (International Classification for Standards) categories: 27.120.20 - Nuclear power plants. Safety. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 19991:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

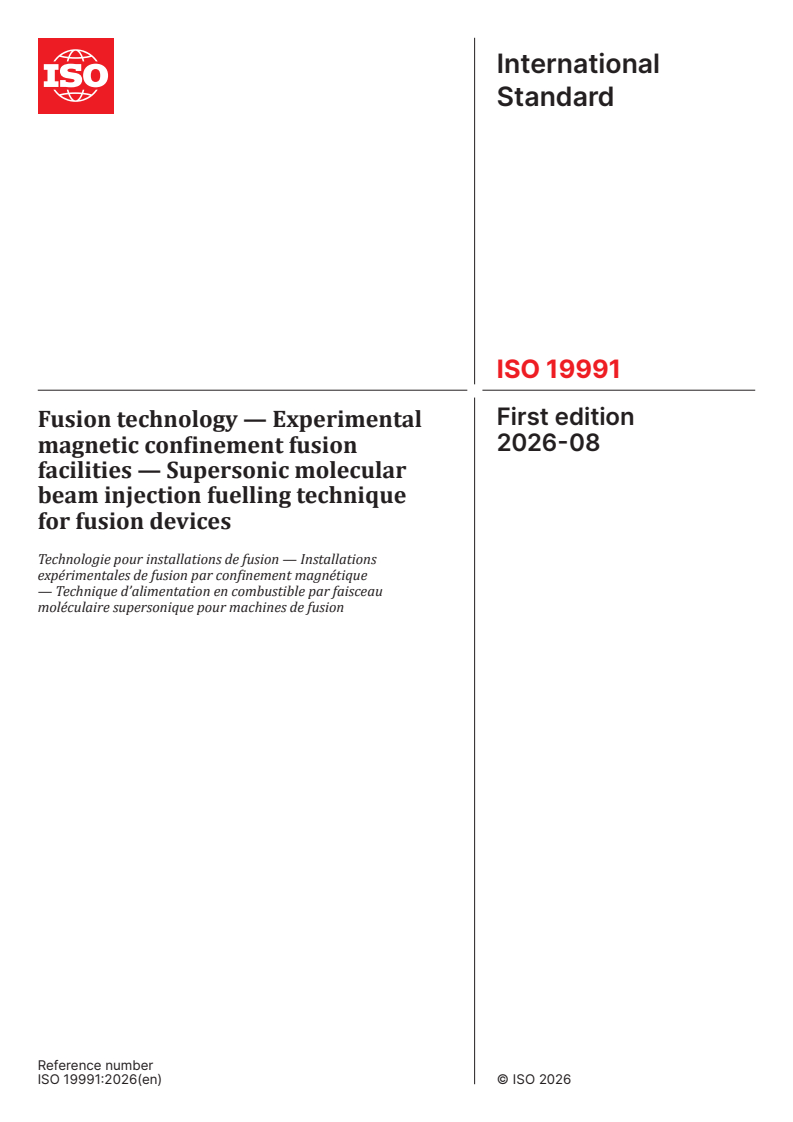

International
Standard
ISO 19991
First edition
Fusion technology — Experimental
2026-08
magnetic confinement fusion
facilities — Supersonic molecular
beam injection fuelling technique
for fusion devices
Technologie pour installations de fusion — Installations
expérimentales de fusion par confinement magnétique
— Technique d’alimentation en combustible par faisceau
moléculaire supersonique pour machines de fusion
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

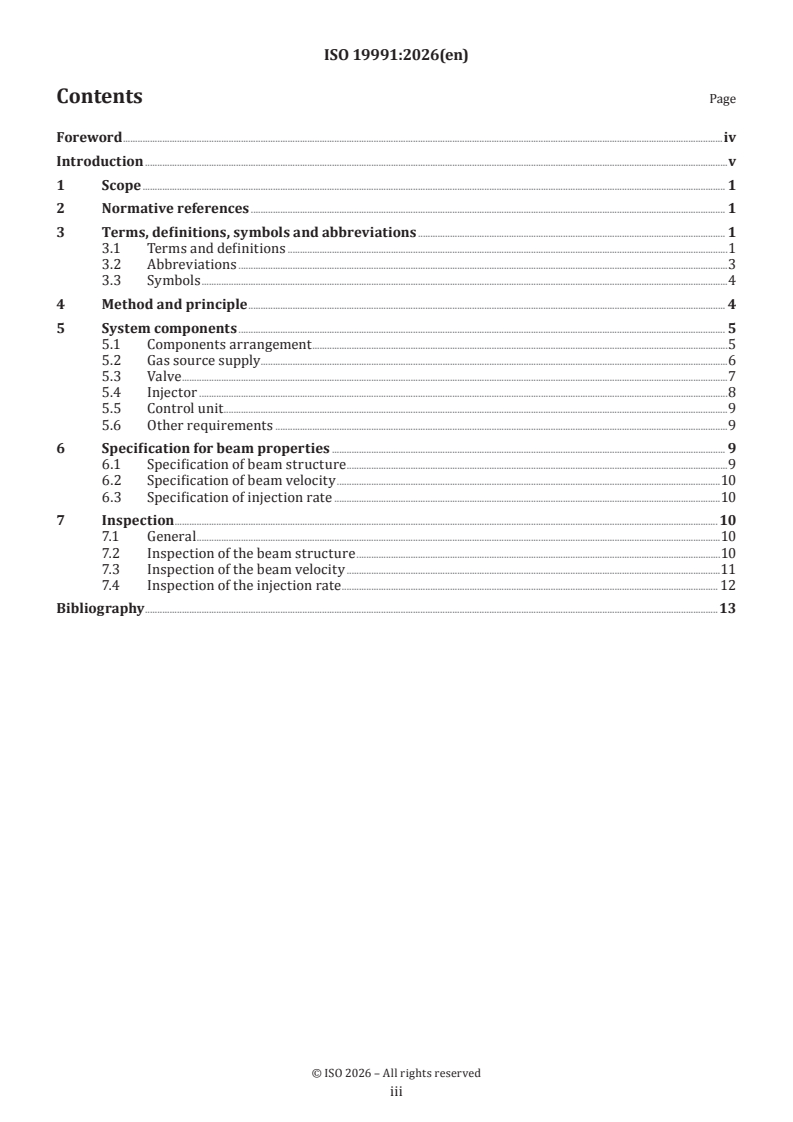

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviations . 1
3.1 Terms and definitions .1
3.2 Abbreviations .3
3.3 Symbols .4
4 Method and principle . 4
5 System components . 5
5.1 Components arrangement .5
5.2 Gas source supply .6
5.3 Valve .7
5.4 Injector .8
5.5 Control unit .9
5.6 Other requirements .9
6 Specification for beam properties . 9
6.1 Specification of beam structure .9
6.2 Specification of beam velocity .10
6.3 Specification of injection rate .10
7 Inspection . 10
7.1 General .10
7.2 Inspection of the beam structure .10
7.3 Inspection of the beam velocity .11
7.4 Inspection of the injection rate . 12
Bibliography .13
iii

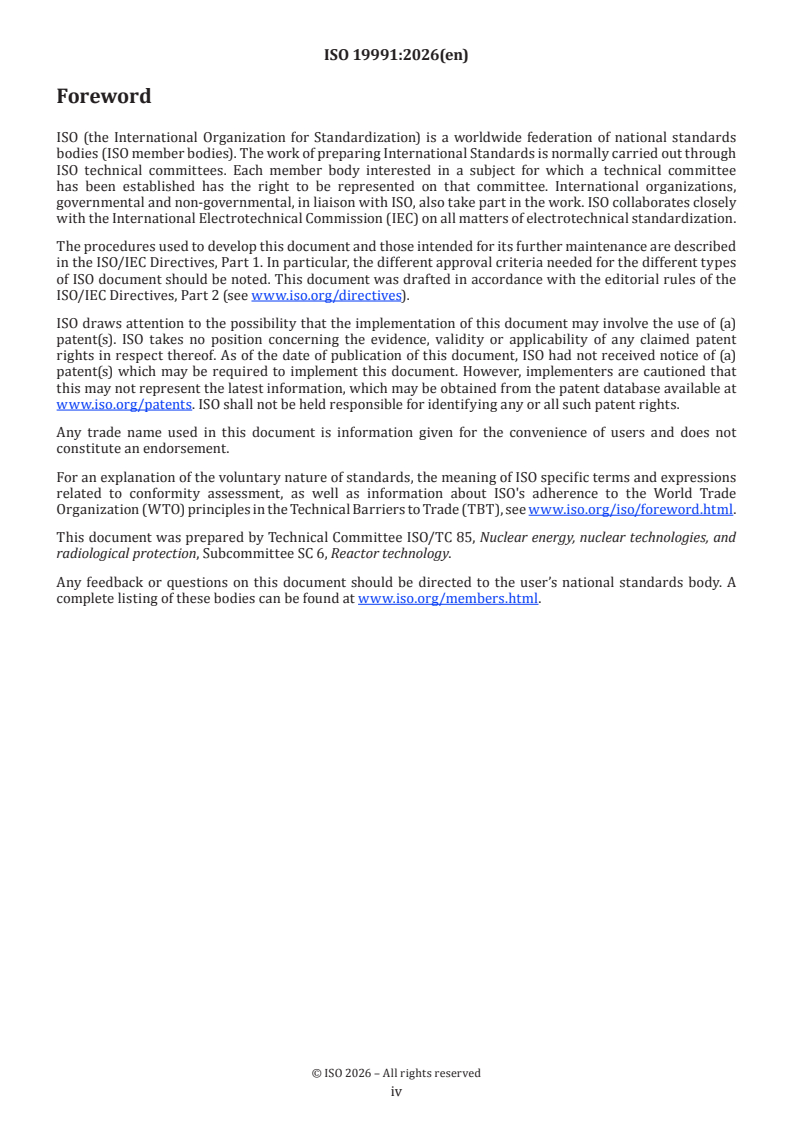

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 85, Nuclear energy, nuclear technologies, and
radiological protection, Subcommittee SC 6, Reactor technology.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
The plasma fuelling system is integral to magnetic confinement fusion devices, including DEMO and other
fusion facilities. Supersonic molecular beam injection (SMBI) is a key candidate for fuel injection, offering
high efficiency with reduced wall retention of gases. SMBI has demonstrated good fuelling efficiency in
many medium and small-sized devices, with higher efficiency compared to conventional methods. Although
its fuelling efficiency may attenuate in large-scale equipment, long-pulse discharges in superconducting
[1]
devices have shown that the good directionality of SMBI can significantly reduce wall retention . This
reduction in wall retention is particularly significant for the utilization of tritium in future fusion facilities.
Unlike conventional gas fuelling systems that utilize gas diffusion and are susceptible to wall retention,
leading to unpredictable plasma density changes and possible facility shutdown, SMBI, with its high beam
velocity, effectively mitigates such risks. Comparing to fuel pellet injection, SMBI has lower fuelling efficiency,
but provides significant system stability. Currently, tritium pellet technology is not yet sufficiently mature.
Therefore, as technology advances, SMBI can be considered as a complementary component of an effective
fuelling system for future fusion facilities, alongside pellet injection.
v
International Standard ISO 19991:2026(en)
Fusion technology — Experimental magnetic confinement
fusion facilities — Supersonic molecular beam injection
fuelling technique for fusion devices
1 Scope
This document specifies the methods and the requirements for the supersonic molecular beam injection
(SMBI) fuelling technique used in experimental magnetic confinement fusion facilities. It outlines the SMBI
system components, specific requirements, and inspection procedures to ensure the effective and controlled
injection of plasma fuel into fusion devices such as international thermonuclear experimental reactor and
demonstration power plant.
This document applies to the formation of supersonic molecular beam (SMB) and usage of the SMBI
technique on the fusion devices, including the specification of gas pressure adjustment, beam characteristics
and injection rate requirements, as well as the procedures for verifying these parameters.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 16646, Fusion installations — Criteria for the design and operation of confinement and ventilation systems
of tritium fusion facilities and fusion fuel handling facilities
3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1.1
supersonic molecular beam injection
SMBI
method of fuelling by generating a supersonic molecular beam through the adiabatic expansion of gas into a
vacuum, maintained by a sufficient pressure differential across a Laval or Laval-like nozzle
3.1.2
beam structure
structure of the beam injected by the SMBI (3.1.1) system, which features a quiet zone as well as a Mach disk
and other characteristics
Note 1 to entry: Figure 1 shows the beam structure.
Key
1 injector
2 jet boundary
3 barrel shock
4 Mach disk shock
α divergence angle
X effective distance
M
a
Flow direction.
Figure 1 — Schematic diagram of the beam structure
3.1.3
divergence angle
α
angle at the injector outlet between the two tangents to the boundary of the beam's central cross-section
3.1.4
effective distance
X
M
length of quiet zone, expressed as the distance from the injector outlet to the Mach disk along the central
axis of the beam
3.1.5
working distance
L
w
distance measured along the central axis of the beam, extending from the injector outlet to the boundary of
the working chamber's inner wall
3.1.6
time-of-flight
TOF
time interval for beam particles to travel from the injector outlet to the measurement location
3.1.7
beam velocity
maximum velocity of the beam measured by the time-of-flight (3.1.6) method
3.1.8
ideal beam velocity
v
m
theoretical maximum velocity that the beam can reach when, under ideal conditions, the gas’s entire internal
energy is completely converted into directed kinetic energy, as described by Formula (1):
2RT
v (1)
m
1 M
3.1.9
standard sound speed
sound speed of a specific gas (H , D , T , N , Ne, Ar, etc.) at 288,15 K and 1,013 × 10 Pa
2 2 2 2
3.1.10
mean free path
λ
average distance a gas particle travels between successive collisions with other particles
3.1.11
gas source pressure
p
pressure of the gas supply at the injector inlet
3.1.12
background pressure
p
b
pressure of the environment surrounding the beam downstream of the injector outlet
3.1.13
maximum permissible working pressure
p
max
lowest value among the maximum allowable pressures of individual components in the gas circuit including
valve, gas pipe and pressure vessel
3.1.14
safety gas pressure ratio
r
ratio of the maximum permissible working pressure (3.1.13) to the normal operating gas source pressure
(3.1.11)
3.1.15
injection rate
I
inj
number of gas particles flowing through the injector outlet per second
3.2 Abbreviations
SMBI supersonic molecular beam injection
TOF time-of-flight
3.3 Symbols
α divergence angle
X effective distance
M
v standard sound speed
c
v ideal beam velocity
m
d diameter of the injector throat
L working distance
w
p gas source pressure at the inlet of the valve
p background pressure at the injector outlet
b
p maximum component operating pressure
max
λ mean free path
N Avogadro's constant
A
N number of injected particles
∆p
pressure change
V volume of the inspection container
ideal gas constant (8,314 J/(mol⋅ K))
R
T absolute temperature (K) of gas source
t SMB pulse duration
I injection rate
inj
max
maximum required injection rate
I
inj
γ
adiabatic index/specific heat ratio of applied gas source species
M molar mass of gas source (kg/mol)
r safety gas pressure ratio
4 Method and principle
The supersonic molecular beam is generated through an adiabatic expansion in a Laval or Laval-like nozzle/
injector, which ensures a sufficient pressure differential across its ends. The expansion process converts
a portion of the gas source's internal energy into translational energy, resulting in a directed motion at
velocities exceeding the local speed of sound.
For the system to operate properly, specific provisions shall be established for its key components, structure,
and operating conditions, along with beam characteristics, specifically the operating flow rate range, beam
velocity, and beam structure. Furthermore, a defined inspection method shall be established, particularly
for verifying the supersonic molecular beam (SMB) velocity at the working distance.
5 System components
5.1 Components arrangement
The SMBI system is designed with flexibility, incorporating either separate or integrated functional
components that are crucial for its operation. These components include the gas source supply, valve, injector,
control unit and other necessary components as illustrated in Figure 2. In experimental fusion devices, the
valve and injector are typically integrated, with the valve outlet being directly and rigidly connected to the
injector inlet. For large-scale, reactor-level fusion devices, the valve and the injector are usually separated.
In such configurations, the valve is located outside the vacuum vessel to facilitate maintenance, while the
fixed, robust injector is placed inside the vacuum vessel with background pressure at the injector outlet, p ,
b
such as within an inspection chamber or a working chamber.
The workflow of the SMBI system is arranged as follows: the pressure reducing valve located at the rear end
of the gas cylinder
...
