ISO/TR 19057:2017

Nanotechnologies — Use and application of acellular in vitro tests and methodologies to assess nanomaterial biodurability

ISO/TR 19057:2017 reviews the use and application of acellular in vitro tests and methodologies implemented in the assessment of the biodurability of nanomaterials and their ligands in simulated biological and environmental media. ISO/TR 19057:2017 is intended to focus more on acellular in vitro methodologies implemented to assess biodurability and, therefore, excludes the general review of relevant literature on in vitro cellular or animal biodurability tests.

Nanotechnologies — Utilisation et application des tests in vitro sur cellules et méthodes pour évaluer la biodurabilité des nanomatériaux

General Information

• Status: Published
• Publication Date: 25-Oct-2017
• ICS: 07.030 - Physics. Chemistry
• ICS: 07.120 - Nanotechnologies
• Technical Committee: ISO/TC 229 - Nanotechnologies
• Drafting Committee: ISO/TC 229 - Nanotechnologies
• Current Stage: 6060 - International Standard published
• Due Date: 10-Jul-2017
• Completion Date: 26-Oct-2017

Standards Content (Sample)

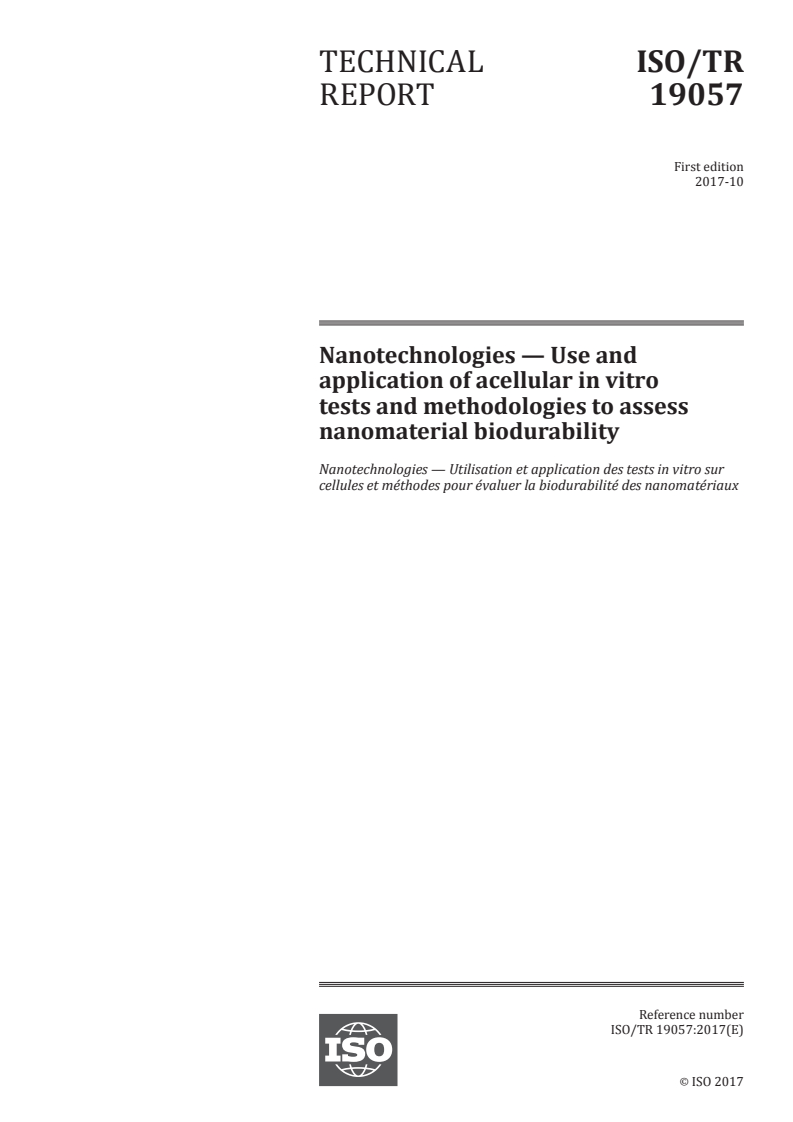

TECHNICAL ISO/TR
REPORT 19057
First edition
2017-10
Nanotechnologies — Use and
application of acellular in vitro
tests and methodologies to assess
nanomaterial biodurability
Nanotechnologies — Utilisation et application des tests in vitro sur
cellules et méthodes pour évaluer la biodurabilité des nanomatériaux
Reference number
ISO/TR 19057:2017(E)
©
ISO 2017

---------------------- Page: 1 ----------------------
ISO/TR 19057:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

---------------------- Page: 2 ----------------------

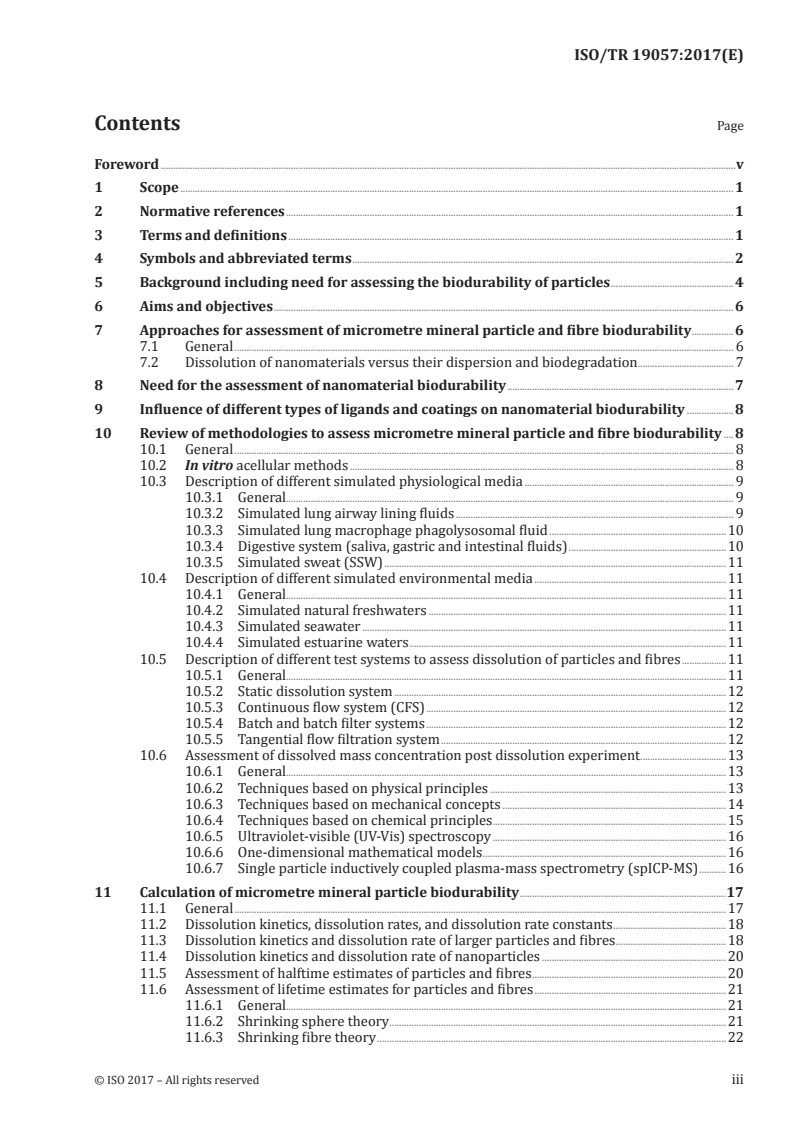

ISO/TR 19057:2017(E)

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 2
5 Background including need for assessing the biodurability of particles .4
6 Aims and objectives . 6
7 Approaches for assessment of micrometre mineral particle and fibre biodurability .6
7.1 General . 6
7.2 Dissolution of nanomaterials versus their dispersion and biodegradation . . 7
8 Need for the assessment of nanomaterial biodurability . 7
9 Influence of different types of ligands and coatings on nanomaterial biodurability .8
10 Review of methodologies to assess micrometre mineral particle and fibre biodurability .8
10.1 General . 8
10.2 In vitro acellular methods . 8
10.3 Description of different simulated physiological media . 9
10.3.1 General. 9
10.3.2 Simulated lung airway lining fluids . 9
10.3.3 Simulated lung macrophage phagolysosomal fluid .10
10.3.4 Digestive system (saliva, gastric and intestinal fluids) .10
10.3.5 Simulated sweat (SSW) .11
10.4 Description of different simulated environmental media .11
10.4.1 General.11
10.4.2 Simulated natural freshwaters .11
10.4.3 Simulated seawater .11
10.4.4 Simulated estuarine waters .11
10.5 Description of different test systems to assess dissolution of particles and fibres .11
10.5.1 General.11
10.5.2 Static dissolution system .12
10.5.3 Continuous flow system (CFS) .12
10.5.4 Batch and batch filter systems .12
10.5.5 Tangential flow filtration system .12
10.6 Assessment of dissolved mass concentration post dissolution experiment . .13
10.6.1 General.13
10.6.2 Techniques based on physical principles .13
10.6.3 Techniques based on mechanical concepts .14
10.6.4 Techniques based on chemical principles .15
10.6.5 Ultraviolet-visible (UV-Vis) spectroscopy .16
10.6.6 One-dimensional mathematical models .16
10.6.7 Single particle inductively coupled plasma-mass spectrometry (spICP-MS) .16
11 Calculation of micrometre mineral particle biodurability .17
11.1 General .17
11.2 Dissolution kinetics, dissolution rates, and dissolution rate constants .18
11.3 Dissolution kinetics and dissolution rate of larger particles and fibres .18
11.4 Dissolution kinetics and dissolution rate of nanoparticles .20
11.5 Assessment of halftime estimates of particles and fibres .20
11.6 Assessment of lifetime estimates for particles and fibres .21
11.6.1 General.21
11.6.2 Shrinking sphere theory .21
11.6.3 Shrinking fibre theory .22
© ISO 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------

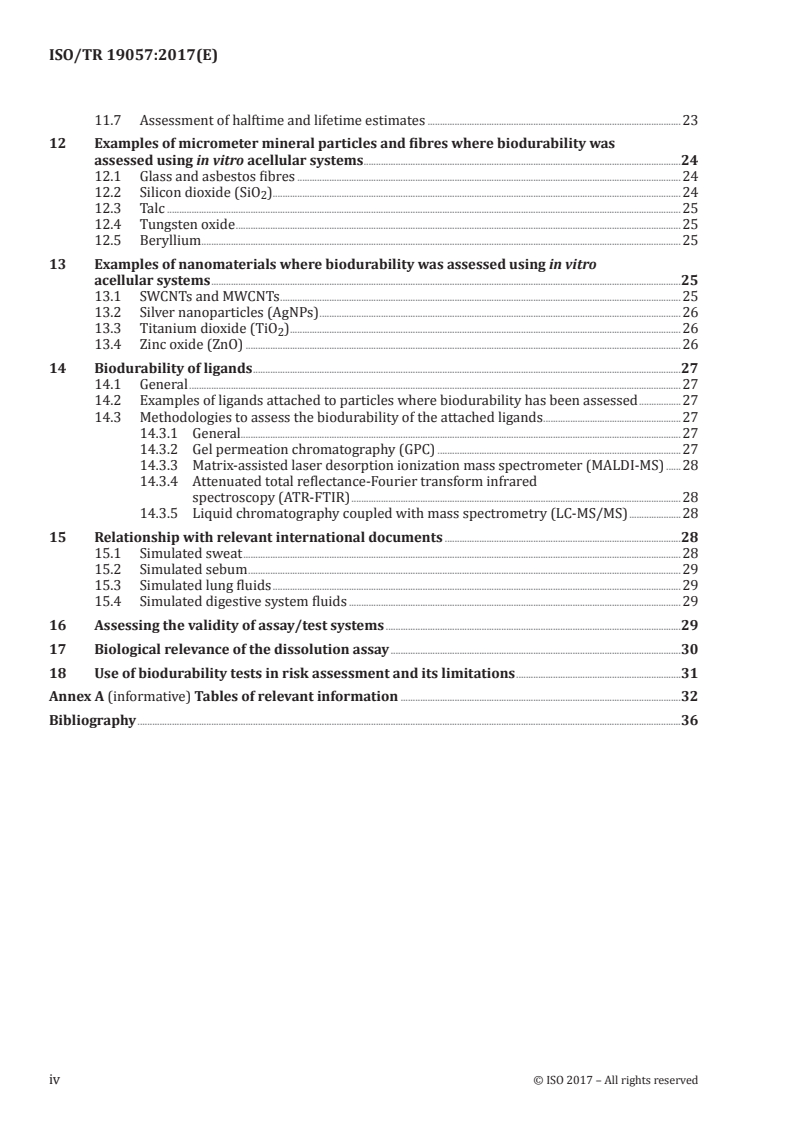

ISO/TR 19057:2017(E)

11.7 Assessment of halftime and lifetime estimates .23
12 Examples of micrometer mineral particles and fibres where biodurability was
assessed using in vitro acellular systems .24
12.1 Glass and asbestos fibres .24
12.2 Silicon dioxide (SiO ) .24
2
12.3 Talc .25
12.4 Tungsten oxide .25
12.5 Beryllium .25
13 Examples of nanomaterials where biodurability was assessed using in vitro
acellular systems .25
13.1 SWCNTs and MWCNTs .25
13.2 Silver nanoparticles (AgNPs) .26
13.3 Titanium dioxide (TiO ) .26
2
13.4 Zinc oxide (ZnO) .26
14 Biodurability of ligands .27
14.1 General .27
14.2 Examples of ligands attached to particles where biodurability has been assessed .27
14.3 Methodologies to assess the biodurability of the attached ligands .27
14.3.1 General.27
14.3.2 Gel permeation chromatography (GPC) .27
14.3.3 Matrix-assisted laser desorption ionization mass spectrometer (MALDI-MS) .28
14.3.4 Attenuated total reflectance-Fourier transform infrared
spectroscopy (ATR-FTIR) .28
14.3.5 Liquid chromatography coupled with mass spectrometry (LC-MS/MS) .28
15 Relationship with relevant international documents .28
15.1 Simulated sweat .28
15.2 Simulated sebum .29
15.3 Simulated lung fluids .29
15.4 Simulated digestive system fluids .29
16 Assessing the validity of assay/test systems .29
17 Biological relevance of the dissolution assay .30
18 Use of biodurability tests in risk assessment and its limitations .31
Annex A (informative) Tables of relevant information .32
Bibliography .36
iv © ISO 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 19057:2017(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 229, Nanotechnologies.
© ISO 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 19057:2017(E)
Nanotechnologies — Use and application of acellular in
vitro tests and methodologies to assess nanomaterial
biodurability
1 Scope
This document reviews the use and application of acellular in vitro tests and methodologies implemented
in the assessment of the biodurability of nanomaterials and their ligands in simulated biological and
environmental media.
This document is intended to focus more on acellular in vitro methodologies implemented to assess
biodurability and, therefore, excludes the general review of relevant literature on in vitro cellular or
animal biodurability tests.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
bioaccumulation
process of accumulation of a substance in organisms or parts
[SOURCE: ISO/TR 13329:2012, 3.3]
3.2
biodegradation
degradation due to the biological environment
Note 1 to entry: Biodegradation might be modelled by in vitro tests.
[SOURCE: ISO/TR 13329:2012, 3.4]
3.3
biodurability
ability of a material to resist dissolution (3.6) and mechanical disintegration from chemical and physical
clearance mechanisms
[SOURCE: ISO/TR 13329:2012, 3.5, modified]
3.4
biopersistence
ability of a material to persist in a tissue in spite of the tissue’s physiological clearance mechanisms and
environmental conditions
[SOURCE: EN 18748:1999]
© ISO 2017 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 19057:2017(E)

3.5
dispersion
microscopic multi-phase system in which discontinuities of any state (solid, liquid or gas: discontinuous
phase) are dispersed in a continuous phase of a different composition or state
[SOURCE: ISO 26824:2013, 16.5]
3.6
dissolution
process of obtaining a solution containing the analyte of interest
Note 1 to entry: Dissolution is the act of dissolving and the resulting species may be molecular or ionic.S
[SOURCE: ISO 17733:2015, 3.4.10, modified]
3.7
ligands
atoms or groups joined to the central atom
[SOURCE: IUPAC Recommendations 1994]
3.8
nanomaterial
material with any external dimension in the nanoscale or having internal structure or surface structure
in the nanoscale
Note 1 to entry: This generic term is inclusive of nano-object and nanostructured material.
Note 2 to entry: See also engineered nanomaterial, manufactured nanomaterial and incidental nanomaterial.
[SOURCE: ISO/TS 80004-1:2015, 2.4]
3.9
nanoparticle
nano-object with all three external dimensions in the nanoscale
Note 1 to entry: If the lengths of the longest to the shortest axes of the nano-object differ significantly (typically by
more than three times), the terms nanorod or nanoplate are intended to be used instead of the term nanoparticle.
[SOURCE: ISO/TS 27687:2008, 4.1]
3.10
specific surface area for powders
absolute surface area of the sample divided by sample mass and is therefore expressed in units of
2
m /g or kg
[SOURCE: ISO 9277:2010, 3.11, modified]
3.11
suspension
heterogeneous mixture of materials comprising a liquid and a finely dispersed solid material
[SOURCE: ISO/TS 80004-6:2013, 2.13]
4 Symbols and abbreviated terms
AAS Atomic absorption spectroscopy
AF4 Asymmetrical flow field flow fractionation
AgNPs Silver nanoparticles
2 © ISO 2017 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 19057:2017(E)

ATR-FTIR Attenuated total reflectance-Fourier transform infrared spectroscopy
AuNPs Gold nanoparticles
CdSe /ZnS Cadmium-selenium (core) and zinc sulfide (shell)
core shell
CE Capillary electrophoresis
CFS Continuous flow system
CNTs Carbon nanotubes
CPE Cloud-point extraction
CuONPs Copper oxide nanoparticles
Da Dalton
DMEM Dulbecco's Modified Eagle's Medium
DOM Dissolved organic matter
EPA US. Environmental Protection Agency
FFFF Flow field flow fractionation
FTIR Fourier transform infrared spectroscopy
GC-MS Gas chromatography–mass spectrometry
GPC Gel permeation chromatography
HPCIC High-performance chelation ion chromatography
HRP Horseradish peroxidase
ICP-MS Inductively coupled plasma-mass spectrometry
ICP-OES Inductively coupled plasma-optical emission spectrometry
SNMS/TOF-SIMS Secondary neutral mass spectrometry/time-of-flight secondary ion mass
spectrometry
LC-MS Liquid chromatography-mass spectrometry
LC-MS/MS Liquid chromatography-mass spectroscopy-mass spectroscopy
MALDI-TOF-MS Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry
m/z Mass-to-charge ratios
MWCNTs Multi-wall carbon nanotubes
NaCl Sodium chloride
NP Nanoparticle
NIOSH U. S. National Institute for Occupational Safety and Health
NSL Nanosphere lithography
PAP Pulmonary alveolar proteinosis
© ISO 2017 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 19057:2017(E)

PBPK Physiologically-based pharmacokinetic
PSF Phagolysosomal simulant fluid
QDs Quantum dots
QQQ Triple quadrupole
QTOF Quadrupole time-of-flight
REACH Registration, evaluation, authorisation and restriction of chemicals
RPMI Roswell Park Memorial Institute
SDS Sodium dodecyl sulfate
SiO Silicon dioxide
2
SLF Simulated lung fluid
spICP-MS Single particle inductively coupled plasma-mass spectrometry
SPE Solid-phase extraction
SPF Simulated physiological fluids
SPR Surface Plasmon Resonance
SS Simulated saliva
SSW Simulated sweat
SUF Simulant ultrafiltrate fluid
SWCNTs Single-wall carbon nanotubes
TBOs Tungsten blue oxides
TiO NPs Titanium dioxide nanoparticles
2
UV-Vis spectroscopy Ultraviolet-visible spectroscopy
WO Tungsten trioxide
3
ZnONPs Zinc oxide nanoparticles
5 Background including need for assessing the biodurability of particles
The tendency of a given inhaled particle or fibre to cause chronic disease is strongly related to the
duration of residence time in the pulmonary environment. Biopersistent particles and fibres are defined
as materials that resist clearance from the body through physical and chemical means. Resistance
to physical clearance may result through their resistance to phagocytosis by alveolar macrophages.
Resistance to clearance by chemical and physical means, also known as biodurability, may result
through their resistance to chemical dissolution. Particles and fibres that are amenable to dissolution
may release components which may contribute to their adverse health effects. Similar resistance to
chemical dissolution and/or biodegradation of the attached ligands in environmental media may also
produce biodurable nanomaterials.
Historical experiences with micrometre-scale mineral particles and fibres provide a useful model for
understanding the relationship between exposure, dose, and effect of nanomaterials in the human lung.
It has been shown that the residence time of mineral particles and fibres in the lung depends on their
4 © ISO 2017 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 19057:2017(E)

mechanical clearance and the dissolution rates. The dissolution rate is governed mainly by particle and
fibre chemistry and the properties of the biological fluid of the tissue/cell environment in which they
are found.
Exposure
Internal dose
Clearance
Biopersistence
Biodurability
Effect
[ ]
Figure 1 — Relationship between exposure, dose, and effect of nanomaterials 1
[1]
Figure 1 presents a general framework proposed by Oberdörster et al. to evaluate potential adverse
effects from exposure to particles and fibres. According to this framework, biopersistence of the
particles and fibres is considered to be central to the production of health effects.
The respiratory tract may be divided into different zones, including the ciliated nasal and
tracheobronchial regions and the non-ciliated alveolar regions. Particles that deposit in each zone
interact with different cell populations with substantially different retention times and/or different
[2]
clearance pathways . The behaviour of inhaled particles in the respiratory tract and their alternative
fates of either deposition or exhalation in these various functional zones may depend upon the chemical
composition and the physical behaviour of the aerosol particles.
The importance of airway ciliated cells and alveolar macrophages in the clearance of micrometer-sized
particles from the lung surface has long been known. Due to the limited capability of macrophages
to recognize nanomaterials, inadequacy of this key clearance mechanism in peripheral lungs
[3][4]
was demonstrated . Concurrently, due to endocytotic processes and trans-cellular transport
mechanisms by other cells, translocation of nanomaterials to extra pulmonary organs has become
prominent. Biopersistence of nanomaterials through their resistance to clearance by alveolar
macrophages and also to their biodurability through resistance to breakage or dissolution and leaching
may therefore lead to their bioaccumulation. With their ability to translocate nanomaterials may
accumulate and be retained in critical target organs with the subsequent production of adverse health
effects. Translocation (disposition), accumulation and retention are, therefore, important aspects that
need to be considered when investigating the long-term toxicity of nanomaterials.
It is now well accepted that the toxicity of nanomaterials may very much be related to their
physicochemical properties including size, surface area, and surface characteristics including surface
chemistry. Once inside the cell, these and other physicochemical characteristics (surface composition,
surface activity) will determine their interaction with biological surroundings. The latter, in turn,
will determine the stability and biodurability of the surface and core of nanomaterials. Given the
strong sensitivity of many nanomaterial properties to their local environment, it should be noted
that biologically relevant changes in the physicochemical properties of a nanomaterial between
administration and deposition may have a significant impact on observed responses. As a result,
© ISO 2017 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/TR 19057:2017(E)

biodurability of nanomaterials in their local biological environments may impact on their long-term
toxicity.
Although the biodurability of certain larger particles can also be confirmed in different environmental
media, the importance of such biodurability in their long-term effects might not be of relevance in aquatic
organisms. This is shown to be the case with crystalline silica (quartz and cristobalite) for the fact that
they do not bioaccumulate in these biorganisms due to their very limited potential for uptake through
[5][6]
the gill or gut of fish . This might not be true for nanomaterials as the bioaccumulation of multiple-
[7]
wall carbon nanotubes (MWCNTs) has been shown in Daphnia magna, an aquatic invertebrate , of
[8]
gold nanoparticles (AuNPs) in clams marine bivalve Scrobicularia plana (Pan et al., 2012) and zinc
[9]
oxide nanoparticles (ZnONPs) in S. plana and Nereis diversicolor, copper oxide nanoparticles (CuONPs)
[10][11] [12]
in freshwater snail , titanium dioxide nanoparticles (TiO NPs) in Daphnia magna , and silver
2
[13]
nanoparticles (AgNPs) in deposit feeder such as the annelid Platynereis dumerilii have been shown.
6 Aims and objectives
Different nanomaterials are reported to be biopersistent as they resist breakage or dissolution and
clearance which in turn can lead to their bioaccumulation and subsequently their translocation and
distribution. It is, therefore, of great relevance to assess this property of nanomaterials and determine
their degradation half-lives in addition to their other properties. It is also of great relevance to study
the impact of surface coating and functional groups on biodurability in biological and environmental
surroundings.
The aim and objectives are
— the identification of tests performed and the methodologies implemented in the literature, and
— the description of the identified methodologies in the assessment of the biodurability of different
nanomaterials in different biological and environmental media.
The ultimate goal is that, by applying the identified methodologies, it is possible to assess the
biodurability of nanomaterials and their surface ligands. This is relevant in the assessment of their
long-term effects.
7 Approaches
...
