ISO 11074:2015
(Main)Soil quality — Vocabulary
Soil quality — Vocabulary
ISO 11074:2015 defines a list of terms used in the preparation of the standards in the field of soil quality. The terms are classified under the following main headings: - general terms (terms relating to soil, soil materials, land, and sites); - description of soil (soil characteristics, soil water, properties of soils and substances, processes in soil, contamination, pollution, background content); - sampling (general terms, sample types/sampling type, sampling stages, execution of sampling, quality control samples, sample pretreatment); - terms relating to the assessment of soils (quality, assessment of soil and sites with respect to risk, hazard and exposure, soil protection); - remediation (general terms, principal remediation types, engineering-based methods, process-based treatment methods); - soil ecotoxicology. NOTE: In addition to text written in the official ISO languages (English, French), this document gives text in German. This text is published under the responsibility of the Member Body for Germany (DIN) and is given for information only. Only the text given in the official languages can be considered as ISO text.
Qualité du sol — Vocabulaire
L'ISO 11074:2015 définit une liste de termes utilisés lors de l'élaboration des normes dans le domaine de la qualité du sol. Ces termes sont classés selon les rubriques principales suivantes: - termes et définitions généraux (termes relatifs au sol, aux matériaux du sol, aux terrains et aux sites); - description du sol (caractéristiques du sol, eau du sol, propriétés du sol et des constituants, processus d'évolution du sol, contamination, pollution, teneur de fond); - échantillonnage (termes généraux, types d'échantillon/type d'échantillonnage, phases d'échantillonnage, exécution de l'échantillonnage, échantillons de contrôle qualité, prétraitement des échantillons); - termes et définitions relatifs à l'évaluation des sols (qualité, évaluation du sol et des sites eu égard au risque, à la dangerosité et à l'exposition, protection du sol); - remédiation (termes généraux, principaux types de remédiation, méthodes de génie civil, méthodes de traitement technologiques); - écotoxicologie du sol. NOTE: En complément du texte rédigé dans les langues officielles de l'ISO (anglais, français), le présent document contient du texte en allemand; ce texte est publié sous la responsabilité du Comité membre allemand (DIN) et est donné uniquement pour information. Seul le texte rédigé dans les langues officielles peut être considéré comme étant un texte de l'ISO.
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 11074
NORME
Second edition
Deuxième édition
INTERNATIONALE 2015-05-01
Soil quality — Vocabulary
Qualité du sol — Vocabulaire
Bodenbeschaffenheit —Wörterbuch
Reference number
Numéro de référence
ISO 11074:2015(E/F)
©
ISO 2015
---------------------- Page: 1 ----------------------

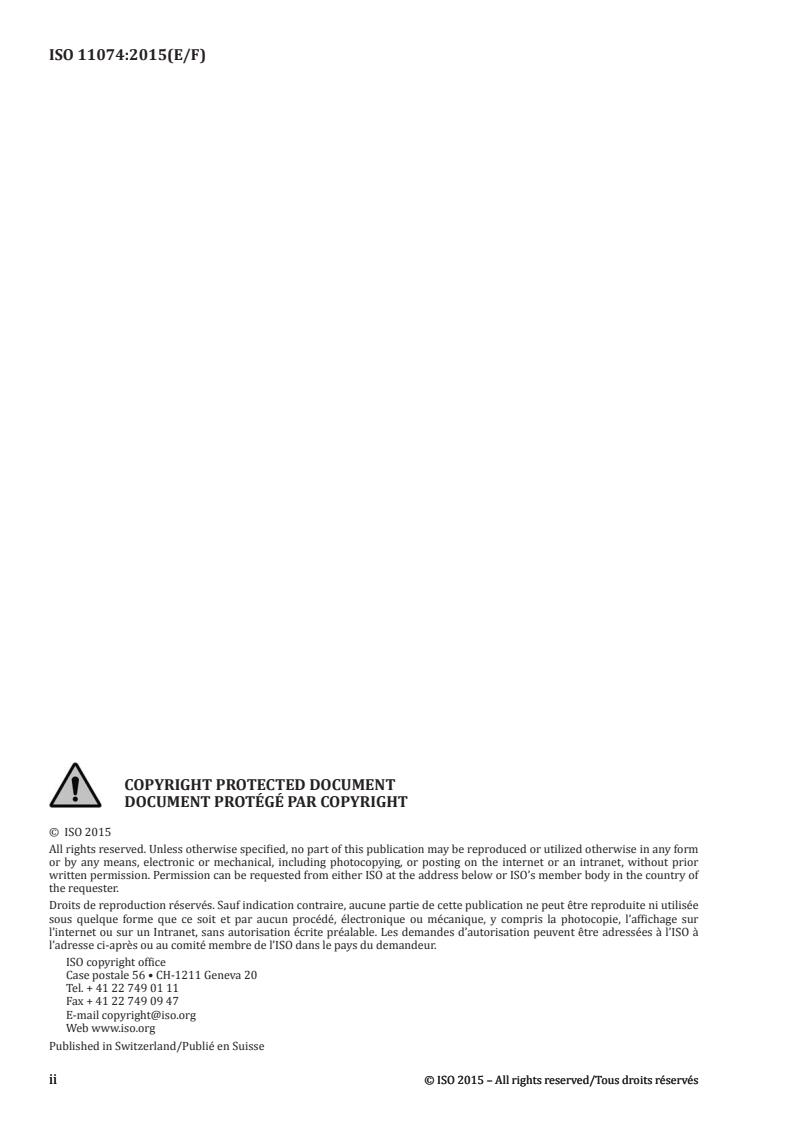

ISO 11074:2015(E/F)
COPYRIGHT PROTECTED DOCUMENT
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland/Publié en Suisse
iiii © ISO 2015 – All rig© ISO 2015 – All rights rhts reserveserved/Ted/Tous drous droits roits réservéservésés
---------------------- Page: 2 ----------------------
ISO 11074:2015(E/F)
Contents Page
Foreword .v
1 Scope . 1
2 General terms and definitions . 1
2.1 Terms and definitions relating to soil . 1
2.2 Terms and definitions relating to soil materials . 4
2.3 Terms and definitions relating to land and sites . 5
3 Description of soil . 7
3.1 Soil characteristics . 7
3.2 Terms and definitions relating to soil water . 8
3.3 Terms and definitions relating to processes in soils . 9
3.4 Terms and definitions relating to contamination .12
3.5 Terms and definitions relating to background content .15
3.6 Terms and definitions relating to sampling gases .17
4 Sampling .18
4.1 General terms and definitions .18
4.2 Sample types/sampling type .22
4.3 Sampling stages .25
4.4 Execution of sampling .27
4.5 Quality control samples . .30
4.6 Sample pretreatment .32
4.7 Terms and definitions relating to geostatistics .32
5 Terms and definitions relating to the assessment of soils .33
5.1 Terms and definitions relating to quality .33
5.2 Terms and definitions relating to assessment of soil and sites with respect to risk, hazard,
and exposure.34
5.3 Terms and definitions relating to soil protection . .37
6 Remediation .37
6.1 General terms and definitions .37
6.2 Principal remediation types .40
6.3 Engineering-based methods .40
6.4 Process-based treatment methods .42
7 Soil ecotoxicology .47
7.1 Biodegradability .47
7.2 Soil fauna .49
7.3 Soil flora .50
7.4 Soil microorganisms .50
Annex A (informative) Relationships between sampling operations .53
Annex B (informative) Index .54
Bibliography .72
© ISO 2015 – All rights reserved/Tous droits réservés iii
---------------------- Page: 3 ----------------------
ISO 11074:2015(E/F)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 190, Soil quality, Subcommittee SC 1, Evaluation
of criteria, terminology and codification.
This second edition cancels and replaces the first edition (ISO 11074:2005), which has been technically
revised.
iv © ISO 2015 – All rights reserved/Tous droits réservés
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 11074:2015(E/F)
Soil quality — Vocabulary
1 Scope
This International Standard defines a list of terms used in the preparation of the standards in the field
of soil quality.
The terms are classified under the following main headings:
— general terms (terms relating to soil, soil materials, land, and sites);
— description of soil (soil characteristics, soil water, properties of soils and substances, processes in
soil, contamination, pollution, background content);
— sampling (general terms, sample types/sampling type, sampling stages, execution of sampling,
quality control samples, sample pretreatment);
— terms relating to the assessment of soils (quality, assessment of soil and sites with respect to risk,
hazard and exposure, soil protection);
— remediation (general terms, principal remediation types, engineering-based methods, process-
based treatment methods);
— soil ecotoxicology.
NOTE See also the ISO online browsing platform (OBP): www.iso.org/obp/ui/
2 General terms and definitions
2.1 Terms and definitions relating to soil
2.1.1
aerobic
descriptive of a condition with molecular oxygen available
2.1.2
anaerobic
descriptive of a condition with no molecular oxygen available
2.1.3
available water capacity
soil water content usable by plants based on the effective root penetration depth
Note 1 to entry: The usable field capacity in the effective root zone is expressed in mm water column.
Note 2 to entry: The available water capacity (AWC) is generally taken to be the water content between field
capacity (FC) and the permanent wilting point (PWP) or 10 kilopascals to 1 500 kilopascals. See readily available
water capacity.
2.1.4
dissolved organic carbon
DOC
concentration of organic carbon remaining in solution after filtration and/or centrifugation under
defined conditions
3
Note 1 to entry: It is expressed in mg/l, g/m .
© ISO 2015 – All rights reserved/Tous droits réservés 1
---------------------- Page: 5 ----------------------
ISO 11074:2015(E/F)
2.1.5
field capacity
maximum water content expressed in percent (w/w or v/v) that an unsaturated soil can retain against
gravity under undisturbed soil conditions (conventionlly stated as water content two days to three days
after full saturation with water)
Note 1 to entry: Conventionally stated as water content 48 h after saturation under conditions of free drainage.
2.1.6
humus
total of all dead plant and animal substances and their organic transformation products, as well as
organic material inserted through anthropogenic activities appearing in and on mineral soil
Note 1 to entry: Living plants and soil organisms, as well as coal, are not counted among humus but are often
methodically not separatable.
2.1.7
organic carbon
summarizing parameter including all of the carbon forms for dissolved (DOC: dissolved organic carbon
– see 2.1.4) and total organic compounds (TOC: total organic carbon- see 2.1.22)
Note 1 to entry: Organic carbon is not synonymous with organic matter content (see 2.1.8).
2.1.8
organic matter
matter consisting of plant and/or animal organic materials, and the conversion products of those
materials
EXAMPLE Humus.
2.1.9
parent material
unweathered inorganic solid or unconsolidated rock from which soil developed or originated
Note 1 to entry: It can include material from alluvial, colluvial, and aeolian origins.
2.1.10
perched groundwater
groundwater above a non-saturated zone
2.1.11
soil
upper layer of the Earth’s crust transformed by weathering and physical/chemical and biological
processes and composed of mineral particles, organic matter, water, air, and living organisms organized
in generic soil horizons
Note 1 to entry: In a broader civil engineering sense, soil includes topsoil and sub-soil; deposits such as clays, silts,
sands, gravels, cobbles, boulders, and organic matter and deposits such as peat; materials of human origin such as
wastes; ground gas and moisture; and living organisms.
2.1.12
soil characterization
determination of relevant physical, chemical, and biological properties of the soil
2.1.13
soil gas
gas and vapour in the pore spaces of soils
2.1.14
soil pores
part of the soil volume, between the solid particles of the soil
2 © ISO 2015 – All rights reserved/Tous droits réservés
---------------------- Page: 6 ----------------------
ISO 11074:2015(E/F)
2.1.15
soil quality
all current positive or negative properties with regards to soil utilization and soil functions
2.1.16
soil reaction
characterizing property of the acid base state of soils, which is determined through hydrogen ion
concentration of a soil extraction performed under defined conditions
Note 1 to entry: The pH value is stated as negative 10-logarithm of the concentration of hydrogen ions and
expressed in moles/l in aqueous solution.
2.1.17
soil structure
arrangement of particles and organic matter to form aggregates which produce macro structures and
micro structures in the soil
2.1.18
soil texture
relative proportions of the various particle size fractions (i.e. sand, silt, clay) in a soil, according to a soil
classification system
2.1.19
standard soil
field-collected soil or manufactured soil whose main properties (e.g. pH, texture, organic matter content)
are within a known range
EXAMPLE Euro-soils, artificial soil, LUFA standard soil.
Note 1 to entry: The properties of standards soils might differ from the test soil.
2.1.20
subsoil
natural soil material below the topsoil and overlying the parent material
Note 1 to entry: All or much of the original rock structure has usually been obliterated by pedogenic processes.
2.1.21
topsoil
upper part of a natural soil that is generally dark coloured and has a higher content of organic matter
and nutrients when compared to the (mineral) horizons below, excluding the humus layer
Note 1 to entry: For arable land, topsoil refers to the ploughed soil depth, while for grassland; it is the soil layer
with high root content.
2.1.22
total organic carbon
TOC
all carbon present in organic matter
2.1.23
wilting point
water content of the soil below which the plants are not able to uptake water with their root system
Note 1 to entry: Permanent wilting point (PWP) is the moisture content below which a sunflower seedling cannot
recover from wilt. It is generally taken to equal a suction of 1 500 kilopascals.
© ISO 2015 – All rights reserved/Tous droits réservés 3
---------------------- Page: 7 ----------------------
ISO 11074:2015(E/F)
2.2 Terms and definitions relating to soil materials
2.2.1
construction works
applications where soil materials are not required to have a direct productive use although they can
support other layers intended to have a productive use
[SOURCE: for example, earthworks (e.g. embankments), landscape engineering, road construction,
construction of waste disposal sites, and back filling of excavated sites or mines]
2.2.2
damaged land
degraded land
land which, due to natural processes or human activity, is no longer able to properly sustain an economic
function and/or the natural or near natural ecological function
2.2.3
degraded soil
soil whose natural properties and soil functions or productivity have been damaged by contamination
or physical or other processes
2.2.4
dredged material
material excavated during e.g. maintenance, construction, reconstruction, and extension measures
from waters
Note 1 to entry: Dredged material might consist of
— sediments or subhydric soils, and
— soils and their parent material beneath the surface water body.
2.2.5
earthwork
reuse of soil material for civil engineering and construction purposes
Note 1 to entry: The same word can also refer to the material accumulated during an operation of earthwork.
2.2.6
excavated soil
soil material extracted from the ground
EXAMPLE Topsoil, subsoil, altered parent rock, typically arising during construction works.
2.2.7
fill material
made ground
mixed natural soil materials (often displaced) and can contain wastes such as building rubble, timber,
and other wastes coming from urban and industrial sites
2.2.8
harm
measurable adverse effect on a receptor
2.2.9
manufactured soil
manufactured product intended to perform specified soil functions produced by blending combinations
of natural, waste, or other soil materials with the addition of nutrients or other additives, when necessary
2.2.10
natural soil material
material coming from soil that has been displaced
4 © ISO 2015 – All rights reserved/Tous droits réservés
---------------------- Page: 8 ----------------------
ISO 11074:2015(E/F)
2.2.11
reclamation
rehabilitation
return of damaged, degraded, or derelict land to a beneficial use
Note 1 to entry: The term remediation is commonly reserved for the process of dealing with contaminated/polluted
sites.
2.2.12
reuse of soil material
useful and harmless utilization of soil materials
Note 1 to entry: Reuse can mean the transfer of soil materials to another location for use in agriculture, horticulture,
forestry, gardens, recreational areas, and construction sites.
2.2.13
sediment
solid material, both mineral and organic, that is in suspension or has been moved from its site of origin
by water or other processes
2.2.14
stockpile
temporary deposit of soil material
Note 1 to entry: Stockpiles can contain soil material.
Note 2 to entry: The soil material can be stored in a loosely dumped heap or can be lying in a predefined deposit
above or below the surface of the location, etc.
2.2.15
subhydric soils
soils formed below water or which are formed on parent material that was deposited in water or through
alluvial processes
2.2.16
treated soil
soil subject to a based ex situ or in situ process
2.2.17
treated soil material
material coming from treated soil and displaced and/or modified by human activity
2.3 Terms and definitions relating to land and sites
2.3.1
abandoned hazardous site
hazardous site left by the owner or other responsible party in unmanaged condition
2.3.2
abandoned industrial site
industrial site left by the owner or other responsible party in unmanaged condition
2.3.3
abandoned potentially hazardous site
abandoned site whose history leads to a suspicion that it can be hazardous
2.3.4
abandoned waste disposal site
waste disposal site left by the owner or other responsible party in unmanaged condition
© ISO 2015 – All rights reserved/Tous droits réservés 5
---------------------- Page: 9 ----------------------
ISO 11074:2015(E/F)
2.3.5
contaminated site
site where contamination (2.3.6) is present
Note 1 to entry: There is no assumption in this definition that harms results from the presence of contamination.
2.3.6
contamination
substance(s) or agent(s) present in the soil as a result of human activity
[SOURCE: ISO 23611-6:2012, 3.2.4]
2.3.7
derelict site
site so damaged by human activity as to be incapable of beneficial use without treatment
Note 1 to entry: Damage can be to the aesthetic, physical, engineering, environmental, or contamination aspects
of the site.
2.3.8
donor site
site from which soil material is removed for use on a target site
2.3.9
hazardous site
site which, by reason of the substances or agents present, is judged to be hazardous to human health and
safety or to the environment
2.3.10
orphan site
site for which no owner or other responsible party for pollution can be identified
2.3.11
site
defined area
2.3.12
site characterization
collection of data connected to a site providing appropriate information for the assessment in question
Note 1 to entry: In connection with risk assessment, specifically the source identification and characterization
element of the exposure assessment.
2.3.13
suspect site
site whose history or any other information leads to a suspicion that it can be hazardous for human
health or environment
2.3.14
target site
site at which soil is to be reused
2.3.15
uniformly contaminated site
site with a generally uniform concentration of a hazardous substance
Note 1 to entry: The extent of the contamination is usually large and the gradient of concentration within the site
is rather shallow.
6 © ISO 2015 – All rights reserved/Tous droits réservés
---------------------- Page: 10 ----------------------
ISO 11074:2015(E/F)
3 Description of soil
3.1 Soil characteristics
3.1.1
bulk density
ratio of the mass of a quantity of material (or one phase) and the total volume occupied by this material
(including other phases)
Note 1 to entry: This is typically a volumetric mass but it is commonly named as “density”. The numerical values
−3
are identical or divided by the volumetric mass of water (1 t.m ) at 4 °C.
3.1.2
bulk volume
volume, including the solids and pores, of an arbitrary soil mass
3.1.3
clay content
proportion of soil particles with a particle size <2 µm
3.1.4
concentration
mass of test substance per unit mass of material
Note 1 to entry: Concentration is expressed as a mass fraction, in milligrams per kilogram (mg/kg) of dry soil.
3.1.5
maximum particle size
D
95
particle size such as 5 % of the mass of the material correspond to particles having larger size
3.1.6
particle size distribution
distribution of the soil mineral particles according to predefined classes of size
3.1.7
porosity
volume of pores in a soil sample (non-solid volume) divided by the bulk volume of the sample
3.1.8
specific surface area
the surface area of the soil or a size fraction of the soil particles
Note 1 to entry: Surface area can be measured by a variety of means that might give differing results such as
1) ratio of surface area to mass of solid particles, and
2) ratio of surface area to volume of solid particles.
Note 2 to entry: Because both definitions are in use, this term is to always be defined explicitly wherever it is used.
3.1.9
water content
W
w
mass of water evaporating from the soil when dried to a constant mass at
105 °C, expressed as the mass of water divided by the original dry mass of the soil sample
3.1.10
water content
W
v
volume of water evaporating from the soil when dried to constant mass at
105 °C, referred to the volume of the original undisturbed sample
© ISO 2015 – All rights reserved/Tous droits réservés 7
---------------------- Page: 11 ----------------------
ISO 11074:2015(E/F)
3.1.11
water content on a dry mass basis
mass of water evaporating from the soil when dried to a constant mass at 105 °C, divided by the dry
mass of the soil and multiplied by 100
[SOURCE: ISO 11465:1993, 3.2]
3.2 Terms and definitions relating to soil water
3.2.1
bedrock
in situ naturally consolidated rock either underlying drift deposits such as glacial till or exposed by past
or current erosion processes
[SOURCE: EN 16039]
3.2.2
capillary water
water held on soil particles due to unbalanced inter-molecular attraction at the liquid boundary
EXAMPLE The rise or depression of liquids in narrow tubes, the formation of films, drops, bubbles, etc.
3.2.3
groundwater
water which is being held in and can be recovered from an underground formation, except capillary
water
Note 1 to entry: Groundwater is usually taken to include any water, beneath the surface of the land or beneath the
bed of any stream, lake, reservoir, or other body of surface water, whatever the geological formation or structure
in which such water occurs; but water within the beds of streams, etc. is often excluded.
3.2.4
groundwater surface
water table
upper boundary surface of the groundwater
[SOURCE: ISO 22475-1]
3.2.5
percolating water
infiltrating water that moves downward in the pore space due to gravity
3.2.6
saturated zone
zone of the ground in which the pore space is filled completely with liquid at the time of consideration
3.2.7
soil water
all water of the unsaturated and saturated zone
3.2.8
unsaturated zone
zone of the soil in which the pore space is not filled completely with liquid at the time of consideration
3.2.9
vadose zone
zone of the soil which is connected to the atmosphere and which is aerated either permanently or
regularly
8 © ISO 2015 – All rights reserved/Tous droits réservés
---------------------- Page: 12 ----------------------
ISO 11074:2015(E/F)
3.3 Terms and definitions relating to processes in soils
3.3.1
abiotic decomposition
decomposition by physical and/or chemical processes (e.g. photolysis, hydrolysis, oxidation, and
reduction)
3.3.2
abiotic degradation
degradation by physical and/or chemical processes
3.3.3
accumulation
increase of the concentration of a substance in soil due to the fact that the substance input is larger than
the substance output
Note 1 to entry: Substance output includes material which is broken down.
3.3.4
aggressive soil conditions
soil conditions potentially damaging to buildings and construction materials
3.3.5
bioconcentration factor
BCF
ratio of the concentration of a substance in an organism to that in the soil
3.3.6
biodegradation
physical and chemical breakdown of a substance by living organisms, mainly bacteria, and/or fungi
3.3.7
decomposition
breakdown of complex organic substances into simpler molecules or ions by physical, chemical, and/or
biological processes
3.3.8
degradation
physical and chemical breakdown of the substances
3.3.9
diffuse source input
input of a substance emitted from moving sources, from sources with a large area, or from many sources
Note 1 to entry: The sources can be cars, application of substances through agricultural practices, emissions from
town or region, deposition of sediment through flooding of a river.
Note 2 to entry: Diffuse source input usually leads to sites that are relatively uniformly contaminated. At some
sites, the input conditions can nevertheless cause a higher local input near the source or where atmospheric
deposition/rain is increased.
3.3.10
filter characteristics
ability of a soil to retain or bind solid, dissolved, or gaseous substances
3.3.11
habitat function
ability of soil/soil materials to serve as a habitat for micro-organisms, plants, soil living animals, and
their interactions (biocenosis)
© ISO 2015 – All rights reserved/Tous droits réservés 9
---------------------- Page: 13 ----------------------
ISO 11074:2015(E/F)
3.3.12
Henry’s coefficient
partition coefficient between soil air and soil water
3.3.13
humification
decomposition of organic material followed by a synthesis of humic substances
3.3.14
immobilization
conversion of substances or soil particles into a (temporarily) immobile form
Note 1 to entry: See accumulation (3.3.3).
3.3.15
leaching
dissolution and movement of dissolved substances by water
3.3.16
leaching potential
potential for substances present in the soil/soil material to be moved due to the movement of wat
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
