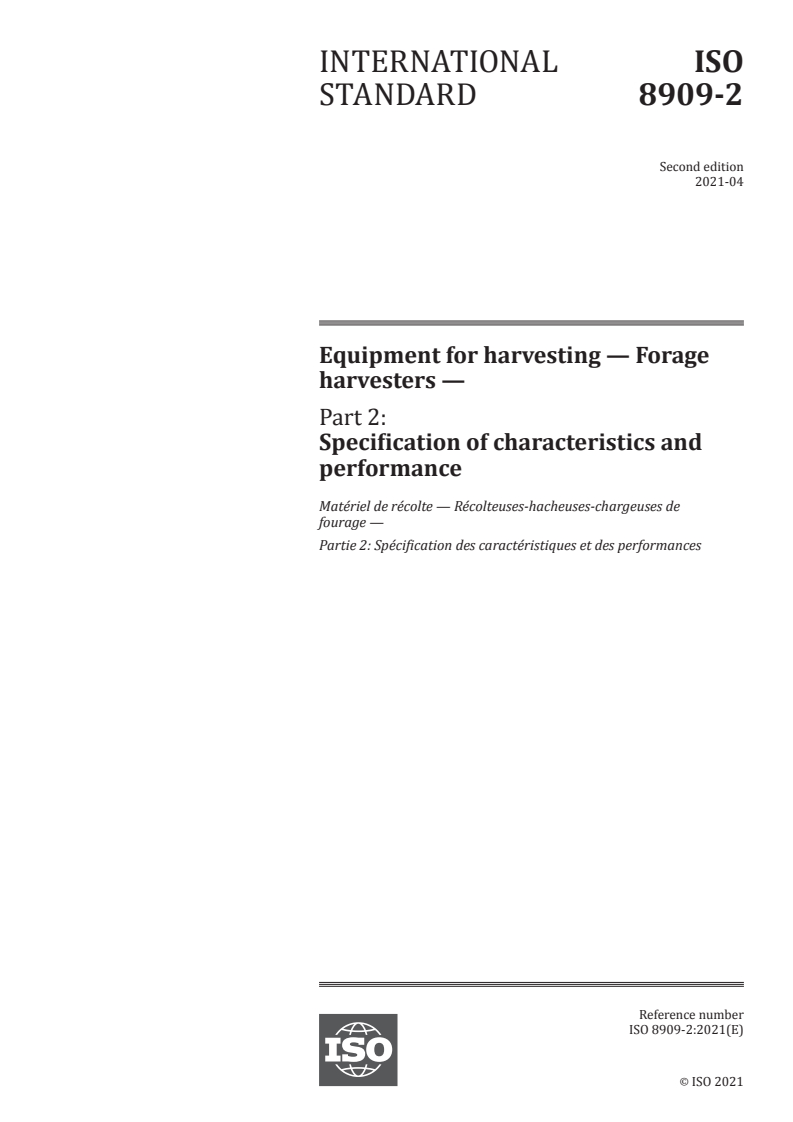

INTERNATIONAL ISO
STANDARD 8909-2
Second edition
2021-04
Equipment for harvesting — Forage
harvesters —
Part 2:
Specification of characteristics and
performance
Matériel de récolte — Récolteuses-hacheuses-chargeuses de
fourage —
Partie 2: Spécification des caractéristiques et des performances
Reference number
©
ISO 2021
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

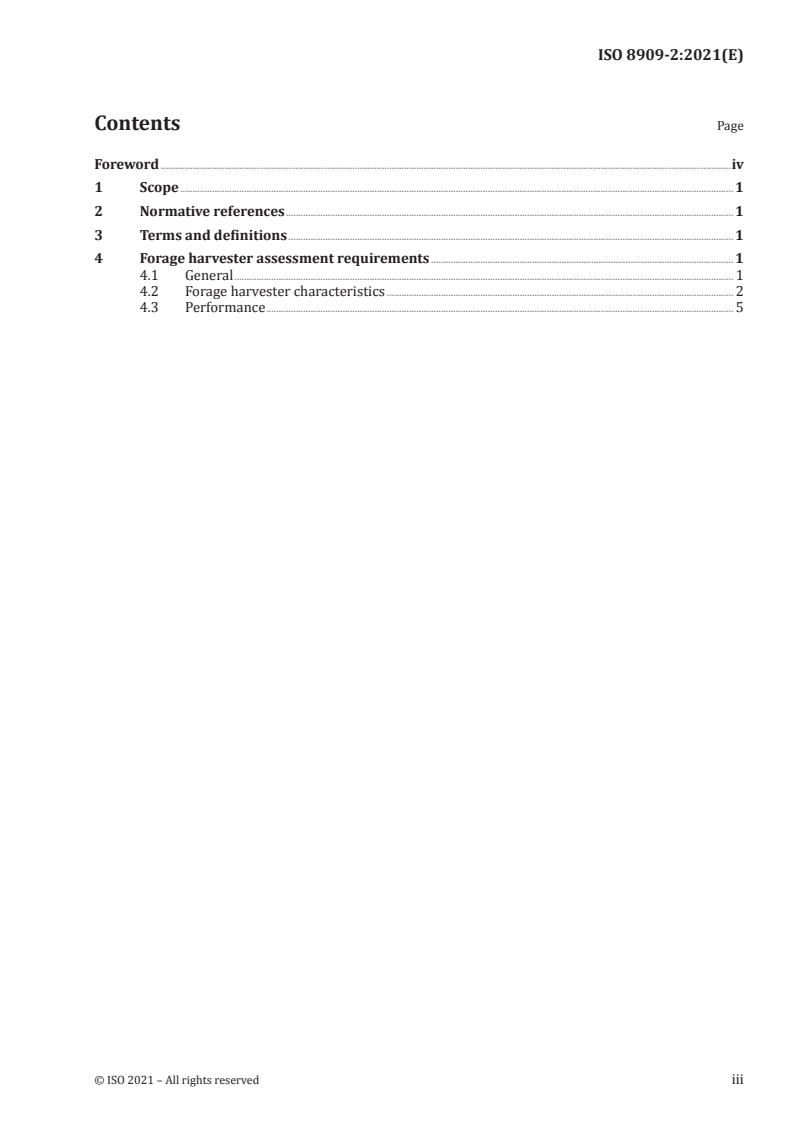

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Forage harvester assessment requirements . 1
4.1 General . 1
4.2 Forage harvester characteristics . 2
4.3 Performance . 5

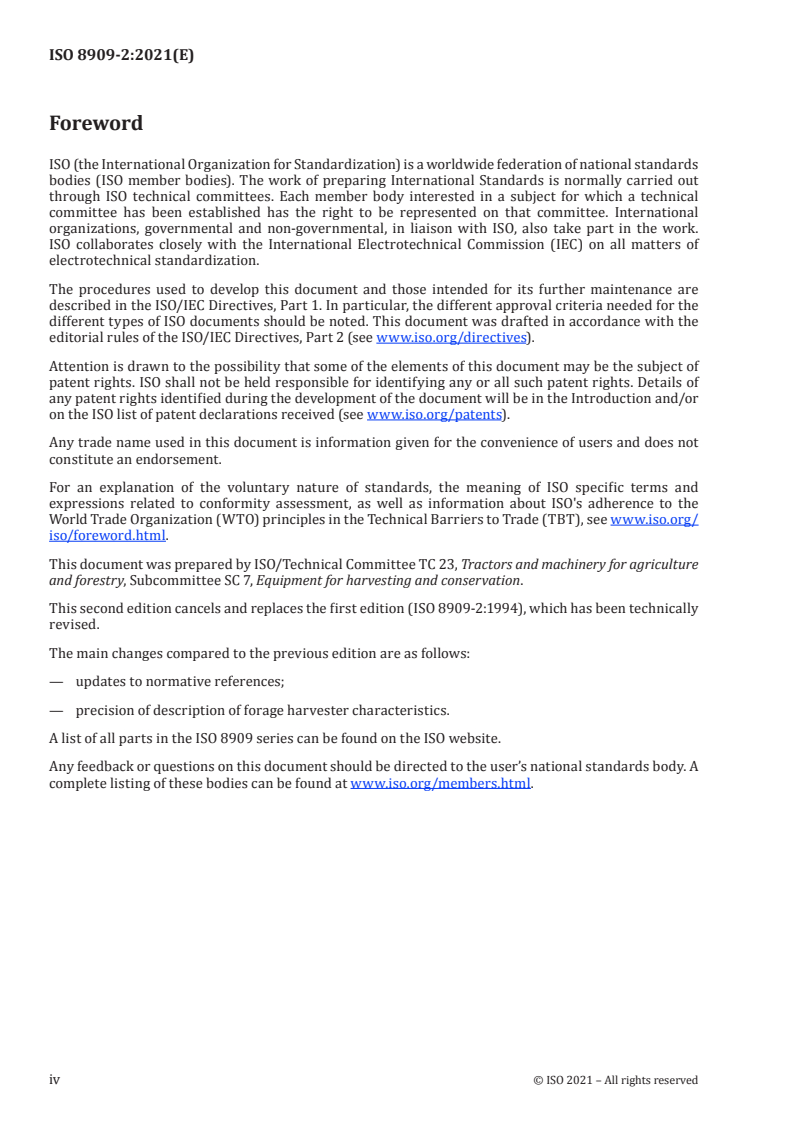

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by ISO/Technical Committee TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 7, Equipment for harvesting and conservation.
This second edition cancels and replaces the first edition (ISO 8909-2:1994), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— updates to normative references;
— precision of description of forage harvester characteristics.
A list of all parts in the ISO 8909 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved

INTERNATIONAL STANDARD ISO 8909-2:2021(E)
Equipment for harvesting — Forage harvesters —
Part 2:
Specification of characteristics and performance
1 Scope
This document specifies the methods and requirements in assessing the dimensions and performance
of a forage harvester, as defined in ISO 8909-1, and its functional components. It also allows comparison
of forage harvester performance through comparative testing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 500-1, Agricultural tractors — Rear-mounted power take-off types 1, 2, 3 and 4 — Part 1: General
specifications, safety requirements, dimensions for master shield and clearance zone
ISO 730, Agricultural wheeled tractors — Rear-mounted three-point linkage — Categories  1N, 1, 2N, 2, 3N,
3, 4N and 4
ISO 789-3, Agricultural tractors — Test procedures — Part 3: Turning and clearance diameters
ISO 5715, Equipment for harvesting — Dimensional compatibility of forage harvesting machinery
ISO 8909-1:2021, Equipment for harvesting — Forage harvesters — Part 1: Vocabulary
ISO 8909-3:2021, Equipment for harvesting — Forage harvesters — Part 3: Test methods
3 Terms and definitions
For the purposes of this document, the terms and definitions in ISO 8909-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Forage harvester assessment requirements
4.1 General
4.1.1 All dimensions and performance, defined in ISO 8909-1:2021, Clauses 5 and 7, and relating to
forage harvesters and their components, shall be assessed in accordance with their definition and any
requirements in this document.
4.1.2 The dimensions of hubs, wheels and tyres, and the positions of axles shall be recorded on the test
report in ISO 8909-3:2021, Clause 7. Tyres shall be inflated to the service pressure recommended by the
forage harvester manufacturer.
4.1.3 For dimensional measurements, the forage harvester shall be placed on a hard, level surface.
4.1.4 lf a self-propelled forage harvester has a crop container, it shall be empty.
4.1.5 The following data shall be recorded with the forage harvester performance specifications on the
test report in ISO 8909-3:2021, Clause 7:
a) type of header used;
b) moisture content of the crop, expressed on the wet basis (mass of water in 100 g of unprocessed
sample);
c) the average width and height between adjacent rows of crop collected and the average distance
between adjacent rows, in metres to the nearest tenth. For crops planted in rows such as corn or
sorghum, the row spacing (see ISO 8909-1:2021, 6.5) and the kernel/stalk ratio or grain stalk ratio
(see ISO 8909-1:2021, 6.6);
d) other relevant crop characteristics, as defined in ISO 8909-3:2021, Clause 6;
e) theoretical length of cut (see ISO 8909-1:2021, 5.24);
f) length distribution of particles in the chopped crop, determined using known mechanical separation
means, capable of repetition or manual sorting, recorded in terms of average geometrical length
and geometrical deviation, in accordance with ISO 8909-3;
g) if necessary, means of particle size reduction used (see ISO 8909-1:2021, 4.6 to 4.9).
4.2 Forage harvester characteristics
4.2.1 The mass (see ISO 8909-1:2021, 5.1) of a self-propelled forage harvester shall be determined
with a full fuel tank and a mass of 75 kg simulating the driver. If the transport mass is also to be indicated,
the fuel tank shall contain fuel not exceeding 10 % of its capacity.
If the complete machine includes certain optional equipment which influences its total mass, and/or
elements such as tyre weights for self-propelled forage harvesters, these sha
...
