Background information and guidance on environmental cyanide analysis

ISO/TR 19588:2017 provides background information on the various International (ISO), American (ASTM, EPA), and European (CEN) cyanide methods for soils, waters, effluents and wastes. It gives guidance on how to carry out fit for purpose analysis of various forms of cyanide in environmental samples, the significance of the results, how to minimize interference effects and the preservation of samples. Some information is also provided on other national and international cyanide methods.

Informations et lignes directrices sur l'analyse environnementale du cyanure

General Information

Status
Published
Publication Date
30-Jul-2017
Current Stage
6060 - International Standard published
Start Date
01-Jun-2017
Completion Date
31-Jul-2017
Ref Project

Buy Standard

Technical report
ISO/TR 19588:2017 - Background information and guidance on environmental cyanide analysis
English language
48 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

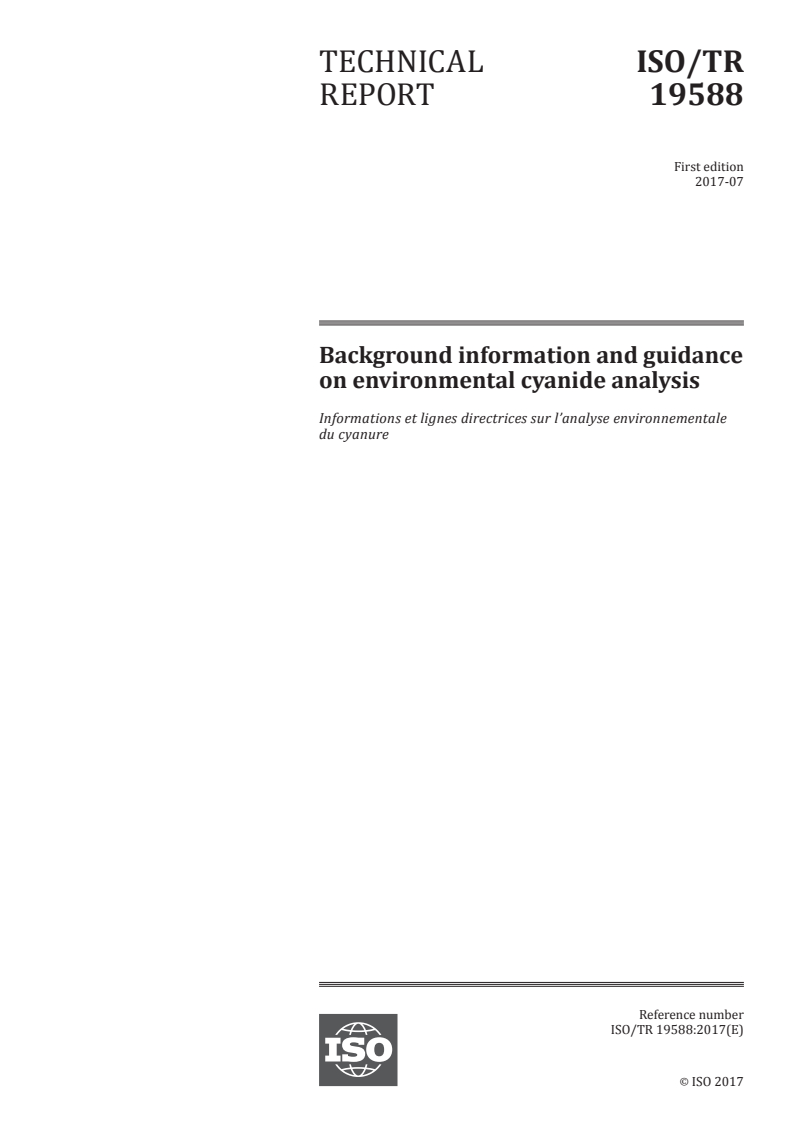

TECHNICAL ISO/TR
REPORT 19588
First edition
2017-07
Background information and guidance
on environmental cyanide analysis
Informations et lignes directrices sur l’analyse environnementale
du cyanure
Reference number
ISO/TR 19588:2017(E)
ISO 2017
---------------------- Page: 1 ----------------------
ISO/TR 19588:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 19588:2017(E)

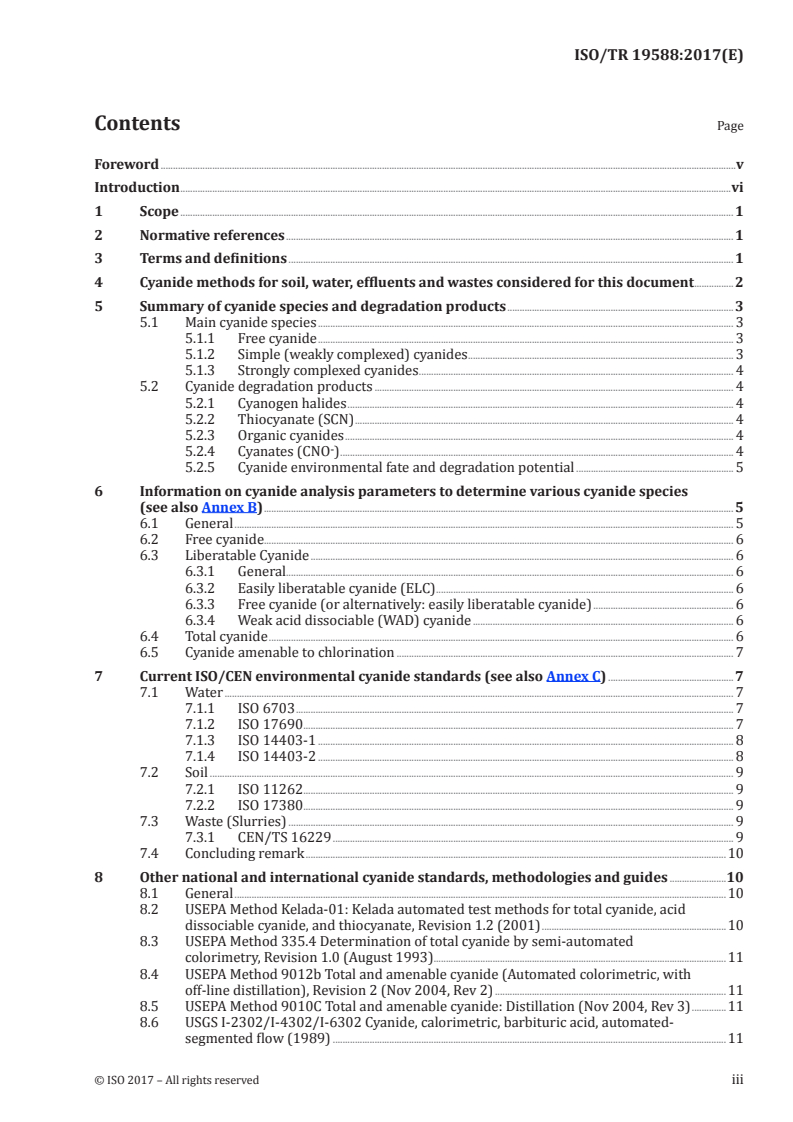

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Cyanide methods for soil, water, effluents and wastes considered for this document ................2

5 Summary of cyanide species and degradation products ............................................................................................ 3

5.1 Main cyanide species ......................................................................................................................................................................... 3

5.1.1 Free cyanide ......................................................................................................................................................................... 3

5.1.2 Simple (weakly complexed) cyanides ............................................................................................................ 3

5.1.3 Strongly complexed cyanides ................................................................................................................................ 4

5.2 Cyanide degradation products .................................................................................................................................................. 4

5.2.1 Cyanogen halides ............................................................................................................................................................. 4

5.2.2 Thiocyanate (SCN) .......................................................................................................................................................... 4

5.2.3 Organic cyanides .............................................................................................................................................................. 4

5.2.4 Cyanates (CNO ) ................................................................................................................................................................ 4

5.2.5 Cyanide environmental fate and degradation potential ................................................................ 5

6 Information on cyanide analysis parameters to determine various cyanide species

(see also Annex B) ............................................................................................................................................................................................... 5

6.1 General ........................................................................................................................................................................................................... 5

6.2 Free cyanide............................................................................................................................................................................................... 6

6.3 Liberatable Cyanide ............................................................................................................................................................................ 6

6.3.1 General...................................................................................................................................................................................... 6

6.3.2 Easily liberatable cyanide (ELC) ......................................................................................................................... 6

6.3.3 Free cyanide (or alternatively: easily liberatable cyanide) ......................................................... 6

6.3.4 Weak acid dissociable (WAD) cyanide .......................................................................................................... 6

6.4 Total cyanide ............................................................................................................................................................................................. 6

6.5 Cyanide amenable to chlorination ......................................................................................................................................... 7

7 Current ISO/CEN environmental cyanide standards (see also Annex C) ...................................................7

7.1 Water ............................................................................................................................................................................................................... 7

7.1.1 ISO 6703 .................................................................................................................................................................................. 7

7.1.2 ISO 17690 ............................................................................................................................................................................... 7

7.1.3 ISO 14403-1 ......................................................................................................................................................................... 8

7.1.4 ISO 14403-2 ......................................................................................................................................................................... 8

7.2 Soil ..................................................................................................................................................................................................................... 9

7.2.1 ISO 11262 ............................................................................................................................................................................... 9

7.2.2 ISO 17380 ............................................................................................................................................................................... 9

7.3 Waste (Slurries) ..................................................................................................................................................................................... 9

7.3.1 CEN/TS 16229 ................................................................................................................................................................... 9

7.4 Concluding remark ...........................................................................................................................................................................10

8 Other national and international cyanide standards, methodologies and guides .......................10

8.1 General ........................................................................................................................................................................................................10

8.2 USEPA Method Kelada-01: Kelada automated test methods for total cyanide, acid

dissociable cyanide, and thiocyanate, Revision 1.2 (2001) ...........................................................................10

8.3 USEPA Method 335.4 Determination of total cyanide by semi-automated

colorimetry, Revision 1.0 (August 1993) .................. .....................................................................................................11

8.4 USEPA Method 9012b Total and amenable cyanide (Automated colorimetric, with

off-line distillation), Revision 2 (Nov 2004, Rev 2) ..............................................................................................11

8.5 USEPA Method 9010C Total and amenable cyanide: Distillation (Nov 2004, Rev 3) ..............11

8.6 USGS I-2302/I-4302/I-6302 Cyanide, calorimetric, barbituric acid, automated-

segmented flow (1989) ................................................................................................................................................................11

© ISO 2017 – All rights reserved iii

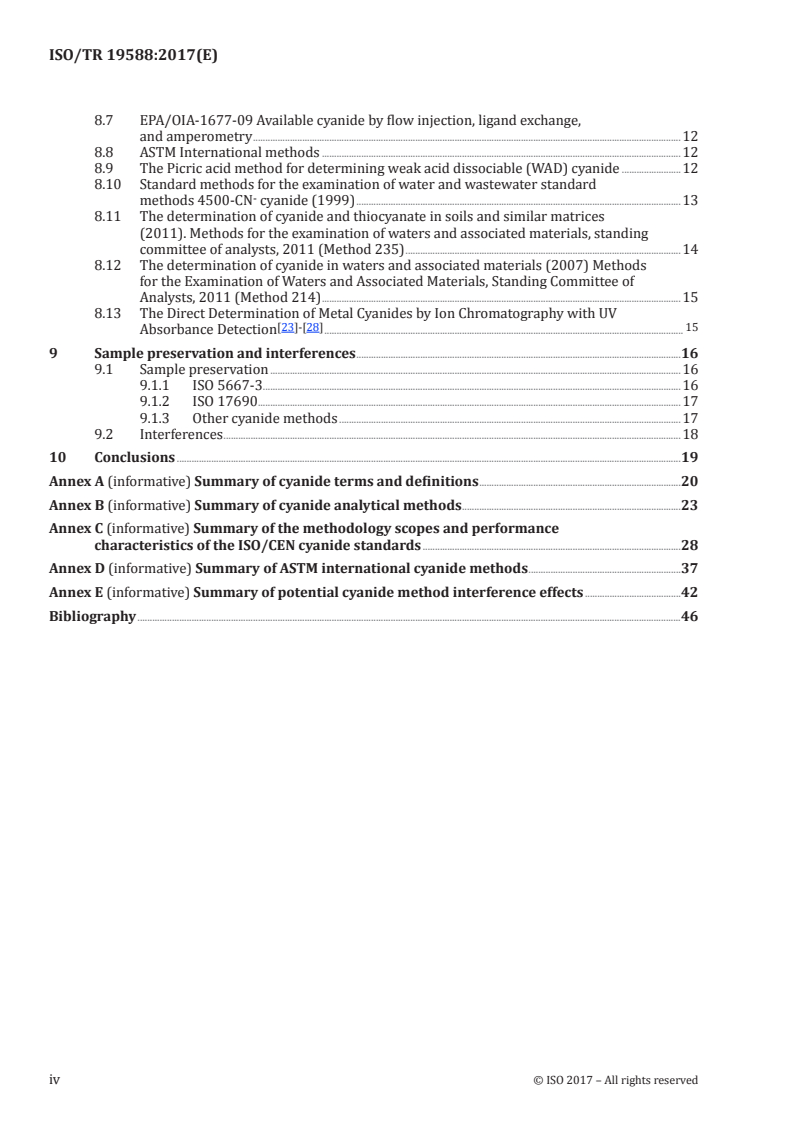

---------------------- Page: 3 ----------------------
ISO/TR 19588:2017(E)
8.7 EPA/OIA-1677-09 Available cyanide by flow injection, ligand exchange,

and amperometry ..............................................................................................................................................................................12

8.8 ASTM International methods ..................................................................................................................................................12

8.9 The Picric acid method for determining weak acid dissociable (WAD) cyanide ........................12

8.10 Standard methods for the examination of water and wastewater standard

methods 4500-CN cyanide (1999) ....................................................................................................................................13

8.11 The determination of cyanide and thiocyanate in soils and similar matrices
(2011). Methods for the examination of waters and associated materials, standing

committee of analysts, 2011 (Method 235) ................................................................................................................14

8.12 The determination of cyanide in waters and associated materials (2007) Methods

for the Examination of Waters and Associated Materials, Standing Committee of

Analysts, 2011 (Method 214) ..................................................................................................................................................15

8.13 The Direct Determination of Metal Cyanides by Ion Chromatography with UV
[23]-[28] 15

Absorbance Detection ..................................................................................................................................................

9 Sample preservation and interferences ....................................................................................................................................16

9.1 Sample preservation .......................................................................................................................................................................16

9.1.1 ISO 5667-3 ..........................................................................................................................................................................16

9.1.2 ISO 17690 ............................................................................................................................................................................17

9.1.3 Other cyanide methods ...........................................................................................................................................17

9.2 Interferences ..........................................................................................................................................................................................18

10 Conclusions .............................................................................................................................................................................................................19

Annex A (informative) Summary of cyanide terms and definitions ..................................................................................20

Annex B (informative) Summary of cyanide analytical methods .........................................................................................23

Annex C (informative) Summary of the methodology scopes and performance

characteristics of the ISO/CEN cyanide standards .........................................................................................................28

Annex D (informative) Summary of ASTM international cyanide methods ..............................................................37

Annex E (informative) Summary of potential cyanide method interference effects .......................................42

Bibliography .............................................................................................................................................................................................................................46

iv © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 19588:2017(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: w w w . i s o .org/ iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 190, Soil quality, Subcommittee SC 3,

Chemical methods and soil characteristics, in cooperation with ISO/TC 147, Water quality.

© ISO 2017 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 19588:2017(E)
Introduction

Cyanide is a useful industrial chemical and its key role in the mining industry is to extract gold from its

ores. Worldwide, mining uses approximately 13 % of the total production of manufactured hydrogen

cyanide while the remaining 87 % is used in many other industrial processes, apart from mining. In

manufacturing, cyanide is used to make paper, textiles, and plastics. It is present in the chemicals used

to develop photographs. Cyanide salts are used in metallurgy for electroplating, metal cleaning, and

removing gold from its ore. Cyanide gas (HCN) is used to exterminate pests and vermin in ships and

buildings.

There is a large number of “official national and international methods” for the analysis of various

cyanide parameters for waters, effluents, leachates, soils and wastes. This document attempts to

provide background information and guidance on environmental cyanide analysis.

Cyanide can exist in many chemical forms (cyanide species) with various toxicity levels for a given mass

of CN. Highest toxicity has free cyanide appearing as HCN or CN .

Hydrogen cyanide is a colourless, poisonous gas having an odour of bitter almonds (mp = −13,4 °C,

bp = 25,6 °C, pKa = 9,36). It is readily soluble in water existing as HCN or CN , or both, depending on

the pH conditions (Figure 1). At a pH of 7 or less in water, free cyanide is effectively present entirely as

HCN; at pH 11 or greater, free cyanide is effectively present entirely as CN .
Figure 1 — Dissociation degree (%) of hydrocyanic acid (HCN) with pH

Owing to its high toxicity at low concentrations (especially to fish), “free or bioavailable cyanide” is

[1]-[7]

regulated in environmental wastewater discharges and in drinking waters . Cyanide is regarded

as an acute rather than a chronic toxin as low levels can be metabolised. It does not bioaccumulate. The

sensitivity of aquatic life to available cyanide varies with the species present and the characteristics

of the water matrix. Fish and aquatic invertebrates are particularly sensitive to bioavailable cyanide

exposure.
[6]

It is worth noting that the WHO guideline limit for cyanide in drinking water is 70 µg/l. An allocation

of 20 % of the tolerable daily intake (TDI) to drinking water is made because exposure to cyanide from

other sources is normally small and because exposure from water is only intermittent. This results in

the guideline value of 70 µg/l which is considered to be protective for both acute and long-term human

exposure.

Hydrogen cyanide and many complexed cyanides are readily soluble in water. An overview of solubilities

in water is given in Table 1.
vi © ISO 2017 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/TR 19588:2017(E)
[32]
Table 1 — Solubility of cyanides in water
Solubility Temperature
Species
g/l °C
Alkaline cyanides
LiCN very high unknown
NaCN 583 20
KCN 716 25
RbCN very high unknown
CsCN very high unknown
Alkaline earth cyanides
Mg(CN) unstable
Ca(CN) unstable
Sr(CN) 4H O very high unknown
2 2
Ba(CN) very high unknown
Heavy metal cyanides
AgCN 2,8 × 10 18
AuCN almost insoluble unknown
Pt(CN) almost insoluble unknown
Co(CN) 2H O almost insoluble unknown
2 2
Zn(CN) 5,8 × 10 18
CuCN 0,014 20
Ni(CN) 4H O 0,0 592 18
2 2
Cd(CN) 17 15
Hg(CN) 93 14
Pb(CN) high unknown
Pd(CN) high unknown

Therefore, the majority of methods are on the analysis of soluble cyanides in water, mainly to protect

the environment from toxic effects.

The toxicity of a metal cyanide complex is associated with its stability constant because the more easily

dissociated cyanide species will release cyanide more readily into the environment. The more stable

metal cyanide complexes are less likely to release cyanide into the environment.

The stability constants of the various relevant cyanide species is given in Table 2. Any complex with

a log K > about 35 is regarded as a strong complex, with lower relative toxicity, and will generally

only be detected when using a total cyanide method, often without quantitative recovery of the strong

complexes. There are method recovery problems of strong complexes in most total cyanide methods.

Nickel and copper cyanide complexes are considered to be in the weak acid dissociable (WAD) category

due to greater relative toxicity.

Table 2 — Stability constants (log K at 25 °C) of relevant metal cyanide complexes

Metal cyanide
Stability constant Weak or strong complex Reference
complex
(log K at 25 °C) (Strong log K > 30)
10 10
[Cd(CN) ] 17,9 Weak [10]
[Zn(CN) ] 19,6 Weak [10]
[Ag(CN) ] 20,5 Weak [10]
[Cu(CN) ] 23,1 Weak [10]
© ISO 2017 – All rights reserved vii
---------------------- Page: 7 ----------------------
ISO/TR 19588:2017(E)
Table 2 (continued)
Metal cyanide
Stability constant Weak or strong complex Reference
complex
(log K at 25 °C) (Strong log K > 30)
10 10
[Ni(CN) ] 30,2 Weak [10]
Hg(CN) 32,8 Weak and dissociable ASTM D 6696
[Fe(CN) ] 35,4 Strong [10]
[Au(CN) ] , 37 (best estimate) Strong [10]
[Pt(CN) ] 40,0 Strong [17]
[Pd(CN) ] 42,4 Strong [10]
[Fe(CN) ] 43,6 Strong [10]
[Co(CN) ] 64 (best estimate) Strong [10]

It is sometimes difficult to determine any individual species without interference from other cyanide

species or interference species (thiocyanate) and some cyanide degradation products (ammonia, nitrite

and nitrate) that may be present.

Thus, cyanide method parameters are empirical, where the actual method protocol often determines

the result obtained. Hence, cyanide is a method defined analyte. This is especially true for samples with

complex matrices. Many methods will determine the sum of a number of species with some not being

quantitatively determined (i.e. incomplete breakdown). Thus, it is essential that any standard cyanide

method is drafted in an unambiguous manner and the method protocol shall be closely followed to

ensure consistent results are obtained within and between laboratories. Moreover, all values reported

shall be attributed to the specific method applied.
A comprehensive overview of cyanide management is given in Reference [1].

It is felt that any regulatory limit legislation should specify the actual method to be used especially

for “bioavailable” cyanide (e.g. free, weak and dissociable, available, weak acid dissociable or easily

liberated cyanide).

NOTE The terms easily liberated cyanide and easily liberatable are both widely used and refer to the same

parameter.

It is vitally important to understand how the numerous forms of cyanide are incorporated into water

quality regulations for the protection of human health and the environment. In many countries, the

regulatory agencies tasked with implementing regulations and the public who are ultimately affected

by those regulations do not fully understand the implications of choosing one form of analysis over

another upon which to base numerical water quality standards. Also the effect of matrix interferences

on the results is not fully appreciated.

Methods with options (e.g. distillation versus gas membrane diffusion); or cyanide ion detection

systems based upon colorimetry or amperometry may give different results owing to variation in

species detection efficiencies and/or interference effects.
4- - 2-

Even when determining “total cyanide” some species such as [Fe(CN) ] , [Au(CN) ] , [Pt(CN) ] ,

6 2 4
2- 3-

[Pd(CN) ] and [Co(CN) ] may not be fully broken down to cyanide (or hydrogen cyanide) and some

4 6
distillation methods may convert thiocyanate (SCN) to cyanide.

Another issue is that there are few reference materials for the various cyanide parameters other than

for total cyanide. This is mainly due to the unstable nature of most cyanide species in environmental

matrices. Thus, traceable calibration in most matrices can be very difficult to achieve.

There are also a number of significant interference effects from a range of species. Clause 9 gives

[7]-[21]
guidance. More useful information is also given elsewhere .

There is no universal agreement on the best technique to overcome (or minimize) these interference

effects. The recommended guidance given is often that the method user should demonstrate that the

viii © ISO 2017 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 19588:2017(E)

method employed should be fit for purpose in relation to the samples analysed. This can be difficult

for contract laboratories which receive a wide range of unknown origin samples when using a method

for which the laboratory is accredited and the method may be inappropriate for some sample matrices.

It is important to appreciate that a single employed method may not be suitable for all the samples

received and site specific holding time analysis studies may be required to verify stability of samples

being transported to a laboratory.

A number of studies in soil samples have demonstrated that it is impossible to obtain reliable results for

easily liberatable cyanide (ELC) using a manual ELC cyanide extraction/reflux method. Consequently,

the current ISO 11262 standard does not include an ELC method.

Another key issue is the use of suitable interference and preservation treatments of the sample between

taking and analysing the sample. The presence of sulfide drastically reduces the maximum permitted

storage time from taking the sample to analysing it from 7 days to 24 hours (ISO 5667-3). See also

Reference [7].

It is considered important that regulators consider the typical measurement uncertainty when

setting very low regulatory cyanide limits; typical background levels of the parameter of interest and

finally how to ensure there is no significant sample degradation prior to analysis. See Annex C and

Reference [4].

The objective of this document is to provide a broad overview, background and guidance in the above

areas. It has attempted to review this very complex topic and highlight the various problems of carrying

out fit for purpose sampling and analysis for various cyanide species in a wide range of waters and

soils especially at low levels. It should also be helpful as a training aid for staff involved in the analysis

of cyanide. It should also be relevant to regulatory bodies involved in both setting cyanide species

regulatory limits and monitoring regulatory cyanide analysis results.
© ISO 2017 – All rights reserved ix
---------------------- Page: 9 ----------------------
TECHNICAL REPORT ISO/TR 19588:2017(E)
Background information and guidance on environmental
cyanide analysis
1 Scope

This document provides background information on the various International (ISO), American (ASTM,

EPA), and European (CEN) cyanide methods for soils, waters, effluents and wastes. It gives guidance

on how to carry out fit for purpose analysis of various forms of cyanide in environmental samples, the

significance of the results, how to minimize interference effects and the preservation of samples. Some

information is also provided on other national and international cyanide methods.

2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
See Annex A.

NOTE It is important to note that there is limited international consensus about many of these terms. The

International Cyanide Management Code — under guidance of the United Nations Environmental Program

(UNEP) and the International Council on Metals and the Environment (ICME) are two examples.

The International Cyanide Management Institute (ICMI) was established for the purpose of administering the

“International Cyanide Management Code for the Manufacture, Transport and Use of Cyanide in the Production

of Gold”, and to develop and provide information on responsible cyanide management practices and other factors

related to cyanide use in the gold mining industry.

ICMI’s primary responsibilities are to administer the International Cyanide Management Code for gold mining,

promote the Cyanide Code’s adoption and implementation, evaluate its implementation, manage the certification

process and to make information on the safe management practices for cyanide widely available.

The “International Cyanide Management Code For the Manufacture, Transport, and Use of Cyanide In the

Production of Gold” (Code) was developed by a multi-stakeholder Steering Committee under the guidance

of the United Nations Environmental Program (UNEP) and the then- International Council on Metals and the

Environment (ICME).

The Code is an industry voluntary program for gold mining companies. It focuses exclusively on the safe

management of cyanide and cyanidation mill tailings and leach solutions. Companies that adopt the Code shall

have their mining site processing operations that use cyanide to recover gold audited by an independent third

party to determine the status of Code implementation. Those operations that meet the Code requirements can

be certified. A unique trademark symbol can then be utilized by the certified operation. Audit results are made

public to inform stakeholders of the status of cyanide management practices at the certified operation.

© ISO 2017 – All rights reserved 1
---------------------- Page:
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
