INTERNATIONAL ISO
STANDARD 14461-1
IDF
169-1
First edition
2005-05-01

Milk and milk products — Quality control
in microbiological laboratories —
Part 1:
Analyst performance assessment for
colony counts
Lait et produits laitiers — Contrôle de qualité en laboratoires
microbiologiques —
Partie 1: Évaluation de la performance des analystes effectuant les
comptages de colonies




Reference numbers
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
©
ISO and IDF 2005

---------------------- Page: 1 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)

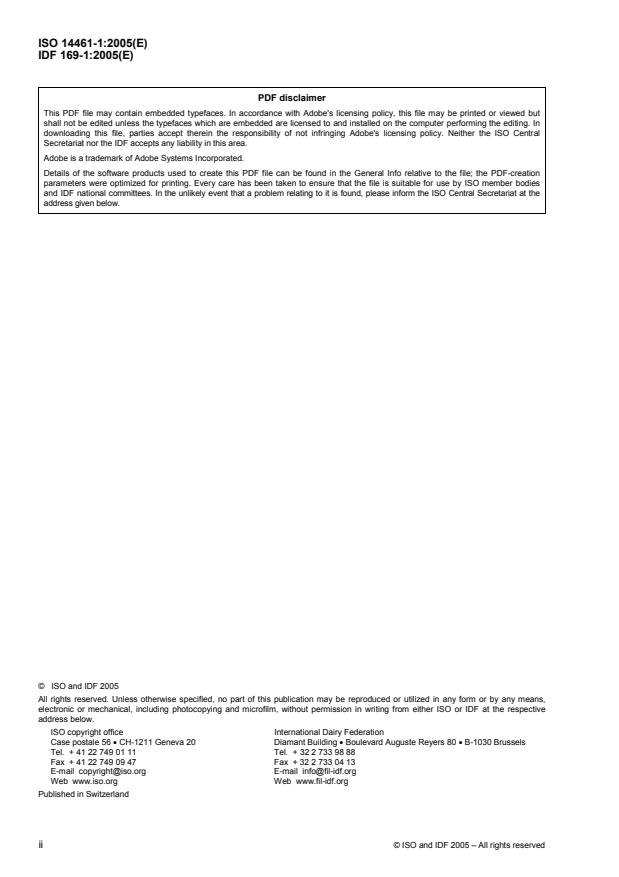

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. Neither the ISO Central
Secretariat nor the IDF accepts any liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies
and IDF national committees. In the unlikely event that a problem relating to it is found, please inform the ISO Central Secretariat at the
address given below.


©  ISO and IDF 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO or IDF at the respective
address below.
ISO copyright office International Dairy Federation
Case postale 56 • CH-1211 Geneva 20 Diamant Building • Boulevard Auguste Reyers 80 • B-1030 Brussels
Tel. + 41 22 749 01 11 Tel. + 32 2 733 98 88
Fax + 41 22 749 09 47 Fax + 32 2 733 04 13
E-mail copyright@iso.org E-mail info@fil-idf.org
Web www.iso.org Web www.fil-idf.org
Published in Switzerland

ii © ISO and IDF 2005 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
Contents Page
Foreword. iv
Introduction . vi
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 1
4 Principle (see Figure 1). 2
5 Diluent, culture media and reagents . 3
6 Apparatus and glassware. 5
7 Sampling . 5
8 Preparation of test sample. 6
8.1 Milk . 6
8.2 Dried milk. 6
9 Procedure. 6
9.1 General. 6
9.2 Number of decimal dilution steps . 6
9.3 Preparation of first decimal dilution . 6
9.4 Preparation of further decimal dilutions. 7
9.5 Melting the medium . 7
9.6 Preparation of binary dilutions and inoculation of the medium . 7
9.7 Incubation . 7
9.8 Randomization and counting of colonies. 8
10 Statistical evaluation . 10
10.1 Adequacy of the data set. 10
10.2 Evaluation of the complete data set (see Figure 2) . 10
Annex A (informative) Weighted mean and homogeneity testing of colony counts. 27
2
Annex B (Informative) BASIC programme for calculating the likelihood ratio index G . 33
Bibliography . 34

© ISO and IDF 2005 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)

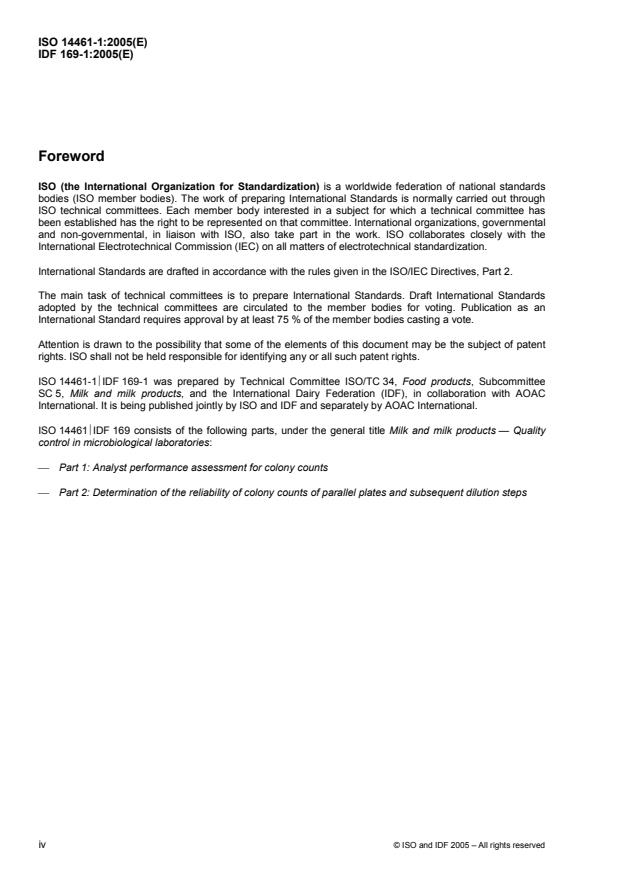

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has
been established has the right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14461-1IDF 169-1 was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee
SC 5, Milk and milk products, and the International Dairy Federation (IDF), in collaboration with AOAC
International. It is being published jointly by ISO and IDF and separately by AOAC International.
ISO 14461IDF 169 consists of the following parts, under the general title Milk and milk products — Quality
control in microbiological laboratories:
 Part 1: Analyst performance assessment for colony counts
 Part 2: Determination of the reliability of colony counts of parallel plates and subsequent dilution steps
iv © ISO and IDF 2005 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
Foreword
IDF (the International Dairy Federation) is a worldwide federation of the dairy sector with a National
Committee in every member country. Every National Committee has the right to be represented on the IDF
Standing Committees carrying out the technical work. IDF collaborates with ISO and AOAC International in
the development of standard methods of analysis and sampling for milk and milk products.
Draft International Standards adopted by the Action Teams and Standing Committees are circulated to the
National Committees for voting. Publication as an International Standard requires approval by at least 50 % of
the National Committees casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IDF shall not be held responsible for identifying any or all such patent rights.
This part of International Standard ISO 14461-1IDF 169 was prepared by Technical Committee ISO/TC 34,
Food products, Subcommittee SC 5, Milk and milk products, and the International Dairy Federation (IDF), in
collaboration with AOAC International. It is being published jointly by ISO and IDF and separately by AOAC
International.
All work was carried out by the Joint ISO/IDF/AOAC Action Team, Statistics of analytical data, of the Standing
Committee on Quality assurance, statistics of analytical data and sampling, under the aegis of its project
leaders, Dr. H. Glaeser (EU) and Prof. Dr. H. Weiss (DE).
This edition of ISO 14461-1IDF 169-1, together with ISO 14461-2IDF 169-2, cancels and replaces
IDF 169:1994, which has been technically revised.
ISO 14461IDF 169 consists of the following parts, under the general title Milk and milk products — Quality
control in microbiological laboratories:
 Part 1: Analyst performance assessment for colony counts
 Part 2: Determination of the reliability of colony counts of parallel plates and subsequent dilution steps
© ISO and IDF 2005 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
Introduction
Every microbiological method consists of several steps that are followed in a specific sequence (sub-sampling,
diluting, plating and counting). The final result has a margin of uncertainty that is determined by the variability
of all the steps involved.
In order to obtain results with a margin of uncertainty not much larger than what can be expected from the
correct application of the method, it is necessary to follow the rules of Good Laboratory Practice (GLP).
The three most important factors in obtaining a correct plate count are
 the homogeneity of the sample material,
 the exactness with which the dilutions are performed, and
 the technique of inoculation and/or counting of the plates.
By homogenizing a sample material very well, making multiple dilution series, and inoculating several plates
from the same dilution, it is possible to assess how well a laboratory can perform the colony-count technique,
taking into account the expected variability of the method.
A too large variability indicates that at least one of the steps in the performance of the method is out of control.
The identification of those steps is done by comparison of the replicate inoculations, the different dilution
levels and the dilution series. When the steps with excessive variability have been identified, the necessary
measures should be taken to bring these steps under control.

vi © ISO and IDF 2005 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 14461-1:2005(E)
INTERNATIONAL STANDARD
IDF 169-1:2005(E)

Milk and milk products — Quality control in microbiological
laboratories —
Part 1:
Analyst performance assessment for colony counts
1 Scope
This part of ISO 14461IDF 169 describes a procedure for testing the performance of the colony-count
technique within a laboratory by establishing the within-laboratory variability of its technique and identifying
those steps that are associated with excessive variability.
The procedure is also suitable for checking the proper observance of Good Laboratory Practice (GLP), which
may be a prerequisite for participation in interlaboratory tests of colony-count methods.
EXAMPLE Appropriate test samples are raw milk, pasteurized milk and dried milk.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 648:1977, Laboratory glassware — One-mark pipettes
ISO 835-4, Laboratory glassware — Graduated pipettes — Part 4: Blow-out pipettes
ISO 4788, Laboratory glassware — Graduated measuring cylinders
ISO 7218, Microbiology of food and animal feedings stuffs — General rules for microbiological examinations
ISO 8261IDF 122, Milk and milk products — Preparation of samples and dilutions for microbiological
examination
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
colony-count technique
counting of the number of microorganisms as determined by the procedure specified in this part of
ISO 14461IDF 169
NOTE The number of microorganisms is expressed per gram or per millilitre of test sample.
© ISO and IDF 2005 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
4 Principle (see Figure 1)

Figure 1 — Quality assurance in the microbiological laboratory:
Design of pilot studies for plate count
4.1 A test sample is homogenized then diluted to a suitable working density. (e.g. 500 CFU to 10 000 CFU
per millilitre). A suspension is prepared.
4.2 From this first dilution, four dilution series are prepared, each consisting of 12 binary dilution steps.
NOTE Binary (two-fold) dilution steps are used, not decimal (10-fold) dilutions as is the usual practice. With binary
dilutions it is possible to count colonies on plates originating from five to six dilutions, and this large number of counts
improves considerably the testing of the dilution steps.
2 © ISO and IDF 2005 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
4.3 Three parallel plates are poured from each dilution of each series.
4.4 The plates are incubated.
4.5 The sequence of the plates is randomized and the colonies on each plate are counted.
4.6 The counts are tabulated and the “statistical homogeneity” of the counts in two steps is calculated.
4.7 If the values obtained are statistically homogeneous, then the quality of the application of the method is
satisfactory and no further evaluation is needed.
4.8 If the results are not statistically homogeneous, an analysis of variance (ANOVA) is performed in order
to identify the variation of the results with one or more of the factors that were varied (i.e. dilution series,
dilution levels, plating). Further investigations are carried out and the factor(s) identified are adjusted.
NOTE Users will designate the particularly important sources of error in the performance of the method.
5 Diluent, culture media and reagents
The operations described in detail in this clause and in Clause 9 shall either be carried out by one person
alone or be divided over a group with clearly defined tasks for each participant.
Use only reagents of recognized analytical grade and distilled water or water of at least equivalent purity,
unless otherwise specified. The reagents and the water shall be free from substances that may adversely
influence the growth of microorganisms under the test conditions. The culture medium shall be of recognized
bacteriological quality. Any dehydrated medium shall be prepared according to the manufacturer's instructions.
5.1 Sodium hydroxide solution or hydrochloric acid (approx. 0,1 mol/l), to adjust the pH of the diluent and
the culture medium.
5.2 Culture medium: Tryptone-glucose-yeast extract agar, with addition of skimmed milk powder.
5.2.1 Composition
Yeast extract 2,5 g
Tryptic digest of casein (tryptone) 5,0 g
Glucose monohydrate (C H O ⋅HO) 1,0 g
6 12 6 2
Skimmed milk powder 1,0 g

a
Agar 10 g to 15 g
Water 1 000 ml
a
Depending on the gel strength of the agar.
In all cases it is necessary to add the skimmed milk powder, even if the dehydrated complete medium is
purchased and even if the suppliers consider such an addition unnecessary.
5.2.2 Preparation
For the experiment 2 litres of medium of the same lot will be needed. If a commercial dehydrated complete
medium is used, follow the manufacturer's instructions but add the skimmed milk powder. Adjust the pH so
that after sterilization it is 7,0 ± 0,2 at about 45 °C.
© ISO and IDF 2005 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
If the medium is prepared from dehydrated basic components, then dissolve and disperse in preheated water,
in the following order: yeast extract, tryptone, glucose and, finally, the skimmed milk powder. Heating the
water will assist in the dissolving and dispersion procedure. Add the agar and heat to boiling, while stirring
frequently, until the agar is completely dissolved. Alternatively, steam the mixture for about 30 min. Filter the
medium through filter paper, if necessary. Adjust the pH so that after sterilization it is 7,0 ± 0,2 at about 45 °C.
Dispense the culture medium in amounts of 250 ml into bottles (6.10). Sterilize all the bottles at one time in the
autoclave (6.1) set at 121 °C for 15 min.
Store the prepared medium in the dark at a temperature between 0 °C and 5 °C for no longer than 1 month.
5.3 Diluents: Peptone/salt solution or quarter-strength Ringer's solution, from a single lot.
5.3.1 Peptone/salt solution
This is the diluent selected for general use.
5.3.1.1 Composition
Peptone 1,0 g
Sodium chloride (NaCl) 8,5 g
Water up to 1 000 ml
5.3.1.2 Preparation
Dissolve the components in the water, by heating if necessary. Adjust the pH so that after sterilization it is
7,0 ± 0,2 at 25 °C.
5.3.2 Quarter-strength Ringer's solution
5.3.2.1 Composition
Sodium chloride (NaCl) 2,25 g
Potassium chloride (KCl) 0,105 g
Calcium chloride, anhydrous (CaCl) 0,06 g
2
Sodium hydrogen carbonate (NaHCO) 0,05 g
3
Water up to 1 000 ml
5.3.2.2 Preparation
Dissolve the salts in the water. Adjust the pH so that after sterilization it is 6,9 ± 0,2 at 25 °C.
5.3.3 Preparation of the diluent
Sterilize the diluent by autoclaving, in quantities not greater than 500 ml. Then dispense portions of 90 ml at
room temperature into sterile dilution bottles (6.8) using sterile graduated measuring cylinders or other
dispensing devices (6.11), and portions of 5 ml into sterile test tubes (6.9) using 5 ml one-mark or graduated
pipettes or other dispensing devices (6.12). When emptying a pipette touch the tip against an inclined wall of
the container in order to ensure correct delivery.
4 © ISO and IDF 2005 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
NOTE Dispensing the portions before autoclaving can lead to unequal evaporation during sterilization, resulting in
differences in the final strength of the portions.
Cool and store both the bulk and the dispensed portions of the diluent at a temperature between 0 °C and
5 °C. Use both the bulk and the dispensed portions the next day at the latest.
6 Apparatus and glassware
Sterilize all apparatus that will come into contact with the test sample, the diluent, the dilutions or the culture
medium in accordance with ISO 7218 and ISO 8261IDF 122.
Usual microbiological laboratory equipment and, in particular, the following.
6.1 Autoclave, capable of operating at 121 °C ± 3 °C.
6.2 Hot-air oven, capable of operating at above 180 °C.
6.3 Incubator, capable of operating at 30 °C ± 1 °C at all points within it.
6.4 pH-meter, with temperature compensation, accurate to ± 0,1 pH units.
6.5 Water baths, capable of operating at 20 °C ± 1 °C, 45 °C ± 1 °C and between 44 °C and 47 °C.
6.6 Lenses, of magnification 2× to 4× and of at least 8×.
6.7 Glass beads, of diameter about 6 mm.
6.8 Dilution bottles, of nominal volume 150 ml to 250 ml, with watertight stoppers, containing 5 to 10 glass
beads (6.7). Add the beads before sterilizing the bottles.
6.9 Test tubes, of height about 150 mm and diameter about 15 mm, with stoppers.
6.10 Bottles, of nominal volume 500 ml, with stoppers, for storing 250 ml portions of culture medium.
6.11 Graduated measuring cylinders, with main-point graduations, complying with ISO 4788, or other
dispensing devices with a proven equivalent level of accuracy.
6.12 One-mark or graduated pipettes, calibrated, capable of delivering 1 ml, 5 ml and 10 ml, complying
with ISO 648:1977, class A, or ISO 835-4, or other dispensing devices with a proven equivalent level of
accuracy.
6.13 Petri dishes, made of clear uncoloured glass or plastic material, the bottom having an internal diameter
of about 90 mm and no irregularities interfering with colony counting.
6.14 Mechanical stirrer, capable of mixing the contents of the test tubes, working on the principle of
eccentric rotation (e.g. a vortex mixer).
6.15 Top-loading balance, of sufficient weighing capacity, capable of weighing to the nearest 0,05 g.
7 Sampling
A representative sample should have been sent to the laboratory. It should not have been damaged or
changed during transport or storage.
© ISO and IDF 2005 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
Sampling is not part of the method specified in this part of ISO 14461IDF 169. A recommended sampling
method is given in ISO 707.
8 Preparation of test sample
8.1 Milk
Agitate the test sample thoroughly by rapidly inverting the sample container 25 times, so that the
microorganisms are distributed as evenly as possible. Avoid foaming or allow any foam to disperse. The
interval between mixing and removing the test portion shall not exceed 3 min.
8.2 Dried milk
Thoroughly mix the contents of the closed container by repeatedly shaking and inverting it. If the test sample
is in the original unopened container and this is too full to permit thorough mixing, transfer it to a larger
container, then mix.
9 Procedure
9.1 General
In colony-count methods plates are often partially or completely uncountable due to various reasons
(spreading, mould growth, etc.). For the present method, only a limited number of missing values may be
tolerated (see 10.1). Too many missing values indicate either that the material used is not suitable for the test,
or that the technique is faulty. In such a case, repeat the procedure with another, more suitable sample
material or with stricter adherence to the instructions.
9.2 Number of decimal dilution steps
The expected microbiological density of the sample determines the number of decimal dilution steps, as
follows:
a) when the expected count is less than 100 000 per millilitre or per gram, make a decimal dilution to
0,1 (one decimal step);
b) when the expected count is between 100 000 and 1 000 000 per millilitre or per gram, make a serial

–2
dilution to 10 (two decimal steps);

–3
c) when the expected count is higher than 1 000 000 per millilitre or per gram, make a serial dilution to 10
(three decimal steps).
9.3 Preparation of first decimal dilution
9.3.1 Milk
Remove 1 ml of test sample (8.1) with a sterile pipette (6.12) and add to 9 ml of diluent (5.3) (or 10 ml of test
sample to 90 ml of diluent, or 11 ml of test sample to 99 ml of diluent). Shake this primary dilution
[e.g. 25 times with a movement of about 300 mm for 7 s manually or, using a mechanical stirrer (6.14), for
–1
5 s to 10 s] to obtain a 10 dilution.
6 © ISO and IDF 2005 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
9.3.2 Dried milk
9.3.2.1 Open the container (8.2), remove the amount of test portion required with a spatula and proceed
as indicated in 9.3.2.2. Immediately close the container again.
9.3.2.2 Weigh 10 g of test sample into a suitable glass vessel (e.g. a beaker) and then add the powder to
the dilution bottle containing a suitable diluent (5.3). Alternatively, weigh 10 g of test sample directly into the
bottle with the diluent. To dissolve the test sample, swirl slowly to wet the powder then shake the bottle
(e.g. 25 times with a movement of about 300 mm, for about 7 s). A peristaltic-type blender may be used as an
alternative to shaking. Allow to stand for 5 min, shaking occasionally.
9.4 Preparation of further decimal dilutions
Prepare further dilutions in accordance with ISO 8261IDF 122.
9.5 Melting the medium
Before starting the operations described in 9.6, melt the culture medium (5.2) and cool it in the water bath
(6.5) set at between 44 °C and 47°C. Check the temperature of the medium by placing a thermometer into a
250 ml portion of agar (e.g. water agar) in a separate container, which is identical to that used for the medium.
Pour the molten agar within 2 h after melting.
9.6 Preparation of binary dilutions and inoculation of the medium
9.6.1 First dilution series (S )
1
Take 12 dilution test tubes (6.9) with 5 ml of diluent from cold storage (5.3.3).
Make serial binary dilutions (D , D , …) by transferring with a fresh pipette 5 ml of the suspension from the
1 2
previous dilution (9.4) into a tube with 5 ml of diluent. Mix the suspension 5 times during 5 s with the stirrer
(6.14) before each transfer. The first inoculum is taken from the last decimal dilution bottle (9.4), which is
immediately placed back in the refrigerator.
Before starting the next binary dilution series, inoculate three Petri dishes (P , P and P ) from each of the
1 2 3
twelve dilutions using 1 ml one-mark or graduated pipettes (6.12). Use a fresh sterile pipette for each dilution
level.
After inoculating all plates of the series (S ), pour 12 ml to 15 ml of molten and tempered (44 °C to 47°C)
1
culture medium (9.5) into each Petri dish in the same working order as the inoculation. Mix the medium
carefully with the inoculum by rotating the Petri dishes sufficiently to obtain evenly dispersed colonies after
incubation. Allow the mixture to solidify by leaving the Petri dishes to stand on a cool horizontal surface.
9.6.2 Subsequent dilutions (S , S and S )
2 3 4
After completion of the first series of dilutions and plating, prepare the second, third and fourth dilution series
(S , S and S ) similarly, starting each time with the mixing of the contents of the last decimal dilution bottle
2 3 4
(9.4) stored in the refrigerator in the meantime. Use two or three 250 ml portions of molten culture medium for
plating each dilution series and discard the rest.
9.7 Incubation
Invert the prepared dishes and place them in the incubator (6.3) set at 30 °C for 72 h ± 2 h. Do not stack the
dishes more than three high. Mark the position of each dish in a stack (low – middle – high).
NOTE This information may be useful if it turns out that the variability between the plates is too large and a possible
stacking effect is to be investigated.
Separate stacks of dishes from one another and from the walls and top of the incubator. Do not leave trays in
the incubator.
© ISO and IDF 2005 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 14461-1:2005(E)
IDF 169-1:2005(E)
9.8 Randomization and counting of colonies
9.8.1 Randomization
Do not count the plates in order of the dilutions or grouped according to the dilution step, as this may result in
an underestimation of the variability because the person who performs the counting will have an idea of what
to expect. Therefore, the plates shall first be examined and randomized as described in this subclause by a
person not involved in the counting in 9.8.2.
Starting from the most diluted series, select “countable” dilutions, i.e. dilutions for which the expected average
count is between 5 and 300 colonies per plate.
Recode all plates of the countable dilutions, using random numbers in order to randomize the countable plates
over all series and dilutions. See Table 1 for one such set of numbers; other random sequences from 1 to
144 may also be used. Remove the original markings of the plates; the use of removable adhesive labels is
recommended. Designate the uncountable plates with a minus sign in the protocol (see Table 2).
Table 1 —Example of random recoding of the plates for use with Table 2
Dilution series
Dilution steps Plate S S S S
1 2 3 4
1 129 2 82 96

–1
2 2 29 21 105 46
3 143 80 6 35
1 140 130 124 122

–2
2 2 100 65 135 45
3 93 88 107 87
1 127 117 115 106

–3
2 2 108 138 18 20
3 89 10 63 75
1 50 123 49 61

–4
2 2 17 97 72 99
3 32 104 26 128
1 52 13 64 5

–5
2 2 22 14 40 34
3 134 25 37 70
1 69 113 11 1

–6
2 2 136 109 48 78
3 95 31 19 28
1 4 74 59 57

–7
2 2 79 67 39 71
3 73 51 141 23
1 92 12 55 62

–8
2 2 30 66 133 81
3 27 131 91 121
1 101 144 15 5
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
