Standards Content (sample)

INTERNATIONAL ISO
STANDARD 2928
Fourth edition
2021-01
Rubber hoses and hose assemblies
for liquefied petroleum gas (LPG)
in the liquid or gaseous phase and
natural gas up to 2,5 MPa (25 bar) —
Specification
Tuyaux et flexibles en caoutchouc pour gaz de pétrole liquéfié (GPL)
en phase liquide ou gazeuse et le gaz naturel jusqu'à 2,5 MPa (25
bar) — Spécifications
Reference number
ISO 2928:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 2928:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 2928:2021(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Classification ............................................................................................................................................................................................................ 2

5 Materials and construction of hose and hose assembly .............................................................................................. 2

6 Dimensions ................................................................................................................................................................................................................. 3

6.1 Nominal size, inside diameter, outside diameter, minimum bend radius ............................................ 3

6.2 Minimum thickness of lining and cover ............................................................................................................................ 4

6.3 Concentricity............................................................................................................................................................................................. 4

6.4 Tolerances in length............................................................................................................................................................................ 4

7 Physical properties ............................................................................................................................................................................................ 4

7.1 Compounds ................................................................................................................................................................................................ 4

7.2 Finished hose and hose assemblies ...................................................................................................................................... 5

8 Electrical resistance .......................................................................................................................................................................................... 6

9 Frequency of testing .......................................................................................................................................................................................... 7

10 Marking .......................................................................................................................................................................................................................... 7

10.1 Hoses ............................................................................................................................................................................................................... 7

10.2 Hose assemblies ..................................................................................................................................................................................... 8

Annex A (normative) Flammability test ............................................................................................................................................................ 9

Annex B (normative) Frequency of testing for type tests and routine tests .............................................................11

Annex C (informative) Recommended frequency of testing for production acceptance tests ..............12

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 2928:2021(E)

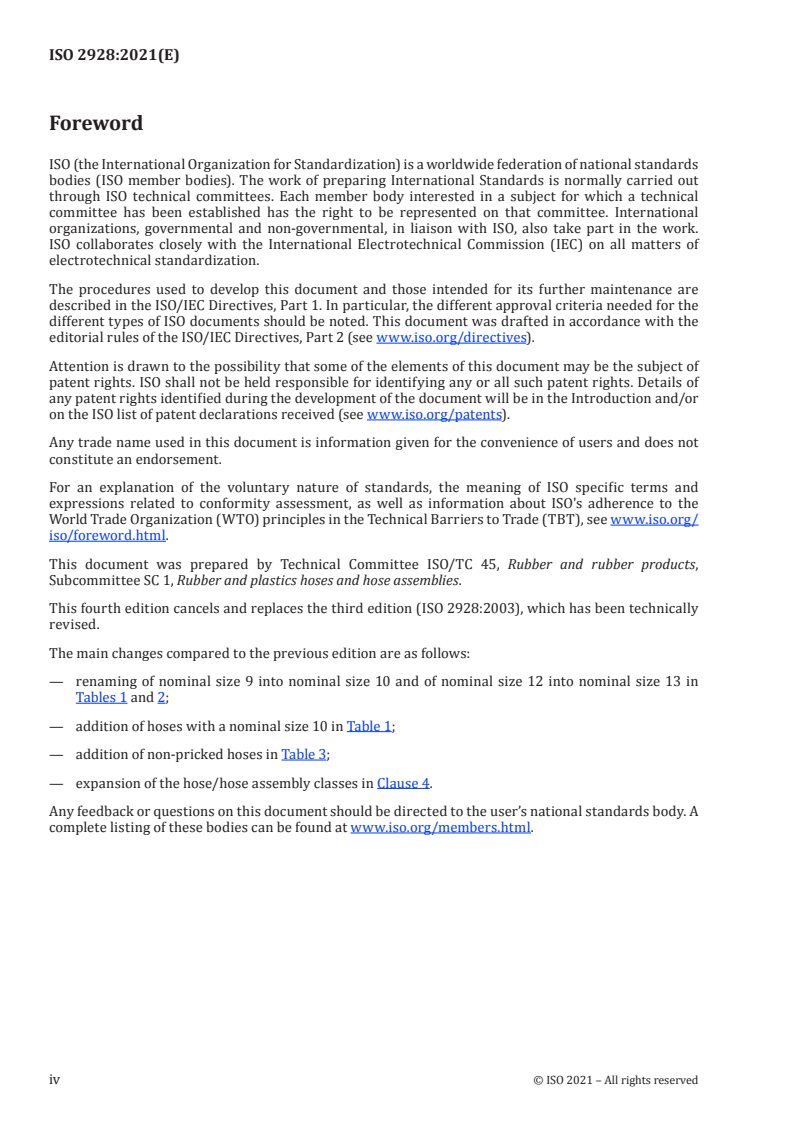

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products,

Subcommittee SC 1, Rubber and plastics hoses and hose assemblies.

This fourth edition cancels and replaces the third edition (ISO 2928:2003), which has been technically

revised.
The main changes compared to the previous edition are as follows:

— renaming of nominal size 9 into nominal size 10 and of nominal size 12 into nominal size 13 in

Tables 1 and 2;
— addition of hoses with a nominal size 10 in Table 1;
— addition of non-pricked hoses in Table 3;
— expansion of the hose/hose assembly classes in Clause 4.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 2928:2021(E)
Rubber hoses and hose assemblies for liquefied petroleum
gas (LPG) in the liquid or gaseous phase and natural gas up
to 2,5 MPa (25 bar) — Specification

WARNING — Persons using this document should be familiar with normal laboratory practice.

This document does not purport to address all of the safety problems, if any, associated with its

use. It is the responsibility of the user to establish appropriate health and safety practices and to

consider any national regulatory conditions.
1 Scope

This document specifies requirements for rubber hoses and rubber hose assemblies used for the transfer

of liquefied petroleum gas (LPG) in the liquid or gaseous phase and natural gas and designed for use at

working pressures ranging from vacuum to a maximum of 2,5 MPa (25 bar) within the temperature

range −30 °C to +70 °C or, for low-temperature hoses (designated -LT), within the temperature range

−50 °C to +70 °C.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 37, Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties

ISO 48-2, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 2: Hardness between

10 IRHD and 100 IRHD

ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1382, Rubber — Vocabulary
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing

ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids

ISO 4649, Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a rotating

cylindrical drum device

ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of

hoses and the lengths of hose assemblies

ISO 6179:2017, Rubber, vulcanized or thermoplastic — Rubber sheets and rubber-coated fabrics —

Determination of transmission rate of volatile liquids (gravimetric technique)

ISO 7233, Rubber and plastics hoses and hose assemblies — Determination of suction resistance

ISO 7326, Rubber and plastics hoses — Assessment of ozone resistance under static conditions

ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and

conductivity

ISO 8033, Rubber and plastics hoses — Determination of adhesion between components

ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
© ISO 2021 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 2928:2021(E)

ISO 10619-1, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness — Part 1:

Bending tests at ambient temperature

ISO 10619-2:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —

Part 2: Bending tests at sub-ambient temperatures
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 1382 and ISO 8330 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Classification
Hoses and hose assemblies shall be one of the following types:
— type D: delivery hose;
— type D-LT: delivery hose, low-temperature;
— type SD: suction and delivery hose, helix-reinforced;

— type SD-LTR: suction and delivery hose, helix-reinforced, low-temperature (rough-bore).

— type SD-LTS: suction and delivery hose, helix-reinforced, low-temperature (smooth-bore);

All these types can be:

— electrically bonded, in which case the hose is additionally designated and marked with the symbol M;

— electrically conducting by virtue of a conducting rubber layer, in which case the hose is additionally

designated and marked with the symbol Ω;
— electrically discontinuous.
5 Materials and construction of hose and hose assembly
The hose shall consist of the following:
— a lining of rubber resistant to n-pentane;

— a reinforcement of layers of woven, braided or spirally wound textile material or braided or spirally

wound wire;

— a cover of black or coloured synthetic rubber, resistant to abrasion and outdoor exposure;

— for hoses designated M only, they shall additionally have two or more low-resistance electrical-

bonding wires;
— for hoses designated Ω only, cover and/or lining shall be conducting rubber;

— the cover shall be being pricked or unpricked to allow gas permeation; if the cover is unpricked a

comparative measurement of permeation between the rubber materials of cover and lining shall be

carried out, see Table 3.

— for hoses types D and D-LT the materials and construction shall be as described above.

2 © ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 2928:2021(E)

— for types SD, SD-LTR and SD- LTS only, shall additionally have an embedded helical wire reinforcement.

— for type SD-LTR only, an internal, non-embedded helical wire, suitable for −50 °C. For pricked hoses,

the material shall be stainless steel.

Assemblies shall incorporate metallic fittings attached to the hose by the assembler or built in by the

manufacturer. In order to produce the required electrical properties, the couplings should be attached

in accordance with Clause 8.

Chlorinated materials shall not be used in contact with any stainless-steel materials.

6 Dimensions
6.1 Nominal size, inside diameter, outside diameter, minimum bend radius

For hoses without built-in couplings, and when measured in accordance with method A of

ISO 10619-2:2017, the inside diameter and outside diameter and their tolerances shall conform to the

values given in Table 1 or Table 2, depending on the type.

For hoses with built-in couplings, the outside diameters of Table 1 and Table 2 shall not apply.

When tested by the method described in ISO 10619-1, the value of the minimum bend radius shall

conform to the values given in Table 1 or Table 2, depending on the type.
Table 1 — Dimensions of hoses of types D and D-LT
Nominal Inside Outside Design minimum
Tolerance Tolerance
size diameter diameter bend radius
mm mm mm mm mm
10 9,7 ±0,5 19,5 ±1,0 90
13 12,7 ±0,5 22,7 ±1,0 100
15 15 ±0,5 25 ±1,0 120
16 15,9 ±0,5 25,9 ±1,0 125
19 19 ±0,5 31 ±1,0 160
25 25 ±0,5 38 ±1,0 200
32 32 ±0,5 45 ±1,0 250
38 38 ±0,5 52 ±1,0 320
50 50 ±0,6 66 ±1,2 400
51 51 ±0,6 67 ±1,2 400
63 63 ±0,6 81 ±1,2 550
75 75 ±0,6 93 ±1,2 650
76 76 ±0,6 94 ±1,2 650
80 80 ±0,6 98 ±1,2 725
100 100 ±1,6 120 ±1,6 800
150 150 ±2,0 174 ±2,0 1 200
200 200 ±2,0 224 ±2,0 1 600
250 254 ±2,0 — — 2 000
300 305 ±2,0 — — 2 500
NOTE Nominal sizes 250 and 300 apply to hoses with built-in couplings only.

The design minimum bend radius is measured to the surface of the hose on the inside of the

...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 2928
ISO/TC 45/SC 1
Rubber hoses and hose assemblies
Secretariat: DIN
for liquefied petroleum gas (LPG)
Voting begins on:
2020­11­11 in the liquid or gaseous phase and
natural gas up to 2,5 MPa (25 bar) —
Voting terminates on:
2021­01­06
Specification
Tuyaux et flexibles en caoutchouc pour gaz de pétrole liquéfié (GPL)
en phase liquide ou gazeuse et le gaz naturel jusqu'à 2,5 MPa (25
bar) — Spécifications
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/FDIS 2928:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN­
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2020
---------------------- Page: 1 ----------------------
ISO/FDIS 2928:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH­1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 2928:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Classification ............................................................................................................................................................................................................ 2

5 Materials and construction of hose and hose assembly .............................................................................................. 2

6 Dimensions ................................................................................................................................................................................................................. 3

6.1 Nominal size, inside diameter, outside diameter, minimum bend radius ............................................ 3

6.2 Minimum thickness of lining and cover ............................................................................................................................ 4

6.3 Concentricity............................................................................................................................................................................................. 4

6.4 Tolerances in length............................................................................................................................................................................ 4

7 Physical properties ............................................................................................................................................................................................ 4

7.1 Compounds ................................................................................................................................................................................................ 4

7.2 Finished hose and hose assemblies ...................................................................................................................................... 5

8 Electrical resistance .......................................................................................................................................................................................... 6

9 Frequency of testing .......................................................................................................................................................................................... 7

10 Marking .......................................................................................................................................................................................................................... 7

10.1 Hoses ............................................................................................................................................................................................................... 7

10.2 Hose assemblies ..................................................................................................................................................................................... 8

Annex A (normative) Flammability test ............................................................................................................................................................ 9

Annex B (normative) Frequency of testing for type tests and routine tests .............................................................11

Annex C (informative) Recommended frequency of testing for production acceptance tests ..............12

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 2928:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non­governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products,

Subcommittee SC 1, Rubber and plastics hoses and hose assemblies.

This fourth edition cancels and replaces the third edition (ISO 2928:2003), which has been technically

revised.
The main changes compared to the previous edition are as follows:

— renaming of nominal size 9 into nominal size 10 and of nominal size 12 into nominal size 13 in

Tables 1 and 2;
— addition of hoses with a nominal size 10 in Table 1;
— addition of non­pricked hoses in Table 3;
— expansion of the hose/hose assembly classes in Clause 4.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 2928:2020(E)
Rubber hoses and hose assemblies for liquefied petroleum
gas (LPG) in the liquid or gaseous phase and natural gas up
to 2,5 MPa (25 bar) — Specification

WARNING — Persons using this document should be familiar with normal laboratory practice.

This document does not purport to address all of the safety problems, if any, associated with its

use. It is the responsibility of the user to establish appropriate health and safety practices and to

consider any national regulatory conditions.
1 Scope

This document specifies requirements for rubber hoses and rubber hose assemblies used for the transfer

of liquefied petroleum gas (LPG) in the liquid or gaseous phase and natural gas and designed for use at

working pressures ranging from vacuum to a maximum of 2,5 MPa (25 bar) within the temperature

range −30 °C to +70 °C or, for low-temperature hoses (designated -LT), within the temperature range

−50 °C to +70 °C.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 37, Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties

ISO 48­2, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 2: Hardness between

10 IRHD and 100 IRHD

ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1382, Rubber — Vocabulary
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing

ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids

ISO 4649, Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a rotating

cylindrical drum device

ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of

hoses and the lengths of hose assemblies

ISO 6179:2017, Rubber, vulcanized or thermoplastic — Rubber sheets and rubber-coated fabrics —

Determination of transmission rate of volatile liquids (gravimetric technique)

ISO 7233, Rubber and plastics hoses and hose assemblies — Determination of suction resistance

ISO 7326, Rubber and plastics hoses — Assessment of ozone resistance under static conditions

ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary

ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and

conductivity

ISO 8033, Rubber and plastics hoses — Determination of adhesion between components

© ISO 2020 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/FDIS 2928:2020(E)

ISO 10619­1, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness — Part 1:

Bending tests at ambient temperature

ISO 10619­2:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —

Part 2: Bending tests at sub-ambient temperatures
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 1382 and ISO 8330 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Classification
Hoses and hose assemblies shall be one of the following types:
— type D: delivery hose;
— type D-LT: delivery hose, low-temperature;
— type SD: suction and delivery hose, helix-reinforced;

— type SD-LTR: suction and delivery hose, helix-reinforced, low-temperature (rough-bore).

— type SD-LTS: suction and delivery hose, helix-reinforced, low-temperature (smooth-bore);

All these types can be:

— electrically bonded, in which case the hose is additionally designated and marked with the symbol M;

— electrically conducting by virtue of a conducting rubber layer, in which case the hose is additionally

designated and marked with the symbol Ω;
— electrically discontinuous.
5 Materials and construction of hose and hose assembly
The hose shall consist of the following:
— a lining of rubber resistant to n­pentane;

— a reinforcement of layers of woven, braided or spirally wound textile material or braided or spirally

wound wire;

— a cover of black or coloured synthetic rubber, resistant to abrasion and outdoor exposure;

— for hoses designated M only, they shall additionally have two or more low-resistance electrical-

bonding wires;
— for hoses designated Ω only, cover and/or lining shall be conducting rubber;

— the cover shall be being pricked or unpricked to allow gas permeation; if the cover is unpricked a

comparative measurement of permeation between the rubber materials of cover and lining shall be

carried out, see Table 3.

— for hoses types D and D-LT the materials and construction shall be as described above.

2 © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/FDIS 2928:2020(E)

— for types SD, SD-LTR and SD- LTS only, shall additionally have an embedded helical wire reinforcement.

— for type SD-LTR only, an internal, non-embedded helical wire, suitable for −50 °C. For pricked hoses,

the material shall be stainless steel.

Assemblies shall incorporate metallic fittings attached to the hose by the assembler or built in by the

manufacturer. In order to produce the required electrical properties, the couplings should be attached

in accordance with Clause 8.

Chlorinated materials shall not be used in contact with any stainless-steel materials.

6 Dimensions
6.1 Nominal size, inside diameter, outside diameter, minimum bend radius

For hoses without built­in couplings, and when measured in accordance with method A of

ISO 10619­2:2017, the inside diameter and outside diameter and their tolerances shall conform to the

values given in Table 1 or Table 2, depending on the type.

For hoses with built­in couplings, the outside diameters of Table 1 and Table 2 shall not apply.

When tested by the method described in ISO 10619-1, the value of the minimum bend radius shall

conform to the values given in Table 1 or Table 2, depending on the type.
Table 1 — Dimensions of hoses of types D and D-LT
Nominal Outside diam- Design minimum
Inside diameter Tolerance Tolerance
size eter bend radius
mm mm mm mm mm
10 9,7 ±0,5 19,5 ±1,0 90
13 12,7 ±0,5 22,7 ±1,0 100
15 15 ±0,5 25 ±1,0 120
16 15,9 ±0,5 25,9 ±1,0 125
19 19 ±0,5 31 ±1,0 160
25 25 ±0,5 38 ±1,0 200
32 32 ±0,5 45 ±1,0 250
38 38 ±0,5 52 ±1,0 320
50 50 ±0,6 66 ±1,2 400
51 51 ±0,6 67 ±1,2 400
63 63 ±0,6 81 ±1,2 550
75 75 ±0,6 93 ±1,2 650
76 76 ±0,6 94 ±1,2 650
80 80 ±0,6 98 ±1,2 725
100 100 ±1,6
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
