Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Test methods to prove the design of cemented or wrapped joints

This document specifies methods of test for cemented or wrapped joints for buried and above ground glass-reinforced thermosetting plastics (GRP) piping systems. This document is only applicable to the joint and covers methods of test to prove its design. It assumes that the joint either is or is not intended to be subject to the effects of hydrostatic end thrust. The tests detailed in 9.2, 9.4 to 9.6 inclusive are applicable to cemented or wrapped joints intended to be used in buried or above-ground applications. The bending tests detailed in 9.3 can be used to prove the design where joints are either intended to be used in buried applications or are intended to be used in particular above-ground situations where the tests may be considered appropriate. With the exception of procedure detailed in 9.3, these test procedures are applicable to joints for pipes and fittings of all nominal sizes. The tests detailed in 9.3 are applicable to joints for pipes and fittings up to and including DN 600. The tests are applicable for evaluating joints intended for applications conveying liquids at temperatures specified in the referring standards. The test procedures in this document are damaging to the test piece, which will not be suitable for reuse after these tests. The test procedure is applied for type testing purposes only. This document is applicable only to the joint and specifies methods of test to prove its design.

Tubes et raccords en plastiques thermodurcissables renforcés de verre (PRV) — Méthodes d'essai pour confirmer la conception des assemblages scellés ou enrobés

General Information

Status
Published
Publication Date
01-Aug-2019
Current Stage
9020 - International Standard under periodical review
Start Date
15-Jul-2024
Completion Date
15-Jul-2024
Ref Project

Relations

Buy Standard

Standard
ISO 8533:2019 - Glass-reinforced thermosetting plastics (GRP) pipes and fittings -- Test methods to prove the design of cemented or wrapped joints
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 8533
Second edition
2019-08
Glass-reinforced thermosetting
plastics (GRP) pipes and fittings —
Test methods to prove the design of
cemented or wrapped joints
Tubes et raccords en plastiques thermodurcissables renforcés de
verre (PRV) — Méthodes d'essai pour confirmer la conception des
assemblages scellés ou enrobés
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus . 2
5.1 End sealing devices . 2
5.1.1 General. 2
5.1.2 Capable of applying the end loads . 3
5.1.3 Not capable of applying the end loads . 3
5.2 Supports . 3
5.2.1 End thrust supports . 3
5.2.2 Straps or cradles. 3
5.2.3 Special supports . 3
5.3 Source of hydrostatic pressure . 3
5.4 Means of measuring the gauge pressure . 3
5.5 Vacuum pump . 3
5.6 Means for applying the required bending force . 3
6 Test pieces . 3
6.1 Test arrangement for tests detailed in 9.2, 9.4 and 9.5 . 3
6.2 Test arrangement for tests detailed in 9.3 . 4
6.3 Number of test pieces . 6
7 Conditioning . 6
8 Test temperature . 6
9 Procedure. 6
9.1 General . 6
9.2 Negative pressure . 7
9.3 Resistance to bending with pressure and end thrust . 8
9.3.1 Method A . 8
9.3.2 Method B . 8
9.4 Resistance to internal cyclic pressure . 9
9.5 Resistance to maintained internal pressure .10
9.6 Resistance to bolt-tightening torque .10
10 Test report .10
Annex A (normative) Calculation of the additional force F and limiting deflection Δ used in
A
9.3, Method A .12
Annex B (normative) Calculation of the bending load F used in 9.3, Method B .13
B

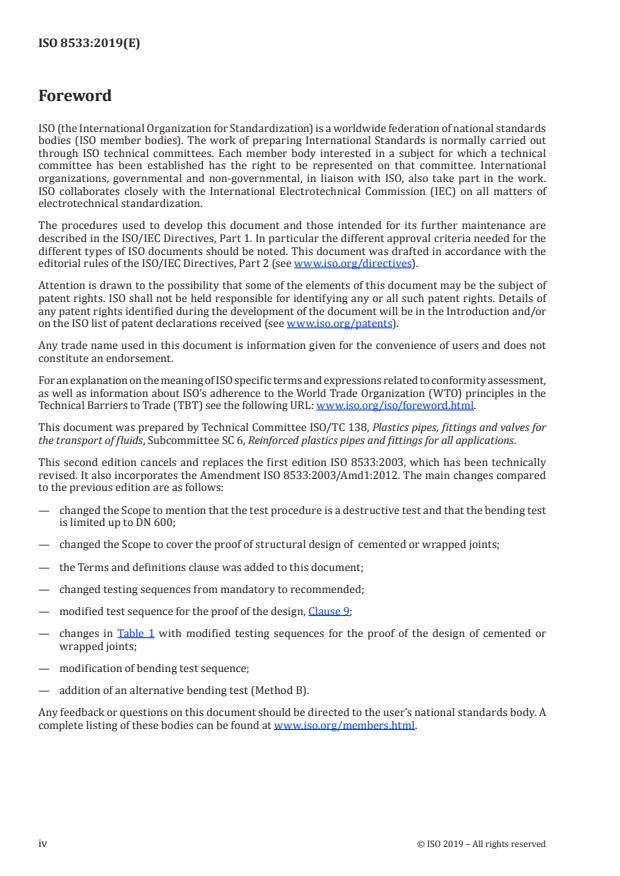

Foreword
