Standards Content (sample)

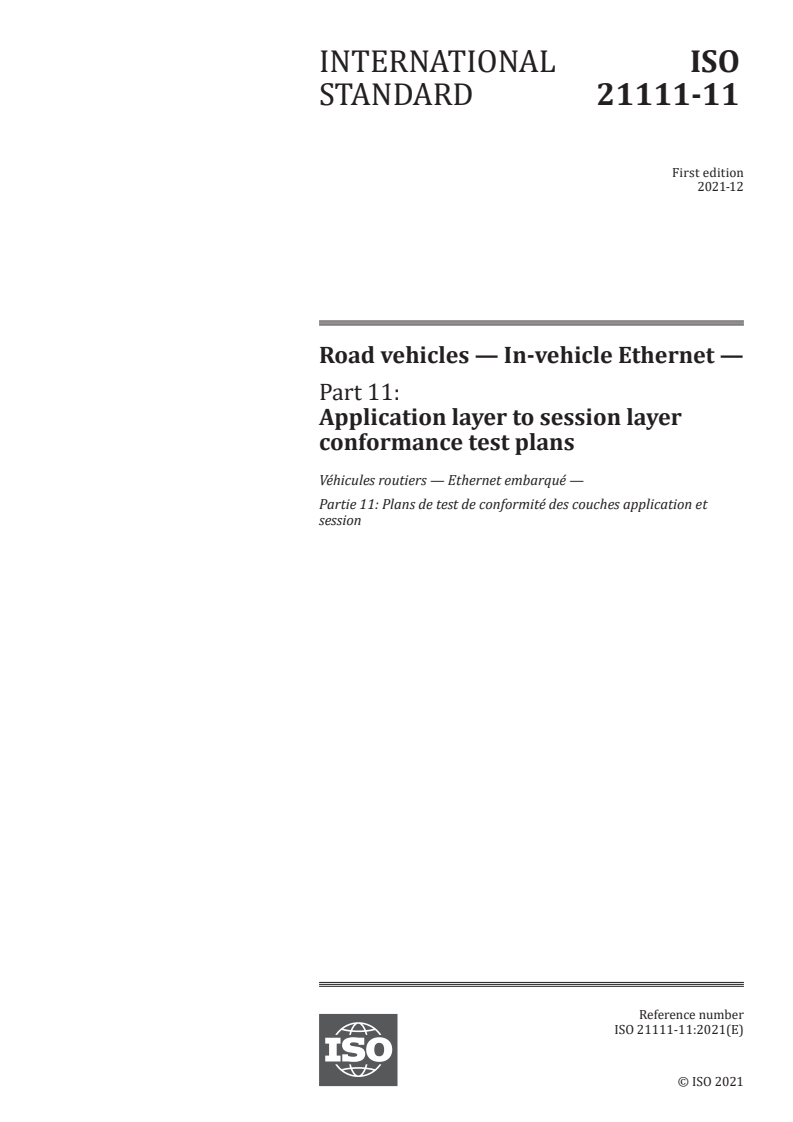

INTERNATIONAL ISO
STANDARD 21111-11
First edition
2021-12
Road vehicles — In-vehicle Ethernet —
Part 11:
Application layer to session layer
conformance test plans
Véhicules routiers — Ethernet embarqué —
Partie 11: Plans de test de conformité des couches application et
session
Reference number
ISO 21111-11:2021(E)
© ISO 2021
---------------------- Page: 1 ----------------------
ISO 21111-11:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 21111-11:2021(E)

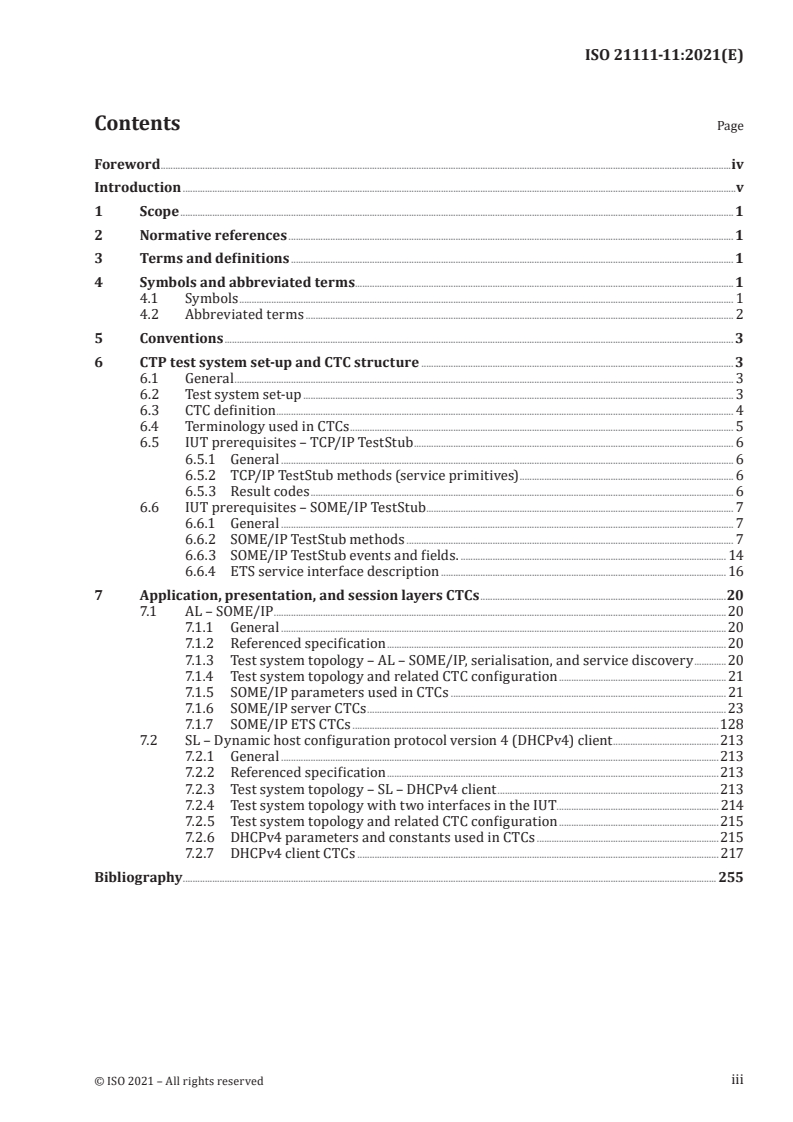

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction .................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

4 Symbols and abbreviated terms..........................................................................................................................................................1

4.1 Symbols ......................................................................................................................................................................................................... 1

4.2 Abbreviated terms .............................................................................................................................................................................. 2

5 Conventions ............................................................................................................................................................................................................... 3

6 CTP test system set-up and CTC structure ............................................................................................................................... 3

6.1 General ........................................................................................................................................................................................................... 3

6.2 Test system set-up ............................................................................................................................................................................... 3

6.3 CTC definition .......................................................................................................................................................................................... 4

6.4 Terminology used in CTCs ............................................................................................................................................................ 5

6.5 IUT prerequisites – TCP/IP TestStub .................................................................................................................................. 6

6.5.1 General ........................................................................................................................................................................................ 6

6.5.2 TCP/IP TestStub methods (service primitives) ....................................................................................... 6

6.5.3 Result codes ............................................................................................................................................................................ 6

6.6 IUT prerequisites – SOME/IP TestStub ............................................................................................................................. 7

6.6.1 General ........................................................................................................................................................................................ 7

6.6.2 SOME/IP TestStub methods ..................................................................................................................................... 7

6.6.3 SOME/IP TestStub events and fields. ............................................................................................................ 14

6.6.4 ETS service interface description .................................................................................................................... 16

7 Application, presentation, and session layers CTCs ....................................................................................................20

7.1 AL – SOME/IP ........................................................................................................................................................................................ 20

7.1.1 General .....................................................................................................................................................................................20

7.1.2 Referenced specification .......................................................................................................................................... 20

7.1.3 Test system topology – AL – SOME/IP, serialisation, and service discovery .............20

7.1.4 Test system topology and related CTC configuration .................................................................... 21

7.1.5 SOME/IP parameters used in CTCs ................................................................................................................ 21

7.1.6 SOME/IP server CTCs .................................................................................................................................................. 23

7.1.7 SOME/IP ETS CTCs .....................................................................................................................................................128

7.2 SL – Dynamic host configuration protocol version 4 (DHCPv4) client ...........................................213

7.2.1 General ..................................................................................................................................................................................213

7.2.2 Referenced specification .......................................................................................................................................213

7.2.3 Test system topology – SL – DHCPv4 client ..........................................................................................213

7.2.4 Test system topology with two interfaces in the IUT.................................................................. 214

7.2.5 Test system topology and related CTC configuration .................................................................215

7.2.6 DHCPv4 parameters and constants used in CTCs ..........................................................................215

7.2.7 DHCPv4 client CTCs ................................................................................................................................................... 217

Bibliography ......................................................................................................................................................................................................................... 255

iii
© ISO 2021 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 21111-11:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,

Data communication.
A list of all parts in the ISO 21111 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 21111-11:2021(E)
Introduction

The ISO 21111 series includes in-vehicle Ethernet requirements and test plans that are disseminated in

other International Standards and complements them with additional test methods and requirements.

The resulting requirement and test plans are structured in different documents following the Open

Systems Interconnection (OSI) reference model and grouping the documents that depend on the

physical media and bit rate used.

In general, the Ethernet requirements are specified in ISO/IEC/IEEE 8802-3. The ISO 21111 series

provides supplemental specifications (e.g. wake-up, I/O functionality), which are required for in-vehicle

Ethernet applications. In road vehicles, Ethernet networks are used for different purposes requiring

different bit-rates. Currently, the ISO 21111 series specifies the 1-Gbit/s optical and 100-Mbit/s

electrical physical layer.

The ISO 21111 series contains requirement specifications and test methods related to the in-vehicle

Ethernet. This includes requirement specifications for physical layer entity (e.g. connectors, physical

layer implementations) providers, device (e.g. electronic control units, gateway units) suppliers, and

system (e.g. network systems) designers. Additionally, there are test methods specified for conformance

testing and for interoperability testing.

Safety (electrical safety, protection, fire, etc.) and electromagnetic compatibility (EMC) requirements

are out of the scope of the ISO 21111 series.

The structure of the specifications given in the ISO 21111 series complies with the Open Systems

[1] [4]

Interconnection (OSI) reference model specified in ISO/IEC 7498-1 and ISO/IEC 10731 .

ISO 21111-1 defines the terms which are used in this series of standards and provides an overview of

[2]

the standards for in-vehicle Ethernet including the complementary relations to ISO/IEC/IEEE 8802-3 ,

the document structure, type of physical entities, in-vehicle Ethernet specific functionalities and so on.

ISO 21111-2 specifies the interface between reconciliation sublayer and physical entity including

reduced gigabit media independent interface (RGMII), and the common physical entity wake-up and

synchronized link sleep functionalities, independent from physical media and bit rate.

ISO 21111-3 specifies supplemental requirements to a physical layer capable of transmitting

1-Gbit/s over plastic optical fibre compliant with ISO/IEC/IEEE 8802-3, with specific application to

communications inside road vehicles, and a test plan for physical entity conformance testing.

ISO 21111-4 specifies the optical components requirements and test methods for 1-Gbit/s optical

invehicle Ethernet.

ISO 21111-5 specifies, for 1-Gbit/s optical in-vehicle Ethernet, requirements on the physical layer at

system level, requirements on the interoperability test set-ups, the interoperability test plan that checks

the requirements for the physical layer at system level, requirements on the device-level physical layer

conformance test set-ups, and device-level physical layer conformance test plan that checks a set of

requirements for the OSI physical layer that are relevant for device vendors.

ISO 21111-6 specifies advanced features of an ISO/IEC/IEEE 8802-3 in-vehicle Ethernet physical layer

(often also called transceiver), e.g. for diagnostic purposes for in-vehicle Ethernet physical layers. It

specifies advanced physical layer features, wake-up and sleep features, physical layer test suite,

physical layer control requirements and conformance test plan, physical sublayers test suite and

physical sublayers requirements and conformance test plan.

ISO 21111-7 specifies the implementation for ISO/IEC/IEEE 8802-3, which defines the interface

implementation for automotive applications together with requirements on components used to realize

this Bus Interface Network (BIN). ISO 21111-7 also defines further testing and system requirements

for systems implemented according to the system specification. In addition, ISO 21111-7 defines

the channels for tests of transceivers with a test wiring harness that simulates various electrical

communication channels.
© ISO 2021 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 21111-11:2021(E)

ISO 21111-8 specifies the transmission media, the channel performance and the tests for

ISO/IEC/IEEE 8802-3 in-vehicle Ethernet.

ISO 21111-9 specifies the data link layer requirements and conformance test plan. It specifies the

requirements and test plan for devices and systems with bridge functionality.

ISO 21111-10 specifies the transport to network layer requirements and conformance test plans. It

specifies the requirements and conformance test plan for devices and systems that include functionality

related with OSI layers from 4 and 3.

This document specifies the application to session layer requirements and conformance test plans. It

specifies the requirements and conformance test plan for devices and systems that include functionality

related with OSI layers from 7 to 5.
Figure 1 shows the parts of the ISO 21111 series and the document structure.
Figure 1 — In-vehicle Ethernet documents reference according to OSI model
© ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 21111-11:2021(E)
Road vehicles — In-vehicle Ethernet —
Part 11:
Application layer to session layer conformance test plans
1 Scope

This document specifies in-vehicle Ethernet application layer, presentation layer, and session layer

conformance test plans (CTP) for electronic control units (ECUs). This document is a collection of all

conformance test cases which are recommended to be considered for automotive use and should be

referred by car manufacturers within their quality control processes.

The document specifies the scalable Service-Oriented MiddlewarE over Internet Protocol (SOME/IP)

and Dynamic Host Configuration Protocol (DHCP) version 4 conformance test cases.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 9646-1, Information technology — Open Systems Interconnection — Conformance testing

methodology and framework — Part 1: General concepts

ISO 21111-1, Road vehicles — In-vehicle Ethernet — Part 1: General information and definitions

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 21111-1, ISO/IEC 9646-1 and

the following apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
PORT1
port number of the upper tester used for UDP communication
3.2
service interface description

description of the implemented SOME/IP services of a IUT including, e.g. all methods, events, and

method parameters
4 Symbols and abbreviated terms
4.1 Symbols
--- empty table cell or feature undefined
© ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 21111-11:2021(E)
V voltage of the battery
BAT
X feature in table cell selected
Param-Tolerance-Time
tolerance time taken from parameter file
Client-Listen-Time listen time used by ANVL taken from parameter file

Param-Process-Time amount of time the test system Host-1 waits for the IUT to process the PDU

Param-Lease-Time
value of DHCP IP address lease time in seconds which is offered to the IUT
Duration-Of-Lease
lease time in seconds
High-Lease-Time lease time in seconds set to high value
4.2 Abbreviated terms
ACK acknowlege
ADDR address
AL application layer
ANVL Automated Network Validation Library
ARP address resolution protocol
BOM byte order mark
CTC conformance test case
CTP conformance test plan
DHCP Dynamic Host Configuration Protocol
EMC electromagnetic compatibility
ETS enhanced testability service
FIN finish
ICMP internet control message protocol
IUT implementation under test
MSL maximum segment lifetime
MSS maximum segment size
PCO point of control and observation
PHY physical layer
PRS protocol requirement specification
PSH push
QOS qualitiy of service and audio/video bridging
RPC remote procedure call
© ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 21111-11:2021(E)
SL session layer
SOME/IP Service-Oriented MiddlewarE over Internet Protocol
SUT system under test
SYN synchonise
TCP transmission control protocol
TIME time synchronisation
TTL Time-To-Live
UDP user datagram protocol
5 Conventions
[4]

This document is based on OSI service conventions as specified in ISO/IEC 10731 .

6 CTP test system set-up and CTC structure
6.1 General

This document specifies a CTP according to the requirements as specified in the ISO/IEC 9646 series. A

CTP does not provide qualification of test results but expected responses of the IUT. A CTP is used by a

test house to develop a conformance test plan specific for the test system used in their lab environment.

The CTCs specified in this document are organized in such a manner as to simplify the identification

of information related to a test and to facilitate in the actual testing process. CTCs are organized into

groups, primarily in order to reduce set-up time in the lab environment. The different groups typically

also tend to focus on specific aspects of device functionality.

A CTC reference name, for example, "CTC_SOMEIP_ETS_07 – EchoBitfields" is used to organize the CTC

name, where the following is included:
— "CTC" which indicates that this is a conformance test case;
— name/subject of CTC;
— supplemental name, for example, ETS, which is enhanced test system;
— CTC number;
— after the hyphen a descriptive name of the CTC follows.

The CTC definitions themselves are intended to provide a high-level description of the purpose,

references, prerequisite, steps/procedures, expected responses, remarks, and methodologies pertinent

to each test (see 6.3).
6.2 Test system set-up

The test system topology follows ISO/IEC 9646-1:1994 and consists of a test set-up which consists

of a test system and a system under test (SUT) connected via the physical medium. The test system

implements an UT and an LT. The UT uses the test control protocol (Figure 2, key 2) to control the LT.

The LT supports the functionality required to test the OSI layer (Figure 2, key 5, key 6, and key 7) of the

IUT. The test system uses IUT-specific set-up parameters (Figure 2, key 1) for testing the communication

with the IUT.
© ISO 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 21111-11:2021(E)

The control and measurement functionality is provided by direct logical access to the service interface

(dashed line) (Figure 2, key 3) and the associated parameters of the OSI layer. The UT in the IUT

(Figure 2, key 4) supports an equivalent part of the abstract service interface (ASPs, PCO) (dashed line)

(Figure 2, key 3) and the associated parameters to control and measure the state(s) of the IUT.

The UT conformance test controller in the test system manipulates the service primitive interface

parameters in the IUT via the ASPs (ETSs) and PCO of the OSI layers to fulfil the purpose of each CTC.

Key
1 set-up parameters (node's electronic data sheet)
2 test control protocol
3 PCO and ASPs based on ETS
4 UT application with ETS interface
5 OSI layer 7 to 5 protocol
6 OSI layer 4 to 3 protocol
7 OSI layer 2 protocol
Figure 2 — Test system set-up
6.3 CTC definition

CTCs are independent of one another. Each CTC checks the behaviour of the IUT for a particular purpose

of this document. CTCs, which require variations of individual parameters, shall be repeated for each

value of the parameter. Each CTC is specified according to a common CTC structure as shown in Table 1.

Table 1 — CTC structure
Item Content
CTC # – Title CTC_x.y.z-a – CTC structure
© ISO 2021 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 21111-11:2021(E)
Table 1 (continued)
Item Content

Purpose The purpose is a brief statement outlining what the test attempts are to achieve. The test is

written at the functional level. It is recommended to begin the description of purpose with

"This CTC verifies …".

Reference The purpose of reference is to specify source material external to the test suite, including any

other references that can be helpful in understanding the test methodology and/or test results.

External sources are always referenced by number when mentioned in the test description.

Any other references not specified by number are stated with respect to the test suite docu-

ment itself.

EXAMPLE AUTOSAR SOME/IP Example of a Serialization Protocol V1.1.0 R4.1 rev 3: PRS_

SOMEIP_00042, PRS_SOMEIP_00099, …

Prerequisite The purpose of prerequisites is to specify the test hardware and/or software needed to per-

form the CTC. This is generally expressed in terms of minimum requirements. In some cases,

specific equipment manufacturer/model information may be provided.
EXAMPLE The IUT is running and offering the enhanced testability service.

Set-up The purpose of set-up is to describe the initial configuration of the test environment. Small

changes in the configuration should not be included here and are generally covered in the test

procedure below.
EXAMPLE The test system set-up shall be in accordance with Figure 2.

Step The test procedure includes the test description, which contains the systematic instructions

for carrying out the test. It provides a cookbook approach to testing and may be interspersed

with observable results. Each test step shall have a numeric number in ascending order.

1. Configure the IUT as master or as slave.
2. Establish a valid link with the IUT.

3. Monitor the transmissions from the IUT and cause the management to request a PMA

reset while simultaneously ceasing transmissions from the test system.

Iteration The purpose of test iterations is to include test procedure definitions, which are repeated more

than once.
a) REPEAT step 2 to step 3 with the IUT configured as master, 1 time.
b) REPEAT step 2 to step 3 with the IUT configured as slave, 1 time.

Expected The purpose of expected response is to describe the expected results to be examined by the

response test system Host-1 in order to verify that the IUT is operating. When multiple values for an

observable are possible, this description provides a short discussion on how to interpret them.

The determination of a pass or fail outcome for a particular test is generally based on the suc-

cessful (or unsuccessful) detection of a specific observable.

After iteration a): The IUT stops transmitting with tx_mode = SEND_N and starts trans-

mitting with tx_mode = SEND_I for 1 iteration a). The IUT sets link_status = FAIL.

After iteration b): The IUT stops transmitting for 1 iteration b). The IUT sets link_status

= FAIL.

Remark The purpose of remarks is to describe known issues with the test procedure, which can affect

test results in certain situations. It can also refer the reader to test suite annexes and/or white

papers that can provide more detail regarding these issues.
6.4 Terminology used in CTCs
Table 2 specifies the terminology used in CTCs.
© ISO 2021 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 21111-11:2021(E)
Table 2 — Terminology used in CTCs
Name Content

Upper tester (UT) Entity which is responsible for controlling the LT via the test control protocol and the

IUT UT enhanced testability services (ETS) via the abstract service primitives (ASPs).

Lower tester (LT) Entity which is responsible for validating the implementation under test (IUT).

IUT_CONFIGURE This entry causes the IUT to configure/execute various commands for clearing cache,

adding static address, send echo request, etc.
IUT Implementation under test in the SUT.

CLEANUP This is a command, which causes the IUT to remove the static entry from its ARP

cache.
6.5 IUT prerequisites – TCP/IP TestStub
6.5.1 General

The TCP/IP TestStub defines interfaces required to test TCP/IP communication stack functionality. This

is an enabler for generic test tools and conformance test cases (CTCs).
The protocol parts covered by the TCP/IP TestStub include:
— UDP and TCP – socket connection establishment and termination;
— UDP and TCP – message transmission and reception.

The TCP/IP TestStub is specified in Reference [12] (AUTOSAR). This document references a subset of

the AUTOSAR specification.
6.5.2 TCP/IP TestStub methods (service primitives)

Table 3 references AUTOSAR Testability Protocol and Service Primitives, TC Release 1.2.0, '6.10 Service

[12]
Primitives' and indicates the service primitives which are applicable.
Table 3 — TCP/IP TestStub methods (service primitives)
Method name (service primitive) Identifier General UDP TCP
GET_VERSION 1 optional --- ---
START_TEST 2 mandatory --- ---
END_TEST 3 mandatory --- ---
CLOSE_SOCKET 0 --- mandatory mandatory
CREATE_AND_BIND 1 --- mandatory mandatory
SEND_DATA 2 --- mandatory mandatory
RECEIVE_AND_FORWARD 3 --- mandatory mandatory
LISTEN_AND_ACCEPT 4 --- --- mandatory
CONNECT 5 --- --- mandatory
SHUTDOWN 7 --- --- optional
6.5.3 Result codes

Due to different stack implementations there is no generic way to retrieve specific result codes. Only

generic result codes are accepted. The referenced TestStub methods are changed as follows.

The TestStub methods in Table 4 have no specific result codes, only generic result codes (E_OK / E_

NOK) are allowed.
© ISO 2021 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 21111-11:2021(E)
Table 4 — Result codes
Chapter in Reference [12]” TestStub method (service primitive)
6.10.4 CLOSE_SOCKET
6.10.5 CREATE_AND_BIND
6.10.6 SEND_DATA
6.10.7 RECEIVE_AND_FORWARD
6.10.8 LISTEN_AND_ACCEPT
6.10.9 CONNECT
6.11.1 SHUTDOWN
