Textiles -- Synthetic filament yarns -- Determination of shrinkage in dry-hot air (after treatment)

ISO 18067:2015 specifies methods for the determination of dry-hot air shrinkage (after treatment) of synthetic filament yarns, skein method and single-end method. The skein method provides two forms of measurement which are of manual and automatic types. The single-end method gives the result by manual measurement. In case of dispute, manual measurement procedure is to be used. If these methods are not applicable, the corresponding test methods may be agreed between interested parties. ISO 18067:2015 is applicable to synthetic filament yarns of linear density less than 3 000 dtex. ISO 18067:2015 is not applicable to partially oriented yarns.

Textiles - Fils de filaments synthétiques - Détermination du taux de retrait dans l'air sec et chaud

General Information

Status
Published
Publication Date
20-May-2015
Current Stage
9060 - Close of review
Start Date
03-Sep-2020
Ref Project

Buy Standard

Standard
ISO 18067:2015 - Textiles -- Synthetic filament yarns -- Determination of shrinkage in dry-hot air (after treatment)
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 18067
First edition
2015-05-15
Textiles — Synthetic filament yarns —
Determination of shrinkage in dry-hot
air (after treatment)
Textiles - Fils de filaments synthétiques - Détermination du taux de
retrait dans l’air sec et chaud
Reference number
ISO 18067:2015(E)
ISO 2015
---------------------- Page: 1 ----------------------
ISO 18067:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 18067:2015(E)

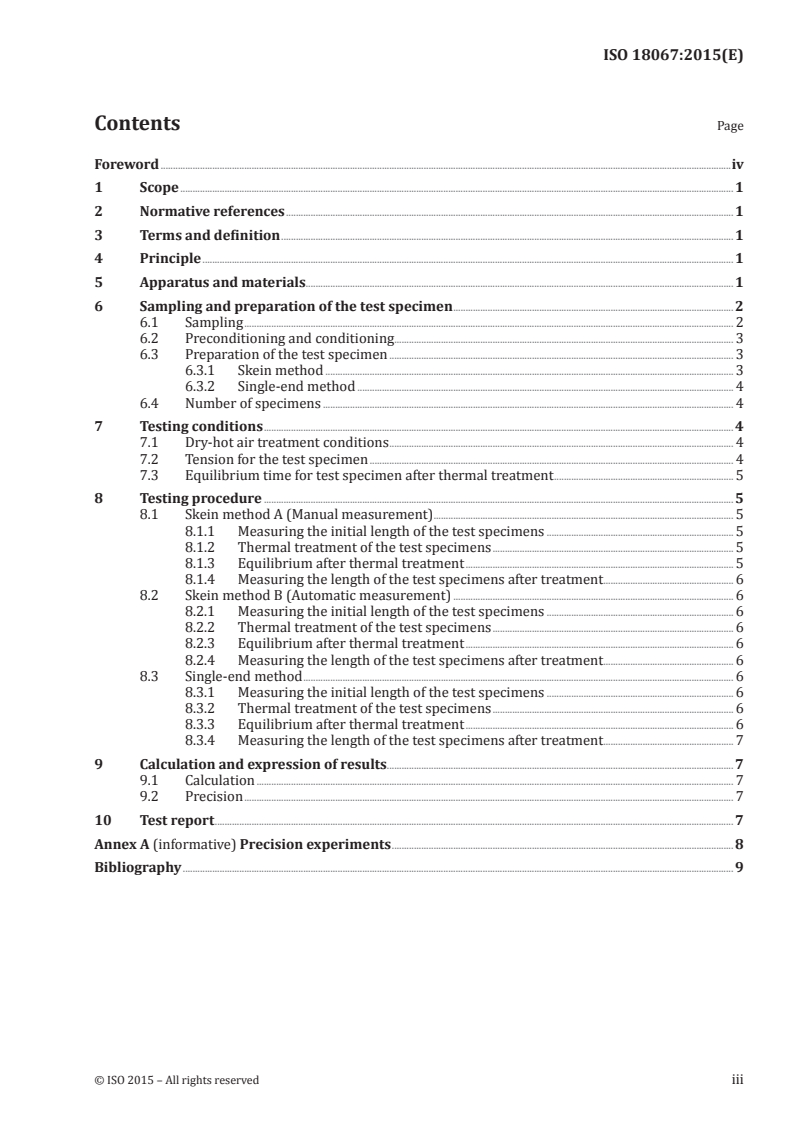

Contents  Page

Foreword ........................................................................................................................................................................................................................................iv

1  Scope ................................................................................................................................................................................................................................. 1

2  Normative references ...................................................................................................................................................................................... 1

3  Terms and definition ........................................................................................................................................................................................ 1

4  Principle ........................................................................................................................................................................................................................ 1

5  Apparatus and materials.............................................................................................................................................................................. 1

6  Sampling and preparation of the test specimen .................................................................................................................. 2

6.1 Sampling ....................................................................................................................................................................................................... 2

6.2 Preconditioning and conditioning.......................................................................................................................................... 3

6.3 Preparation of the test specimen ............................................................................................................................................ 3

6.3.1 Skein method ...................................................................................................................................................................... 3

6.3.2 Single-end method ......................................................................................................................................................... 4

6.4 Number of specimens ....................................................................................................................................................................... 4

7  Testing conditions ............................................................................................................................................................................................... 4

7.1 Dry-hot air treatment conditions ............................................................................................................................................ 4

7.2 Tension for the test specimen .................................................................................................................................................... 4

7.3 Equilibrium time for test specimen after thermal treatment ......................................................................... 5

8  Testing procedure ............................................................................................................................................................................................... 5

8.1 Skein method A (Manual measurement) .......................................................................................................................... 5

8.1.1 Measuring the initial length of the test specimens ............................................................................ 5

8.1.2 Thermal treatment of the test specimens .................................................................................................. 5

8.1.3 Equilibrium after thermal treatment ............................................................................................................. 5

8.1.4 Measuring the length of the test specimens after treatment..................................................... 6

8.2 Skein method B (Automatic measurement) .................................................................................................................. 6

8.2.1 Measuring the initial length of the test specimens ............................................................................ 6

8.2.2 Thermal treatment of the test specimens .................................................................................................. 6

8.2.3 Equilibrium after thermal treatment ............................................................................................................. 6

8.2.4 Measuring the length of the test specimens after treatment..................................................... 6

8.3 Single-end method ............................................................................................................................................................................... 6

8.3.1 Measuring the initial length of the test specimens ............................................................................ 6

8.3.2 Thermal treatment of the test specimens .................................................................................................. 6

8.3.3 Equilibrium after thermal treatment ............................................................................................................. 6

8.3.4 Measuring the length of the test specimens after treatment..................................................... 7

9  Calculation and expression of results ............................................................................................................................................. 7

9.1 Calculation .................................................................................................................................................................................................. 7

9.2 Precision ....................................................................................................................................................................................................... 7

10  Test report ................................................................................................................................................................................................................... 7

Annex A (informative) Precision experiments ........................................................................................................................................... 8

Bibliography ................................................................................................................................................................................................................................ 9

© ISO 2015 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 18067:2015(E)

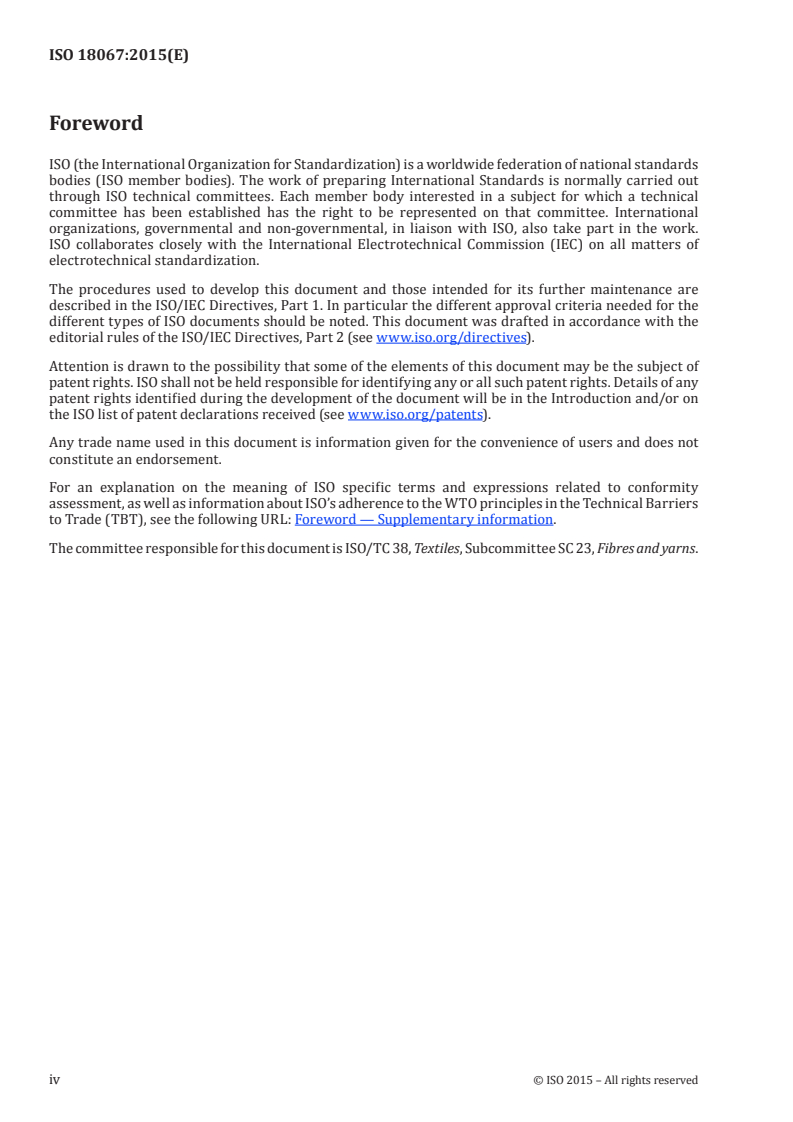

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any

patent rights identified during the development of the document will be in the Introduction and/or on

the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT), see the following URL: Foreword — Supplementary information.

The committee responsible for this document is ISO/TC 38, Textiles, Subcommittee SC 23, Fibres and yarns.

iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD  ISO 18067:2015(E)
Textiles — Synthetic filament yarns — Determination of
shrinkage in dry-hot air (after treatment)
1  Scope

This International Standard specifies methods for the determination of dry-hot air shrinkage (after

treatment) of synthetic filament yarns, skein method and single-end method. The skein method provides

two forms of measurement which are of manual and automatic types. The single-end method gives the

result by manual measurement.
In case of dispute, manual measurement procedure is to be used.

If these methods are not applicable, the corresponding test methods may be agreed between

interested parties.

This International Standard is applicable to synthetic filament yarns of linear density less than 3 000 dtex.

This International Standard is not applicable to partially oriented yarns.
2  Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 139, Textiles — Standard atmospheres for conditioning and testing
3  Terms and definition
For the purposes of this document, the following terms and definitions apply.
3.1
shrinkage in dry-hot air (after treatment)

decrease in length of a specimen as a result of thermal treatment in dry-hot air, expressed as a percentage

of its original length, which measured under tension before and after treatment
4  Principle

Under specific condition, a test specimen is treated in dry-hot air. Shrinkage is calculated as variation in

length, measured before and after treatment.
5  Apparatus and materials
5.1  Skein winding reel, which meets the following requirements:
a) 1 000 ± 2,5 mm reel circumference, driven either automatically or manually;

b) a traversing mechanism to avert overlapping when several skeins are wound at the same time;

c) a tensioning device to maintain tension within the recommended limits, accurate to within ± 10 %;

d) a device to count reel revolutions, preferably capable to stop winding automatically and warn when

nearing the specified number of reel revolutions;
© ISO 2015 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 18067:2015(E)
e) a mechanism to reduce the reel circumference for easy removal of the skein.
5.2  Length-measuring stand, which meets the following requirements:
a) a stand for measuring specimen length of least 1 mm gauge length;
b) a millimetre scale to determine specimen length, accurate to within ±1 mm;

c) a steel hook or a clamp, where the top of the hook or the lower side of the clamp (where the specimen

hung from) is positioned in line with the zero index of the scale;

d) tensioning weights with hooks or clamps for applying tensile force to specimens, accurate to

within ±10 %.
5.3  Automatic shrinkage tester, which meets the following requirements:

a) automatically applies specified tension, measures specimen length, and calculates the shrinkage

based on length values;
b) 0,05 mm resolution of length measurement;.

c) a specimen holder for suspending specimens more than 600 mm high, which can consistently hold

2,5 cN load per skein for the duration of the testing procedure with several skeins arranged and

tested in succession.

NOTE Other mechanical devices may be used for the test provided that equivalent results are obtained.

5.4  Ventilated oven, which meets the following requirements:
a) a holder for suspending spec
...
