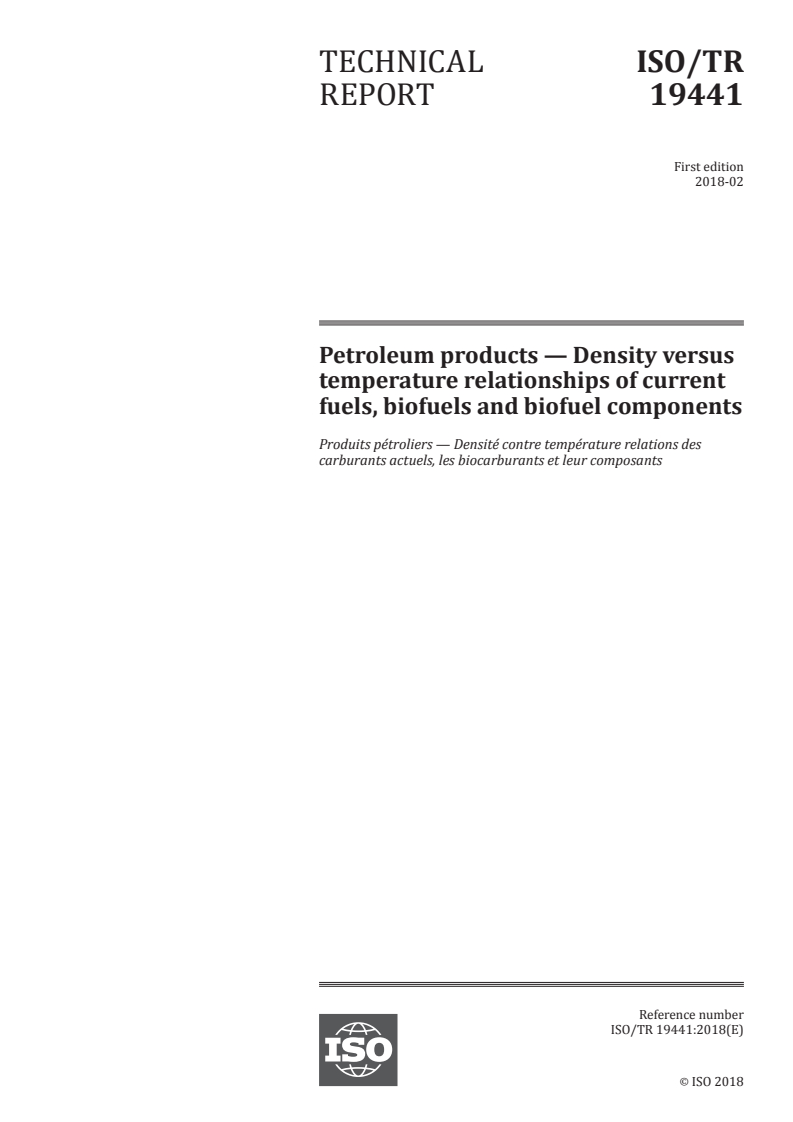

TECHNICAL ISO/TR
REPORT 19441
First edition
2018-02
Petroleum products — Density versus
temperature relationships of current
fuels, biofuels and biofuel components
Produits pétroliers — Densité contre température relations des
carburants actuels, les biocarburants et leur composants
Reference number
ISO/TR 19441:2018(E)
©
ISO 2018
---------------------- Page: 1 ----------------------
ISO/TR 19441:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 19441:2018(E)

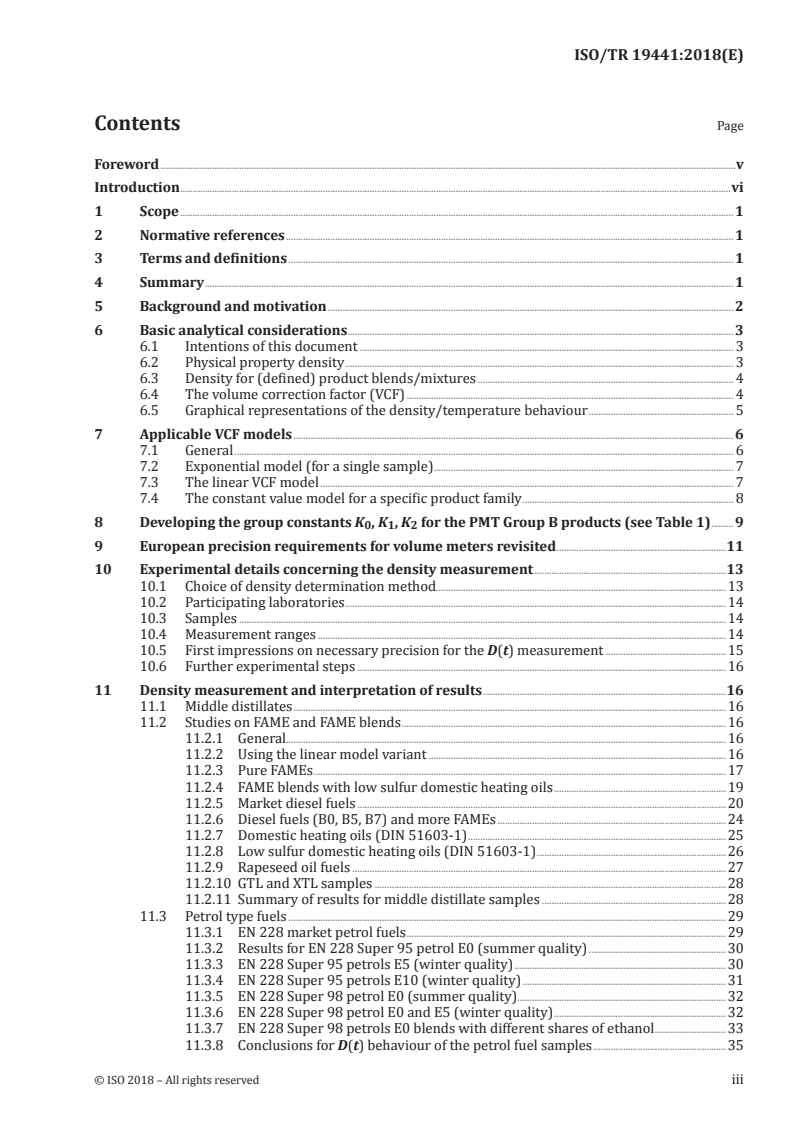

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Summary . 1
5 Background and motivation . 2
6 Basic analytical considerations . 3
6.1 Intentions of this document . 3
6.2 Physical property density . 3
6.3 Density for (defined) product blends/mixtures . 4
6.4 The volume correction factor (VCF) . 4
6.5 Graphical representations of the density/temperature behaviour . 5
7 Applicable VCF models . 6
7.1 General . 6
7.2 Exponential model (for a single sample) . 7
7.3 The linear VCF model . 7
7.4 The constant value model for a specific product family . 8
8 Developing the group constants K , K , K for the PMT Group B products (see Table 1) .9
0 1 2
9 European precision requirements for volume meters revisited .11
10 Experimental details concerning the density measurement .13
10.1 Choice of density determination method.13
10.2 Participating laboratories .14
10.3 Samples .14
10.4 Measurement ranges .14
10.5 First impressions on necessary precision for the D(t) measurement .15
10.6 Further experimental steps .16
11 Density measurement and interpretation of results .16
11.1 Middle distillates .16
11.2 Studies on FAME and FAME blends .16
11.2.1 General.16
11.2.2 Using the linear model variant .16
11.2.3 Pure FAMEs . .17
11.2.4 FAME blends with low sulfur domestic heating oils .19
11.2.5 Market diesel fuels .20
11.2.6 Diesel fuels (B0, B5, B7) and more FAMEs .24
11.2.7 Domestic heating oils (DIN 51603-1) .25
11.2.8 Low sulfur domestic heating oils (DIN 51603-1) .26
11.2.9 Rapeseed oil fuels .27
11.2.10 GTL and XTL samples .28
11.2.11 Summary of results for middle distillate samples .28
11.3 Petrol type fuels .29
11.3.1 EN 228 market petrol fuels .29
11.3.2 Results for EN 228 Super 95 petrol E0 (summer quality) .30
11.3.3 EN 228 Super 95 petrols E5 (winter quality) .30
11.3.4 EN 228 Super 95 petrols E10 (winter quality) .31
11.3.5 EN 228 Super 98 petrol E0 (summer quality).32
11.3.6 EN 228 Super 98 petrol E0 and E5 (winter quality) .32
11.3.7 EN 228 Super 98 petrols E0 blends with different shares of ethanol .33
11.3.8 Conclusions for D(t) behaviour of the petrol fuel samples .35
© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 19441:2018(E)

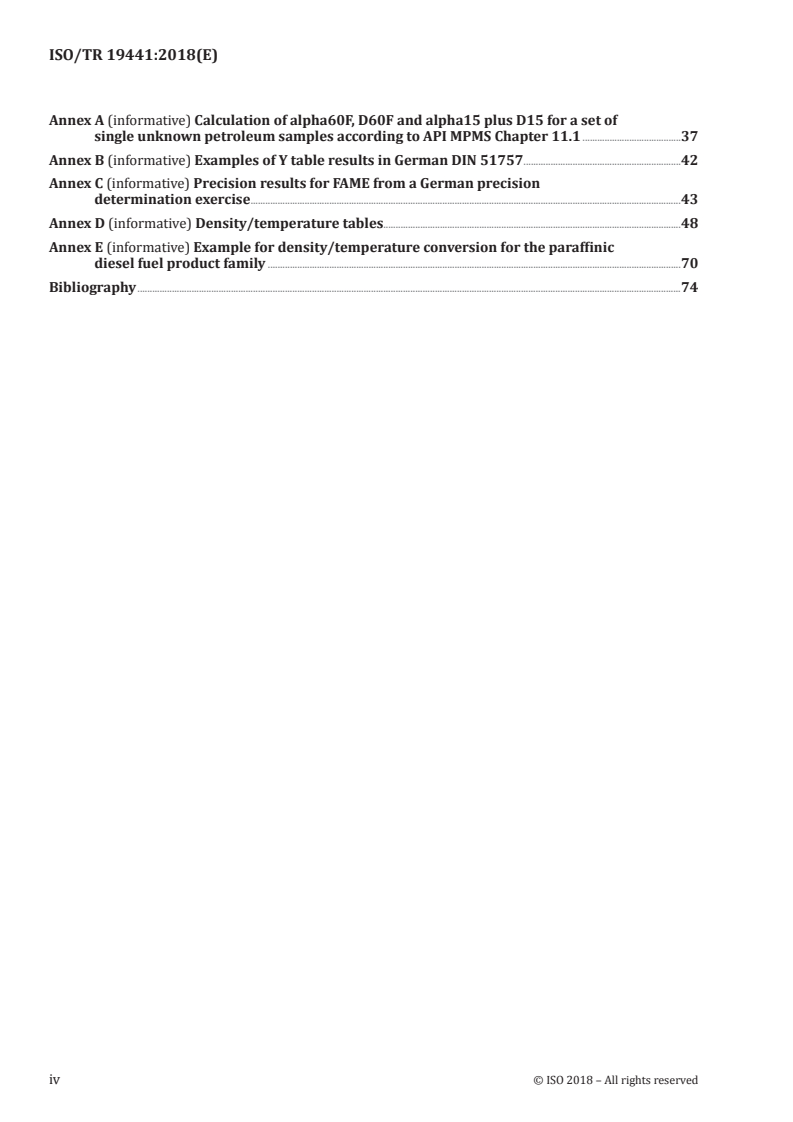

Annex A (informative) Calculation of alpha60F, D60F and alpha15 plus D15 for a set of
single unknown petroleum samples according to API MPMS Chapter 11.1 .37
Annex B (informative) Examples of Y table results in German DIN 51757 .42
Annex C (informative) Precision results for FAME from a German precision
determination exercise .43
Annex D (informative) Density/temperature tables.48
Annex E (informative) Example for density/temperature conversion for the paraffinic
diesel fuel product family .70
Bibliography .74
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 19441:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by ISO/TC 28, Petroleum and related products, fuels and lubricants from
natural or synthetic sources.
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 19441:2018(E)
Introduction
The density of hydrocarbon fuels at a standard condition of temperature and pressure is used to
define the quantity (standard volume) of the product during trade and fiscal transactions. To ensure
standardization in the calculation of standard volume and density from actual conditions the thermal
and pressure expansion factors are calculated through the application of standardized methods and
algorithms.
In the advent of new fuel compositions like HVO (“Hydrogenated Vegetable Oil”) as well as blends with
bio products like ethanol and FAME (“Fatty Acid Methyl Esters”) in the markets, the question was
raised whether the density/temperature relationships, which have been applied for more than 60 years
to transform the density or volume of a petroleum product, are a temperature measured at transport
time or a “reduced” density or volume value at a standard temperature (15°C and in some areas 60 °F).
In order to identify potential differences for these new products, the German petroleum standardization
committee (DIN-FAM) started as early as 2003 to make extensive density/temperature measurements
starting with FAME. Examination of additional products followed, and other associations like AFNOR
and the Energy Institute (EI) also shared their results of similar investigations.
This document also recommends procedural steps to obtain data which will determine the thermal
expansion of new or alternative fuels and blends hence allowing a comparison to accepted and
standardized correction factors (e.g. Petroleum Measurement Tables - ISO 91, IP 200 and API MPMS
chapters 11.1, 11.2.4 and 11.5).
This document collates the executed measurements, modelling procedures and results in order to keep
measured data available for later reference, including some recommendations for further work and a
list of possibly unresolved questions.
For a number of reasons the work has been restricted to fuels, bio fuel components, and their blends
and to some burner fuels and components. The majority of these examined products followed European
Fuel Specifications such as EN 228, EN 590, EN 14214, EN 15376, and the reference temperature was
kept at 15 °C. The work only covers the thermal expansion of the products at a standard condition of
pressure and has not been extended to compressibility.
This document also recommends procedural steps to obtain data which allows a decision to be made on
whether any completely new fuel composition can or cannot use the published internationally accepted
API Petroleum Measurement Tables (“PMT”) which are also the basis of several international and
national petroleum measurement standards.
In addition, this document contains an extensive list of publications which can yield further in-depth
information about this complex and interesting petroleum measurement topic.
vi © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 19441:2018(E)
Petroleum products — Density versus temperature
relationships of current fuels, biofuels and biofuel
components
1 Scope
This document lists and describes recent density measurements at different temperatures for biofuel
components and biofuel blends such as gasoline E5, E10, E85 and biodiesel B100, B7, as well as domestic
heating oils and paraffinic diesel fuels.
It can be used to calculate , the thermal expansion coefficient from a given temperature to
15 °C. This document can also serve to compare several aspects of density/temperature modelling and
to check for compliance with and limitations in relation to existing calibration requirements. It can
help in the determination of specific necessities for the grouping of fuels into common product family
classes, also suggesting ways to treat fuels or components with an unusual behaviour. In addition, this
document proposes possible steps for an internationally harmonized handling of new components
coming into the market.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Summary
Several extensive sample sets comprising artificial blends as well as market fuels were analysed with
respect to their temperature-dependent densities. The purpose of these analyses was to find out if the
density, as well as the volume, at a certain temperature can be predicted using the constants, group
constants and regression models of the internationally used API Petroleum Measurement Tables (PMT)
[13]
published in 1960 and revised in 1980 .
The examined products were:
[28]
— diesel fuels (B0, B5, B7) according to the European standard fuel specification EN 590 ,
supplemented by some additional blends with FAME;
— fatty acid methyl esters (biodiesel) of different compositions and origins which are in the market
[31]
today ;
[27]
— petrol (E0, E5, E10) according to the European standard fuel specification EN 228 , supplemented
by some additional blends with ethanol up to E100;
[29]
— domestic heating fuels according to DIN 51603-1 , also as low sulfur grade;
© ISO 2018 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 19441:2018(E)
— several samples of paraffinic diesel fuels (GTL, XTL) for which an European standard fuel specification
[30]
is established as EN 15940 .
The main intention of this study was to find out if individually calculated thermal expansion coefficients
α and their corresponding densities (or volumes) at 15 °C are close enough to the values predicted by
15
the published PMT values, taking into consideration the precision requirements of the EC Measuring
Instruments Directive. This directive is of particular importance e.g. for the calibration of volume
metering equipment.
The executed studies indicate that although some small biases were found in most cases, the predictions
described in the PMT may still be used, except for a smaller number of cases being:
— MD/diesel blends with more than about 50 %(V/V) of coconut methyl ester (CME);
— automotive E85 fuels with more than about 40 %(V/V) ethanol content;
— some new products like paraffinic diesel fuel.
Since it not possible to extrapolate such findings to any other kind of new product types, a
recommendation is given to investigate such temperature versus density/volume behaviour when new
fuel specifications are under development.
In any case it is strongly recommended to decide before any such investigation if the resulting model
should be just good enough to fulfil the requirement or if best possible precision is wanted. This decision
can have some influence about the choice of the best suited regression model.
As a long term perspective, a full revision of the PMT models and constants should be considered
especially if it is expected that there will be much more variation in fuel composition as compared to
the last, say 50 years.
5 Background and motivation
It is common knowledge that the density of a product in its liquid phase depends mainly on product
composition; temperature, due to extra- and intermolecular motion.
In addition, pressure can also affect density, but this effect was not investigated here because the
changes caused by pressure are orders of magnitude smaller than those from temperature changes.
For trading and transport, the density-temperature function of a product is a very important product
property for the determination of the product amount because the temperature of a liquid fuel can be
as high as 50 °C, whereas, e.g. for tax reasons, almost all regulatory requirements demand that product
densities are reported at a standard temperature of 15 °C (or, like in the US, also at 60 °F) as a prediction
using these density-temperature procedures.
The internationally accepted procedures for the determination and application of density and volume
transformation from one temperature to another or to a standard temperature have been developed
and standardized by the API and ASTM and are commonly referred to as the Petroleum Measurement
[14]
Tables (PMT). These tables have been adopted by ISO (ISO 91) and by OIML by referring to ISO 91 .
The tables and the procedures within them have been have been applied successfully and with
satisfactory precision for more than 60 to 70 years and provide a standardized and accepted basis for
[1][2][3][4]
trade .
NOTE 1 This report refers to the three latest version of the API tables, published in 1960, 1980 and 2000. The
version from 2000 is a computer adoption of the 1980 version, including pressure correction.
It is evident that this success is mainly based on the existence of comparatively small compositional
changes across a specific product family. The advent of biofuels and biofuel components like FAME
(Fatty Acid Methyl Esters) in the market raised the question of whether the PMT tables could still be
applied with acceptable precision for the predicted density at reference temperature. This question
2 © ISO 2018 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 19441:2018(E)
led to several series of FAME density measurements at different institutions in Germany, the UK and
France, and probably also in many other countries.
Later this campaign was extended to ethanol, petrol blends (E0, E5, E10, … E85, E100) and to several
other products like Hydrogenated Vegetable Oil (HVO), paraffinic Diesel fuels (GTL, XTL).
NOTE 2 Most of the mentioned calculations and procedures and their background are documented at least in
part in the available standards, publications and regulatory documents, so a large portion of the described detail
is supposed to be common knowledge for the experts working with petroleum measurement regularly. It is the
intention of this document to describe everything to such a degree of detail that also people new to this field of
expertise have a chance to follow and understand all of the contained reasoning.
Although the latest version of the PMT and ISO 91 are recommended, older versions are sometimes still
employed as defined in local regulation, practice or commercial agreements.
These facts might be able to explain some differences which could not be explained otherwise.
6 Basic analytical considerations
6.1 Intentions of this document
In order to fully comprehend the discussions and arguments presented in this document, the following
clauses set out the relevant definitions, procedures, facts, calculations and consequences.
It is not the intention of this document to copy already existing content from other existing publications
or standards, but it was found essential to compile all relevant facts in one place. For further information,
see the Bibliography.
6.2 Physical property density
The physical property density is defined as the ratio of mass over volume as shown in Formulae (1)
and (2). It is important to note that the density depends to a large extent on the product temperature
such that with increasing temperature density decreases (volume increase e.g. due to more molecular
motion) while mass remains constant. As this document only deals with (liquid) fuels, phase transitions
to the gaseous or solid state are not discussed. Such transitions can become a problem at extreme
product temperatures.
NOTE 1 While density is normally represented by the Greek letter ρ, this document uses a capital D for density
for easier and more clear writing. Further information is often added as an index or given in brackets. This means
that e.g. D15 and D(15) will mean the same thing:
ρρ==mV/1 m*V (1)
()
tt tt
Dt =mV/ t (2)
() ()
where
3
ρ, D is the sample density; usually in g/ml or kg/m ;
m is the sample mass (NOT the weight); usually in g or kg;
3
V is the sample volume; usually in ml or m ;
t is the sample’s temperature; usually in °C.
The numerator of the density definition is mass and not, as sometimes wrongly stated, weight, which is the
property when gravity acts on the mass of a product. Therefore, constructs like density in air or density in
vacuum simply do not exist. For cases where weight is required, a correction for the air buoyancy mass can be
applied.
© ISO 2018 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 19441:2018(E)
NOTE 2 There are several incarnations of a reported density value, depending on the fact if this value was
obtained by direct measurement at the required temperature; or if it was predicted from measurement at a
different temperature using PMT procedures for appropriate conversion to standard temperature. In cases
where this can become relevant, corresponding mention is made in this document.
NOTE 3 There are several test methods, all using different physical principles for the determination of the
density of petroleum products/fuels (see experimental section). Only the quartz oscillator test method has been
used in this report as prescribed in ISO 12185. This is currently the most used density test method for liquid fuels.
6.3 Density for (defined) product blends/mixtures
For many product blends density follows a linear regime, i.e. the density/volume of the blend has a
linear relationship with the volumes and densities of the components when measured at the same
temperature.
However exceptions to this rule are known from literature and recent work which show that for blends
of some components the relationship can be far from linear. Examples include:
— temperature of mixture changes during blending;
— molecular and compositional structures of blend components are significantly different;
— other physical effects occur such as modified molecular solvent cages e.g. for alcohols (OH bonding).
6.4 The volume correction factor (VCF)
The definition for the volume correction factor (VCF) is given in Formulae (3) and (4). The VCF is simply
the ratio of density at the temperature t of interest over density at standard temperature (normally
15 °C). It is therefore the basic proportionality function for the calculation (prediction) of density (or
volume) at standard temperature from a density (or volume) measured at another temperature t or vice
versa. Elaborate models like the PMT and several others have been developed for construction of this
VCF function for single products as well as for commonly used product families. The following sections
of this document will give more detail about these models and their modelling strategies. But first we
should have a look at the basic definitions.
VCFrtt,/ef ⋅ =Dt Dtref ⋅ (3)
() () ()
VCFrtt,/ef ⋅ =⋅Vtref Vt (4)
() () ()
where
VCF being volume/volume or density/density ratios (dimensionless);
D, V being density and volume as explained in Formula (1);
ref·t being the sample’s reference temperature; usually 15 °C;
t being the sample’s temperature; usually in °C.
It is evident that the VCF has the value 1,000 0 at the reference temperature (usually 15 °C). Also,
individual VCF(t) functions for different products will by default always intersect at the reference
temperature. It is also important to note that each single VCF function has been derived for a specific
sample of a product family for limited temperature or density ranges which should not be extrapolated.
The form of the VCF function can range from nonlinear/exponential, linear, and even constant (like for
some products with little variation in composition and density/temperature range). The models used
for petroleum metering should reflect such different functional behaviours.
For products of similar/comparable density, temperature and composition, the PMT allow some
grouping into product families. Here, a hopefully large and representative number of product family
4 © ISO 2018 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 19441:2018(E)
members is investigated. This investigation results in a set of constants K , K , K , from which
0 1 2
the thermal expansion coefficient α can be calculated with inclusion of the density at reference
ref
temperature (see modelling section for more detail).
6.5 Graphical representations of the density/temperature behaviour
Figure 1 shows a commonly used and typical graphical representation of the D(t) behaviour for
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
