Standards Content (sample)

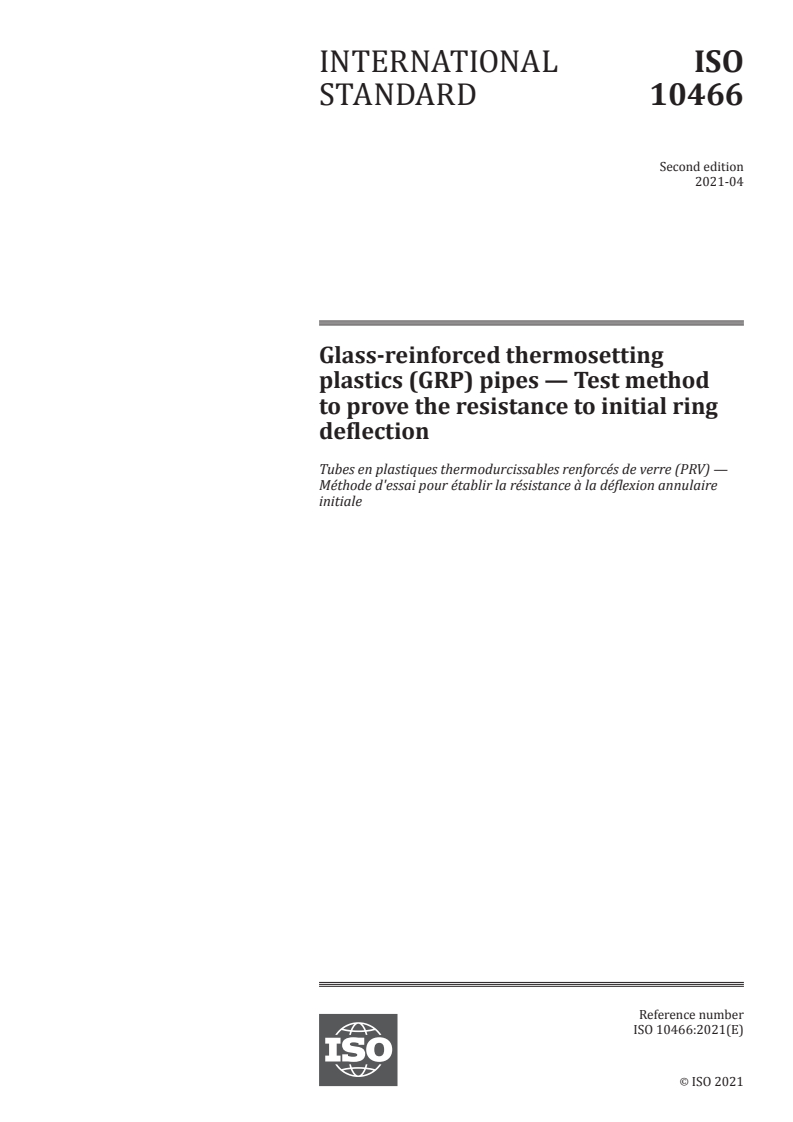

INTERNATIONAL ISO
STANDARD 10466
Second edition
2021-04
Glass-reinforced thermosetting
plastics (GRP) pipes — Test method
to prove the resistance to initial ring
deflection
Tubes en plastiques thermodurcissables renforcés de verre (PRV) —
Méthode d'essai pour établir la résistance à la déflexion annulaire
initiale
Reference number
ISO 10466:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 10466:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 10466:2021(E)

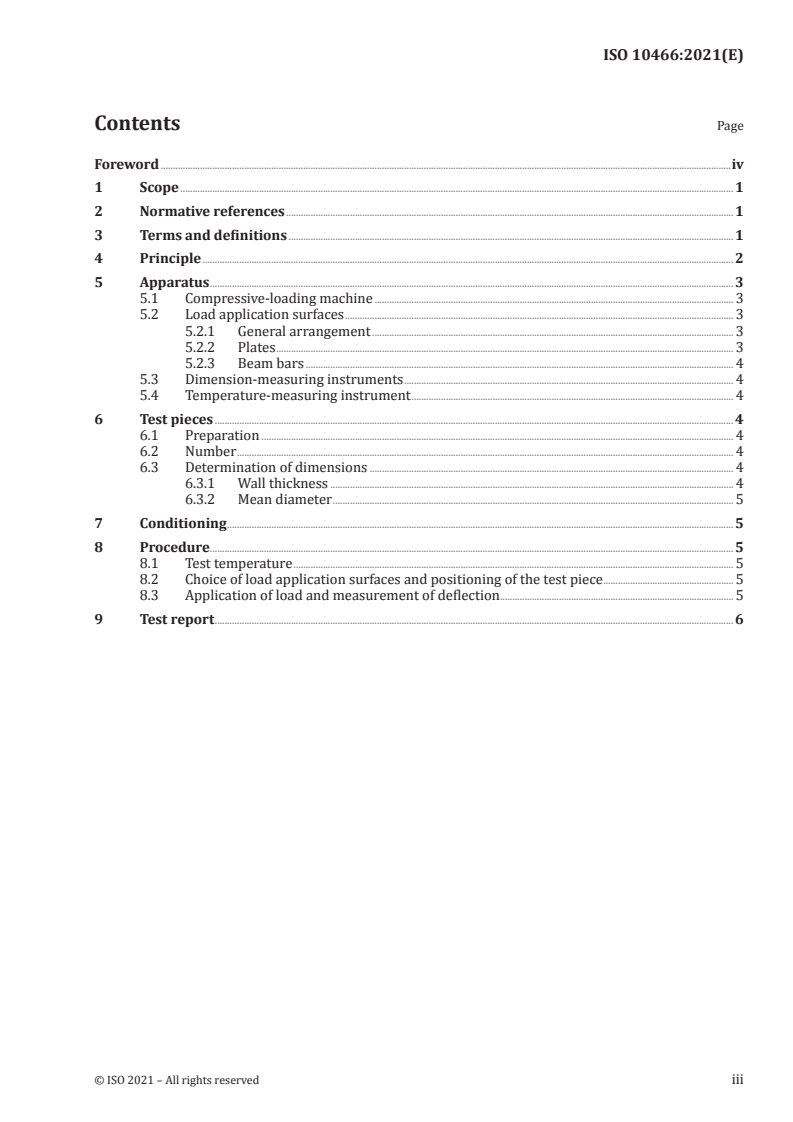

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 2

5 Apparatus ..................................................................................................................................................................................................................... 3

5.1 Compressive-loading machine .................................................................................................................................................. 3

5.2 Load application surfaces .............................................................................................................................................................. 3

5.2.1 General arrangement ................................................................................................................................................... 3

5.2.2 Plates .......................................................................................................................................................................................... 3

5.2.3 Beam bars .............................................................................................................................................................................. 4

5.3 Dimension-measuring instruments ...................................................................................................................................... 4

5.4 Temperature-measuring instrument ................................................................................................................................... 4

6 Test pieces ................................................................................................................................................................................................................... 4

6.1 Preparation ................................................................................................................................................................................................ 4

6.2 Number .......................................................................................................................................................................................................... 4

6.3 Determination of dimensions .................................................................................................................................................... 4

6.3.1 Wall thickness .................................................................................................................................................................... 4

6.3.2 Mean diameter ................................................................................................................................................................... 5

7 Conditioning .............................................................................................................................................................................................................. 5

8 Procedure..................................................................................................................................................................................................................... 5

8.1 Test temperature ................................................................................................................................................................................... 5

8.2 Choice of load application surfaces and positioning of the test piece ..................................................... 5

8.3 Application of load and measurement of deflection ............................................................................................... 5

9 Test report ................................................................................................................................................................................................................... 6

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 10466:2021(E)

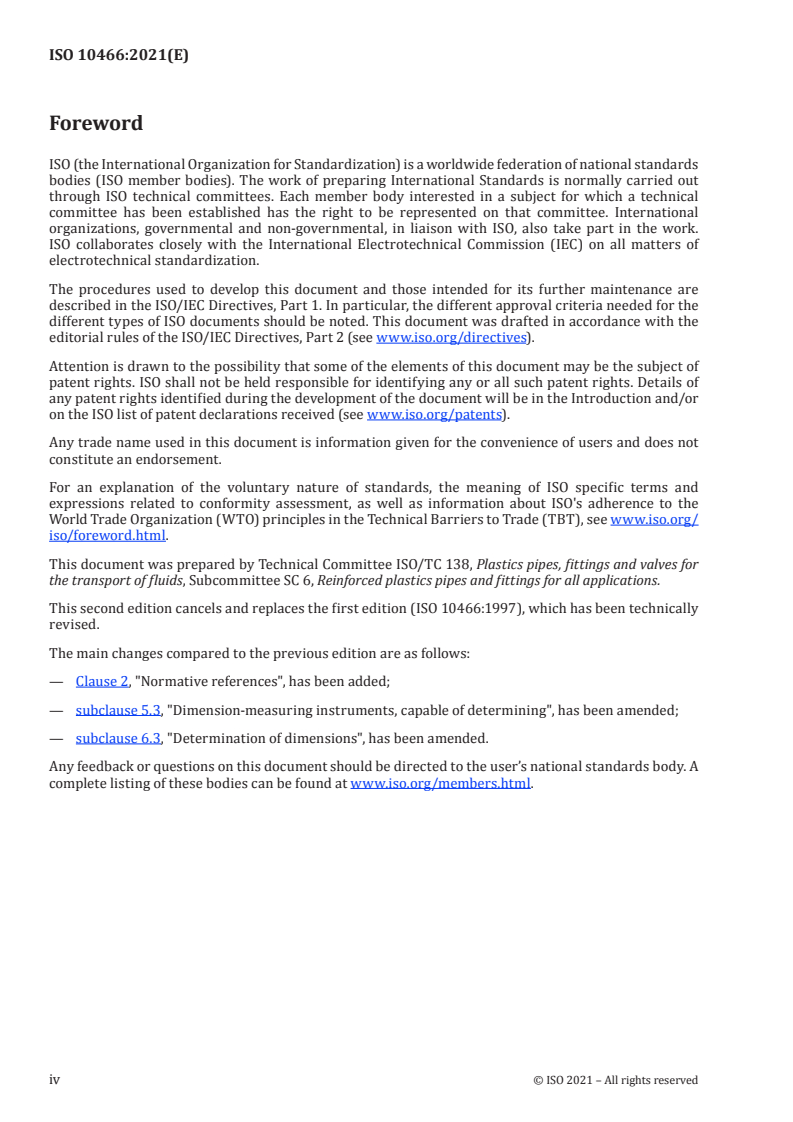

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for

the transport of fluids, Subcommittee SC 6, Reinforced plastics pipes and fittings for all applications.

This second edition cancels and replaces the first edition (ISO 10466:1997), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— Clause 2, "Normative references", has been added;

— subclause 5.3, "Dimension-measuring instruments, capable of determining", has been amended;

— subclause 6.3, "Determination of dimensions", has been amended.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 10466:2021(E)
Glass-reinforced thermosetting plastics (GRP) pipes — Test
method to prove the resistance to initial ring deflection
1 Scope

This document specifies a method for testing the ability of glass-reinforced thermosetting plastics

(GRP) pipes to withstand specified levels of initial ring deflection without displaying surface damage

and/or structural failure.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 3126, Plastics piping systems — Plastics components — Determination of dimensions

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
vertical deflection

vertical change in diameter of a pipe in a horizontal position in response to a vertical compressive load

Note 1 to entry: It is expressed in metres.
3.2
relative vertical deflection
y/d

ratio of the vertical deflection, y, (3.1) to the mean diameter, d (3.3), of the pipe

3.3
mean diameter

diameter of the circle corresponding to the middle of the pipe wall cross-section and given, in metres

(m), by either of the following formulae:
dd=+e
dd=−e
m e
where
© ISO 2021 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 10466:2021(E)
d is the internal diameter, in metres;
d is the external diameter, in metres;
e is the wall thickness of the pipe, in metres.
3.4
visual evidence of structural failure
unless otherwis
...

INTERNATIONAL ISO
STANDARD 10466
Second edition
Glass-reinforced thermosetting
plastics (GRP) pipes — Test method
to prove the resistance to initial ring
deflection
PROOF/ÉPREUVE
Reference number
ISO 10466:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 10466:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 10466:2021(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 2

5 Apparatus ..................................................................................................................................................................................................................... 3

5.1 Compressive-loading machine .................................................................................................................................................. 3

5.2 Load application surfaces .............................................................................................................................................................. 3

5.2.1 General arrangement ................................................................................................................................................... 3

5.2.2 Plates .......................................................................................................................................................................................... 3

5.2.3 Beam bars .............................................................................................................................................................................. 4

5.3 Dimension-measuring instruments ...................................................................................................................................... 4

5.4 Temperature-measuring instrument ................................................................................................................................... 4

6 Test pieces ................................................................................................................................................................................................................... 4

6.1 Preparation ................................................................................................................................................................................................ 4

6.2 Number .......................................................................................................................................................................................................... 4

6.3 Determination of dimensions .................................................................................................................................................... 4

6.3.1 Wall thickness .................................................................................................................................................................... 4

6.3.2 Mean diameter ................................................................................................................................................................... 5

7 Conditioning .............................................................................................................................................................................................................. 5

8 Procedure..................................................................................................................................................................................................................... 5

8.1 Test temperature ................................................................................................................................................................................... 5

8.2 Choice of load application surfaces and positioning of the test piece ..................................................... 5

8.3 Application of load and measurement of deflection ............................................................................................... 5

9 Test report ................................................................................................................................................................................................................... 6

© ISO 2021 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO 10466:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and vlaves for

the transport of fluids, Subcommittee SC 6, Reinforced plasicts pipes and fittings for all applications.

This second edition cancels and replaces the first edition (ISO 10466:1997), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— Clause 2, "Normative references", has been added;

— subclause 5.3, "Dimension-measuring instruments, capable of determining", has been amended;

— subclause 6.3, "Determination of dimensions", has been admended.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 10466:2021(E)
Glass-reinforced thermosetting plastics (GRP) pipes — Test
method to prove the resistance to initial ring deflection
1 Scope

This document specifies a method for testing the ability of glass-reinforced thermosetting plastics

(GRP) pipes to withstand specified levels of initial ring deflection without displaying surface damage

and/or structural failure.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 3126, Plastics piping systems — Plastics components — Determination of dimensions

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
vertical deflection

vertical change in diameter of a pipe in a horizontal position in response to a vertical compressive load

Note 1 to entry: It is expressed in metres.
3.2
relative vertical deflection
y/d

ratio of the vertical deflection, y, (3.1) to the mean diameter, d (3.3), of the pipe

3.3
mean diameter

diameter of the circle corresponding to the middle of the pipe wall cross-section and given, in metres

(m), by either of the following formulae:
dd=+e
dd=−e
m e
where
© ISO 2021 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 5 ----------------------
ISO 10466:2021(E)
d is the internal diameter, in m;
d is the external diameter, in m;
e is the wall thickness of the pipe, in m
3.4
visual evidence of structural failure

unless otherwise specified by the referring standard, a failure apparent in any of the following forms:

— inter
...
