SIST EN 50065-4-5:2004

Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz -- Part 4-5: Low voltage decoupling filter - Segmentation filter

This standard applies to segmentation filters in a mains communication system used for single or multiphase installations having a phase to neutral voltage not exceeding 250 V a.c. and a nominal current not exceeding 125 A, intended for household and similar fixed installation including residential, commercial and light industrial buildings and utility networks.
These filters (see Figure 1) are used to control the coupling of signals between two areas of a mains communication system.
The standard defines
-the minimum impedance in the relevant frequency range(s) at both ports,
-the minimum attenuation of signals transmitted between port.

Signalübertragung auf elektrischen Niederspannungsnetzen im Frequenzbereich 3 kHz bis 148,5 kHz -- Teil 4-5: Niederspannungs-Entkopplungsfilter - Segmentierungsfilter

Diese Norm gilt für Segmentierungsfilter (Trennfilter) in einem System zur Signalübertragung auf elektrischen Niederspannungsnetzen für einphasige oder mehrphasige Installationen, deren Spannung zwischen Phase und Neutralleiter 250 V- nicht überschreitet und deren Nennstrom 125 A nicht überschreitet und die !Ur die Verwendung im Haushalt oder vergleichbaren ortsfesten Installationen vorgesehen sind, einschließlich Wohnbereich, Geschäfts- und Gewerbebereich sowie in Kleinbetrieben und Netzwerken der Energieversorger.
Diese Filter (siehe Bild 1) werden zur Steuerung der Signalkopplung zwischen zwei Bereichen eines Signalübertragungssystems auf elektrischen Niederspannungsnetzen verwendet.
Die Norm definiert:
-die minimale Impedanz innerhalb des relevanten Frequenzbereiches an beiden Anschlüssen.
-die minimale Abschwächung der Signale, die zwischen den Anschlüssen übertragen werden.

Transmission de signaux sur les réseaux électriques basse tension dans la bande de fréquences de 3 kHz à 148,5 kHz -- Partie 4-5: Filtres basse tension de découplage - Filtre de segmentation

Cette norme s’applique aux filtres de segmentation dans un système de communication sur le réseau électrique monophasé ou polyphasé ayant une tension entre phase et neutre qui ne dépasse pas 250 V en courant alternatif et un courant nominal ne dépassant pas 125 A, destinés à des installations fixes domestiques et analogues y compris les bâtiments résidentiels, commerciaux et de l'industrie légère.
Ces filtres (voir Figure 1) sont utilisés pour contrôler le couplage des signaux entre deux zones d’un système de communication sur le réseau électrique.
La norme définit:
-l’impédance minimale dans la(les) bande(s) de fréquences correspondante(s) pour chaque accès,
-l’atténuation minimale des signaux transmis entre les accès.

Signalizacija po nizkonapetostnih električnih napeljavah v frekvenčnem območju od 3 kHz do 148,5 kHz – 4-5. del: Nizkonapetostni ločilni filtri – Razčlenjeni filter

General Information

• Status: Published
• Publication Date: 29-Feb-2004
• ICS: 31.160 - Electric filters
• ICS: 33.040.30 - Switching and signalling systems
• Technical Committee: KIN - Mains communicating systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2004
• Due Date: 01-Mar-2004
• Completion Date: 01-Mar-2004
• Ref Project: EN 50065-4-5:2003 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz - Part 4-5: Low voltage decoupling filter - Segmentation filter

Relations

• Revised: SIST EN 50065-4-5:2023 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz Part 4-5: Low voltage decoupling filter - Segmentation filter
• Effective Date: 14-May-2019

Overview - EN 50065-4-5:2003 (Segmentation filter)

EN 50065-4-5:2003 is the CLC/CENELEC European standard for segmentation filters used in mains communication (powerline communication) systems on low-voltage installations. It covers low-voltage decoupling filters that control the coupling of signalling in the frequency range 3 kHz to 148.5 kHz for single- and multiphase installations (phase-to-neutral ≤ 250 V AC, nominal current ≤ 125 A). The standard defines the minimum impedance and minimum attenuation characteristics required at filter ports and sets marking, safety and immunity expectations by reference to other EN 50065 parts.

Key topics and technical requirements

• Scope & application: For household and similar fixed installations including residential, commercial, light industrial buildings and utility networks.
• Filter types:
  • Type 1 - Asymmetrical filter: one supply backbone port and one segment port with differing impedance characteristics.
  • Type 2 - Symmetrical filter: two segment ports with matching impedance characteristics.
• Operating frequency bands:
  • Utility segmentation filters: within 3 kHz to 95 kHz.
  • Consumer segmentation filters: within 95 kHz to 148.5 kHz.
  • The manufacturer must specify the operating frequency range.
• Impedance requirement:
  • On segment ports (type 1 and both ports of type 2): modulus of impedance > 10 Ω across the specified operating frequency range (measurement per EN 50065-4-1 clause 6.1).
• Transfer function / attenuation:
  • The segmentation filter must provide the attenuation specified by the manufacturer, measured in each direction when the filter is loaded with 5 Ω on both sides (measurement methods per EN 50065-4-1 clause 6.2).
• Marking: Must include the operating frequency range and attenuation within these bands.
• Safety & immunity:
  • Overvoltage categories: III for consumer network use, IV for utility network use.
  • Immunity requirements are referenced to EN 50065-2-1, -2-2 or -2-3 depending on environment.

Applications and practical value

• Use segmentation filters to partition a powerline communication system into independent segments to:
  • Reduce interference between building areas or network zones.
  • Improve signal containment and enable multiple PLC networks on the same power infrastructure.
  • Support utility broadband and smart metering deployments where segment isolation is required.
• Typical users: filter manufacturers, PLC system integrators, electrical installers, utility engineers, test laboratories and product certifiers.

Related standards

• EN 50065-1 (general requirements, frequency bands)
• EN 50065-2-1 / 2-2 / 2-3 (immunity requirements)
• EN 50065-4-1 (generic decoupling filter spec) and EN 50065-4-2 (safety)
• Other EN 50065 parts covering incoming, impedance and phase-coupler filters

EN 50065-4-5 is essential for anyone designing, specifying or testing segmentation filters within powerline communication systems to ensure compliant impedance, attenuation and safe operation across the defined signalling frequency ranges.

Standards Content (Sample)

SLOVENSKI SIST EN 50065-4-5:2004

STANDARD
marec 2004
Signalizacija po nizkonapetostnih električnih napeljavah v frekvenčnem
območju od 3 kHz do 148,5 kHz – 4-5. del: Nizkonapetostni ločilni filtri –
Razčlenjeni filter
Signalling on low-voltage electrical installations in the frequency range 3 kHz to
148,5 kHz - Part 4-5: Low voltage decoupling filter - Segmentation filter
ICS 31.160; 33.040.30 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 50065-4-5
NORME EUROPÉENNE
EUROPÄISCHE NORM January 2003

ICS 31.160; 33.040.30; 97.120
English version
Signalling on low-voltage electrical installations
in the frequency range 3 kHz to 148,5 kHz
Part 4-5: Low voltage decoupling filter -
Segmentation filter
Transmission de signaux sur les réseaux Signalübertragung auf elektrischen
électriques basse tension dans la bande Niederspannungsnetzen im
de fréquences de 3 kHz à 148,5 kHz Frequenzbereich 3 kHz bis 148,5 kHz
Partie 4-5: Filtres basse tension Teil 4-5: Niederspannungs-
de découplage - Entkopplungsfilter -
Filtre de segmentation Bereichsfilter

This European Standard was approved by CENELEC on 2002-04-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50065-4-5:2003 E

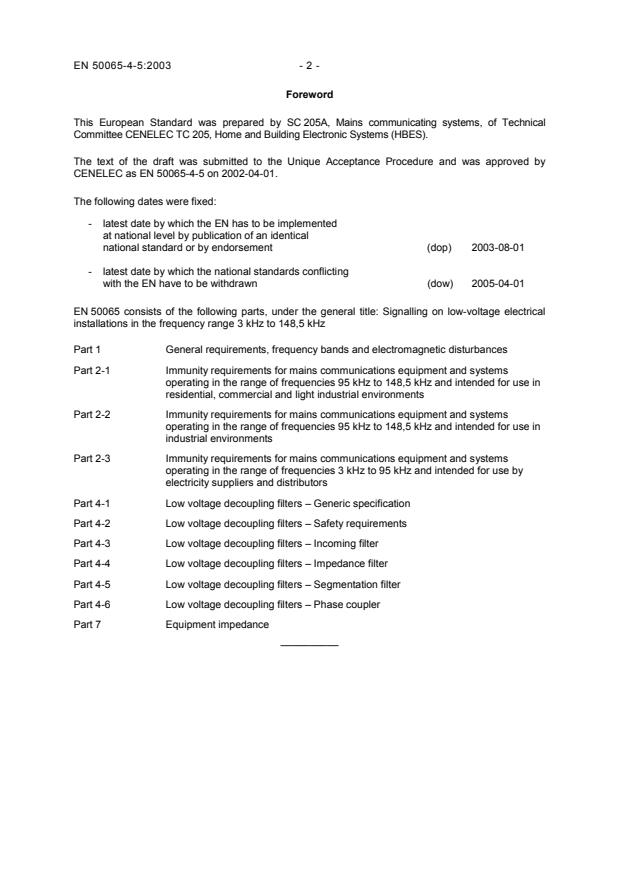

Foreword
