EUROPEAN STANDARD EN 50065-4-5
NORME EUROPÉENNE
EUROPÄISCHE NORM March 2023
ICS 31.160; 33.040.30; 97.120 Supersedes EN 50065-4-5:2003
English Version
Signalling on low-voltage electrical installations in the frequency
range 3 kHz to 148,5 kHz Part 4-5: Low voltage decoupling filter
- Segmentation filter
Transmission de signaux sur les réseaux électriques basse Signalübertragung auf elektrischen Niederspannungsnetzen
tension dans la bande de fréquences de 3 kHz à 148,5 kHz im Frequenzbereich 3 kHz bis 148,5 kHz - Teil 4-5:
- Partie 4-5: Filtres de découplage basse tension - Filtre de Niederspannungs-Entkopplungsfilter - Segmentierungsfilter
segmentation
This European Standard was approved by CENELEC on 2022-10-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50065-4-5:2023 E
---------------------- Page: 3 ----------------------
SIST EN 50065-4-5:2023
EN 50065-4-5:2023 (E)

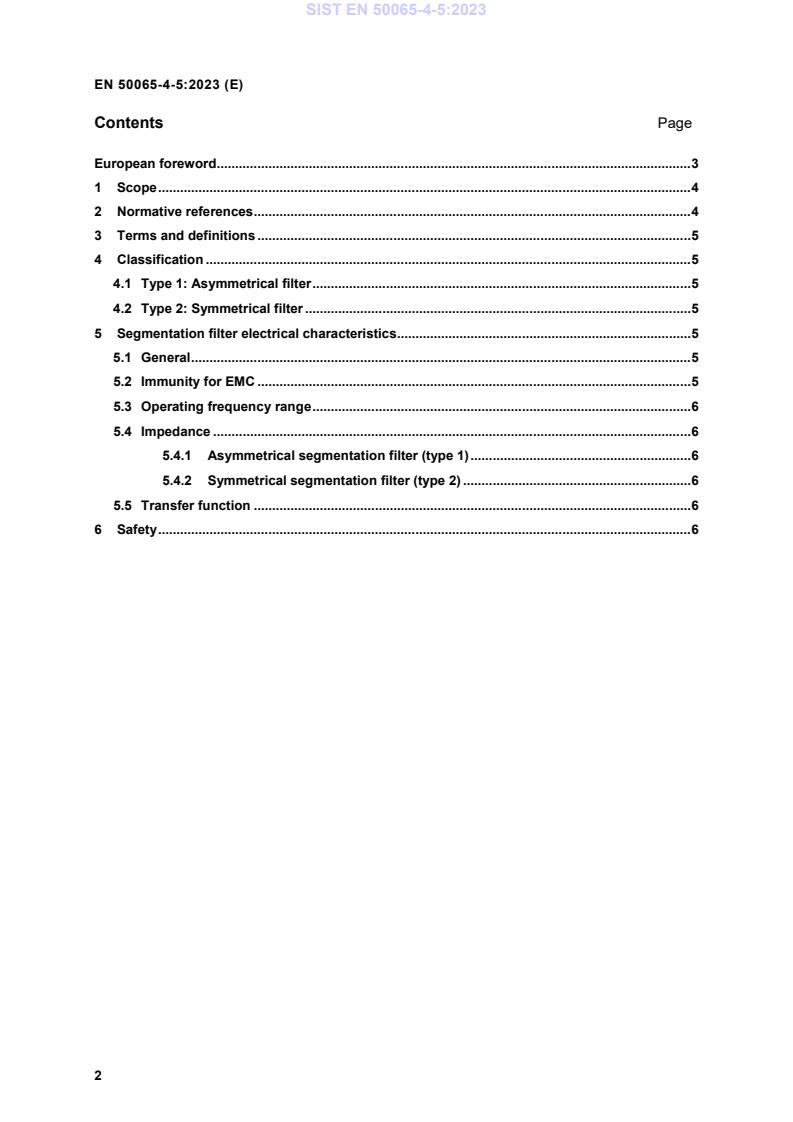

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Classification . 5
4.1 Type 1: Asymmetrical filter . 5
4.2 Type 2: Symmetrical filter . 5
5 Segmentation filter electrical characteristics . 5
5.1 General . 5
5.2 Immunity for EMC . 5
5.3 Operating frequency range . 6
5.4 Impedance . 6
5.4.1 Asymmetrical segmentation filter (type 1) . 6
5.4.2 Symmetrical segmentation filter (type 2) . 6
5.5 Transfer function . 6
6 Safety . 6
2
---------------------- Page: 4 ----------------------
SIST EN 50065-4-5:2023
EN 50065-4-5:2023 (E)
European foreword
This document (EN 50065-4-5:2023) has been prepared by WG 12 “Filters” of CLC/TC 219 “Mains
communicating systems”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-09-24
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-03-24
conflicting with this document have to be
withdrawn
This document supersedes EN 50065-4-5:2003 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
EN 50065 consists of the following parts, under the general title: Signalling on low-voltage electrical
installations in the frequency range 3 kHz to 148,5 kHz:
Part 1: General requirements, frequency bands and electromagnetic disturbances
Part 2-1: Immunity requirements for mains communications equipment a
...
