oSIST prEN 50065-4-7:2021

Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz Part 4-7: Portable low voltage decoupling filters - Safety requirements

This product safety standard applies to the filter part of portable devices for household and similar uses consisting of the filter part, a plug or an appliance inlet or a provision for connection by terminals or with a non-rewirable cord and a socket-outlet or an appliance outlet. They are intended for single-phase circuits for nominal currents not exceeding 16 A and for nominal voltages not exceeding 250 V a.c.. This standard does not cover phase couplers. Filters including batteries are not covered by this standard.

Signalübertragung auf elektrischen Niederspannungsnetzen im Frequenzbereich 3 kHz bis 148,5 kHz Teil 4-7: Bewegliche Niederspannungs-Entkopplungsfilter - Sicherheitsanforderungen

Transmission de signaux sur les réseaux électriques basse tension dans la bande de fréquences de 3 kHz à 148,5 kHz - Partie 4-7: Filtres de découplage basse tension mobiles - Exigences de sécurité

Signalizacija po nizkonapetostnih električnih napeljavah v frekvenčnem območju od 3 kHz do 148,5 kHz - 4-7. del: Prenosni nizkonapetostni ločilni filtri - Varnostne zahteve

General Information

• Status: Not Published
• Public Enquiry End Date: 15-Jul-2021
• ICS: 31.160 - Electric filters
• ICS: 33.040.30 - Switching and signalling systems
• Technical Committee: ELI - Electrical and communication installations
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 02-Jun-2021
• Due Date: 20-Oct-2021
• Completion Date: 10-Jun-2021
• Directive: 2004/22/EC - Directive 2004/22/EC of the European Parliament and of the Council of 31 March 2004 on measuring instruments
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/441 - Standardisation mandate to CEN, CENELEC and ETSI in the field of measuring instruments for the development of an open architecture for utility meters involving communication protocols enabling interoperability
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: FprEN 50065-4-7 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz Part 4-7: Portable low voltage decoupling filters - Safety requirements

Relations

• Revised: SIST EN 50065-4-7:2006 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz and 1,6 MHz to 30 MHz -- Part 4-7: Portable low voltage decoupling filters - Safety requirements
• Effective Date: 14-May-2019

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 50065-4-7:2021
01-julij-2021
Signalizacija po nizkonapetostnih električnih napeljavah v frekvenčnem območju
od 3 kHz do 148,5 kHz - 4-7. del: Prenosni nizkonapetostni ločilni filtri - Varnostne
zahteve
Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5
kHz Part 4-7: Portable low voltage decoupling filters - Safety requirements
Signalübertragung auf elektrischen Niederspannungsnetzen im Frequenzbereich 3 kHz
bis 148,5 kHz Teil 4-7: Bewegliche Niederspannungs-Entkopplungsfilter -
Sicherheitsanforderungen
Transmission de signaux sur les réseaux électriques basse tension dans la bande de
fréquences de 3 kHz à 148,5 kHz - Partie 4-7: Filtres de découplage basse tension
mobiles - Exigences de sécurité
Ta slovenski standard je istoveten z: prEN 50065-4-7
ICS:
31.160 Električni filtri Electric filters
33.040.30 Komutacijski in signalizacijski Switching and signalling
sistem systems
oSIST prEN 50065-4-7:2021 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 50065-4-7:2021

---------------------- Page: 2 ----------------------
oSIST prEN 50065-4-7:2021

EUROPEAN STANDARD DRAFT
prEN 50065-4-7
NORME EUROPÉENNE

EUROPÄISCHE NORM

April 2021
ICS  Will supersede EN 50065-4-7:2005 and all of its
amendments and corrigenda (if any)
English Version
Signalling on low-voltage electrical installations in the frequency
range 3 kHz to 148,5 kHz Part 4-7: Portable low voltage
decoupling filters - Safety requirements
Transmission de signaux sur les réseaux électriques basse Signalübertragung auf elektrischen Niederspannungsnetzen
tension dans la bande de fréquences de 3 kHz à 148,5 kHz im Frequenzbereich 3 kHz bis 148,5 kHz Teil 4-7:
- Partie 4-7: Filtres de découplage basse tension mobiles - Bewegliche Niederspannungs-Entkopplungsfilter -
Exigences de sécurité Sicherheitsanforderungen
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2021-07-16.

It has been drawn up by CLC/TC 219.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 69663 Ref. No. prEN 50065-4-7 E

---------------------- Page: 3 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)

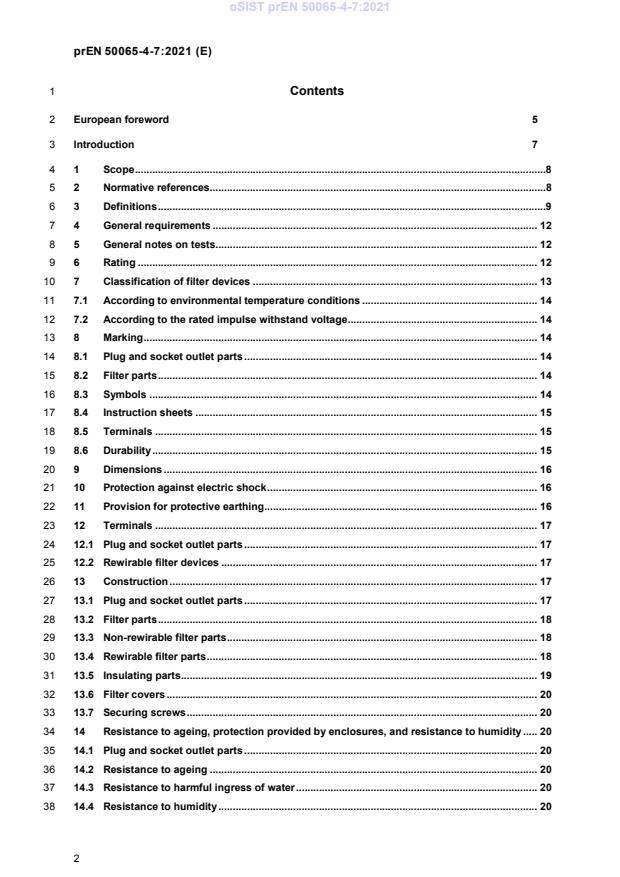

1 Contents
2 European foreword 5
3 Introduction 7
4 1 Scope .8
5 2 Normative references.8
6 3 Definitions .9
7 4 General requirements . 12
8 5 General notes on tests. 12
9 6 Rating . 12
10 7 Classification of filter devices . 13
11 7.1 According to environmental temperature conditions . 14
12 7.2 According to the rated impulse withstand voltage . 14
13 8 Marking . 14
14 8.1 Plug and socket outlet parts . 14
15 8.2 Filter parts . 14
16 8.3 Symbols . 14
17 8.4 Instruction sheets . 15
18 8.5 Terminals . 15
19 8.6 Durability . 15
20 9 Dimensions . 16
21 10 Protection against electric shock . 16
22 11 Provision for protective earthing . 16
23 12 Terminals . 17
24 12.1 Plug and socket outlet parts . 17
25 12.2 Rewirable filter devices . 17
26 13 Construction . 17
27 13.1 Plug and socket outlet parts . 17
28 13.2 Filter parts . 18
29 13.3 Non-rewirable filter parts . 18
30 13.4 Rewirable filter parts . 18
31 13.5 Insulating parts . 19
32 13.6 Filter covers . 20
33 13.7 Securing screws . 20
34 14 Resistance to ageing, protection provided by enclosures, and resistance to humidity . 20
35 14.1 Plug and socket outlet parts . 20
36 14.2 Resistance to ageing . 20
37 14.3 Resistance to harmful ingress of water . 20
38 14.4 Resistance to humidity . 20
2

---------------------- Page: 4 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
39 15 Insulation resistance and dielectric strength . 21
40 15.1 Plug and socket outlet parts . 21
41 15.2 Filter parts . 21
42 16 Temperature rise . 22
43 16.1 Plug and socket outlet parts . 22
44 16.2 Filter parts . 22
45 17 Breaking capacity . 23
46 18 Normal operation . 23
47 19 Force necessary to withdraw the plug . 23
48 20 Flexible cables and their connections . 23
49 20.1 Plug and socket outlet parts . 23
50 20.2 Filter parts . 23
51 20.3 Non-rewirable parts. 24
52 20.4 Moulded-on filter device parts . 26
53 21 Mechanical strength. 26
54 21.1 Plug and socket parts . 26
55 21.2 Filter parts . 26
56 22 Resistance to heat . 27
57 22.1 Plug and socket parts . 27
58 22.2 Filter parts . 28
59 23 Screws, current-carrying parts and connections . 28
60 23.1 Plug and socket parts . 28
61 23.2 Filter parts . 28
62 24 Creepage distances and clearances . 30
63 24.1 Plug and socket parts . 30
64 24.2 Filter parts . 30
65 24.2.1 Clearances . 30
66 24.2.2 Creepage distances . 32
67 24.2.3 Solid insulation . 34
68 24.2.4 Coatings of rigid printed board assemblies . 34
69 25 Resistance to abnormal heat, to fire and to tracking . 35
70 25.1 Plug and socket parts . 35
71 25.2 Filter parts . 35
72 25.2.1 Resistance to abnormal heat and to fire . 35
73 25.2.2 Resistance to tracking . 36
74 26 Resistance to rusting . 36
75 26.1 Plug and socket parts . 36
76 26.2 Filter parts . 36
77 27 Components . 36
3

---------------------- Page: 5 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
78 27.1 General . 36
79 27.2 Fuses . 37
80 27.3 Capacitors . 37
81 27.4 Resistors . 37
82 27.5 Components reducing the required impulse voltage . 38
83 28 Abnormal conditions . 38
84 28.1 General . 38
85 28.2 Fault test . 38
86 28.3 Overload test . 39
87 28.4 Protection against electric shock . 39
88 29 Protection against short-circuit . 39
89 30 Resistance to transients . 40
90 Annex A (normative) Pollution degrees . 45
91 Annex B (normative) Proof tracking test . 46
92 Annex C (normative) Types of coatings for rigid printed board assemblies . 47
93 Annex D (normative) Special national conditions . 48
94 Annex ZZ (informative) Relationship between this European standard and the safety objectives
95 of Directive 2014/35/EU [2014 OJ L96] aimed to be covered . 49
96 Bibliography . 50
97
98
4

---------------------- Page: 6 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
99 European foreword
100 This document (prEN 50065-4-7:2021) has been prepared by WG 12 “Filters” of CLC/TC 205A “Mains
101 communicating systems”.
102 This document is currently submitted to the Enquiry.
103 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
104 This document will supersede EN 50065-4-7:2005 and all of its amendments and corrigenda (if any).
105 prEN 50065-4-7:2021 includes the following significant technical changes with respect to
106 EN 50065-4-7:2005:
107 The main changes introduced in this document are in Clauses 10, 14, 16, 22, 25, 30 and in the addition of
108 an Annex ZZ.
109 This document has been prepared under a mandate given to CENELEC by the European Commission
110 and the European Free Trade Association, and supports essential requirements of EU Directive(s).
111 For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
112 document.
113 Structure of EN 50065 series:
114 EN 50065 Signalling on low voltage electrical installations in the frequency range 3 kHz to
115 148,5 kHz
116 EN 50065-1 Part 1: General requirements, frequency bands and electromagnetic disturbances
117 EN 50065-2-1 Part 2-1: Immunity requirements for mains communications equipment and systems
118 operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in residential, commercial
119 and light industrial environments
120 EN 50065-2-2 Part 2-2: Immunity requirements for mains communications equipment and systems
121 operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in industrial environments
122 EN 50065-2-3 Part 2-3: Immunity requirements for mains communications equipment and systems
123 operating in the range of frequencies 3 kHz to 95 kHz and intended for use by electricity suppliers and
124 distributors
125 EN 50065-4-1 Part 4-1: Low voltage decoupling filters - Generic specification
126 EN 50065-4-2 Part 4-2: Low voltage decoupling filters - Safety requirements
127 EN 50065-4-3 Part 4-3: Low voltage decoupling filters - Incoming filter
5

---------------------- Page: 7 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
128 EN 50065-4-4 Part 4-4: Low voltage decoupling filters - Impedance filter
129 EN 50065-4-5 Part 4-5: Low voltage decoupling filters - Segmentation filter
130 EN 50065-4-6 Part 4-6: Low voltage decoupling filters - Phase coupler
131 EN 50065-4-7 Part 4-7: Portable low voltage decoupling filters - Safety requirements
132 EN 50065-7 Part 7: Equipment impedance
6

---------------------- Page: 8 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
133 Introduction
134 When certifying or making declaration of conformity to the Low Voltage Directive 2014/35/EU in order to
135 CE mark the device it is important to state that the CE marking is only valid for the filter parts of the
136 product. The plug parts and socket-outlets parts are not covered by the Low Voltage Directive and are
137 therefore expected to comply with the relevant national standards.
7

---------------------- Page: 9 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
138 1 Scope
139 This document applies to the filter part of portable devices for household and similar uses (hereafter
140 referred to as portable decoupling filters) consisting of the filter part, a plug or an appliance inlet or a
141 provision for connection by terminals or with a non-rewirable cord and a socket-outlet or an appliance
142 outlet. They are intended for single-phase circuits for nominal currents not exceeding 16 A and for
143 nominal voltages not exceeding 250 V a.c.
144 The filtering functions are described in EN 50065-4-1.
145 This document does not cover phase couplers.
146 Portable decoupling filters are not used as part of the fixed installation, where EN 50065-4-2 applies.
147 Plugs and socket-outlets connected to the filter part and plugs and socket-outlets integrated with the filter
148 part are expected to comply with the relevant national standard(s).
149 Appliance inlets and appliance outlets connected to the filter part are expected to comply with the relevant
150 parts of the EN 60320 series. Appliance inlets and appliance outlets integrated with the filter parts are not
151 covered by this document.
152 This document can be used for portable mains communication devices when no other product standard
153 exists.
154 This document can be used for other portable mains filters other than those described in EN 50065-4-1
155 when no other product standard exists.
156 Filters including batteries are not covered by this document.
157 2 Normative references
158 The following documents are referred to in the text in such a way that some or all of their content
159 constitutes requirements of this document. For dated references, only the edition cited applies. For
160 undated references, the latest edition of the referenced document (including any amendments) applies.
161 EN 50065-4-1, Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz
162 - Part 4-1: Low voltage decoupling filters - Generic specification
163 EN 60065:2002, Audio/video, information and communication technology equipment - Part 1: Safety
164 requirements (IEC 60065:2001, mod)
165 EN 60068-2-30, Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)
166 (IEC 60068-2-30)
167 EN 60068-2-32, Basic environmental testing procedures - Part 2: Tests - Test Ed: Free fall
168 (IEC 60068-2-32)
169 EN 60068-2-75, Environmental testing - Part 2-75: Tests - Test Eh: Hammer tests (IEC 60068-2-75)
170 EN 60068-2-78, Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state
171 (IEC 60068-2-78)
172 EN 60112, Method for the determination of the proof and the comparative tracking indices of solid
173 insulating materials (IEC 60112)
174 EN 60127 (series), Miniature fuses (IEC 60127 series)
175 EN 60320 (series), Appliance couplers for household and similar general purposes (IEC 60320)
176 EN 60529:1991, Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
8

---------------------- Page: 10 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
177 EN IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1: Principles,
178 requirements and tests (IEC 60664-1)
179 EN 60664-3:2017, Insulation coordination for equipment within low-voltage systems - Part 3: Use of
180 coating, potting or moulding for protection against pollution (IEC 60664-3:2016)
181 EN 60695-2-11, Fire hazard testing - Part 2-11: Glowing/hot-wire based test methods - Glow-wire
182 flammability test method for end-products (GWEPT) (IEC 60695-2-11)
183 EN 60695-10-2, Fire hazard testing - Part 10-2: Abnormal heat - Ball pressure test method
184 (IEC 60695-10-2)
185 EN 60721-3-3, Classification of environmental conditions - Part 3: Classification of groups of
186 environmental parameters and their severities - Section 3: Stationary use at weatherprotected locations
187 (IEC 60721-3-3)
188 EN 60947-1:2007, Low-voltage switchgear and controlgear - Part 1: General rules (IEC 60947-1:2007)
189 EN 60999-1:2000, Connecting devices - Electrical copper conductors - Safety requirements for screw-
190 type and screwless-type clamping units - Part 1: General requirements and particular requirements for
2 2
191 clamping units for conductors from 0,2 mm up to 35 mm (included) (IEC 60999-1:1999)
192 EN 61000-4-4, Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques -
193 Electrical fast transient/burst immunity test (IEC 61000-4-4)
194 EN 132400, Sectional Specification: Fixed capacitors for electromagnetic interference suppression and
195 connection to the supply mains (Assessment level D)
196 HD 21 series, Cables of rated voltages up to and including 450/750 V and having thermoplastic insulation
197 (IEC 60227, mod)
198 HD 22 series, Cables of rated voltages up to and including 450/750 V and having cross-linked insulation
199 (IEC 60245, mod)
200 IEC 60417, Graphical symbols for use on equipment
201 ISO 2081, Metallic and other inorganic coatings — Electroplated coatings of zinc with supplementary
202 treatments on iron or steel
203 ISO 1456, Metallic and other inorganic coatings — Electrodeposited coatings of nickel, nickel plus
204 chromium, copper plus nickel and of copper plus nickel plus chromium
205 ISO 2093, Electroplated coatings of tin — Specification and test methods
206 3 Definitions
207 For the purposes of this document, the following terms and definitions apply.
208 ISO and IEC maintain terminological databases for use in standardization at the following addresses:
209 — ISO Online browsing platform: available at https://www.iso.org/obp
210 — IEC Electropedia: available at http://www.electropedia.org/
211 NOTE 1 Where the terms “voltage” and “current” are used, they imply r.m.s. values, unless otherwise specified.
212 NOTE 2 Throughout this document, the word “earthing” is used for “protective earthing”.
9

---------------------- Page: 11 ----------------------
oSIST prEN 50065-4-7:2021
prEN 50065-4-7:2021 (E)
213 NOTE 3 The term “accessory” is used as a general term covering plugs and portable socket-outlets. The use of
214 the accessories is shown in IEC 60884-1:2002, Figure 1a.
215 3.1 Definitions (from IEC 60884-1) relating to plugs and socket-outlets
216 3.1.1
217 plug
218 accessory having pins designed to engage with the contacts of a socket-outlet, also incorporating means
219 for the electrical connection and mechanical retention of flexible cables or cords
220 3.1.2
221 socket-outlet
222 accessory having socket-contacts designed to engage with the pins of a plug and having terminals for the
223 connection of cable
224 3.1.3
225 portable socket-outlet
226 socket-outlet intended to be connected to, or integral with, flexible cables or cords, and which can easily
227 be moved from one place to another while connected to the supply
228 3.1.4
229 multiple socket-outlet
230 combination of two or more socket-outlets
231 3.1.5
232 rewirable plug
233 accessory so constructed that the flexible cable or cord can be replaced
234 3.1.6
235 non-rewirable plug
236 non-rewirable portable socket-outlet
237 accessory so constructed that it forms a complete unit with the flexible cable or cord after connection and
238 assembly by the manufacturer of the accessory
239 Note 1 to entry: See also IEC 60884-1:2002, 14.1.
240 3.1.7
241 moulded-on accessory
242 non-rewirable accessory, the manufacture of which is completed by insulating material moulded around
243 pre-assembled component parts and the terminations of the flexible cable or cord
244 3.1.8
245 cord extension set
246 assembly consisting of one flexible cable or cord fitted with one plug and one portable socket-outlet
247 3.1.9
248 terminal
249 insulated or non-insulated connecting device intended for reusable electrical connection of the external
250 conductors
251 3.1.10
252 termination
253 insulated or non-insulated connecting device intended for non-reusable electrical connection of the
254 external conductors
255 3.1.11
256 clamping unit of a terminal
257 part or parts of a terminal necessary for the mechanical clamping and the electrical connection of the
25
...
