SIST EN 301 783-1 V1.2.1:2010
(Main)Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land Mobile Service - Commercially available amateur radio equipment - Part 1: Technical characteristics and methods of measurement
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land Mobile Service - Commercially available amateur radio equipment - Part 1: Technical characteristics and methods of measurement
Alignment of the technical contents with other more recent documents and general editorial review. Integration of any outstanding approved change requests. Update references. Alignment with revised spurious emission limits.
The present document applies to the following radio equipment types:
- Radio equipment intended to be used by radio amateurs within the meaning of article 1, definition 53, of the International Telecommunications Union (ITU) Radio Regulations [1] and which is available commercially. NOTE: It is noted that this sort of equipment is traditionally supplied with an antenna connector.
Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Kopenska mobilna storitev - Komercialno dostopna amaterska radijska oprema - 1. del: Tehnične karakteristike in merilne metode
Pričujoči dokument velja za naslednje vrste radijske opreme:
- Radijska oprema, namenjena za uporabo radioamaterjev znotraj pomena člena 1, določilo 53, radijskih predpisov mednarodne telekomunikacijske zveze (ITU) [1] in je na voljo na tržišču. OPOMBA: Zabeleženo je, da je ta vrsta opreme tradicionalno dobavljena za antenskim priključkom.
General Information
Buy Standard
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land Mobile Service - Commercially available amateur radio equipment - Part 1: Technical characteristics and methods of measurement33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.070.01Mobilni servisi na splošnoMobile services in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 783-1 Version 1.2.1SIST EN 301 783-1 V1.2.1:2010en01-oktober-2010SIST EN 301 783-1 V1.2.1:2010SLOVENSKI
STANDARD
SIST EN 301 783-1 V1.2.1:2010
ETSI EN 301 783-1 V1.2.1 (2010-07)European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);Land Mobile Service;Commercially available amateur radio equipment;Part 1: Technical characteristics andmethods of measurement SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 2
Reference REN/ERM-TG26-085-1 Keywords amateur, EMC, mobile, radio, service ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 6 2.2 Informative references . 6 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 7 3.3 Abbreviations . 7 4 Technical requirements specifications . 7 4.1 Environmental profile . 7 4.2 EUT test frequencies . 7 4.3 Test power source . 8 4.3.1 Mains voltage . 8 4.3.2 Regulated lead-acid battery power sources used on vehicles. 8 4.3.3 Other power sources . 8 4.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment) . 8 4.5 Test load (artificial antenna) . 8 4.6 PEP . 9 4.7 Transmitter automatic shut-off facility . 9 4.8 Arrangement for analogue test signals at the input of the transmitter . 9 4.9 Arrangement for test signals at the input of the receiver . 9 4.10 Characteristics of test signals at the input of the receiver . 9 4.11 Characteristics of test signals at the input of the transmitter . 9 4.11.1 Analogue signals . 10 4.11.2 Digital signals . 10 4.12 Reference bandwidths for spurious measurements . 10 4.13 Transmit exclusion bandwidths for spurious measurements . 10 5 Conformance requirements . 11 5.1 Maximum power (PX) (conducted) . 11 5.1.1 Definition . 11 5.1.2 Method of measurement . 11 5.2 Unwanted emissions in the spurious domain. 11 5.2.1 Definition . 11 5.2.2 Method of measurement . 11 5.2.2.1 Method of measuring conducted spurious emissions with an artificial antenna . 11 5.2.2.2 Method of measuring the effective radiated power with an external antenna connector . 12 5.2.2.3 Method of measuring the effective radiated power with an integral antenna . 13 5.2.3 Limits . 13 5.3 Conducted RF immunity . 14 5.3.1 Definition . 14 5.3.2 Method of measurement . 14 5.3.2.1 Method of measurement (analogue) . 14 5.3.2.2 Method of measurement (digital) . 15 5.3.2.3 Unwanted signal parameters (analogue and digital) . 15 5.3.3 Limit . 15 5.4 Spurious radiations . 16 5.4.1 Definition . 16 5.4.2 Methods of measurement . 16 5.4.2.1 Method of measuring the power level in a specified load . 16 5.4.2.2 Method of measuring the effective radiated power . 16 SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 4 5.4.2.3 Method of measuring the effective radiated power . 17 5.4.3 Limits . 18 6 Measurement uncertainty . 18 Annex A (normative): Radiated measurement . 19 A.1 Test sites and general arrangements for measurements involving the use of radiated fields . 19 A.1.1 Anechoic chamber . 19 A.1.2 Anechoic chamber with a ground plane . 20 A.1.3 OATS . 21 A.1.4 Test antenna . 22 A.1.5 Substitution antenna . 22 A.1.6 Measuring antenna . 23 A.2 Guidance on the use of radiation test sites . 23 A.2.1 Verification of the test site . 23 A.2.2 Preparation of the EUT . 23 A.2.3 Power supplies to the EUT . 23 A.2.4 Volume control setting for analogue speech tests . 23 A.2.5 Range length . 24 A.2.6 Site preparation . 24 A.3 Coupling of signals . 25 A.3.1 General . 25 A.3.2 Data signals . 25 A.3.3 Speech and analogue signals . 25 A.3.3.1 Acoustic coupler description. 25 A.3.3.2 Calibration . 26 Annex B (normative): Spectrum analyser specification . 27 Annex C (informative): Bibliography . 28 History . 29
SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document is part 1 of a multi-part deliverable covering the Electromagnetic compatibility and Radio spectrum Matters (ERM); Land Mobile Service; Commercially available amateur radio equipment, as identified below: Part 1: "Technical characteristics and methods of measurement"; Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
National transposition dates Date of adoption of this EN: 28 June 2010 Date of latest announcement of this EN (doa): 30 September 2010 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 March 2011 Date of withdrawal of any conflicting National Standard (dow): 31 March 2011
Introduction The present document is the "radio product standard" corresponding to commercially available amateur radio equipment. SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 6 1 Scope The present document applies to the following radio equipment types: • Radio equipment intended to be used by radio amateurs within the meaning of article 1, definition 53, of the International Telecommunications Union (ITU) Radio Regulations [1] and which is available commercially. NOTE: It is noted that this sort of equipment is traditionally supplied with an antenna connector. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ITU Radio Regulations (2008). [2] ANSI C63.5-2006: "American National Standard for Calibration of Antennas Used for Radiated Emission Measurements in Electro Magnetic Interference". [3] IEC 60489-3 (Edition 2 - 1988): "Methods of measurement for radio equipment used in the mobile services. Part 3: Receivers for A3E or F3E emissions" (appendix F). 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain". [i.2] CEPT/ERC/Recommendation 74-01 (2005): "Unwanted emissions in the spurious domain". [i.3] ETSI TR 100 028 (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [i.4] ETSI TR 102 273 (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and evaluation of the corresponding measurement uncertainties". SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 7 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Single SideBand (SSB): any emission using Single SideBand (SSB) suppressed carrier format 3.2 Symbols For the purposes of the present document, the following symbols apply: Bn Necessary bandwidth of an emission PX Maximum PEP 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: AM Amplitude Modulation CBW Channel BandWidth CSP Channel SPacing DC Direct Current EUT Equipment Under Test FM Frequency Modulation HF High Frequency OATS Open Area Test Site PEP Peak Envelope Power RBW Resolution BandWidth SSB Single SideBand RF Radio Frequency SINAD (Signal + Noise + Distortion) / (Noise + Distortion) Tx Transmit UHF Ultra High Frequency VHF Very High Frequency VSWR Voltage Standing Wave Ratio 4 Technical requirements specifications 4.1 Environmental profile The environmental profile for operation of the equipment shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the required operational environmental profile. 4.2 EUT test frequencies Testing shall be performed with the EUT set to frequencies as follows: • single-band equipment: test at the centre of the band; • double-band equipment: test at the centre of both bands; • HF multi-band equipment or VHF/UHF multi-band equipment: test at the centre of the lowest, the centre of the middle, and the centre of the highest band; SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 8 • HF/VHF, HF/UHF or HF/VHF/UHF combined equipment: test at the centre of the lowest HF band, the centre of the middle HF band, the centre of the highest HF band, the centre of the lowest VHF/UHF band, the centre of the middle VHF/UHF band, and the centre of the highest VHF/UHF band. 4.3 Test power source During testing the power source of the equipment shall be replaced by a test power source capable of producing the nominal supply voltage for the equipment as declared by the manufacturer. The internal impedance of the test power source shall be low enough for its effect on the test results to be negligible. For the purpose of tests, the voltage of the power source shall be measured at the input terminals of the equipment. For battery operated equipment the battery shall be removed and the test power source shall be applied as close to the battery terminals as practicable. During tests of DC powered equipment the power source voltages shall be maintained within a tolerance of < ±1 % relative to the voltage at the beginning of each test. The value of this tolerance is critical for power measurements, using a smaller tolerance will provide better measurement uncertainty values. 4.3.1 Mains voltage The normal test voltage for equipment to be connected to the mains shall be the nominal mains voltage. For the purpose of the present document, the nominal voltage shall be the declared voltage or any of the declared voltages for which the equipment was designed. The frequency of the test power source corresponding to the ac mains shall be between 49 Hz and 51 Hz. 4.3.2 Regulated lead-acid battery power sources used on vehicles When the radio equipment is intended for operation from the usual types of regulated lead-acid battery power source used on vehicles the normal test voltage shall be 1,1 times the nominal voltage of the battery (for nominal voltages of 6 V and 12 V, these are 6,6 V and 13,2 V respectively). 4.3.3 Other power sources For operation from other power sources or types of battery (primary or secondary), the normal test voltage shall be that declared by the equipment manufacturer. 4.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment) Where equipment has an internal 50 Ω connector it shall be permitted to perform the tests at this connector. Equipment may also have a temporary internal 50 Ω connector installed for the purposes of testing. No connection shall be made to any internal permanent or temporary antenna connector during the performance of radiated emissions measurements, unless such action forms an essential part of the normal intended operation of the equipment, as declared by the manufacturer. 4.5 Test load (artificial antenna) For conducted measurements of the transmitter, a power attenuator ("artificial antenna") shall be used, exhibiting a substantially non-reactive, non-radiating load of 50 Ω to the antenna connector and capable of dissipating the transmitter output power. SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 9 4.6 PEP The PEP is the average power in watts supplied to the artificial antenna by a transmitter during one RF cycle at the highest crest of the modulation envelope. For practical purposes the methods of measurements in clause 5.1 should be used. 4.7 Transmitter automatic shut-off facility If the equipment is fitted with an automatic transmitter shut-off facility it shall be made inoperative for the duration of the type test, unless it has to be left operative to protect the equipment. 4.8 Arrangement for analogue test signals at the input of the transmitter For the purpose of the present document, in the case of analogue equipment, the transmitter audio frequency modulation signal shall be applied to the terminals of the audio input connector with any microphone disconnected, unless otherwise stated. 4.9 Arrangement for test signals at the input of the receiver RF test signal sources which are applied to the receiver shall present an impedance of 50 Ω to the receiver input. This requirement shall be met irrespective of whether one or more signals using a combining network are applied to the receiver simultaneously. The levels of the test signals shall be expressed in terms of the emf at the receiver input connector. The effects of any intermodulation products and noise produced in the test signal sources shall be negligible. 4.10 Characteristics of test signals at the input of the receiver Wanted RF test signals applied to the receiver shall have the modulation characteristics as specified in table 1. Table 1: Wanted test signal Mode Units Modulation AM 60 % AM (1 kHz) FM 60 % of the maximum permissible frequency deviation (1 kHz) SSB 1 kHz offset None Other modes as declared by the manufacturer as declared by the manufacturer
4.11 Characteristics of test signals at the input of the transmitter The manufacturer shall declare details of the modulation scheme used and identify how the percentage modulation can be measured or specified. Equipment capable of transmission of digital information shall be tested with modulation as specified in clause 4.11.2. Equipment using analogue transmission shall be tested with modulation as specified in clause 4.11.1. Equipment capable of both analogue and digital transmission shall be tested separately in each mode. SIST EN 301 783-1 V1.2.1:2010
ETSI ETSI EN 301 783-1 V1.2.1 (2010-07) 10 4.11.1 Analogue signals For tests on analogue equipment via the audio input socket terminals, the test signal shall consist of two equal amplitude non harmonically related sinusoidal input signals selected to be in the range 500 Hz to 3 kHz with at least 500 Hz separation between them, each of which would independently drive the transmitter into its compression region. The composite signal level shall be 20 dB higher than the level which produces 60 % modulation unless the output power at this drive level is less than the highest Tx output power in which case the signal level shall be set to produce the highest possible Tx output power. For tests via any facilities sockets this test signal shall be of the nature described by the manufacturer for the purpose of the socket , at a level which produces the largest value of output power (PEP) possible with analogue modulation. 4.11.2 Digital signals For tests on digital equipment (including digital speech), the test signal be as declared by the manufacturer, at the appropriate data rate. If the transmission of a continuous bit stream is not possible, the test signal shall be trains of correctly coded bits or messages. For the purpose of testing PX in clause 5.1 the test signal shall produce the largest value of output power (PEP) possible with digital modulation. If this is not the case then a test signal that does produce the largest possible value of output power (PEP) with digital modulation should be used in the testing in clause 5.1. For digital equipments that support adaptive rates, testing is only required at one bit rate. For transmitter tests in this clause this would normally be the highest bit-rate supported by the equipment. 4.12 Reference bandwidths for spurious measurements The reference bandwidths applicable for all spurious measurement are given in table 2. Table 2: Reference bandwidths to be used for the measurement of spurious emissions Frequency range RBW 9 to 150 kHz 1 kHz 150 kHz to 30 MHz 10 kHz 30 MHz to 1 GHz 100 kHz Above 1 GHz 1 MHz
4.13 Transmit exclusion bandwidths for spurious measurements When measuring transmit spurious emissions, an exclusion band centred on the wanted carrier is defined as 250 % of the CSP. The minimum values of necessary bandwidth (Bn) applicable depend on the operating frequency of the equipment as defined in CEPT/ERC/Recommendation 74-01 [i.2]. The combination of 250 % of the CSP and these necessary bandwidths result in the following transmit exclusion bands for spurious measurements in table 3. Table 3: Transmit exclusion bands for the measurement of spurious emissions Operating freq Bn minimum Tx exclusion band Below 30 MHz 4 kHz 10 kHz 30 MHz to 1 GHz 25 kHz 62,5 kHz 1 GHz to 26 GHz 100 kHz 250 kHz Above 26 GHz 1 MHz 2,5 MHz
Where the necessary bandwidth of the emission being measured is greater than the minimum values given in table 3, the transmit excl
...
Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Land Mobile Service;
Commercially available amateur radio equipment;
Part 1: Technical characteristics and
methods of measurement
---------------------- Page: 1 ----------------------

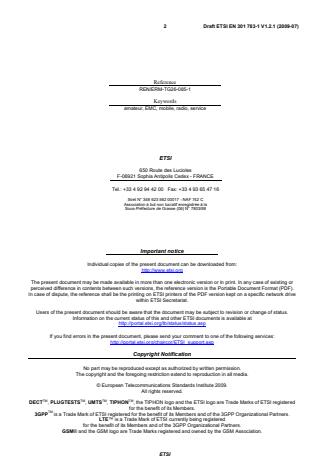

2 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
Reference
REN/ERM-TG26-085-1
Keywords
amateur, EMC, mobile, radio, service
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)

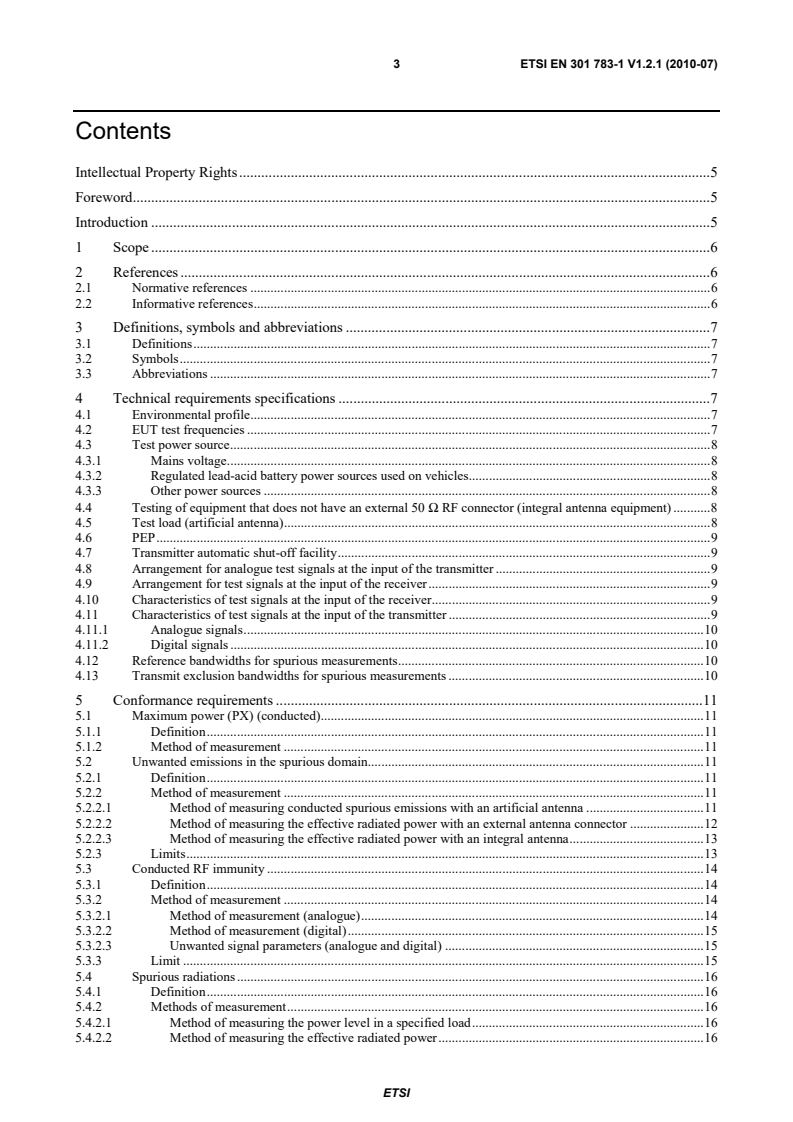

Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Technical requirements specifications . 7
4.1 Environmental profile . 7
4.2 EUT test frequencies . 7
4.3 Test power source . 8
4.3.1 Mains voltage . 8
4.3.2 Regulated lead-acid battery power sources used on vehicles. 8
4.3.3 Other power sources . 8
4.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment) . 8
4.5 Test load (artificial antenna) . 8
4.6 PEP . 9
4.7 Transmitter automatic shut-off facility . 9
4.8 Arrangement for analogue test signals at the input of the transmitter . 9
4.9 Arrangement for test signals at the input of the receiver . 9
4.10 Characteristics of test signals at the input of the receiver . 9
4.11 Characteristics of test signals at the input of the transmitter . 9
4.11.1 Analogue signals . 10
4.11.2 Digital signals . 10
4.12 Reference bandwidths for spurious measurements . 10
4.13 Transmit exclusion bandwidths for spurious measurements . 10
5 Conformance requirements . 11
5.1 Maximum power (PX) (conducted) . 11
5.1.1 Definition . 11
5.1.2 Method of measurement . 11
5.2 Unwanted emissions in the spurious domain. 11
5.2.1 Definition . 11
5.2.2 Method of measurement . 11
5.2.2.1 Method of measuring conducted spurious emissions with an artificial antenna . 11
5.2.2.2 Method of measuring the effective radiated power with an external antenna connector . 12
5.2.2.3 Method of measuring the effective radiated power with an integral antenna . 13
5.2.3 Limits . 13
5.3 Conducted RF immunity . 14
5.3.1 Definition . 14
5.3.2 Method of measurement . 14
5.3.2.1 Method of measurement (analogue) . 14
5.3.2.2 Method of measurement (digital) . 15
5.3.2.3 Unwanted signal parameters (analogue and digital) . 15
5.3.3 Limit . 15
5.4 Spurious radiations . 16
5.4.1 Definition . 16
5.4.2 Methods of measurement . 16
5.4.2.1 Method of measuring the power level in a specified load . 16
5.4.2.2 Method of measuring the effective radiated power . 16
ETSI
---------------------- Page: 3 ----------------------

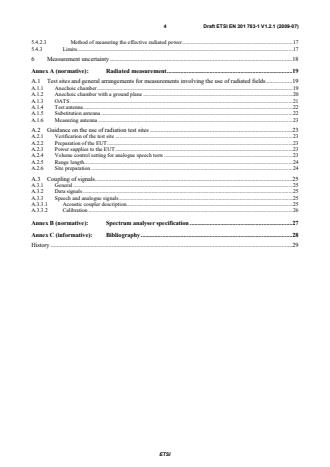

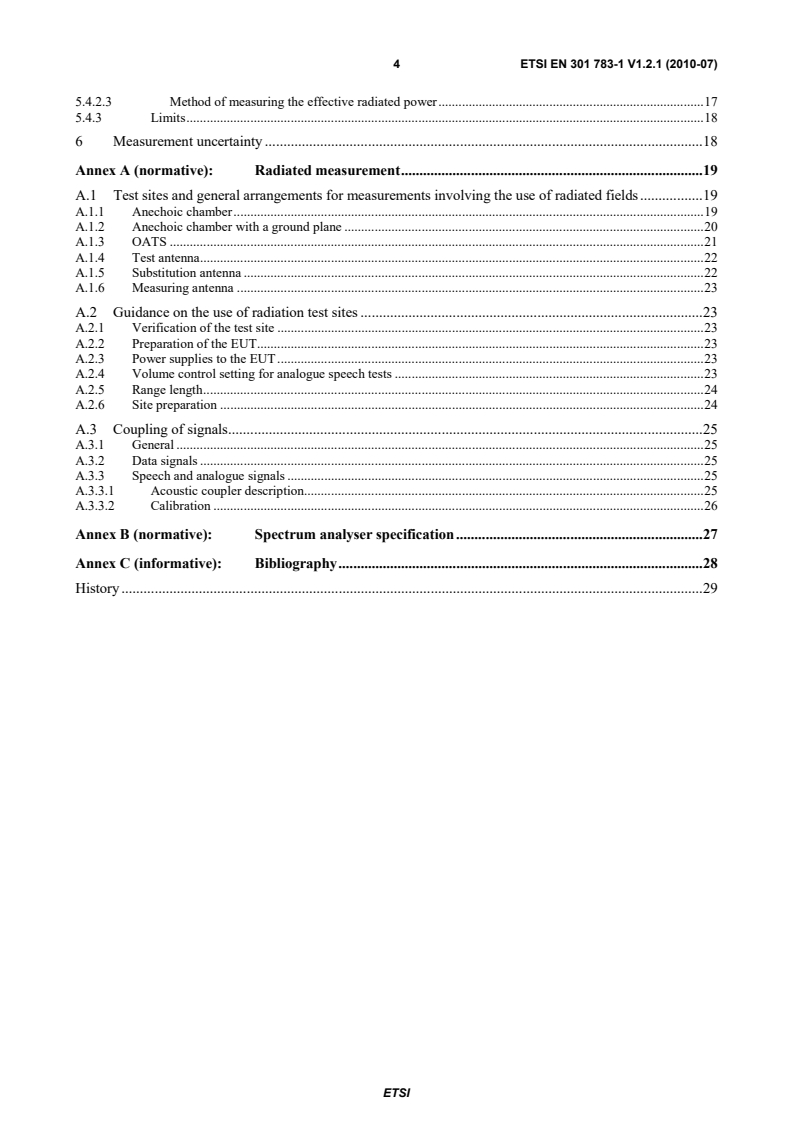

4 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
5.4.2.3 Method of measuring the effective radiated power . 17
5.4.3 Limits . 17
6 Measurement uncertainty . 18
Annex A (normative): Radiated measurement . 19
A.1 Test sites and general arrangements for measurements involving the use of radiated fields . 19
A.1.1 Anechoic chamber . 19
A.1.2 Anechoic chamber with a ground plane . 20
A.1.3 OATS . 21
A.1.4 Test antenna . 22
A.1.5 Substitution antenna . 22
A.1.6 Measuring antenna . 23
A.2 Guidance on the use of radiation test sites . 23
A.2.1 Verification of the test site . 23
A.2.2 Preparation of the EUT . 23
A.2.3 Power supplies to the EUT . 23
A.2.4 Volume control setting for analogue speech tests . 23
A.2.5 Range length . 24
A.2.6 Site preparation . 24
A.3 Coupling of signals . 25
A.3.1 General . 25
A.3.2 Data signals . 25
A.3.3 Speech and analogue signals . 25
A.3.3.1 Acoustic coupler description. 25
A.3.3.2 Calibration . 26
Annex B (normative): Spectrum analyser specification . 27
Annex C (informative): Bibliography . 28
History . 29
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document is part 1 of a multi-part deliverable covering the Electromagnetic compatibility and Radio
spectrum Matters (ERM); Land Mobile Service; Commercially available amateur radio equipment, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa
Introduction
The present document is the "radio product standard" corresponding to commercially available amateur radio
equipment.
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
1 Scope
The present document applies to the following radio equipment types:
• Radio equipment intended to be used by radio amateurs within the meaning of Article 1, definition 53, of the
International Telecommunications Union (ITU) Radio Regulations [1] and which is available commercially.
NOTE: It is noted that this sort of equipment is traditionally supplied with an antenna connector.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ITU Radio Regulations (2008).
[2] ANSI C63.5-2004: "American National Standard for Electromagnetic Compatibility-Radiated
Emission Measurements in Electromagnetic Interference (EMI) Control-Calibration of Antennas
(9 kHz to 40 GHz)".
[3] IEC 60489-3 (Edition 2 - 1988): "Methods of measurement for radio equipment used in the mobile
services. Part 3: Receivers for A3E or F3E emissions" (appendix F).
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[i.2] CEPT/ERC/Recommendation 74-01 (2005): "Unwanted emissions in the spurious domain".
[i.3] ETSI TR 100 028 (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Uncertainties in the measurement of mobile radio equipment characteristics".
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
[i.4] ETSI TR 102 273 (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Improvement on Radiated Methods of Measurement (using test site) and evaluation of the
corresponding measurement uncertainties".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Single SideBand (SSB): any emission using Single SideBand (SSB) suppressed carrier format
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Bn Necessary bandwidth of an emission
PX Maximum PEP
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AM Amplitude Modulation
CBW Channel BandWidth
CSP Channel SPacing
DC Direct Current
EUT Equipment Under Test
FM Frequency Modulation
HF High Frequency
OATS Open Area Test Site
PEP Peak Envelope Power
RBW Resolution BandWidth
SSB Single SideBand
Tx Transmit
UHF Ultra High Frequency
VHF Very High Frequency
4 Technical requirements specifications
4.1 Environmental profile
The environmental profile for operation of the equipment shall be declared by the supplier. The equipment shall comply
with all the technical requirements of the present document at all times when operating within the boundary limits of the
required operational environmental profile.
4.2 EUT test frequencies
Testing shall be performed with the EUT set to frequencies as follows:
• single-band equipment: test at the centre of the band;
• double-band equipment: test at the centre of both bands;
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
• HF multi-band equipment or VHF/UHF multi-band equipment: test at the centre of the lowest, the centre of
the middle, and the centre of the highest band;
• HF/VHF, HF/UHF or HF/VHF/UHF combined equipment: test at the centre of the lowest HF band, the centre
of the middle HF band, the centre of the highest HF band, the centre of the lowest VHF/UHF band, the centre
of the middle VHF/UHF band, and the centre of the highest VHF/UHF band.
4.3 Test power source
During testing the power source of the equipment shall be replaced by a test power source capable of producing the
nominal supply voltage for the equipment as declared by the manufacturer. The internal impedance of the test power
source shall be low enough for its effect on the test results to be negligible. For the purpose of tests, the voltage of the
power source shall be measured at the input terminals of the equipment.
For battery operated equipment the battery shall be removed and the test power source shall be applied as close to the
battery terminals as practicable.
During tests of DC powered equipment the power source voltages shall be maintained within a tolerance of < ±1 %
relative to the voltage at the beginning of each test. The value of this tolerance is critical for power measurements, using
a smaller tolerance will provide better measurement uncertainty values.
4.3.1 Mains voltage
The normal test voltage for equipment to be connected to the mains shall be the nominal mains voltage. For the purpose
of the present document, the nominal voltage shall be the declared voltage or any of the declared voltages for which the
equipment was designed.
The frequency of the test power source corresponding to the ac mains shall be between 49 Hz and 51 Hz.
4.3.2 Regulated lead-acid battery power sources used on vehicles
When the radio equipment is intended for operation from the usual types of regulated lead-acid battery power source
used on vehicles the normal test voltage shall be 1,1 times the nominal voltage of the battery (for nominal voltages of
6 V and 12 V, these are 6,6 V and 13,2 V respectively).
4.3.3 Other power sources
For operation from other power sources or types of battery (primary or secondary), the normal test voltage shall be that
declared by the equipment manufacturer.
4.4 Testing of equipment that does not have an external 50 Ω
RF connector (integral antenna equipment)
Where equipment has an internal 50 Ω connector it shall be permitted to perform the tests at this connector.
Equipment may also have a temporary internal 50 Ω connector installed for the purposes of testing.
No connection shall be made to any internal permanent or temporary antenna connector during the performance of
radiated emissions measurements, unless such action forms an essential part of the normal intended operation of the
equipment, as declared by the manufacturer.
4.5 Test load (artificial antenna)
For conducted measurements of the transmitter, a power attenuator ("artificial antenna") shall be used, exhibiting a
substantially non-reactive, non-radiating load of 50 Ω to the antenna connector and capable of dissipating the
transmitter output power.
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
4.6 PEP
The PEP is the average power supplied to the artificial antenna by a transmitter during one RF cycle at the highest crest
of the modulation envelope. For practical purposes the methods of measurements in clause 5.1 should be used.
4.7 Transmitter automatic shut-off facility
If the equipment is fitted with an automatic transmitter shut-off facility it shall be made inoperative for the duration of
the type test, unless it has to be left operative to protect the equipment.
4.8 Arrangement for analogue test signals at the input of the
transmitter
For the purpose of the present document, in the case of analogue equipment, the transmitter audio frequency modulation
signal shall be applied to the terminals of the audio input connector with any microphone disconnected, unless
otherwise stated.
4.9 Arrangement for test signals at the input of the receiver
RF test signal sources which are applied to the receiver shall present an impedance of 50 Ω to the receiver input. This
requirement shall be met irrespective of whether one or more signals using a combining network are applied to the
receiver simultaneously.
The levels of the test signals shall be expressed in terms of the emf at the receiver input connector.
The effects of any intermodulation products and noise produced in the test signal sources shall be negligible.
4.10 Characteristics of test signals at the input of the receiver
Wanted RF test signals applied to the receiver shall have the modulation characteristics as specified in table 1.
Table 1: Wanted test signal
Mode Units Modulation
AM 60 % AM (1 kHz)
FM 60 % of the maximum
permissible frequency
deviation (1 kHz)
SSB 1 kHz offset None
Other modes as declared by the as declared by the manufacturer
manufacturer
4.11 Characteristics of test signals at the input of the transmitter
The manufacturer shall declare details of the modulation scheme used and identify how the percentage modulation can
be measured or specified.
Equipment capable of transmission of digital information shall be tested with modulation as specified in clause 4.11.2.
Equipment using analogue transmission shall be tested with modulation as specified in clause 4.11.1. Equipment
capable of both analogue and digital transmission shall be tested separately in each mode.
ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 301 783-1 V1.2.1 (2009-07)
4.11.1 Analogue signals
For tests on analogue equipment via the audio input socket terminals, the test signal shall consist of two equal amplitude
non harmonically related sinusoidal input signals selected to be in the range 500 Hz to 3 kHz with at least 500 Hz
separation between them, each of which would independently drive the transmitter into its compression region. The
composite signal level shall be 20 dB higher than the level which produces 60 % modulation unless the output power at
this drive level is less than the highest Tx output power in which case the signal level shall be set to produce the highest
possible Tx output power.
For tests via any facilities sockets this test signal shall be of the nature described by the manufacturer for the purpose of
the socket , at a level which produces the largest value of output power (PEP) possible with analogue modulation.
4.11.2 Digital signals
For tests on digital equipment (including digital speech), the test signal be as declared by the manufacturer, at the
appropriate data rate.
If the transmission of a continuous bit stream is not possible, the test signal shall be trains of correctly coded bits or
messages.
For the purpose of testing PX in clause 5.1 the test signal shall produce the largest value of output power (PEP) possible
with digital modulation. If this is not the case then a test signal that does produce the largest possible value of output
power (PEP) with digital modulation should be used in the testing in clause 5.1.
For digital equipments that support adaptive rates, testing is only required at one bit rate. For transmitter tests in this
clause this would normally be the highest bit-rate supported by the equipment.
4.12 Reference bandwidths for spurious measurements
The reference bandwidths applicable for all spurious measurement are given in table 2.
Table 2: Reference bandwidths to be used for the measurement of spurious emissions
Frequency range RBW
9 to 150 kHz 1 kHz
150 kHz to 30 MHz 10 kHz
30 MHz to 1 GHz 100 kHz
Above 1 GHz 1 MHz
4.13 Transmit exclusion bandwidths for spurious measurements
When measuring transmit spurious emissions, an exclusion band centred on the wanted carrier is defined as 250 % of
the CSP. The minimum values of necessary bandwidth (Bn) applicable depend on the operating frequency of the
equipment as defined in CEPT/ERC/Recommendation 74-01 [i.2]. The combination of 250 % of the CSP and these
necessary bandwidths result in the following transmit exclusion bands for spurious me
...
