SIST EN 3155-045:2020

Aerospace series - Electrical contacts used in elements of connection - Part 045: Contacts, electrical, female, type A, double crimping, class T - Product standard

This document specifies the required characteristics, tests and tooling applicable to female electrical contacts 045, type A, double crimping, class T, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contact is defined in EN 3155-044.
Double crimping contact has a barrel which is design to crimp conductor and jacket of cable in two locations, one on the conductor and the other on the jacket. This way protect the conductor from mechanical strengths.

Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 045: Elektrischer Buchsenkontakte, Typ A, Doppel Crimpung, Klasse T - Produktnorm

Dieses Dokument legt die erforderlichen Eigenschaften, Prüfungen und Werkzeuge für elektrische Buchsen¬kontakte 045, Typ A, doppelt gecrimpt, Klasse T, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Es ist in Verbindung mit EN 3155 001 anzuwenden.
Der zugehörige Stiftkontakt ist in EN 3155 044 festgelegt.
Der Kontakt mit Doppelcrimpung besitzt eine Hülse, die so konstruiert ist, dass sie den Leiter und den Leitungsmantel an zwei Stellen crimpt, sowohl am Leiter als auch am Mantel. Auf diese Weise wird der Leiter vor mechanischer Beanspruchung geschützt.

Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 045 : Contacts électriques, femelles, type A, double sertissage, classe T - Norme de produit

Le présent document spécifie les caractéristiques requises, les essais et l’outillage applicables aux contacts électriques femelles 045, de type A, double sertissage, de classe T, utilisés dans les organes de connexion suivant l’EN 3155-002.
Il doit être utilisé conjointement avec l’EN 3155-001.
Les contacts mâles associés sont définis dans l’EN 3155-044.
Le contact double sertissage a un fût qui permet de sertir le conducteur et la gaine du câble à deux endroits, l’un sur le conducteur et l'autre sur la gaine. Ce procédé protège le conducteur des forces mécaniques.

Aeronavtika - Električni kontakti za uporabo v spojnih elementih - 045. del: Kontakti, električni, ženski, tip A, dvojno stiskanje, razred T - Standard za proizvod

Ta dokument določa zahtevane značilnosti, preskuse in orodja za ženske električne kontakte velikosti 045, tipa A, dvojno nagubane, razreda T, ki se uporabljajo v veznih elementih v skladu s standardom EN 3155-002. Uporabljati ga je treba skupaj s standardom EN 3155-001. Povezani moški kontakti so določeni v standardu EN 3155-044. Dvojno stisljivi kontakt ima tulec, ki je oblikovan za stisnjenje prevodnika in plašča kabla na dveh mestih (na prevodniku in na plašču). Tako zaščiti prevodnik pred mehanskimi obremenitvami.

General Information

• Status: Published
• Publication Date: 19-Jan-2020
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Dec-2019
• Due Date: 23-Feb-2020
• Completion Date: 20-Jan-2020
• Ref Project: EN 3155-045:2019 - Aerospace series - Electrical contacts used in elements of connection - Part 045: Contacts, electrical, female, type A, double crimping, class T - Product standard

Relations

• Replaces: SIST EN 3155-045:2009 - Aerospace series - Electrical contacts used in elements of connection - Part 045: Contacts, electrical, female, type A, double crimping, class T - Product standard
• Effective Date: 18-Dec-2019
• Revises: kSIST FprEN 3155-045:2025 - Aerospace series - Electrical contacts used in elements of connection - Part 045: Contacts, electrical, female, type A, double crimping, class T - Product standard
• Effective Date: 19-Jan-2023
• Revised: SIST EN 3155-045:2009 - Aerospace series - Electrical contacts used in elements of connection - Part 045: Contacts, electrical, female, type A, double crimping, class T - Product standard
• Effective Date: 24-Aug-2016

Overview

EN 3155-045:2019 (CEN) is a European product standard for aerospace electrical contacts - specifically female, type A, double-crimping, class T contacts used in elements of connection. It defines required characteristics, dimensional limits, materials and plating, color marking, tooling, and the test regime these contacts must pass. This standard is intended to be used together with EN 3155-001 (technical specification) and EN 3155-002 (contact list and utilization); the mating male contact is specified in EN 3155-044.

Key topics and technical requirements

• Contact type and construction
  • Female contact, Type A, double crimping: barrel crimps both conductor and cable jacket to protect the conductor from mechanical stress.
  • Body material: copper alloy; protective plating: gold minimum 1.27 µm over nickel undercoat on active areas (selective protection allowed).
• Dimensions and marking
  • Detailed dimensional tables and figures (millimetres) determine fit, entry restrictions and active area definitions.
  • Color-code marking for sizes (e.g., bands: red/green for sizes 20/22) with alternative marking rules.
• Tooling
  • Crimping and insertion/extraction tooling must conform to SAE-AS22520 and SAE-AS81969; selector numbers and specific M22520/M81969 tools are referenced.
• Permissible cables and stripping
  • Lists conductor sizes (AWG equivalents), insulation limits and stripped lengths for reliable crimp joints.
• Testing and qualification
  • Comprehensive test suite referenced to EN 2591 test methods and EN 3155-001, including:
    • Electrical tests (contact resistance, insulation resistance, voltage proof)
    • Environmental and mechanical tests (thermal endurance up to 260 °C, shock, sinusoidal/random vibration, rapid temperature change, salt mist, fluid and ozone resistance)
    • Mechanical integrity (tensile strength of crimp, contact bending, gauge insertion/extraction, restricted entry)
    • Plating/coating thickness and adhesion and magnetic permeability (≤ 2)

Applications and users

• Intended for aerospace OEMs, connector and contact manufacturers, wiring-harness designers, test laboratories, procurement, and maintenance teams.
• Typical applications: aircraft and spacecraft electrical harnesses and connectors where high reliability, mechanical strain relief, and extreme temperature/vibration performance are required.
• Use cases include engine bay, avionics systems, cockpit harnesses and any assemblies requiring secure conductor and jacket crimp retention.

Related standards

• EN 3155-001 (technical specification)
• EN 3155-002 (contact list/utilization)
• EN 3155-044 (male contact counterpart)
• EN 2997-001 (connector technical specification)
• EN 2083 / EN 4434 (conductors)
• SAE-AS22520, SAE-AS81969 (crimping and tooling)

This standard is essential for ensuring consistent, certified performance of aerospace electrical contacts used in safety-critical connection elements.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2020
Nadomešča:
SIST EN 3155-045:2009
Aeronavtika - Električni kontakti za uporabo v spojnih elementih - 045. del:
Kontakti, električni, ženski, tip A, dvojno stiskanje, razred T - Standard za proizvod
Aerospace series - Electrical contacts used in elements of connection - Part 045:
Contacts, electrical, female, type A, double crimping, class T - Product standard
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen -
Teil 045: Elektrischer Buchsenkontakte, Typ A, Doppel Crimpung, Klasse T -
Produktnorm
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie
045 : Contacts électriques, femelles, type A, double sertissage, classe T - Norme de
produit
Ta slovenski standard je istoveten z: EN 3155-045:2019
ICS:
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3155-045
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2019
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 3155-045:2006
English Version
Aerospace series - Electrical contacts used in elements of
connection - Part 045: Contacts, electrical, female, type A,
double crimping, class T - Product standard
Série aérospatiale - Contacts électriques utilisés dans Luft- und Raumfahrt - Elektrische Kontakte zur
les organes de connexion - Partie 045 : Contacts Verwendung in Verbindungselementen - Teil 045:
électriques, femelles, type A, double sertissage, classe T Elektrischer Buchsenkontakte, Typ A, Doppel
- Norme de produit Crimpung, Klasse T - Produktnorm
This European Standard was approved by CEN on 26 August 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3155-045:2019 E
worldwide for CEN national Members.

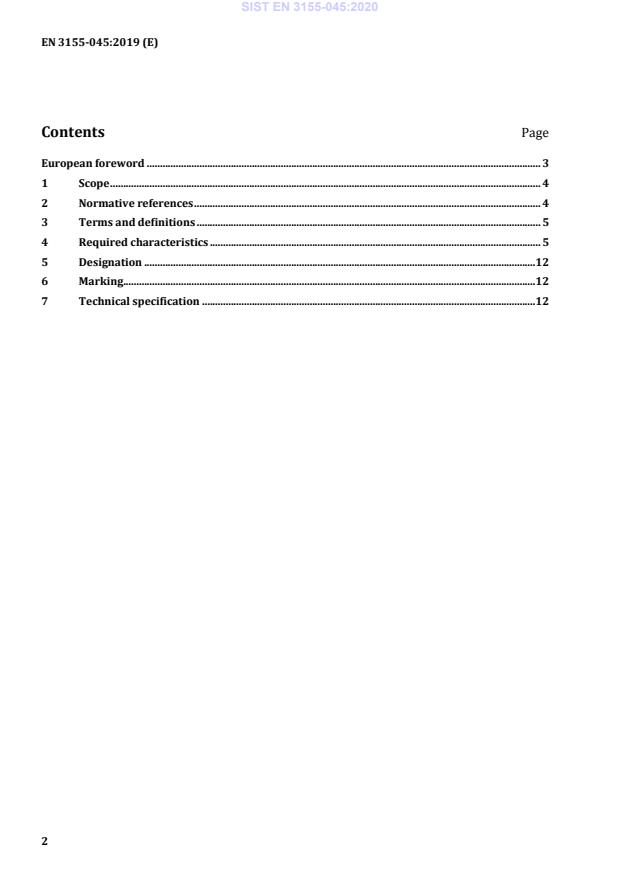

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
5 Designation . 12
6 Marking . 12
7 Technical specification . 12

European foreword
This document (EN 3155-045:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2020, and conflicting national standards shall be
withdrawn at the latest by June 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3155-045:2006.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document specifies the required characteristics, tests and tooling applicable to female electrical
contacts 045, type A, double crimping, class T, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contact is defined in EN 3155-044.
Double crimping contact has a barrel which is design to crimp conductor and jacket of cable in two
locations, one on the conductor and the other on the jacket. This way protect the conductor from
mechanical strengths.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2083, Aerospace series — Copper or copper alloy conductors for electrical cables — Product standard
EN 2591 (all parts), Aerospace series — Elements of electrical and optical connection — Test methods —
General
EN 2997-001, Aerospace series — Connectors, electrical, circular, coupled by threaded ring, fire-resistant
or non fire-resistant, operating temperatures – 65 °C to 175 °C continuous, 200 °C continuous, 260 °C
peak — Part 001: Technical specification
EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001: Technical
specification
EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and
utilization of contacts
EN 3155-044, Aerospace series — Electrical contacts used in elements of connection — Part 044: Contacts,
electrical, male 044, type A, double crimping, class T — Product standard
EN 4434, Aerospace series — Copper or copper alloy lightweight conductors for electrical cables — Product
standard (Normal and tight tolerances)
1)
SAE-AS22520, Crimping tools, wire termination, general specification for
1)
SAE-AS81969, Installing and removal tools, connector electrical contact, general
...
