Sanitary appliances - Specification for whirlpool baths

This European Standard specifies "characteristics" for whirlpool baths, having a rated voltage of not more than 250 V for single phase appliances and 480 V for other appliances, which are intended to be installed in indoor domestic situations and used in accordance with the manufacturer’s instructions for personal hygiene. Such whirlpool baths are tested and supplied as a complete independent unit designed to be drained down after every use. They may be transported in several separate parts, for assembly on site, to facilitate delivery.
Safety aspects of Whirlpool baths (except use by young children and slow moving/weak elderly or disabled individuals) are covered by EN 60335 2 60.
Exclusions: this standard does not cover additional requirements for whirlpool baths intended for uses where specific medical provisions are required, or whirlpool baths for communal uses where they are not drained down after every use. Portable whirlpool devices are not covered by this standard.
For the purposes of this standard the term ‘domestic situations’ includes use in hotels, accommodation for students, hospitals and similar buildings.
Warning: Slow moving elderly or disabled persons should take care when using whirlpool baths. Young children should not be allowed to use whirlpool baths without supervision.
NOTE 1   It is unrealistic to expect manufacturers to provide a definition of what constitutes a ‘slow moving elderly or disabled person’, or ‘young children’. The former is the responsibility of the individual or a carer. The latter is a parental responsibility.
NOTE 2   When EN 60335-2-60 is amended to cover use of whirlpool baths by slow moving elderly or disabled persons and young children the warning given above will be deleted from this standard.

Sanitärausstattungsgegenstände - Anforderungen an Whirlwannen

Diese Europäische Norm legt Anforderungen an Whirlwannen, die eine Betriebsspannung von nicht mehr als 250 V für einphasige Geräte und 480 V für andere Geräte besitzen, fest. Sie sind für eine Innenraum Installation für den häuslichen Gebrauch vorgesehen und werden zur persönlichen Hygiene entsprechend den Herstelleranweisungen eingesetzt. Whirlwannen dieser Art werden als vollständig ausgerüstete Einheit geprüft und in einer Ausführung ausgeliefert, die nach jedem Gebrauch entleert wird. Sie können in mehreren Einzelteilen zur Montage vor Ort transportiert werden, um die Auslieferung zu erleichtern.
Sicherheitsanforderungen an Whirlwannen (außerhalb der Nutzung durch Kleinkinder und in ihrer Bewegung eingeschränkter und Personen höheren Alters sowie Behinderter) sind in EN 60335 2 60 angegeben.
Ausnahmen: Zusätzliche Anforderungen an Whirlwannen für den medizinischen Einsatz, wo besondere Bestimmungen gelten, oder für die öffentliche Nutzung, bei der die Whirlwannen nicht nach jedem Gebrauch entleert werden, sind von dieser Norm nicht abgedeckt. Bewegliche Whirleinrichtungen sind nicht Gegenstand dieser Norm.
Für die Belange dieser Norm beinhaltet der Begriff "häuslicher Gebrauch" auch die Nutzung in Hotels, Studenteneinrichtungen, Krankenhäusern und ähnlichen Gebäuden.
WARNUNG - In ihrer Bewegung eingeschränkte ältere und behinderte Personen sollten bei der Nutzung von Whirlwannen besondere Sorgfalt walten lassen. Kleinkindern sollte die Nutzung von Whirlwannen ohne Beaufsichtigung nicht erlaubt sein.
ANMERKUNG 1   Es ist nicht sachgerecht zu erwarten, dass Hersteller eine Definition bereitstellen, was mit einer "in ihrer Bewegung eingeschränkten älteren oder behinderten Person" und "Kleinkinder" gemeint ist. Ersteres liegt in der Verantwortung der entsprechenden Person oder eines Betreuers. Letzteres liegt in der elterlichen Verantwortung.
ANMERKUNG 2   Wenn EN 60335 2 60 mit der Nutzung von Whirlwannen durch in ihrer Bewegung eingeschränkte ältere oder behinderte Personen sowie Kleinkinder ergänzt wird, wird der oben aufgeführte Warnhinweis aus dieser Norm gestrichen.

Appareils sanitaires - Spécification relative aux baignoires avec système de brassage d'eau

Cette Norme européenne détermine les "caractéristiques" pour les baignoires avec système de brassage d’eau, dont la tension nominale d’alimentation ne dépasse pas les 250 V pour les appareils monophasés et 480 V pour les autres appareils. Elles sont destinées à être installées à l’intérieur des bâtiments pour des usages domestiques et pour l’hygiène personnelle conformément aux instructions du fabricant. Ces baignoires avec système de brassage d’eau sont soumises à essai et fournies en tant qu’appareil complet et indépendant, devant être vidé après chaque utilisation. Elles peuvent être transportées en plusieurs parties pour faciliter la livraison, et être assemblées sur place.
Les aspects de sécurité des baignoires avec système de brassage d’eau (sauf en ce qui concerne l’utilisation par les jeunes enfants, les personnes âgées faibles ou à mobilité réduite et les personnes handicapées) sont couverts par l’EN 60335-2-60.
Exclusions : la présente norme ne couvre pas les exigences supplémentaires pour les baignoires avec système de brassage d’eau destinées à une utilisation exigeant des dispositions médicales spécifiques, ou à une utilisation commune lorsque les baignoires ne sont pas vidées après chaque utilisation. Les systèmes de brassage amovibles ne sont pas couverts par la présente norme.
Pour les besoins de la présente norme, le terme «usage domestique» inclut l’utilisation dans les hôtels, les logements d’étudiants, les hôpitaux et les bâtiments similaires.
AVERTISSEMENT - Il convient que les personnes âgées à mobilité réduite ou les personnes handicapées soient prudentes lors de l’utilisation de baignoires avec système de brassage d’eau. Il convient de ne pas autoriser les jeunes enfants à utiliser les baignoires avec système de brassage d’eau sans surveillance.
NOTE 1   Il n’est pas réaliste d’attendre des fabricants qu’ils donnent une définition de ce que recouvrent les notions de «personne âgée à mobilité réduite ou personne handicapée» ou «jeune enfant». La première définition est de la responsabilité de la personne elle-même ou de celle qui s’en occupe. La deuxième est de la responsabilité des parents.
NOTE 2   Si l’EN 60335-2-60 est amendée pour couvrir l’utilisation des baignoires avec système de brassage d’eau par des personnes âgées à mobilité réduite ou des personnes handicapées ou des jeunes enfants, il faudra supprimer l’avertissement ci-dessus.

Sanitarna oprema - Zahteve za masažne kadi

Ta evropski standard določa »karakteristike« za masažne kadi z nazivno napetostjo največ 250 V za enofazno opremo in 480 V za drugo opremo, ki je namenjena vgradnji v notranjih prostorih za domačo uporabo ter se uporablja v skladu z navodili proizvajalca za osebno higieno. Take masažne kadi so preskušene in dobavljene kot zaključena neodvisna enota, ki jo je treba izprazniti po vsaki uporabi. Lahko se prevažajo v več ločenih delih in sestavijo na kraju samem, da se olajša dobava.
Varnostni vidiki masažnih kadi (razen če kad uporabljajo mladi otroci in počasne/šibke starejše ali invalidne osebe) so obravnavani v standardu EN 60335 2 60.
Izključitve: ta standard ne obravnava dodatnih zahtev za masažne kadi, namenjene uporabam, za katere so potrebna posebna medicinska določila, ali masažne kadi za javno uporabo, ki se ne izpraznijo po vsaki uporabi. Ta standard ne zajema prenosnih masažnih naprav.
Za namene tega standarda izraz »domača uporaba« vključuje uporabo v hotelih, namestitvah za učence, bolnišnicah in podobnih stavbah.
Opozorilo: Počasne starejše ali invalidne osebe morajo biti previdne pri uporabi masažnih kadi. Mladi otroci ne smejo nenadzorovano uporabljati masažnih kadi.
OPOMBA 1:   Nerealno je pričakovati, da bodo proizvajalci opredelili, kaj zajema pojem »počasna starejša ali invalidna oseba« ali »mladi otroci«. Za osebe iz prvega pojma so odgovorne posamezne osebe ali skrbniki, za osebe iz drugega pojma pa starši.
OPOMBA 2:   Ko bo standard EN 60335-2-60 dopolnjen, da bo zajemal uporabo masažnih kadi s strani počasnih starejših ali invalidnih oseb ali mladih otrok, bo zgornje opozorilo izbrisano iz tega standarda.

General Information

Status
Published
Publication Date
04-Dec-2018
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
26-Nov-2018
Due Date
31-Jan-2019
Completion Date
05-Dec-2018

RELATIONS

Buy Standard

Standard
SIST EN 12764:2015+A1:2019
English language
17 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sanitarna oprema - Zahteve za masažne kadiSanitärausstattungsgegenstände - Anforderungen an WhirlwannenAppareils sanitaires - Spécification relative aux baignoires avec système de brassage d'eauSanitary appliances - Specification for whirlpool baths91.140.70Sanitarne napraveSanitary installationsICS:Ta slovenski standard je istoveten z:EN 12764:2015+A1:2018SIST EN 12764:2015+A1:2019en,fr,de01-januar-2019SIST EN 12764:2015+A1:2019SLOVENSKI

STANDARDSIST EN 12764:20151DGRPHãþD
SIST EN 12764:2015+A1:2019
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12764:2015+A1
October
t r s z ICS
{ sä s v rä y r Supersedes EN
s t y x vã t r s wEnglish Version

Sanitary appliances æ Specification for whirlpool baths Appareils sanitaires æ Spécification relative aux baignoires avec système de brassage d 5eau

Sanitärausstattungsgegenstände æ Anforderungen an Whirlwannen This European Standard was approved by CEN on

t z May
t r s w and includes Amendment
s approved by CEN on
s z May
t r s zä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s t y x vã t r s w ªA sã t r s z ESIST EN 12764:2015+A1:2019

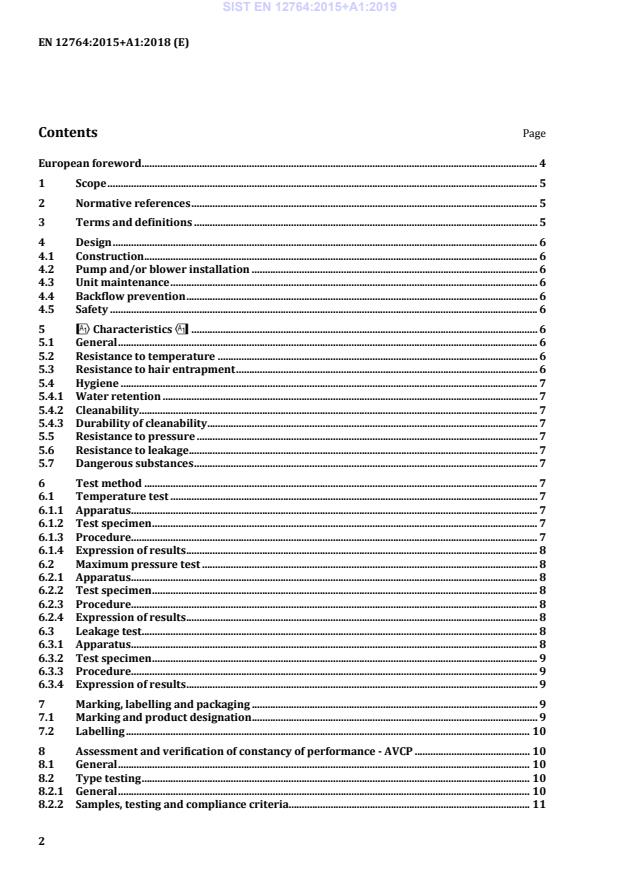

EN 12764:2015+A1:2018 (E) 2 Contents Page European foreword ....................................................................................................................................................... 4 1 Scope .................................................................................................................................................................... 5 2 Normative references .................................................................................................................................... 5 3 Terms and definitions ................................................................................................................................... 5 4 Design .................................................................................................................................................................. 6 4.1 Construction ...................................................................................................................................................... 6 4.2 Pump and/or blower installation ............................................................................................................. 6 4.3 Unit maintenance ............................................................................................................................................ 6 4.4 Backflow prevention ...................................................................................................................................... 6 4.5 Safety ................................................................................................................................................................... 6 5 !Characteristics" .................................................................................................................................... 6 5.1 General ................................................................................................................................................................ 6 5.2 Resistance to temperature .......................................................................................................................... 6 5.3 Resistance to hair entrapment ................................................................................................................... 6 5.4 Hygiene ............................................................................................................................................................... 7 5.4.1 Water retention ............................................................................................................................................... 7 5.4.2 Cleanability ........................................................................................................................................................ 7 5.4.3 Durability of cleanability .............................................................................................................................. 7 5.5 Resistance to pressure .................................................................................................................................. 7 5.6 Resistance to leakage ..................................................................................................................................... 7 5.7 Dangerous substances ................................................................................................................................... 7 6 Test method ...................................................................................................................................................... 7 6.1 Temperature test ............................................................................................................................................ 7 6.1.1 Apparatus ........................................................................................................................................................... 7 6.1.2 Test specimen ................................................................................................................................................... 7 6.1.3 Procedure........................................................................................................................................................... 7 6.1.4 Expression of results ...................................................................................................................................... 8 6.2 Maximum pressure test ................................................................................................................................ 8 6.2.1 Apparatus ........................................................................................................................................................... 8 6.2.2 Test specimen ................................................................................................................................................... 8 6.2.3 Procedure........................................................................................................................................................... 8 6.2.4 Expression of results ...................................................................................................................................... 8 6.3 Leakage test ....................................................................................................................................................... 8 6.3.1 Apparatus ........................................................................................................................................................... 8 6.3.2 Test specimen ................................................................................................................................................... 9 6.3.3 Procedure........................................................................................................................................................... 9 6.3.4 Expression of results ...................................................................................................................................... 9 7 Marking, labelling and packaging ............................................................................................................. 9 7.1 Marking and product designation ............................................................................................................. 9 7.2 Labelling .......................................................................................................................................................... 10 8 Assessment and verification of constancy of performance - AVCP ............................................ 10 8.1 General ............................................................................................................................................................. 10 8.2 Type testing .................................................................................................................................................... 10 8.2.1 General ............................................................................................................................................................. 10 8.2.2 Samples, testing and compliance criteria............................................................................................ 11 SIST EN 12764:2015+A1:2019

EN 12764:2015+A1:2018 (E) 3 8.3 Factory production control ....................................................................................................................... 12 8.3.1 General ............................................................................................................................................................. 12 8.3.2 Equipment ....................................................................................................................................................... 12 8.3.3 Raw materials and components .............................................................................................................. 12 8.3.4 Product testing and assessment .............................................................................................................. 12 8.3.5 Non-conforming products ......................................................................................................................... 12 8.3.6 Corrective action ........................................................................................................................................... 13 9 Instructions to installer .............................................................................................................................. 13 10 Instructions to users .................................................................................................................................... 13 Annex A (informative)

Commissioning test ..................................................................................................... 14 A.1 Procedure ........................................................................................................................................................ 14 Annex ZA (informative)

!Relationship of this European Standard with Regulation No.305/2011" ............................................................................................................................................ 15 ZA.1 Scope and relevant characteristics ........................................................................................................ 15 ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) ...................... 15 ZA.3 Assignment of AVCP tasks ......................................................................................................................... 15 Bibliography ................................................................................................................................................................. 17

SIST EN 12764:2015+A1:2019

EN 12764:2015+A1:2018 (E) 4 European foreword This document (EN 12764:2015+A1:2018) has been prepared by Technical Committee CEN/TC 163 “Sanitary appliances”, the secretariat of which is held by UNI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2019, and conflicting national standards shall be withdrawn at the latest by July 2020. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1 approved by CEN on 2018-05-18. This document supersedes !EN 12764:2015". The start and finish of text introduced or altered by amendment is indicated in the text by tags !". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. For relationship with EU Construction Products Regulation, see informative Annex ZA, which is an integral part of this document. !deleted text" According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12764:2015+A1:2019

EN 12764:2015+A1:2018 (E) 5 1 Scope This European Standard specifies !characteristics" for whirlpool baths, having a rated voltage of not more than 250 V for single phase appliances and 480 V for other appliances, which are intended to be installed in indoor domestic situations and used in accordance with the manufacturer’s instructions for personal hygiene. Such whirlpool baths are tested and supplied as a complete independent unit designed to be drained down after every use. They may be transported in several separate parts, for assembly on site, to facilitate delivery. Safety aspects of Whirlpool baths (except use by young children and slow moving/weak elderly or disabled individuals) are covered by EN 60335-2-60. Exclusions: this standard does not cover additional requirements for whirlpool baths intended for uses where specific medical provisions are required, or whirlpool baths for communal uses where they are not drained down after every use. Portable whirlpool devices are not covered by this standard. For the purposes of this standard the term ‘domestic situations’ includes use in hotels, accommodation for students, hospitals and similar buildings. Warning: Slow moving elderly or disabled persons should take care when using whirlpool baths. Young children should not be allowed to use whirlpool baths without supervision. NOTE 1 It is unrealistic to expect manufacturers to provide a definition of what constitutes a ‘slow moving elderly or disabled person’, or ‘young children’. The former is the responsibility of the individual or a carer. The latter is a parental responsibility. NOTE 2 When EN 60335–2-60 is amended to cover use of whirlpool baths by slow moving elderly or disabled persons and young children the warning given above will be deleted from this standard. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 232, Baths — Connecting dimensions EN 1717, Protection against pollution of potable water in water installations and general requirements of devices to prevent pollution by backflow EN 14516, Baths for domestic purposes EN 60335-2-60, Household and similar electrical appliances — Safety — Part 2-60: Particular requirements for whirlpool baths and whirlpool spas (IEC 60335-2-60) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 whirlpool bath completely assembled unit comprising of a bath, a water and/or air agitating device and associated electrical installation 3.2 overflow level level at which water in the bath will start to flow through any overflow pipe SIST EN 12764:2015+A1:2019

EN 12764:2015+A1:2018 (E) 6 4 Design 4.1 Construction The whirlpool bath shall form a fully integrated unit permanently installed in accordance with the manufacturer’s instructions, such that it is possible to carry out the commissioning test described in Annex A without the need to install additional parts or components. Element parts, e.g. pump or blower, may be installed remotely from the bath. NOTE Portable whirlpool devices are not covered by this specification (see Clause 1). 4.2 Pump and/or blower installation The weight of the pump and/or blower shall not be supported by any part of the system pipe-work. 4.3 Unit maintenance The whirlpool bath shall be designed such that after installation in accordance with the manufacturer’s instructions, all elements of the unit requiring regular maintenance (e.g. pump, blower, valves, electrical components) remain accessible. 4.4 Backflow prevention A whirlpool bath intended to be filled by direct connection of its circulatory pipe-work to the water supplies shall be supplied with appropriate backflow prevention devices for installation at the point of connection in accordance with EN 1717. 4.5 Safety Whirlpool baths need to comply with the requirements of the Low Voltage Directive 2006/95/EC. Compliance with EN 60335-2-60 is one way of satisfying this rule. 5 !Characteristics" 5.1 General Whirlpool baths shall comply with the requirements in EN 232 unless the manufacturer provides a special waste and/or suction/overflow fitting, and they shall be subjected to the sequence of tests specified in 5.2 to 5.6. Where a European Standard exists for the performance of baths manufactured from specific materials, whirlpool baths made from such materials shall also comply with the !characteristics" of that standard. 5.2 Resistance to temperature When tested in accordance with 6.1 there shall be no leakage or other damage. When those parts of whirlpool baths which are intended by the manufacturer to function at temperatures in excess of 60°C are tested in accordance with 6.1 at those higher temperatures, there shall be no leakage or other damage. 5.3 Resistance to hair entrapment Whirlpool baths shall com

...
