SIST EN 4165-016:2025

Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 016: Double oval chimney for accessory (1 per 2 modules) - Product standard

This document specifies the oval chimneys for accessories for accessories used in the family of rectangular electrical connectors, operating temperature 175 °C continuous.
The connector accessory body corresponding to those oval chimneys is specified in EN 4165-014.

Luft- und Raumfahrt - Elektrischer Rechtecksteckverbinder in modularer Bauweise - Betriebstemperatur 175 °C konstant - Teil 016: Zugentlastung, ovale, für zwei Module - Produktnorm

Dieses Dokument legt ovale Zugentlastungen für Endgehäuse fest, die in der Familie der elektrischen Rechtecksteckverbinder verwendet werden, Betriebstemperatur 175 °C konstant.
Das zu diesen ovalen Zugentlastungen passende Endgehäuse für Steckverbinder ist in EN 4165 014 festgelegt.

Série aérospatiale - Connecteurs électriques rectangulaires modulaires - Température d'utilisation 175 °C continu - Partie 016 : Double cheminée ovale pour accessoires (1 pour 2 modules) - Norme de produit

Le présent document spécifie les doubles cheminées ovales pour accessoires (1 pour 2 modules), utilisées dans la famille des connecteurs électriques rectangulaires modulaires, température d'utilisation 175 °C continu.
Le corps d’accessoire du connecteur correspondant à ces doubles cheminées ovales est spécifié dans l'EN 4165-014.

Aeronavtika - Konektorji, električni, pravokotni, modularni - Stalna delovna temperatura 175 °C - 016. del: Dvojno ovalno ohišje za pribor (1 na 2 modula) - Standard za proizvod

Ta dokument določa ovalna ohišja za pribor, ki se uporabljajo v družini pravokotnih električnih konektorjev pri stalni delovni temperaturi 175 °C.
Ogrodje pribora konektorja za ta ovalna ohišja je opredeljeno v standardu EN 4165-014.

General Information

• Status: Published
• Public Enquiry End Date: 22-Feb-2022
• Publication Date: 08-Dec-2024
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 02-Dec-2024
• Due Date: 06-Feb-2025
• Completion Date: 09-Dec-2024
• Ref Project: EN 4165-016:2024 - Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 016: Double oval chimney for accessory (1 per 2 modules) - Product standard

Relations

• Revised: SIST EN 4165-016:2008 - Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 016: Double oval chimney for accessory (1 per 2 modules) - Product standard
• Effective Date: 19-Jan-2023

Overview

EN 4165-016:2024 is a CEN product standard in the EN 4165 aerospace series that specifies the double oval chimney for accessory (1 per 2 modules) used with rectangular, modular electrical connectors rated for continuous operation at 175 °C. The document defines the form, marking and basic technical characteristics of the oval chimney accessory that interfaces with the connector accessory body (see EN 4165-014). It is intended for use across aerospace applications where high-temperature, modular rectangular connectors are employed.

Key topics and requirements

• Scope: Defines oval chimneys for accessories used in the EN 4165 family of rectangular modular electrical connectors at 175 °C continuous.
• Design and dimensions: Includes dimensional requirements (in millimetres) and a reference figure. Key published values include:
  • inside section minimum: 69.4 mm
  • another inside section: 190.6 mm
  • hexagonal clip diameter: Ø 0.6 mm ± 0.10 mm
  • mass: 4 g max
• Accessory class: Reference to class assignment according to EN 4165-002.
• Marking: Required marking on each oval chimney must include:
  • the identity block (designation per Clause 6),
  • date of manufacture (year-week),
  • manufacturer’s name or trademark.
• Normative references and technical spec: The standard relies on EN 4165-001 for overall technical specification and EN 4165-002 for performance/contact arrangements. The accessory body counterpart is specified in EN 4165-014.
• Terms and definitions: Aligned with EN 4165-001 terminology.

Applications and users

• Who uses this standard:
  • Connector and accessory manufacturers designing or producing EN 4165-series components.
  • Aerospace systems integrators specifying connector accessories for high-temperature environments (engines, heat-exposed avionics bays).
  • Procurement and quality teams ensuring part compliance and traceability via required marking.
  • Maintenance and repair organizations replacing accessory chimneys to the correct form, fit and marking requirements.
• Practical value:
  • Ensures interoperability of accessory chimneys across EN 4165 rectangular modular connectors.
  • Supports high-temperature reliability by standardizing geometry, mass and retaining features (hexagonal clip).
  • Simplifies certification and part traceability through standardized marking (identity block, manufacture date, trademark).

Related standards

• EN 4165-001 - Technical specification for the EN 4165 connector family.
• EN 4165-002 - Specification of performance and contact arrangements.
• EN 4165-014 - Shielded accessory body (2 and 4 modules) corresponding to these oval chimneys.

Keywords: EN 4165-016:2024, oval chimney, aerospace connectors, rectangular modular connectors, 175 °C continuous, connector accessory, EN 4165 series, accessory marking, connector standards.

Standards Content (Sample)

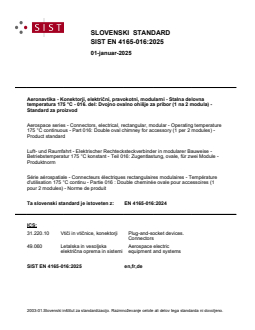

SLOVENSKI STANDARD
01-januar-2025
Aeronavtika - Konektorji, električni, pravokotni, modularni - Stalna delovna
temperatura 175 °C - 016. del: Dvojno ovalno ohišje za pribor (1 na 2 modula) -
Standard za proizvod
Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature
175 °C continuous - Part 016: Double oval chimney for accessory (1 per 2 modules) -
Product standard
Luft- und Raumfahrt - Elektrischer Rechtecksteckverbinder in modularer Bauweise -
Betriebstemperatur 175 °C konstant - Teil 016: Zugentlastung, ovale, für zwei Module -
Produktnorm
Série aérospatiale - Connecteurs électriques rectangulaires modulaires - Température
d'utilisation 175 °C continu - Partie 016 : Double cheminée ovale pour accessoires (1
pour 2 modules) - Norme de produit
Ta slovenski standard je istoveten z: EN 4165-016:2024
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

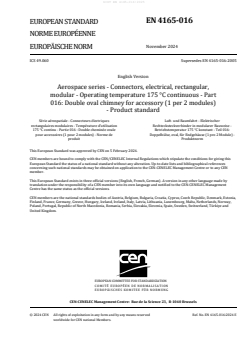

EN 4165-016
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2024
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 4165-016:2005
English Version
Aerospace series - Connectors, electrical, rectangular,
modular - Operating temperature 175 °C continuous - Part
016: Double oval chimney for accessory (1 per 2 modules)
- Product standard
Série aérospatiale - Connecteurs électriques Luft- und Raumfahrt - Elektrischer
rectangulaires modulaires - Température d'utilisation Rechtecksteckverbinder in modularer Bauweise -
175 °C continu - Partie 016 : Double cheminée ovale Betriebstemperatur 175 °C konstant - Teil 016:
pour accessoires (1 pour 2 modules) - Norme de Doppelhülse, oval, für Endgehäuse (1 pro 2 Module) -
produit Produktnorm
This European Standard was approved by CEN on 5 February 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4165-016:2024 E
worldwide for CEN national Members.

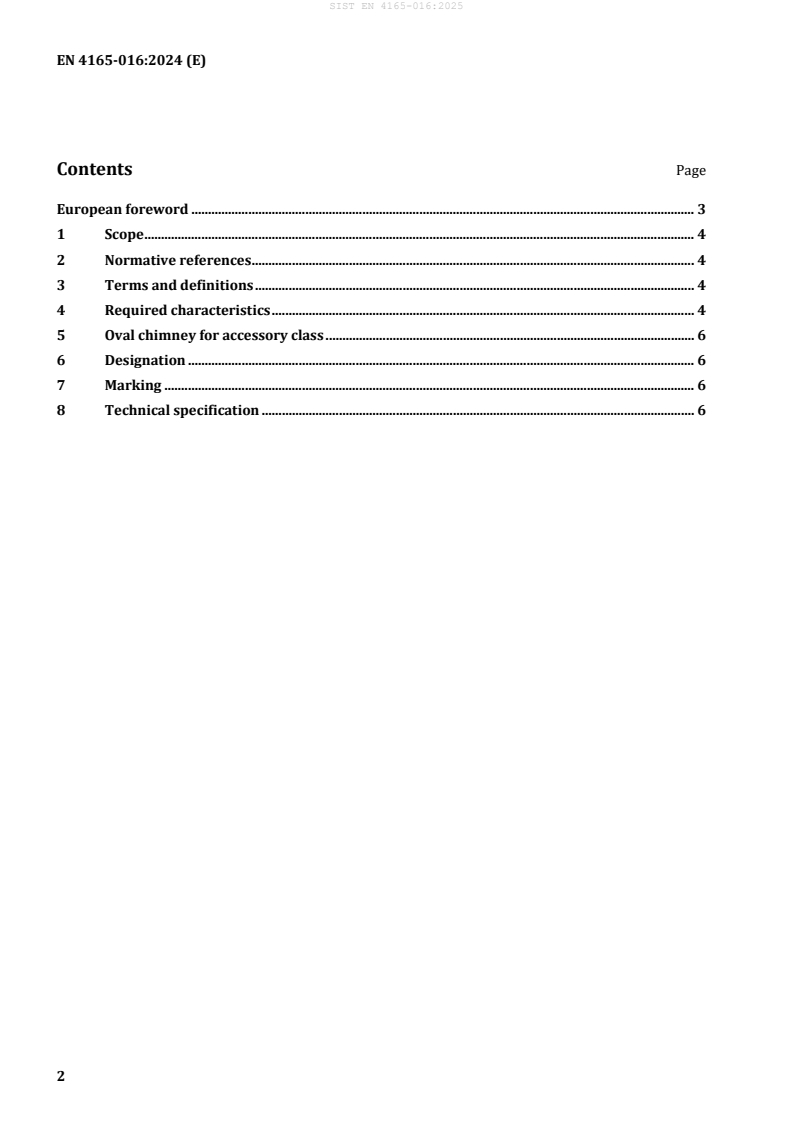

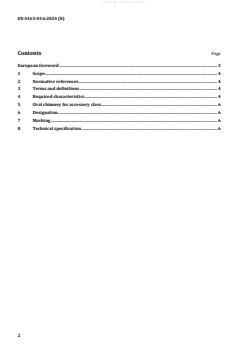

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Required characteristics . 4
5 Oval chimney for accessory class . 6
6 Designation .
...
