SIST EN 4710-004:2015

Aerospace series - Quick release fastening systems for non-structural applications - Part 004: Spring clamp - One way tolerance compensation

This European Standard specifies the dimensions, mass, tolerances and static values of catch spring for use in fuselage interior equipment and non-structural or secondary structural area.
This European Standard is to be used in conjunction with EN 4710-06 and EN 4710-07 as described in EN 4710-02.
The applicable temperature range is  55 °C to 85 °C.

Luft- und Raumfahrt - Druckverschlüsse nicht-strukturelle Anwendungen - Teil 004: Feder Clip - Einfacher Toleranzausgleich

Diese Europäische Norm legt die Maße, Massen, Toleranzen und statischen Werte von Federclips für die Anwendung bei Inneneinrichtungen von Luftfahrzeugen und in nicht-strukturellen oder Sekundärstrukturbereichen fest.
Diese Europäische Norm ist in Verbindung mit EN 4710-06 und EN 4710-07 wie in EN 4710-02 beschrieben anzuwenden.
Der gültige Temperaturbereich ist zwischen −55 °C und 85 °C.

Série aérospatiale - Fixations rapides fileteées pour applications non-structurales - Partie 004: Collier lyre - Un degré de liberté

La présente Norme européenne spécifie les dimensions, la masse, les tolérances et les valeurs statiques des colliers lyre pour utilisation dans les équipements intérieurs et dans les zones non structurales ou structurales secondaires du fuselage.
La présente Norme européenne doit être utilisée conjointement avec les EN 4710-06 et EN 4710-07 comme défini dans l’EN 4710-02.
La gamme de température applicable est comprise entre - 55 °C et 85 °C.

Aeronavtika - Spončni sistemi za hitro sprostitev za nestrukturne aplikacije - 004. del: Vzmetna objemka - Enostranska tolerančna izravnava

Ta evropski standard določa dimenzije, maso, tolerance in statične vrednosti natezne vzmeti za uporabo v notranji opremi v trupu letala ter nestrukturnem ali sekundarnem strukturnem območju.
Ta evropski standard se uporablja v povezavi s standardoma EN 4710-06 in EN 4710-07, kot je opisano v standardu EN 4710-02. Delovna temperatura je med –55 °C in 85 °C.

General Information

• Status: Published
• Publication Date: 08-Nov-2015
• ICS: 49.030.01 - Fasteners in general
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 29-Oct-2015
• Due Date: 03-Jan-2016
• Completion Date: 09-Nov-2015
• Ref Project: EN 4710-04:2015 - Aerospace series - Quick release fastening systems for non-structural applications - Part 04: Spring clamp - One way tolerance compensation

Overview

EN 4710-04:2015 - Aerospace series: Quick release fastening systems for non-structural applications - Part 04: Spring clamp (one way tolerance compensation) is a European standard published by CEN. It specifies the dimensions, mass, tolerances and static values for catch spring (spring clamp) components used in fuselage interior equipment and other non‑structural or secondary structural areas. The standard covers environmental limits (‑55 °C to 85 °C) and is intended for use together with other EN 4710 series parts.

Key topics and technical requirements

• Scope: Spring clamp for non‑structural aerospace applications (one‑way tolerance compensation).
• Dimensions & mass: Two type codes are defined (CTS and CTM) with detailed dimensional tables and approximate masses (CTS ≈ 0.9 g; CTM ≈ 2.3 g). Unspecified tolerances follow ISO 2768‑mK (EN 22768‑1/2).
• Mechanical performance: Ultimate loads specified by type (example: CTS = 500 N; CTM = 900 N).
• Materials & surface treatment:
  • Material code S: Stainless steel 1.4310 (EN 10151), passivated per EN 2516.
  • Material code A: Alloy steels (1.0605 or 1.1248 per EN 10132‑4) with electroplated coating per DIN 50979.
• Endurance: Cycle life requirements differ by material code (Material A: 1 500 cycles; Material S: 500 cycles).
• Marking & identification: Product marking per EN 2424 (style F). Designation example: EN4710-04CTM4S (standard-family-type-plate-material).
• Testing & inspection: Acceptance and qualification tests referenced to EN 4710‑01 and summarized in the standard (dimensions, materials, surface treatment, ultimate loads, corrosion resistance, functionality, etc.).
• Temperature range: Applicable service/test range is -55 °C to 85 °C.

Applications and users

• Practical applications: Quick‑release spring clamps for interior panels, fittings, trim, access panels and other non‑structural attachments in aircraft fuselage interiors where a one‑way tolerance compensation is required.
• Who uses this standard: Aerospace component designers, interior systems engineers, manufacturers of fasteners and spring clamps, quality/inspection teams, procurement and certification authorities, and test laboratories responsible for acceptance and qualification testing.

Related standards

• EN 4710‑01 (technical specification / testing references)
• EN 4710‑02, EN 4710‑06, EN 4710‑07 (related parts of the quick release fastening family)
• EN 2424 (marking), EN 2516 (passivation), EN 10132‑4 / EN 10151 (material delivery conditions), EN 22768‑1/2 (general tolerances), DIN 50979 (electroplating)

Keywords: EN 4710-04:2015, spring clamp, quick release fastening systems, aerospace standard, fuselage interior, non-structural fasteners, one way tolerance compensation, dimensions, tolerances, material specification, endurance testing.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Druckverschlüsse nicht-strukturelle Anwendungen - Teil 004: Feder Clip - Einfacher ToleranzausgleichSérie aérospatiale - Fixations rapides fileteées pour applications non-structurales - Partie 004: Collier lyre - Un degré de libertéAerospace series - Quick release fastening systems for non-structural applications - Part 004: Spring clamp - One way tolerance compensation49.030.01Vezni elementi na splošnoFasteners in generalICS:Ta slovenski standard je istoveten z:EN 4710-04:2015SIST EN 4710-004:2015en,fr,de01-december-2015SIST EN 4710-004:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4710-04
October
t r s w ICS
v {ä r u w English Version
Aerospace series æ Quick release fastening systems for nonæstructural applications æ Part
r vã Spring clamp æ One way tolerance compensation Série aérospatiale æ Fixations rapides filetées pour applications nonæstructurales æ Partie
r v ã Collier lyre æUn degré de liberté
Luftæ und Raumfahrt æ Schnellverschlüsse für nichtæstrukturelle Anwendungen æ Teil
r vã Federclip æ Einfacher Toleranzausgleich This European Standard was approved by CEN on
w March
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v y s ræ r vã t r s w ESIST EN 4710-004:2015

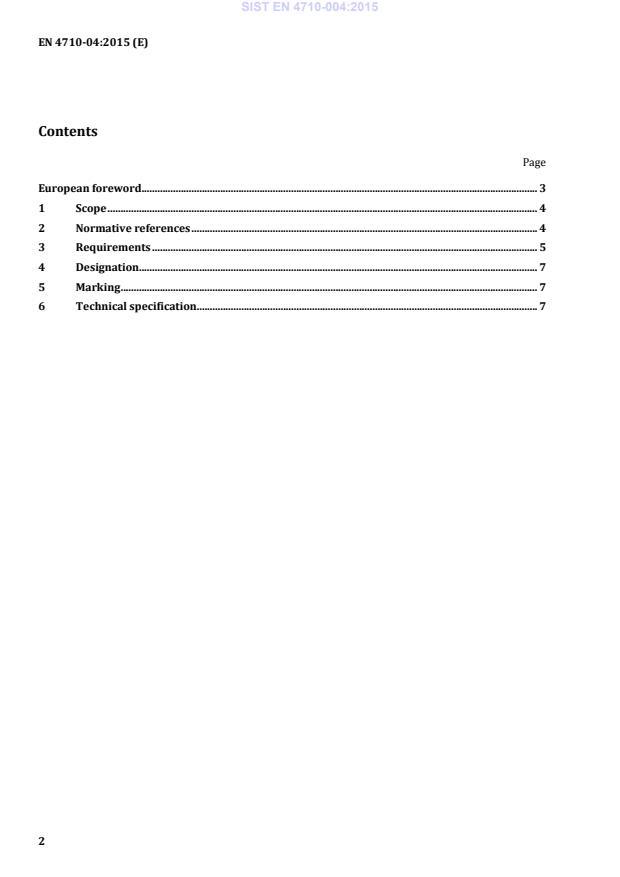

Page European foreword . 3 1 Scope . 4 2 Normative references . 4 3 Requirements . 5 4 Designation. 7 5 Marking . 7 6 Technical specification . 7
...
