SIST EN 419211-1:2014

Protection profiles for secure signature creation device - Part 1: Overview

This European Standard:
-   specifies terms used in specifying protection profiles for secure signature creation devices;
-   specifies functional and operational requirements for secure signature creation devices;
-   describes the targets of evaluation for these protection profiles.

Schutzprofile für Sichere Signaturerstellungseinheiten - Teil 1: Überblick

Diese Europäische Norm
-   legt die bei der Festlegung von Schutzprofilen für sichere Signaturerstellungseinheiten verwendeten Begriffe fest;
-   legt funktionale und einsatzbezogene Anforderungen an sichere Signaturerstellungseinheiten fest;
-   beschreibt den Evaluationsgegenstand für diese Schutzprofile.

Profiles de protection pour dispositif sécurisé de signature électronique - Partie 1: Présentation générale

La présente Norme européenne :
-   spécifie les termes utilisés pour la spécification des profils de protection pour les dispositifs sécurisés de création de signature ;
-   spécifie les exigences fonctionnelles et opérationnelles pour les dispositifs sécurisés de création de signature ;
-   décrit les cibles de l'évaluation de ces profils de protection.

Profil zaščite sredstva za varno elektronsko podpisovanje - 1. del: Pregled

Ta evropski standard:
– določa izraze, ki se uporabljajo pri opredelitvi profilov zaščite sredstev za varno elektronsko podpisovanje;
– določa funkcijske in obratovalne zahteve za sredstva za varno elektronsko podpisovanje;
– opisuje cilje za vrednotenje teh profilov zaščite.

General Information

• Status: Published
• Public Enquiry End Date: 31-Jul-2011
• Publication Date: 23-Nov-2014
• ICS: 35.030 - IT Security
• ICS: 35.040.01 - Information coding in general
• ICS: 35.100.05 - Multilayer applications
• Technical Committee: ITC - Information technology
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 20-Oct-2014
• Due Date: 25-Dec-2014
• Completion Date: 24-Nov-2014
• Ref Project: EN 419211-1:2014 - Protection profiles for secure signature creation device - Part 1: Overview

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 419211-1:2014
01-december-2014
3URILO]DãþLWHVUHGVWYD]DYDUQRHOHNWURQVNRSRGSLVRYDQMHGHO3UHJOHG
Protection profiles for secure signature creation device - Part 1: Overview
Schutzprofile für Sichere Signaturerstellungseinheiten - Teil 1: Überblick
Profiles de protection pour dispositif sécurisé de signature électronique - Partie 1:
Présentation générale
Ta slovenski standard je istoveten z: EN 419211-1:2014
ICS:
03.160 Pravo. Uprava Law. Administration
35.040 Nabori znakov in kodiranje Character sets and
informacij information coding
35.100.05 9HþVORMQHXSRUDEQLãNH Multilayer applications
UHãLWYH
SIST EN 419211-1:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 419211-1:2014

---------------------- Page: 2 ----------------------

SIST EN 419211-1:2014

EUROPEAN STANDARD
EN 419211-1

NORME EUROPÉENNE

EUROPÄISCHE NORM
October 2014
ICS 35.240.15 Supersedes CWA 14169:2004
English Version
Protection profiles for secure signature creation device - Part 1:
Overview
Profils de protection pour dispositif sécurisé de création de Schutzprofile für sichere Signaturerstellungseinheiten - Teil
signature électronique - Partie 1: Présentation générale 1: Überblick
This European Standard was approved by CEN on 25 July 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 419211-1:2014 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)

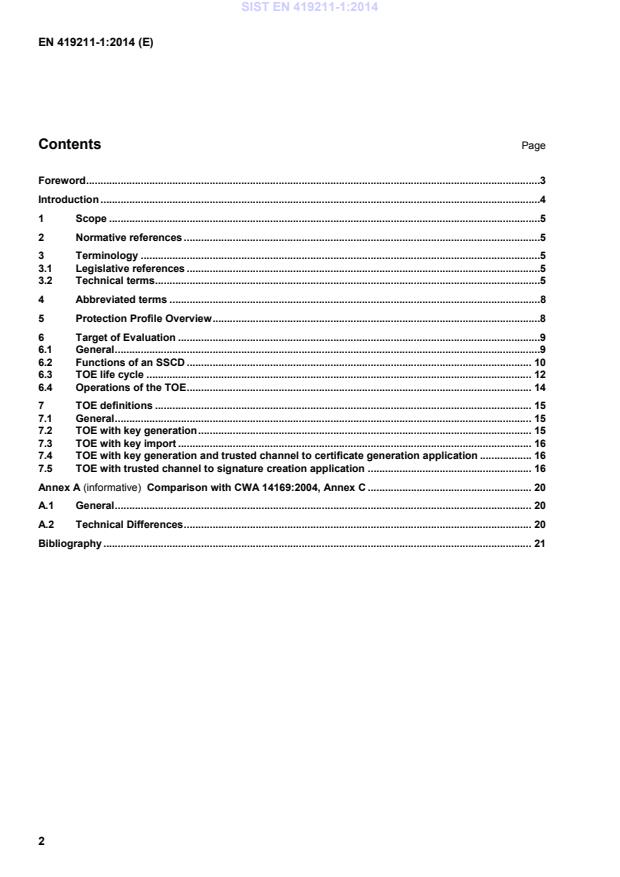

Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terminology .5
3.1 Legislative references .5
3.2 Technical terms.5
4 Abbreviated terms .8
5 Protection Profile Overview .8
6 Target of Evaluation .9
6.1 General .9
6.2 Functions of an SSCD . 10
6.3 TOE life cycle . 12
6.4 Operations of the TOE . 14
7 TOE definitions . 15
7.1 General . 15
7.2 TOE with key generation . 15
7.3 TOE with key import . 16
7.4 TOE with key generation and trusted channel to certificate generation application . 16
7.5 TOE with trusted channel to signature creation application . 16
Annex A (informative) Comparison with CWA 14169:2004, Annex C . 20
A.1 General . 20
A.2 Technical Differences . 20
Bibliography . 21

2

---------------------- Page: 4 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
Foreword
This document (EN 419211-1:2014) has been prepared by Technical Committee CEN/TC 224 “Personal
identification, electronic signature and cards and their related systems and operations”, the secretariat of
which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2015 and conflicting national standards shall be withdrawn at the
latest by April 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes CWA 14169:2004.
Significant changes between this edition and CWA 14169:2004 can be found in Annex A.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
 3

---------------------- Page: 5 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
Introduction
This series of European Standards specifies Protection Profiles for Secure Signature Creation Devices and is
issued by the European Committee for Standardization (CEN) as an update of the Electronic Signatures (E-
SIGN) CEN workshop agreement (CWA) 14169:2004, Annex C on the protection profile secure signature
creation devices, “EAL 4+”.
This series of European Standards consists of the following parts:
— Part 1: Overview
— Part 2: Device with key generation
— Part 3: Device with key import
— Part 4: Extension for device with key generation and trusted communication with certificate generation
application
— Part 5: Extension for device with key generation and trusted communication with signature creation
application
— Part 6: Extension for device with key import and trusted communication with signature creation
application
Preparation of the documents in this series of European Standards as protection profiles follows the rules of
the Common Criteria version 3.1 ([2], [3] and [4]).
4

---------------------- Page: 6 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
1 Scope
This European Standard:
— specifies terms used in specifying protection profiles for secure signature creation devices,
— specifies functional and operational requirements for secure signature creation devices,
— describes the targets of evaluation for these protection profiles.
2 Normative references
Not applicable.
3 Terminology
For the purposes of this document, the following terms and definitions apply.
3.1 Legislative references
This European Standard reflects the requirement of a European Directive in the technical terms of a protection
profile. The following terms are used in the text to reference this Directive:
3.1.1
the Directive
Directive 1999/93/EC of the European Parliament and of the Council of 13 December 1999 on “a Community
framework for electronic signatures” [1]
Note 1 to entry: References in this document to a specific article and paragraph of Directive 1999/93/EC are of the
form “(the Directive: n.m)”.
3.1.2
annex
one of the annexes, Annex I, Annex II or Annex III of the Directive
3.2 Technical terms
3.2.1
administrator
user who performs TOE initialization, TOE personalization, or other TOE administrative functions
3.2.2
advanced electronic signature
digital signature which meets specific requirements in the Directive: 2.2
Note 1 to entry: According to the Directive a digital signature qualifies as an advanced electronic signature if it:
— is uniquely linked to the signatory;
— is capable of identifying the signatory;
— is created using means that the signatory can maintain under their sole control; and
— is linked to the data to which it relates in such a manner that any subsequent change of the data are detectable.
 5

---------------------- Page: 7 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
3.2.3
authentication data
information used to verify the claimed identity of a user
3.2.4
certificate
digital signature used as electronic attestation binding signature verification data to a person confirming the
identity of that person as legitimate signer (the directive: 2.9)
3.2.5
certificate info
information associated with an SCD/SVD pair that may be stored in a secure signature creation device
Note 1 to entry: Certificate info may include:
— a signer's public key certificate, or
— one or more hash values of a signer's public key certificate together with an identifier of the hash function used to
compute the hash values, or
— a public key certificate as defined in X.509.
Note 2 to entry: Certificate info may contain information to allow the user to distinguish between several certificates.
3.2.6
certificate generation application
CGA
collection of application components that receive the SVD from the SSCD to generate a certificate obtaining
data to be included in the certificate and to create a digital signature of the certificate
3.2.7
certification service provider
CSP
entity that issues certificates or provides other services related to electronic signatures (the Directive: 2.11)
3.2.8
data to be signed
DTBS
all of the electronic data to be signed including a user message and signature attributes
3.2.9
data to be signed or its unique representation
DTBS/R
data received by a secure signature creation device as input in a single signature creation operation
Note 1 to entry: Examples of DTBS/R are:
— a hash value of the data to be signed (DTBS), or
— an intermediate hash value of a first part of the DTBS complemented with a remaining part of the DTBS, or
— the DTBS.
3.2.10
legitimate user
user of a secure signature creation device who gains possession of it from an SSCD-provisioning service
provider and who can be authenticated by the SSCD as its signatory
6

---------------------- Page: 8 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
3.2.11
qualified certificate
public key certificate that meets the requirements laid down in Annex I and that is provided by a CSP that
fulfils the requirements laid down in Annex II (the Directive: 2.10)
3.2.12
qualified electronic signature
an advanced electronic signature which is based on a qualified certificate and which is created by an SSCD
3.2.13
reference authentication data
RAD
data persistently stored by the TOE for authentication of the signatory
3.2.14
secure signature creation device
SSCD
a signature-creation device which meets the requirements laid down in Annex III
Note 1 to entry: An SSCD may be evaluated according to the security target conforming to a PP as defined in the
series of European Standards.
3.2.15
signatory
a person who holds (and is a legitimate user) of an SSCD and acts either on their own behalf or on behalf of
the natural or legal person or entity they represent
3.2.16
signature creation application
SCA
application complementing an SSCD with a user interface with the purpose to create an electronic signature
3.2.17
signature creation data
SCD
unique data, such as codes or private cryptographic keys, which are used by the signatory to create an
electronic signature
Note 1 to entry: For the PPs of this standard the SCD is held in the SSCD.
3.2.18
signature creation system
SCS
complete system that creates an electronic signature consisting of an SCA and an SSCD
3.2.19
signature verification data
SVD
data, such as codes or public cryptographic keys, which are used for the purpose of verifying an electronic
signature
3.2.20
SSCD-provisioning service
service to prepare and provide an SSCD to a subscriber and to support the signatory with certification of
generated keys and administrative functions of the SSCD
 7

---------------------- Page: 9 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
3.2.21
user
entity (human user or external IT entity) outside the TOE that interacts with the TOE
3.2.22
user message
data determined by the signatory as the correct input for signing
3.2.23
verification authentication data
VAD
data input to an SSCD for authentication of the signatory
4 Abbreviated terms
a
CC Common Criteria
CGA certificate generation application
DTBS data to be signed
DTBS/R data to be signed or its unique representation
a
EAL evaluation assurance level
IT information technology
a
PP protection profile
RAD reference authentication data
SCA signature creation application
SCD signature creation data
SCS signature creation system
SDO signed data object
SFP security Function Policy
SSCD secure signature creation device
a
ST security Target
SVD signature verification data
a
TOE target of evaluation
a
TSF TOE security functionality
VAD verification authentication data
a
See Bibliography [2, 3, 4] for details on the specification of Common Criteria.
5 Protection Profile Overview
This series of documents constitutes a suite of protection profiles, which are established by CEN as European
1)
Standards for products to create electronic signatures. They fulfil requirements of Directive 1999/93/EC of
the European Parliament and of the Council of 13 December 1999 on a Community framework for electronic
signatures.

1
) This European Directive is referred to in this series of protection profiles as “the Directive”.
8

---------------------- Page: 10 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
In accordance with Article 9 of this European Directive these standards can be indicated by the European
Commission in the Official Journal of the European Communities as generally recognized standards for
electronic signature products.
These protection profiles formally specify the security functional and assurance requirements defined in
Annex III of the Directive for a secure signature creation device (SSCD). This secure signature creation
device is the target of evaluation (TOE) for the protection profiles.
European Union Member States may presume that there is compliance with the requirements laid down in
Annex III of the Directive when an electronic signature product is evaluated to a Security Target (ST) that is
compliant with one or more of the Protection Profiles (PPs) of this standard.
For an electronic signature product that has been evaluated according to Common Criteria (version 3.1) as
conforming to a Security Target (ST) that is compliant with one or more of these Protection Profiles (PP) this
European Standard implies that European Union Member States shall presume compliance with the
requirements in Annex III of the Directive for that product.
Part 2 of this series of European Standards specifies a protection profile for an SSCD that performs its core
operations including the generation of signature keys in the device. An SSCD that fulfils only the security
requirements in this protection profile shall be operated by the signatory in a secure environment to create
either an advanced electronic signature or a qualified electronic signature. The target of evaluation for this
protection profile is defined in 7.2 and shown in Figure 2.
Part 3 of this series of European Standards specifies a protection profile for an SSCD that performs its core
operations including import of the signature key generated in a trusted manner outside the device. An SSCD
that fulfils only the security requirements in this protection profile shall be operated by the signatory in a
secure environment to create either an advanced electronic signature or a qualified electronic signature. The
target of evaluation for this protection profile is defined in 7.3 and shown in Figure 3.
Part 4 of this series of European Standards specifies an extension protection profile for an SSCD with key
generation that support establishing a trusted channel with a certificate generation application. The target of
evaluation for this extended protection profile is defined in 7.4 and shown in Figure 4.
Part 5 of this series of European Standards specifies an extension protection profile for an SSCD with key
generation that additionally supports establishing a trusted channel with a signature creation application. The
target of evaluation for this extended protection profile is defined in 7.5 and shown in Figure 5.
Part 6 of this series of European Standards specifies an extension protection profile for an SSCD with key
import that additionally supports establishing a trusted channel with a signature creation application. The
target of evaluation for this extended protection profile is defined in 7.5 and shown in Figure 6.
The assurance level for these protection profiles is EAL4 augmented with AVA_VAN.5.
NOTE The evaluation assurance level augmentation with AVA_VAN.5 means that the security evaluation includes a
systematic, independent, comprehensive analysis of possible vulnerabilities followed by penetration testing to determine
the resistance against attacks that attempt to exploit these vulnerabilities.
6 Target of Evaluation
6.1 General
The TOE for the protection profiles specified in this series of European Standards is a combination of
hardware and software configured to securely create, use and manage signature creation data (SCD). The
TOE protects the SCD during its whole life cycle for use in a signature creation process solely by its signatory.
 9

---------------------- Page: 11 ----------------------

SIST EN 419211-1:2014
EN 419211-1:2014 (E)
NOTE In this clause the term TOE is used as reference to the target of evaluation for any of the protection profiles
specified in this series of European Standards. The term SSCD is used to refer to a product that incorporates the TOE.
The TOE comprises all IT security functionality necessary to ensure the secrecy of the SCD and the security
of the digital signature.
6.2 Functions of an SSCD
6.2.1 Core functions
An SSCD provides the following functions:
a) to generate signature creation data (SCD) and the correspondent signature verification data (SVD) or to
import signature creation data (SCD),
b) to export the SVD for certification if this has been created by the device and optionally receive and store
certificate info,
c) to initialize user authentication data (RAD),
d) to switch the SSCD from a non-opera
...
