SIST EN 14315-2:2013

Thermal insulating products for buildings - In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products - Part 2: Specification for the installed insulation products

This European Standard specifies requirements for in-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products when applied to walls, ceilings, roofs, suspended ceilings and floors.
This Part 2 of this European Standard is a specification for the installed insulation product.
This Part 2 of this European Standard describes, when taken together with Part 1 of EN 14315, the product characteristics that are linked to the essential requirements of the EU Construction Products Directive. It also specifies the checks and tests to be used for the declarations made by the installer of the product.
This European Standard does not specify the required levels of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards.
This European Standard does not cover factory made rigid polyurethane (PUR) or polyisocyanurate (PIR) foam products or in-situ products intended to be used for the insulation of building equipment and industrial installations.
NOTE   Foam products are either called flexible or rigid. The flexible products are used in upholstery and mattresses and are characterised by their ability to deflect, support and recover to their original thickness continually during their in-use phase. Those that are not flexible are termed rigid and do not possess these flexible characteristics. They are mostly used for thermal insulation purposes and vary widely in their compression strength values. Once the cell structure is crushed in a rigid foam, it does not recover its thickness fully. Some of these rigid foams are very low in density with very low compression strengths and are sometimes described "commercially" as "soft foams" or "semi-rigid" foams. This note has been included to clarify that all foams with such descriptions are covered by this standard’s used of the term rigid foam.

Wärmedämmstoffe für das Bauwesen - An der Verwendungsstelle hergestellte Wärmedämmung aus Polyurethan (PUR)- und Polyisocyanurat (PIR)-Spritzschaum - Teil 2: Spezifikation für die eingebauten Produkte

Diese Europäische Norm legt Anforderungen an Wärmedämmprodukte aus Polyurethan(PUR)- und Polyisocyanurat (PIR)-Spritzschaum fest, die an der Verwendungsstelle hergestellt und auf Wände, Decken, Dächer, Hängedecken und Fußböden aufgebracht werden.
Diese Europäische Norm ist eine Spezifikation für die eingebauten Produkte.
Diese Europäische Norm beschreibt in Verbindung mit EN 14315-1 die Produkteigenschaften, die mit den wesentlichen Anforderungen der EU-Bauproduktenrichtlinie im Zusammenhang stehen. Sie legt außerdem die Überprüfungen und Prüfungen fest, die für die vom Installateur des Produkts abzugebende Erklärung anzuwenden sind.
Diese Europäische Norm legt keine Anforderungsstufen für die Eigenschaften fest, die ein Produkt erreichen muss, um für einen bestimmten Verwendungszweck gebrauchstauglich zu sein. Die erforderlichen Stufen sind Vorschriften oder nicht entgegenstehenden Normen zu entnehmen.
Diese Europäische Norm gilt weder für werkmäßig hergestellte Wärmedämmstoffe aus Polyurethan(PUR)- oder Polyisocyanurat(PIR)-Spritzschaum noch für an der Verwendungsstelle hergestellte Produkte, die zur Wärme-dämmung von haustechnischen und betriebstechnischen Anlagen vorgesehen sind.
ANMERKUNG Schaumstoffprodukte werden in „Weichschaumstoffe“ und „Hartschaumstoffe“ eingeteilt. Weichschaumstoffe werden in Polstermöbeln oder Matratzen verwendet und werden durch ihre Fähigkeit charakterisiert, kontinuierlich während ihrer Nutzungsdauer sich zu verformen, zu stützen und ihre ursprüngliche Dicke wieder anzunehmen. Hartschaumstoffe dagegen weisen diese flexiblen Eigenschaften nicht auf. Sie werden überwiegend als Wärmedämmstoffe eingesetzt und weisen sehr unterschiedliche Druckfestigkeitswerte auf. Wird die Zellstruktur eines Hartschaumstoffes zusammengedrückt, nimmt sie ihre ursprüngliche Dicke nicht wieder an. Einige Hartschaumstoffe besitzen sowohl eine sehr geringe Dichte als auch eine sehr geringe Druckfestigkeit und werden im Handel manchmal als „halbharte“ Hartschaumstoffe bezeichnet. Diese Anmerkung ist eingefügt worden, um klarzustellen, dass alle derart bezeichneten Hartschaumstoffe von dem in dieser Norm verwendeten Begriff „Hartschaum“ abgedeckt sind.

Produits isolants thermiques destinés aux applications du bâtiment -Produits en mousse rigide de polyuréthanne (PUR) ou de polyisocyanurate (PIR) projetée, formés en place - Partie 2 : Spécifications relatives aux produits isolants après mise en oeuvre

La présente Norme européenne spécifie les exigences relatives aux produits en mousse rigide de polyuréthanne (PUR) ou de polyisocyanurate (PIR) projetée, formés en place, lorsqu'ils sont appliqués aux murs, aux plafonds, aux toitures, aux plafonds suspendus et aux planchers.
La présente Partie 2 de la Norme européenne est une spécification relative au produit isolant mis en oeuvre.
Cette Partie 2 de la présente Norme européenne, lorsqu'elle est associée à la Partie 1 de l'EN 14315, décrit les caractéristiques des produits qui sont liées aux exigences essentielles de la Directive UE « Produits de construction ». Elle spécifie également les contrôles et les essais à réaliser pour les déclarations faites par l'installateur du produit.
La présente Norme européenne ne spécifie pas les niveaux requis de toutes les propriétés nécessaires pour qu’un produit démontre son aptitude à l’emploi dans une application particulière. Les niveaux exigés figurent dans des réglementations ou dans des normes non divergentes.
La présente Norme européenne ne couvre pas les produits en mousse rigide de polyuréthanne (PUR) ou de polyisocyanurate (PIR) manufacturés ou formés en place et destinés à être utilisés pour l'isolation des équipements du bâtiment et des installations industrielles.
NOTE   Les produits en mousse sont dits flexibles ou rigides. Les produits flexibles sont utilisés dans les garnitures et les matelas et sont caractérisés par leur aptitude à se déformer, supporter et reprendre continuellement leur épaisseur initiale durant leur phase d'utilisation. Les produits qui ne sont pas flexibles sont dits rigides et ne possèdent pas ces caractéristiques flexibles. Ils sont essentiellement utilisés à des fins d'isolation thermique et présentent des valeurs de résistance à la compression très diverses. Lorsque la structure cellulaire d'une mousse rigide est écrasée, elle ne reprend pas totalement son épaisseur initiale. Certaines de ces mousses rigides ont une masse volumique très faible avec une très faible résistance à la compression et sont parfois décrites « commercialement » comme des « mousses souples » ou des « mousses semi-rigides ». Cette note a été incluse pour indiquer clairement que toutes les mousses répondant à ces descriptions sont couvertes par l'utilisation du terme « mousse rigide » dans la présente norme.

Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz brizgane poliuretanske pene (PUR) in poliizocianuratne pene (PIR), oblikovani na mestu vgradnje - 2. del: Specifikacija za vgrajene izolacijske proizvode

Ta evropski standard določa zahteve za proizvode iz brizgane trde poliuretanske pene (PUR) in poliizocianuratne pene (PIR), oblikovane na mestu vgradnje, za uporabo na stenah, stropih, strehah, obešenih stropih in tleh. 2. del tega evropskega standarda je specifikacija nameščenega izolacijskega izdelka. 2. del tega evropskega standarda skupaj s 1. delom EN 14315 opisuje lastnosti izdelka, ki so povezane z osnovnimi zahtevami direktive o konstrukciji izdelkov. Določa tudi preverjanje in teste, ki naj se uporabljajo za deklaracije, ki jih ustvari monter izdelka. Ta evropski standard ne določa zahtevanih ravni vseh lastnosti, ki jih mora proizvod doseči, da se dokaže njegova primernost namenu za posamezno vrsto uporabe. Zahtevane ravni so določene v uredbah ali standardih, ki niso v nasprotju s tem standardom. Ta evropski standard ne zajema proizvodov iz trde poliuretanske pene (PUR) in poliizocianuratne pene (PIR) ali proizvodov, izdelanih na kraju samem, namenjenih za izolacijo opreme stavb in industrijskih inštalacij.

General Information

• Status: Published
• Public Enquiry End Date: 30-Sep-2012
• Publication Date: 05-Jun-2013
• ICS: 91.100.60 - Thermal and sound insulating materials
• Technical Committee: TOP - Thermal insulation
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 23-Apr-2013
• Due Date: 28-Jun-2013
• Completion Date: 06-Jun-2013
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/103 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on thermal insulating products
• Ref Project: EN 14315-2:2013 - Thermal insulating products for buildings - In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products - Part 2: Specification for the installed insulation products

Overview

EN 14315-2:2013 is the CEN European Standard specifying requirements for in‑situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam after installation. It covers installed products applied to walls, ceilings, roofs, suspended ceilings and floors and forms Part 2 of the EN 14315 series. Used together with Part 1 (the foam system specification), Part 2 links product characteristics to the essential requirements of the EU Construction Products Directive and sets out the checks and tests an installer must carry out and declare.

Key Topics

• Scope and applicability
  • Applies only to in‑situ sprayed rigid PU (PUR/PIR) insulation; excludes factory-made panels and insulation for building equipment/industrial installations.
• Declared installed properties
  • Declared installed insulation thickness (d) - measurement procedure (Annex A).
  • Declared installed aged thermal resistance (RD) - based on manufacturer performance charts and procedures (see Clause 5).
  • Declared installed insulation density - assessment methods and test options (Annex B, C); EN 1602 referenced for density determination.
• Installer responsibilities
  • Use a foam system compliant with EN 14315‑1.
  • Inspect building suitability prior to application (Annex D).
  • Carry out foam quality checks, in‑situ measurements and record results.
  • Provide an installer’s declaration documenting thickness, density, RD, and relevant checks (Clause 7 and Annex E form example).
• Installation guidance
  • Practical guidance on substrate preparation, spraying procedure, machine and mixing ratio checks, and protection against UV (Annex E).
• Limitations
  • The standard does not set mandatory performance levels for all properties - required levels come from national regulations or other standards.

Applications

Who uses EN 14315-2:2013 and why:

• Installers and contractors - to perform in‑situ spray applications, carry out required checks, and complete installer declarations.
• Specifiers and architects - to reference installed-product requirements in project specifications.
• Manufacturers and system suppliers - to align system instructions (Part 1) with installed-product obligations.
• Regulators, certifiers and testing labs - to verify compliance with on-site testing, density and thickness measurement protocols.
• Building owners and energy professionals - to understand declared thermal resistance and long‑term thermal performance for energy calculations.

Related Standards

• EN 14315-1:2013 - Specification for the rigid foam spray system before installation (harmonised for CE marking)
• EN 1602 - Determination of apparent density
• EN ISO 9229 - Thermal insulation vocabulary

EN 14315-2:2013 is essential for projects using sprayed rigid PUR/PIR thermal insulation, ensuring on-site practices, measurements and declarations are consistent with EU construction product requirements.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz brizgane poliuretanske pene (PUR) in poliizocianuratne pene (PIR), oblikovani na mestu vgradnje - 2. del: Specifikacija za vgrajene izolacijske proizvodeWärmedämmstoffe für das Bauwesen - An der Verwendungsstelle hergestellte Wärmedämmung aus Polyurethan (PUR)- und Polyisocyanurat (PIR)-Spritzschaum - Teil 2: Spezifikation für die eingebauten ProdukteProduits isolants thermiques destinés aux applications du bâtiment -Produits en mousse rigide de polyuréthanne (PUR) ou de polyisocyanurate (PIR) projetée, formés en place - Partie 2 : Spécifications relatives aux produits isolants après mise en oeuvreThermal insulating products for buildings - In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products - Part 2: Specification for the installed insulation products91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 14315-2:2013SIST EN 14315-2:2013en,fr,de01-julij-2013SIST EN 14315-2:2013SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14315-2
January 2013 ICS 91.100.60 English Version
Thermal insulating products for buildings - In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products - Part 2: Specification for the installed insulation products
Produits isolants thermiques destinés aux applications du bâtiment -Produits en mousse rigide de polyuréthanne (PUR) ou de polyisocyanurate (PIR) projetée, formés en place - Partie 2 : Spécifications relatives aux produits isolants après mise en oeuvre
Wärmedämmstoffe für das Bauwesen - An der Verwendungsstelle hergestellter Wärmedämmstoff aus Polyurethan(PUR)- und Polyisocyanurat(PIR)-Spritzschaum - Teil 2: Spezifikation für die eingebauten Produkte This European Standard was approved by CEN on 17 November 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14315-2:2013: ESIST EN 14315-2:2013

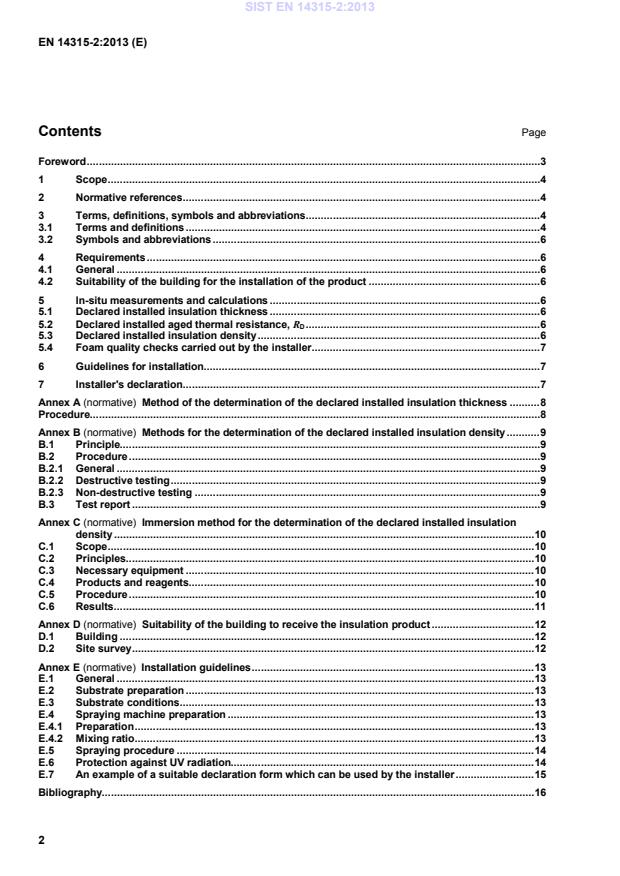

Method of the determination of the declared installed insulation thickness . 8 Procedure. 8 Annex B (normative)
Methods for the determination of the declared installed insulation density . 9 B.1 Principle. 9 B.2 Procedure . 9 B.2.1 General . 9 B.2.2 Destructive testing . 9 B.2.3 Non-destructive testing . 9 B.3 Test report . 9 Annex C (normative)
Immersion method for the determination of the declared installed insulation density . 10 C.1 Scope . 10 C.2 Principles . 10 C.3 Necessary equipment . 10 C.4 Products and reagents . 10 C.5 Procedure . 10 C.6 Results . 11 Annex D (normative)
Suitability of the building to receive the insulation product . 12 D.1 Building . 12 D.2 Site survey . 12 Annex E (normative)
Installation guidelines . 13 E.1 General . 13 E.2 Substrate preparation . 13 E.3 Substrate conditions . 13 E.4 Spraying machine preparation . 13 E.4.1 Preparation . 13 E.4.2 Mixing ratio . 13 E.5 Spraying procedure . 14 E.6 Protection against UV radiation. 14 E.7 An example of a suitable declaration form which can be used by the installer . 15 Bibliography. 16 SIST EN 14315-2:2013

Foreword This document (EN 14315-2:2013) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by July 2013, and conflicting national standards shall be withdrawn at the latest by July 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This European Standard consists of two parts which form a package. The first part is the harmonised part satisfying the mandate and the CPD and which is the basis for the CE marking covering the products, which are placed on the market. The second part, which is the non-harmonised part, covers the specification for the installed products. Both parts need to be used for the application of the insulation products in the end-use applications covered by EN 14315. Attention is drawn to the need to take into account any complementary member state rules (e.g. installation rules) which together with this Part 2 of this European Standard ensures the fitness for purpose of the installed product. This European Standard is one of a series for mineral wool, expanded clay, expanded perlite, exfoliated vermiculite, polyurethane/polyisocyanurate, cellulose, bound expanded polystyrene and expanded polystyrene in-situ formed insulation products used in buildings, but this standard may be used in other areas where appropriate. The reduction in energy used and emissions produced during the installed life of insulation products exceeds by far the energy used and emissions made during the production and disposal processes. EN 14315, Thermal insulating products for buildings — In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products, consists of the following parts:  Part 1: Specification for the rigid foam spray system before installation  Part 2: Specification for the installed insulation products (the present document) According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 14315-2:2013

1 Scope This European Standard specifies requirements for in-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products when applied to walls, ceilings, roofs, suspended ceilings and floors. This Part 2 of this European Standard is a specification for the installed insulation product. This Part 2 of this European Standard describes, when taken together with Part 1 of EN 14315, the product characteristics that are linked to the essential requirements of the EU Construction Products Directive. It also specifies the checks and tests to be used for the declarations made by the installer of the product. This European Standard does not specify the required levels of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not cover factory made rigid polyurethane (PUR) or polyisocyanurate (PIR) foam products or in-situ products intended to be used for the insulation of building equipment and industrial installations. NOTE Foam products are either called flexible or rigid. The flexible products are used in upholstery and mattresses and are characterised by their ability to deflect, support and recover to their original thickness continually during their in-use phase. Those that are not flexible are termed rigid and do not possess these flexible characteristics. They are mostly used for thermal insulation purposes and vary widely in their compression strength values. Once the cell structure is crushed in a rigid foam, it does not recover its thickness fully. Some of these rigid foams are very low in density with very low compression strengths and are sometimes described “commercially” as “soft foams” or “semi-rigid” foams. This note has been included to clarify that all foams with such descriptions are covered by this standard’s used of the term rigid foam. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1602, Thermal insulating products for building applications — Determination of the apparent density EN 14315-1:2013, Thermal insulating products for buildings — In-situ formed sprayed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products — Part 1: Specification for the foam system before installation EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007) 3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 and the following apply. 3.1.1
polyurethane foam PUR
(in-situ formed products) rigid cellular plastics insulation material or product with a structure based on polymers mainly of the polyurethane type SIST EN 14315-2:2013

EN 14315-2
...
