SIST EN ISO 24817:2026 is the SIST adoption of ISO 24817 for composite repairs for pipework in the oil and gas industries, including lower carbon energy. It specifies requirements and recommendations for the qualification, design, installation, testing and integrity management of external composite repair systems for corroded or damaged piping, pipelines, tanks and vessels.

What does SIST EN ISO 24817:2026 specify?

SIST EN ISO 24817:2026 applies to external composite repair systems used on corroded or damaged pipework, pipelines, tanks and vessels in the petroleum, petrochemical and natural gas industries. It is written for repair planning and execution after a defect has already been assessed and a decision to repair has been made.

The document is not a defect assessment standard. In practice, that means the user must first establish the defect condition and remaining wall or allowable pressure by another assessment method, then use this document for the repair design, installation and in-service management.

The document is organized into clauses 1 to 13, followed by annexes A to M.

Annex	What it covers
A	Design data sheet for the owner to complete
B	Qualification data and summary test reports
C	Short-term pipe spool survival test for Type A defects
D	Measurement of the interface toughness parameter, γ
E	Performance testing for long-term allowable strain, ε
F	Impact performance testing
G	Measurement of the degradation factor
H	Qualification for other defects based on substrate stress
I	Guidance for selecting defect size and geometry for Type B defects
J	Training, qualification and approval of installers and supervisors
K	Installation requirements and guidance
L	Design considerations and worked examples
M	Management of the integrity of composite repair systems

What are the key requirements of SIST EN ISO 24817:2026?

SIST EN ISO 24817:2026 treats a composite repair system as a combination of material family, surface preparation, filler, primer, repair laminate and curing procedure. Clause 6 matters because qualification, design and installation only work when those elements are controlled together, not as separate products.

Clause 6 places the owner and repair system supplier in a shared information flow. The owner passes design conditions, corrosion mechanism, inspection data, operating limits, upset conditions and site constraints to the supplier, using the design data sheet in Annex A. In practice, this prevents a repair from being designed on incomplete pressure, temperature or access information.

Clause 8 requires a feasibility assessment before design starts. The assessment looks at defect location and reliability of inspection data, pressure and temperature, internal contents and chemical compatibility, loads from supports or connections, repair lifetime, geometry, maintenance operations, safety hazards, personnel skills, installability, and failure consequences. This matters because some repairs are technically possible but too difficult, too risky or too hard to inspect over time.

Clause 8 also assigns the repair to a class. Class 1 covers lower-demand utility duties, Class 2 covers fire-water or deluge-type service without hydrocarbons, and Class 3 covers produced fluids and more onerous service. The class drives the design basis, qualification depth and the expected level of testing.

Clause 7 requires repair system qualification data from the supplier. The document requires material documentation, surface preparation documentation, short-term test data, and for Classes 2 and 3 long-term lap shear durability data. For the reader, this means the supplier has to prove the repair system is not just a material claim but a qualified process for a specific substrate and surface preparation method.

Clause 9 sets the design basis. The owner specifies the repair design lifetime and service life, the environmental compatibility is checked, and the maximum allowable temperature is tied to glass transition temperature (Tg) or heat distortion temperature (HDT). Cyclic loading is handled through a cyclic loading factor, and equivalent loads and equivalent pressure are calculated from the acting axial, shear and moment loads. In practice, the designer must convert the real operating case into a repair thickness and length, not just a nominal pressure rating.

Clause 9 separates defect design into Type A and Type B cases. Type A covers non-through-wall defects and uses load-sharing methods. Type B covers through-wall defects and uses defect size, repair laminate properties and interface toughness data, including the current defect, expected end-of-life defect, stop-gaps, filler and unprepared areas. Annex I helps choose the defect shape and size used in those calculations.

Clause 9 also covers other defect types and other components. Repairs for dents, gouges and crack-like features rely on substrate stress methods and, for qualifying life extension on similar defects, Annex H requires demonstration on the relevant defect type. For bends, tees, reducers, flanges, nozzles and tank or vessel features, the document applies thickness increase factors because geometry changes the local stresses.

Clause 10 controls installation. The repair has to be installed using the qualified procedure, with storage control, labeling, shelf-life control, suitable humidity and dew-point conditions, and the same surface preparation used in qualification. QA measurements, photographs and cure status records must be retained. This is important because adhesion and cure are the main field-controlled factors that determine whether the design assumptions remain valid.

Clause 11 defines ongoing integrity management. The owner must keep records, identify the repair, inspect the repair and substrate in service, define allowable defects, review repair lifetime, and revalidate, remove or replace the repair at the end of its life. Clause 12 then covers system testing, including hydro-testing after cure, with leakage treated as a rejection condition.

What terms does SIST EN ISO 24817:2026 define?

Composite - a thermoset resin system reinforced by fibres, used here as the structural repair material.

Repair system - the full combination of material family and application steps that form the repair, not just the laminate.

Design lifetime / repair design lifetime - the period used in design calculations and typically the maximum period the repair is expected to be needed.

Type A defect - a non-through-wall defect repaired by methods that share load between substrate and repair or let the repair carry the load.

Type B defect - a through-wall defect where the repair design is based on the pressurised area and interface toughness.

Closed free end piping - pipework that can move laterally and strain axially, also called unrestrained piping.

MAWP - maximum allowable working pressure, used as an input to repair design and defect assessment.

Barcol hardness - a surface hardness measure used as part of qualification and cure checking.

Who uses SIST EN ISO 24817:2026?

SIST EN ISO 24817:2026 is used by owners of piping, pipelines, tanks and vessels; repair system suppliers; installers; supervisors; and integrity, inspection and QA/QC personnel. It is relevant in petroleum, petrochemical and natural gas service, and also in utility piping systems where composite repairs are used.

Engineers use it to size the repair and choose the design route. Buyers and quality managers use it to check that a supplier has the right qualification data, training records, installation controls and inspection plan.

What changed in SIST EN ISO 24817:2026 from the previous edition?

SIST EN ISO 24817:2026 is shown on the page as corresponding to prEN ISO 24817 and to the ISO/DIS 24817:2025 draft designation in the document package.

Which standards are used with SIST EN ISO 24817:2026?

The document builds on several test and application standards.

• ISO 75-3, ISO 11357-2 and ISO 11359-2 - used for temperature, Tg/HDT and thermal expansion data for the repair system.
• ISO 527-1 and ISO 527-4 - used for tensile property testing of plastics and fibre-reinforced composites.
• ISO 868 - used for indentation hardness.
• ISO 10952 - used for chemical attack resistance testing.
• ISO 14692 - used for GRP piping context and cyclic loading treatment.
• ASTM C581, ASTM D543 and ASTM D696 - used in environmental compatibility and thermal expansion-related testing.
• ASTM D1599 and ASTM D1598 - used in pressure and survival testing within the annex methods.
• ISO 8501-1, ISO 8502 and ISO 8503 - used in surface condition and preparation guidance.
• ASME B31G, API RP 579, API 579-1 / ASME FFS-1 and PDAM - used as external defect assessment methods before the repair design starts.
• ASME PCC-2 Part 5 Article 501 - used as additional guidance for system pressure testing.

What does the SIST EN ISO 24817:2026 document contain?

SIST EN ISO 24817:2026 contains a design data sheet, qualification data tables, qualification test reports and detailed annex methods for Type A and Type B repairs. It also includes test setups for pipe spool survival, interface toughness, long-term strain, impact resistance, degradation factor and life-extension qualification for other defect types.

The document also provides installation checklists, storage and cure guidance, in-service inspection topics, allowable defect concepts and repair lifetime review steps. Annex L adds design flow guidance and worked examples, which are useful when turning defect data into repair thickness, axial extent, layer count and cure schedule.

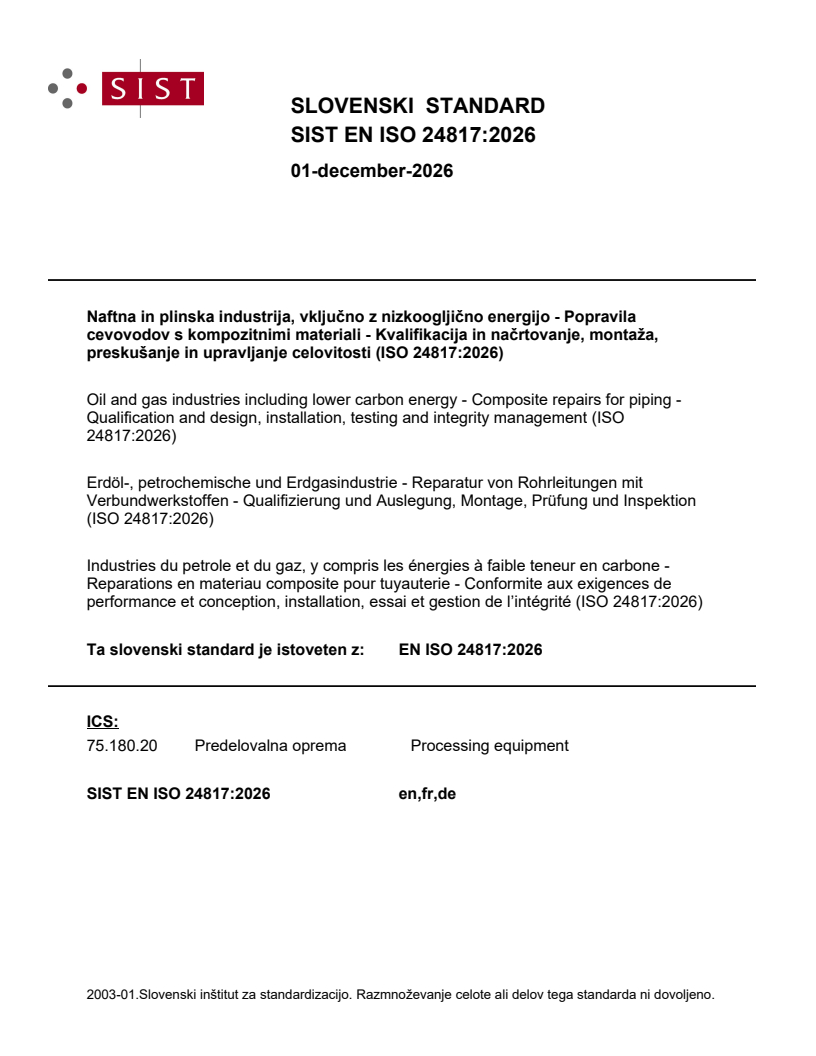

SLOVENSKI STANDARD
01-december-2026
Naftna in plinska industrija, vključno z nizkoogljično energijo - Popravila
cevovodov s kompozitnimi materiali - Kvalifikacija in načrtovanje, montaža,
preskušanje in upravljanje celovitosti (ISO 24817:2026)
Oil and gas industries including lower carbon energy - Composite repairs for piping -
Qualification and design, installation, testing and integrity management (ISO
24817:2026)
Erdöl-, petrochemische und Erdgasindustrie - Reparatur von Rohrleitungen mit
Verbundwerkstoffen - Qualifizierung und Auslegung, Montage, Prüfung und Inspektion
(ISO 24817:2026)
Industries du petrole et du gaz, y compris les énergies à faible teneur en carbone -
Reparations en materiau composite pour tuyauterie - Conformite aux exigences de
performance et conception, installation, essai et gestion de l’intégrité (ISO 24817:2026)
Ta slovenski standard je istoveten z: EN ISO 24817:2026
ICS:
75.180.20 Predelovalna oprema Processing equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

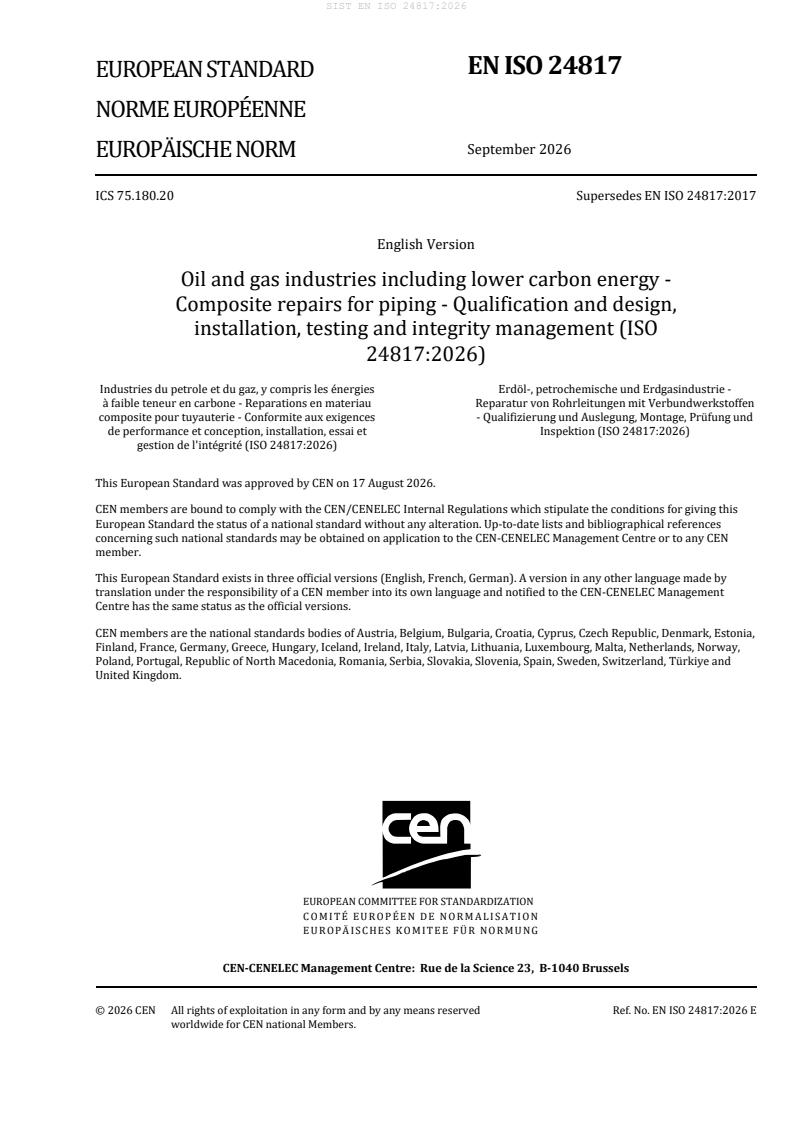

EN ISO 24817
