SIST EN 302 296 V2.1.1:2017
(Main)Digital Terrestrial TV Transmitters - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
Digital Terrestrial TV Transmitters - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
The present document specifies technical characteristics and methods of measurements for digital terrestrial television
transmitters as defined in table 1.1 and in table 1.2. The output power classification (table 1.1) and emission
classification (table 1.2) are combined to define a transmitter category. For example, power classification H and
emission classification 0 denotes a high power transmitter (category H0) whose OOB emissions comply with a
non-critical mask.
Digitalni prizemni TV-oddajniki - Harmonizirani standard, ki zajema bistvene zahteve člena 3.2 direktive 2014/53/EU
Ta dokument določa tehnične lastnosti in merilne metode za digitalne prizemne TV-oddajnike, kot so opredeljeni v preglednicah 1.1 in 1.2. Razvrstitev izhodne moči (preglednica 1.1) in razvrstitev emisij (preglednica 1.2) sta združeni in določata kategorijo oddajnika. Na primer razvrstitev moči H in emisij 0 označuje močan oddajnik (kategorija H0), katerega emisije OOB so v skladu z nekritično masko.
General Information
Buy Standard
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital Terrestrial TV Transmitters - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU33.170Televizijska in radijska difuzijaTelevision and radio broadcasting33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:ETSI EN 302 296 V2.1.1 (2017-06)SIST EN 302 296 V2.1.1:2017en01-september-2017SIST EN 302 296 V2.1.1:2017SLOVENSKI
STANDARD
SIST EN 302 296 V2.1.1:2017
ETSI EN 302 296 V2.1.1 (2017-06) Digital Terrestrial TV Transmitters; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
HARMONISED EUROPEAN STANDARD SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 2
Reference REN/ERM-TG17-24 Keywords broadcasting, digital, harmonised standard, radio, regulation, terrestrial, transmitter, TV, video ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. oneM2M logo is protected for the benefit of its Members GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Modal verbs terminology . 5 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 6 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 8 3.1 Definitions . 8 3.2 Symbols . 9 3.3 Abbreviations . 9 4 Technical requirements specifications . 10 4.1 Environmental profile . 10 4.2 Conformance requirements . 10 4.2.1 Introduction. 10 4.2.2 Spurious emissions . 10 4.2.2.1 Definition . 10 4.2.2.2 Limits . 11 4.2.2.3 Conformance test . 11 4.2.3 Out-of-band emissions . 12 4.2.3.1 Definition . 12 4.2.3.2 Classification of transmitters . 12 4.2.3.3 Limits . 12 4.2.3.4 Conformance test . 16 5 Testing for compliance with technical requirements . 17 5.1 Environmental conditions for testing . 17 5.2 Interpretation of the measurement results . 17 5.3 Test conditions . 17 5.3.1 Test frequency range . 17 5.3.2 Test modulation signal . 18 5.4 Essential radio test suites . 18 5.4.1 Introduction. 18 5.4.2 Spurious emissions . 18 5.4.2.1 Measurement approaches . 18 5.4.2.2 Initial conditions . 19 5.4.2.3 Test procedure . 19 5.4.2.4 Test requirements . 19 5.4.2.5 Test arrangement . 20 5.4.3 Out-of-band emissions . 20 5.4.3.1 Initial conditions . 20 5.4.3.2 Test procedure . 21 5.4.3.3 Test requirements . 21 5.4.3.4 Test arrangement . 21 Annex A (informative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 22 Annex B (informative): Void . 23 Annex C (informative): Practical measurement of spurious domain emissions for broadcast transmitters . 24 C.0 Introduction . 24 SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 4 C.1 Directional coupler issues . 24 C.2 Spectrum analyser settings . 26 C.3 Composite measurement of spurious emissions . 26 Annex D (informative): Practical Measurement of out-of-band Domain Emissions . 27 D.1 Composite measurement of out-of-band emissions . 27 D.2 System considerations . 28 D.3 Spectrum analyser settings for OOB measurements . 29 D.4 OOB domain emissions - typical spectrum analyser traces . 29 D.5 ACLR measurement . 30 Annex E (informative): Impact of ACLR of low power broadcast transmitters on adjacent DVB-T/T2 services for co-sited networks . 31 E.0 Introduction . 31 E.1 Equipment Configuration . 31 E.2 Results . 32 E.3 Theoretical impact of MER on END . 33 E.4 Conclusions . 33 Annex F (informative): Energy Efficiency and the impact on unwanted Out of Block Emissions . 34 Annex G (informative): Bibliography . 35 Annex H (informative): Change history . 36 History . 37
SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.3] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC [i.2]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated EFTA regulations.
National transposition dates Date of adoption of this EN: 26 June 2017 Date of latest announcement of this EN (doa): 30 September 2017 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 March 2018 Date of withdrawal of any conflicting National Standard (dow): 31 March 2019
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. Introduction The present document has been produced to update the existing standard in line with the requirements of article 3.2 of Directive 2014/53/EU [i.2].
SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 6 1 Scope The present document specifies technical characteristics and methods of measurements for digital terrestrial television transmitters as defined in table 1.1 and in table 1.2. The output power classification (table 1.1) and emission classification (table 1.2) are combined to define a transmitter category. For example, power classification H and emission classification 0 denotes a high power transmitter (category H0) whose OOB emissions comply with a non-critical mask.
Table 1.1: Transmitter power classification Power Class Description Notes H High power transmitter Transmitter with an output power ≥ 25 W operating in the VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to 694 MHz). L Low power transmitter Transmitter with an output power < 25 W operating in the VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to 694 MHz).
Table 1.2: Transmitter emission classification Emission Classification Conformance approach Notes 0 Non critical mask For high power transmitters, the mask defines the level of the OOB relative to the channel power (dBc). For low power transmitters the mask defines the absolute power limit of the OOB (dBm). The former approach is mandated by RRC-06 (non-critical case) [i.4] for transmitters subject to coordination. 1 Critical mask A similar but more stringent approach based on RRC-06 (sensitive case) [i.4]. 2 Non-critical ACLR A set of ACLR limits defining permitted relative emission levels into adjacent channels. 3 Critical ACLR A set of more stringent ACLR limits defining permitted relative emission levels into adjacent channels.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.2] under the conditions identified in annex A. 2 References 2.1 Normative references References are specific, identified by date of publication and/or edition number or version number. Only the cited version applies. Referenced documents which are not found to be publicly available in the expected location might be found at https://docbox.etsi.org/Reference/. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] Void. [2] Void. [3] Void. SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 7 [4] Void. [5] CENELEC EN 55016-4-2:2011/A1:2014: "Specification for radio disturbance and immunity measuring apparatus and methods. Part 4-2: Uncertainties, statistics and limit modelling - Measurement instrumentation uncertainty". [6] Recommendation ITU-R SM.329-12 (09/2012): "Unwanted emissions in the spurious domain". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI TR 101 290 (V1.2.1) (05-2001): "Digital Video Broadcasting (DVB); Measurement guidelines for DVB systems". [i.2] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. [i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request to the European Committee for Electrotechnical Standardisation and to the European Telecommunications Standards Institute as regards radio equipment in support of Directive 2014/53/EU of the European Parliament and of the Council. [i.4] ITU RRC-06: "Final Acts of the Regional Radiocommunication Conference for planning of the digital terrestrial broadcasting service in parts of Regions 1 and 3, in the frequency bands 174-230 MHz and 470-862 MHz", Geneva, 15 May - 16 June 2006. [i.5] The Paris climate agreement (COP21), December 2015. NOTE: Available at http://ec.europa.eu/clima/policies/international/negotiations/future/index_en.htm. [i.6] ETSI EN 300 744 (V1.6.2) (10-2015): "Digital Video Broadcasting (DVB); Framing structure, channel coding and modulation for digital terrestrial television". [i.7] ETSI EN 302 755 (V1.4.1) (07-2015): "Digital Video Broadcasting (DVB); Frame structure channel coding and modulation for a second generation digital terrestrial television broadcasting system (DVB-T2)". [i.8] ETSI TR 100 028 (all parts) (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [i.9] ETSI TR 100 028-2 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics; Part 2". SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 8 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in Directive 2014/53/EU [i.2] and the following apply: adjacent channel leakage ratio: ratio of the wanted mean power of the DVB-T/T2 signal to the unwanted mean power measured in the receiver bandwidth of a given adjacent victim service antenna port: port of an apparatus intended to be connected to an antenna using coaxial cable or coaxial line; typically the output of the channel filter or combiner carrier power: mean power supplied to the antenna port by a transmitter with COFDM channel bandwidth: frequency band of defined width (as a multiple of the carrier grid) for operation on adjacent channels, located symmetrically around carrier frequency in the carrier grid composite approach: measurement method whereby the power amplifier emissions are measured separately to the frequency response of subsequent frequency selective components and the overall emissions of the transmitter are calculated by combining the two sets of measurements co-sited: DVB-T/T2 transmitters which are located at the same physical site so minimizing the effects of adjacent channel interference dBc: decibels relative to the mean power P of the emission digital signal: discretely timed signal in which information is represented by a finite number of well-defined discrete values that its characteristic quantities may take in time digital television: television in which all information is represented by a digital signal environmental profile: range of environmental conditions under which equipment within the scope of the present document is required to comply with the provisions of the present document harmonic: component of order greater than 1 of the Fourier series of a periodic quantity high power transmitter: transmitter whose conducted output power is greater than or equal to 25 W (this category of transmitter also includes medium power category of transmitters as defined in ITU-R) intermodulation products: unwanted frequencies resulting from intermodulation between carriers or harmonics of emission, or between any oscillations generated to produce the carrier low power transmitter: transmitter whose conducted output power is less than 25 W mean power: average power supplied to the antenna port by a transmitter during an interval of time sufficiently long compared with the lowest frequency encountered in the modulation taken under normal operating conditions moding: operation of a coaxial component in unwanted waveguide modes (e.g. Transverse Electric (TE) or Transverse Magnetic (TM)) resulting in anomalous behaviour from that associated with the intended Transverse Electromagnetic (TEM) mode necessary bandwidth: for a given class of emission, the width of the frequency band which is sufficient to ensure the transmission of information at the rate and with the quality required under specified conditions OOB emissions: unwanted emissions which fall at frequencies separated from the centre frequency of the wanted emission by less than or equal to 250 % of the channel bandwidth output power: conducted power delivered by a transmitter under specified conditions of operation receiver bandwidth: bandwidth used for victim service ACLR measurements, i.e. 7,6 MHz for 8 MHz DVB-T, 6,7 MHz for 7 MHz DVB-T, 7,8 MHz for 8 MHz DVB-T2, 6,8 MHz for 7 MHz DVB-T2 and 9 MHz for LTE reference bandwidth: bandwidth in which the emission level is specified SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 9 spurious domain emissions: unwanted emissions at frequencies separated by more than 250 % of the channel bandwidth from the centre of the occupied spectrum 3.2 Symbols For the purposes of the present document, the following symbols apply: m milli μ micro n nano " inch 3.3 Abbreviations For the purposes of the present document, the abbreviations given in ETSI EN 300 744 [i.6], ETSI EN 302 755 [i.7] and the following apply: ACLR Adjacent Channel Leakage Ratio COFDM Coded Orthogonal Frequency Division Multiplexing CSV Comma Separated Values dB Logarithmic ratio (tenths of a "Bel") dBm dB relative to one milliwatt DIN Deutsches Institut fur Normung DTT Digital Terrestrial Television DVB Digital Video Broadcasting DVB-T Digital Video Broadcasting - Terrestrial EFTA European Free Trade Association END Equivalent Noise Degradation EUT Equipment Under Test FFT Fast Fourier Transform GHz GigaHertz ITU International Telecommunication Union ITU-R International Telecommunication Union - Radiocommunication kHz kiloHertz MER Modulation Error Ratio MHz MegaHertz OOB Out-Of-Band PA Power Amplifier QAM Quadrature Amplitude Modulation RBW Reference BandWidth RF Radio Frequency RMS Root Mean Square RRC Regional Radiocommunication Conference TV Television UHF Ultra High Frequency UK United Kingdom VBW Video BandWidth VHF Very High Frequency W Watt SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 10 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical requirements of the present document which are identified as applicable in annex A at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Conformance requirements 4.2.1 Introduction The essential parameters and corresponding technical requirements aiming to meet the requirements of article 3.2 of Directive 2014/53/EU [i.2] are shown in table 4.1. To fulfil this essential parameter the compliance with all the corresponding technical requirements in table 4.1 shall be verified. Table 4.1: Cross references Essential parameter Corresponding technical requirements Conducted emissions at the antenna port
4.2.2 Spurious emissions 4.2.3 Out-of-band emissions (OOB)
Both spurious emission limits and OOB limits are defined in terms of conducted power at the antenna port. The boundary between spurious domain emissions and out-of-band emissions is shown in figure 4.1.
Figure 4.1: Definition of out-of-band and Spurious Domains 4.2.2 Spurious emissions 4.2.2.1 Definition Spurious emissions are unwanted emissions at frequencies separated by more than 250 % of the channel bandwidth from the centre of the occupied spectrum. These include harmonic emissions, parasitic emissions, intermodulation products and frequency conversion products but exclude out-of-band emissions. For the purposes of the present document spurious emissions are emissions at frequencies outside the frequency range
f0 ± 17,5 MHz for 7 MHz channels, f0 ± 20 MHz for 8 MHz channels, where f0 is the centre frequency of the channel, irrespective of the number of carriers employed.
SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 11 4.2.2.2 Limits Spurious emissions shall not exceed the values set out in table 4.2 additionally shown in figure 4.2, for the frequency range 9 kHz to 3 GHz. In the case of a DVB-T/T2 transmitter supplied without an internal bandpass output filter, the manufacturer shall specify the characteristics of the filter necessary to fulfil the spurious emission limits defined in table 4.2. The manufacturer shall include this information in the test report. Table 4.2: Spurious emission limits for DVB-T/T2 transmitters Frequency range of the spurious emission Limits of the spurious emission Reference bandwidth 9 kHz to 470 MHz ≤ -36 dBm (250 nW)
for
P ≤ 69 dBm ≥ 105 dBc
for
69 dBm < P 100 kHz > 470 MHz to 694 MHz ≤ -36 dBm
for
P ≤ 39 dBm ≥ 75 dBc
for
39 dBm < P ≤ 50 dBm ≤ -25 dBm (3 µW)
for
50 dBm < P 100 kHz > 694 MHz ≤ -36 dBm (250 nW)
for
P ≤ 69 dBm ≥ 105 dBc
for
69 dBm < P 100 kHz NOTE: P = mean power of the transmitter measured at the antenna port.
Figure 4.2: Spurious emission limits measured at the antenna port (100 kHz reference bandwidth) 4.2.2.3 Conformance test Conformance tests described in clause 5.4.1 shall be carried out. SIST EN 302 296 V2.1.1:2017
ETSI ETSI EN 302 296 V2.1.1 (2017-06) 12 4.2.3 Out-of-band emissions 4.2.3.1 De
...
ETSI EN 302 296 V2.1.1 (2017-06)
HARMONISED EUROPEAN STANDARD
Digital Terrestrial TV Transmitters;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU
---------------------- Page: 1 ----------------------
2 ETSI EN 302 296 V2.1.1 (2017-06)
Reference
REN/ERM-TG17-24
Keywords
broadcasting, digital, harmonised standard, radio,
regulation, terrestrial, transmitter, TV, video
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 302 296 V2.1.1 (2017-06)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Spurious emissions . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 11
4.2.2.3 Conformance test . 11
4.2.3 Out-of-band emissions . 12
4.2.3.1 Definition . 12
4.2.3.2 Classification of transmitters . 12
4.2.3.3 Limits . 12
4.2.3.4 Conformance test . 16
5 Testing for compliance with technical requirements . 17
5.1 Environmental conditions for testing . 17
5.2 Interpretation of the measurement results . 17
5.3 Test conditions . 17
5.3.1 Test frequency range . 17
5.3.2 Test modulation signal . 18
5.4 Essential radio test suites . 18
5.4.1 Introduction. 18
5.4.2 Spurious emissions . 18
5.4.2.1 Measurement approaches . 18
5.4.2.2 Initial conditions . 19
5.4.2.3 Test procedure . 19
5.4.2.4 Test requirements . 19
5.4.2.5 Test arrangement . 20
5.4.3 Out-of-band emissions . 20
5.4.3.1 Initial conditions . 20
5.4.3.2 Test procedure . 21
5.4.3.3 Test requirements . 21
5.4.3.4 Test arrangement . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Void . 23
Annex C (informative): Practical measurement of spurious domain emissions for broadcast
transmitters . 24
C.0 Introduction . 24
ETSI
---------------------- Page: 3 ----------------------
4 ETSI EN 302 296 V2.1.1 (2017-06)
C.1 Directional coupler issues . 24
C.2 Spectrum analyser settings . 26
C.3 Composite measurement of spurious emissions . 26
Annex D (informative): Practical Measurement of out-of-band Domain Emissions . 27
D.1 Composite measurement of out-of-band emissions . 27
D.2 System considerations . 28
D.3 Spectrum analyser settings for OOB measurements . 29
D.4 OOB domain emissions - typical spectrum analyser traces . 29
D.5 ACLR measurement . 30
Annex E (informative): Impact of ACLR of low power broadcast transmitters on adjacent
DVB-T/T2 services for co-sited networks . 31
E.0 Introduction . 31
E.1 Equipment Configuration . 31
E.2 Results . 32
E.3 Theoretical impact of MER on END . 33
E.4 Conclusions . 33
Annex F (informative): Energy Efficiency and the impact on unwanted Out of Block
Emissions . 34
Annex G (informative): Bibliography . 35
Annex H (informative): Change history . 36
History . 37
ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 302 296 V2.1.1 (2017-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.2].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.
National transposition dates
Date of adoption of this EN: 26 June 2017
Date of latest announcement of this EN (doa): 30 September 2017
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 March 2018
Date of withdrawal of any conflicting National Standard (dow): 31 March 2019
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document has been produced to update the existing standard in line with the requirements of article 3.2 of
Directive 2014/53/EU [i.2].
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 302 296 V2.1.1 (2017-06)
1 Scope
The present document specifies technical characteristics and methods of measurements for digital terrestrial television
transmitters as defined in table 1.1 and in table 1.2. The output power classification (table 1.1) and emission
classification (table 1.2) are combined to define a transmitter category. For example, power classification H and
emission classification 0 denotes a high power transmitter (category H0) whose OOB emissions comply with a
non-critical mask.
Table 1.1: Transmitter power classification
Power Class Description Notes
H High power transmitter Transmitter with an output power ≥ 25 W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
L Low power transmitter Transmitter with an output power < 25 W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
Table 1.2: Transmitter emission classification
Emission Conformance approach Notes
Classification
0 Non critical mask For high power transmitters, the mask defines the level of
the OOB relative to the channel power (dBc). For low power
transmitters the mask defines the absolute power limit of the
OOB (dBm). The former approach is mandated by RRC-06
(non-critical case) [i.4] for transmitters subject to
coordination.
1 Critical mask A similar but more stringent approach based on RRC-06
(sensitive case) [i.4].
2 Non-critical ACLR A set of ACLR limits defining permitted relative emission
levels into adjacent channels.
3 Critical ACLR A set of more stringent ACLR limits defining permitted
relative emission levels into adjacent channels.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.2] under the
conditions identified in annex A.
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] Void.
[3] Void.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 302 296 V2.1.1 (2017-06)
[4] Void.
[5] CENELEC EN 55016-4-2:2011/A1:2014: "Specification for radio disturbance and immunity
measuring apparatus and methods. Part 4-2: Uncertainties, statistics and limit modelling -
Measurement instrumentation uncertainty".
[6] Recommendation ITU-R SM.329-12 (09/2012): "Unwanted emissions in the spurious domain".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 101 290 (V1.2.1) (05-2001): "Digital Video Broadcasting (DVB); Measurement
guidelines for DVB systems".
[i.2] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ITU RRC-06: "Final Acts of the Regional Radiocommunication Conference for planning of the
digital terrestrial broadcasting service in parts of Regions 1 and 3, in the frequency bands
174-230 MHz and 470-862 MHz", Geneva, 15 May - 16 June 2006.
[i.5] The Paris climate agreement (COP21), December 2015.
NOTE: Available at http://ec.europa.eu/clima/policies/international/negotiations/future/index_en.htm.
[i.6] ETSI EN 300 744 (V1.6.2) (10-2015): "Digital Video Broadcasting (DVB); Framing structure,
channel coding and modulation for digital terrestrial television".
[i.7] ETSI EN 302 755 (V1.4.1) (07-2015): "Digital Video Broadcasting (DVB); Frame structure
channel coding and modulation for a second generation digital terrestrial television broadcasting
system (DVB-T2)".
[i.8] ETSI TR 100 028 (all parts) (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio
spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment
characteristics".
[i.9] ETSI TR 100 028-2 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 2".
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 302 296 V2.1.1 (2017-06)
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in Directive 2014/53/EU [i.2] and the
following apply:
adjacent channel leakage ratio: ratio of the wanted mean power of the DVB-T/T2 signal to the unwanted mean power
measured in the receiver bandwidth of a given adjacent victim service
antenna port: port of an apparatus intended to be connected to an antenna using coaxial cable or coaxial line; typically
the output of the channel filter or combiner
carrier power: mean power supplied to the antenna port by a transmitter with COFDM
channel bandwidth: frequency band of defined width (as a multiple of the carrier grid) for operation on adjacent
channels, located symmetrically around carrier frequency in the carrier grid
composite approach: measurement method whereby the power amplifier emissions are measured separately to the
frequency response of subsequent frequency selective components and the overall emissions of the transmitter are
calculated by combining the two sets of measurements
co-sited: DVB-T/T2 transmitters which are located at the same physical site so minimizing the effects of adjacent
channel interference
dBc: decibels relative to the mean power P of the emission
digital signal: discretely timed signal in which information is represented by a finite number of well-defined discrete
values that its characteristic quantities may take in time
digital television: television in which all information is represented by a digital signal
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
harmonic: component of order greater than 1 of the Fourier series of a periodic quantity
high power transmitter: transmitter whose conducted output power is greater than or equal to 25 W (this category of
transmitter also includes medium power category of transmitters as defined in ITU-R)
intermodulation products: unwanted frequencies resulting from intermodulation between carriers or harmonics of
emission, or between any oscillations generated to produce the carrier
low power transmitter: transmitter whose conducted output power is less than 25 W
mean power: average power supplied to the antenna port by a transmitter during an interval of time sufficiently long
compared with the lowest frequency encountered in the modulation taken under normal operating conditions
moding: operation of a coaxial component in unwanted waveguide modes (e.g. Transverse Electric (TE) or Transverse
Magnetic (TM)) resulting in anomalous behaviour from that associated with the intended Transverse Electromagnetic
(TEM) mode
necessary bandwidth: for a given class of emission, the width of the frequency band which is sufficient to ensure the
transmission of information at the rate and with the quality required under specified conditions
OOB emissions: unwanted emissions which fall at frequencies separated from the centre frequency of the wanted
emission by less than or equal to 250 % of the channel bandwidth
output power: conducted power delivered by a transmitter under specified conditions of operation
receiver bandwidth: bandwidth used for victim service ACLR measurements, i.e. 7,6 MHz for 8 MHz DVB-T,
6,7 MHz for 7 MHz DVB-T, 7,8 MHz for 8 MHz DVB-T2, 6,8 MHz for 7 MHz DVB-T2 and 9 MHz for LTE
reference bandwidth: bandwidth in which the emission level is specified
ETSI
---------------------- Page: 8 ----------------------
9 ETSI EN 302 296 V2.1.1 (2017-06)
spurious domain emissions: unwanted emissions at frequencies separated by more than 250 % of the channel
bandwidth from the centre of the occupied spectrum
3.2 Symbols
For the purposes of the present document, the following symbols apply:
m milli
μ micro
n nano
" inch
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 300 744 [i.6], ETSI EN 302 755 [i.7] and
the following apply:
ACLR Adjacent Channel Leakage Ratio
COFDM Coded Orthogonal Frequency Division Multiplexing
CSV Comma Separated Values
dB Logarithmic ratio (tenths of a "Bel")
dBm dB relative to one milliwatt
DIN Deutsches Institut fur Normung
DTT Digital Terrestrial Television
DVB Digital Video Broadcasting
DVB-T Digital Video Broadcasting - Terrestrial
EFTA European Free Trade Association
END Equivalent Noise Degradation
EUT Equipment Under Test
FFT Fast Fourier Transform
GHz GigaHertz
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Radiocommunication
kHz kiloHertz
MER Modulation Error Ratio
MHz MegaHertz
OOB Out-Of-Band
PA Power Amplifier
QAM Quadrature Amplitude Modulation
RBW Reference BandWidth
RF Radio Frequency
RMS Root Mean Square
RRC Regional Radiocommunication Conference
TV Television
UHF Ultra High Frequency
UK United Kingdom
VBW Video BandWidth
VHF Very High Frequency
W Watt
ETSI
---------------------- Page: 9 ----------------------
10 ETSI EN 302 296 V2.1.1 (2017-06)
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document which are identified as applicable in annex A at all times when operating within
the boundary limits of the declared operational environmental profile.
4.2 Conformance requirements
4.2.1 Introduction
The essential parameters and corresponding technical requirements aiming to meet the requirements of article 3.2 of
Directive 2014/53/EU [i.2] are shown in table 4.1. To fulfil this essential parameter the compliance with all the
corresponding technical requirements in table 4.1 shall be verified.
Table 4.1: Cross references
Essential parameter Corresponding technical requirements
4.2.2 Spurious emissions
Conducted emissions at the antenna port
4.2.3 Out-of-band emissions (OOB)
Both spurious emission limits and OOB limits are defined in terms of conducted power at the antenna port.
The boundary between spurious domain emissions and out-of-band emissions is shown in figure 4.1.
Figure 4.1: Definition of out-of-band and Spurious Domains
4.2.2 Spurious emissions
4.2.2.1 Definition
Spurious emissions are unwanted emissions at frequencies separated by more than 250 % of the channel bandwidth
from the centre of the occupied spectrum. These include harmonic emissions, parasitic emissions, intermodulation
products and frequency conversion products but exclude out-of-band emissions.
For the purposes of the present document spurious emissions are emissions at frequencies outside the frequency range
f ± 17,5 MHz for 7 MHz channels, f ± 20 MHz for 8 MHz channels, where f is the centre frequency of the channel,
0 0 0
irrespective of the number of carriers employed.
ETSI
---------------------- Page: 10 ----------------------
11 ETSI EN 302 296 V2.1.1 (2017-06)
4.2.2.2 Limits
Spurious emissions shall not exceed the values set out in table 4.2 additionally shown in figure 4.2, for the frequency
range 9 kHz to 3 GHz.
In the case of a DVB-T/T2 transmitter supplied without an internal bandpass output filter, the manufacturer shall
specify the characteristics of the filter necessary to fulfil the spurious emission limits defined in table 4.2. The
manufacturer shall include this information in the test report.
Table 4.2: Spurious emission limits for DVB-T/T2 transmitters
Frequency range of the Limits of the spurious emission Reference
spurious emission bandwidth
9 kHz to 470 MHz ≤ -36 dBm (250 nW) for P ≤ 69 dBm 100 kHz
≥ 105 dBc for 69 dBm < P
> 470 MHz to 694 MHz 100 kHz
≤ -36 dBm for P ≤ 39 dBm
≥ 75 dBc for 39 dBm < P ≤ 50 dBm
≤ -25 dBm (3 µW) for 50 dBm < P
> 694 MHz 100 kHz
≤ -36 dBm (250 nW) for P ≤ 69 dBm
≥ 105 dBc for 69 dBm < P
NOTE: P = mean power of the transmitter measured at the antenna port.
Figure 4.2: Spurious emission limits measured at the antenna port
(100 kHz reference bandwidth)
4.2.2.3 Conformance test
Conformance tests de
...
Final draft ETSI EN 302 296 V2.1.0 (2017-04)
HARMONISED EUROPEAN STANDARD
Digital Terrestrial TV Transmitters;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU

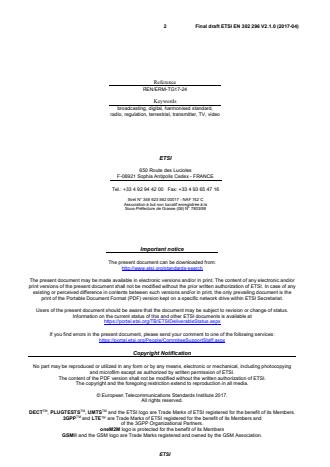

---------------------- Page: 1 ----------------------
2 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
Reference
REN/ERM-TG17-24
Keywords
broadcasting, digital, harmonised standard,
radio, regulation, terrestrial, transmitter, TV, video
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2017.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Spurious emissions . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 11
4.2.2.3 Conformance test . 11
4.2.3 Out-of-band emissions . 12
4.2.3.1 Definition . 12
4.2.3.2 Classification of transmitters . 12
4.2.3.3 Limits . 12
4.2.3.4 Conformance test . 16
5 Testing for compliance with technical requirements . 17
5.1 Environmental conditions for testing . 17
5.2 Interpretation of the measurement results . 17
5.3 Test conditions . 17
5.3.1 Test frequency range . 17
5.3.2 Test modulation signal . 18
5.4 Essential radio test suites . 18
5.4.1 Introduction. 18
5.4.2 Spurious emissions . 18
5.4.2.1 Measurement approaches . 18
5.4.2.2 Initial conditions . 19
5.4.2.3 Test procedure . 19
5.4.2.4 Test requirements . 19
5.4.2.5 Test arrangement . 20
5.4.3 Out-of-band emissions . 20
5.4.3.1 Initial conditions . 20
5.4.3.2 Test procedure . 21
5.4.3.3 Test requirements . 21
5.4.3.4 Test arrangement . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Void . 23
Annex C (informative): Practical measurement of spurious domain emissions for broadcast
transmitters . 24
C.0 Introduction . 24
ETSI
---------------------- Page: 3 ----------------------

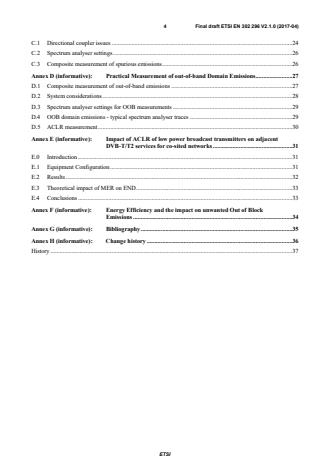

4 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
C.1 Directional coupler issues . 24
C.2 Spectrum analyser settings . 26
C.3 Composite measurement of spurious emissions . 26
Annex D (informative): Practical Measurement of out-of-band Domain Emissions . 27
D.1 Composite measurement of out-of-band emissions . 27
D.2 System considerations . 28
D.3 Spectrum analyser settings for OOB measurements . 29
D.4 OOB domain emissions - typical spectrum analyser traces . 29
D.5 ACLR measurement . 30
Annex E (informative): Impact of ACLR of low power broadcast transmitters on adjacent
DVB-T/T2 services for co-sited networks . 31
E.0 Introduction . 31
E.1 Equipment Configuration . 31
E.2 Results . 32
E.3 Theoretical impact of MER on END . 33
E.4 Conclusions . 33
Annex F (informative): Energy Efficiency and the impact on unwanted Out of Block
Emissions . 34
Annex G (informative): Bibliography . 35
Annex H (informative): Change history . 36
History . 37
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Vote phase of the
ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.2].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document has been produced to update the existing standard in line with the requirements of article 3.2 of
Directive 2014/53/EU [i.2].
ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
1 Scope
The present document specifies technical characteristics and methods of measurements for digital terrestrial television
transmitters as defined in table 1.1 and in table 1.2. The output power classification (table 1.1) and emission
classification (table 1.2) are combined to define a transmitter category. For example, power classification H and
emission classification 0 denotes a high power transmitter (category H0) whose OOB emissions comply with a non-
critical mask.
Table 1.1: Transmitter power classification
Power Class Description Notes
H High power transmitter Transmitter with an output power ≥ 25 W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
L Low power transmitter Transmitter with an output power < 25 W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
Table 1.2: Transmitter emission classification
Emission Conformance approach Notes
Classification
0 Non critical mask For high power transmitters, the mask defines the level of
the OOB relative to the channel power (dBc). For low power
transmitters the mask defines the absolute power limit of the
OOB (dBm). The former approach is mandated by RRC-06
(non-critical case) [i.4] for transmitters subject to
coordination.
1 Critical mask A similar but more stringent approach based on RRC-06
(sensitive case) [i.4].
2 Non-critical ACLR A set of ACLR limits defining permitted relative emission
levels into adjacent channels.
3 Critical ACLR A set of more stringent ACLR limits defining permitted
relative emission levels into adjacent channels.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.2] under the
conditions identified in annex A.
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] Void.
[3] Void.
ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
[4] Void.
[5] CENELEC EN 55016-4-2:2011/A1:2014: "Specification for radio disturbance and immunity
measuring apparatus and methods. Part 4-2: Uncertainties, statistics and limit modelling -
Measurement instrumentation uncertainty".
[6] Recommendation ITU-R SM.329-12 (09/2012): "Unwanted emissions in the spurious domain".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 101 290 (V1.2.1) (05-2001): "Digital Video Broadcasting (DVB); Measurement
guidelines for DVB systems".
[i.2] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ITU RRC-06: "Final Acts of the Regional Radiocommunication Conference for planning of the
digital terrestrial broadcasting service in parts of Regions 1 and 3, in the frequency bands
174-230 MHz and 470-862 MHz", Geneva, 15 May - 16 June 2006.
[i.5] The Paris climate agreement (COP21), December 2015.
NOTE: Available at http://ec.europa.eu/clima/policies/international/negotiations/future/index_en.htm.
[i.6] ETSI EN 300 744 (V1.6.2) (10-2015): "Digital Video Broadcasting (DVB); Framing structure,
channel coding and modulation for digital terrestrial television".
[i.7] ETSI EN 302 755 (V1.4.1) (07-2015): "Digital Video Broadcasting (DVB); Frame structure
channel coding and modulation for a second generation digital terrestrial television broadcasting
system (DVB-T2)".
[i.8] ETSI TR 100 028 (all parts) (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio
spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment
characteristics".
[i.9] ETSI TR 100 028-2 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 2".
ETSI
---------------------- Page: 7 ----------------------
8 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in Directive 2014/53/EU [i.2] and the
following apply:
adjacent channel leakage ratio: ratio of the wanted mean power of the DVB-T/T2 signal to the unwanted mean power
measured in the receiver bandwidth of a given adjacent victim service
antenna port: port of an apparatus intended to be connected to an antenna using coaxial cable or coaxial line; typically
the output of the channel filter or combiner
carrier power: mean power supplied to the antenna port by a transmitter with COFDM
channel bandwidth: frequency band of defined width (as a multiple of the carrier grid) for operation on adjacent
channels, located symmetrically around carrier frequency in the carrier grid
composite approach: measurement method whereby the power amplifier emissions are measured separately to the
frequency response of subsequent frequency selective components and the overall emissions of the transmitter are
calculated by combining the two sets of measurements
co-sited: DVB-T/T2 transmitters which are located at the same physical site so minimizing the effects of adjacent
channel interference
dBc: decibels relative to the mean power P of the emission
digital signal: discretely timed signal in which information is represented by a finite number of well-defined discrete
values that its characteristic quantities may take in time
digital television: television in which all information is represented by a digital signal
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
harmonic: component of order greater than 1 of the Fourier series of a periodic quantity
high power transmitter: transmitter whose conducted output power is greater than or equal to 25 W (this category of
transmitter also includes medium power category of transmitters as defined in ITU-R)
intermodulation products: unwanted frequencies resulting from intermodulation between carriers or harmonics of
emission, or between any oscillations generated to produce the carrier
low power transmitter: transmitter whose conducted output power is less than 25 W
mean power: average power supplied to the antenna port by a transmitter during an interval of time sufficiently long
compared with the lowest frequency encountered in the modulation taken under normal operating conditions
moding: operation of a coaxial component in unwanted waveguide modes (e.g. Transverse Electric (TE) or Transverse
Magnetic (TM)) resulting in anomalous behaviour from that associated with the intended Transverse Electromagnetic
(TEM) mode
necessary bandwidth: for a given class of emission, the width of the frequency band which is sufficient to ensure the
transmission of information at the rate and with the quality required under specified conditions
OOB emissions: unwanted emissions which fall at frequencies separated from the centre frequency of the wanted
emission by less than or equal to 250 % of the channel bandwidth
output power: conducted power delivered by a transmitter under specified conditions of operation
receiver bandwidth: bandwidth used for victim service ACLR measurements, i.e. 7,6 MHz for 8 MHz DVB-T,
6,7 MHz for 7 MHz DVB-T, 7,8 MHz for 8 MHz DVB-T2, 6,8 MHz for 7 MHz DVB-T2 and 9 MHz for LTE
reference bandwidth: bandwidth in which the emission level is specified
ETSI
---------------------- Page: 8 ----------------------
9 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
spurious domain emissions: unwanted emissions at frequencies separated by more than 250 % of the channel
bandwidth from the centre of the occupied spectrum
3.2 Symbols
For the purposes of the present document, the following symbols apply:
m milli
μ micro
n nano
" inch
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 300 744 [i.6], ETSI EN 302 755 [i.7] and
the following apply:
ACLR Adjacent Channel Leakage Ratio
COFDM Coded Orthogonal Frequency Division Multiplexing
CSV Comma Separated Values
dB Logarithmic ratio (tenths of a "Bel")
dBm dB relative to one milliwatt
DIN Deutsches Institut fur Normung
DTT Digital Terrestrial Television
DVB Digital Video Broadcasting
DVB-T Digital Video Broadcasting - Terrestrial
EFTA European Free Trade Association
END Equivalent Noise Degradation
EUT Equipment Under Test
FFT Fast Fourier Transform
GHz GigaHertz
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Radiocommunication
kHz kiloHertz
MER Modulation Error Ratio
MHz MegaHertz
OOB Out-Of-Band
PA Power Amplifier
QAM Quadrature Amplitude Modulation
RBW Reference BandWidth
RF Radio Frequency
RMS Root Mean Square
RRC Regional Radiocommunication Conference
TV Television
UHF Ultra High Frequency
UK United Kingdom
VBW Video BandWidth
VHF Very High Frequency
W Watt
ETSI
---------------------- Page: 9 ----------------------
10 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document which are identified as applicable in annex A at all times when operating within
the boundary limits of the declared operational environmental profile.
4.2 Conformance requirements
4.2.1 Introduction
The essential parameters and corresponding technical requirements aiming to meet the requirements of article 3.2 of
Directive 2014/53/EU [i.2] are shown in table 4.1. To fulfil this essential parameter the compliance with all the
corresponding technical requirements in table 4.1 shall be verified.
Table 4.1: Cross references
Essential parameter Corresponding technical requirements
4.2.2 Spurious emissions
Conducted emissions at the antenna port
4.2.3 Out-of-band emissions (OOB)
Both spurious emission limits and OOB limits are defined in terms of conducted power at the antenna port.
The boundary between spurious domain emissions and out-of-band emissions is shown in figure 4.1.
Figure 4.1: Definition of out-of-band and Spurious Domains
4.2.2 Spurious emissions
4.2.2.1 Definition
Spurious emissions are unwanted emissions at frequencies separated by more than 250 % of the channel bandwidth
from the centre of the occupied spectrum. These include harmonic emissions, parasitic emissions, intermodulation
products and frequency conversion products but exclude out-of-band emissions.
For the purposes of the present document spurious emissions are emissions at frequencies outside the frequency range
f ± 17,5 MHz for 7 MHz channels, f ± 20 MHz for 8 MHz channels, where f is the centre frequency of the channel,
0 0 0
irrespective of the number of carriers employed.
ETSI
---------------------- Page: 10 ----------------------
11 Final draft ETSI EN 302 296 V2.1.0 (2017-04)
4.2.2.2 Limits
Spurious emissions shall not exceed the values set out in table 4.2 additionally shown in figure 4.2, for the frequency
range 9 kHz to 3 GHz.
In the case of a DVB-T/T2 transmitter supplied without an internal bandpass output filter, the manufacturer shall
specify the characteristics of the filter necessary to fulfil the spurious emission limits defined in table 4.2. The
manufacturer shall include this information in the test report.
Table 4.2: Spurious emission limits for DVB-T/T2 transmitters
Frequency range of the Limits of the spurious emission Reference
spurious emission bandwidth
9 kHz to 470 MHz ≤ -36 dBm (250 nW) for P ≤ 69 dBm 100 kHz
≥ 105 dBc for 69 dBm < P
> 470 MHz to 694 MHz 100 kHz
≤ -36 dBm for P ≤ 39 dBm
≥ 75 dBc for 39 dBm < P ≤ 50 dBm
≤ -25 dBm (3 µW) for 50 dBm < P
> 694 MHz 100 kHz
≤ -36 dBm (250 nW) for P ≤ 6
...
Draft ETSI EN 302 296 V2.0.2 (2016-10)
HARMONISED EUROPEAN STANDARD
Digital Terrestrial TV Transmitters;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU
---------------------- Page: 1 ----------------------

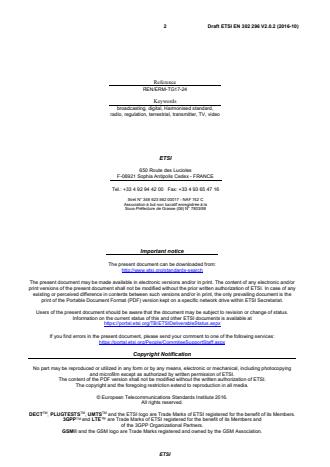

2 Draft ETSI EN 302 296 V2.0.2 (2016-10)
Reference
REN/ERM-TG17-24
Keywords
broadcasting, digital, Harmonised standard,
radio, regulation, terrestrial, transmitter, TV, video
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 302 296 V2.0.2 (2016-10)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 8
3.3 Abbreviations . 9
4 Technical requirements specifications . 9
4.1 Environmental profile . 9
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Spurious emissions . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance test . 11
4.2.3 Out-of-band emissions . 11
4.2.3.1 Definition . 11
4.2.3.2 Classification of transmitters . 12
4.2.3.3 Limits . 12
4.2.3.4 Conformance test . 16
5 Testing for compliance with technical requirements . 17
5.1 Environmental conditions for testing . 17
5.2 Interpretation of the measurement results . 17
5.3 Test conditions . 17
5.3.1 Test frequency range . 17
5.3.2 Test modulation signal . 18
5.4 Essential radio test suites . 18
5.4.1 Introduction. 18
5.4.2 Spurious emissions . 18
5.4.2.1 Measurement approaches . 18
5.4.2.2 Initial conditions . 19
5.4.2.3 Test procedure . 19
5.4.2.4 Test requirements . 19
5.4.2.5 Test arrangement . 20
5.4.3 Out-of-band emissions . 20
5.4.3.1 Initial conditions . 20
5.4.3.2 Test procedure . 20
5.4.3.3 Test requirements . 21
5.4.3.4 Test arrangement . 21
Annex A (normative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Void. . 23
Annex C (informative): Practical measurement of spurious domain emissions for broadcast
transmitters . 24
C.0 Introduction . 24
ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 302 296 V2.0.2 (2016-10)
C.1 Directional coupler issues . 24
C.2 Spectrum analyser settings . 26
C.3 Composite measurement of spurious emissions . 26
Annex D (informative): Practical Measurement of out-of-band Domain Emissions . 27
D.1 Composite measurement of out-of-band emissions . 27
D.2 System considerations . 28
D.3 Spectrum analyser settings for OOB measurements . 29
D.4 OOB domain emissions - typical spectrum analyser traces . 29
D.5 ACLR measurement . 30
Annex E (informative): Impact of ACLR of low power broadcast transmitters on adjacent
DVB-T/T2 services for co-sited networks . 31
E.0 Introduction . 31
E.1 Equipment Configuration . 31
E.2 Results . 32
E.3 Theoretical impact of MER on END . 32
E.4 Conclusions . 33
Annex F (informative): Energy Efficiency and the impact on unwanted Out of Block
Emissions . 34
Annex G (informative): Bibliography . 35
Annex H (informative): Change History . 36
History . 37
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 302 296 V2.0.2 (2016-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.2].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document has been produced to update the existing standard in line with the requirements of article 3.2 of
Directive 2014/53/EU [i.2].
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 302 296 V2.0.2 (2016-10)
1 Scope
The present document applies to categories of digital terrestrial television transmitter defined according to table 1.1 and
table 1.2. The output power classification (table 1.1) and emission classification (table 1.2) are combined to define a
transmitter category. For example, power classification H and emission classification 0 denotes a high power transmitter
(category H0) whose OOB emissions comply with a non-critical mask.
Table 1.1: Transmitter power classification
Power Class Description Notes
H High power transmitter Transmitter with an output power ≥ 25W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
L Low power transmitter Transmitter with an output power < 25W operating in the
VHF band (174 MHz to 230 MHz) or UHF band (470 MHz to
694 MHz).
Table 1.2: Transmitter emission classification
Emission Conformance approach Notes
Classification
0 Non critical mask For high power transmitters, the mask defines the level of
the OOB relative to the channel power (dBc). For low power
transmitters the mask defines the absolute power limit of the
OOB (dBm). The former approach is mandated by RRC-06
(non-critical case) [i.4] for transmitters subject to
coordination.
1 Critical mask A similar but more stringent approach based on RRC-06
(sensitive case).
2 Non-critical ACLR A set of ACLR limits defining permitted relative emission
levels into adjacent channels.
3 Critical ACLR A set of more stringent ACLR limits defining permitted
relative emission levels into adjacent channels.
The present document contains requirements to demonstrate that radio equipment both effectively uses and supports the
efficient use of radio spectrum in order to avoid harmful interference.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 744 (V1.6.2) (10-2015): "Digital Video Broadcasting (DVB); Framing structure,
channel coding and modulation for digital terrestrial television".
[2] ETSI EN 302 755 (V1.4.1) (07-2015): "Digital Video Broadcasting (DVB); Frame structure
channel coding and modulation for a second generation digital terrestrial television broadcasting
system (DVB-T2)".
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 302 296 V2.0.2 (2016-10)
[3] ETSI TR 100 028-1 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 1".
[4] ETSI TR 100 028-2 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 2".
[5] CENELEC EN 55016-4-2:2004: "Specification for radio disturbance and immunity measuring
apparatus and methods. Part 4-2: Uncertainties, statistics and limit modelling - Measurement
instrumentation uncertainty".
[6] Recommendation ITU-R SM.329-12 (09/2012): "Unwanted emissions in the spurious domain".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 101 290 (V1.2.1) (05/2001): "Digital Video Broadcasting (DVB); Measurement
guidelines for DVB systems".
[i.2] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ITU RRC-06: "Final Acts of the Regional Radiocommunication Conference for planning of the
digital terrestrial broadcasting service in parts of Regions 1 and 3, in the frequency bands
174-230 MHz and 470-862 MHz", Geneva, 15 May - 16 June 2006.
[i.5] The Paris climate agreement (COP21), December 2015.
NOTE: Available at http://ec.europa.eu/clima/policies/international/negotiations/future/index_en.htm.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
adjacent channel leakage ratio: ratio of the wanted mean power of the DVB-T/T2 signal to the unwanted mean power
measured in the receiver bandwidth of a given adjacent victim service
antenna port: port of an apparatus intended to be connected to an antenna using coaxial cable or coaxial line; typically
the output of the channel filter or combiner
carrier power: mean power supplied to the antenna port by a transmitter with COFDM
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 302 296 V2.0.2 (2016-10)
channel bandwidth: frequency band of defined width (as a multiple of the carrier grid) for operation on adjacent
channels, located symmetrically around carrier frequency in the carrier grid
composite approach: measurement method whereby the power amplifier emissions are measured separately to the
frequency response of subsequent frequency selective components and the overall emissions of the transmitter are
calculated by combining the two sets of measurements
co-sited: DVB-T/T2 transmitters which are located at the same physical site so minimizing the effects of adjacent
channel interference
dBc: decibels relative to the mean power P of the emission
digital signal: discretely timed signal in which information is represented by a finite number of well-defined discrete
values that its characteristic quantities may take in time
digital television: television in which all information is represented by a digital signal
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
harmonic: component of order greater than 1 of the Fourier series of a periodic quantity
high power transmitter: transmitter whose conducted output power is greater than or equal to 25 W (this category of
transmitter also includes medium power category of transmitters as defined in ITU-R)
intermodulation products: unwanted frequencies resulting from intermodulation between carriers or harmonics of
emission, or between any oscillations generated to produce the carrier
low power transmitter: transmitter whose conducted output power is less than 25 W
mean power: average power supplied to the antenna port by a transmitter during an interval of time sufficiently long
compared with the lowest frequency encountered in the modulation taken under normal operating conditions
moding: operation of a coaxial component in unwanted waveguide modes (e.g. Transverse Electric (TE) or Transverse
Magnetic (TM)) resulting in anomalous behaviour from that associated with the intended Transverse Electromagnetic
(TEM) mode
necessary bandwidth: for a given class of emission, the width of the frequency band which is sufficient to ensure the
transmission of information at the rate and with the quality required under specified conditions
OOB emissions: unwanted emissions which fall at frequencies separated from the centre frequency of the wanted
emission by less than or equal to 250 % of the channel bandwidth
output power: conducted power delivered by a transmitter under specified conditions of operation
receiver bandwidth: bandwidth used for victim service ACLR measurements, i.e. 7,6 MHz for 8 MHz DVB-T,
6,7 MHz for 7 MHz DVB-T, 7,8 MHz for 8 MHz DVB-T2, 6,8 MHz for 7 MHz DVB-T2 and 9 MHz for LTE
reference bandwidth: bandwidth in which the emission level is specified
spurious domain emissions: unwanted emissions at frequencies separated by more than 250 % of the channel
bandwidth from the centre of the occupied spectrum
3.2 Symbols
For the purposes of the present document, the following symbols apply:
m milli
μ micro
n nano
" inch
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 302 296 V2.0.2 (2016-10)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
BW BandWidth
COFDM Coded Orthogonal Frequency Division Multiplexing
CSV Comma Separated Values
dB Logarithmic ratio (tenths of a "Bel")
dBm dB relative to one milliwatt
DIN Deutsches Institut fur Normung
DTT Digital Terrestrial Television
DVB Digital Video Broadcasting
DVB-T Digital Video Broadcast - first generation
NOTE: See ETSI EN 300 744 [1].
DVB-T2 Digital Vdeo Broadcast - second generation
NOTE: See ETSI EN 302 755 [2].
END Equivalent Noise Degradation
EUT Equipment Under Test
FFT Fast Fourier Transform
GHz GigaHertz
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Region
kHz kiloHertz
MER Modulation Error Ratio
MHz MegaHertz
OOB out-of-band
PA Power Amplifier
QAM Quadrature Amplitude Modulation
RBW Reference BandWidth
RF Radio Frequency
RMS Root Mean Square
RRC Regional Radiocommunication Conference
TV Television
UHF Ultra High Frequency
VBW Video BandWidth
VHF Very High Frequency
W Watt
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document at all times when operating within the boundary limits of the declared operational
environmental profile.
ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 302 296 V2.0.2 (2016-10)
4.2 Conformance requirements
4.2.1 Introduction
To meet the requirement under article 3.2 of Directive 2014/53/EU [i.2] the essential parameter and corresponding
technical requirements are shown in table 4.1. To fulfil this essential parameter the compliance with all the
corresponding technical requirements in table 4.1 shall be verified.
Table 4.1: Cross references
Essential parameter Corresponding technical requirements
Conducted emissions at the antenna port 4.2.2 Spurious emissions
4.2.3 Out-of-band emissions (OOB)
Both spurious emission limits and OOB limits are defined in terms of conducted power at the antenna port.
The boundary between spurious domain emissions and out-of-band emissions is shown in figure 4.1.
Figure 4.1: Definition of out-of-band and Spurious Domains
4.2.2 Spurious emissions
4.2.2.1 Definition
Spurious emissions are unwanted emissions at frequencies separated by more than 250 % of the channel bandwidth
from the centre of the occupied spectrum. These include harmonic emissions, parasitic emissions, intermodulation
products and frequency conversion products but exclude out-of-band emissions.
For the purposes of the present document spurious emissions are emissions at frequencies outside the frequency range
f ± 17,5 MHz for 7 MHz channels, f ± 20 MHz for 8 MHz channels, where f is the centre frequency of the channel,
0 0 0
irrespective of the number of carriers employed.
4.2.2.2 Limits
Spurious emissions shall not exceed the values set out in table 4.2 additionally shown in figure 4.2, for the frequency
range 9 kHz to 3 GHz.
In the case of a DVB-T/T2 transmitter supplied without an internal bandpass output filter, the manufacturer shall
specify the characteristics of the filter necessary to fulfil the spurious emission limits defined in table 4.2. The
manufacturer shall include this information in the test report.
ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 302 296 V2.0.2 (2016-10)
Table 4.2: Spurious emission limits for DVB-T/T2 transmitters
Frequency range of the Limits of the spurious emission Reference
spurious emission bandwidth
9 kHz to 470 MHz 100 kHz
≤ -36 dBm (250 nW) for P ≤ 69 dBm
≥ 105 dBc for 69 dBm < P
> 470 MHz to 694 MHz ≤ -36 dBm, for P ≤ 39 dBm 100 kHz
≥ 75 dBc for 39 dBm < P ≤ 50 dBm
≤ -25 dBm (3 µW) for 50 dBm < P
> 694 MHz ≤ -36 dBm (250 nW) for P ≤ 69 dBm 100 kHz
≥ 105 dBc for 69 dBm < P
NOTE: P = mean power of the transmitter measured
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
