SIST EN 60335-2-54:2009
Household and similar electrical appliances - Safety -- Part 2-54: Particular requirements for surface-cleaning appliances for household use employing liquids or steam
Household and similar electrical appliances - Safety -- Part 2-54: Particular requirements for surface-cleaning appliances for household use employing liquids or steam
This clause of Part 1 is replaced by the following. This International Standard deals with the safety of electric cleaning appliances for household use that are intended for cleaning surfaces such as windows, walls and empty swimming pools by using liquid cleansing agents or steam, their rated voltage being not more than 250 V. It also covers wallpaper strippers. As far as is practicable, this standard deals with the common hazards presented by appliances that are encountered by all persons in and around the home. However, in general, it does not take into account - persons (including children) whose . physical, sensory or mental capabilities; or . lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction; - children playing with the appliance.
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke -- Teil 2-54: Besondere Anforderungen für Geräte zur Oberflächenreinigung mit Flüssigkeiten oder Dampf
Appareils électrodomestiques et analogues - Sécurité -- Partie 2-54: Règles particulières pour les appareils de nettoyage des surfaces à usage domestique, utilisant des liquides ou de la vapeur
La CEI 60335-2-54:2008 traite de la sécurité des appareils de nettoyage électriques à usage domestique, destinés au nettoyage des surfaces telles que les vitres, les murs et les piscines vides, en utilisant des agents de nettoyage liquides ou de la vapeur, et dont la tension assignée n'est pas supérieure à 250 V. Elle s'applique également aux décolleuses de papier peint. La principale modification de la présente édition par rapport à la troisième édition de la CEI 60335-2-54 est la suivante: Le domaine d'application a été réduit un peu plus de façon à couvrir les appareils dont le produit de la pression (en MPa) par le volume du réservoir (en l) ne dépasse pas 5.
Gospodinjski in podobni električni aparati - Varnost - 2-54. del: Posebne zahteve za aparate za čiščenje površin s tekočinami ali paro (IEC 60335-2-54:2008)
Ta mednarodni standard opisuje varnost električnih čistilnih aparatov za gospodinjsko uporabo, ki so namenjeni čiščenju površin, kot so okna, stene in prazni bazeni, z uporabo tekočih čistilnih sredstev ali pare, pri čemer njihova naznačena napetost ne presega 250 V. Zajema tudi odstranjevalce tapet. Ta standard v največji možni meri obravnava splošne nevarnosti, ki jih predstavljajo aparati ter s katerimi se srečujejo osebe doma in v okolici doma. Vendar na splošno ne upošteva: – oseb (vključno z otroki), ki zaradi fizičnih, čutilnih ali duševnih zmožnosti ali zaradi neizkušenosti in neznanja aparata ne morejo varno uporabljati brez nadzora ali navodil; – otrok, ki se igrajo z aparatom.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 60335-2-54:2009
01-marec-2009
1DGRPHãþD
SIST EN 60335-2-54:2003
SIST EN 60335-2-54:2003/A1:2004
SIST EN 60335-2-54:2003/A11:2006
SIST EN 60335-2-54:2003/A2:2007
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO 3RVHEQH]DKWHYH
]DDSDUDWH]DþLãþHQMHSRYUãLQVWHNRþLQDPLDOLSDUR ,(&
Household and similar electrical appliances - Safety -- Part 2-54: Particular requirements
for surface-cleaning appliances for household use employing liquids or steam
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke -- Teil 2-54:
Besondere Anforderungen für Geräte zur Oberflächenreinigung mit Flüssigkeiten oder
Dampf
Appareils électrodomestiques et analogues - Sécurité -- Partie 2-54: Règles particulières
pour les appareils de nettoyage des surfaces à usage domestique, utilisant des liquides
ou de la vapeur
Ta slovenski standard je istoveten z: EN 60335-2-54:2008
ICS:
13.120 Varnost na domu Domestic safety
97.080 Aparati za nego tal Floor treatment appliances
SIST EN 60335-2-54:2009 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
EN 60335-2-54
NORME EUROPÉENNE
November 2008
EUROPÄISCHE NORM
ICS 13.120; 97.180 Supersedes EN 60335-2-54:2003 + A1:2004 + A11:2006 + A2:2007
English version
Household and similar electrical appliances -
Safety -
Part 2-54: Particular requirements for surface-cleaning appliances
for household use employing liquids or steam
(IEC 60335-2-54:2008)
Appareils électrodomestiques Sicherheit elektrischer Geräte
et analogues - für den Hausgebrauch
Sécurité - und ähnliche Zwecke -
Partie 2-54: Règles particulières Teil 2-54: Besondere Anforderungen
pour les appareils de nettoyage für Geräte zur Oberflächenreinigung
des surfaces à usage domestique, mit Flüssigkeiten oder Dampf
utilisant des liquides ou de la vapeur (IEC 60335-2-54:2008)
(CEI 60335-2-54:2008)
This European Standard was approved by CENELEC on 2008-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-54:2008 E
---------------------- Page: 2 ----------------------
EN 60335-2-54:2008 - 2 -

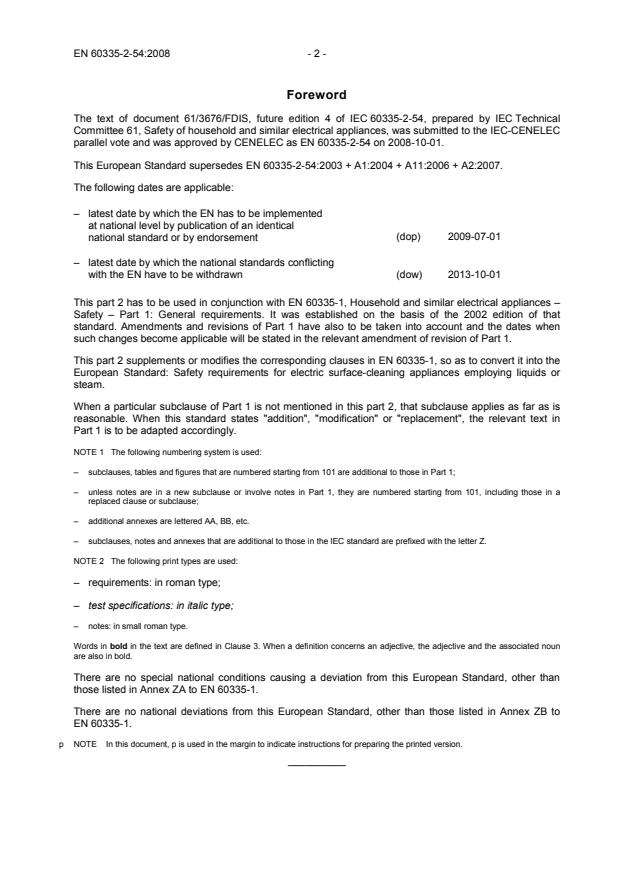

Foreword
The text of document 61/3676/FDIS, future edition 4 of IEC 60335-2-54, prepared by IEC Technical
Committee 61, Safety of household and similar electrical appliances, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as EN 60335-2-54 on 2008-10-01.
This European Standard supersedes EN 60335-2-54:2003 + A1:2004 + A11:2006 + A2:2007.
The following dates are applicable:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-07-01
– latest date by which the national standards conflicting
(dow) 2013-10-01
with the EN have to be withdrawn
This part 2 has to be used in conjunction with EN 60335-1, Household and similar electrical appliances –
Safety – Part 1: General requirements. It was established on the basis of the 2002 edition of that
standard. Amendments and revisions of Part 1 have also to be taken into account and the dates when
such changes become applicable will be stated in the relevant amendment of revision of Part 1.
This part 2 supplements or modifies the corresponding clauses in EN 60335-1, so as to convert it into the
European Standard: Safety requirements for electric surface-cleaning appliances employing liquids or
steam.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as far as is
reasonable. When this standard states "addition", "modification" or "replacement", the relevant text in
Part 1 is to be adapted accordingly.
NOTE 1 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a
replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
– subclauses, notes and annexes that are additional to those in the IEC standard are prefixed with the letter Z.
NOTE 2 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun
are also in bold.
There are no special national conditions causing a deviation from this European Standard, other than
those listed in Annex ZA to EN 60335-1.
There are no national deviations from this European Standard, other than those listed in Annex ZB to
EN 60335-1.
p NOTE In this document, p is used in the margin to indicate instructions for preparing the printed version.
__________
---------------------- Page: 3 ----------------------
- 3 - EN 60335-2-54:2008
Introduction
p Add:
An investigation by CENELEC TC 61 has shown that all risks from products within the scope of this
standard are fully covered by the Low Voltage Directive, 2006/95/EC. For products having mechanical
moving parts, a risk assessment in accordance with the Machinery Directive, 2006/42/EC, has shown that
the risks are mainly of electrical origin and consequently this directive is not applicable. However, the
relevant essential safety requirements of the Machinery Directive are covered by this standard together
with the principal objectives of the Low Voltage Directive.
____________
Endorsement notice
The text of the International Standard IEC 60335-2-54:2008 was approved by CENELEC as a European
Standard without any modification.
__________
Bibliography
p Add the following notes to the standards mentioned:
IEC 60335-2-10 NOTE Harmonized as EN 60335-2-10:2003 (not modified).
IEC 60335-2-79 NOTE Harmonized as EN 60335-2-79:2002 (modified).
IEC 60335-2-85 NOTE Harmonized as EN 60335-2-85:2003 (not modified).
ISO 13732-1 NOTE Harmonized as EN ISO 13732-1:2008 (not modified).
____________
---------------------- Page: 4 ----------------------
EN 60335-2-54:2008 - 4 -
p Add:
Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
Publication Year Title EN/HD Year
1)
ISO 6344-2 - Coated abrasives - Grain size analysis - - -
Part 2: Determination of grain size distribution
of macrogrits P12 to P220
____________
1)
Undated reference.
---------------------- Page: 5 ----------------------
IEC 60335-2-54
Edition 4.0 2008-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-54: Particular requirements for surface-cleaning appliances for household
use employing liquids or steam
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-54: Règles particulières pour les appareils de nettoyage des surfaces à
usage domestique, utilisant des liquides ou de la vapeur
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
S
CODE PRIX
ICS 13.120; 97.180 ISBN 2-8318-1001-5
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 6 ----------------------
– 2 – 60335-2-54 © IEC:2008
CONTENTS
FOREWORD.4
INTRODUCTION.7
1 Scope.8
2 Normative references .9
3 Definitions .9
4 General requirement.9
5 General conditions for the tests .9
6 Classification.10
7 Marking and instructions.10
8 Protection against access to live parts.11
9 Starting of motor-operated appliances .11
10 Power input and current .11
11 Heating .11
12 Void.12
13 Leakage current and electric strength at operating temperature.12
14 Transient overvoltages .12
15 Moisture resistance .12
16 Leakage current and electric strength.12
17 Overload protection of transformers and associated circuits .12
18 Endurance.12
19 Abnormal operation .12
20 Stability and mechanical hazards .13
21 Mechanical strength .13
22 Construction .15
23 Internal wiring.16
24 Components .16
25 Supply connection and external flexible cords .16
26 Terminals for external conductors.17
27 Provision for earthing .17
28 Screws and connections .17
29 Clearances, creepage distances and solid insulation .17
30 Resistance to heat and fire.17
31 Resistance to rusting.17
32 Radiation, toxicity and similar hazards.17
21
Annexes .
Bibliography.22
---------------------- Page: 7 ----------------------
60335-2-54 © IEC:2008 – 3 –
Figure 101 – Apparatus for testing the abrasion resistance of current-carrying hoses .18
Figure 102 – Apparatus for testing the resistance to flexing of current-carrying hoses .19
Figure 103 – Configuration of the hose for the freezing treatment .20
Figure 104 – Flexing positions for the hose after removal from the freezing cabinet.20
---------------------- Page: 8 ----------------------
– 4 – 60335-2-54 © IEC:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-54: Particular requirements for surface-cleaning appliances
for household use employing liquids or steam
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-54 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This fourth edition cancels and replaces the third edition published in 2002 and its
Amendment 1 (2004) and Amendment 2 (2007). It constitutes a technical revision.
The principal change in this edition as compared with the third edition of IEC 60335-2-54 is as
follows (minor changes are not listed):
The scope has been further restricted to cover appliances where the product of pressure (in
MPa) and container volume (in l) does not exceed 5.
---------------------- Page: 9 ----------------------
60335-2-54 © IEC:2008 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
61/3676/FDIS 61/3699/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric surface-
cleaning appliances employing liquids or steam.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 10 ----------------------
– 6 – 60335-2-54 © IEC:2008
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 6.1: Hand-held cleaning appliances and parts held in the hand in normal use shall be class II or class III
(Netherlands).
– 22.103: The dimensions of the inlet aperture are different (USA).
---------------------- Page: 11 ----------------------
60335-2-54 © IEC:2008 – 7 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
---------------------- Page: 12 ----------------------
– 8 – 60335-2-54 © IEC:2008
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-54: Particular requirements for surface-cleaning appliances
for household use employing liquids or steam
1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric cleaning appliances for household
use that are intended for cleaning surfaces such as windows, walls and empty swimming
pools by using liquid cleansing agents or steam, their rated voltage being not more than
250 V. It also covers wallpaper strippers.
NOTE 101 Appliances may incorporate heating elements or means for pressurising the liquid container.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, and similar authorities.
NOTE 103 This standard does not apply to
– floor treatment and wet scrubbing machines (IEC 60335-2-10);
– cleaning appliances that are permanently fixed to a building;
– cleaning appliances covered by IEC 60335-2-79, namely those having a
• pressure exceeding 2,5 MPa;
• pressurised volume over 5 l;
• product of pressure (in MPa) and container volume (in l) exceeding 5;
• liquid temperature exceeding 160 °C;
• rated power input exceeding 3 500 W;
– cleaning appliances intended for commercial or industrial use;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
– fabric steamers (IEC 60335-2-85).
---------------------- Page: 13 ----------------------
60335-2-54 © IEC:2008 – 9 –
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
ISO 6344-2: Coated abrasives – Grain size analysis – Part 2: Determination of grain size
distribution of macrogrits P12 to P220
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the most unfavourable conditions specified in the
instructions
The cleaning head is pressed with a force of 30 N against a vertical pane of plain glass and
moved up and down over a length of 1 m at a rate of 15 cycles per minute. A film of water is
maintained on the pane of glass by continuously applying water having a temperature of
20° C ± 5 °C.
For steam cleaners and wallpaper strippers, a sheet of stainless steel is used instead of
glass, without additional wetting. However, if the steam outlet is not intended to be pressed
against the surface, the appliance is operated with the outlet in free air directed downwards at
an angle of approximately 45°.
3.101
pressurised appliance
appliance in which steam is produced in a boiler at a pressure exceeding 50 kPa and in which
the pressure does not drop to atmospheric pressure when the steam is not supplied
NOTE The boiler may be incorporated in the appliance or connected to the appliance by a hose.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
A new hose is used for each of the tests of 21.101 to 21.105.
5.101 Appliances incorporating heating elements are tested as heating appliances even if
they incorporate motors.
---------------------- Page: 14 ----------------------
– 10 – 60335-2-54 © IEC:2008
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be class I, class II or class III.
6.2 Addition:
Class I and class II hand-held appliances dispensing liquids shall be at least IPX7. Other
appliances shall be at least IPX4. Class III appliances not exceeding 24 V can be IPX0.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Modification:
Appliances shall be marked with their rated power input in watts.
Addition:
Appliances intended to be connected to the water mains shall be marked with their maximum
permissible water pressure, in megapascals.
Steam cleaners, wallpaper strippers and appliances dispensing liquids having a temperature
exceeding 50 °C shall be marked with symbol IEC 60417-5597 (2002-10) or with the following:
WARNING: Danger of scalding.
NOTE 101 This symbol is a warning sign and the rules of ISO 3864-1 apply.
Appliance outlets for accessories shall be marked with their maximum load, in watts.
NOTE 102 This marking may be on the appliance close to the appliance outlet.
The sum of the rated power input and the maximum load of the appliance outlet shall also be
marked on the appliance.
7.6 Addition:
[symbol IEC 60417-5597 (2002-10)] steam
7.12 Addition:
The instructions shall state that the liquid or steam must not be directed towards equipment
containing electrical components, such as the interior of ovens.
For pressurised appliances, the instructions shall state that the filling aperture must not be
opened during use. Instructions for the safe refilling of the water container shall be given.
The instructions shall state that the appliance has to be unplugged after use and before
carryi
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
