SLOVENSKI STANDARD
SIST EN 17150:2019
01-oktober-2019
Cevni sistemi iz polimernih materialov, ki delujejo po težnostnem principu in so
položeni v zemljo, za transport in shranjevanje vode, ki ni namenjena pitju -
Preskusna metoda za ugotavljanje kratkotrajne tlačne odpornosti zabojev

Plastics piping systems for non-pressure underground conveyance and storage of non-

potable water - Test method for determination of short-term compression strength of

boxes

Kunststoff-Rohrleitungssysteme für die drucklose unterirdische Entwässerung für Nicht-

Trinkwasser - Prüfverfahren zur Bestimmung der Kurzzeitdruckfestigkeit von
Versickerungsblöcken

Systèmes de canalisations en plastique pour le transport et le stockage souterrains sans

pression de l’eau non potable - Méthode d’essai pour la détermination de la résistance à

la compression à court terme des structures alvéolaires ultra-légères
Ta slovenski standard je istoveten z: EN 17150:2019
ICS:
23.040.03 Cevovodi za zunanje sisteme Pipeline and its parts for
transporta vode in njihovi deli external water conveyance
systems
SIST EN 17150:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17150:2019
---------------------- Page: 2 ----------------------
SIST EN 17150:2019
EN 17150
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 23.040.01
English Version
Plastics piping systems for non-pressure underground
conveyance and storage of non-potable water - Test
method for determination of short-term compression
strength of boxes

Systèmes de canalisations en plastique pour le Kunststoff-Rohrleitungssysteme für die drucklose

transport et le stockage souterrains sans pression de unterirdische Entwässerung für Nicht-Trinkwasser -

l'eau non potable - Méthode d'essai pour la Prüfverfahren zur Bestimmung der

détermination de la résistance à la compression à court Kurzzeitdruckfestigkeit von Versickerungsblöcken

terme des structures alvéolaires ultra-légères
This European Standard was approved by CEN on 19 October 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17150:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17150:2019
EN 17150:2019 (E)

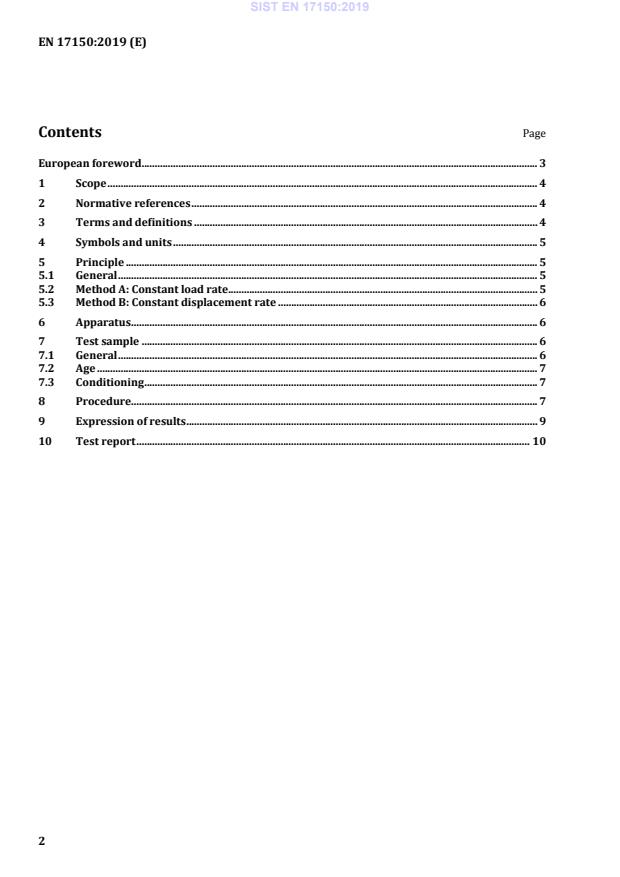

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Symbols and units ........................................................................................................................................... 5

5 Principle ............................................................................................................................................................. 5

5.1 General ................................................................................................................................................................ 5

5.2 Method A: Constant load rate ...................................................................................................................... 5

5.3 Method B: Constant displacement rate ................................................................................................... 6

6 Apparatus ........................................................................................................................................................... 6

7 Test sample ....................................................................................................................................................... 6

7.1 General ................................................................................................................................................................ 6

7.2 Age ........................................................................................................................................................................ 7

7.3 Conditioning ...................................................................................................................................................... 7

8 Procedure........................................................................................................................................................... 7

9 Expression of results ...................................................................................................................................... 9

10 Test report ...................................................................................................................................................... 10

---------------------- Page: 4 ----------------------
SIST EN 17150:2019
EN 17150:2019 (E)
European foreword

This document (EN 17150:2019) has been prepared by Technical Committee CEN/TC 155 “Plastics

piping systems and ducting systems”, the secretariat of which is held by NEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by March 2020, and conflicting national standards shall be

withdrawn at the latest by February 2021.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,

Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17150:2019
EN 17150:2019 (E)
1 Scope

This document specifies a method for determining short-term compression strength on boxes made of

thermoplastics materials for non-pressure underground conveyance and storage of non-potable water.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN ISO 3126, Plastics piping systems - Plastics components - Determination of dimensions (ISO 3126)

EN ISO 7500-1:2018, Metallic materials - Calibration and verification of static uniaxial testing machines -

Part 1: Tension/compression testing machines - Calibration and verification of the force-measuring system

(ISO 7500-1:2018)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
box

thermoplastic cuboid shaped element, with or without sidewalls, used to create a modular storage system

3.2
integral component
load bearing component contributing to the overall strength of the box
3.3
initial height, length, width
, l , b
hi i i

height (test direction), length and width of the sample before testing, respectively, in mm

3.4
initial height after pre-load

height of the sample after applying a pre-load, but before the load is further increased and recorded, in

---------------------- Page: 6 ----------------------
SIST EN 17150:2019
EN 17150:2019 (E)
4 Symbols and units
For the purposes of this document, the following symbols and units apply.
Units
h initial height (test direction) mm
l initial length mm
b initial width mm
ε strain %
ε a predetermined maximum strain %
lim
h height of the test sample after pre-load mm
d displacement after correction of offset mm
F compression load kN
F maximum compression load kN
max
A initial (projected) surface area through which t
...
