SIST EN 61073-1:2009

Fibre optic interconnecting devices and passive components - Mechanical splices and fusion splice protectors for optical fibres and cables - Part 1: Generic specification (IEC 61073-1:2009)

IEC 61073-1:2009(E) Applies to fibre optic splice hardware (alignment parts, protection parts, etc.) for optical fibres and cables. It includes fibre optic splice hardware requirements and quality assessment procedures. The main changes with respect to the previous edition are as follows:  - terms and definitions have been reconsidered;  - style has been added in classification of requirement;  - environmental category has been deleted from classification of requirement;  - standardisation structure and standards interlink have been reconsidered.

Lichtwellenleiter - Verbindungselemente und passive Bauteile - Mechanische Spleiße und Fusionsspleißschutze für optische Fasern und Kabel - Teil 1: Fachgrundspezifikation (IEC 61073-1:2009)

Dispositifs d'interconnexion et composants passifs à fibres optiques - Epissures mécaniques et protecteurs d'épissures par fusion pour fibres et câbles optiques - Partie 1: Spécification générique (CEI 61073-1:2009)

La CEI 60173-1:2009 s'applique au matériel de montage pour épissures de fibres optiques (protections des épissures mécaniques et des épissures par fusion) pour câbles et fibres optiques. Elle comprend:
- les exigences relatives aux matériels de montage des épissures pour fibres optiques;
- les procédures d'assurance de la qualité. Elle ne couvre pas les procédures de mesure et d'essais, ces dernières étant décrites dans la CEI 61300-1, la série CEI 61300-2 et la série CEI 61300-3. Cette quatrième édition annule et remplace la troisième édition publiée en 1999. Cette édition constitue une révision technique. Les principales modifications par rapport à l'édition précédente sont les suivantes:
- Les termes et définitions ont été revus;
- Un modèle a été ajouté au paragraphe classification des exigences;
- Le paragraphe consacré aux catégories d'environnement a été supprimé du paragraphe classification des exigences;
- La structure normative et les interdépendances entre normes ont été revue.
Mots clés: matériel d'épissure pour fibres optiques; assurance de la qualité.

Povezovalne naprave in pasivne komponente optičnih vlaken - Ščitniki mehanskih in varjenih spojnih mest za optična vlakna in kable - 1. del: Rodovna specifikacija (IEC 61073-1:2009)

General Information

• Status: Published
• Publication Date: 21-May-2009
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: iTEL - Communication cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 11-May-2009
• Due Date: 16-Jul-2009
• Completion Date: 22-May-2009
• Ref Project: EN 61073-1:2009 - Fibre optic interconnecting devices and passive components - Mechanical splices and fusion splice protectors for optical fibres and cables - Part 1: Generic specification

Relations

• Replaces: SIST EN 61073-1:2002 - Mechanical splices and fusion splice protectors for optical fibres and cables -- Part 1: Generic specification
• Effective Date: 01-Jul-2009
• Revised: SIST EN 61073-1:2002 - Mechanical splices and fusion splice protectors for optical fibres and cables -- Part 1: Generic specification
• Effective Date: 13-May-2010

Overview

EN 61073-1:2009 (adoption of IEC 61073-1:2009) is the generic European specification for fibre optic splice hardware - covering mechanical splices and fusion splice protectors for optical fibres and cables. The standard defines requirements and quality-assessment procedures for splice hardware (alignment parts, protection parts, etc.) but does not replace test and measurement methods (those are covered by the IEC 61300 series).

Key editorial changes in this edition include reconsidered terms and definitions, added style in classification of requirements, removal of the environmental category from requirement classification, and a revised standardisation/standards interlink structure.

Key topics and requirements

EN 61073-1:2009 structures requirements to support consistent specification, manufacture and assessment of splice hardware. Major technical topics include:

• Classification system
  • Type, arrangement, style, variant, assessment level and normative reference extensions - for consistent product identification and specification.
• Documentation and specification
  • Symbols, specification system, drawings, declared performance, measurements, test reports and user instructions.
• Standardisation structure & interlinking
  • Defines how this generic specification relates to performance and reliability standards and other IEC/ISO documents.
• Design and construction
  • Materials selection and workmanship expectations for splice hardware and protectors.
• Performance and quality assessment
  • Requirements for performance declarations and quality assessment procedures (qualification and approval structures).
• Identification, marking, packaging and storage
  • Variant identification numbers, component/package marking, packaging and recommended storage conditions.
• Safety
  • Safety considerations and normative references to laser and fire-safety standards.

Practical applications

EN 61073-1:2009 is used to ensure interoperability, manufacturing quality and procurement clarity for fibre splice hardware. Typical uses include:

• Producing technical specifications for mechanical splices and fusion splice protectors
• Manufacturer design and quality-assurance programs
• Supplier qualification and approval processes
• Procurement and contract documents for telecom, data-centre and network installations
• Product marking, packaging and storage guidance

Who benefits: product manufacturers, design engineers, quality managers, procurement teams, test labs, and conformity assessors working with optical-fibre interconnection hardware.

Related standards

Relevant referenced and complementary standards include (see normative references in EN 61073-1:2009):

• IEC 61300 series (fibre optic basic test and measurement procedures)
• IEC 60793-1 (optical fibres - measurement methods)
• IEC 60825-1 (safety of laser products)
• IEC QC 001002-3 / IEC Guide 102 (quality assessment / qualification structures)

EN 61073-1:2009 provides the generic specification backbone for consistent, safe and verifiable mechanical splice and fusion splice protection hardware in fibre optic networks.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2009
1DGRPHãþD
SIST EN 61073-1:2002
3RYH]RYDOQHQDSUDYHLQSDVLYQHNRPSRQHQWHRSWLþQLKYODNHQâþLWQLNLPHKDQVNLK
LQYDUMHQLKVSRMQLKPHVW]DRSWLþQDYODNQDLQNDEOHGHO5RGRYQDVSHFLILNDFLMD
,(&
Fibre optic interconnecting devices and passive components - Mechanical splices and
fusion splice protectors for optical fibres and cables - Part 1: Generic specification (IEC
61073-1:2009)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Mechanische Spleiße
und Fusionsspleißschutze für optische Fasern und Kabel - Teil 1: Fachgrundspezifikation
(IEC 61073-1:2009)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Epissures
mécaniques et protecteurs d'épissures par fusion pour fibres et câbles optiques - Partie
1: Spécification générique (CEI 61073-1:2009)
Ta slovenski standard je istoveten z: EN 61073-1:2009
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61073-1
NORME EUROPÉENNE
April 2009
EUROPÄISCHE NORM
ICS 33.180.20 Supersedes EN 61073-1:2000

English version
Fibre optic interconnecting devices and passive components -
Mechanical splices and fusion splice protectors
for optical fibres and cables -
Part 1: Generic specification
(IEC 61073-1:2009)
Dispositifs d'interconnexion  Lichtwellenleiter -
et composants passifs à fibres optiques - Verbindungselemente
Epissures mécaniques et protecteurs und passive Bauteile -
d'épissures par fusion pour fibres Mechanische Spleiße
et câbles optiques - und Fusionsspleißschutze
Partie 1: Spécification générique für optische Fasern und Kabel -
(CEI 61073-1:2009) Teil 1: Fachgrundspezifikation
(IEC 61073-1:2009)
This European Standard was approved by CENELEC on 2009-02-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61073-1:2009 E

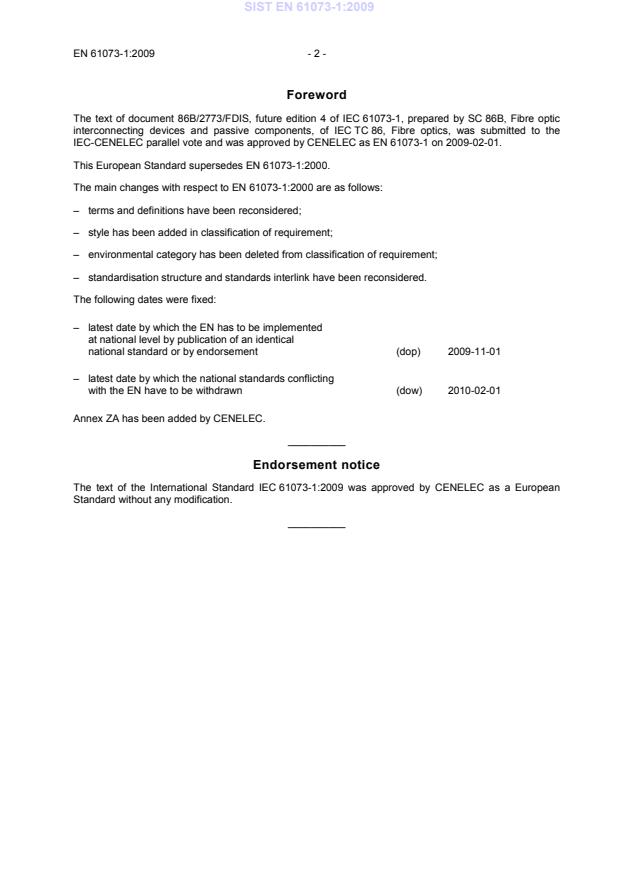

Foreword
The text of document 86B/2773/FDIS, future edition 4 of IEC 61073-1, prepared by SC 86B, Fibre optic
interconnecting devices and passive components, of IEC TC 86, Fibre optics, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 61073-1 on 2009-02-01.
This European Standard supersedes EN 61073-1:2000.
The main changes with respect to EN 61073-1:2000 are as follows:
– terms and definitions have been reconsidered;
– style has been added in classification of requirement;
– environmental category has been deleted from classification of requirement;
– standardisation structure and standards interlink have been reconsidered.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-11-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2010-02-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61073-1:2009 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61073-1:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60027 Series Letter symbols to be used in electrical EN 60027 Series
technology
1)
IEC 60050-731 - International Electrotechnical Vocabulary - -
(IEV) -
Chapter 731: Optical fibre communication

IEC 60617 Series Graphical symbols for diagrams - -

1) 2)
IEC 60695-11-5 - Fire hazard testing - EN 60695-11-5 2005
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
IEC 60793-1 Series Optical fibres - EN 60793-1 Series
(mod) Part 1: Measurement methods and test
procedures
1) 2)
IEC 60825-1 - Safety of laser products - EN 60825-1 2007
Part 1: Equipment classification and
requirements
1) 2)
IEC 61300-1 - Fibre optic interconnecting devices and EN 61300-1 2003
passive components - Basic test and
measurement procedures -
Part 1: General and guidance
IEC 61300-2 Series Fibre optic interconnecting devices and EN 61300-2 Series
passive components - Basic test and
measurement procedures -
Part 2: Tests
IEC 61300-3 Series Fibre optic interconnecting devices and EN 61300-3 Series
passive components - Basic test and
measurement procedures -
Part 3: Examinations and measurements

1)
IEC/TR 61930 - Fibre optic graphical symbology - -

1)
IEC/TR 61931 - Fibre optic - Terminology - -

1)
IEC QC 001002-3 - IEC Quality Assessment System for - -
Electronic Components (IECQ) -
Rules of Procedure -
Part 3: Approval procedures
1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year

1)
IEC Guide 102 - Electronic components - Specification - -
structures for quality assessment
(Qualification approval and capability
approval)
1)
ISO 129-1 - Technical drawings - Indication of - -
dimensions and tolerances -
Part 1: General principles
1)
ISO 286-1 - ISO system of limits and fits - - -
Part 1: Bases of tolerances, deviations and fits

1) 2)
ISO 1101 - Geometrical Product Specifications (GPS) - EN ISO 1101 2005
Geometrical tolerancing - Tolerances of form,
orientation, location and run-out

1)
ISO 8601 - Data elements and interchange formats - - -
Information interchange - Representation of
dates and times
IEC 61073-1
Edition 4.0 2009-01
INTERNATIONAL
STANDARD
Fibre optic interconnecting devices and passive components – Mechanical
splices and fusion splice protectors for optical fibres and cables –
Part 1: Generic specification
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
R
ICS 33.180.20 ISBN 2-8318-1023-0
– 2 – 61073-1 © IEC:2009(E)
CONTENTS
FOREWORD.0H3
1 Scope.1H5
2 Normative references.2H5
3 Terms and definitions .3H6
4 Requirements .4H7
4.1 Classification.5H7
4.1.1 Type .6H8
4.1.2 Arrangement.7H8
4.1.3 Style .8H8
4.1.4 Variant.9H9
4.1.5 Assessment level.10H10
4.1.6 Normative reference extensions .11H10
4.2 Documentation .12H11
4.2.1 Symbols.13H11
4.2.2 Specification system .14H11
4.2.3 Drawings .15H13
4.2.4 Performance.16H13
4.2.5 Measurements .17H13
4.2.6 Test reports .18H13
4.2.7 Instructions for use .19H14
4.3 Standardisation system.20H14
4.3.1 Performance standards.21H14
4.3.2 Reliability standards.22H14
4.3.3 Interlinking.23H15
4.4 Design and construction .24H16
4.4.1 Materials.25H16
4.4.2 Workmanship .26H16
4.5 Performance.27H17
4.6 Identification and marking.28H17
4.6.1 Variant identification number.29H17
4.6.2 Component marking.30H17
4.6.3 Package marking .31H17
4.7 Packaging .32H18
4.8 Storage conditions.33H18
4.9 Safety.34H18

Figure 1 – Standardisation structure .35H16

Table 1 – Example of a typical mechanical splice and fusion splice protection hardware .36H8
Table 2 – Three-level specification structure.37H12
Table 3 – Standards interlink matrix .38H16

61073-1 © IEC:2009(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS –
MECHANICAL SPLICES AND FUSION SPLICE PROTECTORS
FOR OPTICAL FIBRES AND CABLES –

Part 1: Generic specification
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61073-1 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This fourth edition cancels and replaces the third edition published in 1999. This edition
constitutes a technical revision. The main changes with respect to the previous edition are as
follows:
• terms and definitions have been reconsidered;
• style has been added in classification of requirement;
• environmental category has been deleted from classification of requirement;
• standardisation structure and standards interlink have been reconsidered.

– 4 – 61073-1 © IEC:2009(E)
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2773/FDIS 86B/2805/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

61073-1 © IEC:2009(E) – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS –
MECHANICAL SPLICES AND FUSION SPLICE PROTECTORS
FOR OPTICAL FIBRES AND CABLES –

Part 1: Generic specification
1 Scope
This part of IEC 61073 applies to fibre optic splice hardware (mechanical splices and fusion
splice protections) for optical fibres and cables.
It includes:
– fibre optic splice hardware requirements;
– quality assessment procedures.
This standard does not cover test and measurement procedures, which are described in
IEC 61300-1, IEC 61300-2 series and IEC 61300-3 series.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
References made to a specific clause or subclause of a standard include all subclauses of the
reference unless otherwise specified.
IEC QC 001002-3, IEC Quality Assessment System for Electronic Components (IECQ) – Rules
of Procedure – Part 3: Approval procedures
IEC Guide 102, Electronic components – Specification structures for quality assessment
(Qualification approval and capability approval)
IEC 60027 (all parts), Letter symbols to be used in electrical technology
IEC 60050-731, International Electrotechnical Vocabulary – Chapter 731: Optical fibre
communication
IEC 60617 (all parts), Graphical symbols for diagrams
IEC 60695-11-5, Fire hazard testing – Part 11-5: Test flames – Needle-flame test method –
Apparatus, confirmatory test arrangement and guidance
IEC 60793-1 (all parts), Optical fibres – Measurement methods and test procedures
IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1: General and guidance

– 6 – 61073-1 © IEC:2009(E)
IEC 61300-2 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures – Part 2: Tests
IEC 61300-3 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures – Part 3: Examinations and measurements
IEC 61930: Fibre optic graphical symbology
IEC 61931, Fibre optic – Terminology
ISO 129-1, Technical drawings – Indication of dimensions and tolerances – Part 1: General
principles
ISO 286-1, ISO system of limits and fits – Part 1: Bases of tolerances, deviations and fits
ISO 1101, Geometrical Product Specifications (GPS) – Geometrical tolerancing – Tolerances of
form, orientation, location and run-out
ISO 8601, Data elements and interchange formats – Information interchange – Representation
of dates and times
3 Terms and definitions
For the purposes of this document, the terms and definitions contained in IEC 60050-731,
IEC 61931, and IEC 60874-1 as well as the following definitions apply.
3.1
cable joint
protective joint of two or more optical fibre cables. It may consist of fibre splices, organizers
and closures
3.2
capillary mechanical splice
mechanical splice where the fibres are aligned by inserting them in a precision capillary tube
3.3
fibre splice
permanent or separable splice (see separable splice)
3.4
fusion splice
splice in which fibre ends are joined in a permanent manner by means of fusion
3.5
hybrid splice
cable splice with fibre splice(s) and electrical conductor splice(s)
3.6
interchangeable splice sets
splice sets are considered to be interchangeable when they both have the same installation
geometry and functional performance
3.7
mechanical splice
splice in which the fibre ends are joined either permanently or separably by any mechanical
means as long as the fibre ends are not fused together

61073-1 © IEC:2009(E) – 7 –
3.8
permanent splice
splice which cannot be separated
3.9
precision rods mechanical splice
mechanical splice where the fibres are aligned using two or more precision rods
3.10
separable splice
splice which can be disassembled and reassembled but is intended for permanent use
3.11
shape memory alloy splice
mechanical splice where the fibres are aligned by using special materials which have the
property to regain their original macroscopic shape when they are heated up (shape memory
effect) or after an applied load is released, at highe
...
