Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60938-2:2021
01-november-2021
Nadomešča:
SIST EN 60938-2:2002
SIST EN 60938-2:2002/A1:2007
Fiksne dušilke za dušenje elektromagnetnega motenja - 2. del: Področna
specifikacija za električne dušilke (IEC 60938-2:2021)
Fixed inductors for electromagnetic interference suppression - Part 2: Sectional
specification on power line chokes (IEC 60938-2:2021)
Drosseln zur Unterdrückung elektromagnetischer Störungen – Teil 2:
Rahmenspezifikation zu Netzdrosseln (IEC 60938-2:2021)
Inductances fixes d'antiparasitage - Partie 2: Spécification intermédiaire sur les bobines
d’arrêt pour ligne électrique (IEC 60938-2:2021)
Ta slovenski standard je istoveten z: EN IEC 60938-2:2021
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
SIST EN IEC 60938-2:2021 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60938-2:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 60938-2:2021
EUROPEAN STANDARD EN IEC 60938-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2021
ICS 29.100.10; 31.020 Supersedes EN 60938-2:1999 and all of its amendments
and corrigenda (if any)
English Version
Fixed inductors for electromagnetic interference suppression -
Part 2: Sectional specification on power line chokes
(IEC 60938-2:2021)
Inductances fixes d'antiparasitage - Partie 2: Spécification Drosseln zur Unterdrückung elektromagnetischer
intermédiaire sur les bobines d'arrêt pour ligne électrique Störungen - Teil 2: Rahmenspezifikation zu Netzdrosseln
(IEC 60938-2:2021) (IEC 60938-2:2021)
This European Standard was approved by CENELEC on 2021-08-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60938-2:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60938-2:2021
EN IEC 60938-2:2021 (E)

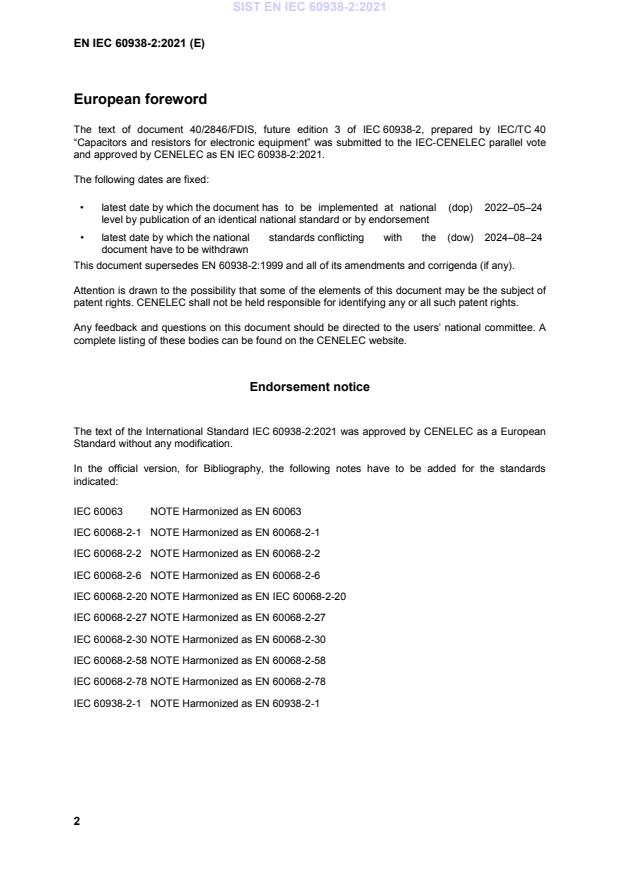

European foreword
The text of document 40/2846/FDIS, future edition 3 of IEC 60938-2, prepared by IEC/TC 40
“Capacitors and resistors for electronic equipment” was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 60938-2:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022–05–24
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024–08–24
document have to be withdrawn
This document supersedes EN 60938-2:1999 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60938-2:2021 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60063 NOTE Harmonized as EN 60063
IEC 60068-2-1 NOTE Harmonized as EN 60068-2-1
IEC 60068-2-2 NOTE Harmonized as EN 60068-2-2
IEC 60068-2-6 NOTE Harmonized as EN 60068-2-6
IEC 60068-2-20 NOTE Harmonized as EN IEC 60068-2-20
IEC 60068-2-27 NOTE Harmonized as EN 60068-2-27
IEC 60068-2-30 NOTE Harmonized as EN 60068-2-30
IEC 60068-2-58 NOTE Harmonized as EN 60068-2-58
IEC 60068-2-78 NOTE Harmonized as EN 60068-2-78
IEC 60938-2-1 NOTE Harmonized as EN 60938-2-1
2
---------------------- Page: 4 ----------------------
SIST EN IEC 60938-2:2021
EN IEC 60938-2:2021 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60027 series Letters symbols to be used in electrical - -
technology
IEC 60050 series International Electrotechnical Vocabulary - -
(IEV)
IEC 60060-1 - High-voltage test techniques - Part 1: EN 60060-1 -
General definitions and test requirements
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60068-2-13 - Environmental testing - Part 2–13: Tests - EN IEC 60068-2-13 -
Test M: Low air pressure
IEC 60068-2-14 - Environmental testing - Part 2–14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60068-2-17 - Basic environmental testing procedures - EN 60068-2-17 -
Part 2–17: Tests - Test Q: Sealing
IEC 60068-2-21 - Environmental testing - Part 2–21: Tests - - -
Test U: Robustness of terminations and
integral mounting devices
IEC 60068-2-45 - Basic environmental testing procedures - EN 60068-2-45 -
Part 2–45: Tests - Test XA and guidance:
Immersion in cleaning solvents
IEC 60317-0-7 - Specifications for particular types of EN 60317-0-7 -
winding wires - Part 0–7: General
requirements - Fully insulated (FIW) zero-
defect enamelled round copper wire
IEC 60317-56 - Specifications for particular types of EN 60317-56 -
winding wires – Part 56: Solderable fully
insulated (FIW) zero-defect polyurethane
enamelled round copper wire, class 180
IEC 60335-1 - Household and similar electrical appliances - -
- Safety - Part 1: General requirements
IEC 60617 - Graphical symbols for diagrams - -
3
---------------------- Page: 5 ----------------------
SIST EN IEC 60938-2:2021
EN IEC 60938-2:2021 (E)
IEC 60664-1 - Insulation coordination for equipment EN IEC 60664-1 -
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60695-2-11 - Fire hazard testing - Part 2–11: EN 60695-2-11 -
Glowing/hot-wire based test methods -
Glow-wire flammability test method for end
products (GWEPT)
IEC 60695-2-12 - Fire hazard testing - Part 2–12: EN 60695-2-12 -
Glowing/hot-wire based test methods -
Glow-wire flammability index (GWFI) test
method for materials
IEC 60695-2-13 - Fire hazard testing - Part 2–13: EN 60695-2-13 -
Glowing/hot-wire based test methods -
Glow-wire ignition temperature (GWIT) test
method for materials
IEC 60695-10-2 - Fire hazard testing - Part 10–2: Abnormal EN 60695-10-2 -
heat - Ball pressure test method
IEC 60695-11-10 - Fire hazard testing - Part 11–10: Test EN 60695-11-10 -
flames - 50 W horizontal and vertical flame
test methods
IEC 60695-11-20 - Fire hazard testing - Part 11–20: Test EN 60695-11-20 -
flames - 500 W flame test method
IEC 60851-5 - Winding wires - Test methods - Part 5: EN 60851-5 -
Electrical properties
IEC 60938-1 2021 Fixed inductors for electromagnetic EN IEC 60938-1 2021
interference suppression - Part 1: Generic
specification
IEC 60938-2-2 - Fixed inductors for electromagnetic EN 60938-2-2 -
interference suppression - Part 2–2: Blank
detail specification - Inductors for which
safety tests are required (only)
CISPR 17 - Methods of measurement of the EN 55017 -
suppression characteristics of passive
EMC filtering devices
ISO 80000-6 - Quantities and units - Part 6:
Electromagnetism
4
---------------------- Page: 6 ----------------------
SIST EN IEC 60938-2:2021
IEC 60938-2
®
Edition 3.0 2021-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed inductors for electromagnetic interference suppression –
Part 2: Sectional specification on power line chokes
Inductances fixes d’antiparasitage –
Partie 2: Spécification intermédiaire sur les bobines d’arrêt pour ligne électrique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10; 31.020 ISBN 978-2-8322-1002-2
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 60938-2:2021
– 2 – IEC 60938-2:2021 © IEC 2021
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements . 9
4.1 General . 9
4.2 Preferred values of ratings and characteristics . 9
4.2.1 Climatic categories . 9
4.2.2 Nominal inductance and tolerance . 9
4.2.3 Rated voltage U . 9
R
4.2.4 Rated temperature T . 9
r
4.2.5 Rated current I . 10
r
4.3 Information to be given in a detail specification . 10
4.3.1 General . 10
4.3.2 Outline drawing and dimensions . 10
4.3.3 Mounting . 11
4.3.4 Ratings and characteristics . 11
4.4 Insulated inductors for power line applications . 11
4.5 Marking . 11
5 Safety tests for approval . 12
5.1 General . 12
5.1.1 Approval on the basis of the fixed sample size procedures . 12
5.1.2 Structurally similar inductors . 12
5.1.3 Sampling . 13
5.2 Standard atmospheric conditions . 13
5.3 Visual examination . 13
5.3.1 Dimensions (gauging) . 13
5.3.2 Dimensions (detail) . 13
5.4 Insulation resistance . 14
5.5 Voltage test . 14
5.6 Inductance . 15
5.7 Line resistance . 15
5.8 Insertion loss (optional) . 15
5.9 Temperature rise (applies to inductors with a mass > 5 g only) . 15
5.9.1 General . 15
5.9.2 Test method . 15
5.9.3 Requirements . 16
5.10 Impulse voltage (applies to inductors with more than one winding only) . 16
5.10.1 Test conditions . 16
5.10.2 Initial measurements . 16
5.10.3 Requirements . 16
5.11 Endurance . 16
5.11.1 Test conditions – Endurance current test (applies to inductors with a
mass < 5 g only) . 16
5.11.2 Test conditions – Endurance voltage test between terminations (applies
to inductors with more than one winding only) . 17
---------------------- Page: 8 ----------------------
SIST EN IEC 60938-2:2021
IEC 60938-2:2021 © IEC 2021 – 3 –
5.11.3 Final inspection, measurements and requirements. 17
5.12 Robustness of terminations . 17
5.12.1 General . 17
5.12.2 Test Ua1 – Tensile . 18
5.12.3 Test Ub – Bending . 18
5.12.4 Test Uc – Torsion . 18
5.12.5 Test Ud – Torque . 18
5.12.6 Test Ue – Robustness of terminations of SMD-components mounted on
PCB . 18
5.13 Vibration . 19
5.13.1 Test conditions . 19
5.13.2 Requirements . 19
5.14 Shock . 19
5.14.1 Test conditions . 19
5.14.2 Requirements . 20
5.15 Resistance to soldering heat . 20
5.16 Solderability (optional) . 20
5.16.1 General . 20
5.16.2 Preconditioning . 20
5.16.3 Test procedure . 20
5.16.4 Final inspection, measurements and requirements. 20
5.17 Rapid change of temperature (optional) . 20
5.18 Container sealing (if applicable) . 21
5.19 Climatic sequence (optional) . 21
5.19.1 General . 21
5.19.2 Dry heat . 21
5.19.3 Damp heat, cyclic, test Db, first cycle . 21
5.19.4 Cold. 21
5.19.5 Low air pressure . 21
5.19.6 Damp heat, cyclic, test Db, remaining cycles . 21
5.19.7 Final inspection, measurements and requirements. 21
5.20 Damp heat, steady state . 22
5.21 Passive flammability (optional) . 22
5.22 Glow wire (optional) . 22
5.23 Ball pressure (optional) . 23
5.24 Component solvent resistance . 23
5.25 Solvent resistance of marking . 23
Annex A (normative) Sampling plan . 24
Annex B (normative) Test schedule. 25
Annex C (normative) Declaration of design . 28
Annex D (normative) Clearance . 29
Annex E (normative) Creepage . 30
Annex F (normative) Fully insulated winding wires . 32
Annex X (informative) Cross-references for references to the previous edition of this
document . 33
Bibliography . 35
Figure 1 – Relation between ambient temperature and applied current . 10
---------------------- Page: 9 ----------------------
SIST EN IEC 60938-2:2021
– 4 – IEC 60938-2:2021 © IEC 2021
Table 1 – Test voltages . 14
Table 2 – Force for tensile stress on terminations . 18
Table 3 – Torque . 18
Table 4 – Acceleration . 19
Table 5 – Sweep cycles . 19
Table 6 – Preferred severities . 20
Table 7 – Severities and requirements for passive flammability. 22
Table D.1 – Clearance distances . 29
Table E.1 – Creepage distances . 31
Table F.1 – FIW wires with their minimum test voltages . 32
Table X.1 – Cross-references . 33
---------------------- Page: 10 ----------------------
SIST EN IEC 60938-2:2021
IEC 60938-2:2021 © IEC 2021 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED INDUCTORS FOR ELECTROMAGNETIC
INTERFERENCE SUPPRESSION –
Part 2: Sectional specification on power line chokes
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60938-2 has been prepared by IEC technical committee 40: Capacitors and resistors for
electronic equipment. It is an International Standard.
This third edition cancels and replaces the second edition published in 1999 and its
Amendment 1:2006. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the test plan for performance testing has been removed; mandatory safety tests and optional
performance tests are listed in one test plan in Annex B;
b) requirements for Thyristor-Chokes have been withdrawn;
c) material requirements are harmonized with IEC 60939-3 and UL 60939-3;
d) AC chokes up to 1 000 V and DC chokes up to 1 500 V are now in the Scope.
---------------------- Page: 11 ----------------------
SIST EN IEC 60938-2:2021
– 6 – IEC 60938-2:2021 © IEC 2021
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2846/FDIS 40/2862/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 60938 series, published under the general title Fixed inductors for
electromagnetic interference suppression, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 12 ----------------------
SIST EN IEC 60938-2:2021
IEC 60938-2:2021 © IEC 2021 – 7 –
FIXED INDUCTORS FOR ELECTROMAGNETIC
INTERFERENCE SUPPRESSION –
Part 2: Sectional specification on power line chokes
1 Scope
This part of IEC 60938 applies to fixed inductors designed for electromagnetic interference
suppression, which will be connected to an AC mains or other supply with a nominal voltage
not exceeding 1 000 V AC RMS or 1 500 V DC with a nominal frequency not exceeding 400 Hz.
This sectional specification is restricted to fixed inductors for which safety tests are appropriate.
This implies that inductors specified according to this specification will either be connected to
mains supplies, when compliance with the mandatory tests of Annex A is necessary, or used in
other circuit positions where the equipment specification prescribes that some or all of these
safety tests are required.
The object of this document is to prescribe standard requirements for safety tests, preferred
ratings and characteristics, to select from IEC 60938-1 the appropriate methods of test and to
give general performance requirements for suppression inductors.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition c
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
