SIST EN 60745-1:2006

Hand-held motor-operated electric tools - Safety -- Part 1: General requirements

Deals with the safety of hand-held motor-operated or magnetically driven electric tools, the rated voltage of the tools being not more than 250 V for single-phase a.c. or d.c. tools, and 440 V for three-phase a.c. tools. This standard deals with the common hazards presented by hand-held tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools.

Handgeführte motorbetriebene Elektrowerkzeuge - Sicherheit -- Teil 1: Allgemeine Anforderungen

Outils électroportatifs à moteur - Sécurité -- Partie 1: Règles générales

S'applique aux outils portatifs à moteur électrique ou à entraînement magnétique, la tension assignée des outils n'étant pas supérieure à 250 V pour les outils à courant monophasé alternatif ou continu et à 440 V pour les outils à courant alternatif triphasé.  La présente norme traite des risques ordinaires présentés par les outils portatifs, encourus par tous les individus dans l'utilisation normale et dans l'utilisation impropre prévisible de ces outils.

Električna ročna orodja - Varnost - 1. del: Splošne zahteve (IEC 60745-1:2006)

General Information

• Status: Withdrawn
• Publication Date: 31-Oct-2006
• Withdrawal Date: 18-Nov-2009
• ICS: 25.140.20 - Electric tools
• Technical Committee: VGA - Safety of household and similar electrical appliances
• Current Stage: 9900 - Withdrawal (Adopted Project)
• Start Date: 19-Nov-2009
• Due Date: 12-Dec-2009
• Completion Date: 19-Nov-2009
• Directive: 98/37/EC - Machinery
• Ref Project: EN 60745-1:2006 - Hand-held motor-operated electric tools - Safety - Part 1: General requirements

Relations

• Replaces: SIST EN 60745-1:2003 - Hand-held motor-operated electric tools - Safety -- Part 1: General requirements
• Effective Date: 28-Jan-2023
• Replaces: SIST EN 60745-1:2003/A1:2003 - Hand-held motor-operated electric tools - Safety -- Part 1: General requirements
• Effective Date: 07-Jun-2022
• Replaced By: SIST EN 60745-1:2009 - Hand-held motor-operated electric tools - Safety -- Part 1: General requirements
• Effective Date: 07-Jun-2022

Overview

EN 60745-1:2006 - "Hand‑held motor‑operated electric tools - Safety - Part 1: General requirements" (CLC / CENELEC) is the European adoption of IEC 60745‑1 that sets general safety and test requirements for hand‑held motor‑operated or magnetically driven electric tools. It covers tools with rated voltages up to 250 V (single‑phase a.c. or d.c.) and 440 V (three‑phase a.c.) and addresses common hazards in normal use and reasonably foreseeable misuse. Part 1 establishes the baseline safety, while separate Part 2 documents address specific tool types.

Key Topics

• Scope and conformity: Defines how Part 1 works with Part 2 to meet essential health and safety requirements of the EU Machinery Directive.
• Safety principles: General design and construction requirements to reduce risks for operators and bystanders in typical use and foreseeable misuse.
• Environmental requirements - Noise:
  • Noise reduction at source is emphasized as part of design.
  • Prescribed noise test code (grade 2) and measurement procedures (sound power and emission sound pressure).
  • Use of EN ISO 3744 and EN ISO 11203 methods, A‑weighted sound power levels (dB(A)), and reporting of uncertainties.
  • Measurement geometry: hemispherical/cylindrical surface with five microphone positions at 1 m from the tool’s geometric centre; declared correction Q = 11 dB for workstation sound pressure level.
• Testing conditions: Specifies tool mounting, operating conditions (no‑load/load), measurement intervals and averaging (3 or 5 runs), and reproducibility expectations.
• Vibration and acoustic considerations: Normative references added for measurement and declaration of vibration and noise emission values.

Practical Applications

• Manufacturers use EN 60745‑1 to design safer hand‑held tools, implement noise‑reduction measures, and prepare compliant user information and noise declarations.
• Test laboratories apply the specified measurement geometry and procedures when determining sound power and emission levels for product certification.
• Compliance engineers and CE marking teams rely on this standard (together with relevant Part 2) to demonstrate conformity with the Machinery Directive.
• Procurement and safety managers use declared noise and vibration data to assess tools for workplace risk assessments and purchase decisions.

Related Standards

EN 60745‑1 references and aligns with a number of standards, for example:

• EN ISO 3744 (sound power)
• EN ISO 11203 (emission sound pressure at workstation)
• EN ISO 4871 (noise declaration)
• EN ISO 5349 / EN ISO 20643 (hand‑transmitted vibration)
• EN ISO 11688‑1 and EN ISO 11690‑3 (low‑noise design and workplace noise prediction)
• EN ISO 8041 (vibration instrumentation)

Using EN 60745‑1 helps ensure robust safety design, repeatable acoustic testing, and clearer product declarations for hand‑held power tools.

Standards Content (Sample)

SLOVENSKI SIST EN 60745-1:2006

STANDARD
november 2006
Električna ročna orodja – Varnost - 1. del: Splošne zahteve (IEC 60745-1:2006,
spremenjen)
Hand-held motor-operated electric tools - Safety - Part 1: General requirements
(IEC 60745-1:2006, modified)
ICS 25.140.20 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
EN 60745-1
NORME EUROPÉENNE
August 2006
EUROPÄISCHE NORM
ICS 25.140.20 Supersedes EN 60745-1:2003 + A1:2003

English version
Hand-held motor-operated electric tools -
Safety
Part 1: General requirements
(IEC 60745-1:2006, modified)
Outils électroportatifs à moteur -  Handgeführte motorbetriebene
Sécurité Elektrowerkzeuge -
Partie 1: Règles générales Sicherheit
(CEI 60745-1:2006, modifiée) Teil 1: Allgemeine Anforderungen
(IEC 60745-1:2006, modifiziert)

This European Standard was approved by CENELEC on 2006-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60745-1:2006 E

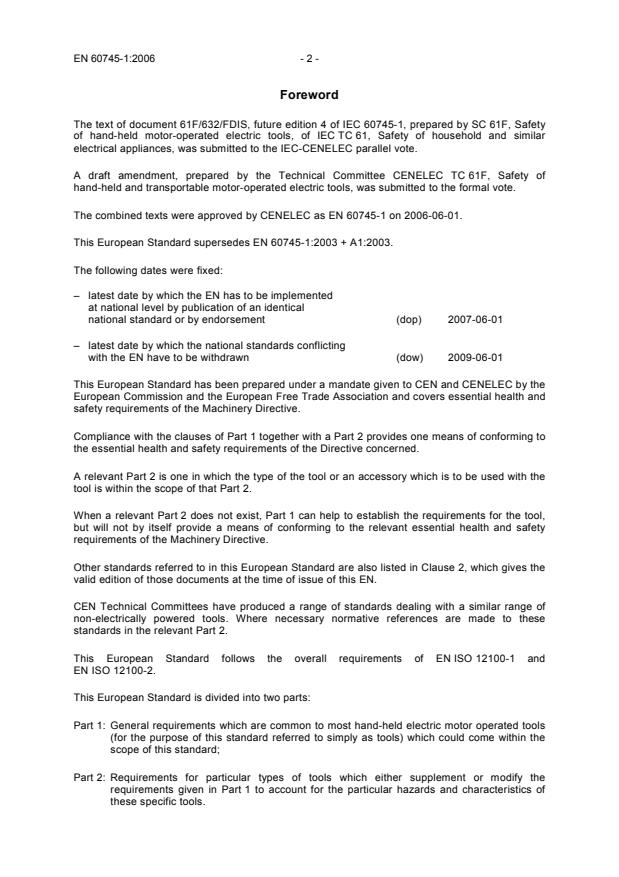

Foreword
The text of document 61F/632/FDIS, future edition 4 of IEC 60745-1, prepared by SC 61F, Safety
of hand-held motor-operated electric tools, of IEC TC 61, Safety of household and similar
electrical appliances, was submitted to the IEC-CENELEC parallel vote.
A draft amendment, prepared by the Technical Committee CENELEC TC 61F, Safety of
hand-held and transportable motor-operated electric tools, was submitted to the formal vote.
The combined texts were approved by CENELEC as EN 60745-1 on 2006-06-01.
This European Standard supersedes EN 60745-1:2003 + A1:2003.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-06-01
This European Standard has been prepared under a mandate given to CEN and CENELEC by the
European Commission and the European Free Trade Association and covers essential health and
safety requirements of the Machinery Directive.
Compliance with the clauses of Part 1 together with a Part 2 provides one means of conforming to
the essential health and safety requirements of the Directive concerned.
A relevant Part 2 is one in which the type of the tool or an accessory which is to be used with the
tool is within the scope of that Part 2.
When a relevant Part 2 does not exist, Part 1 can help to establish the requirements for the tool,
but will not by itself provide a means of conforming to the relevant essential health and safety
requirements of the Machinery Directive.
Other standards referred to in this European Standard are also listed in Clause 2, which gives the
valid edition of those documents at the time of issue of this EN.
CEN Technical Committees have produced a range of standards dealing with a similar range of
non-electrically powered tools. Where necessary normative references are made to these
standards in the relevant Part 2.
This European Standard follows the overall requirements of EN ISO 12100-1 and
EN ISO 12100-2.
This European Standard is divided into two parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
- 3 - EN 60745-1:2006
Subclauses, tables and figures which are additional to those in IEC 60745-1 are prefixed “Z”.
NOTE In this standard the following print types are used:
- requirements proper; in roman type
- test specifications: in italic type;
- explanatory matter: in smaller roman type.

Endorsement notice
The text of the International Standard IEC 60745-1:2006 was approved by CENELEC as a European
Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
2 Normative references
Add the following normative references:
CR 1030-1:1995, Hand-arm vibration – Guidelines for vibration hazards reduction – Part 1:
Engineering methods by design of machinery
EN 12096:1997, Mechanical vibration - Declaration and verification of vibration emission values
EN 27574-4:1988, Acoustics - Statistical methods for determining and verifying stated noise
emission values of machinery and equipment - Part 4: Methods for stated values for batches of
machines (ISO 7574-4:1985)
EN ISO 8041:2005, Human response to vibration - Measuring instrumentation (ISO 8041:2005)
EN ISO 3744:1995, Acoustics - Determination of sound power levels of noise sources using
sound pressure - Engineering method in an essentially free field over a reflecting plane
(ISO 3744:1994)
EN ISO 4871:1996, Acoustics - Declaration and verification of noise emission values of machinery
and equipment (ISO 4871:1996)
EN ISO 5349 (all parts), Mechanical vibration -- Measurement and evaluation of human exposure
to hand-transmitted vibration (ISO 5349 all parts)
EN ISO 11203:1995, Acoustics - Noise emitted by machinery and equipment - Determination of
emission sound pressure levels at a work station and at other specified positions from the sound
power level (ISO 11203:1995)
EN ISO 11688-1:1998, Acoustics - Recommended practice for the design of low noise machinery
and equipment - Part 1: Planning (ISO/IR 11688-1:1995)
EN ISO 11690-3:1998, Acoustics - Recommended practice for the design of low-noise workplaces
containing machinery - Part 3: Sound propagation and noise prediction in workrooms
(ISO/TR 11690-3:1997)
EN ISO 20643:2005, Mechanical vibration - Hand-held and hand-guided machinery - Principles for
evaluation of vibration emission (ISO 20643:2005)
ISO 5347 (all parts), Methods for the calibration of vibration and shock pick-ups
ISO 16063-1:1998, Methods for the calibration of vibration and shock transducers - Part 1: Basic
concepts
- 5 - EN 60745-1:2006
Replace the existing Clause 6 - Void by the following:
6 Environmental requirements
6.1 Noise
6.1.1 Noise reduction
Noise reduction at tools is an integral part of the design process and shall be achieved by
particularly applying measures at source to control noise, see for example EN ISO 11688-1. The
success of the applied noise reduction measures is assessed on the basis of the actual noise
emission values in relation to other machines of the same type with comparable non acoustical
technical data.
The major sound sources of tools are: motor, fan, gear.
6.1.2 Noise test code (grade 2)
6.1.2.1 General
Noise emission values like the emission sound pressure level L and the sound power level
pA
L to be quoted in the user instructions as required by 8.12.2 Za)1) shall be measured according
WA
to the test procedure described in 6.1.2.1 to 6.1.2.6.
The overall noise can be divided into the pure machine noise and the noise of processing the
workpiece. Both are influenced by the method of operation, however for percussive tools the
noise emission of the workpiece can be dominant. The load conditions for particular tools are
therefore specified in the relevant Part 2.
Noise emission values obtained under these measurement conditions will not necessarily
correspond to the noise levels produced under the operational conditions of practical use.
NOTE It is not possible to simulate all conditions of practical use. A statement of process noise could
therefore
- be misleading and cause faulty assessment of the risk in individual cases,
- discourage the development of more silent machines,
- lead to low repeatability of measurements and thus cause problems when verifying declared noise values,
- make the comparison of the noise emission from different tools difficult.
6.1.2.2 Sound power level determination
The sound power level shall be measured according to EN ISO 3744, where the acoustic
environment, instrumentation, quantities to be measured, quantities to be determined, and the
measurement procedure are specified.
The sound power level shall be given as A-weighted sound power level in dB reference 1 pW. The
A-weighted sound pressure levels, from which the sound power is to be determined, shall be
measured directly, and not calculated from frequency band data. Measurements shall be made in
an essentially free field over a reflecting plane.
For all hand-held electric power tools, the sound power level shall be determined by using a
hemispherical / cylindrical measurement surface according to Figure Z2.
The hemispherical / cylindrical measurement surface is described by a hemisphere standing on a
cylindrical pedestal (see Figure Z2). Five microphone positions shall be located 1 m from the
geometric centre of the power tool. Four positions shall be spaced at regular intervals on a plane
defined as passing through the geometric centre of the power tool and parallel to the reflecting
plane; the fifth position shall be located at a distance of 1 m above geometric centre of the power
tool.
The A-weighted sound power level, L , shall be calculated, in accordance with Subclause 8.6 of
WA
EN ISO 3744 as follows :
S
L = L +10lg( ) , in dB (Z1)
WA pfA
S
with L determined from
pfA
 
1 ′
0,1L
pA,i
L = 10lg 10 − K − K
 
pfA 1A 2A
∑
 
i=1
 
where
is the A-weighted surface sound pressure level according to EN ISO 3744
L
pfA
th
L′
pA,i A-weighted sound pressure level measured at the i microphone position, in dB

K
1A Background noise correction, A-weighted

K
2A Environmental correction, A-weighted
S Area of the measurement surface, in m
S = 1 m
For the hemispherical / cylindrical measurement surface shown in Figure Z2, the area S of the
measurement surface is calculated as follows:
S = 2π(R + Rd) , in m. (Z2)
where
d = 1 m is the height of the distance of the geometrical centre of the power tool above the
reflecting plane
and
R = 1 m is the radius of the hemisphere and of the cylinder which comprise the measurement
surface.
Therefore,
S = 4π m ,
so, from equation (Z1)
L = L +11, in dB. (Z3)
WA pfA
6.1.2.3 Emission sound pressure level determination
The A-weighted emission sound pressure level at the work station, L , shall be determined in
pA
accordance with EN ISO 11203 as follows:
L = L −Q , in dB (Z4)
pA WA
where
Q = 11, in dB
- 7 - EN 60745-1:2006
NOTE 1 This value of Q has been determined, during experimental investigations, to be applicable to hand-held power
tools. The resulting A-weighted emission sound pressure level at the workstation is equivalent to the value of the surface
sound pressure level at a distance of 1 m from the power tool. This distance has been chosen to give satisfactory
reproducibility of results, and to permit comparison of the acoustic performance of different hand-held power tools which
do not, in general, have uniquely defined work stations. Under free field conditions, where it may be required to estimate
the emission sound pressure level, L , at a distance r in m from the geometric centre of the power tool, this may be
pA1 1
done by applying the formula :
L = L + 20 lg ( ), in dB
pA1 pA
r
NOTE 2 At any given position in relation to a particular machine, and for given mounting and operating conditions, the
emission sound pressure levels determined by the method of this European Standard will in general be lower than the
directly measured sound pressure levels for the same machine in the typical workroom where it is used. This is due to
the influence of sound reflecting surfaces in the workroom compared to the free field conditions of the test specified here.
A method of calculating the sound pressure levels in the vicinity of a machine operating alone in a workroom is given in
EN ISO 11690-3. Commonly observed differences are 1 dB to 5 dB, but in extreme cases the difference may be even
greater.
If required, the C-weighted peak emission sound pressure level L shall be measured at each
pCpeak
of the five measurement positions specified in 6.1.2.2. The C-weighted peak emission sound
pressure level at the work station is the highest C-weighted peak sound pressure level measured
at any of the five microphone positions; no corrections are permitted.
6.1.2.4 Installation and mounting conditions of the power tools during noise tests
The installation and mounting conditions shall be the same for the determination of both sound
power level and emission sound pressure level at the work station.
The power tool under test shall be new and equipped with accessories which affect the acoustic
properties, as recommended by the manufacturer. Prior to commencing testing, the power tool
(including any required ancillary equipment) shall be set up in a stable condition in accordance
with the manufacturer’s instructions for safe use.
The tool is held by the operator or suspended in such a way as to correspond to normal use, as
specified in the relevant Part 2.
o
If the power tool is used horizontally, it shall be positioned so that its axis is at 45 between the
microphone positions 1 - 4 and 2 - 3; its geometrical centre shall be 1 m above the ground
(reflecting plane). If these requirements are impracticable or the tool is not used horizontally, the
adopted positions shall be recorded and described in the test report.
The operator shall not be positioned directly between any microphone position and the power tool.
6.1.2.5 Operating conditions
The operating conditions shall be identical for the determination of both sound power level and
emission sound pressure level at the work station.
Measurements shall be carried out on a new tool.
Tools are tested under the two operating conditions “no load” or “load” as appropriate for the type
of tool and specified in the relevant Part 2. Before starting the test, the tool shall be operated
under these conditions for a period of at least 1 min.
A measurement under “load” is to be carried out during processing of a workpiece or under
external mechanical load equivalent to normal operation.
Where tests are required to be carried out on a bench it shall be in accordance with the test bench
shown in Figure Z1.
Care shall be taken that the location of the work piece on its support does not adversely affect the
result of the test. If necessary, or when specified in the Part 2, the work piece shall be supported
on a resilient material 20 mm thick compressed to 10 mm under the weight of the work piece.
Three consecutive tests for no-load or five for load shall be carried out and the result of the test
L shall be the arithmetic mean, rounded to the nearest decibel, of the three or five tests.
WA
During measurements, the power tool shall operate under stable conditions. Once the noise
emission is steady, the measurement time interval shall be at least 15 s, unless the operating
conditions specified in the relevant Part 2 do not require another time interval. If measurements
are to be made in octave or one-third octave frequency bands, the minimum period of observation
shall be 30 s for the frequency bands centred on or below 160 Hz, and 15 s for the frequency
bands centred on or above 200 Hz.
6.1.2.6 Measurement uncertainties
A standard deviation of reproducibility of less than 1,5 dB is expected for the A-weighted sound
power level determined according to EN ISO 3744 and the A-weighted emission sound pressure
level determined according to EN ISO 11203.
6.1.2.7 Information to be recorded
The information to be recorded covers all of the technical requirements of this noise test code.
Any deviations from this noise test code or from the basic standards upon which it is based are to
be recorded together with the technical justification for such deviations.
6.1.2.8 Information to be reported
The information to be included in the test report is at least that which is required to prepare a
noise declaration or to verify the declared values. Thus as a minimum the following information
shall be included:
− reference to this noise test code and to the basic standards used;
− description of the power tool;
− description of the mounting and operating conditions;
− the noise emission values obtained.
It shall be confirmed that all requirements of the noise test code have been fulfilled, or, if this is
not the case, any unfulfilled requirements shall be identified. Deviations from the requirements
shall be stated and technical justification for the deviations shall be given.
6.1.2.9 Declaration and verification of noise emission values
The declaration of the noise emission values shall be a dual number according to EN ISO 4871. It
shall declare the noise emission value L (L , L and L ) and separately the respective
pA pCpeak WA
uncertainty K (K , K and K ).
pA pCpeak WA
For a standard deviation of reproducibility of 1,5 dB and for a typical standard deviation of
production, the values for the uncertainty, K , K and K respectively, are expected to be
pA pCpeak WA
3 dB.
The noise declaration shall state that the noise emission values have been obtained according to
this noise test code. If this statement is not true, the noise declaration shall indicate clearly what
the deviations from this standard, and from the basic standards, are.
NOTE If the measured value is the average based on a sample of three power tools that has been properly sampled,
then K normally is 3 dB. Further guidance on sampling and uncertainty terms is given in EN 27574-4 and EN ISO 4871.
Additional noise emission quantities may also be given in the declaration.

- 9 - EN 60745-1:2006
If undertaken, the verification shall be performed for a batch of power tools, in accordance with
Subclause 6.3 of EN ISO 4871. The verification shall be conducted by using the same mounting,
installation and operating conditions as those used for the initial determination of noise emission
values.
6.2 Vibration
6.2.1 Vibration reduction
The vibration at the handles shall be kept as low as possible without unduly affecting the
performance and the ergonomics (weight, handling, etc.) of the tool.
In particular vibration shall be reduced by the application of engineering measures as given in
CR 1030-1. The success of the applied vibration measures is assessed by comparing the
vibration levels for the tool with those for other tools of the same type and with a comparable
specification and performance.
6.2.2 Vibration measurement - General
Details for particular types of tools are given in the relevant Part 2. The test code gives all the
information necessary to carry out efficiently the determination, declaration and verification of the
vibration emission characteristics. It shall allow comparison of test results for different tools.
EN 12096 gives guidance on how to declare the vibration emission values of machinery, and
specifies requirements for verification of declared values.
The vibration levels for hand-arm vibration a to be quoted in the user instructions, as required by
h
8.12.2 Za)3) shall be measured in accordance with the following test procedure.
The uncertainty K is provided as an indication of the measured deviation from the mean during
the test.
The measurement and assessment of human exposure to hand-transmitted vibration in the
workplace is given in EN ISO 5349-1 and EN ISO 5349-2.
NOTE Annex ZB provides information on possible sources of errors of measurement.
6.2.3 Symbols
In this subclause, the following symbols are used.
a (t) instantaneous single-axis acceleration value of the frequency-weighted hand-
hw
transmitted vibration at time t, in m/s²
a root-mean-square (r.m.s.) single-axis acceleration value of the frequency-
hw
weighted hand-transmitted vibration, in m/s²
a , a , a values of a in m/s², for the axes denoted X, Y and Z respectively
hwx hwy hwz hw
a vibration total value of frequency-weighted r.m.s. acceleration, in m/s²; it is the
hv
root-sum-of-squares of the a values for the three measured axes of vibration
hw
a arithmetic mean total vibration value of the measurement results of all runs and
h
operators in m/s², this is the result of the test
σ standard deviation of reproducibility
R
K uncertainty of a in m/s
h
C coefficient of variation of a test series, defined as the ratio of the standard
V
deviation of a series of measurement values and the mean value of the series:
s
N−1
C =
V
a
hv
where
N
s = (a − a ) is the standard deviation
N−1 hvi hv
∑
N −1
i = 1
a is the mean vibration total value of the series of 5 measurements in m/s²
hv
a is the i-th vibration total value of one series of measurements in m/s²
hvi
N is the number of measured values within one series of measurements
(here N = 5)
6.2.4 Characterisation of vibration
6.2.4.1 Direction of measurement
Vibration transmitted to the hand is related to the three orthogonal directions X, Y and Z as shown
in Figure Z3. For particular types of tools, these directions may be defined in the relevant Part 2.
6.2.4.2 Location of measurement
Measurements shall be made in three directions at each hand position. All measurements shall be
conducted simultaneously.
Measurements shall be carried out as close as possible to the hand between the thumb and the
index finger, where an operator normally holds the machine.
If gripping areas are covered by soft surface material, precaution shall be taken to avoid
resonance effects of the transducer mounting. If soft surface material is provided in the gripping
area it shall be removed or strongly compressed by a transducer mounting clamp or suitable
adaptor.
In the case of vibration isolated handles the location of measurement can influence the vibration
significantly. If the transducer cannot be placed half way along the length of the handle, the points
of measurement shall be left and right to the hand to determine the relevant vibration over the
gripping area (see Figure Z3a). In this case, the test result for this handle is the average of the
results of these two measurement positions.
NOTE 1 E.g. at vibration-isolated handles of grinding machines, the vibration changes significantly over the length of
the gripping zone.
NOTE 2 The above paragraph is under review.
The measurement positions for particular types of tools are specified in the relevant Part 2.
When machines are operated with more than one grip or grasping surface, the vibration at the
hand positions where an operator normally holds the tool during normal operation shall be
measured and recorded. If it can be shown that the vibration magnitude at one grip is always
dominant, the vibration test code may specify that measurements are made only at that gripping
zone.
- 11 - EN 60745-1:2006
6.2.4.3 Magnitude of vibration
The quantity used to describe the magnitude of vibration shall be the frequency-weighted
acceleration a in m/s².
hw
Frequency weighting in accordance with EN ISO 5349-1 shall be used.
The r.m.s. value a in accordance with this European Standard is defined as the r.m.s. value of
hw
the frequency-weighted acceleration signal a (t):
hw
1/ 2
T
 
a = a (t) dt (Z5)
 
hw hw
∫
T
 
 0 
An integrating device equipped with linear integration facilities shall be used in order to obtain
r.m.s. values of signals substantially varying with time.
The measurement time shall be as long as reasonably possible and normally not less than 8 s for
hand-transmitted vibration measurements.
If the measurement time of 8 s for individual machines is not possible, e.g. because of short
duration of operation (defined in 6.2.6.3), this shall be specified in the relevant Part 2 of this
standard.
6.2.4.4 Combination of vibration directions
The vibration total value a is determined from
hv
1/ 2
2 2 2
a =[]a + a + a (Z6)
hv hwx hwy hwz
where
a , a , a are the r.m.s. values of the frequency-weighted acceleration in the directions X,
hwx hwy hwz
Y and Z, respectively.
6.2.5 Instrumentation requirements
6.2.5.1 General
The vibration measurement equipment shall be in accordance with EN ISO 8041.
Instrumentation for measuring other parameters (e.g. for controlling the working conditions),
whose characteristics are not covered by EN ISO 8401, shall be specified in the relevant Part 2.
6.2.5.2 Transducers
6.2.5.2.1 Specification of transducers
The vibration values as specified in 6.2.4.3 shall be measured using transducers and other
appropriate measurement equipment conforming to EN ISO 8041.
The total mass of the vibration transducer and its mounting shall not be sufficient to influence the
measurement result and shall not be more than 5 g for each direction of measurement.
NOTE Lightweight plastic handles are an example, where heavy transducers may not be suitable. See EN ISO 5349-2
for further information.
Factors such as the transverse sensitivity (less than 10 %), the ambient temperature range, the
typical temperature transient sensitivity and the maximum shock acceleration shall be considered
in the selection of transducers.

6.2.5.2.2 Fastening of transducers
Guidance on mounting of transducers is given in EN ISO 5349-2. The transducer and the
mechanical filter, if used, shall be mounted rigidly and on the vibrating surface.
Mechanical filters or other appropriate means may be needed to minimize measurement errors
likely to occur when measuring vibration containing impulsive elements, such as occur in
percussive tools. For more details, see EN ISO 5349-2.
NOTE High acceleration in the high-frequency components of the vibration can cause the transducer to generate false
signals (e.g. dc shift) in the frequency range of interest because of excitation of the resonance of the transducer itself.
6.2.5.3 Calibration of the measurement chain
The whole measurement system shall be checked both before and after a sequence of
measurements using a calibrator which produces a known acceleration at a known frequency.
The transducers shall be calibrated in accordance with ISO 5347 and ISO 16063-1. The whole
measurement system shall be checked according to the requirements in EN ISO 8041.
6.2.6 Testing and operating conditions of the machinery
6.2.6.1 General
Measurements shall be carried out on a new tool that is only used for the noise and vibration tests
required by this standard.
When the test procedure is not provided in a relevant Part 2 or there is no relevant Part 2, the
operating conditions and working procedure shall be specified in sufficient detail as to achieve
appropriate reproducibility. Test procedures based on a typical real working situation are
preferred. The vibration test may simulate a single phase of a task or a working cycle, consisting
of a set of operations where the operator is being exposed to vibration.
If for reasons of better reproducibility a simulated work condition is defined, the vibration source
shall produce approximately the same magnitude of vibration as that in a typical working situation.
If necessary to provide realistic emission levels, tests shall be carried out under more than one
operating condition or set of operating conditions as defined in the relevant Part 2.
If the machinery is equipped with means or devices to reduce the vibration emission in
comparable operating conditions, these shall be used, in accordance with the user instructions,
during vibration testing. If this requires a deviation from the type test method, this shall be
reported and explained in the test report.
During the measurements the hands of the operator shall guide the machine as is necessary by
the design of the tool and as specified in the instructions supplied with the machine.
6.2.6.2 Attachment, workpiece and task
The attachment or accessories to be used with the machine shall be as recommended in the user
instruction.
If these attachments are of a vibration reduction type, it shall be reported together with the
declared vibration value.
Care shall be taken that the location of the work piece on its support does not affect the results of
the test. Details for task and work piece are given in the relevant Part 2.
NOTE It should be noted that even small differences in size, shape, material, wear, unbalance, etc. of the accessory
can alter the vibration magnitude considerably.

- 13 - EN 60745-1:2006
6.2.6.3 Operating conditions
Tools are tested under load only, unless the operating condition no-load is considered as
important in practical use (no-load accounts for more than 20 % of the time when tool is switched
on). In this case the tool shall be tested under both load and no-load condition, or at a typical work
cycle containing load and no-load. The relevant Part 2 describes the modes of operation and the
calculation of the declared emission value.
The machine shall be operated at normal working conditions and working modes according to the
user instructions, which shall be maintained for the duration of the test. Those operating
conditions shall be used that are representative of the highest vibration values likely to occur at
typical and normal use of the machine under test. The measurement may be carried out by
processing a work piece or under external mechanical load equivalent to normal operation.
Before starting the test, the tool shall be operated under these conditions of at least 1 min to
warm it up.
6.2.6.4 Operator
The vibration of the machine is influenced by the operator. The operator shall therefore be skilled
and able to operate the machine properly, i.e. he shall be experienced in the use of the tool.
The gripping force shall be as under long term working conditions and not be excessive.
6.2.7 Measurement procedure and validity
6.2.7.1 Reported vibration value
Three series of five consecutive tests shall be carried out using a different operator for each
series. If it can be shown that the vibration is not affected by operator characteristics, it is
acceptable to perform all 15 measurements with one operator only. Details are specified in the
relevant Part 2.
The measurements are made in three axes and the results of each direction shall be combined
using equation (Z6) to obtain the vibration total value a .
hv
If the coefficient of variation C of the five vibration total values a , recorded for each series, is
V hv
less than 0,15 or the standard deviation s is less than 0,3 m/s², the results are accepted
N–1
(Annex ZB provides information on possible sources of errors of measurement).
The measurement result a shall be determined as the arithmetic mean of vibration total values
h
over the tests and operators.
6.2.7.2 Declaration of the vibration emission value
The result a is the basis for the declared value. If values have been obtained for different hand
h
positions, the greatest value shall be the basis for the declaration.
If required by the relevant Part 2, the work mode description corresponding to the vibration
emission shall be stated next to each declared value.

To determine the uncertainty K of the declared value according to EN 12096, the following
formula shall be used that takes the standard deviation into account:
K = 1,65 s or K = 1,5 m/s² , whatever is higher
R
n
s = (a − a )
R hvi h
∑
n −1
i=1
with
s = standard deviation (considered equal to σ )
R R
n = 3 (number of operators)
a = average vibration total value of each operator (= result for each operator)
hvi
a = average vibration total value of all measurements (= test result)
h
The vibration value(s) a shall be declared as follows:
h
Vibration total values (triax vector sum) determined according to EN 60745:
Work mode description 1 Vibration emission value a = . m/s²
h
(if required by the relevant Part 2)
Uncertainty K = … m/s²
Work mode description 2 Vibration emission value a = . m/s²
h
(if required by the relevant Part 2)
Uncertainty K = … m/s²
6.2.8 Measurement report
The report shall, as a minimum, include the following information:
a) reference to this standard including any relevant Part 2;
b) specification of the machine tested (i.e. manufacturer, type and serial number of the machine,
etc.);
c) attachment or accessories;
d) operating and testing conditions (voltage, feed force, speed setting, duration and number of
test runs, etc.);
e) measuring institution (e.g. laboratory, manufacturer);
f) date of measurement and name of the person responsible for the test;
g) instrumentation (transducer mass, filters, integrators, recording system, etc.);
h) position and fastening of transducers, measuring directions and individual vibration values
when relevant (e.g. recorded by photos);
i) the arithmetic mean total vibration a , for each operator the total vibration value a and the
h hv
three single axis weighted acceleration values a . It is good practice to report all the
hw
measured values (i.e. for all axes of vibration, tests and operators);
j) the uncertainty K of the vibration total value a .
h
Any deviations from the vibration test code in this standard shall be reported together with the
technical justification for such deviations.

- 15 - EN 60745-1:2006
8 Marking and instructions
8.1
Add the following indent:
− the year of manufacture;
8.12.2
Add the following item:
Za) Emissions
1) The noise emission measured in accordance with 6.1.2.
2) Recommendation for the operator to wear hearing protection.
3) The vibration emission measured in accordance with 6.2.
When the vibration emission value does not exceed 2,5 m/s², this shall be stated.
When the vibration emission exceeds 2,5 m/s², its value shall be given in the instructions.
21 Construction
Add the following new subclause:
21.Z1 Tools, as identified in the relevant Part 2 or in case of tools not covered by a Part 2, where
in normal use a considerable amount of dust hazardous to health is expected to be produced,
shall have either:
a) integral dust collection devices
or
b) devices which allow the connection of external dust collection equipment.
If the solutions a) or b) are not reasonably practicable, the tool shall be designed in such a way
that the dust is not thrown in the direction of the operator.
Compliance is checked by inspection.

Figures
Add the following figures:
Dimensions in millimetres
Material: pine wood 75 × 40 planed, glued and doweled
Figure Z1 - Test bench
Figure Z2 - Positions of power tool and microphones for the
hemispherical / cylindrical measurement surface

- 17 - EN 60745-1:2006
Z
Z
Y
Z
X
Y
Key
1 Additional measurement position, if the transducer cannot be placed half way along the length of the
handle for vibration isolated handles
Figure Z3a) Hand grip position - hand grips around a cylindrical handle

Z
X
Figure Z3b) Flat palm position - hand presses down onto a spherical hand grip
Figure Z3 — Directions of vibration measurement

Add the following annexes:
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60061 Data- Lamp caps and holders together with EN 60061 Series
base gauges for the control of interchangeability
and safety
IEC 60065 (mod) 2001 Audio, video and similar electronic EN 60065 2002
apparatus - Safety requirements + corr. March 2006

IEC 60068-2-75 1997 Environmental testing EN 60068-2-75 1997
Part 2-75: Tests - Test Eh: Hammer tests

1) 2)
IEC 60085 - Electrical insulation - Thermal classification EN 60085 2004

IEC 60112 2003 Method for the determination of the proof EN 60112 2003
and the comparative tracking indices of solid
insulating materials
1) 2)
IEC 60127-3 - Miniature fuses EN 60127-3 1996
Part 3: Sub-miniature fuse-links + corr. June 1996

3)
IEC 60227 Series Polyvinyl chloride insulated cables of rated
(mod) voltages up to and including 450/750 V

4)
IEC 60245 Series Rubber insulated cables - Rated voltages up
(mod) to and including 450/750 V

IEC 60309 Series Plugs, socket-outlets and couplers for EN 60309 Series
(mod) industrial purposes
IEC 60320 Series Appliance couplers for household and EN 60320 Series
similar general purposes
IEC 60335-1 (mod) 2001 Household and similar electrical EN 60335-1 2002
A1 2004 appliances - Safety A1 2004
Part 1: General requirements A11 2004
A12 2006
+ corr. July 2006
1)
Undated reference.
2)
Valid edition at date of issue.
3)
The HD 21 series, which is related to, but not directly equivalent with the IEC 60227 series, applies instead.
4)
The HD 22 series, which is related to, but not directly equivalent with the IEC 60245 series, applies instead.

- 19 - EN 60745-1:2006
Publication Year Title EN/HD Year
1) 2)
IEC 60384-14 - Fixed capacitors for use in electronic EN 60384-14 2005
equipment
Part 14: Sectional specification - Fixed
capacitors for electromagnetic interference
suppression and connection to the supply
mains
IEC 60417 Data- Graphical symbols for use on equipment - -
base
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code) + corr. May 1993
A1 1999 A1 2000
1) 2)
IEC 60695-2-11 - Fire hazard testing EN 60695-2-11 2001
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test
method for end-products
IEC 60695-11-5 2004 Fire hazard testing
EN 60695-11-5 2005
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
1) 2)
IEC 60695-11-10 - Fire hazard testing EN 60695-11-10 1999
Part 11-10: Test flames - 50 W horizontal
and vertical flame test methods

IEC 60730-1 (mod) 1999 Automatic electrical controls for household EN 60730-1 2000
A1 (mod) 2003 and similar use A1 2004
Part 1: General requirements A11 2002
A12 2003
A13 2004
A14 2005
5)
A15 200X
1)
IEC 60760 - Flat, quick-connect terminations - -

1) 2)
IEC 60825-1 - Safety of laser products EN 60825-1 1994
Part 1: Equipment classification, + corr. February 1995
requirements and user's guide + A11 1996

IEC 60884 Series Plugs and socket-outlets for household and - -
similar purposes
1) 2)
IEC 60998-2-1 - Connecting devices for low-voltage circuits EN 60998-2-1 2004
(mod) for household and similar purposes
Part 2-1: Particular requirements for
connecting devices as separate entities with
screw-type clamping units
1) 2)
IEC 60998-2-2 - Connecting devices for low-voltage circuits EN 60998-2-2 2004
(mod) for household and similar purposes
Part 2-2: Particular requirements for
connecting devices as separate entities with
screwless-type clamping units
5)
To be published.
Publication Year Title EN/HD Year
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for screw-
type and screwless-type clamping units
Part 1: General requirements and particular
requirements for clamping units for
conductors from 0,2 mm² up to 35 mm²
(included)
IEC 61058-1 (mod) 2000 Switches for appliances
+ A1 2001 Part 1: General requirements EN 61058-1 2002

IEC 61540 (mod) 1997 Electrical accessories - Portable residual
+ A1 (mod) 1998 current devices without integral overcurrent HD 639 S1 2002
protection for household and similar use + corr. July 2003

(PRCDs) + A1 2003
1) 2)
IEC 61558-1 - Safety of power transformers, power EN 61558-1 2005
supplies, reactors and similar products + corr. August 2006
Part 1: General requirements and tests

- - Mechanical vibration - Declaration and EN 12096 1997
verification of vibration emission values

CR 1030-1 1995 Hand-arm vibration - Guidelines for vibration - -
hazards reduction
Part 1: Engineering methods by design of
machinery
1) 2)
ISO 1463 - Metallic and oxide coatings - Measurement EN ISO 1463 2004
of coating thickness - Microscopical method

1) 2)
ISO 2178 - Non-magnetic coatings on magnetic EN ISO 2178 1995
substrates - Measurement of coating
thickness - Magnetic method
ISO 3744 1994 Acoustics - Determination of sound power EN ISO 3744 1995
levels of noise sources using sound
pressure - Engineering method in an
essentially free field over a reflecting plane

1)
ISO 3864-2 - Graphical symbols - Safety colours and - -
safety signs
Part 2: Design principles for product safety
labels
ISO 4871 1996 Acoustics - Declaration and verification of EN ISO 4871 1996
noise emission values of machinery and
equipment
ISO 5347 Series Methods for the calibration of vibration and - -
shock pick-ups
ISO 5349 Series Mechanical vibration - Measurement and EN ISO 5349 Series
evaluation of human exposure to
hand-transmitted vibration
1)
ISO 7010 - Graphical symbols - Safety signs in - -
workplaces and public areas
- 21 - EN 60745-1:2006
Publication Year Title EN/HD Year
ISO 7574-4 1985 Acoustics - Statistical methods for EN 27574-4 1988
determining and verifying stated noise
emission values of machinery and
equipment
Part 4: Methods for stated values fro
batches of machines
ISO 8041 2005 Human response to vibration - Measuring EN ISO 8041 2005
instrumentation
1)
ISO 9
...
