DRAFT
EUROPEAN STANDARD
EN 13165:2012+A2:2016
NORME EUROPÉENNE

EUROPÄISCHE NORM
prA3
September 2018
ICS 91.100.60
English Version

Thermal insulation products for buildings - Factory made
rigid polyurethane foam (PU) products - Specification
Produits isolants thermiques pour le bâtiment - Wärmedämmstoffe für Gebäude - Werkmäßig
Produits manufacturés en mousse rigide de hergestellte Produkte aus Polyurethan-Hartschaum
polyuréthane (PU) - Spécification (PU) - Spezifikation
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 88.

This draft amendment A3, if approved, will modify the European Standard EN 13165:2012+A2:2016. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13165:2012+A2:2016/prA3:2018 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)

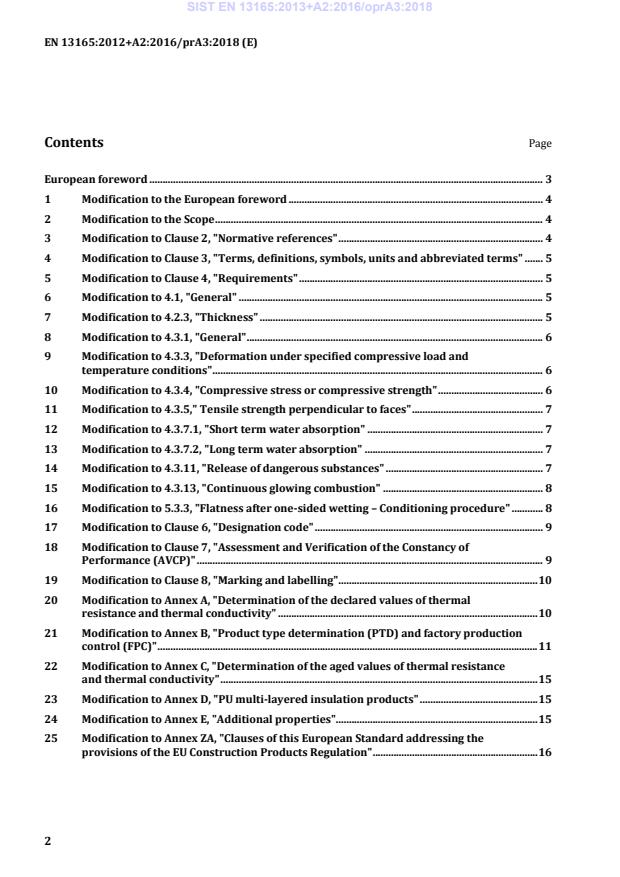

Contents Page
European foreword . 3
1 Modification to the European foreword . 4
2 Modification to the Scope . 4
3 Modification to Clause 2, "Normative references" . 4
4 Modification to Clause 3, "Terms, definitions, symbols, units and abbreviated terms" . 5
5 Modification to Clause 4, "Requirements" . 5
6 Modification to 4.1, "General" . 5
7 Modification to 4.2.3, "Thickness" . 5
8 Modification to 4.3.1, "General" . 6
9 Modification to 4.3.3, "Deformation under specified compressive load and
temperature conditions" . 6
10 Modification to 4.3.4, "Compressive stress or compressive strength" . 6
11 Modification to 4.3.5," Tensile strength perpendicular to faces" . 7
12 Modification to 4.3.7.1, "Short term water absorption" . 7
13 Modification to 4.3.7.2, "Long term water absorption" . 7
14 Modification to 4.3.11, "Release of dangerous substances" . 7
15 Modification to 4.3.13, "Continuous glowing combustion" . 8
16 Modification to 5.3.3, "Flatness after one-sided wetting – Conditioning procedure" . 8
17 Modification to Clause 6, "Designation code" . 9
18 Modification to Clause 7, "Assessment and Verification of the Constancy of
Performance (AVCP)" . 9
19 Modification to Clause 8, "Marking and labelling" . 10
20 Modification to Annex A, "Determination of the declared values of thermal
resistance and thermal conductivity" . 10
21 Modification to Annex B, "Product type determination (PTD) and factory production
control (FPC)" . 11
22 Modification to Annex C, "Determination of the aged values of thermal resistance
and thermal conductivity" . 15
23 Modification to Annex D, "PU multi-layered insulation products" . 15
24 Modification to Annex E, "Additional properties". 15
25 Modification to Annex ZA, "Clauses of this European Standard addressing the
provisions of the EU Construction Products Regulation" . 16

2

---------------------- Page: 4 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
European foreword
This document (EN 13165:2012+A2:2016/prA3:2018) has been prepared by Technical Committee
CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
For relationship with EU Construction Products Regulation (CPR), see informative Annex ZA which is an
integral part of this document.
3

---------------------- Page: 5 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
1 Modification to the European foreword
In the seventh paragraph, delete ", and supports essential requirements of EU Directive(s)."
Delete the ninth paragraph (list of changes) and replace the tenth and eleventh paragraph with the
following:
"Amendment A3 modifies EN 13165:2012+A2:2016 and its A2 amendment. This amendment
introduces or corrects:
a) Modified the clause "Continuous smouldering";
b) Modified the clause "Release of Dangerous substance";
c) Modified the definition for "class F" in the clause "reaction to fire";
c) Editorial modifications in different parts of the text and linked to the above modification;
e) Modifications to be in line with the CPR e.g. PTD replaced by TT;
f) Modified the Annex ZA.".
Delete the twelfth paragraph (list of changes).
In the fifteenth paragraph, add the following standard to the end of the list of standards:
"EN 16069, Thermal insulation products for buildings — Factory made products of polyethylene foam
(PEF) — Specification".
2 Modification to the Scope
Replace the first sentence with:
"This European Standard specifies the characteristics for factory made rigid polyurethane foam (PU)
products, with or without facings or coatings, which are used for the thermal insulation of buildings. PU
includes both PIR and PUR products.".
Replace the fourth paragraph with:
"This standard describes product characteristics and includes procedures for testing, assessment and
verification of constancy of performance (AVCP), marking and labelling.".
Replace the last paragraph with:
"This standard does not cover in situ insulation products nor products intended to be used for the
insulation of building equipment and industrial installations.".
3 Modification to Clause 2, "Normative references"
Replace the reference to "EN 12086:1997" with a reference to "EN 12086:2013".
Replace the reference to "EN 13172:2012" with an undated reference "EN 13172".
Add the following reference:
"EN 16516, Construction products — Assessment of release of dangerous substances — Determination of
emissions into indoor air".
4

---------------------- Page: 6 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
4 Modification to Clause 3, "Terms, definitions, symbols, units and abbreviated
terms"
In 3.1, delete the term and definition for "3.1.2 level" and "3.1.3 class" and modify the numbers of the
remaining terms accordingly.
In 3.2, delete the following abbreviated terms:
PTD is Product Type Determination (previously named ITT for Initial Type Test)
VCP is Verification of Constancy of Performance (previously named evaluation of conformity)
Add the following abbreviated term:
"
TT is Type Testing (previously named PTD for Product Type Determination, and before that
ITT for Initial Type Test)
".
5 Modification to Clause 4, "Requirements"
In the title of Clause 4, replace "Requirements" with "Characteristics".
6 Modification to 4.1, "General"
Replace the text in the clause with the following:
"Product properties shall be assessed in accordance with Clause 5. To comply with this standard,
products shall meet the characteristics of 4.2, and the characteristics of 4.3 as appropriate.
One test result for a product property is the average of the measured values on the number of test
specimens given in Table 11.
For multi-layered products, additional characteristics are given in Annex D.
NOTE Information on additional properties is given in Annex E.".
7 Modification to 4.2.3, "Thickness"
Replace Table 2 with the following:
"Table 2 — Classes for thickness tolerances
Nominal thickness
mm
Class dn < 50 50 ≤ dn < to 75 dn ≥ 75
Tolerance
mm
T1 ± 3 ± 4 + 6, – 4
T2 ± 2 ± 3 + 5, – 3
T3 ± 1,5 ± 1,5 ± 1,5
".
5

---------------------- Page: 7 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
8 Modification to 4.3.1, "General"
Replace the text in the subclause with:
"If there is no characteristic for a property described in 4.3 for a product in use, then the property does
not need to be determined and declared by the manufacturer.".
9 Modification to 4.3.3, "Deformation under specified compressive load and
temperature conditions"
Replace the Table 7 with:
"Table 7 — Levels for deformation under specified compressive load and temperature
conditions
Characteristic
Level Test conditions
%
load: 20 kPa
DLT(1)5 temperature: (80 ± 1) °C
time: (48 ± 1) h
load: 40 kPa
DLT(2)5 temperature: (70 ± 1) °C ≤ 5
time: (168 ± 1) h
load: 80 kPa
DLT(3)5 temperature: (60 ± 1) °C
time: (168 ± 1) h
".
10 Modification to 4.3.4, "Compressive stress or compressive strength"
Replace Table 8 with:
"Table 8 — Levels for compressive stress or compressive strength
Level Characteristic
kPa
CS(10\Y)25 ≥ 25
CS(10\Y)50 ≥ 50
CS(10\Y)100 ≥ 100
CS(10\Y)120 ≥ 120
CS(10\Y)130 ≥ 130
CS(10\Y)140 ≥ 140
CS(10\Y)150 ≥ 150
CS(10\Y)175 ≥ 175
CS(10\Y)200 ≥ 200
CS(10\Y)225 ≥ 225
CS(10\Y)250 ≥ 250
Values higher than 250 kPa can be declared in steps of 50 kPa.
6

---------------------- Page: 8 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
".
11 Modification to 4.3.5," Tensile strength perpendicular to faces"
Replace Table 9 with:
"Table 9 — Levels for tensile strength perpendicular to faces
Characteristic
Level
kPa
TR40 ≥ 40
TR50 ≥ 50
TR60 ≥ 60
TR70 ≥ 70
TR80 ≥ 80
TR90 ≥ 90
TR100 ≥ 100
TR150 ≥ 150
".
12 Modification to 4.3.7.1, "Short term water absorption"
Please replace the text in the subclause with the following:
"Short term water absorption by partial immersion, W , shall be determined in accordance with
sp
EN 1609. No test result shall exceed the declared level Wsp. The level shall be declared in steps of 0,1
2
.".
kg/m
13 Modification to 4.3.7.2, "Long term water absorption"
Please replace the text in the subclause with the following:
"Long term water absorption by partial immersion, W , and/or by total immersion, W , shall be
lp lt
determined in accordance with EN 12087. No test result shall exceed the declared level.
2
The level W shall be declared in steps of 0,1 kg/m . The level W shall be declared in steps of 1 %.".
lp lt
14 Modification to 4.3.11, "Release of dangerous substances"
Replace the text in the subclause with the following:
1)
"If the release of dangerous substances into indoor air is tested, this shall be done according to
EN 16516.
NOTE An informative database covering European and national provisions on dangerous substances is
available at the Construction web site on EUROPA accessed through:
http://ec.europa.eu/growth/sectors/construction/eu-lci/values_en".

1 ) See for reference the LCI list of the European Commission "Agreed EU-LCI values"
(http://ec.europa.eu/growth/sectors/construction/eu-lci/values_en).
7

---------------------- Page: 9 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
15 Modification to 4.3.13, "Continuous glowing combustion"
Replace the whole subclause with the following:
"4.3.13 Propensity to undergo continuous smouldering
Not applicable.
NOTE Glowing combustion (continuous smouldering) is no essential characteristic for PU. With the
document CPR 09/4a/3 the EU commission confirms, that this characteristic has not to be tested for products
covered by EN 13165.".
16 Modification to 5.3.3, "Flatness after one-sided wetting – Conditioning
procedure"
Replace Table 11 with the following:
"Table 11 — Test methods, test specimens and conditions
Dimensions in millimetres
Minimum
Clause
number of
Test specimen measure- Specific
Test method
a
length and width ments to get conditions
one test
No Title
result
Thermal resistance and EN 12667 or
4.2.1 See Annex C 1 See Annex C
thermal conductivity EN 12939
4.2.2 Length and width EN 822 Full-size 1 –
4.2.3 Thickness EN 823 Full-size 1 Load = 50 Pa
4.2.4 Squareness EN 824 Full-size 1 –
4.2.5 Flatness EN 825 Full-size 1 –
Reaction to fire of the
See Clause 5 of
4.2.6 product as placed on the See EN 13501-1 and EN 15715
EN 15715:2009
market
Dimensional stability under
4.3.2 EN 1604 200 × 200 3 –
specified conditions
Deformation under d ≤ 50: 50 × 50
4.3.3 specified compressive load EN 1605 d > 50: 100 × 100 3 –
and temperature conditions d > 150: 150 × 150
d ≤ 50: 50 × 50
Compressive stress or
4.3.4 EN 826 d > 50: 100 × 100 3 –
compressive strength
d > 150: 150 × 150
Tensile strength
4.3.5 EN 1607 50 × 50 3 –
perpendicular to faces
4.3.6 Compressive creep EN 1606 Same as 4.3.4 2 –
Short term water
4.3.7.1 EN 1609 200 × 200 2 Method A
absorption
Method 1A
Long term water
4.3.7.2 EN 12087 200 × 200 2 or/and Method
absorption
2A
8

---------------------- Page: 10 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
Minimum
Clause
number of
Test specimen measure- Specific
Test method
a
length and width ments to get conditions
one test
No Title
result
Flatness after one-sided Full-size product or Conditioning as
4.3.8 EN 825 1 per side
wetting 1 200 × 600 in 5.3.3
See 6.1 in
4.3.9 Water vapour transmission EN 12086 3 –
EN 12086:2013
4.3.10 Sound absorption EN ISO 354 Minimum 10 m2 1 To be reported
Release of dangerous
4.3.11 EN 16516 See EN 16516 See EN 16516 4.3.11
substances
Reaction to fire of the
product in standardized See Clause 6 of
4.3.12 See EN 13501-1 and EN 15715
assemblies simulating end- EN 15715:2009
use applications
Method 2, with
C.5.1 Closed cell content EN ISO 4590 100 × 30 × 30 3
correction
a
Full-size product thickness, except for 4.2.6 when the limits of the test methods are exceeded.
".
17 Modification to Clause 6, "Designation code"
Replace the first sentence with the following:
"If a designation code is provided for the product, it shall be given by the manufacturer. The following
shall be included except when there is no characteristic for a property described in 4.3:".
18 Modification to Clause 7, "Assessment and Verification of the Constancy of
Performance (AVCP)"
Replace the subclauses with the following:
"7.1 General
The Assessment and Verification of Constancy of Performance (AVCP) shall be carried out in accordance
with EN 13172.
The compliance of the Factory made rigid polyurethane foam with the characteristics of this standard
and with the performances declared by the manufacturer in the DoP shall be demonstrated by:
— determination of the product type;
— Factory Production Control (FPC) by the manufacturer, including product assessment.
If a manufacturer decides to group his products, it shall be done in accordance with EN 13172.
7.2 Type Testing (TT)
All performances related to characteristics included in this standard shall be determined when the
manufacturer intends to declare the respective performances unless the standard gives provisions for
declaring them without performing tests. (e.g. use of previously existing data, CWFT and conventionally
accepted performance).
The type testing (TT) shall be carried out in accordance with Annex B
9

---------------------- Page: 11 ----------------------

SIST EN 13165:2013+A2:2016/oprA3:2018
EN 13165:2012+A2:2016/prA3:2018 (E)
For the relevant characteristics, TT on products corresponding also to EN 14308 may be used for the
purpose of TT and Declaration of Performance (DoP) according to this standard.
7.3 Factory Production Control (FPC)
The manufacturer shall establish, document and maintain an FPC system to ensure that the products
placed on the market comply with the declared performance of the essential characteristics.
The minimum frequencies of tests in the factory production control (FPC) shall be in accordance with
Annex B. When indirect testing is used, the correlation to direct testing shall be established in
accordance with EN 13172.
For the relevant characteristics, FPC on products corresponding also to EN 14308 may be used for the
purpose of FPC and DoP according to this standard.
7.4 Initial inspection of Factory and FPC
The initial inspection of the factory and of the FPC shall be carried out in accordance with EN 13172.
7.5 Continuous surveillance of FPC
The continuous surveillance of FPC shall be carried out in accordance with EN 13172.".
19 Modification to Clause 8, "Marking and labelling"
Delete the note and replace the example with the following:
"EXAMPLE Additional information:
Any other information about the product such as:
— Reaction to fire class for standardized assembly No. 1,2, 3, 4
— Voluntary Quality marks
".
20 Modification to Annex A, "Determination of the declared values of thermal
resistance and thermal conductivity"
Replace subclauses A.1 and A.2 with the following:
"A.1 General
"The declared values of thermal resistance and the
...
