SIST EN 14264:2003

Derivatives from coal pyrolysis - Coal tar and pitch based binders and related products : impregnating pitch - Characteristics and test methods

This European Standard specifies the methods of test required to determine the characteristics for "impregnating pitch" used for industrial purposes.
Depending on the required application and the desired properties of the end product, different grades of impregnating pitch are available.

Derivate der Kohlenpyrolyse - Bindemittel aus Steinkohlenteer und Steinkohlenteerpech und verwandte Produkte: Imprägnierpech - Anforderungen und Prüfverfahren

Diese Europäische Norm legt Prüfverfahren zur Bestimmung der Eigenschaften von "Imprägnierpech" für industrielle Zwecke fest.
Abhängig von der geforderten Anwendung und den gewünschten Eigenschaften des Endproduktes sind unterschiedliche Klassen von "Imprägnierpech" erhältlich.

Produits dérivés de la pyrolyse du charbon - Liants a base de goudron et de brais issus de la houille et produits connexes: Brai d'imprégnation - Caractéristiques et méthodes d'essai

La présente Norme européenne spécifie les méthodes d'essai nécessaires à la détermination des caractéristiques des « brais d'imprégnation » utilisés à des fins industrielles.
En fonction de l'utilisation prévue et des propriétés souhaitées pour le produit fini, différentes catégories de brais d'imprégnation existent.

Derivatives from coal pyrolysis - Coal tar and pitch based binders and related products: impregnating pitch - Characteristics and test methods

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 75.160.10 - Solid fuels
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: EN 14264:2003 - Derivatives from coal pyrolysis - Coal tar and pitch based binders and related products : impregnating pitch - Characteristics and test methods

Overview

EN 14264:2003 is a CEN (European) standard that specifies the methods of test required to determine the characteristics of impregnating pitch derived from coal pyrolysis. It applies to coal tar and pitch‑based binders and related products used for industrial impregnation purposes. Different grades of impregnating pitch exist depending on the application and desired end‑product properties.

Key topics and technical requirements

The standard focuses on a defined set of physical and chemical characteristics that must be measured using specified, normative test methods:

• Characteristics to be determined

  • Softening point
  • Flash point
  • Ash content
  • Toluene‑insoluble content
  • Quinoline‑insoluble content
  • Coking value

• Test methods

  • The standard references specific international methods (e.g., ISO and DIN standards). Table mapping (as given in EN 14264) includes:
    • Ash content - ISO 8006
    • Toluene‑insoluble - ISO 6376
    • Quinoline‑insoluble - ISO 6791
    • Coking value - ISO 6998
    • Softening point - DIN 51920 (ring & ball or equivalent)
    • Flash point - EN ISO 2719 (Pensky‑Martens closed cup)

• Sampling

  • Sampling and sample preparation follow ISO 6257. Methods cover liquid and solid forms (solids with softening point > 30 °C), batches in containers, and large consignments including ship loading/unloading.

• Classification and specifications

  • Classification follows EN 13847:2001 (terminology and classification for coal tar and pitch based binders).
  • Customer‑requested specifications apply; Annex A gives informative typical values that can be used as requirements.

• Typical values (informative)

  • Softening point: 50 °C to 130 °C
  • Flash point: > 100 °C
  • Ash: 0.1% to 1.0%
  • Toluene‑insoluble: 5% to 30%
  • Quinoline‑insoluble: 0% to 10%
  • Coking value: > 35%

Practical applications and users

EN 14264:2003 is relevant to:

• Manufacturers and suppliers of impregnating pitch, coal tar and pitch‑based binders
• Quality control and testing laboratories performing acceptance tests
• Specifiers and purchasers in industries that use pitch for impregnation (e.g., carbonaceous material producers, aluminium electrode pitch applications referenced in related ISO standards)
• Logistics and storage operators handling bulk or containerized consignments where sampling during loading/unloading is required

Use of the standard ensures consistent testing, reliable product specification and conformity with European practice for impregnating pitch quality control.

Related standards

• EN 13847:2001 - Terminology and classification for coal tar and pitch based binders
• ISO 6257 - Sampling methods for pitch
• EN ISO 2719 - Flash point (Pensky‑Martens)
• ISO 6376 / ISO 6791 / ISO 6998 / ISO 8006 - Specific test methods referenced by EN 14264

Keywords: EN 14264:2003, impregnating pitch, coal tar, pitch based binders, test methods, softening point, flash point, ash content, toluene‑insoluble, quinoline‑insoluble, coking value, ISO 6257, CEN.

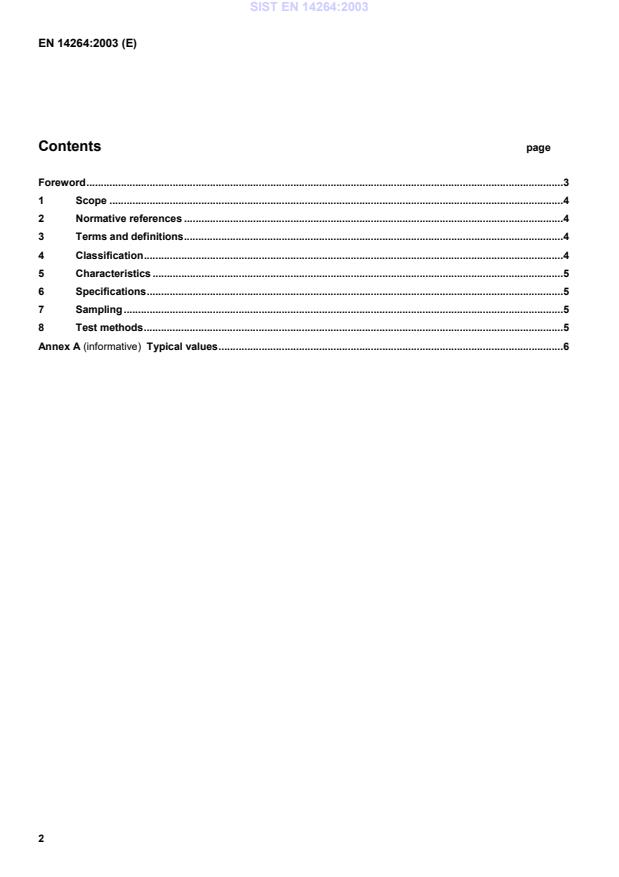

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Derivatives from coal pyrolysis - Coal tar and pitch based binders and related products: impregnating pitch - Characteristics and test methodsDerivate der Kohlenpyrolyse - Bindemittel aus Steinkohlenteer und Steinkohlenteerpech und verwandte Produkte: Imprägnierpech - Anforderungen und PrüfverfahrenProduits dérivés de la pyrolyse du charbon - Liants a base de goudron et de brais issus de la houille et produits connexes: Brai d'imprégnation - Caractéristiques et méthodes d'essaiDerivatives from coal pyrolysis - Coal tar and pitch based binders and related products : impregnating pitch - Characteristics and test methods75.160.10Trda gorivaSolid fuelsICS:Ta slovenski standard je istoveten z:EN 14264:2003SIST EN 14264:2003en01-december-2003SIST EN 14264:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14264September 2003ICS 75.140English versionDerivatives from coal pyrolysis - Coal tar and pitch basedbinders and related products : impregnating pitch -Characteristics and test methodsProduits dérivés de la pyrolyse du charbon - Liants à basede goudron et de brais issus de la houille et produitsconnexes: brai d'imprégnation - Caractéristiques etméthodes d'essaiDerivate der Kohlenpyrolyse - Bindemittel ausSteinkohlenteer und Steinkohlenteerpech und verwandteProdukte: Imprägnierpech - Anforderungen undPrüfverfahrenThis European Standard was approved by CEN on 10 July 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14264:2003 ESIST EN 14264:2003

Typical values.6SIST EN 14264:2003
...
