SIST EN 13303:2017

Bitumen and bituminous binders - Determination of the loss in mass after heating of industrial bitumen

This European Standard specifies a method for the determination of the loss in mass of industrial bitumen after heating. The method is used to detect volatile components.
NOTE   The users of the method are encouraged to gather comparative information on binders using this standard, EN 13303 and EN 12607-2 [1] at 163 °C to facilitate the transition to the use of only one standard.
WARNING - The use of this standard may involve hazardous materials, operations and equipment. This standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and to determine the applicability of regulatory limitations prior to use.

Bitumen und bitumenhaltige Bindemittel - Bestimmung des Masseverlustes von Industriebitumen nach Erwärmung

Diese Europäische Norm legt ein Verfahren zur Bestimmung des Masseverlustes von Industriebitumen nach Erwärmung fest. Das Verfahren dient zum Nachweis flüchtiger Bestandteile.
ANMERKUNG   Die Anwender dieses Verfahrens werden ermutigt, vergleichbare Informationen über Bindemittel mittels dieser Norm, EN 13303, und EN 12607 2 [1] bei 163 °C zu sammeln, um den Übergang zur Anwendung von nur einer Norm zu erleichtern.
WARNUNG - Die Anwendung dieser Europäischen Norm kann die Anwendung gefährlicher Stoffe, Arbeitsgänge und Geräte mit sich bringen. Diese Europäische Norm beansprucht nicht, alle damit verbundenen Sicherheitsprobleme zu behandeln. Es liegt in der Verantwortung des Anwenders dieser Europäischen Norm, vor ihrer Anwendung geeignete Maßnahmen für die Sicherheit und den Gesundheitsschutz des Personals zu ergreifen, und dafür Sorge zu tragen, dass behördliche und gesetzliche Maßnahmen eingehalten werden.

Bitumes et liants bitumineux - Détermination de la perte de masse au chauffage des bitumes industriels

La présente Norme européenne prescrit une méthode de détermination de la perte de masse des bitumes industriels après chauffage. On utilise cette méthode pour détecter des composants volatils.
NOTE   Les utilisateurs de la présente méthode sont invités à collecter des informations comparatives sur les liants obtenus sur la base de la présente norme, l’EN 13303, et de l’EN 12607-2 [1] à 163 °C pour faciliter la transition vers l’utilisation d’une seule norme.
AVERTISSEMENT - L'utilisation de la présente Norme européenne peut impliquer l'intervention de produits, d'opérations et d'équipements à caractères dangereux. La présente Norme européenne n'est pas censée aborder tous les problèmes de sécurité associés à son usage. Il est de la responsabilité de l'utilisateur de consulter et d'établir des règles de sécurité et d'hygiène appropriées et de déterminer l'applicabilité des restrictions réglementaires avant utilisation.

Bitumen in bitumenska veziva - Določanje izgube mase industrijskih bitumnov po segrevanju

Ta evropski standard določa metodo za določanje izgube mase industrijskih bitumnov po segrevanju. Metoda se uporablja za odkrivanje hlapnih komponent.
OPOMBA: Uporabnikom metode se priporoča, da zberejo primerjalne informacije o vezivih pri 163 °C iz tega standarda ter standardov EN 13303 in EN 12607-2 [1] za lažji prehod na uporabo enega standarda.
OPOZORILO: Pri uporabi tega standarda so lahko prisotni nevarni materiali, postopki in oprema. Ta standard ne obravnava vseh varnostnih težav, ki se nanašajo na njegovo uporabo. Za vzpostavitev ustreznih varnostnih in zdravstvenih praks ter za določitev uporabnosti regulativnih omejitev pred uporabo je odgovoren uporabnik tega standarda.

General Information

• Status: Published
• Public Enquiry End Date: 29-Mar-2016
• Publication Date: 17-Oct-2017
• ICS: 75.140 - Waxes, bituminous materials and other petroleum products
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: VLA - Water proofing
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Oct-2017
• Due Date: 09-Dec-2017
• Completion Date: 18-Oct-2017
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Ref Project: EN 13303:2017 - Bitumen and bituminous binders - Determination of the loss in mass after heating of industrial bitumen

Relations

• Replaces: SIST EN 13303:2009 - Bitumen and bituminous binders - Determination of the loss in mass after heating of industrial bitumen
• Effective Date: 01-Nov-2017

Overview

EN 13303:2017 - published by CEN - defines a standardized laboratory method for determining the loss in mass after heating of industrial bitumen. The test detects volatile components in bitumen and bituminous binders by weighing a sample before and after controlled heating. The method can be performed at various temperatures; the reference temperature is 163 °C. This standard is widely used for quality control, specification compliance and comparative evaluation of industrial bitumen.

Key topics and technical requirements

• Principle: weigh a sample, heat under defined conditions, cool and re-weigh to calculate mass loss (percentage).
• Reference conditions:
  • Sample mass: 50.0 ± 0.5 g (duplicate tests required).
  • Reference temperature: 163 °C (other test temperatures permitted).
  • Heating period: maintain test temperature ±1 °C for 5 hours (total time not to exceed 5 h 15 min).
  • Rotation: circular shelf rotating at 5–6 r/min to ensure uniform exposure.
• Apparatus:
  • Electrically heated oven ventilated by natural convection (internal min. 330 mm each direction).
  • Rotating shelf (nominal diameter ≥250 mm).
  • Temperature measuring device (range ~155–170 °C, readable to 0.1 °C, accuracy ≤0.5 °C). Mercury thermometers are no longer the reference but allowed where regulations permit.
  • Cylindrical metal or glass containers (≈55 mm diameter × 35 mm depth) and a balance with 0.01 g readability.
• Results and precision:
  • Two determinations are valid if their difference ≤0.05% mass fraction absolute.
  • Express results as the average to nearest 0.01% mass fraction.
  • Precision guidance: for loss <0.5% repeatability r = 0.1, reproducibility R = 0.2; higher ranges have larger tolerances (see EN 13303:2017).
• Safety: the standard warns of hazardous materials and operations; users must implement appropriate health and safety practices.

Applications and users

EN 13303:2017 is intended for:

• Bitumen and asphalt manufacturers performing quality control and batch verification.
• Independent testing laboratories conducting industrial bitumen testing.
• Product development teams evaluating volatility, storage stability, and handling characteristics.
• Specifiers, purchasers and regulatory bodies verifying compliance with contractual or regulatory requirements.

Practical use cases include monitoring volatile losses during storage or processing, comparing binders for performance testing, and supporting specification limits for mass loss after heating.

Related standards

• EN 58 - Sampling of bituminous binders
• EN 1426 - Determination of needle penetration
• EN 12594 - Preparation of test samples
• EN 12607‑2 - TFOT method (resistance to hardening under heat and air) - recommended for comparative data at 163 °C

Keywords: EN 13303:2017, bitumen testing, loss in mass after heating, bituminous binders, 163 °C, volatile components, industrial bitumen, CEN standard.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VHJUHYDQMXBitumen und bitumenhaltige Bindemittel - Bestimmung des Masseverlustes von Industriebitumen nach ErwärmungBitumes et liants bitumineux - Détermination de la perte de masse au chauffage des bitumes industrielsBitumen and bituminous binders - Determination of the loss in mass after heating of industrial bitumen91.100.50Veziva. Tesnilni materialiBinders. Sealing materials75.140Voski, bitumni in drugi naftni proizvodiWaxes, bituminous materials and other petroleum productsICS:Ta slovenski standard je istoveten z:EN 13303:2017SIST EN 13303:2017en,fr,de01-november-2017SIST EN 13303:2017SLOVENSKI
STANDARDSIST EN 13303:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13303
September
t r s y ICS
y wä s v râ
{ sä s r rä w r Supersedes EN
s u u r uã t r r {English Version
Bitumen and bituminous binders æ Determination of the loss in mass after heating of industrial bitumen Bitumes et liants bitumineux æ Détermination de la perte de masse au chauffage des bitumes industriels
Bitumen und bitumenhaltige Bindemittel æ Bestimmung des Masseverlustes von Industriebitumen nach Erwärmung This European Standard was approved by CEN on
s May
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u u r uã t r s y ESIST EN 13303:2017

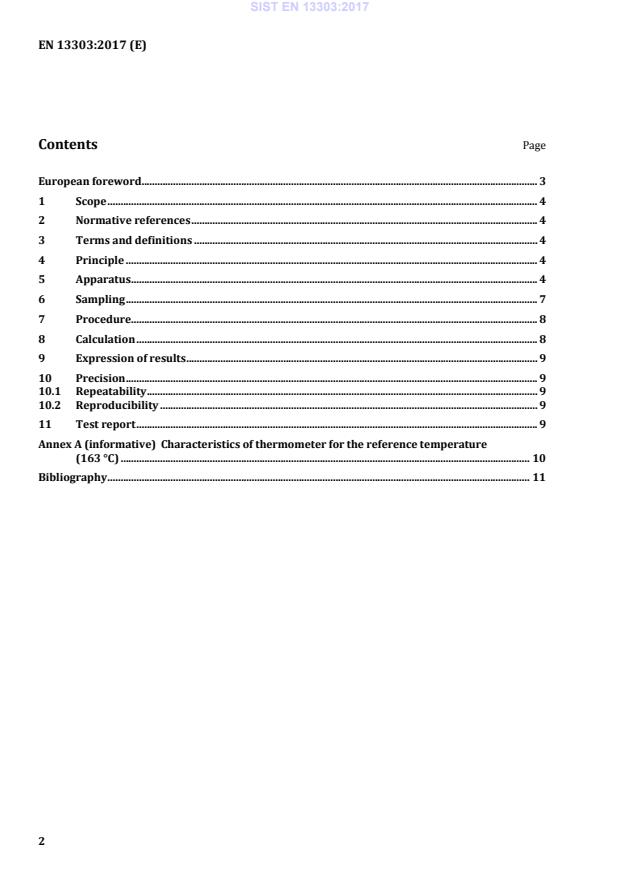

Characteristics of thermometer for the reference temperature (163 °C) . 10 Bibliography . 11
The method can be performed at various test temperatures, but 163 °C is the reference temperature.
Clause 9 Expression of results has been made more precise. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13303:2017
...
